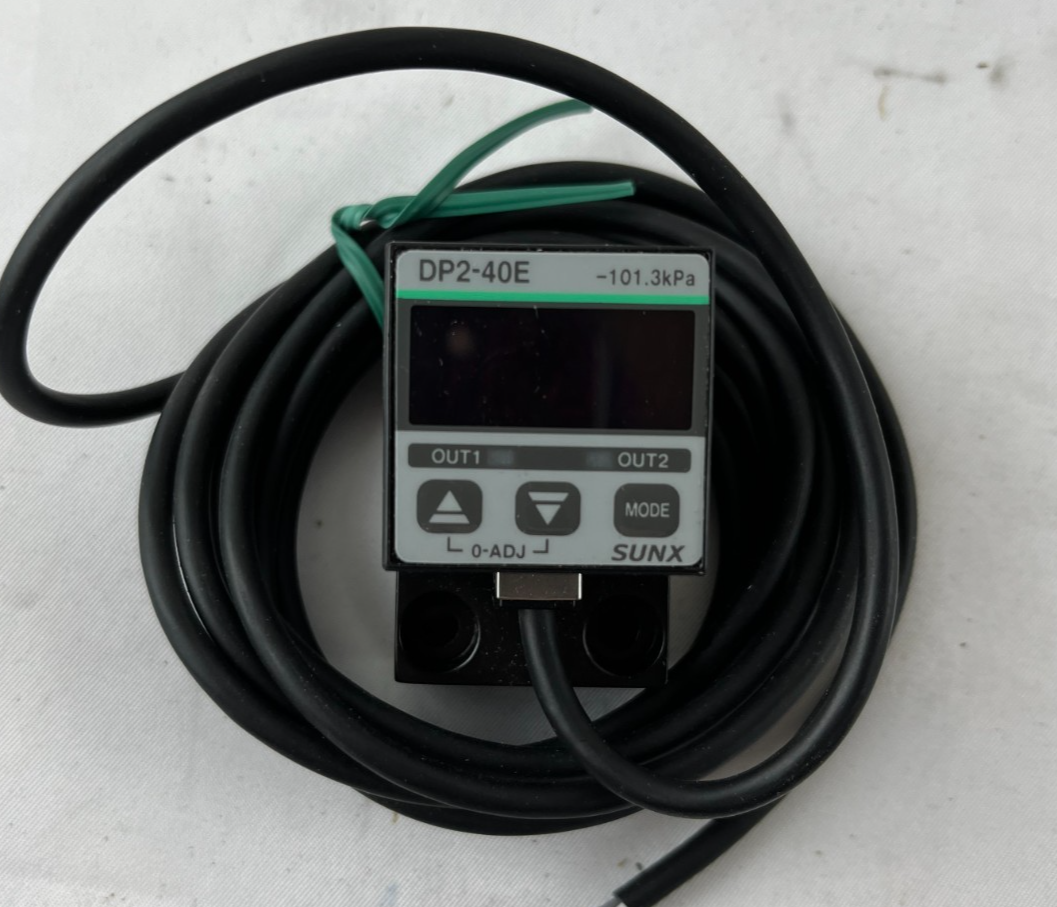

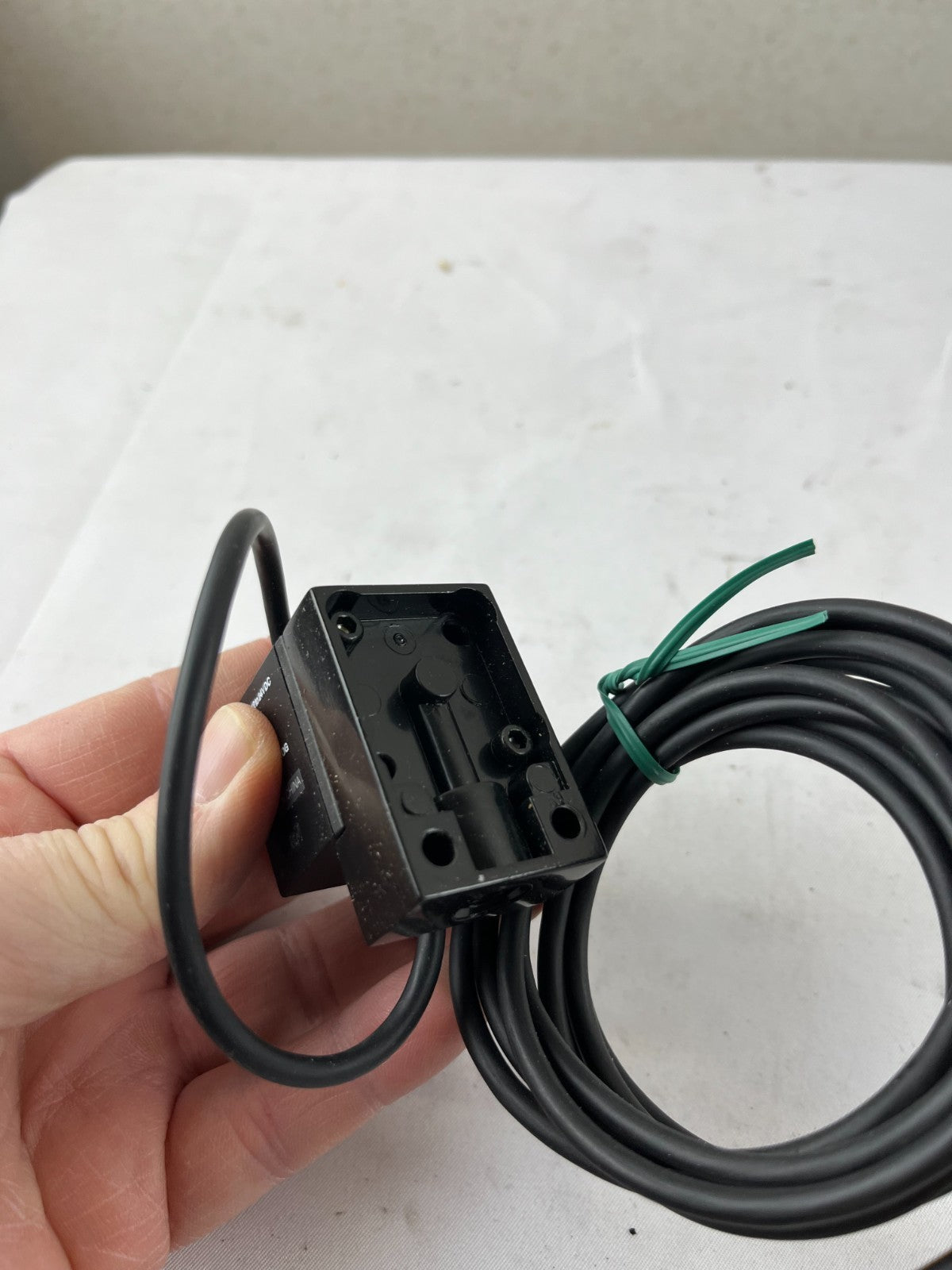

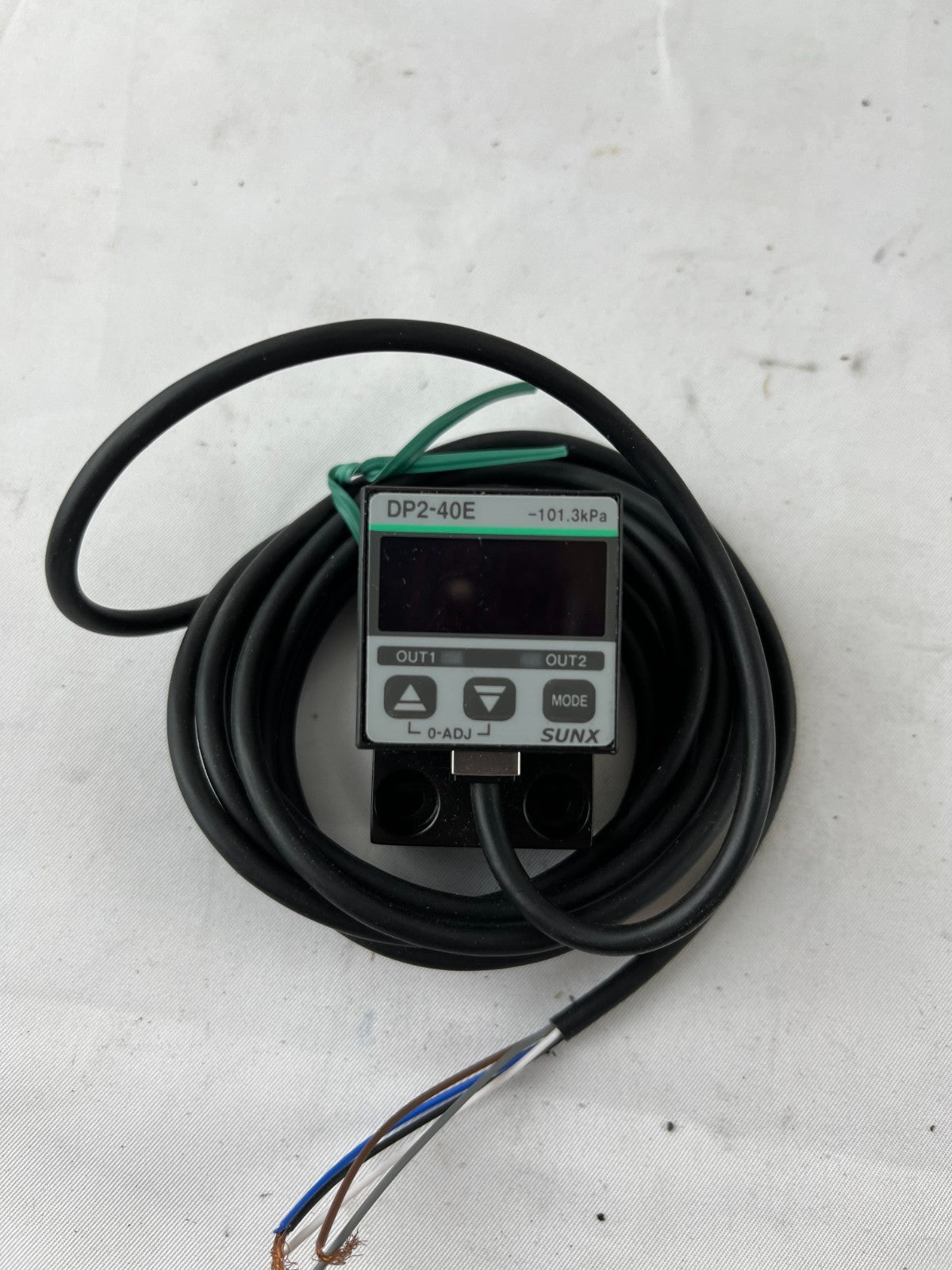

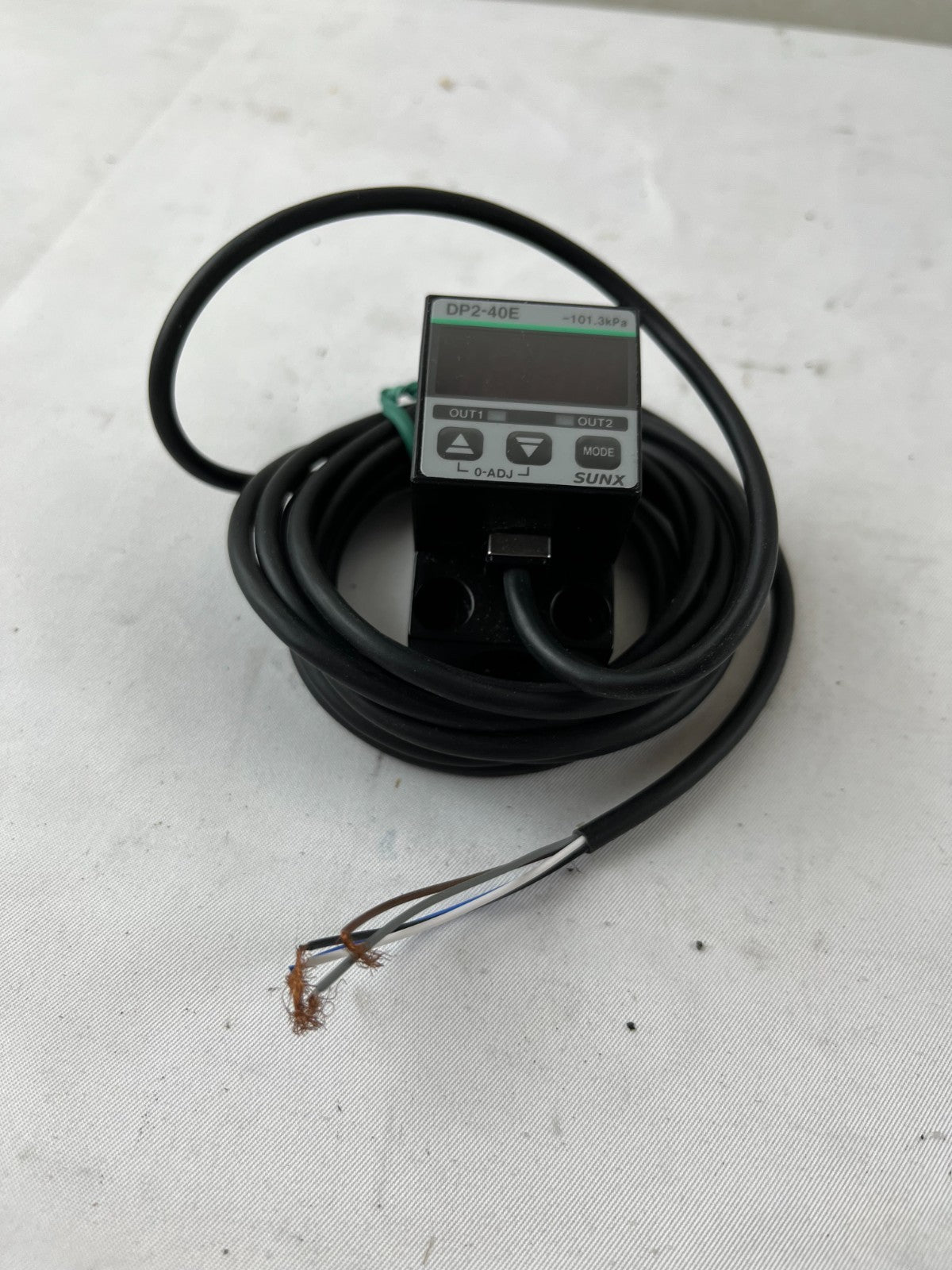

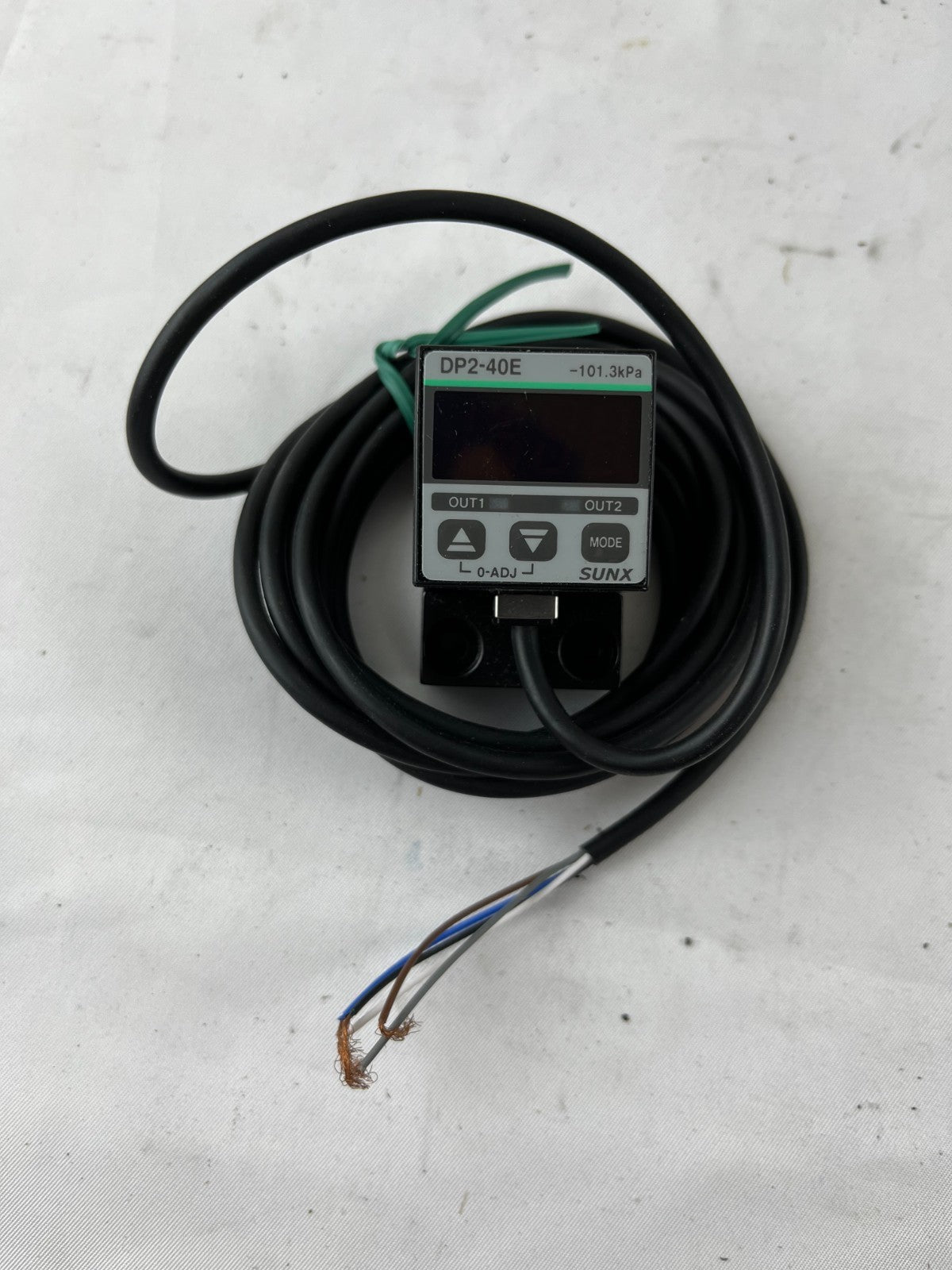

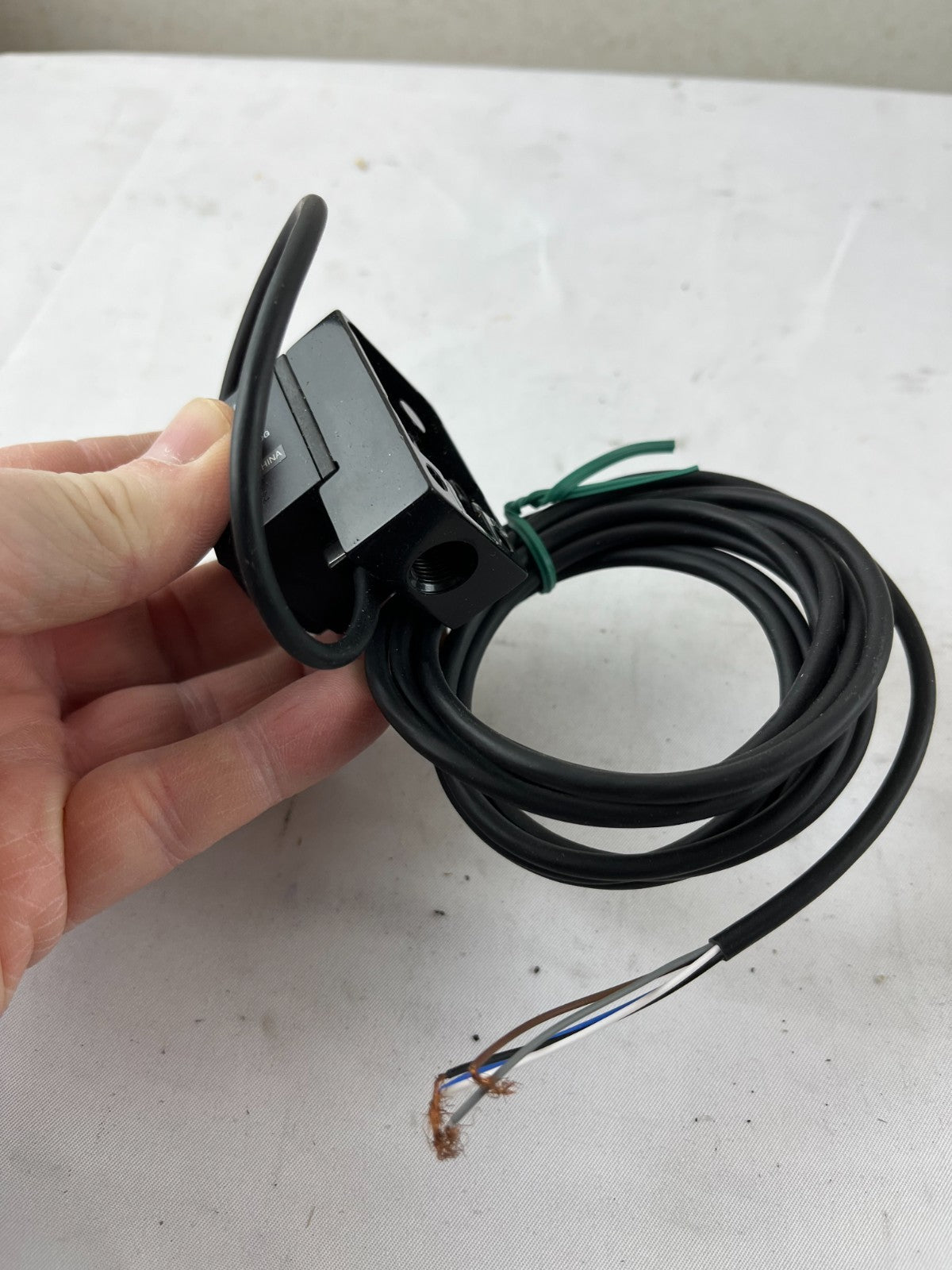

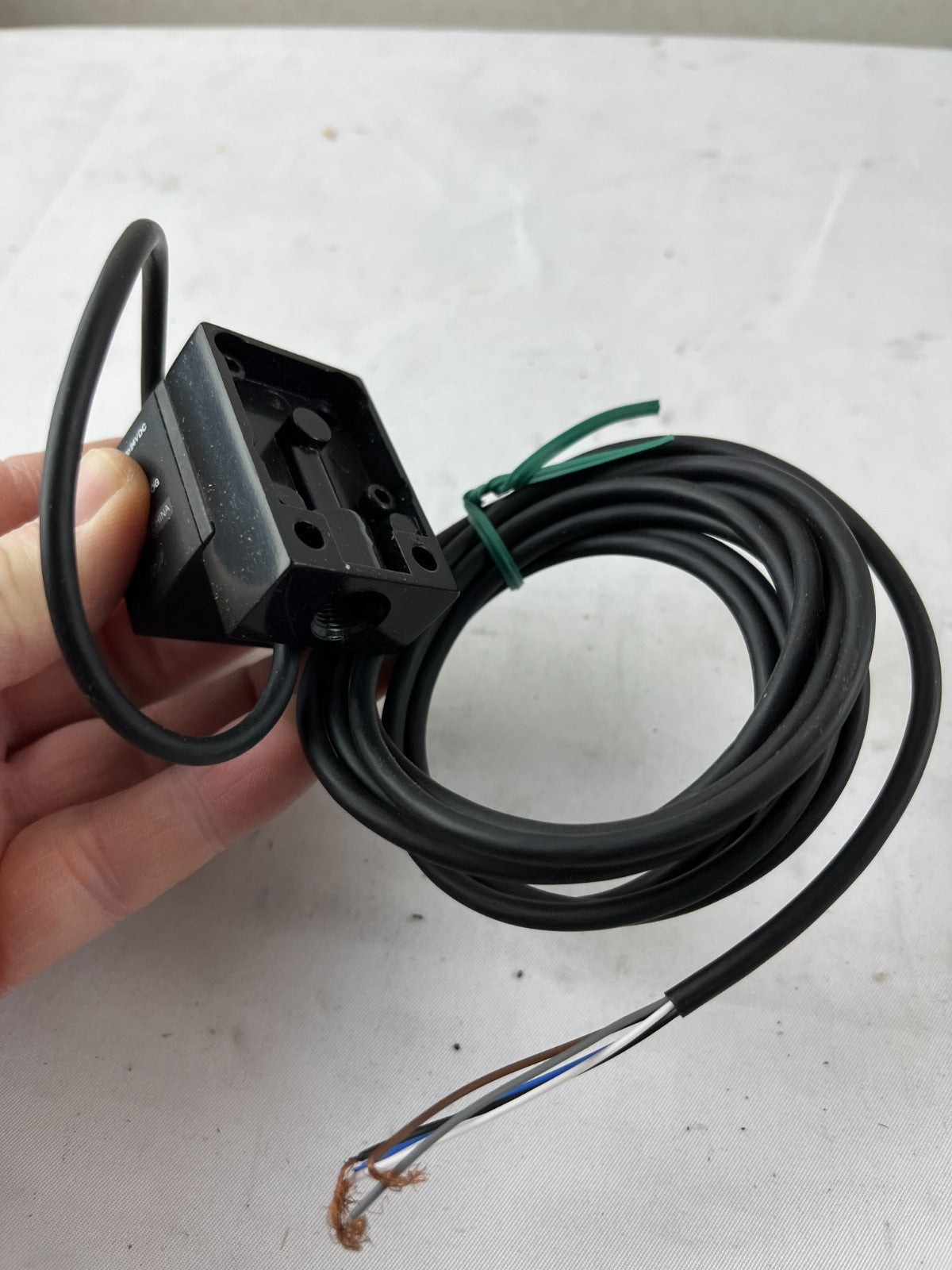

Panasonic SUNX DP2-40E Digital Vacuum Pressure Switch -101.3kPa Flat 24VDC Japan

Panasonic SUNX DP2-40E Digital Vacuum Pressure Switch -101.3kPa Flat 24VDC Japan

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand & Model

  • Manufacturer: Panasonic Electric Works (SUNX), Japan

  • Model: DP2-40E

  • Series: DP2 High-Performance Digital Pressure Sensor

  • Type: Flat-type vacuum pressure sensor

  • Condition: New, never used, fully functional

  • Made in Japan

• Technical Specifications

  • Pressure type: Gauge vacuum pressure

  • Rated pressure range: 0 to -101.3 kPa (-30 inHg)

  • Set pressure range: 5.1 to -101.3 kPa

  • Pressure withstandability: 490 kPa

  • Applicable fluid: Non-corrosive gases

  • Accuracy: Within 1 percent full scale

  • Response time: 2.5 ms or less

• Electrical Specifications

  • Supply voltage: 12 to 24V DC plus or minus 15 percent

  • Current consumption: 50 mA or less

  • Ripple tolerance: 10 percent peak-to-peak or less

  • Output type: 2 NPN open-collector transistor outputs (Asia/North America standard)

  • Maximum sink current: 100 mA per output

  • Analog output: 1 to 5V DC over rated pressure range

  • Output linearity: Within plus or minus 1 percent full scale

  • Output impedance: Approximately 1 kilohm

• Display Features

  • 3.5 digit red LED display with high visibility

  • Selectable units: kPa, kgf/cm², bar, PSI, mmHg, inHg

  • LED bar graph display in 10 percent steps

  • Sampling rate: 4 times per second approximately

  • Displayable range: 5.1 to -101.3 kPa

• Output Modes

  • Hysteresis mode for standard vacuum switching applications

  • Window comparator mode for range detection

  • Dual output mode for independent threshold control

  • Automatic sensitivity setting mode

  • Front-panel programming via three buttons

• Connection Details

  • Pressure port: Rc (PT) 1/8 female thread

  • Pre-wired cable with color-coded leads

  • Brown: Plus 12 to 24V DC power

  • Blue: 0V ground

  • Black: Output 1

  • White: Output 2

  • Gray: Analog output 1 to 5V

• Features & Applications

  • Flat compact design: 17mm thick profile saves space

  • Protection rating: IP40 standard

  • Operating temperature: -10°C to +50°C

  • Storage temperature: -10°C to +60°C

  • Zero-adjust and span calibration functions

  • Settings stored in EEPROM (100,000 write cycles guaranteed)

  • Dimensions: 31.6 x 31.6 x 17mm approximately

  • Weight: Approximately 70 grams

  • Ideal for vacuum pick-and-place systems, vacuum grippers, leak detection

  • Suitable for semiconductor handling, packaging lines, vacuum forming, suction cups
