Panasonic Sunx DP2-42E Digital Pressure Sensor 0-10 Bar PNP Analog Output 1-5V

Panasonic Sunx DP2-42E Digital Pressure Sensor 0-10 Bar PNP Analog Output 1-5V NIB

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand: Panasonic Sunx​

• Model: DP2-42E / UDP242E​

• Part number: 0601-0248-00​

• Type: High-precision digital pressure sensor with dual comparator outputs and analog voltage output​

• Pressure range: 0 to 10 bar (0 to 1.000 MPa / 0 to 145 PSI gauge pressure)​

• Display: 3½-digit red LED with analog LED bar graph (10% F.S. steps)​

• Selectable units: MPa, kgf/cm², bar, psi​

• Output 1: Dual PNP open-collector transistor, 100 mA max per output​

• Output 2: Analog voltage 1–5 VDC (over rated pressure range), ±1% F.S. linearity​

• Power supply: 12–24 VDC ±10%​

• Response time: 2.5 ms or less​

• Pressure port: G (PF) 1/8 female thread​

• Output modes: 4 programmable modes (hysteresis, window comparator, dual output, automatic sensitivity setting)​

• Protection: IP40 rated​

• Operating temperature: –10 to +50°C​

• Applicable fluid: Non-corrosive gas​

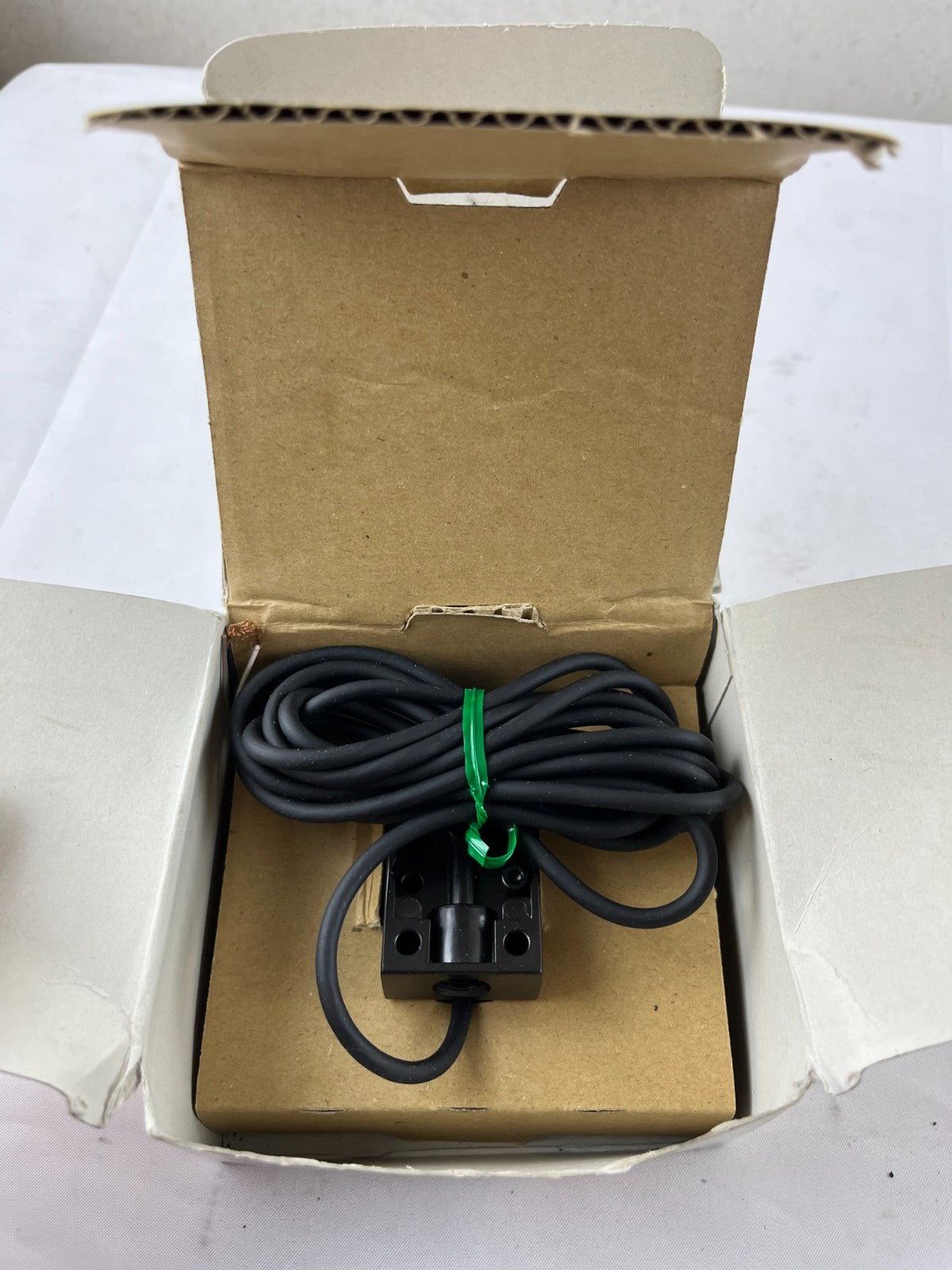

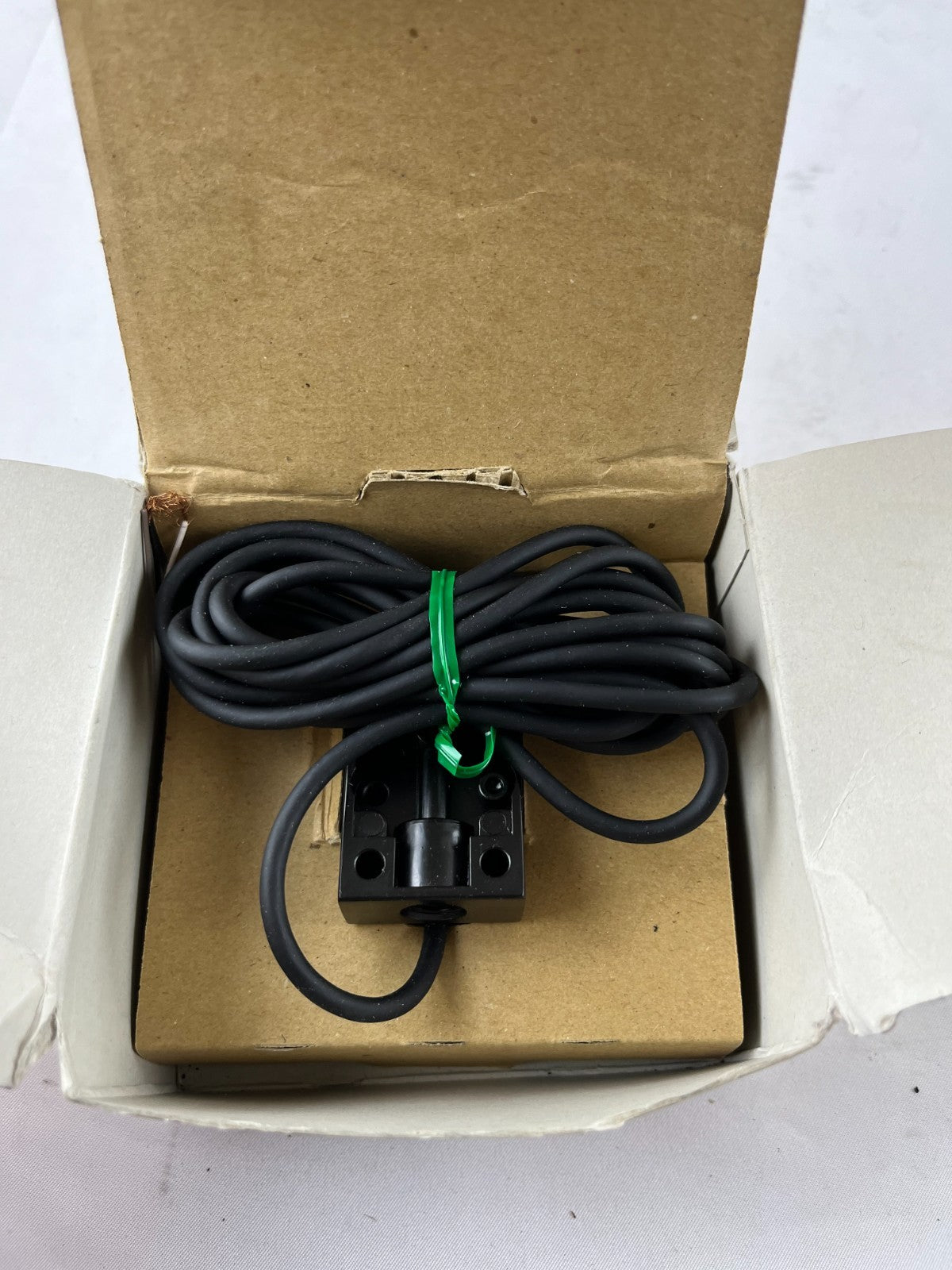

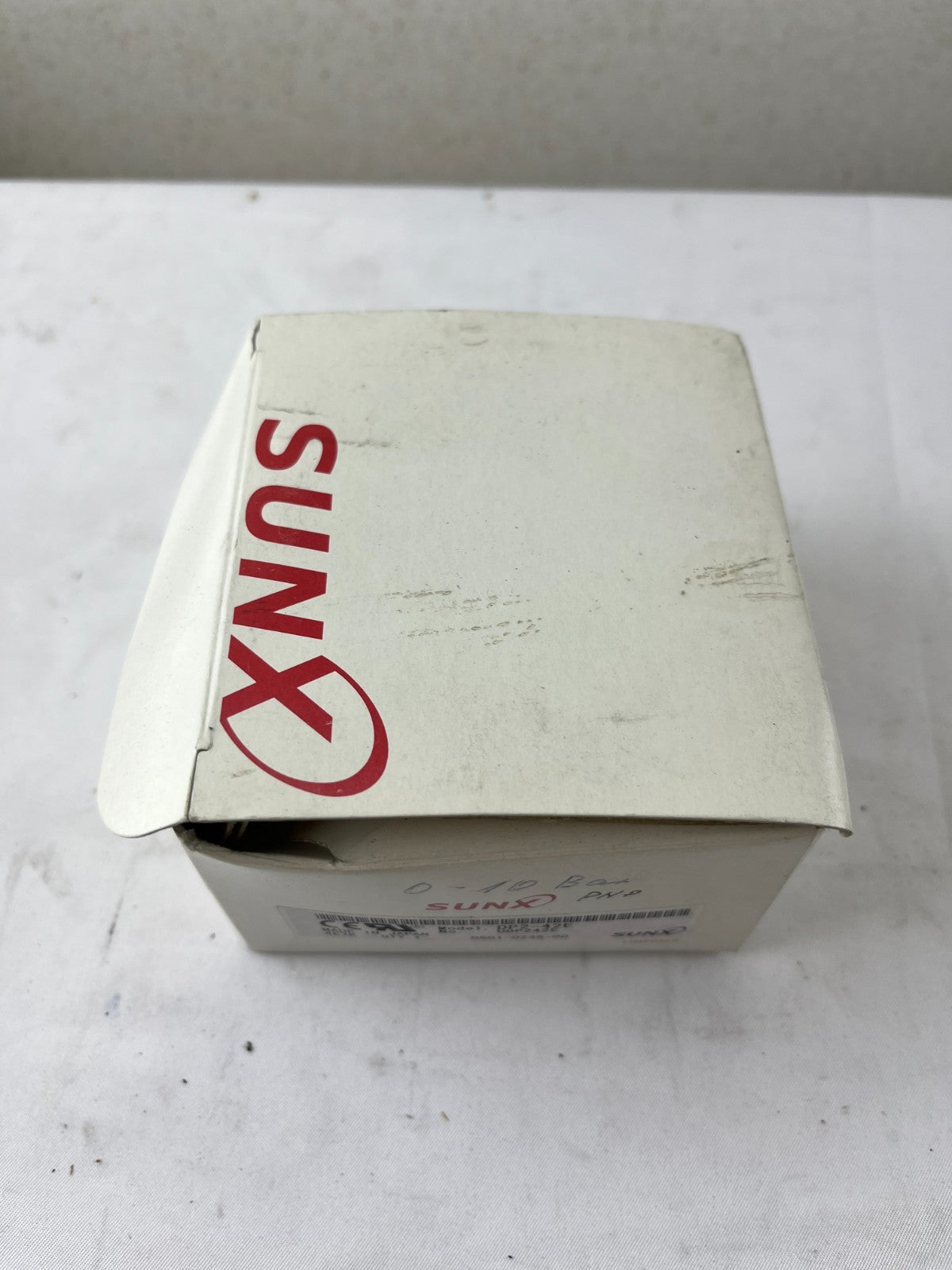

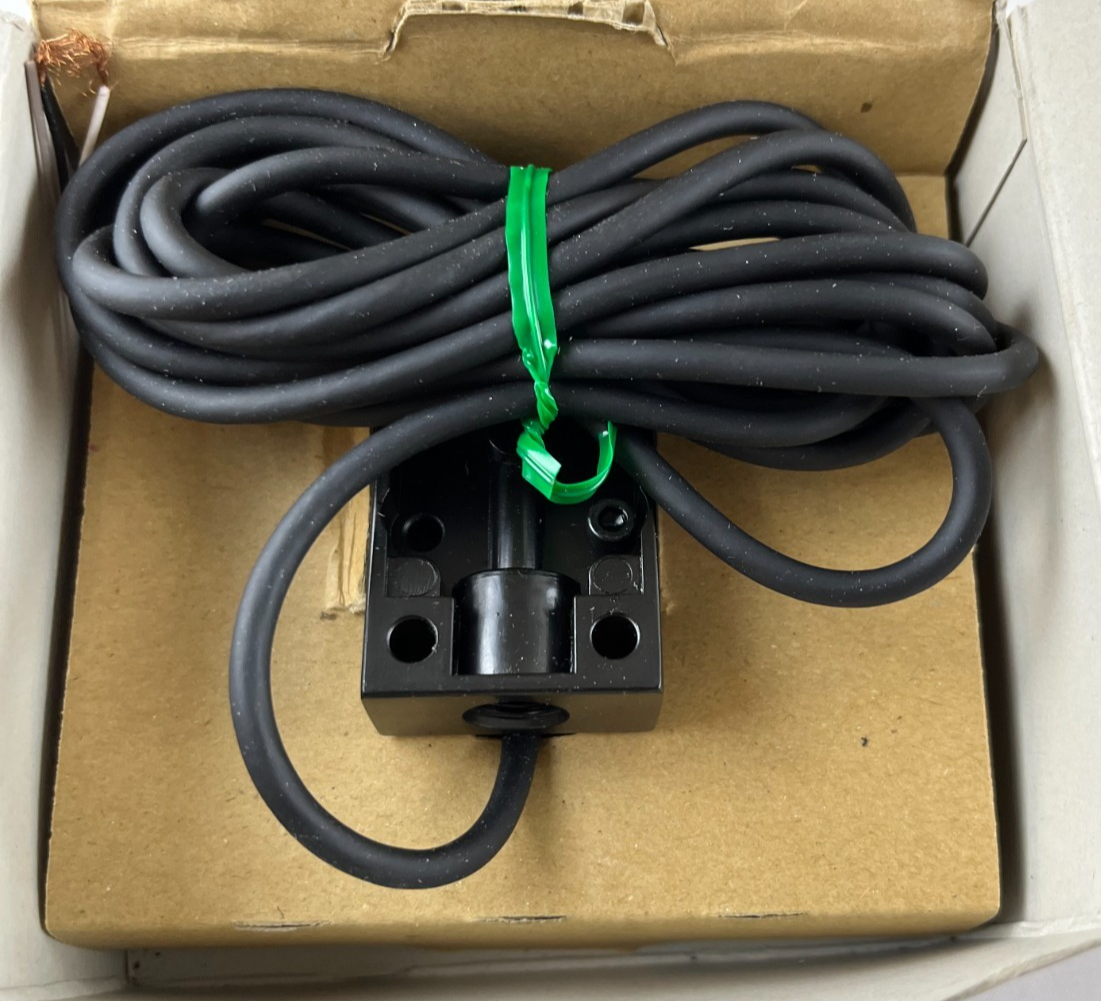

• Condition: New in original Sunx box with pre-wired cable, never installed​

• Country of origin: Made in Japan​

• Applications: Pneumatic systems, compressor monitoring, process control, automation requiring precise pressure measurement with both switching and analog outputs for PLC/SCADA integration​

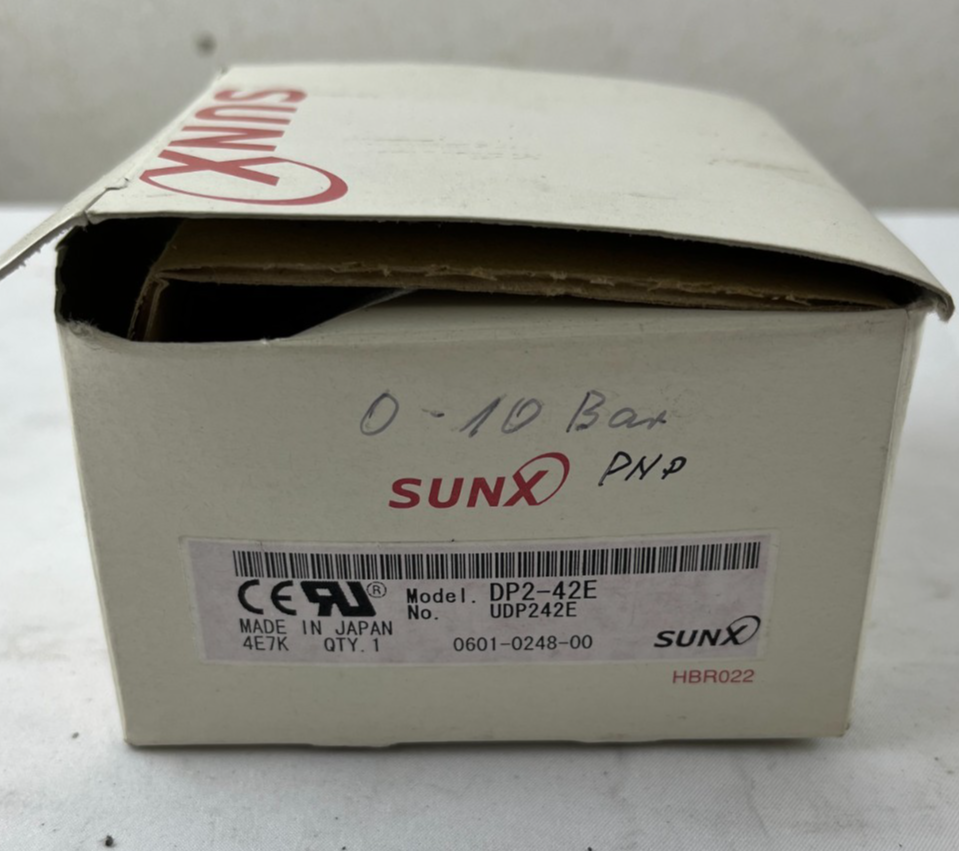

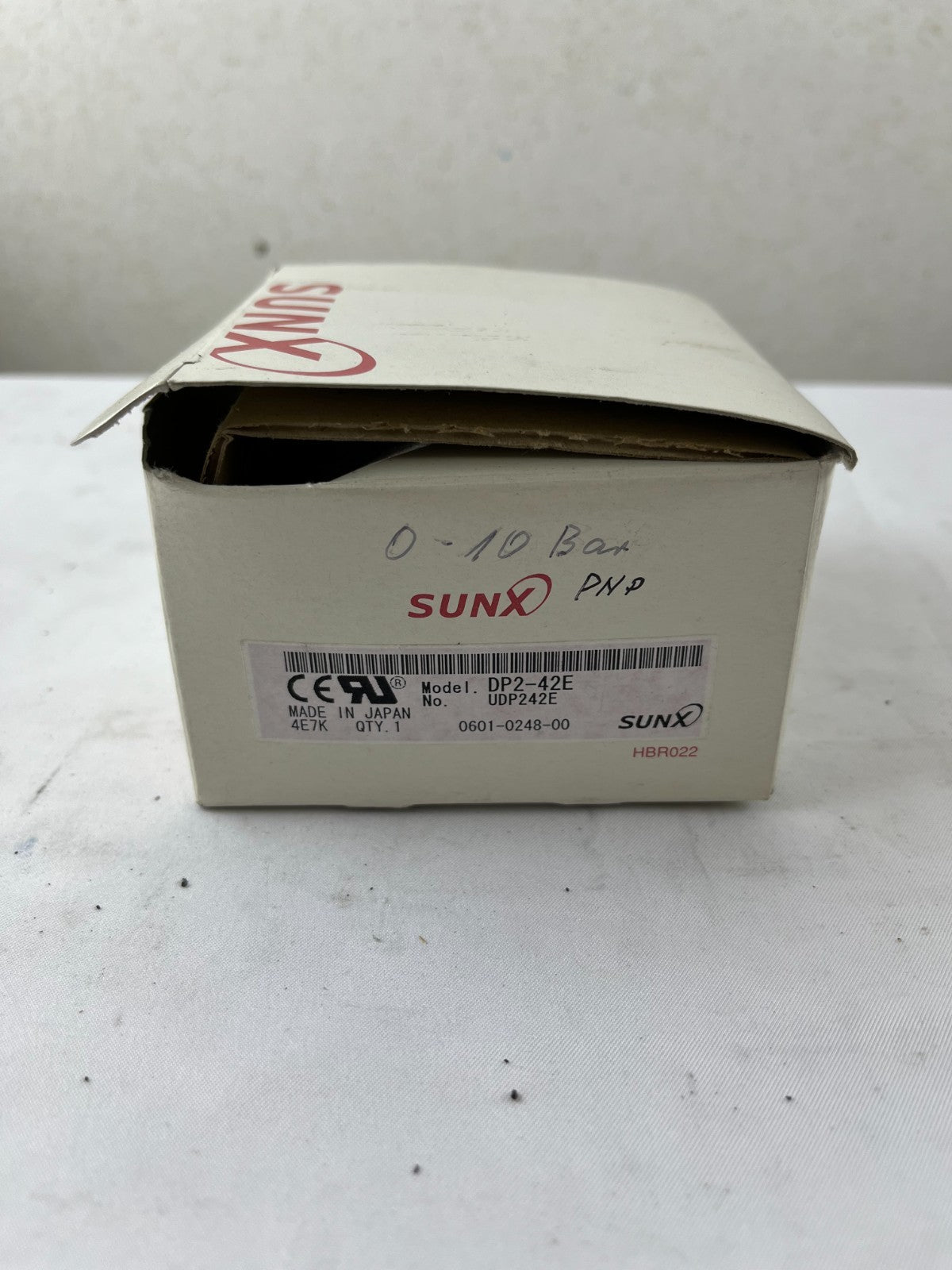

• Note: Handwritten "0–10 Bar PNP" on box confirms configuration
