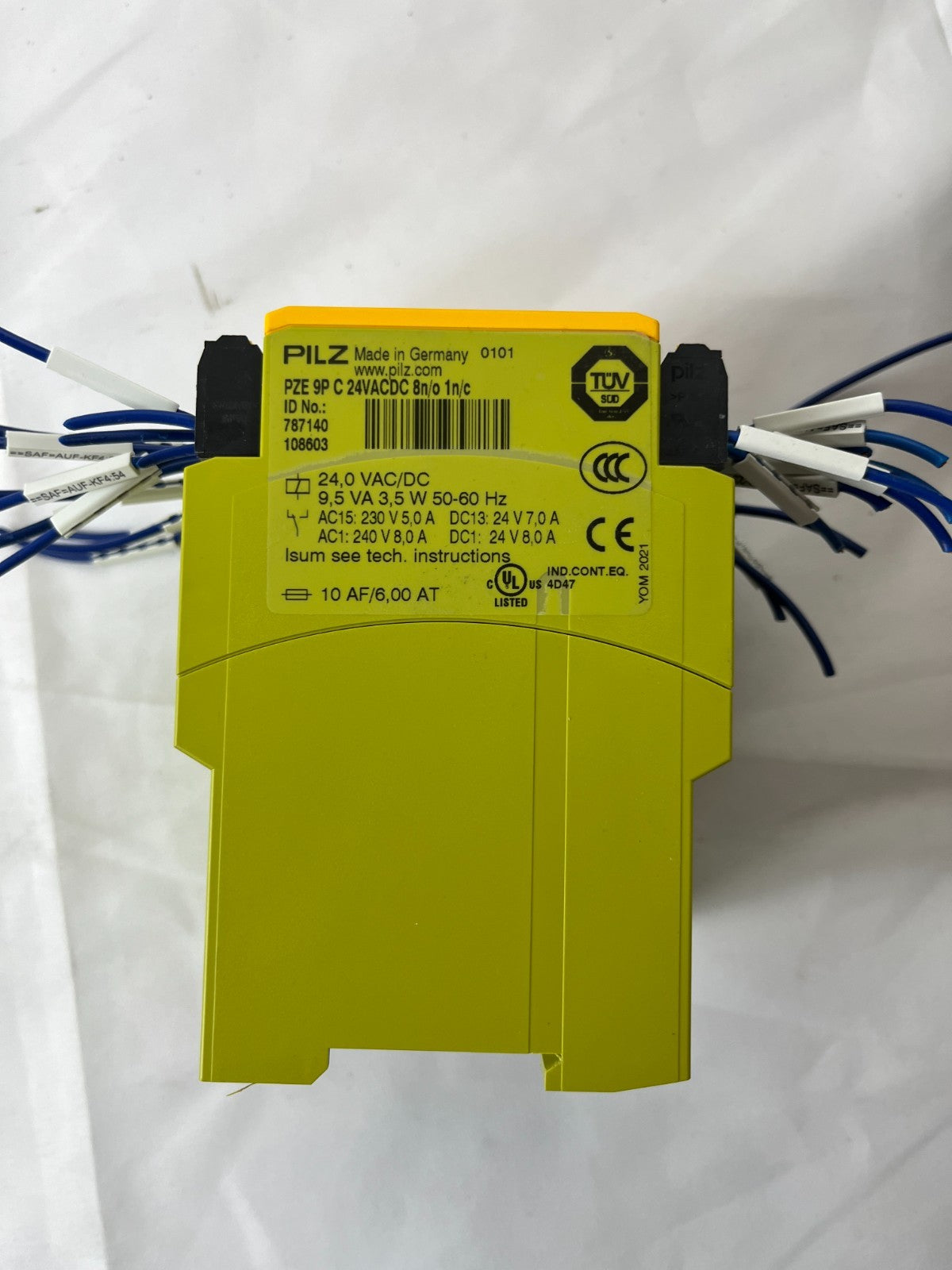

Pilz 787140 PZE 9P Safety Relay Contact Expander 24VAC/DC 8n/o 1n/c Used Spare

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

Pilz PZE 9P C contact expansion module with 8 normally-open and 1 normally-closed safety contacts, 24V AC/DC operation, pulled from fully functional safety circuit.

Item details

• Brand: Pilz

• Model: PZE 9P C 24VACDC 8n/o 1n/c

• Part number: 787140

• ID number: 108603

• Series: PNOZ X safety relay system

• Type: Contact expansion module for safety relays

• Operating voltage: 24V AC/DC (9.5 VA, 3.5 W)

• Supply voltage range: 24.0 VAC/DC, 50-60 Hz

• Contact configuration: 8 normally-open (n/o) + 1 normally-closed (n/c) safety contacts

• Contact ratings:

  • AC15: 230V 5.0A / 240V 8.0A

  • DC13: 24V 7.0A / 24V 8.0A

  • Contact type: 10 AF/6, 00 AT

• Wiring capability: 1/2-channel with/without short circuit detection across contacts

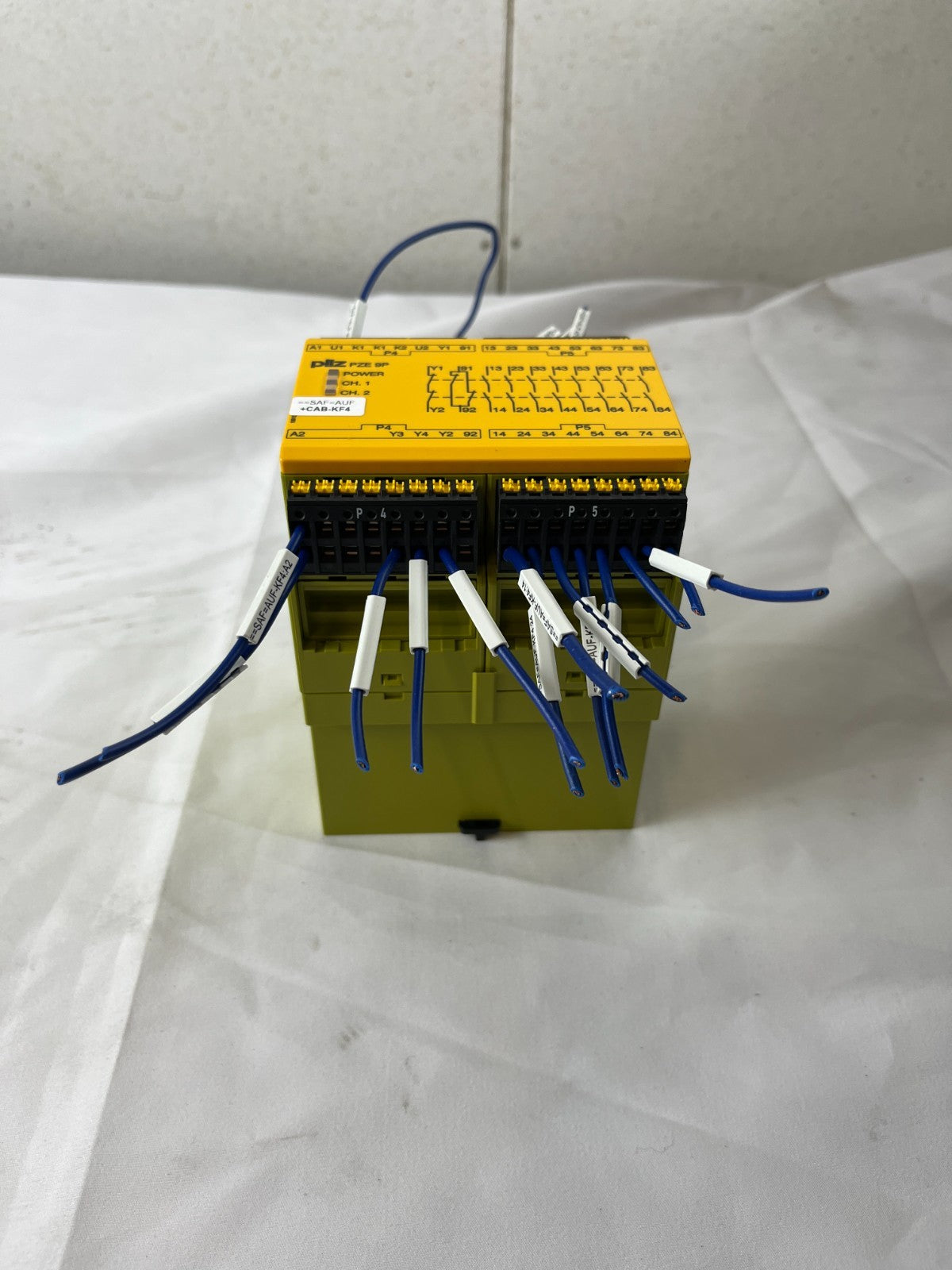

• Terminals: Spring-loaded plug-in terminals labeled P4 and P5

• Module width: 90mm (approximately 4.5 DIN rail positions)

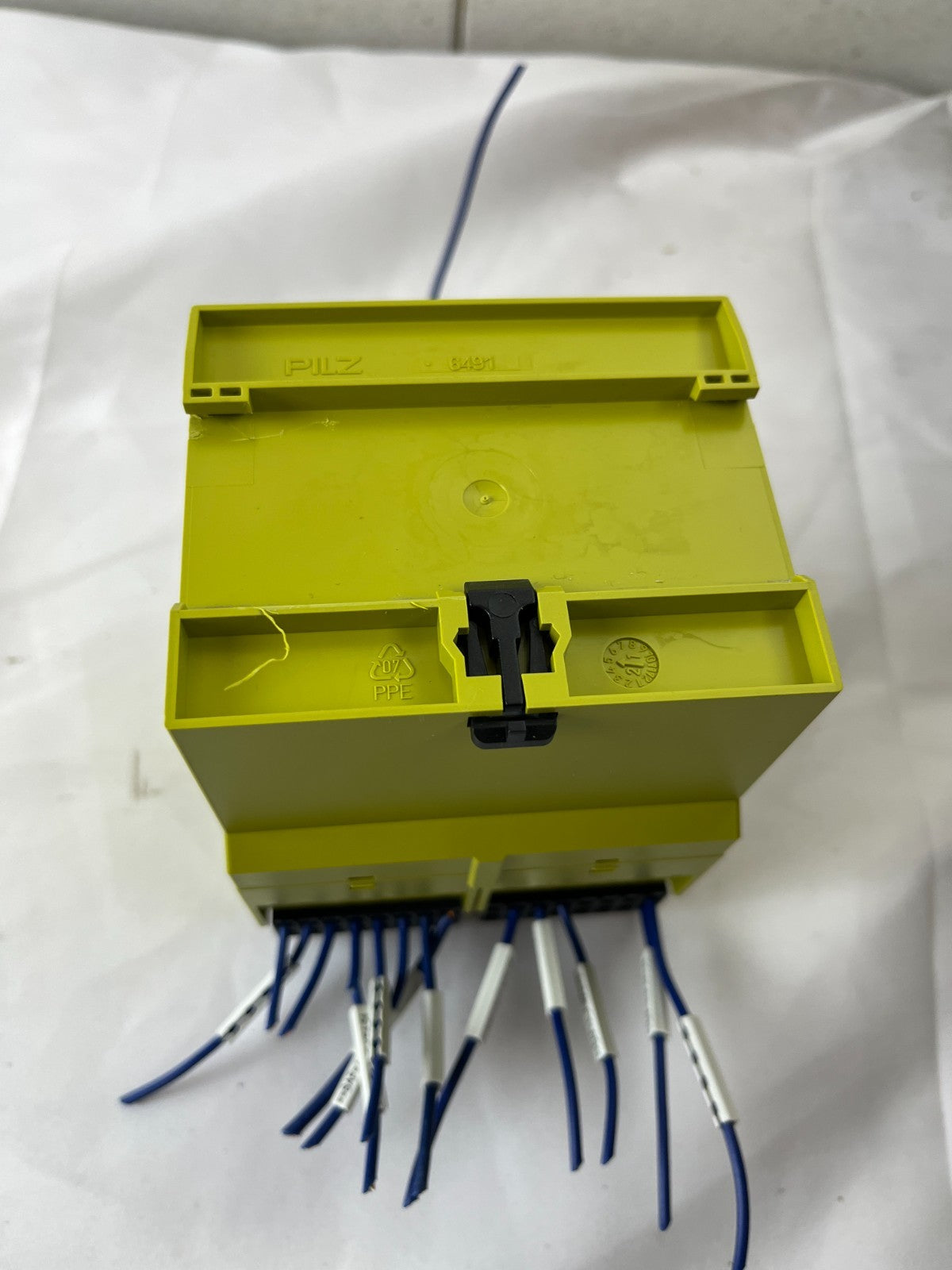

• Mounting: Standard 35mm DIN rail with hinged cover

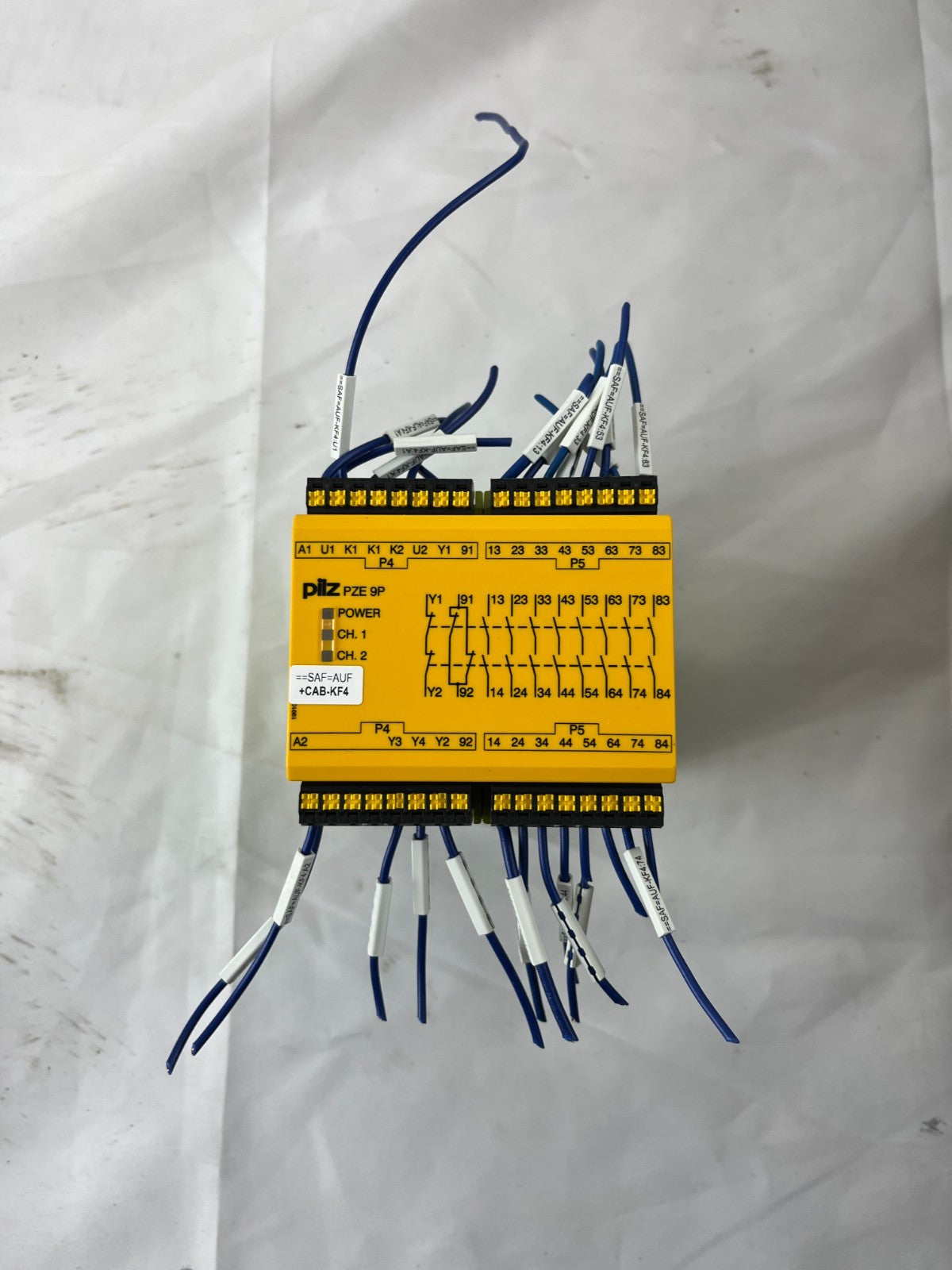

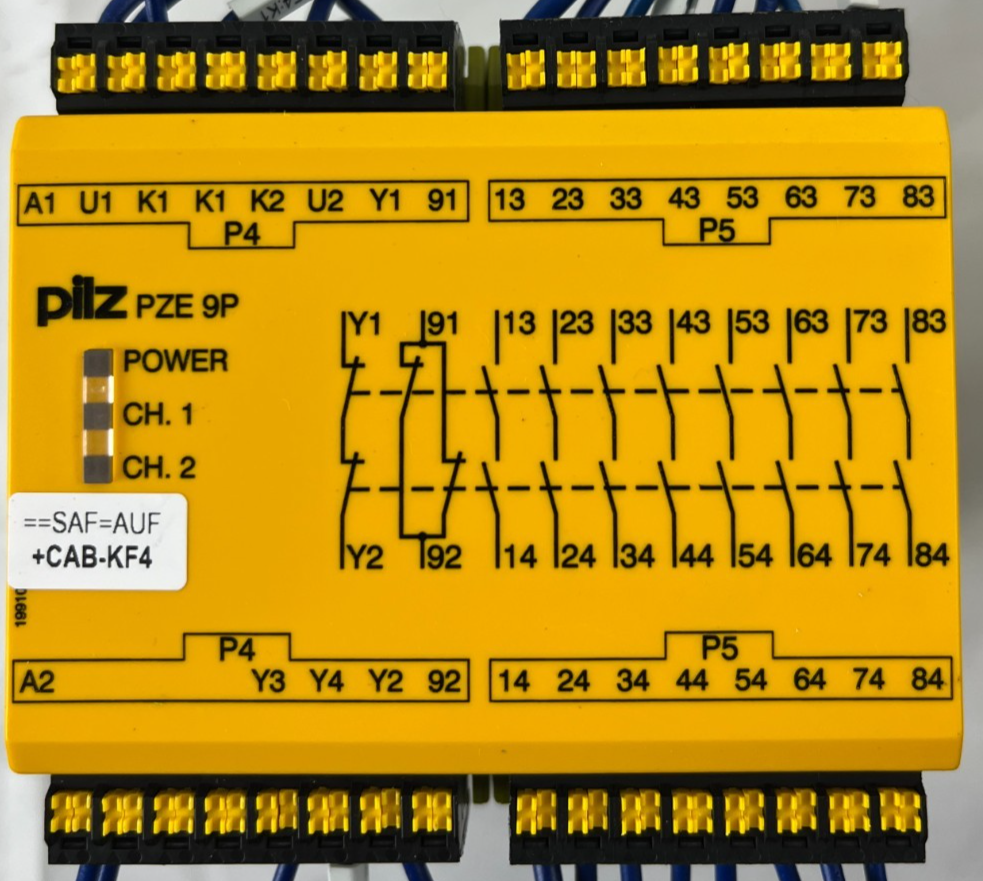

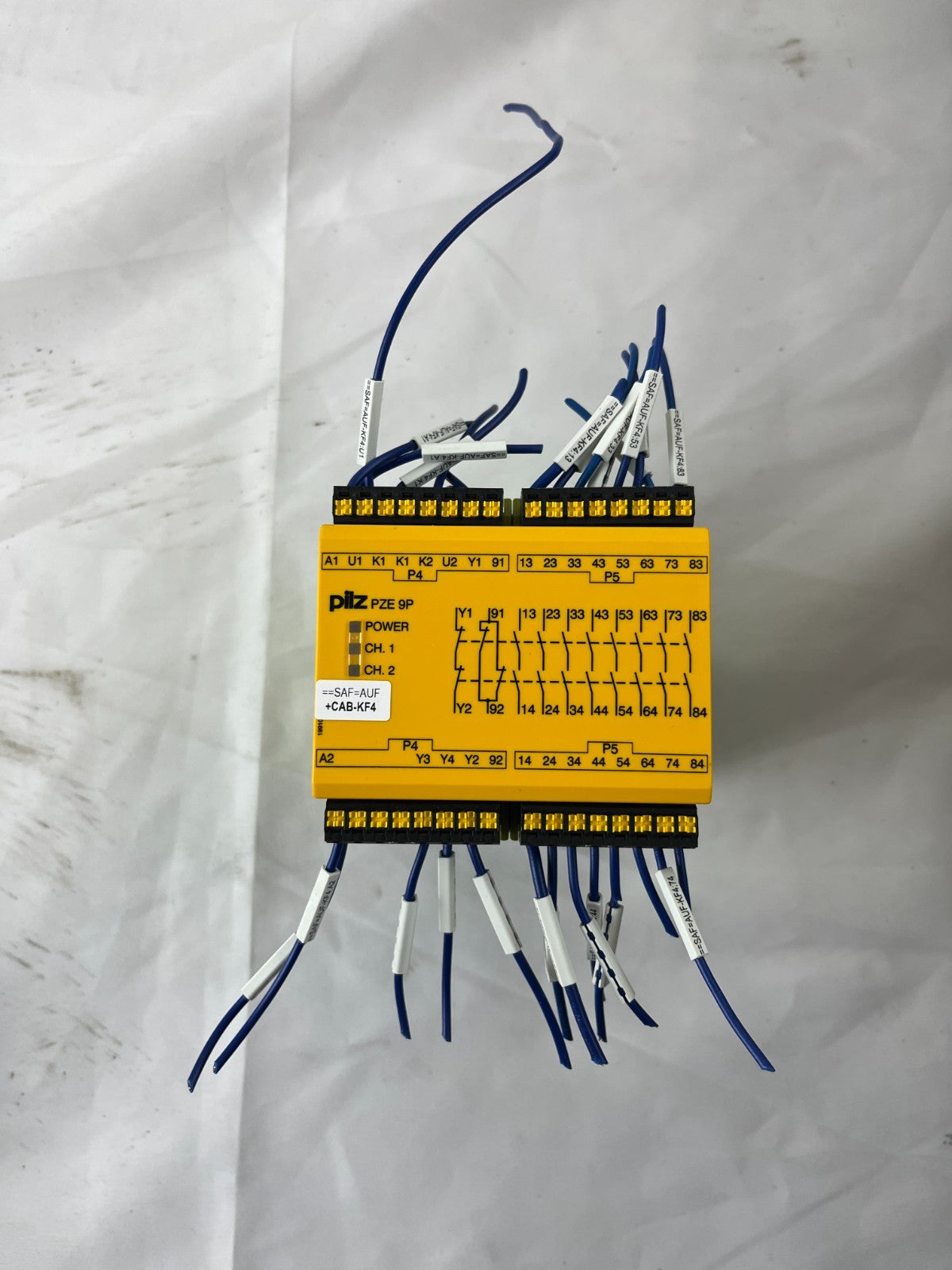

• Status indicators: POWER, CH. 1, CH. 2 LEDs on front panel

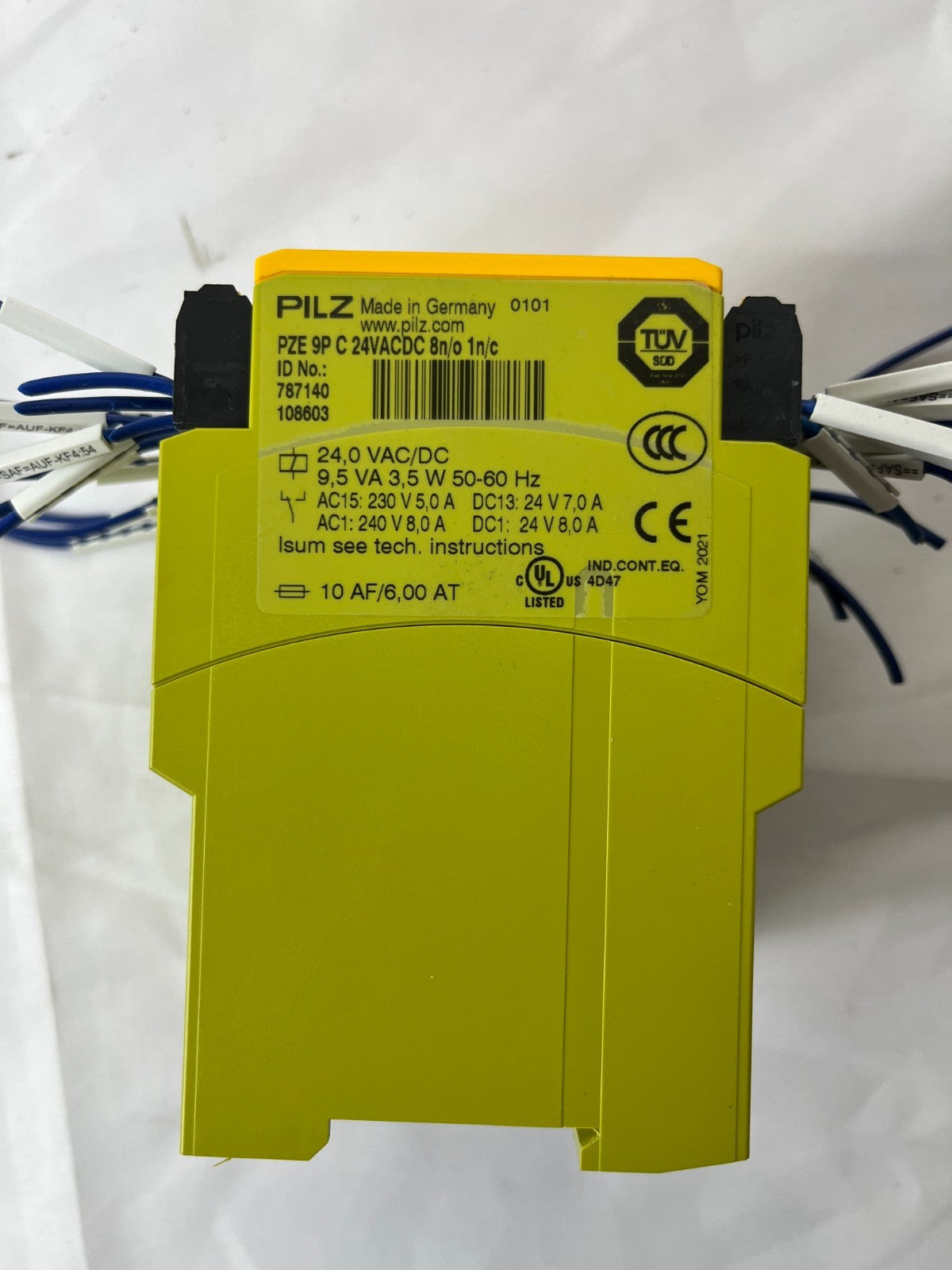

• Certifications: TÜV SÜD, CCC, CE, UL Listed (IND.CONT.EQ. 4D47), YOM 2021

• Custom labeling: "==SAF=AUF +CAB-KF4" identification label

• Manufactured: Germany, January 2021 (0101)

Condition

• Used, working condition – removed from operational safety control panel

• Bright yellow safety housing in excellent condition with minimal wear

• All spring-loaded terminals functional and secure

• Hinged terminal cover opens and closes properly

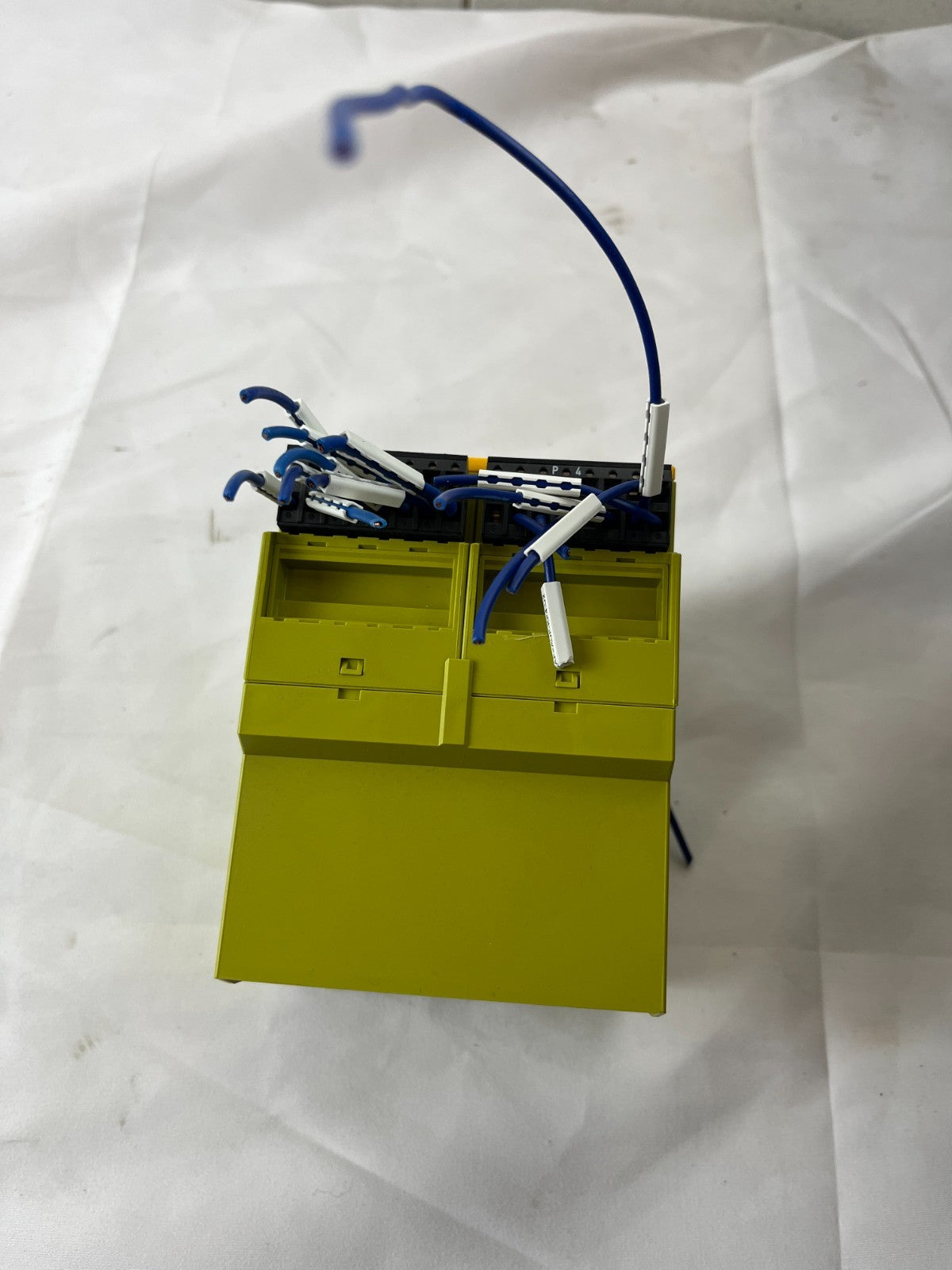

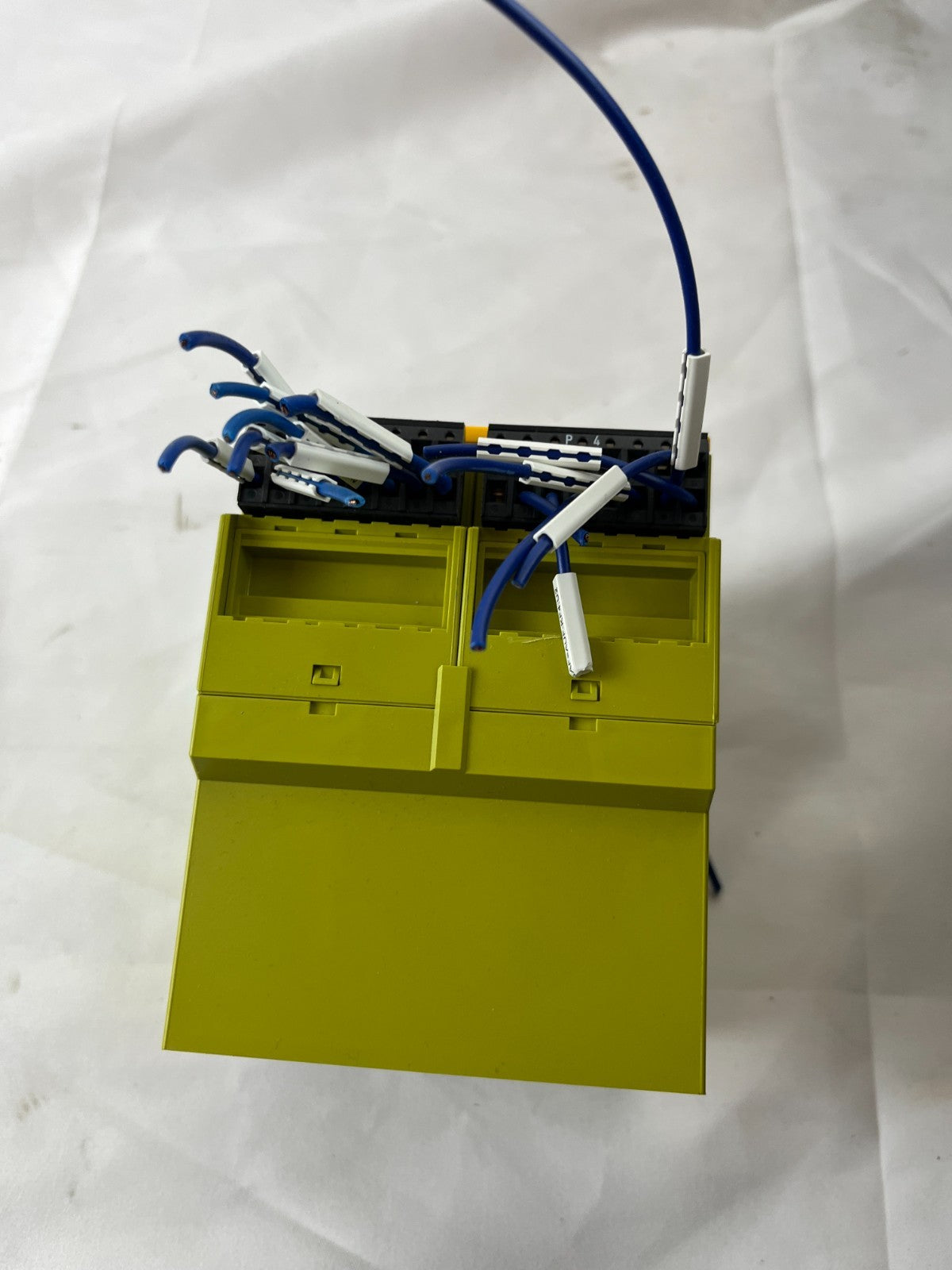

• Pre-wired with labeled blue and white cables attached

• All LED windows clear and intact

• DIN rail mounting clips in perfect working order

• Custom identification label applied (removable if desired)

• No cracks, damage, or broken terminals

• No original packaging or documentation

Notes

This PZE 9P expansion module was extracted from a working safety control system during equipment upgrade. It functions as a contact multiplier for base safety relays like PNOZ X series, providing additional switching capacity for safety circuits. The module is driven by a base unit (such as emergency stop relay or safety gate monitor) and expands available safety contacts for complex machine safety applications. Suitable for industrial machinery requiring multiple safety outputs from a single safety function. The "C" designation indicates circuit monitoring capability for enhanced safety integrity. Ideal for upgrading or replacing existing Pilz safety systems or building redundant safety circuits.
