Pilz 787301 PNOZ X2.8P Safety Relay 24VAC/DC E-Stop 3n/o 1n/c Used

Pilz PNOZ X2.8P C safety relay for monitoring emergency stops, safety gates, and light barriers, 24V AC/DC operation, pulled from fully functional safety system.

Item details

• Brand: Pilz

• Model: PNOZ X2.8P C 24VACDC 3n/o 1n/c

• Part number: 787301

• Series: PNOZ X safety relay system

• Type: Safety relay base unit (standalone) for emergency stop monitoring

• Supply voltage: 24V AC/DC, 50-60 Hz

• Power consumption: 5.5 VA (AC), 2.5 W (DC)

• Safety outputs: 3 normally-open (n/o) safety-rated contacts

• Auxiliary outputs: 1 normally-closed (n/c) contact

• Contact ratings:

  • AC15: 230V 5.0A / 240V 6.0A

  • DC13: 24V 5.0A / 24V 6.0A

  • Contact type: 10 AF/6, 00 AT

• Input configuration: 1 or 2-channel wiring with/without cross-contact short circuit detection

• Start modes: Automatic or manual start

• Safety category: Category 4, PL e according to EN ISO 13849-1

• Terminals: Spring-loaded plug-in terminals P1 and P2

• Module width: 22.5mm (approximately 1 DIN rail position)

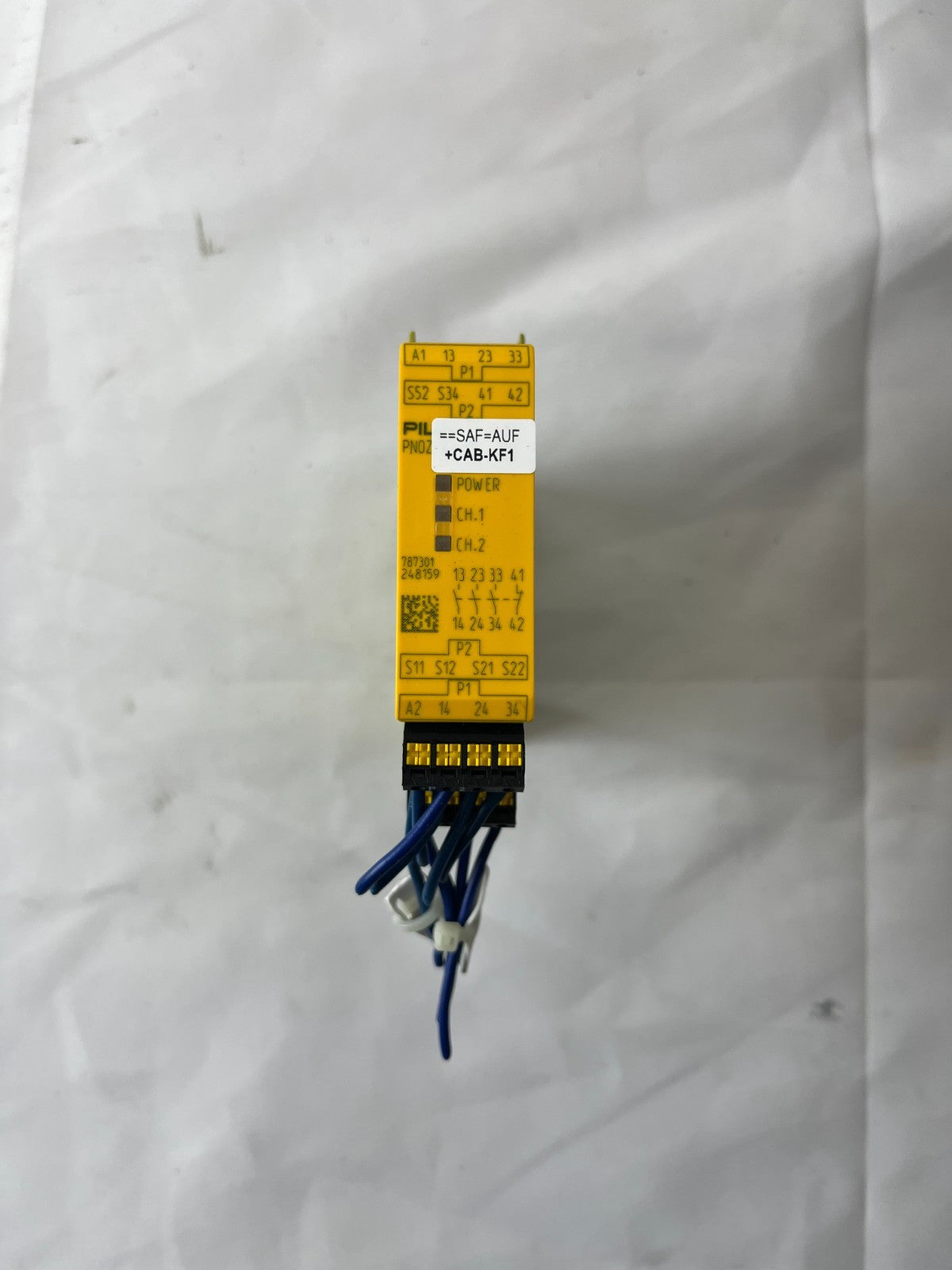

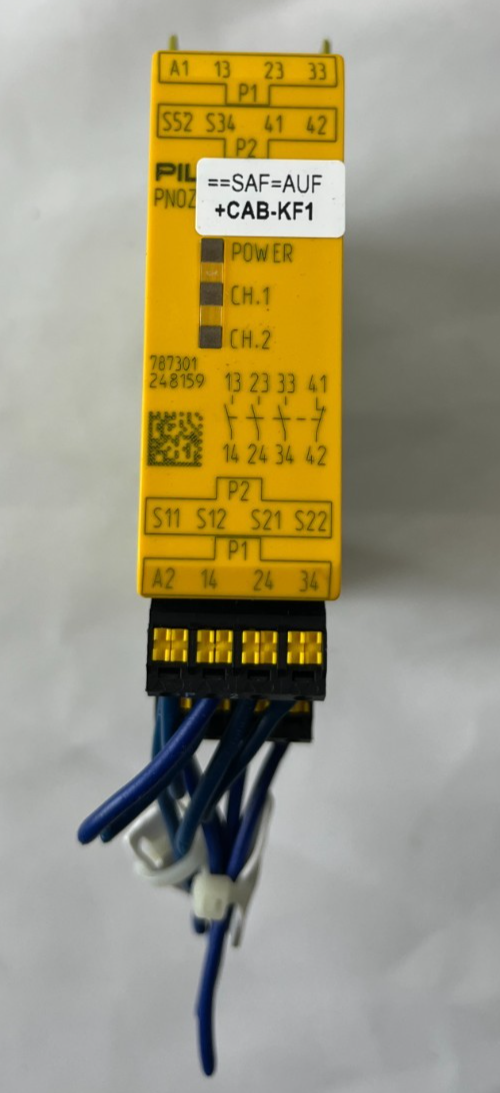

• Status indicators: POWER, CH. 1, CH. 2 LEDs on front panel

• Mounting: Standard 35mm DIN rail

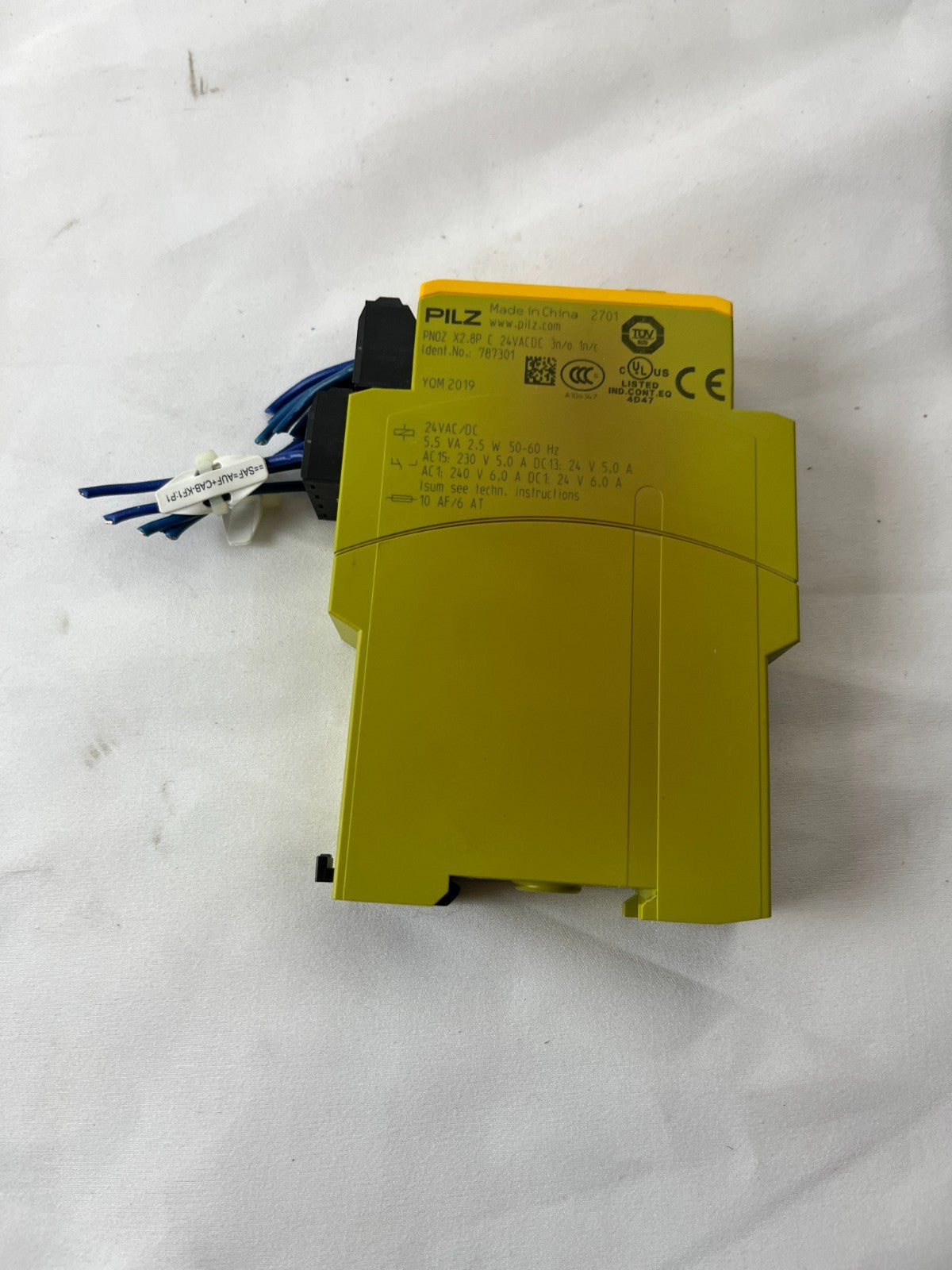

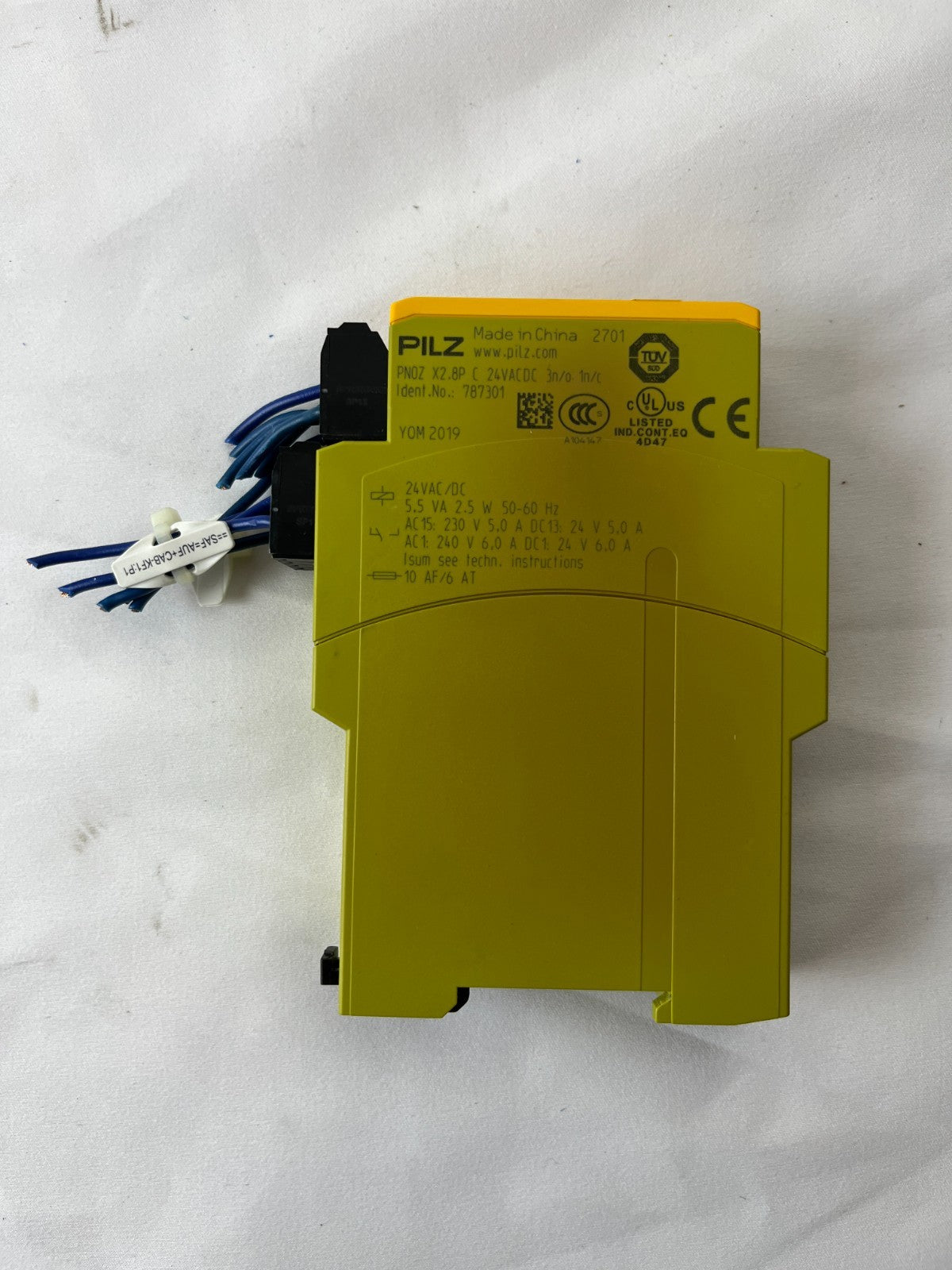

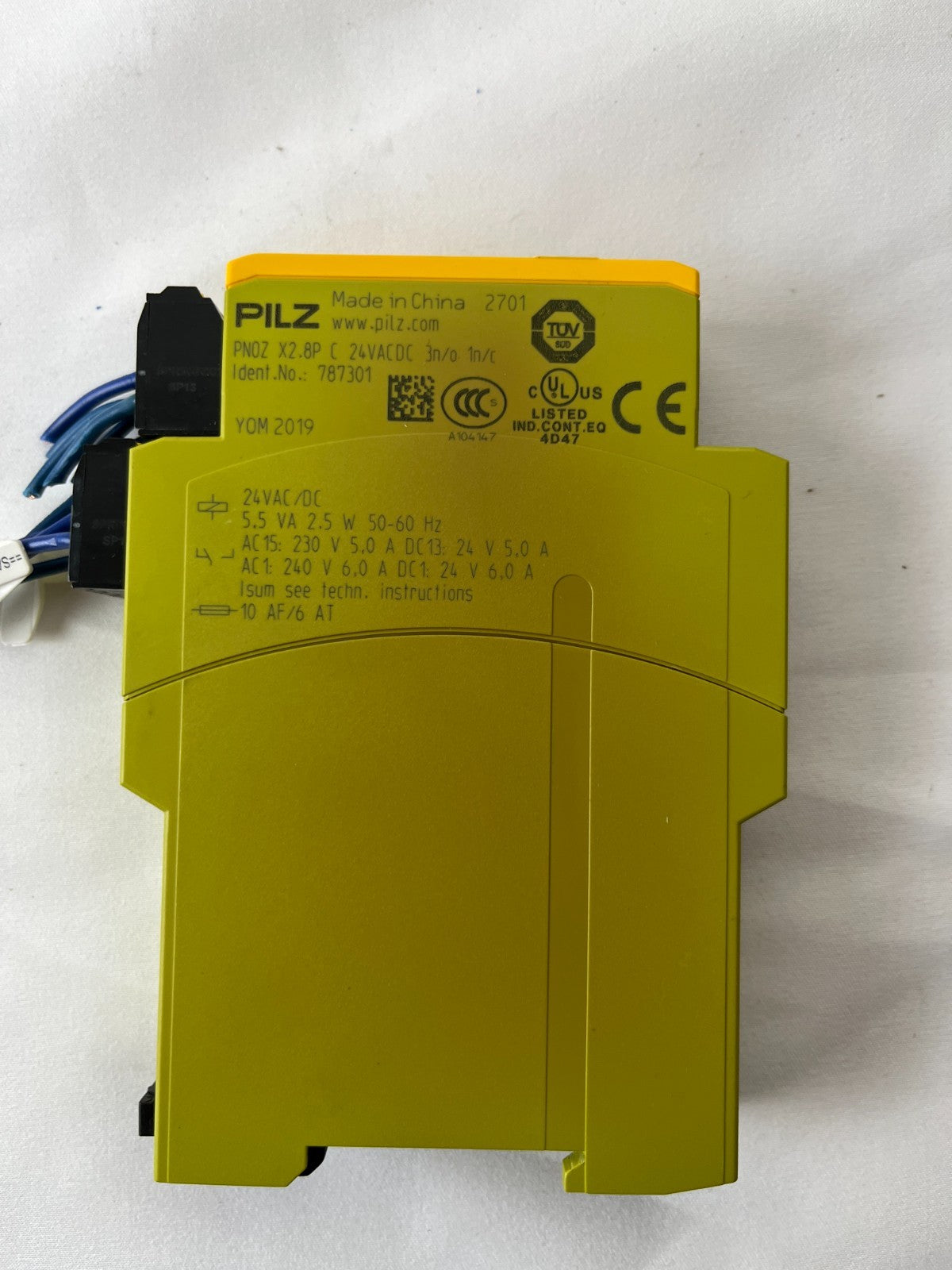

• Certifications: TÜV SÜD, CCC, CE, UL Listed (IND.CONT.EQ. 4D47), YOM 2019

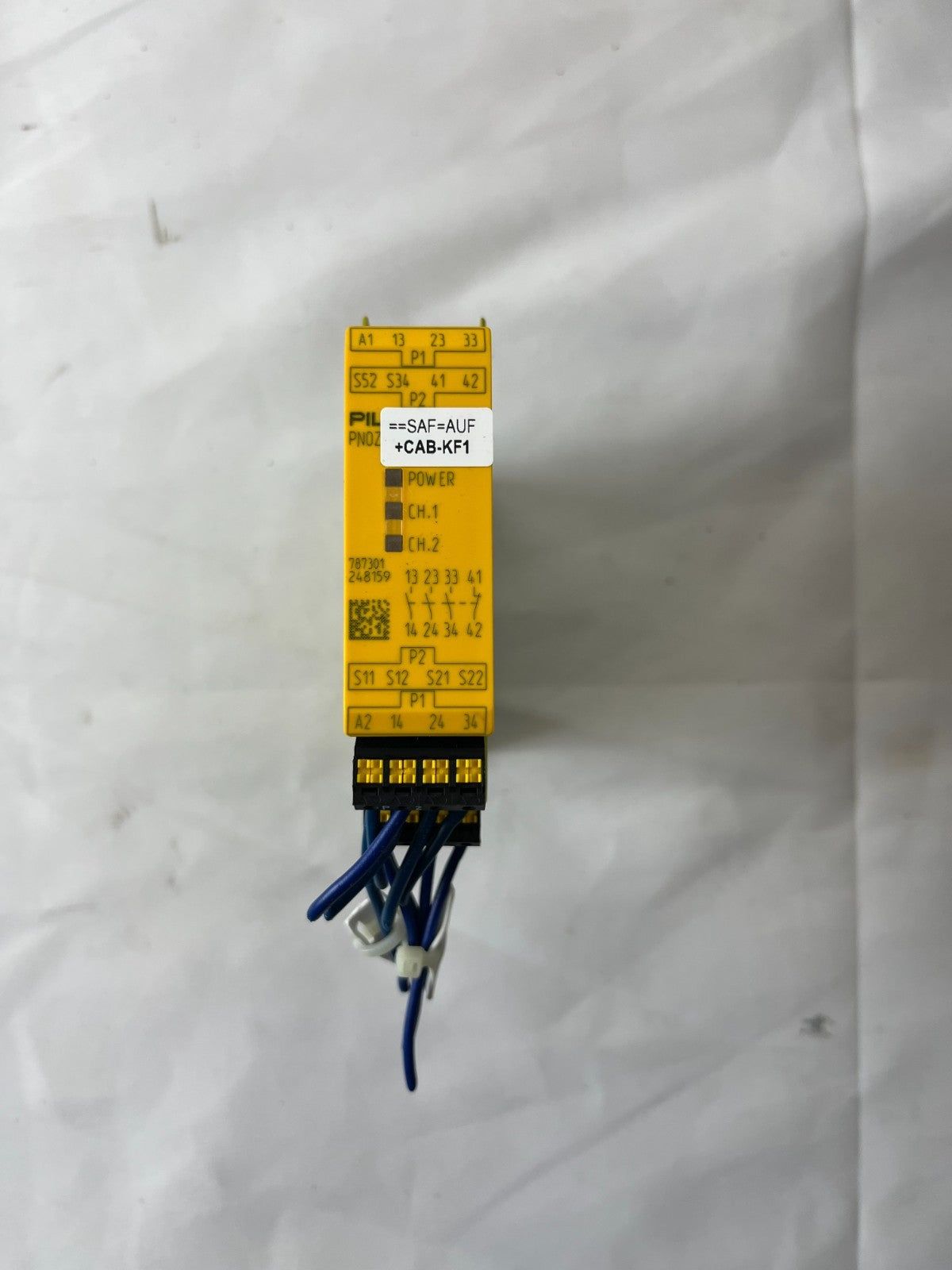

• Custom labeling: "==SAF=AUF +CAB-KF1" identification label

• Manufactured: China, 2701 batch (2019)

Condition

• Used, working condition – removed from operational safety control system

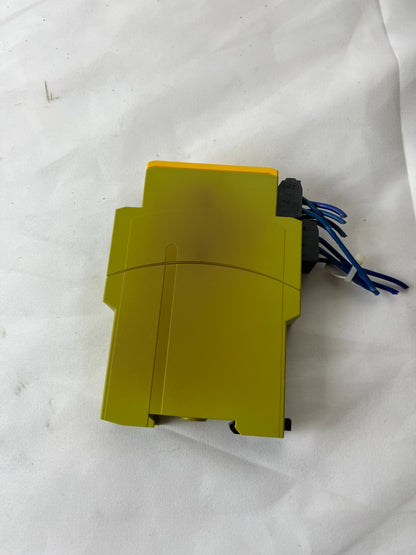

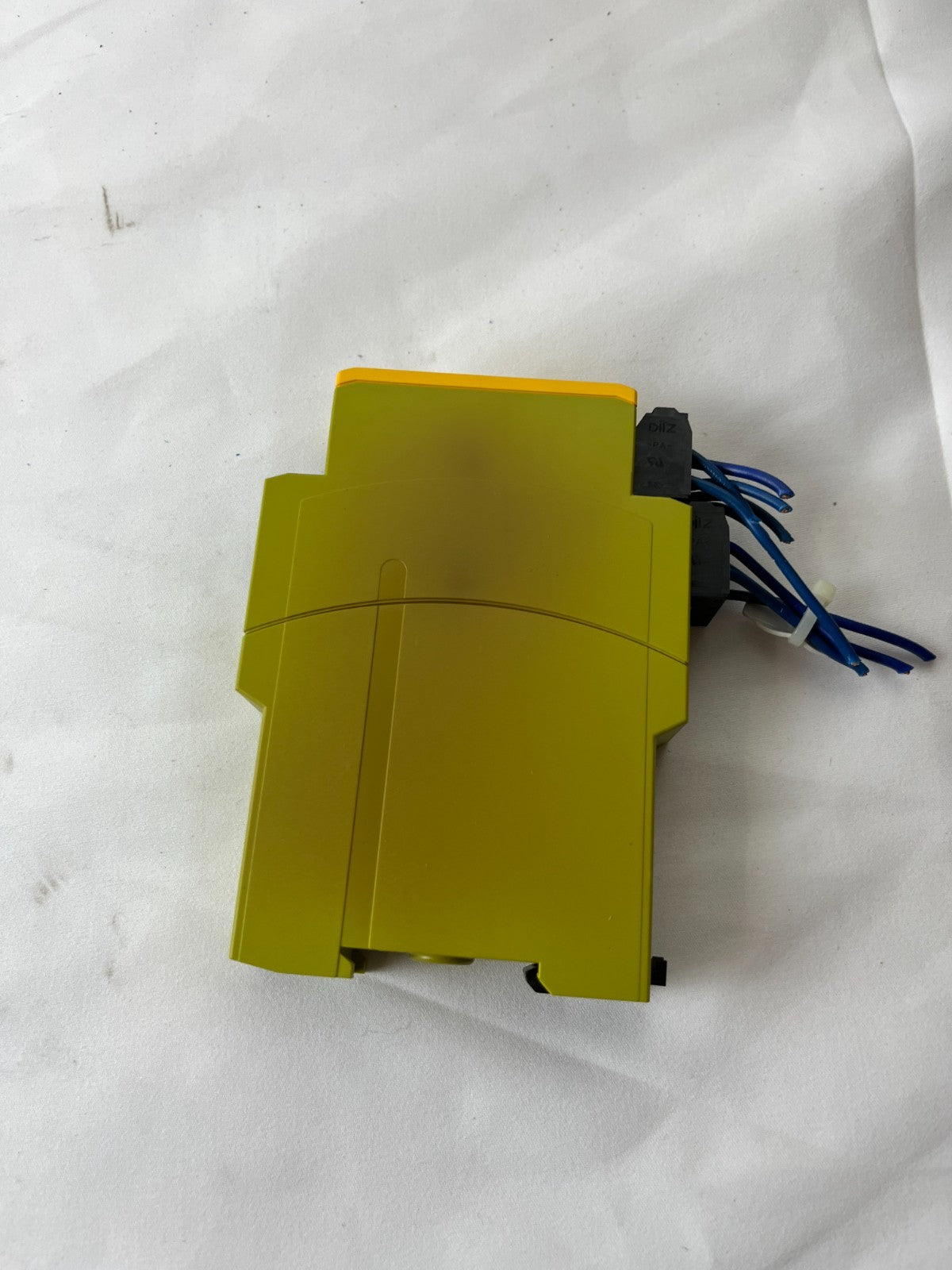

• Bright yellow safety housing in excellent condition

• All spring-loaded terminals functional and secure

• Pre-wired with labeled blue and white cables attached

• All LED indicator windows clear and intact

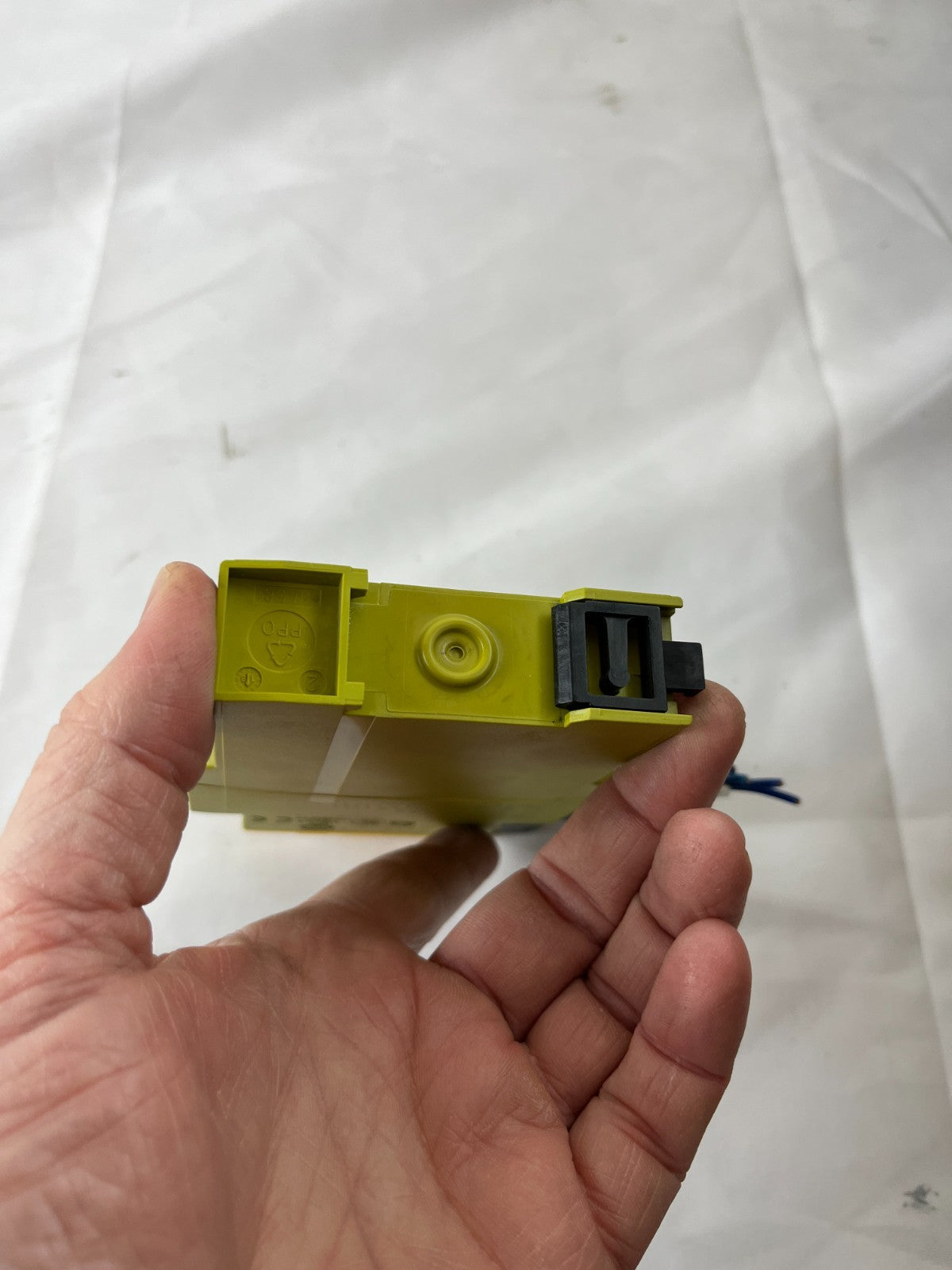

• DIN rail mounting clips in perfect working order

• Custom identification label applied (removable if needed)

• Ultra-slim 22.5mm design saves panel space

• No cracks, damage, or missing components

• No original packaging or documentation
