Pilz 787585 PZE X4P Safety Relay Contact Expander 24VDC 4n/o Used Working Spare

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

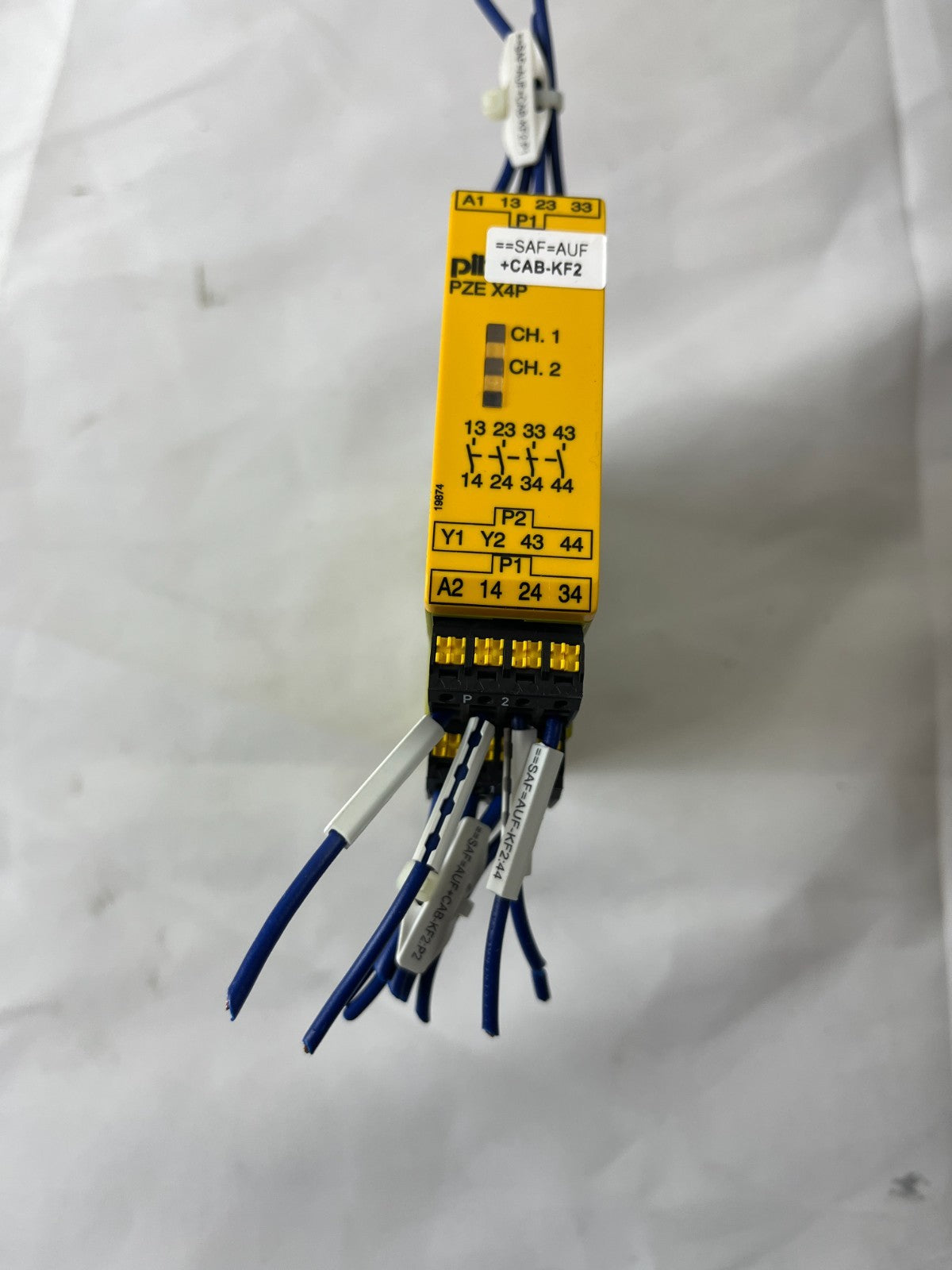

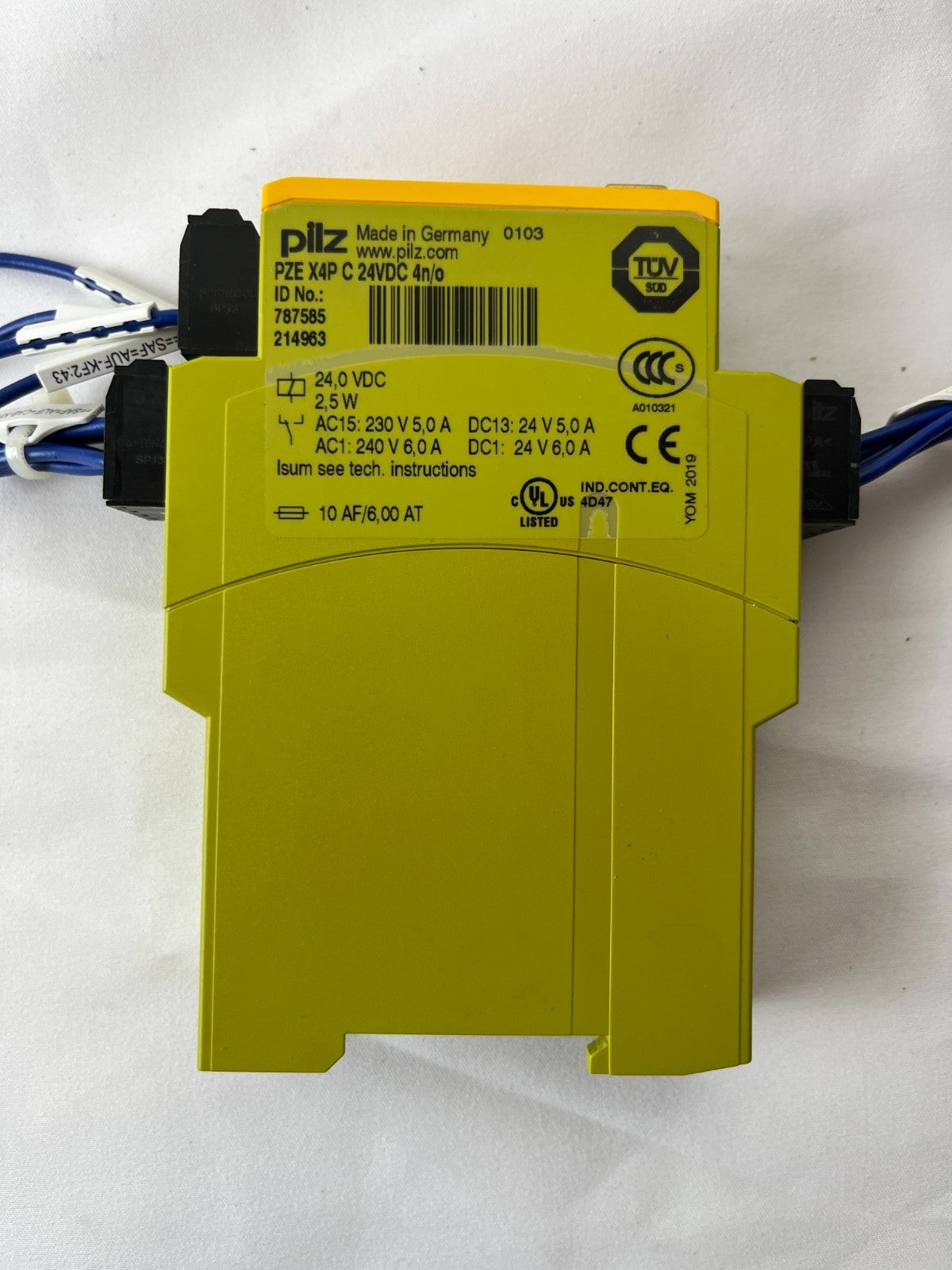

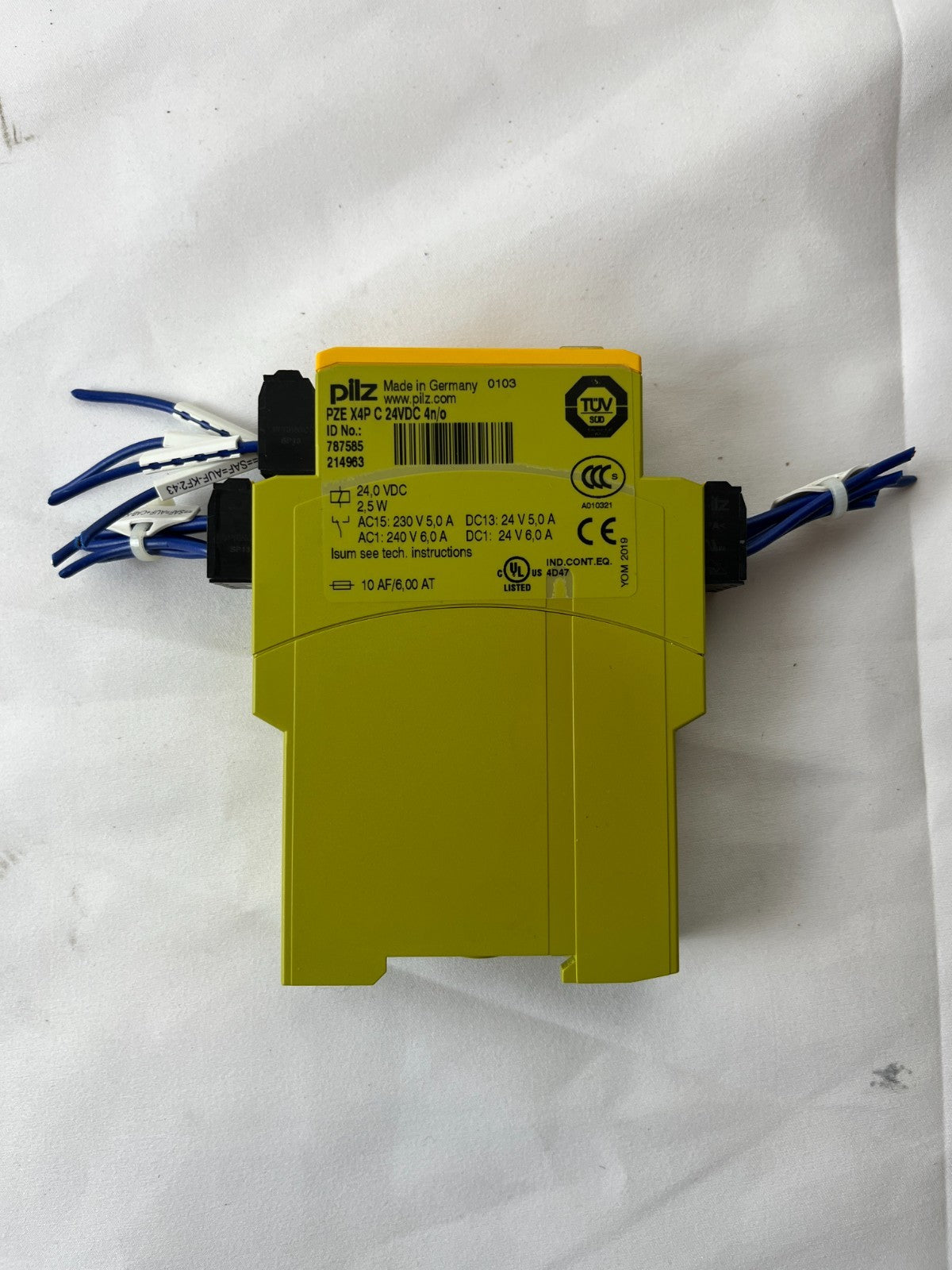

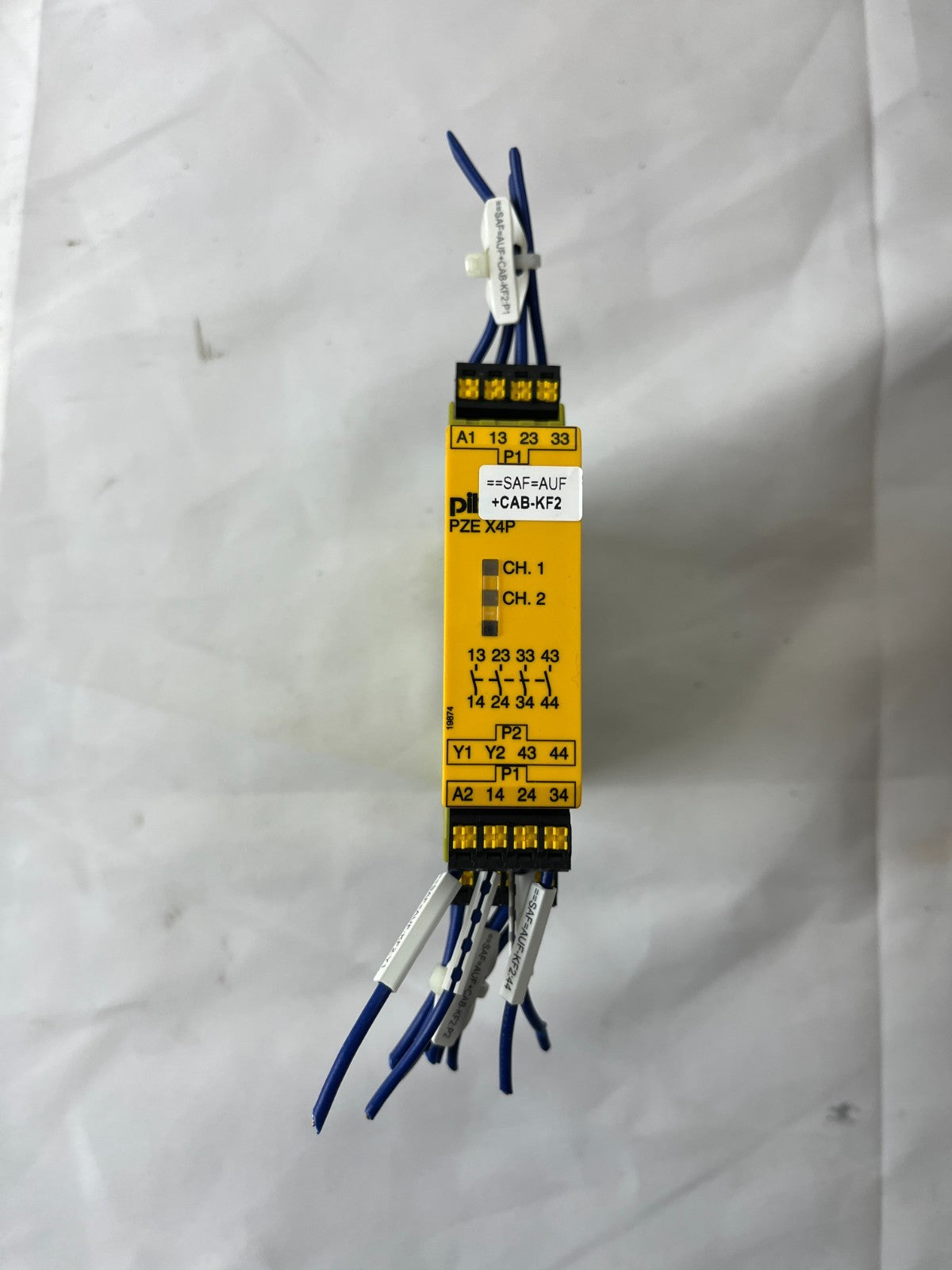

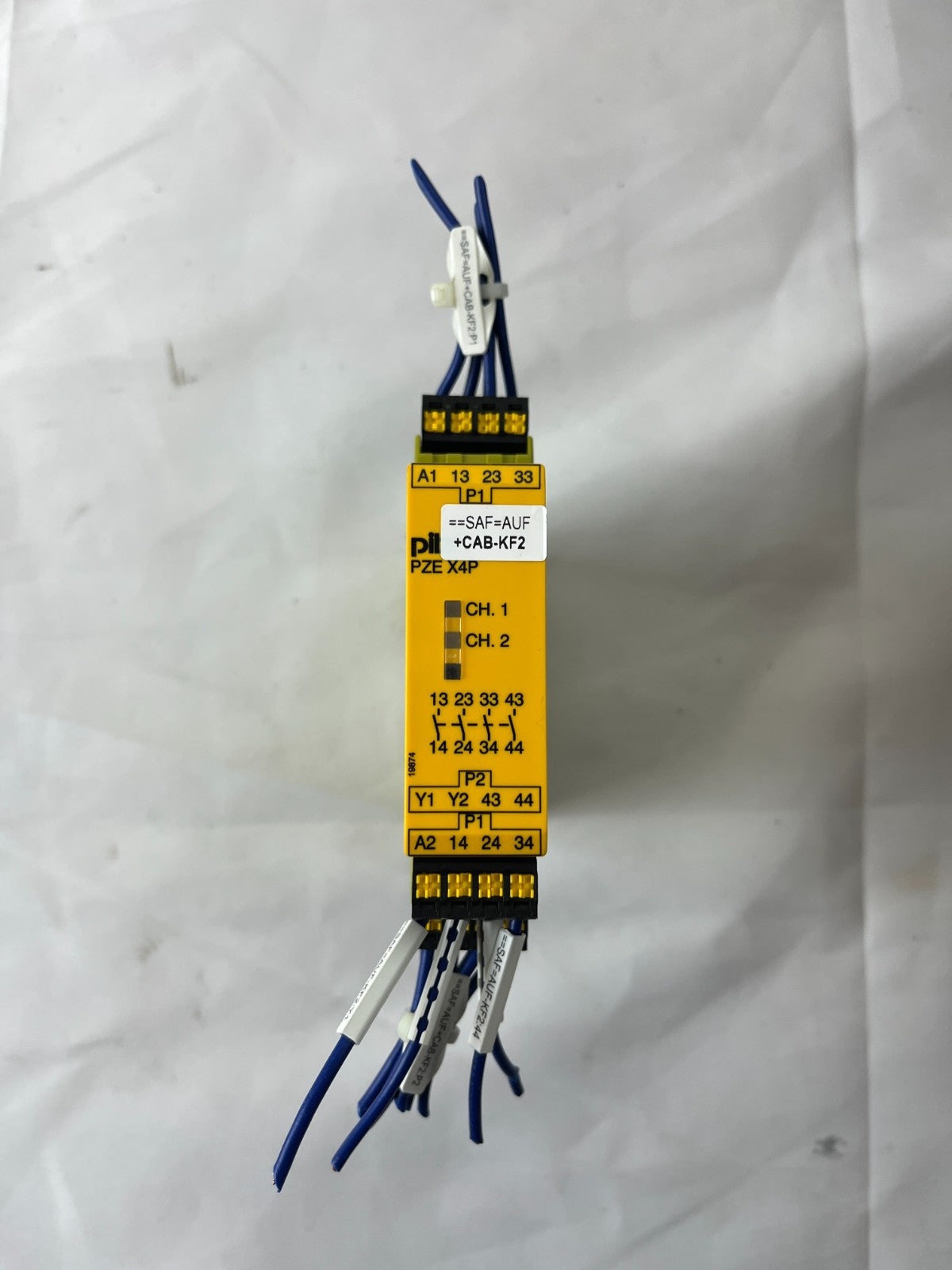

Based on the photos, I can see this is a Pilz PZE X4P C safety relay contact expansion module in the compact yellow safety housing. The label shows model "PZE X4P C 24VDC 4n/o" with ID numbers 787585 and 214963, manufactured in Germany in March 2019 (0103). This is a slimmer module compared to the PZE 9P, with 4 safety contacts.

Optimized eBay title

Pilz 787585 PZE X4P Safety Relay Contact Expander 24VDC 4n/o Used Working

Full description

Pilz PZE X4P C contact expansion module with 4 normally-open safety contacts, 24V DC operation, pulled from fully functional safety circuit.

Item details

• Brand: Pilz

• Model: PZE X4P C 24VDC 4n/o

• Part number: 787585

• ID number: 214963

• Series: PNOZ X safety relay system

• Type: Contact expansion module for safety relays

• Operating voltage: 24V DC, 2.5W

• Contact configuration: 4 normally-open (n/o) instantaneous safety contacts

• Contact ratings:

  • AC15: 230V 5.0A

  • AC1: 240V 6.0A

  • DC13: 24V 5.0A

  • DC1: 24V 6.0A

  • Contact type: 10 AF/6, 00 AT

• Wiring capability: 1-channel connection

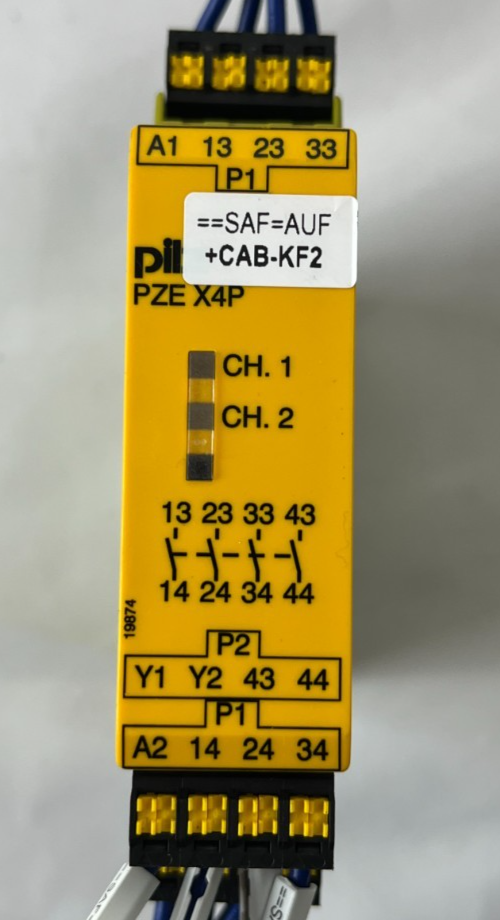

• Terminals: Spring-loaded plug-in terminals labeled P1 and P2

• Module width: 22.5mm (approximately 1 DIN rail position)

• Mounting: Standard 35mm DIN rail, ultra-slim profile

• Status indicators: CH. 1 and CH. 2 LEDs on front panel

• Certifications: TÜV SÜD, CCC, CE, UL Listed (IND.CONT.EQ. 4D47), YOM 2019

• Custom labeling: "==SAF=AUF +CAB-KF2" identification label

• Manufactured: Germany, March 2019 (0103)

Condition

• Used, working condition – removed from operational safety control system

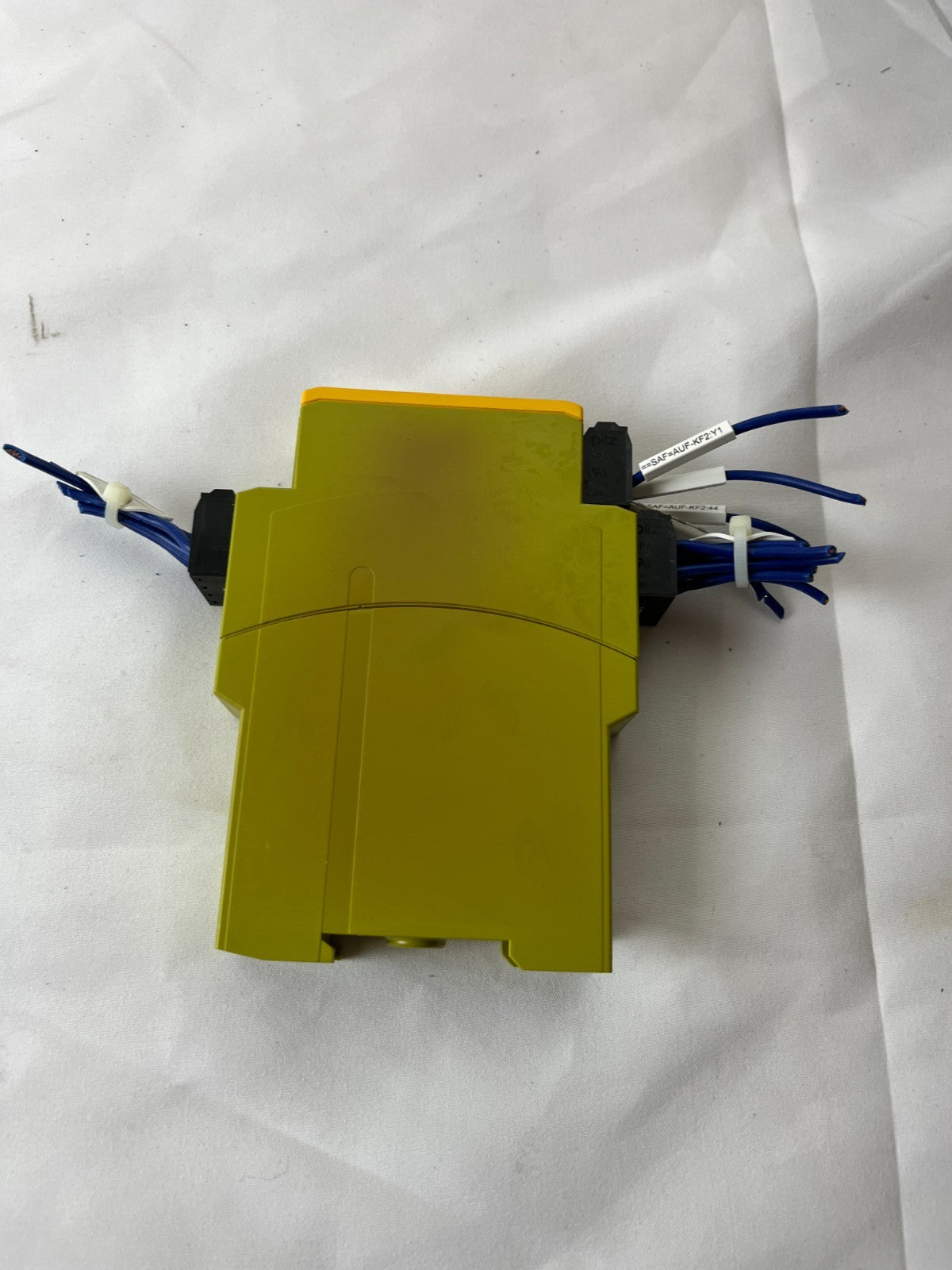

• Bright yellow safety housing in excellent condition

• All spring-loaded terminals functional and secure

• Pre-wired with labeled blue, white, and gray cables attached

• Both LED indicator windows clear and intact

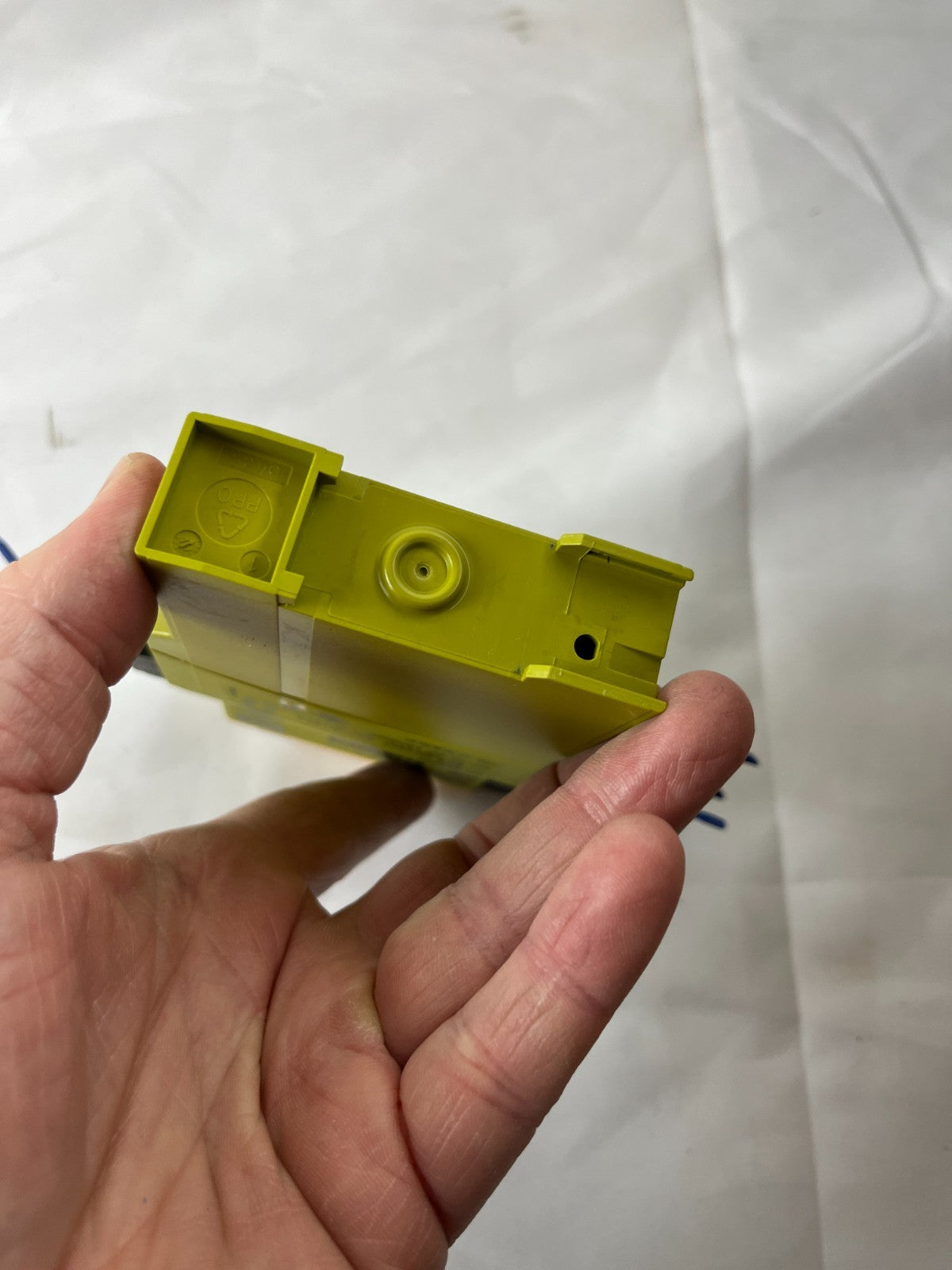

• DIN rail mounting clips in perfect working order

• Custom identification label applied (removable if needed)

• Compact design saves valuable panel space

• No cracks, damage, or missing components

• No original packaging or documentation

Notes

This PZE X4P expansion module was extracted from a working safety control system during equipment upgrade. It functions as an instantaneous contact multiplier for base safety relays like PNOZ X series, providing additional switching capacity without delay-on de-energization. The module is activated by a base safety unit (such as emergency stop relay, safety gate monitor, or light curtain controller) and expands available safety contacts for complex machine safety applications. The "C" designation indicates circuit monitoring capability for enhanced safety integrity. Ultra-slim 22.5mm width design makes it ideal for space-constrained control panels. Suitable for industrial machinery requiring multiple safety outputs from a single safety function. Works with all compatible PNOZ X base units requiring contact expansion.
