Pulsotronic 08349005010 NEW Flat Sensor Control Unit 230VAC 24VDC Germany Made

Pulsotronic 08349005010 NEW Flat Sensor Control Unit 230VAC 24VDC Germany Made

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Brand NEW Pulsotronic 08349005010 control unit for flat sensors in factory-sealed original box - never installed or used. This German-manufactured DIN rail controller provides multi-mode sensing control for MESEP flat detector series with adjustable time, sensitivity, and conveyor speed ranges for metal detection in industrial automation applications.​

What's Included

• 1x Pulsotronic 08349005010 Flat Sensor Control Unit (brand new, in original box)

• Original German manual and documentation

Key Specifications

• Model: 08349005010 Control Unit for Flat Sensors​

• P/N: 08349005010, S/N: LA080366​

• Compatible sensors: MESEP SP, MESEP RE, MESEP AR series​

• Supply voltage: 230V AC 50/60Hz or 24V DC (universal)​

• Sensor power: 15V DC, max 80mA (short-circuit protected)​

• Relay output: 1 changeover contact, 250VAC, 5A max​

• Transistor outputs: 1x low-side + 1x high-side, 20mA (protected)​

• Speed ranges: 10/30/100/150 m/min (switchable via mode selector)​

• Time ranges: t0: 0.1-60s / t1: 0.01-0.6s (adjustable)​

• Adjustments: Time potentiometer, Sensitivity potentiometer, Mode selector​

• Mounting: 35mm DIN rail (90x53x58mm, 290g)​

• Operating temp: -10°C to +50°C​

• Protection: IP20, short-circuit proof, reverse polarity protected​

• Origin: Made in Germany (Niederdorf)

Condition Notes

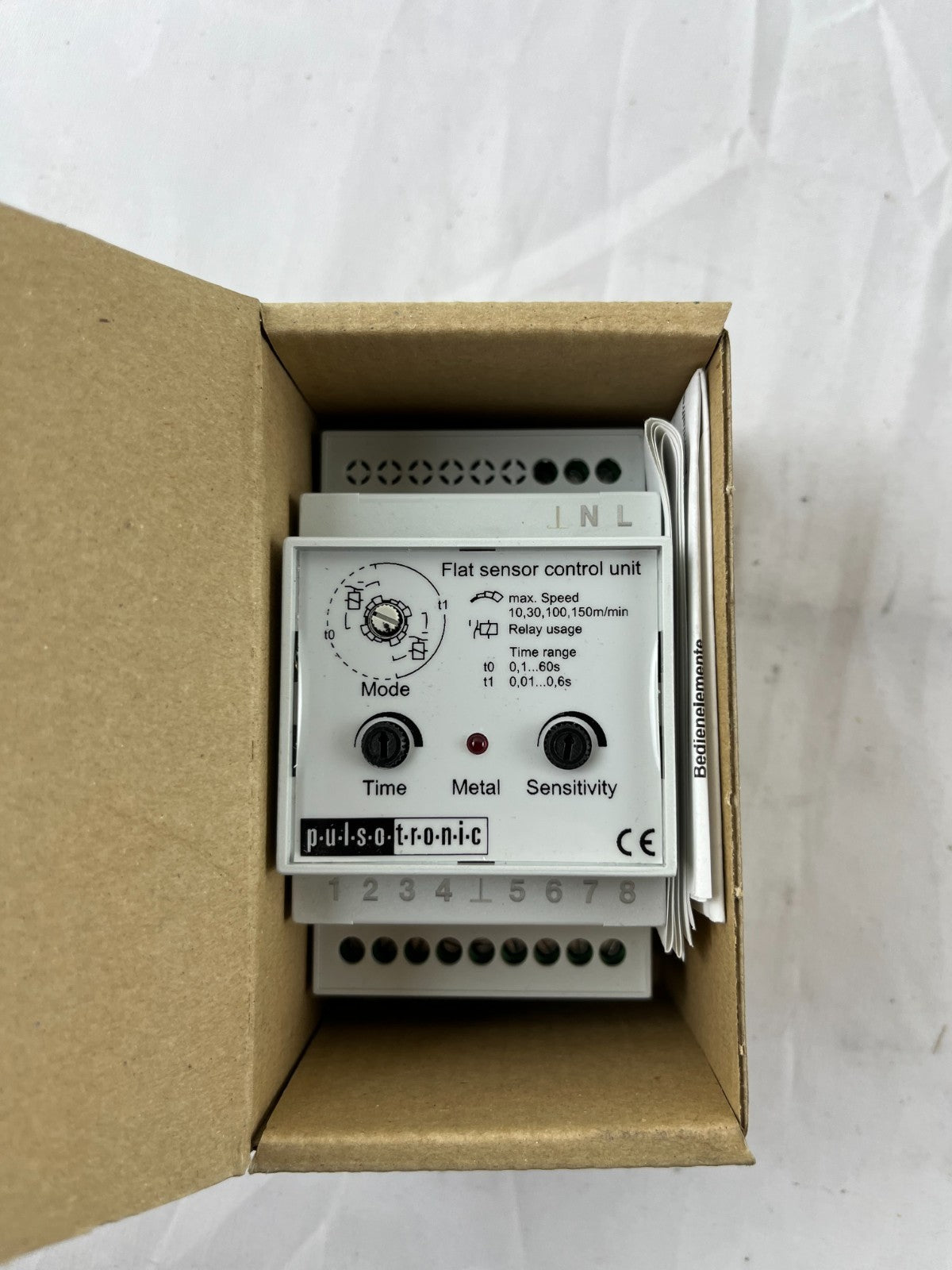

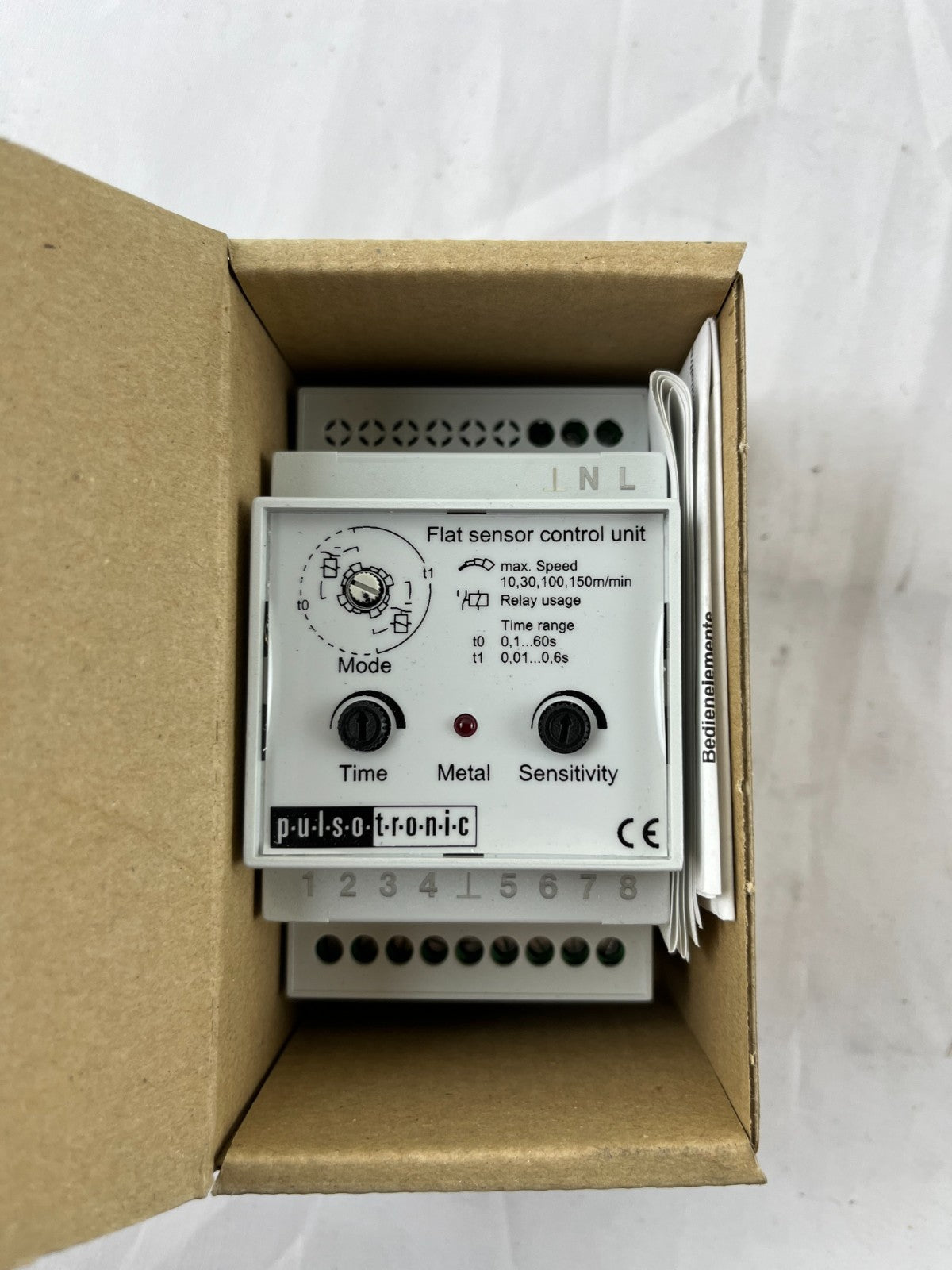

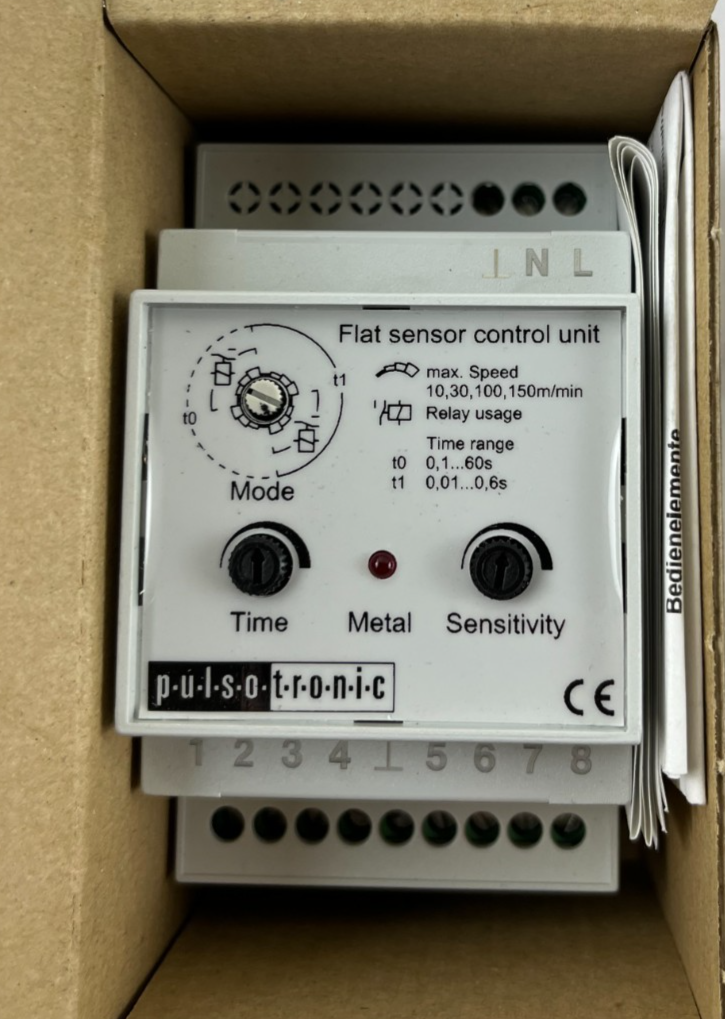

Brand new, never installed or used. Unit comes in original Pulsotronic box with manual. Control unit shows pristine condition with unused potentiometers, clean LED indicator, 9-position terminal strip unused. No installation wear - factory fresh condition.

Applications

Metal detection in conveyor systems, bulk material inspection, sorting applications, automated production lines requiring precise metal part detection with MESEP flat sensors.​​​
