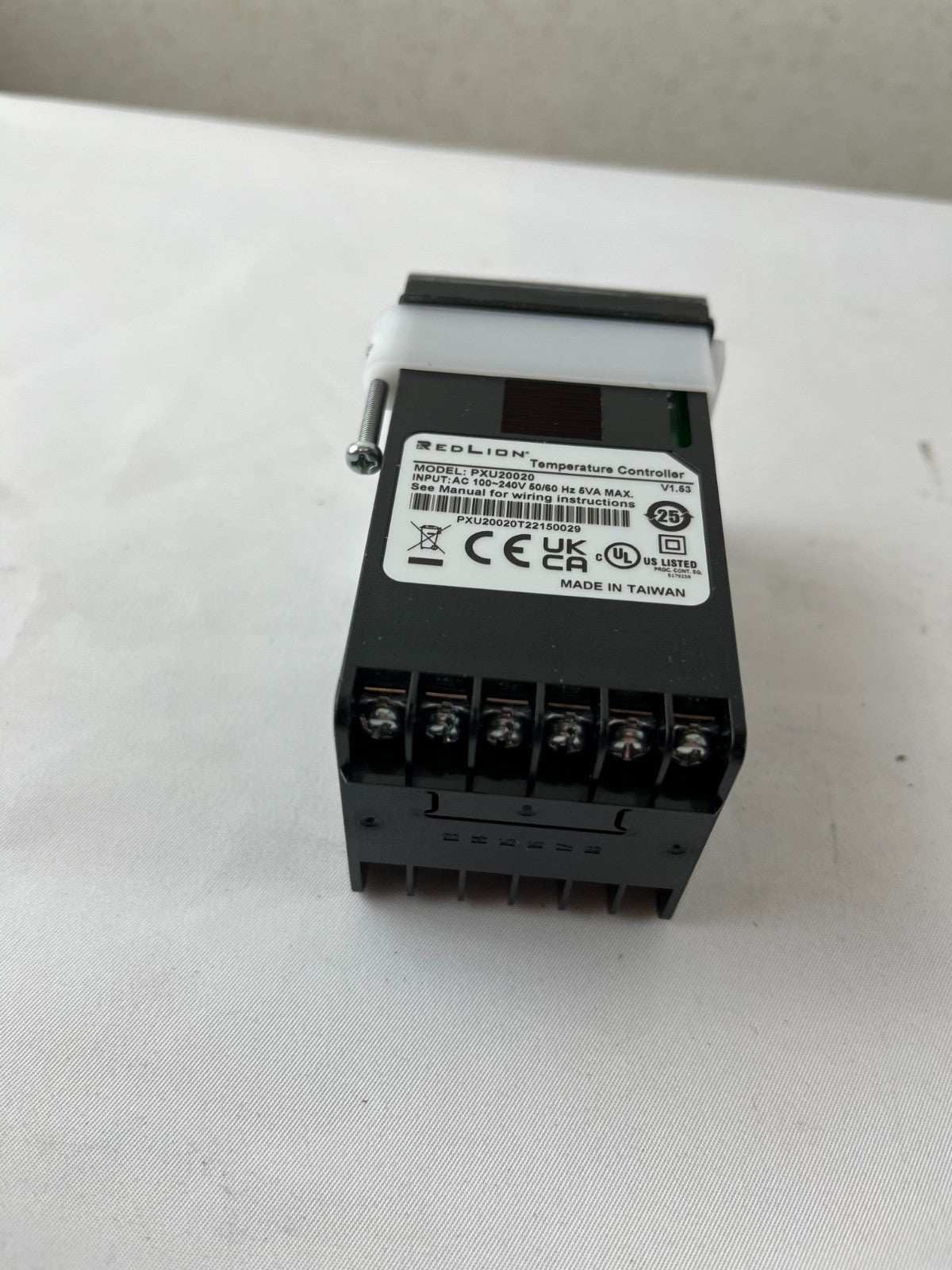

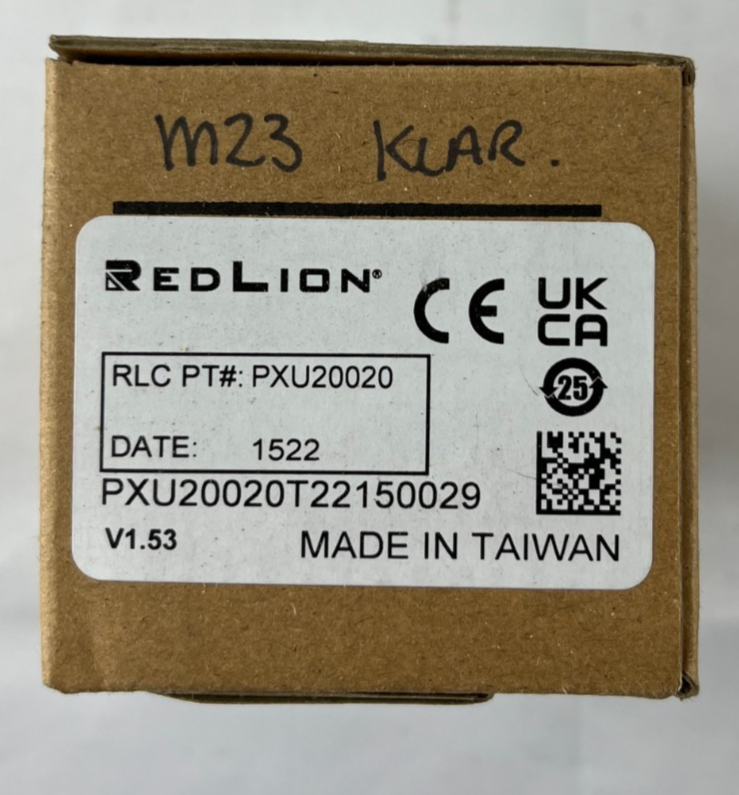

Model: PXU20020
-
Version: V1.53
-

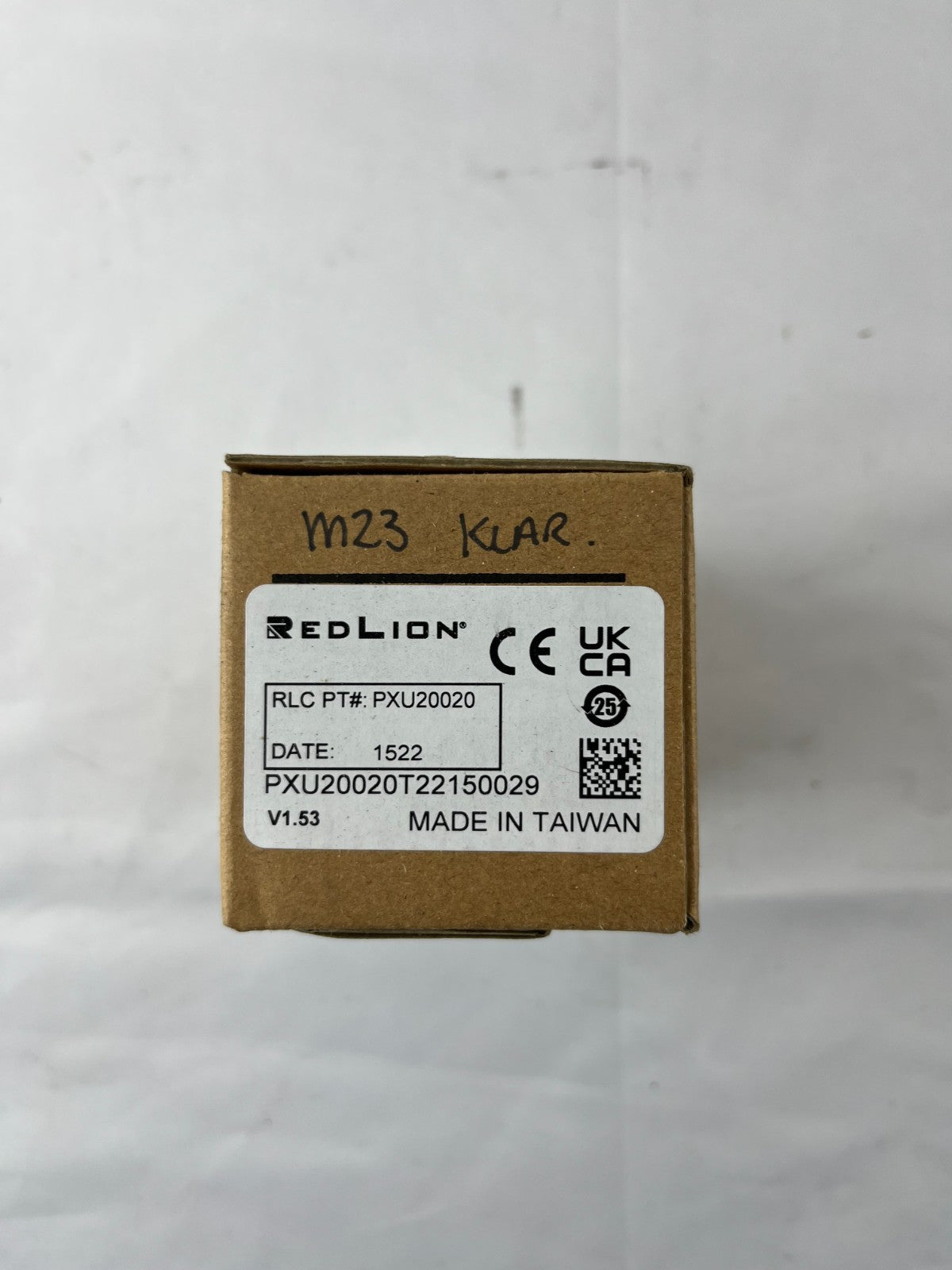

RLC Part Number: PXU20020
-

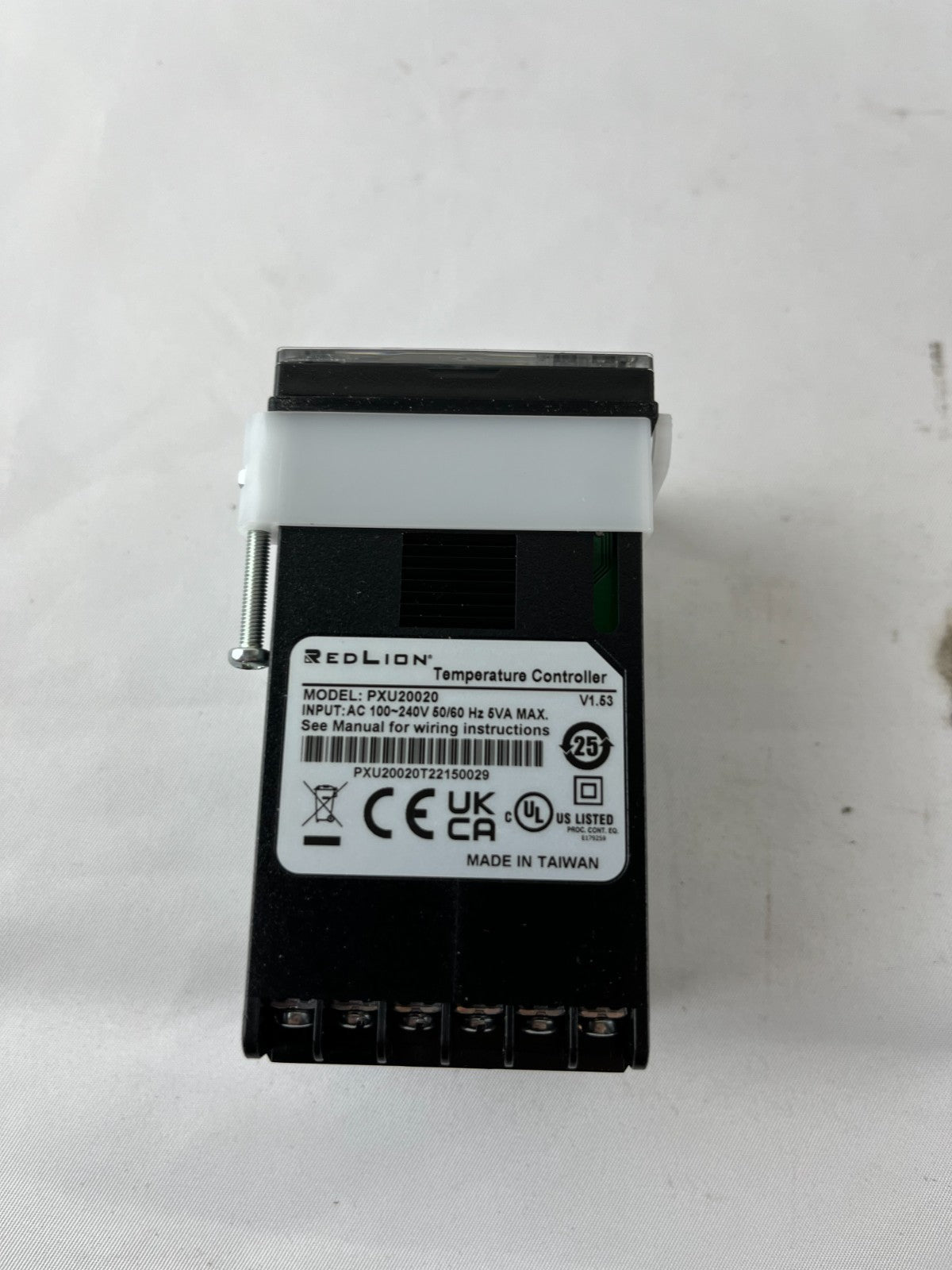

Serial Number: PXU20020T22150029
-
Date Code: 1522 (May 2015)
-
Panel Size: 48 × 48 mm (1/16 DIN)
-

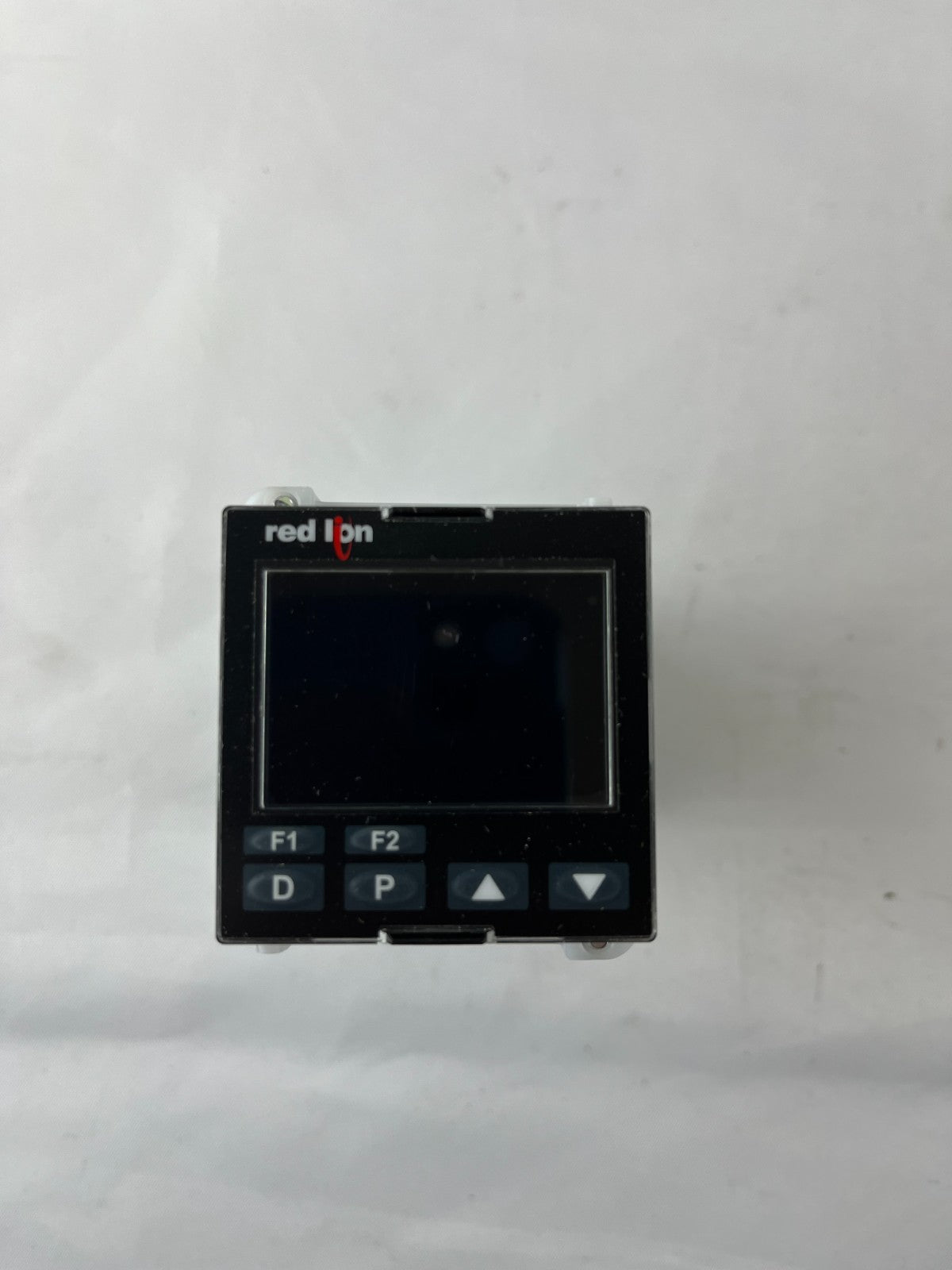

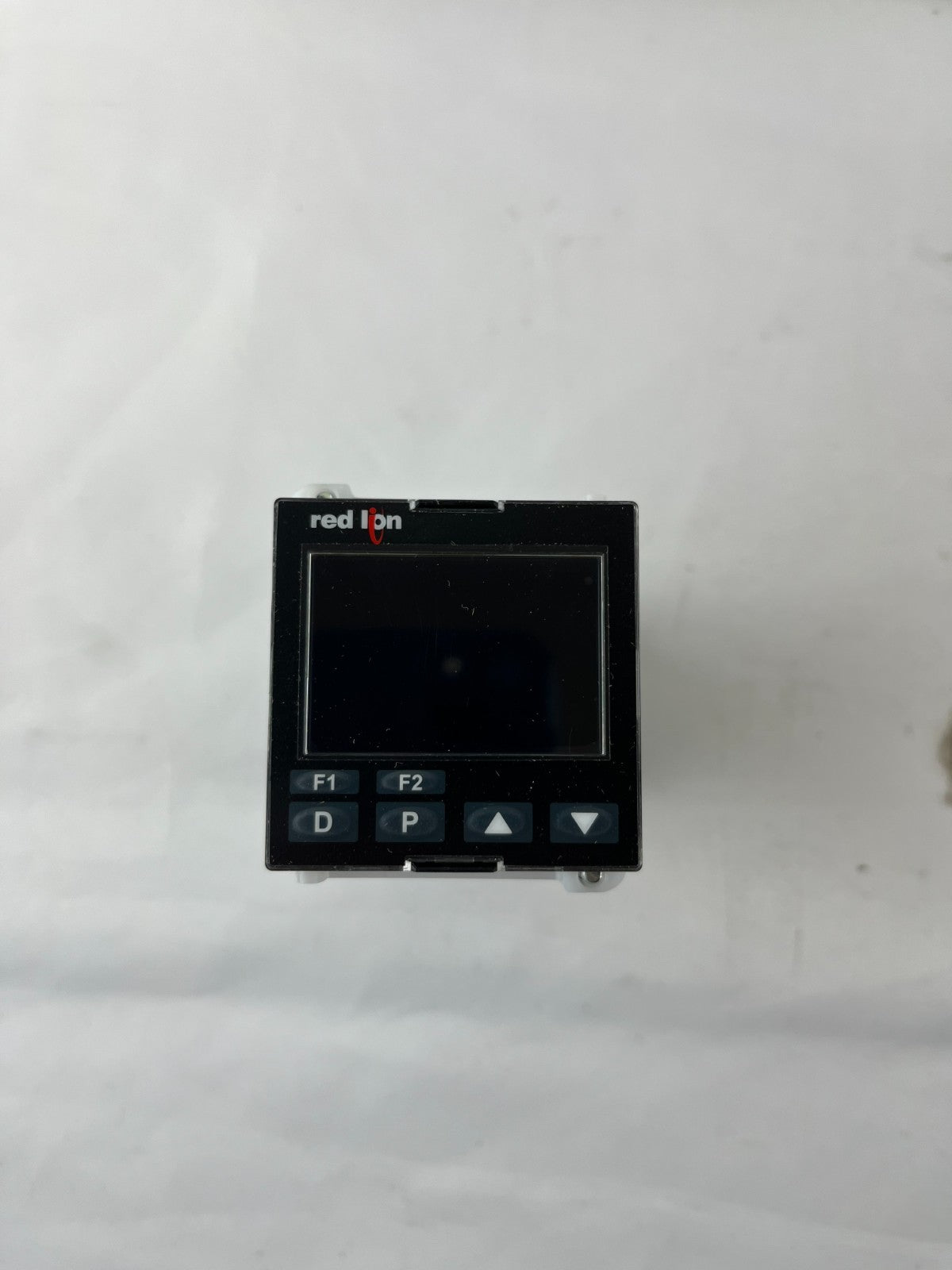

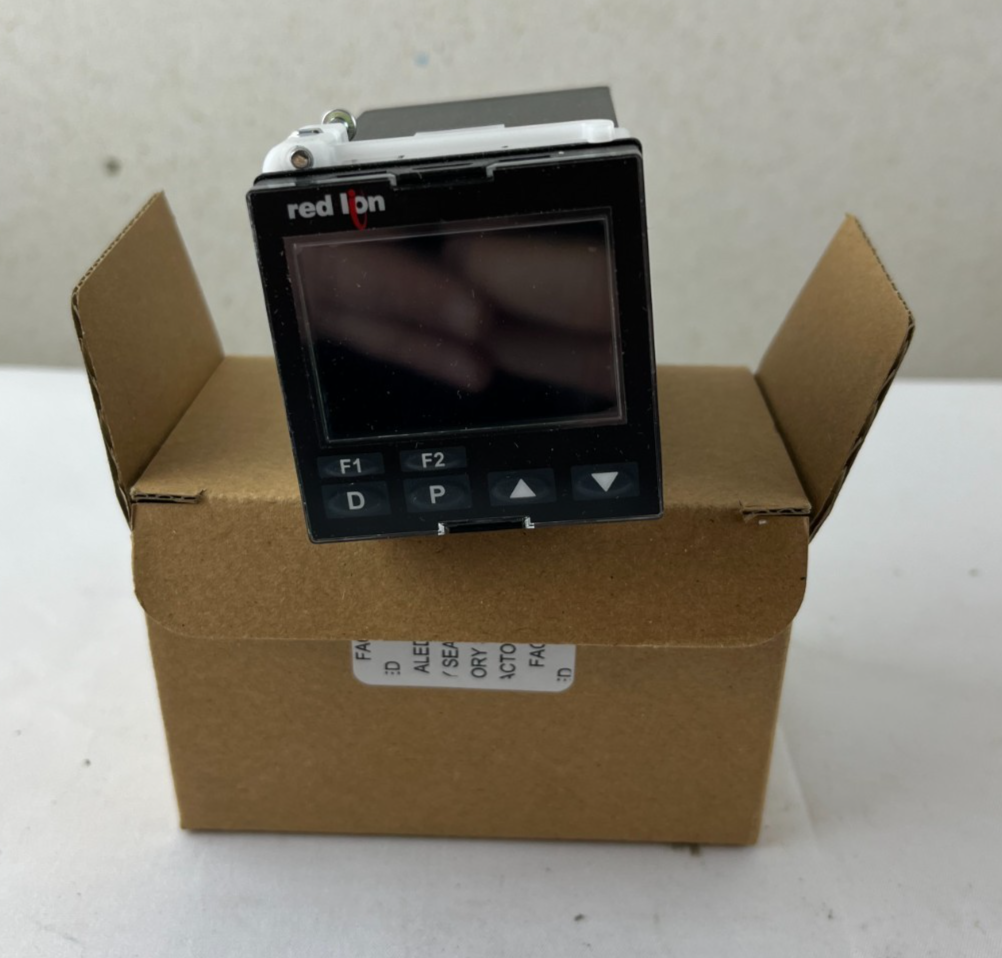

Display: Dual 4-digit LED (Line 1: 0.56" / 14mm, Line 2: 0.27" / 7mm) - one of the industry's largest displays
-
Input Types: Universal - Thermocouple (K/J/T/E/L/U/N/R/S/B/TXK), RTD (2 or 3-wire Pt100), Process (0-5V, 0-10V, 0-20mA, 4-20mA, 0-50mV)
-
Temperature Range: -200°C to 1800°C (depending on sensor)
-
Control Mode: PID, ON/OFF, or Manual with on-demand auto-tuning
-

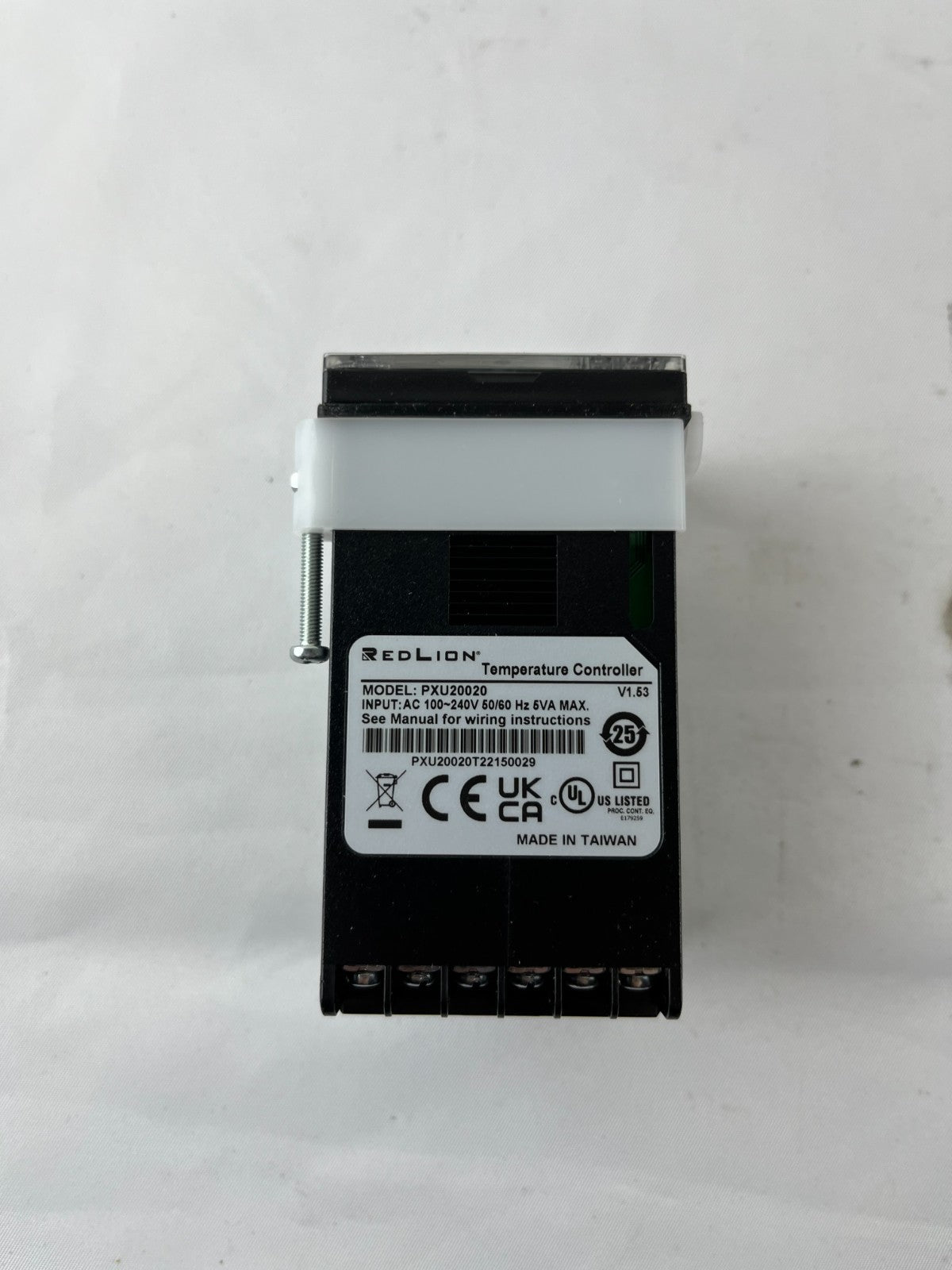

Power Supply: 100-240 VAC ±20%/+8%, 50/60 Hz, 5 VA
-
Main Control Output: Logic/SSR (pulse output for driving solid state relays)
-
Control Period: 100 msec
-
Auxiliary Outputs: 2 × alarm relay outputs (Form A, 3A @ 250 VAC)
-

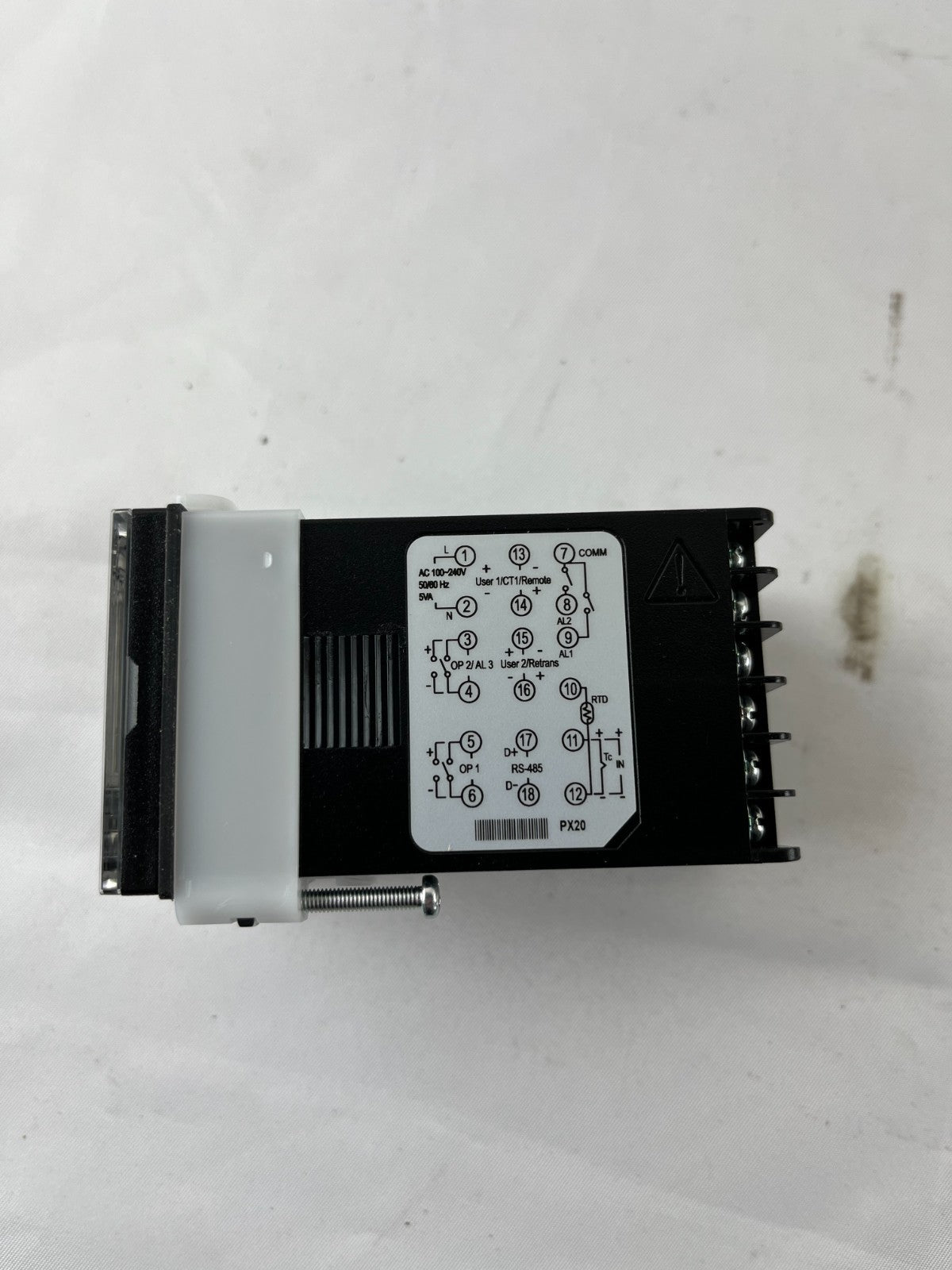

Optional Features: Remote setpoint input, second analog output, current transducer (CT) input, RS-485 serial communication
-
Ramp/Soak: Programmable temperature ramping capability
-
Accuracy: ±0.3% of span +1°C at 25°C ambient
-
Sampling Rate: 10 Hz (100 msec sample period)
-

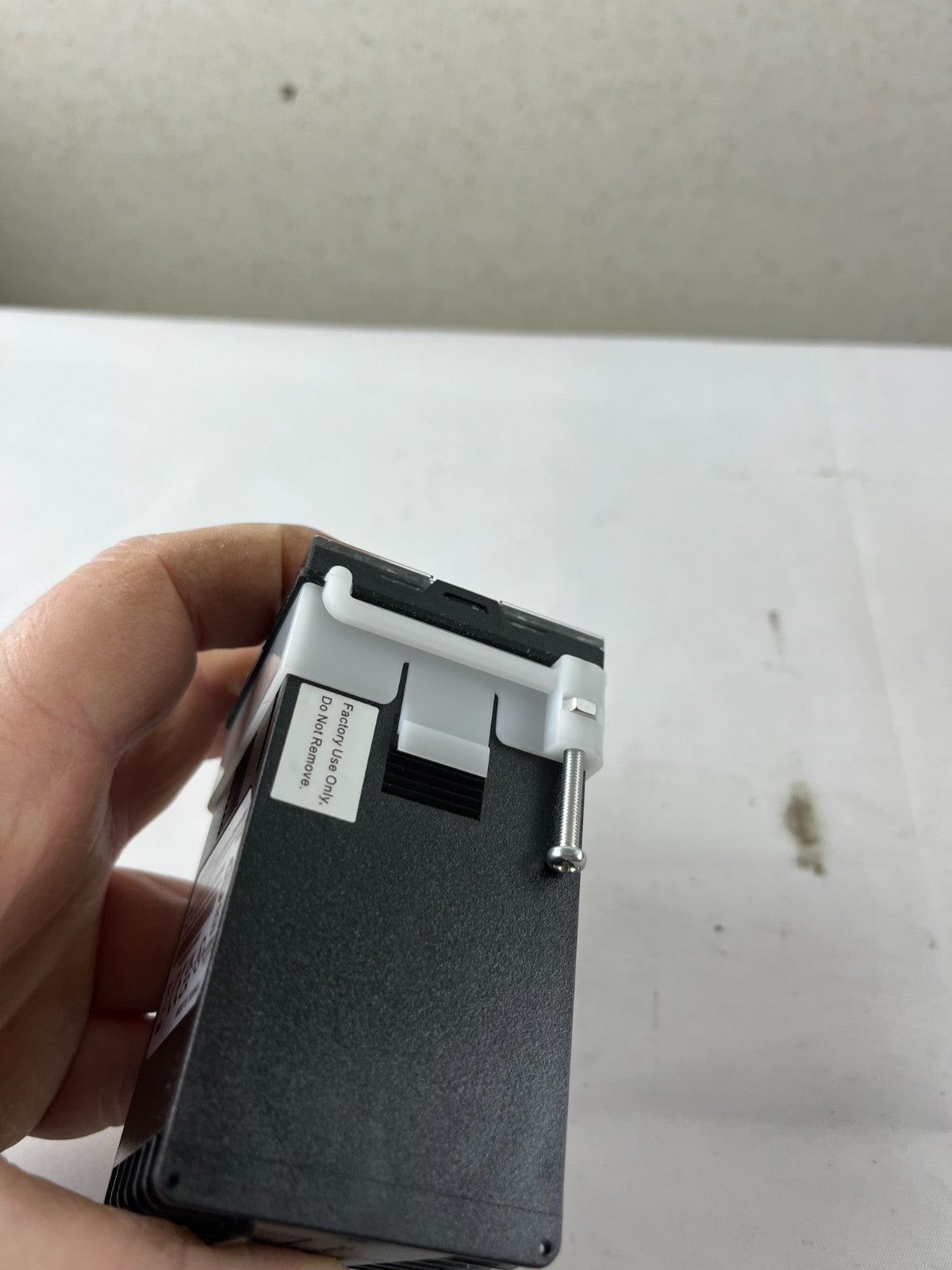

Panel Depth: 87 mm (3.4 inches)
-
Operating Temperature: 0°C to 50°C
-
Features: Auto-tuning, independent output configuration, 6 setpoints, 6 PID gain sets, programmable via front panel or Crimson software
-
Certifications: UL Listed, CE, UKCA
-
Country of Origin: Made in Taiwan
This advanced PID controller provides precise temperature and process control with user-friendly programming. The large dual-line display ensures easy readability from a distance. The Logic/SSR output is ideal for controlling solid-state relays in heating applications. The space-saving design allows installation in enclosures with reduced depth. Perfect for industrial heating, plastics processing, packaging, food processing, and general process control applications requiring accurate PID control.
