Brand New Rittal KX 1503.000 Industrial Terminal Junction Box - Made in Germany

• Model: KX 1503.000

• Manufacturer: Rittal (Made in Germany)

• Serial Number: E-23 HFG-9690522

• Production Date: 15.12.2020

• Type: Terminal box (Klemkasse) without gland plate​

• Series: KX Compact Enclosure Series​

Dimensions & Construction:

• External Dimensions (W x H x D): 300mm x 200mm x 120mm​

• Material - Body: Sheet steel, folded from single piece and welded​

• Material - Cover: Sheet steel with all-round foamed-in PU seal​

• Material Thickness - Cover: 1.25mm​

• Color: RAL 7035 light grey​

• Surface Finish: Triple surface treatment - nanoceramic coating, electrophoretic dipcoat priming, powder-coated textured paint​

Protection & Ratings:

• IP Rating: IP66 (dust-tight and water jet protection)​

• NEMA Rating: NEMA 1, 3R, 4, 12​

• UL Type: Type 1, 3R, 4, 12​

• IK Impact Protection: IK08​

• Electrical Rating: 1000V AC / 1500V DC​

• Operating Temperature: -20°C to +80°C​

Features:

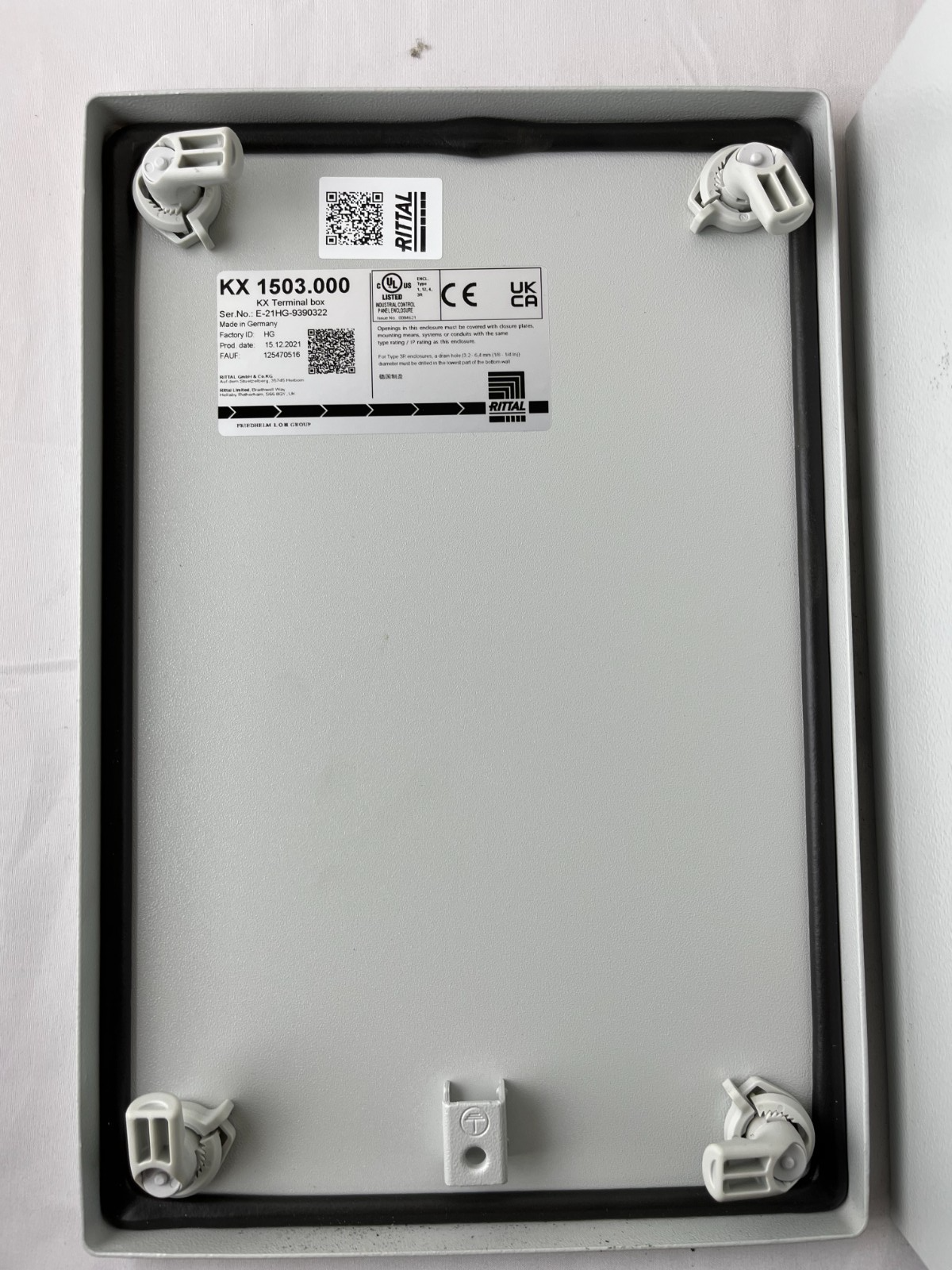

• Foamed-In PU Seal: All-round continuous seal ensures IP66 protection​

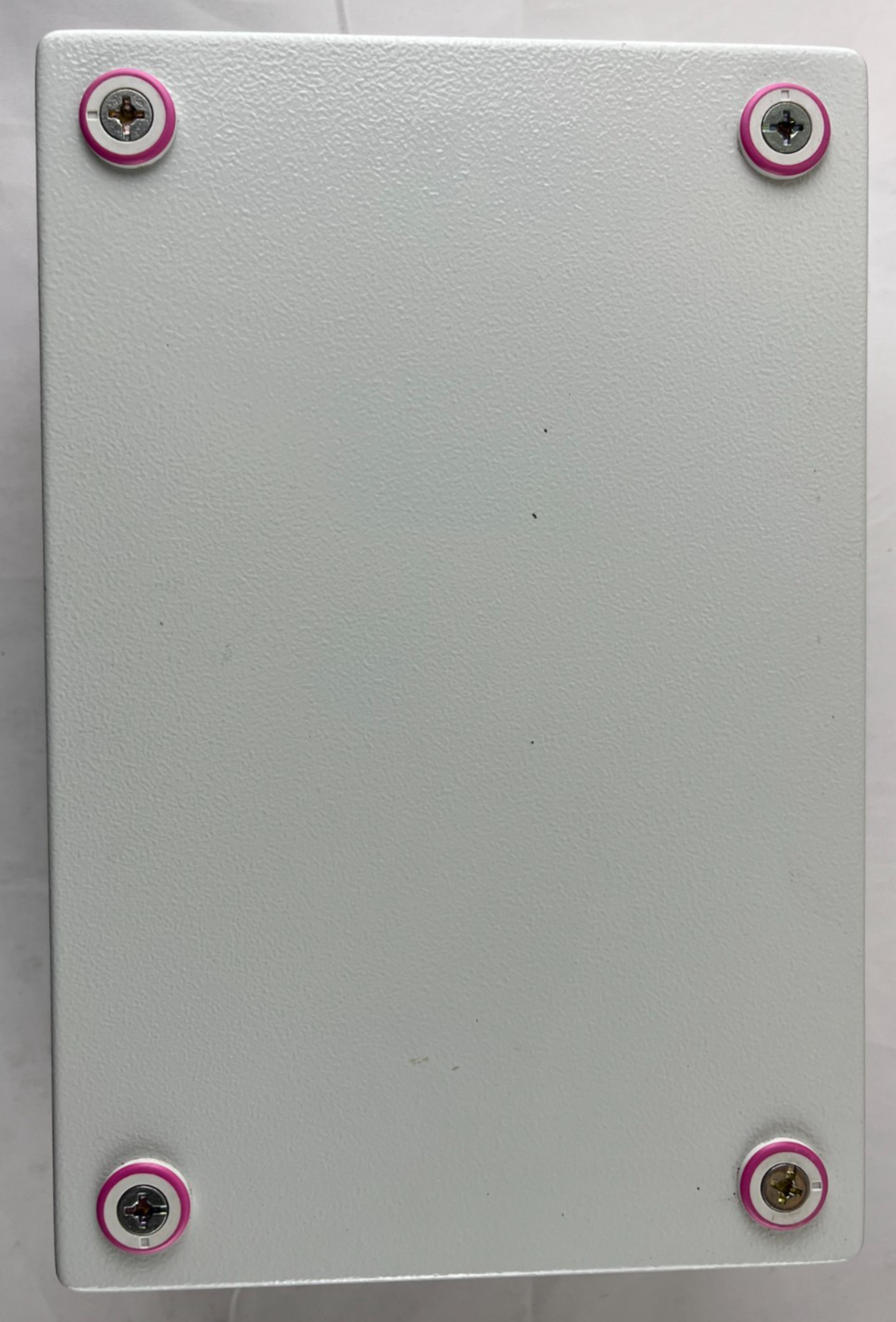

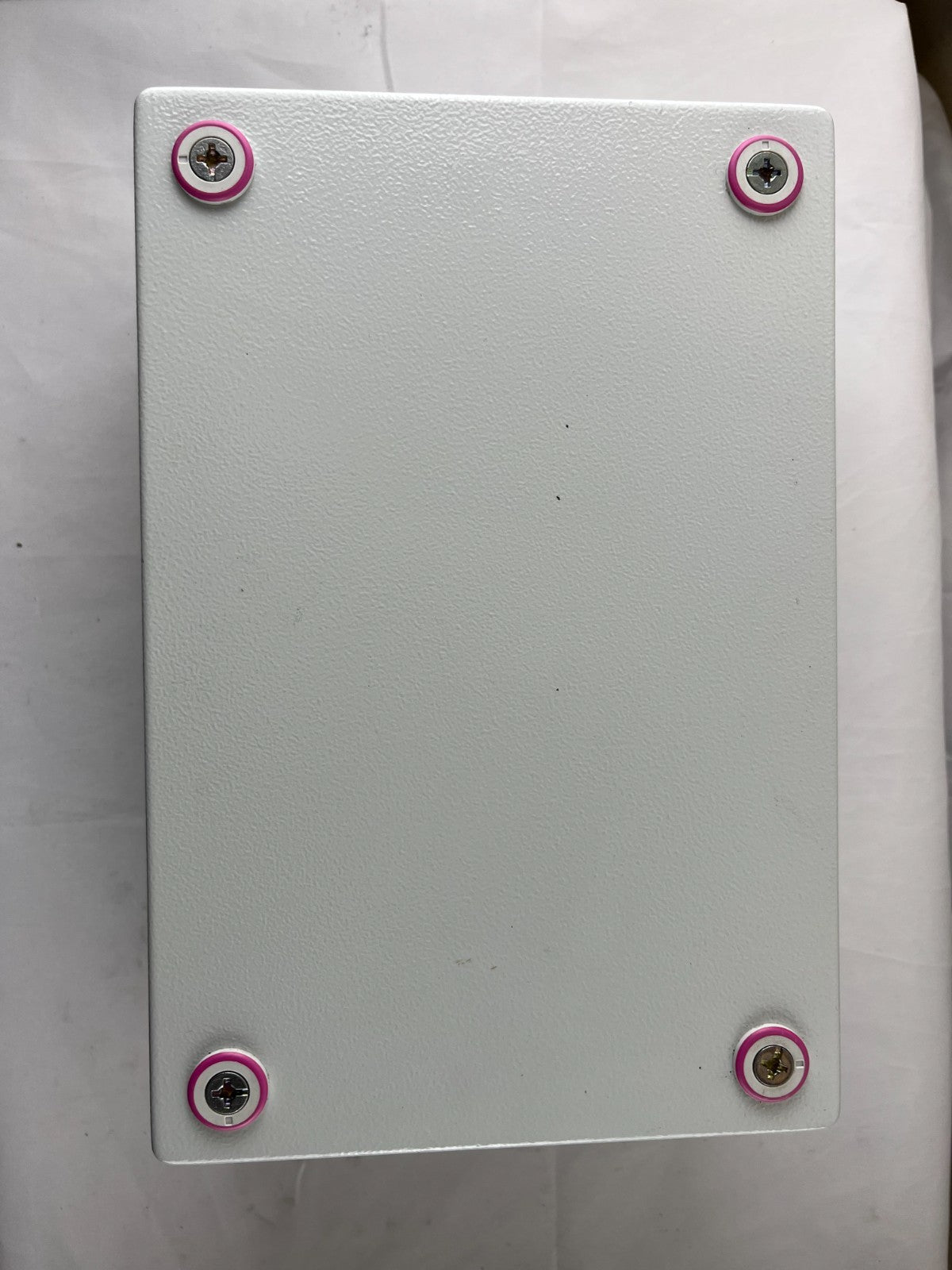

• Mini Cam Locks: Four tool-free mini cam locks ensure secure, centered cover closure​

• Wall Mounting: Rear panel with eyelets for wall mounting bracket​

• PE Conductor Connection: Integrated protective earth connections in enclosure and cover​

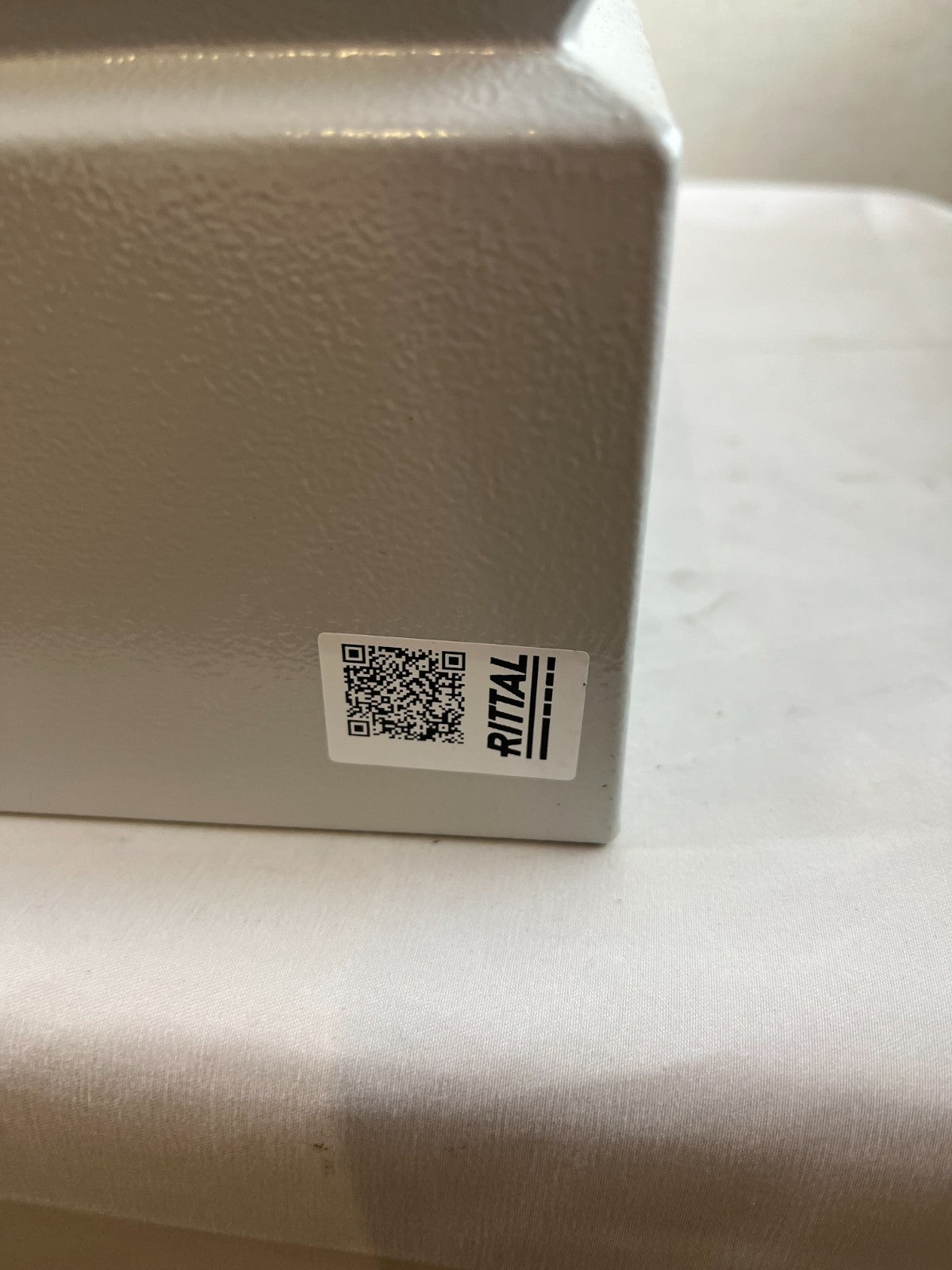

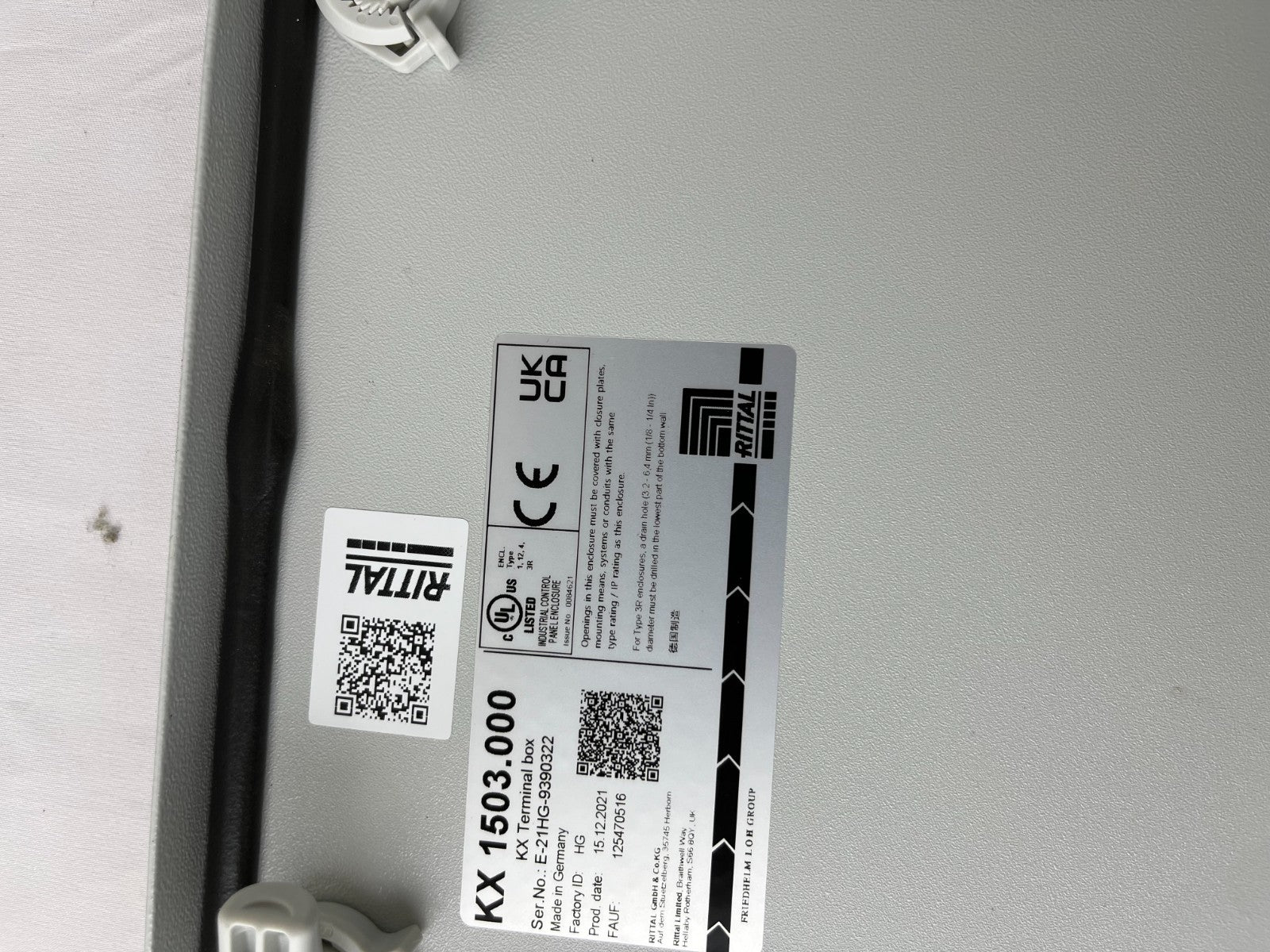

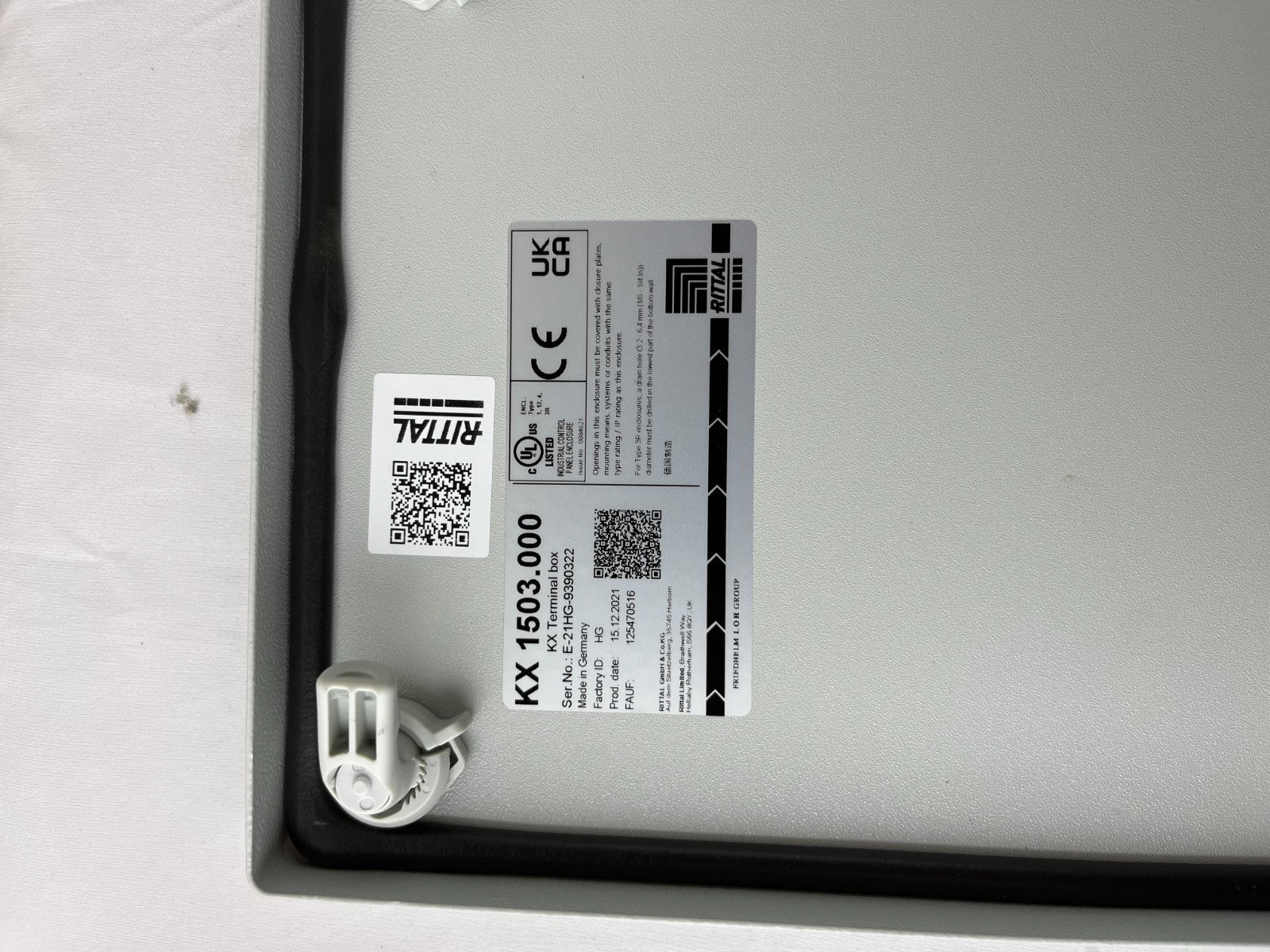

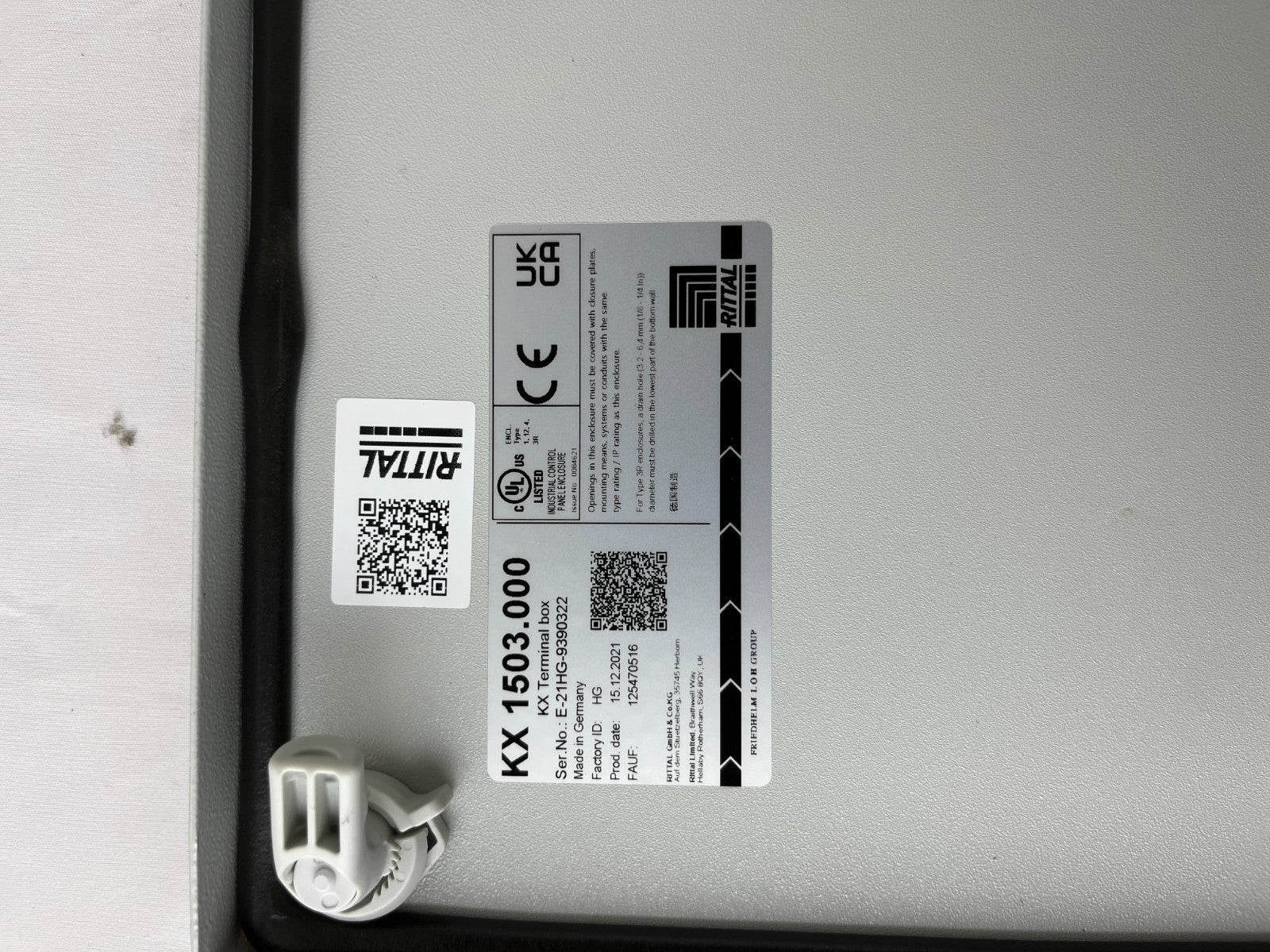

• QR Code: Printed on body, cover and rating plate for traceability and product information​

• Without Gland Plate: Allows flexible interior installation​

• Corrosion Protection: Triple surface treatment provides excellent resistance to mineral oils, lubricants, machining emulsions and solvents​

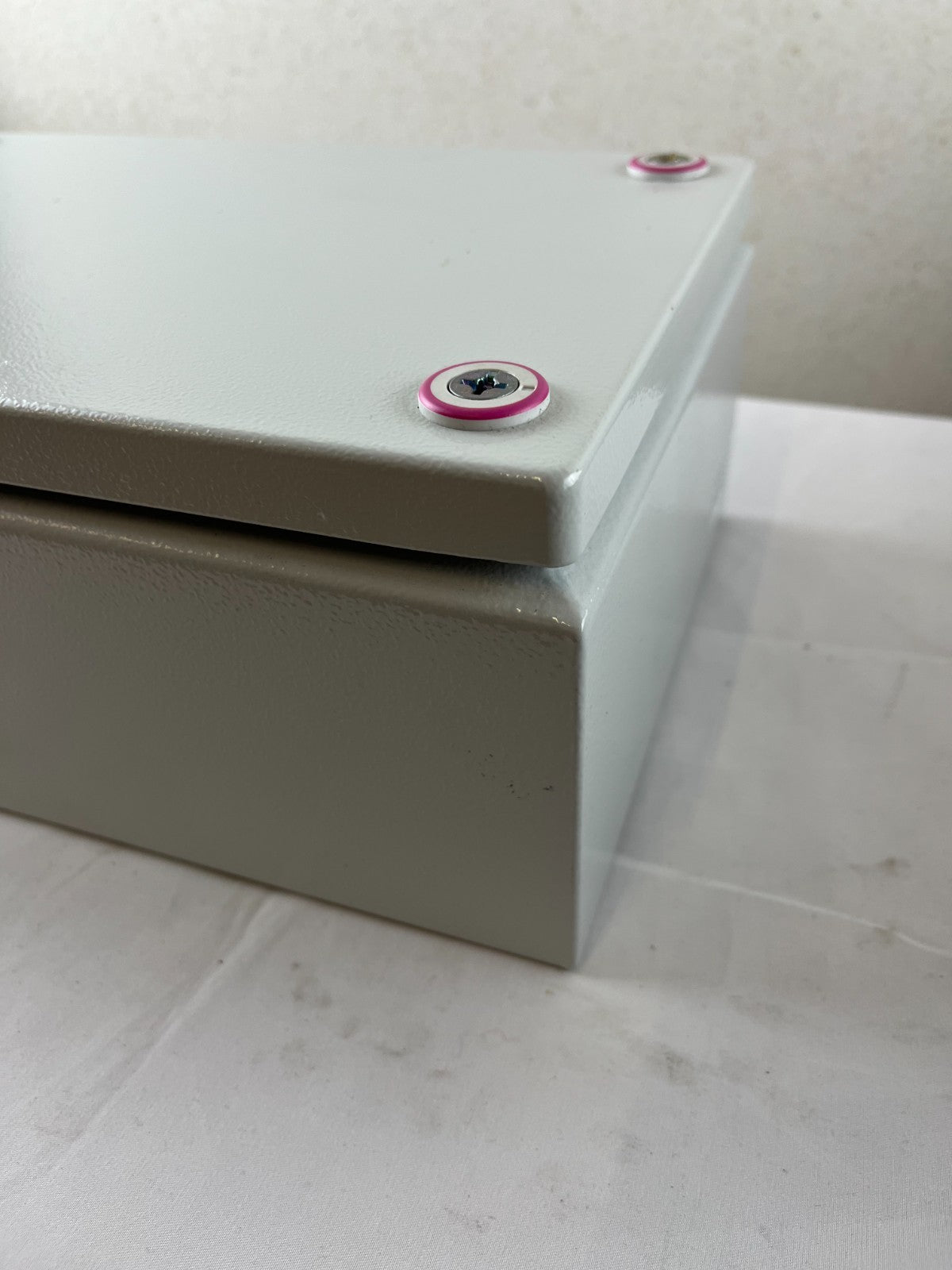

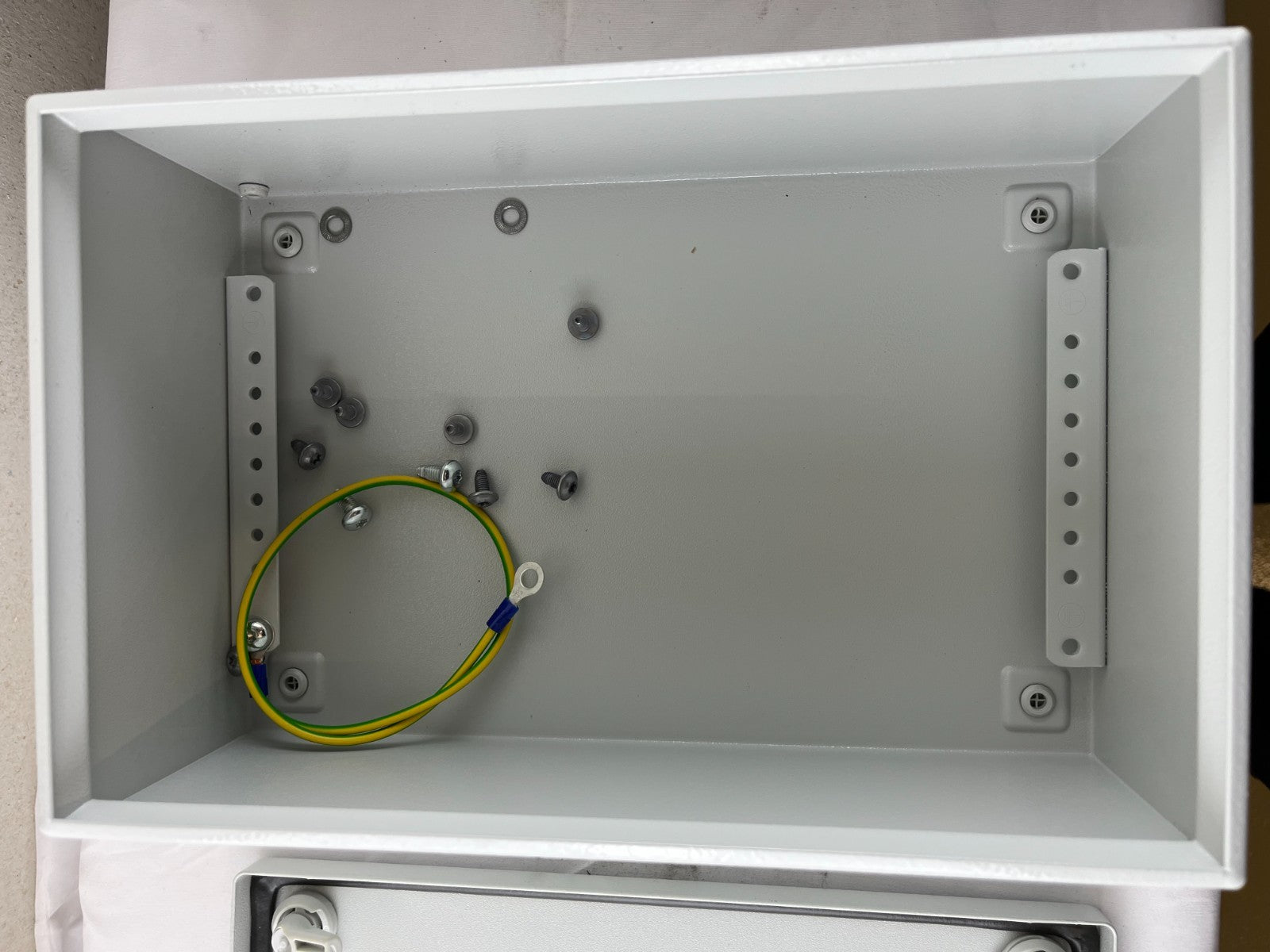

The Rittal KX terminal box features stable sheet steel construction with protection channel around cover opening, integral perforated mounting strip for flexible component mounting, and includes earthing points accessible from front for fast, secure mounting of earth straps.​

Applications: Industrial control panels, junction boxes, distribution boxes, electrical installations, machine control enclosures, automation systems, instrumentation housings, outdoor electrical equipment, harsh environment applications.

Condition: Brand New, Made in Germany, Production Date: December 2020
