Rittal SK 3110 enclosure thermostat for controlling heating and cooling equipment inside control cabinets, in good working used condition. Multi-voltage design suitable for 24–60 V and 115–250 V AC operation with adjustable temperature setpoint.
-
Brand: Rittal
-
Model: SK 3110
-
Type: Enclosure thermostat / temperature controller
-

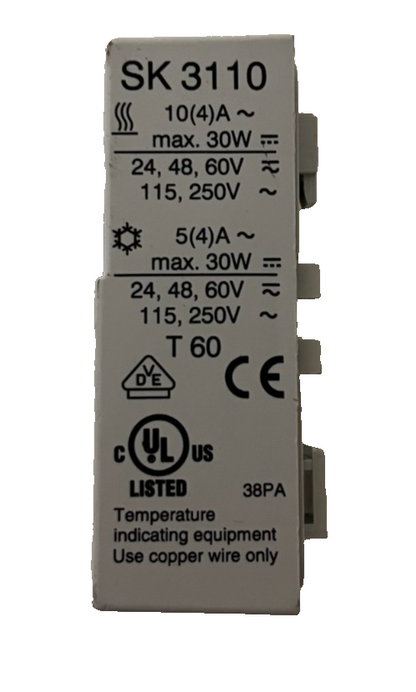

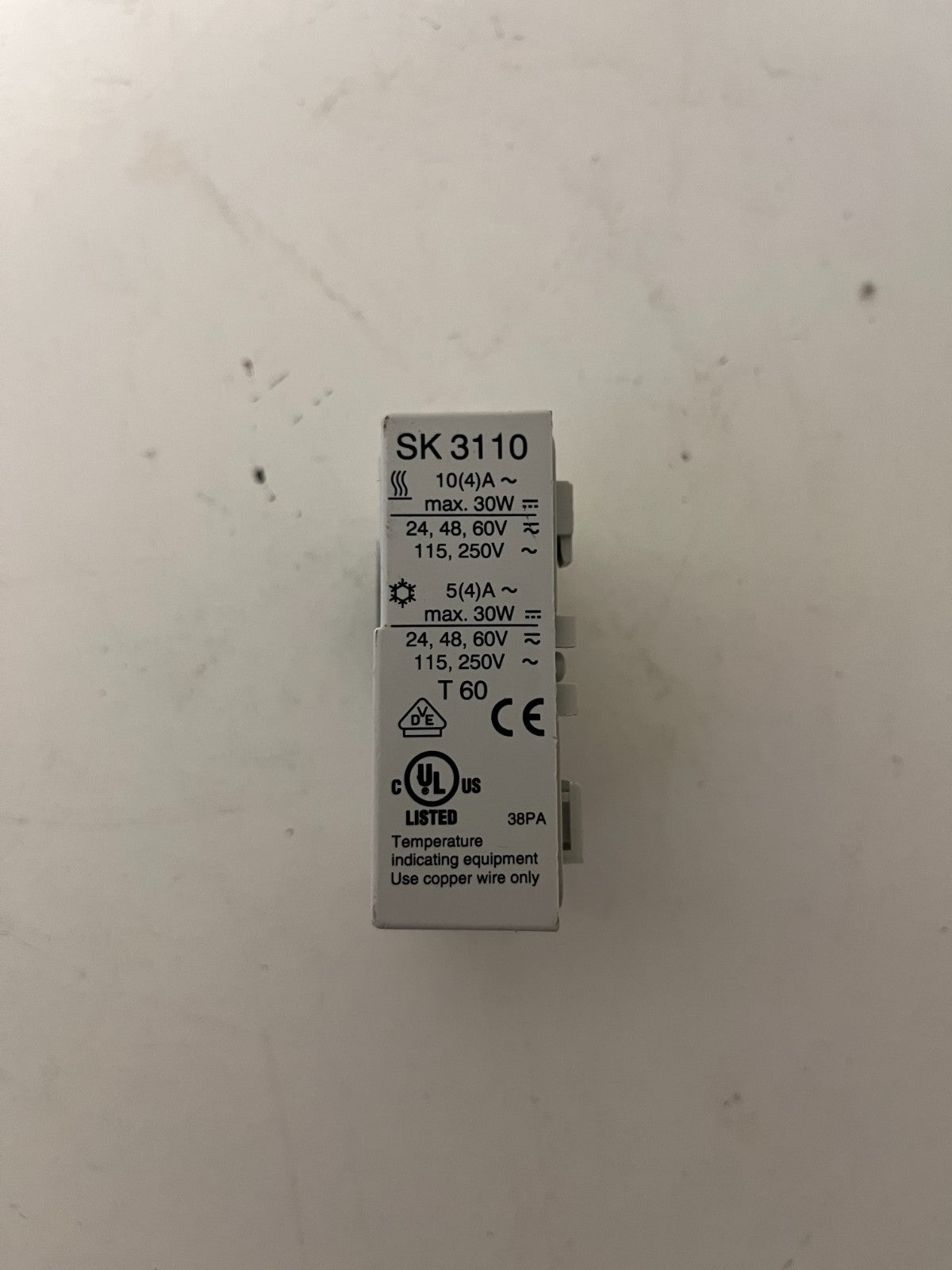

Voltage range: 24, 48, 60 V AC and 115, 250 V AC (see side label for details)
-
Contact rating (heating symbol): 10(4) A, max. 30 W
-
Contact rating (cooling/fan symbol): 5(4) A, max. 30 W
-

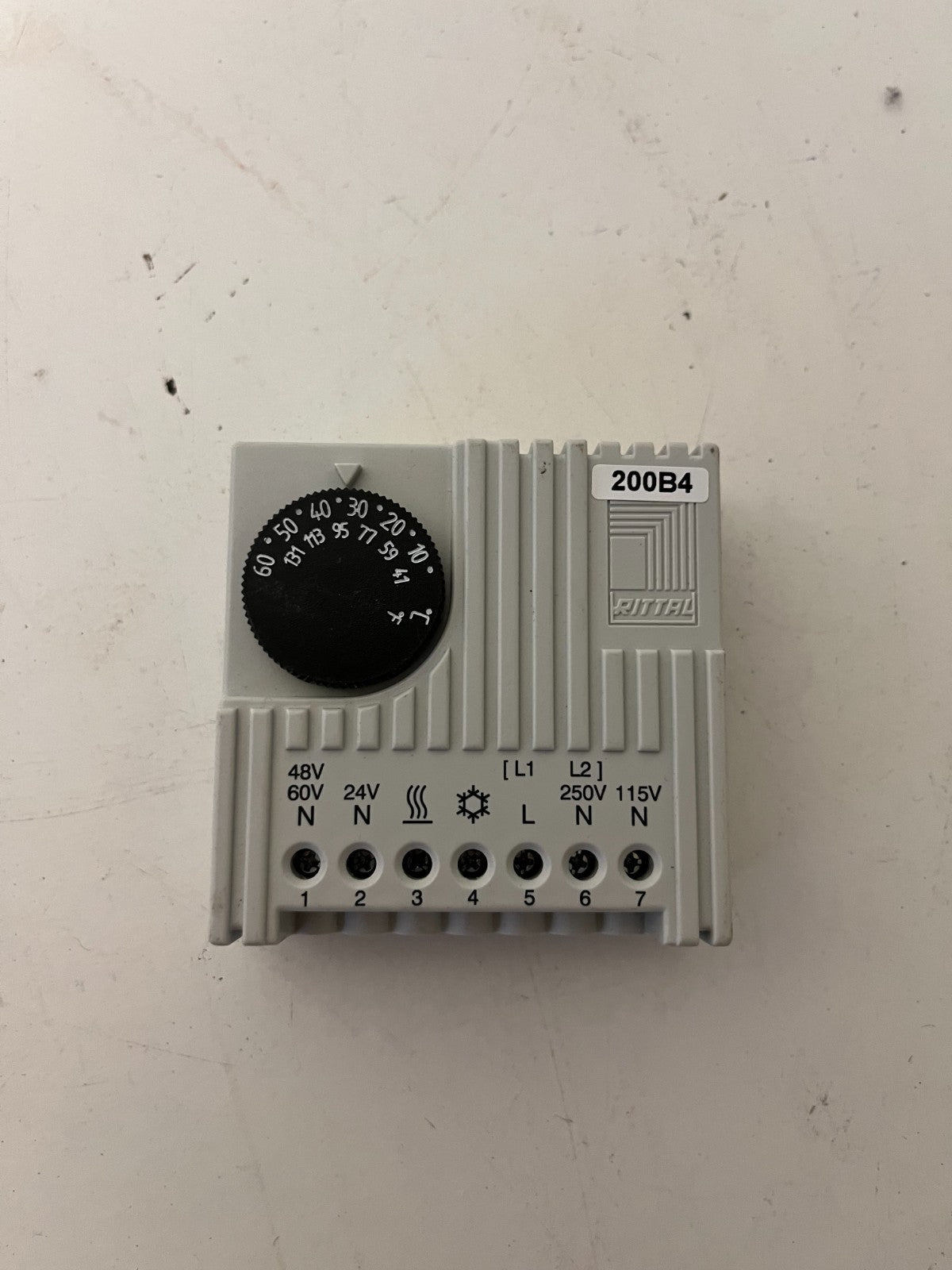

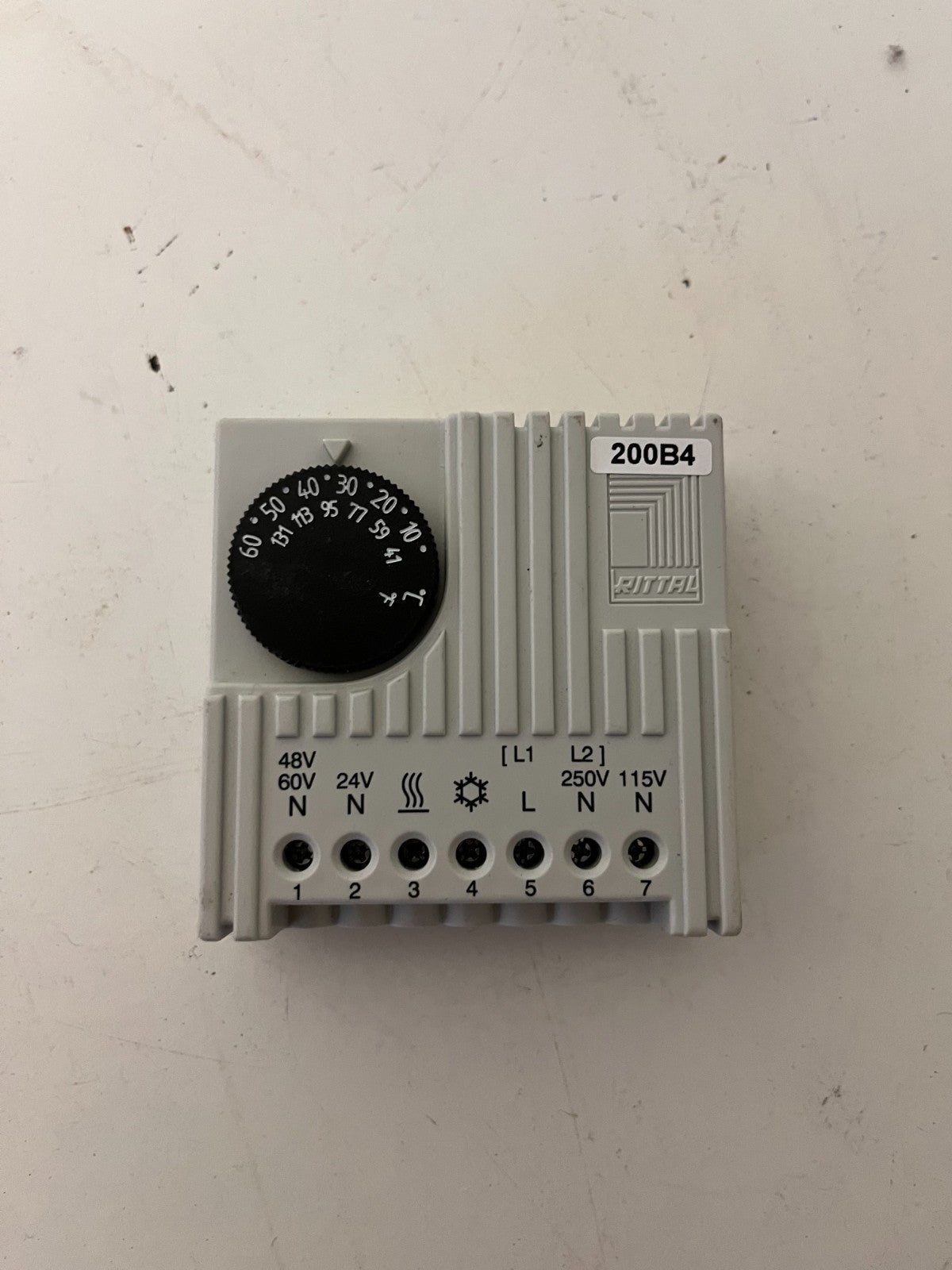

Temperature scale: Adjustable via front dial (approx. 0–60 °C scale printed on knob)
-

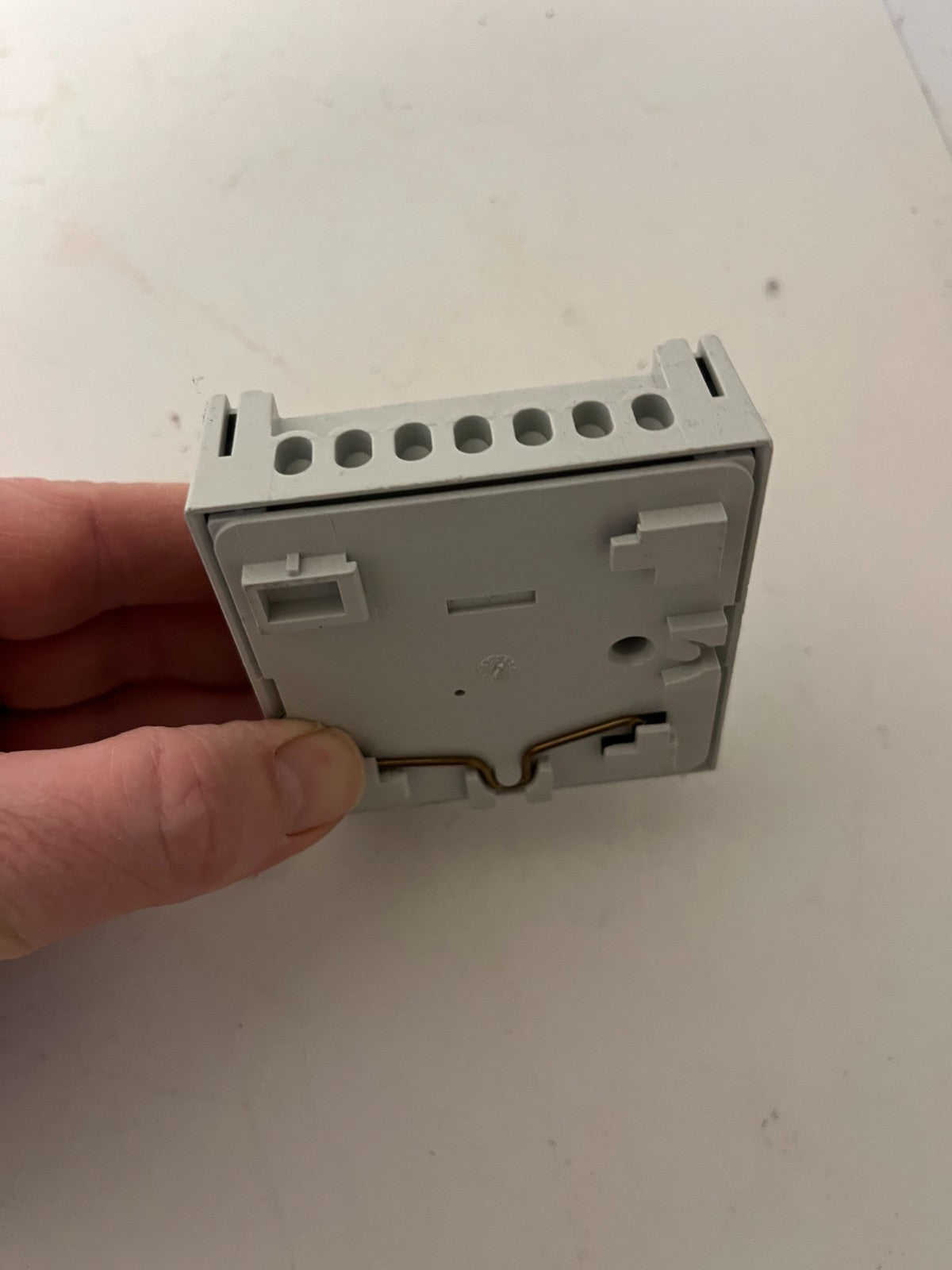

Terminals: 7 screw terminals labeled 1–7 for heater, fan, and multi-voltage supply connections
-
Approvals: cULus Listed (temperature indicating equipment), CE and VDE marks on label
-

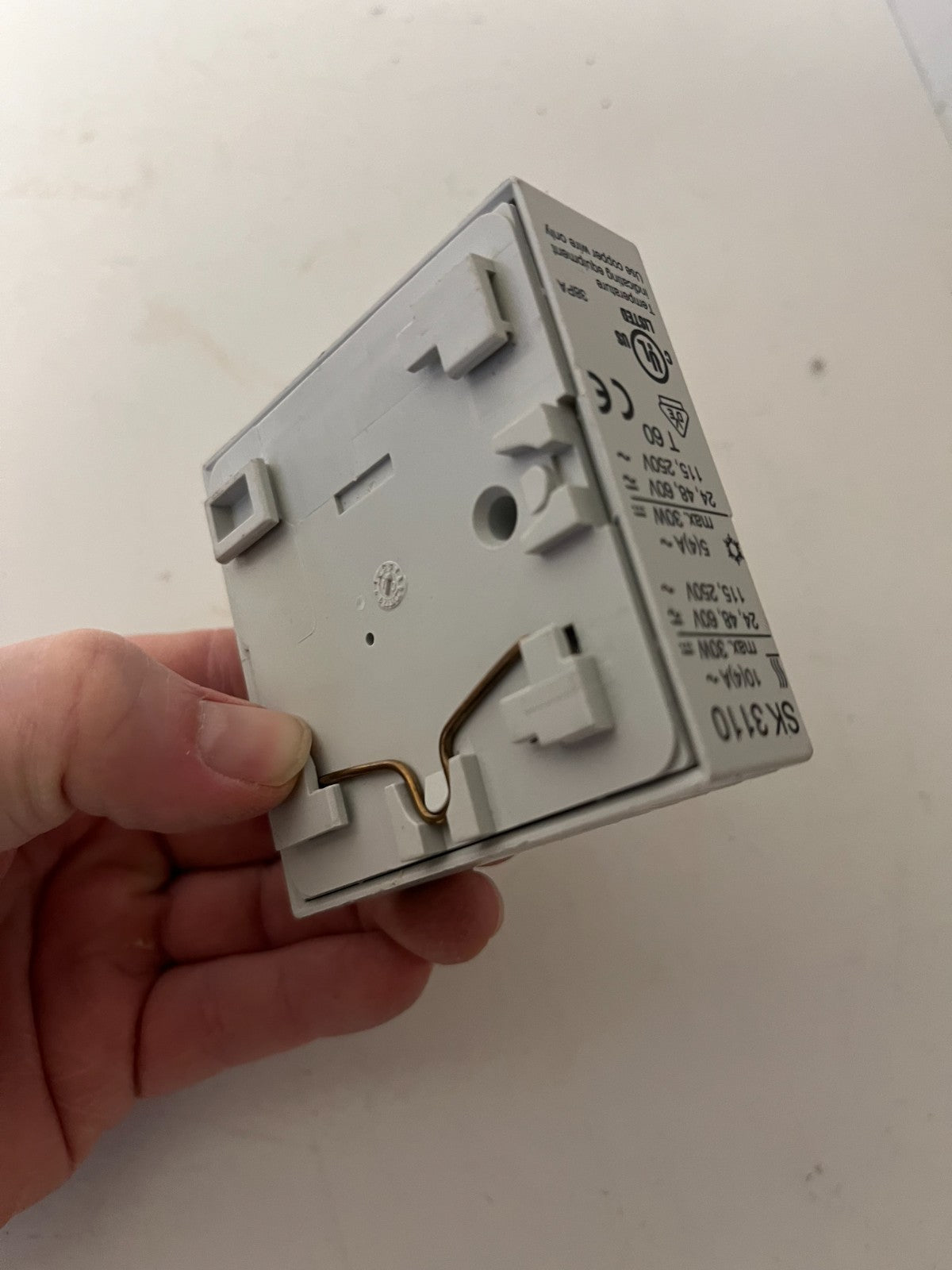

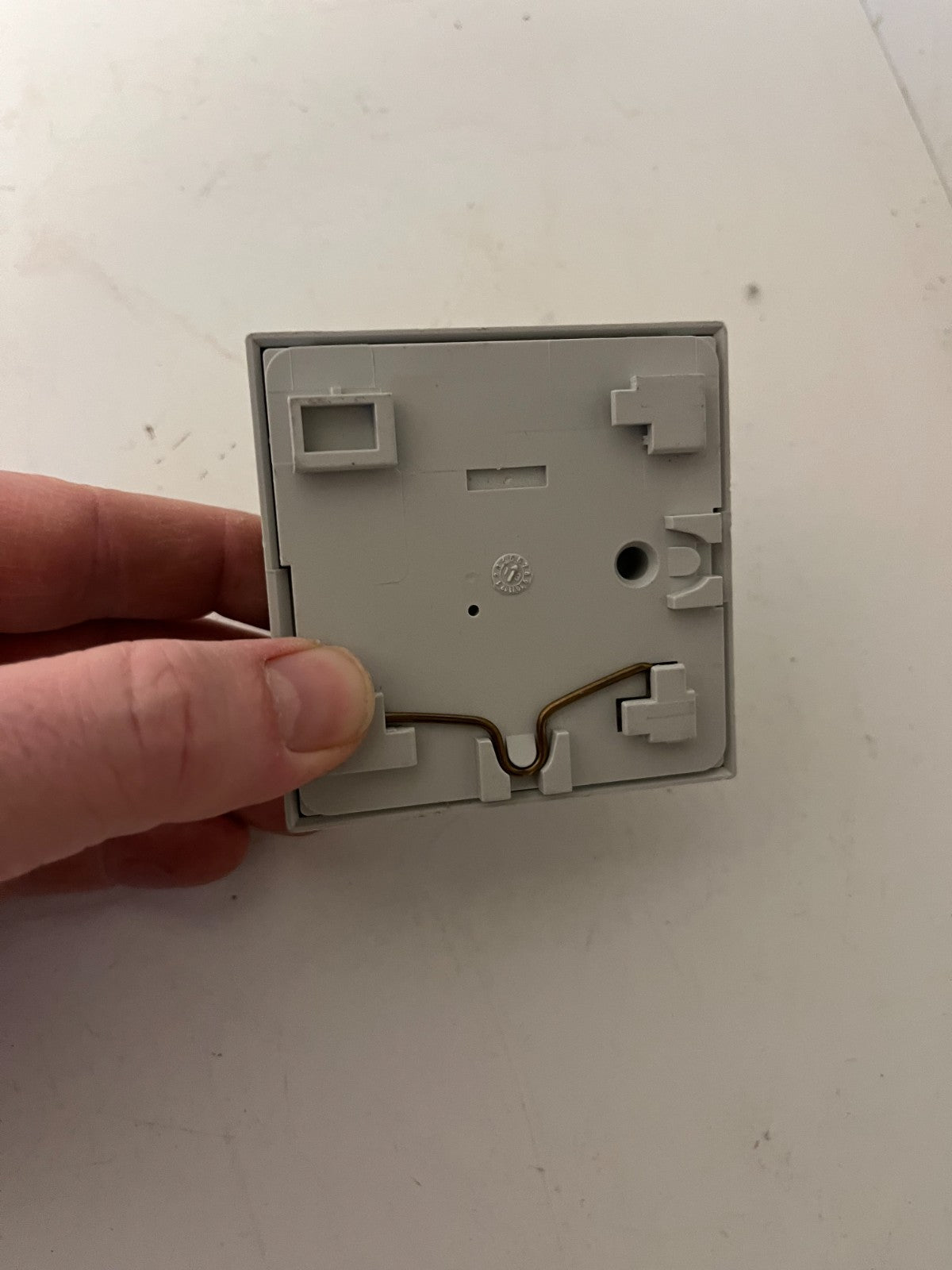

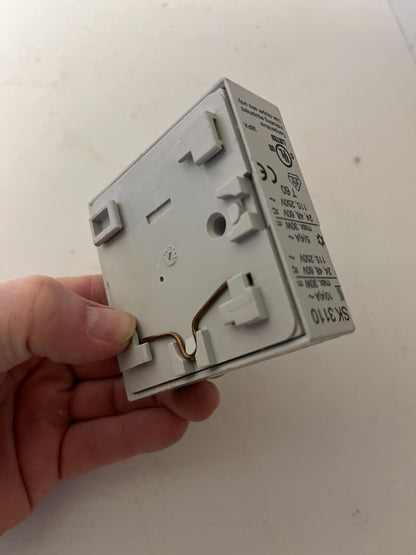

Mounting: Clip-in/rail mounting with spring clip on rear of housing
-
Used, in good working condition
-
Light cosmetic wear and minor marks from previous installation
-
All terminal markings and temperature scale are clear and readable
-
No original box or documentation included, unit only as shown
-
Designed for use inside electrical enclosures to switch heaters or fans based on internal cabinet temperature.
-
Buyer should follow Rittal wiring diagrams and ensure correct voltage selection when installing.
-

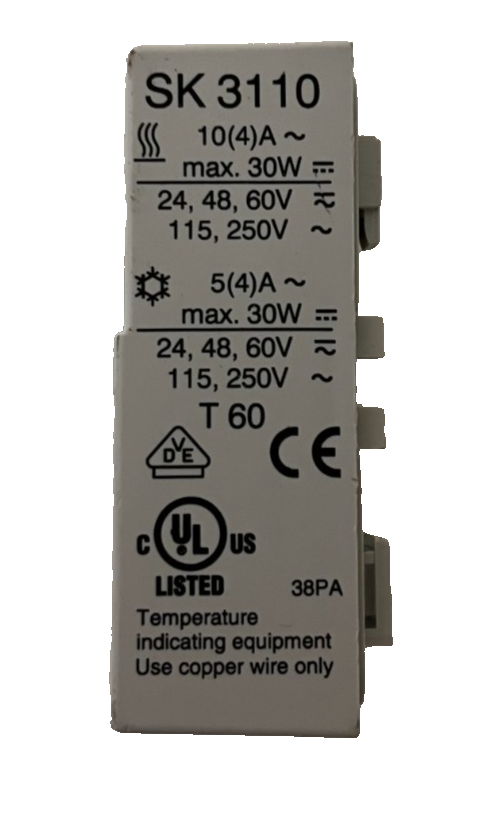

See detailed photos for all markings and technical data on the side label and front panel.
