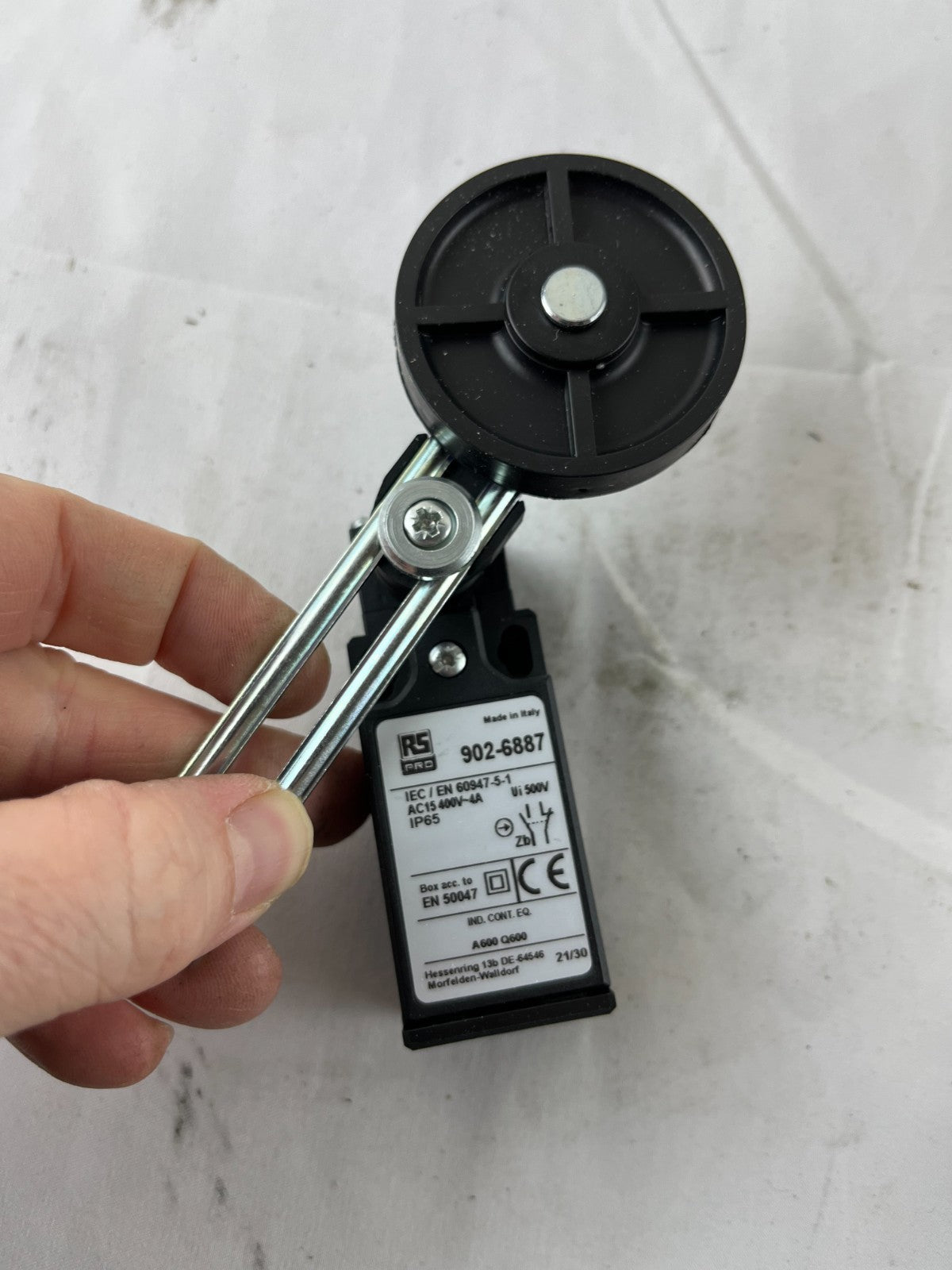

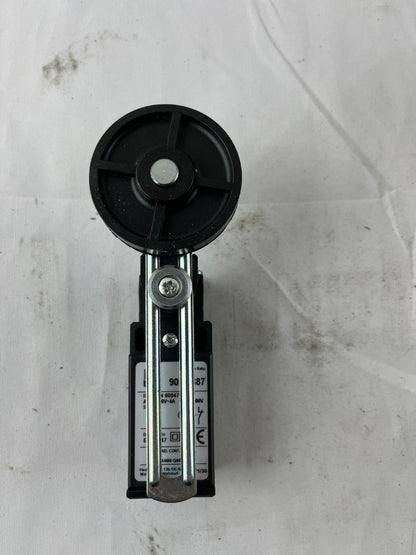

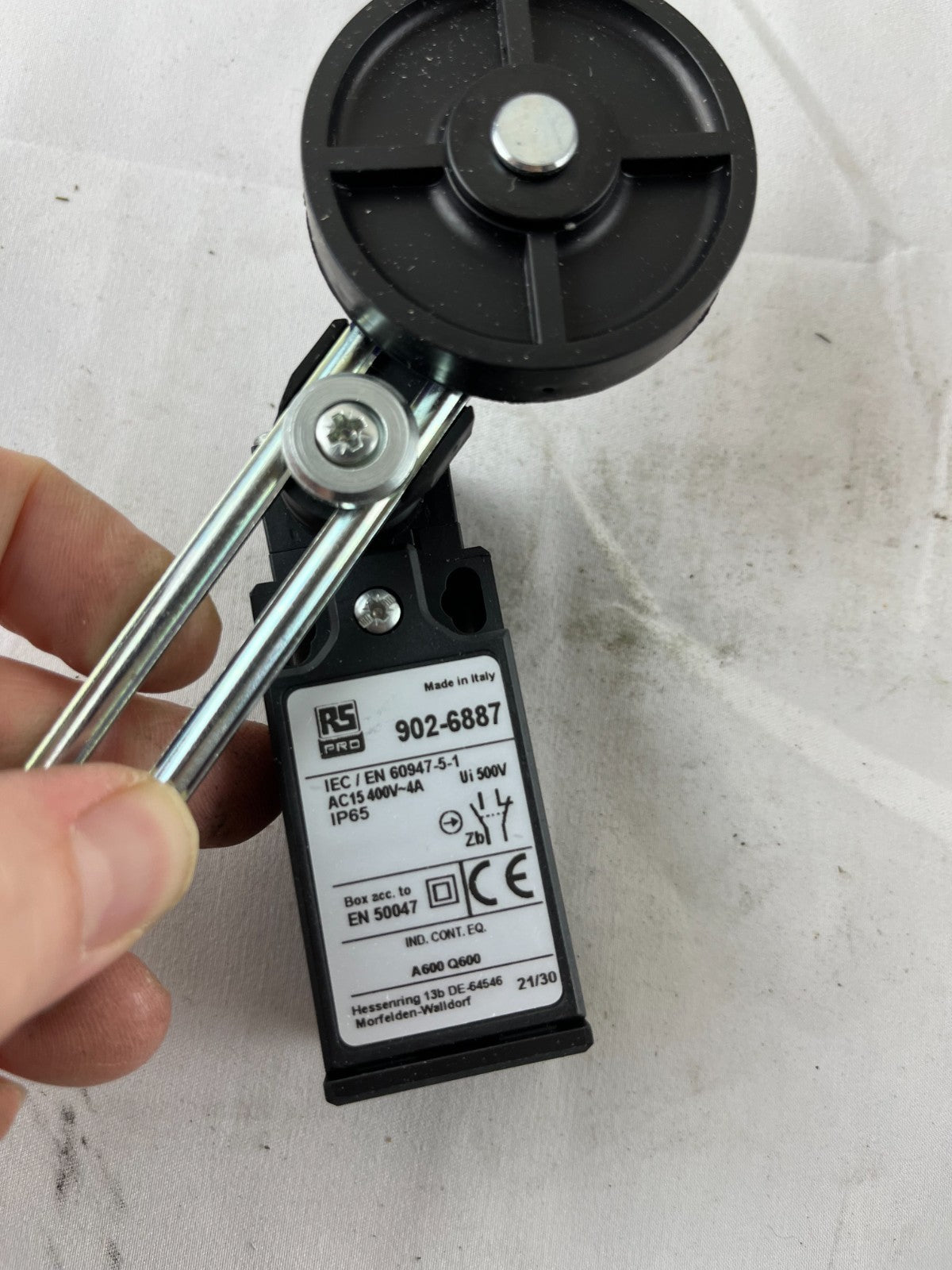

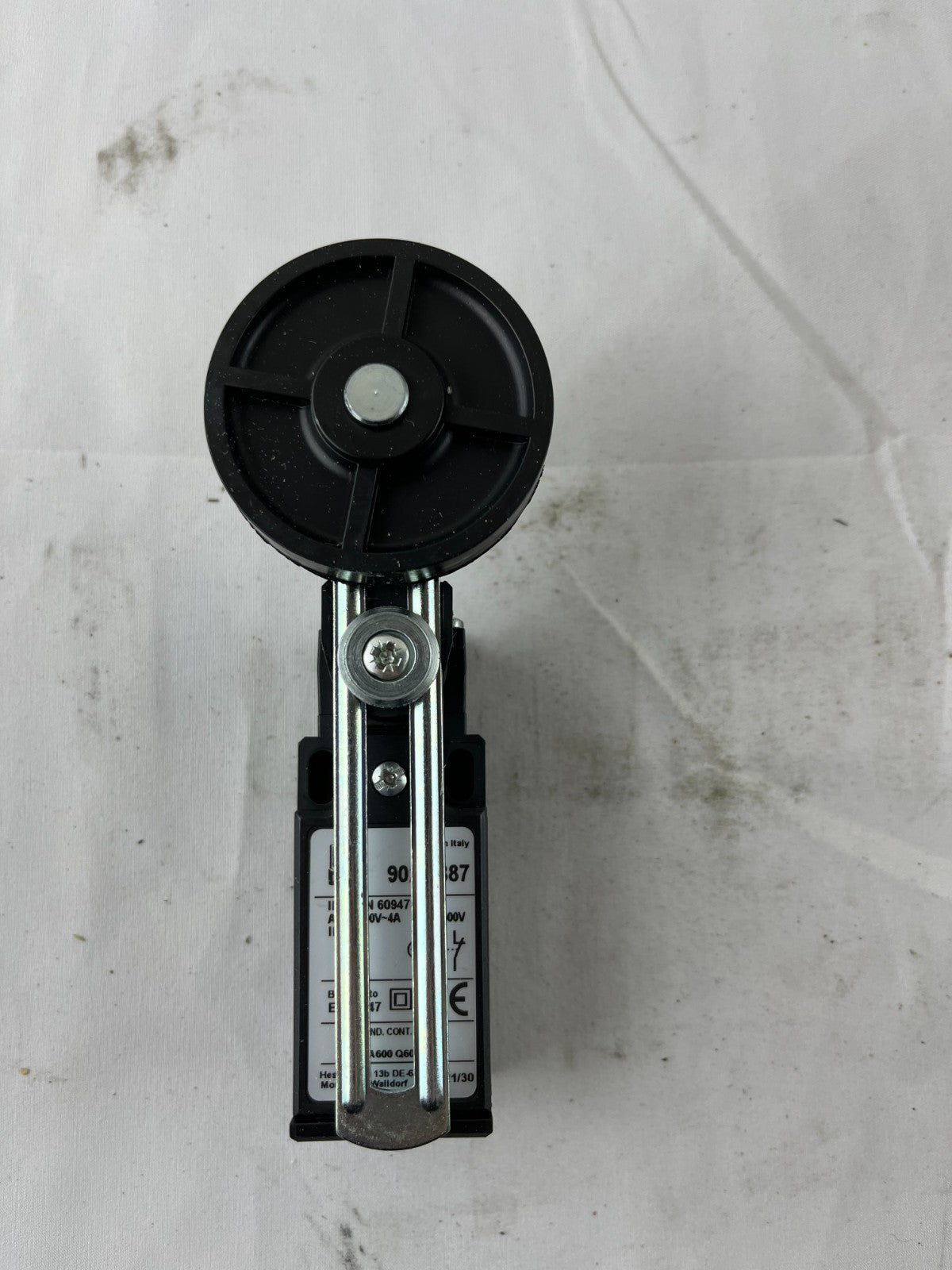

Brand New RS PRO 902-6887 Industrial Limit Switch - Original Box
-
RS Stock Number: 902-6887
-
Manufacturer: RS PRO (RS Components own brand)
-
Made in: Italy
-
Serial: A600 Q600
-
Manufacturing Location: Hessenring 13b DE-64546, Mörfelden-Walldorf
-
Production Date: 21/30 (2021, week 30)
-
Type: Adjustable roller lever limit switch
Electrical Specifications:
-
Contact Configuration: DPST (Double Pole Single Throw) - 1 NO + 1 NC
-
Maximum AC Voltage: 400V AC
-
Maximum Current: 10A
-
Rated Current: AC-15 400V 4A
-
Rated Insulation Voltage (Ui): 500V
-
Standards Compliance: IEC/EN 60947-5-1
-
Certificate: EN 50047 (Box acc. to)
-
Contact Material: Silver alloy contacts
Mechanical Specifications:
-
Actuator Type: Adjustable roller lever
-
Roller: Large diameter roller for extended contact surface
-
Lever Adjustment: 360° continuously adjustable
-
Actuation Force: Standard industrial rating
-
Mechanical Durability: High cycle life
Construction & Protection:
-
Housing Material: Glass fiber reinforced thermoplastic
-
Color: Black housing with chrome-plated lever arm
-
IP Rating: IP65 (dust-tight and water jet protected)
-
IND. CONT. EQ. marked for industrial control equipment
Installation & Connection:
-
Mounting: Two mounting holes for secure panel/bracket mounting
-
Termination: Screw terminals on base
-
Cable Entry: Conduit entry on housing body
RS PRO Quality:
RS PRO is RS Components' own brand offering reliable, cost-effective industrial components with consistent quality and availability. All RS PRO products meet relevant international standards and certifications.
Applications: Conveyor systems, automated machinery, packaging equipment, material handling, production lines, machine tools, door position sensing, access gates, robotic systems, assembly automation, industrial presses, CNC equipment, and general industrial position detection requiring reliable switching with adjustable actuation angle.

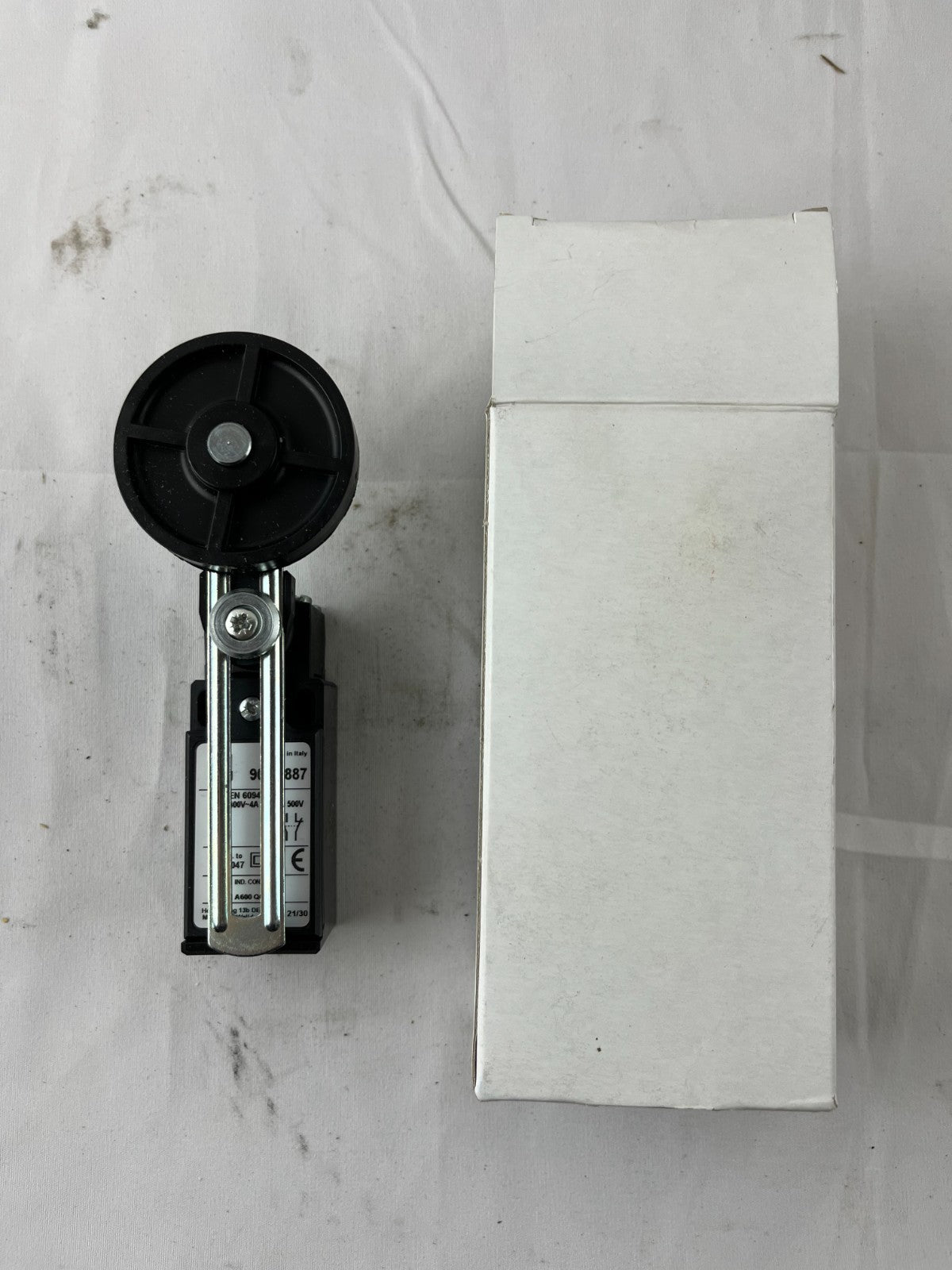

Condition: Brand New, Never Used, Original Box, Made in Italy 2021
