Schleicher KSB11(C) time relay module for industrial control applications, designed for 24V AC/DC operation with a fixed 0.5 s switching delay, in good working used condition.
-
Brand: Schleicher
-
Model: KSB11(C)
-

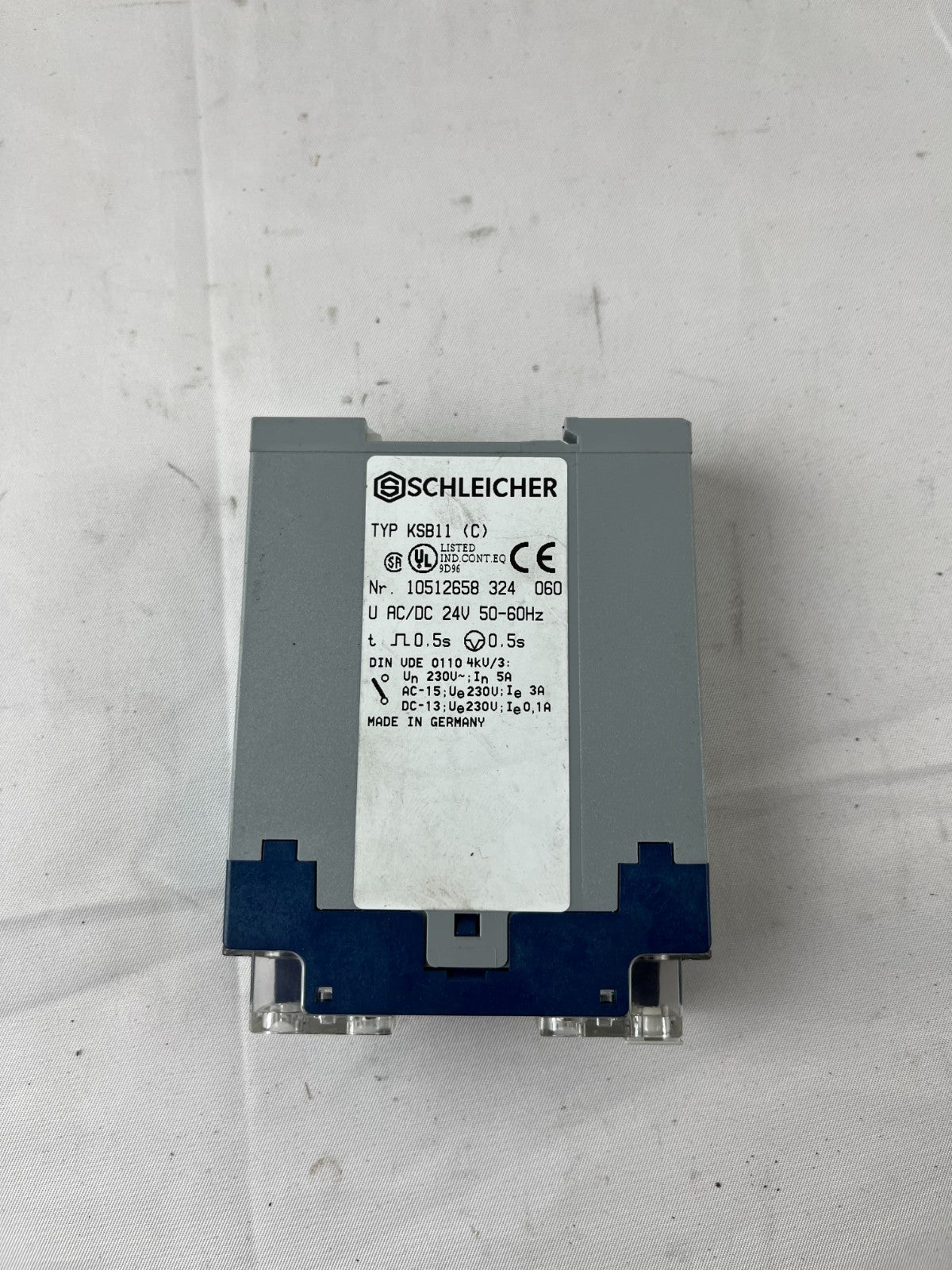

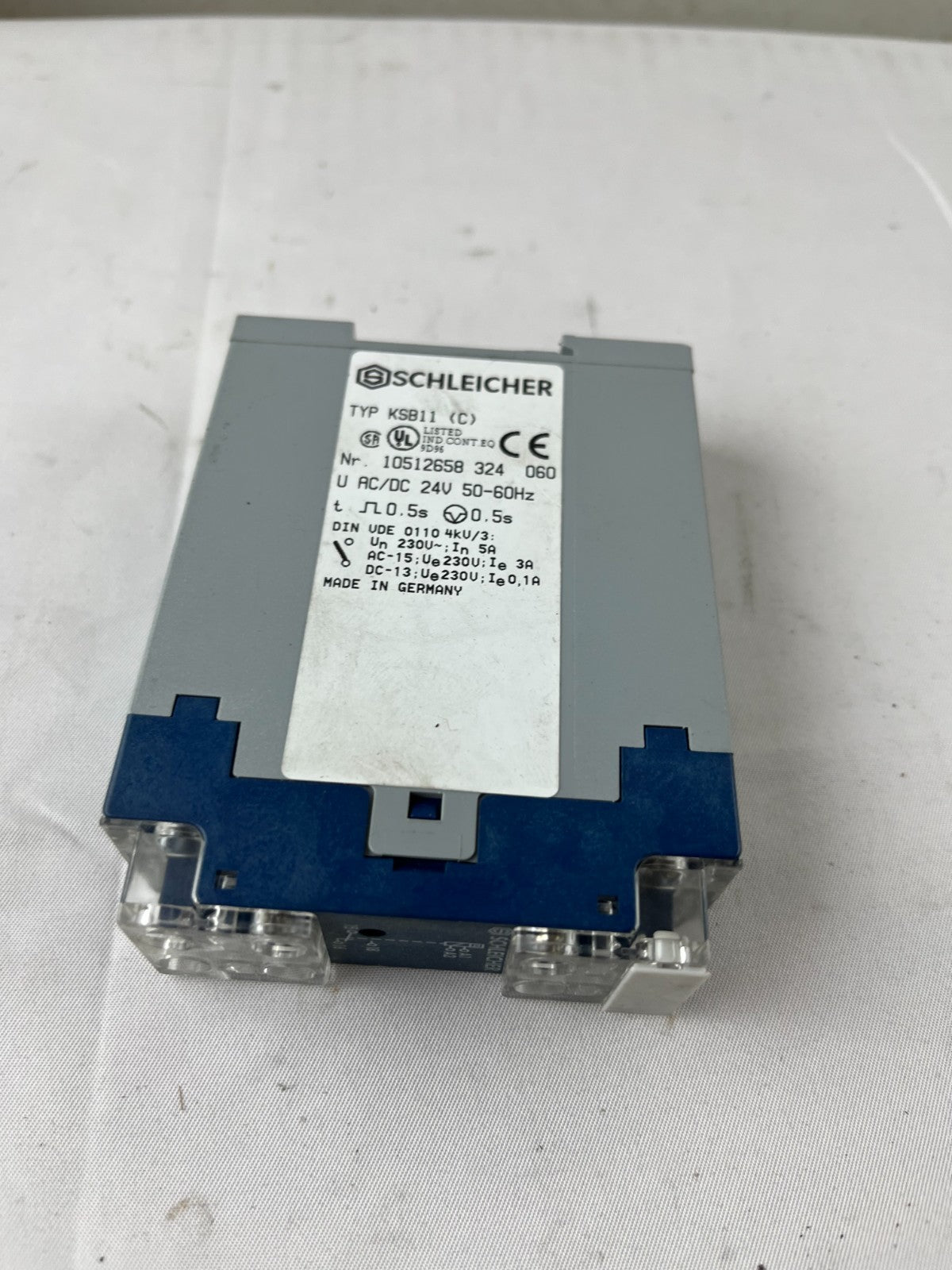

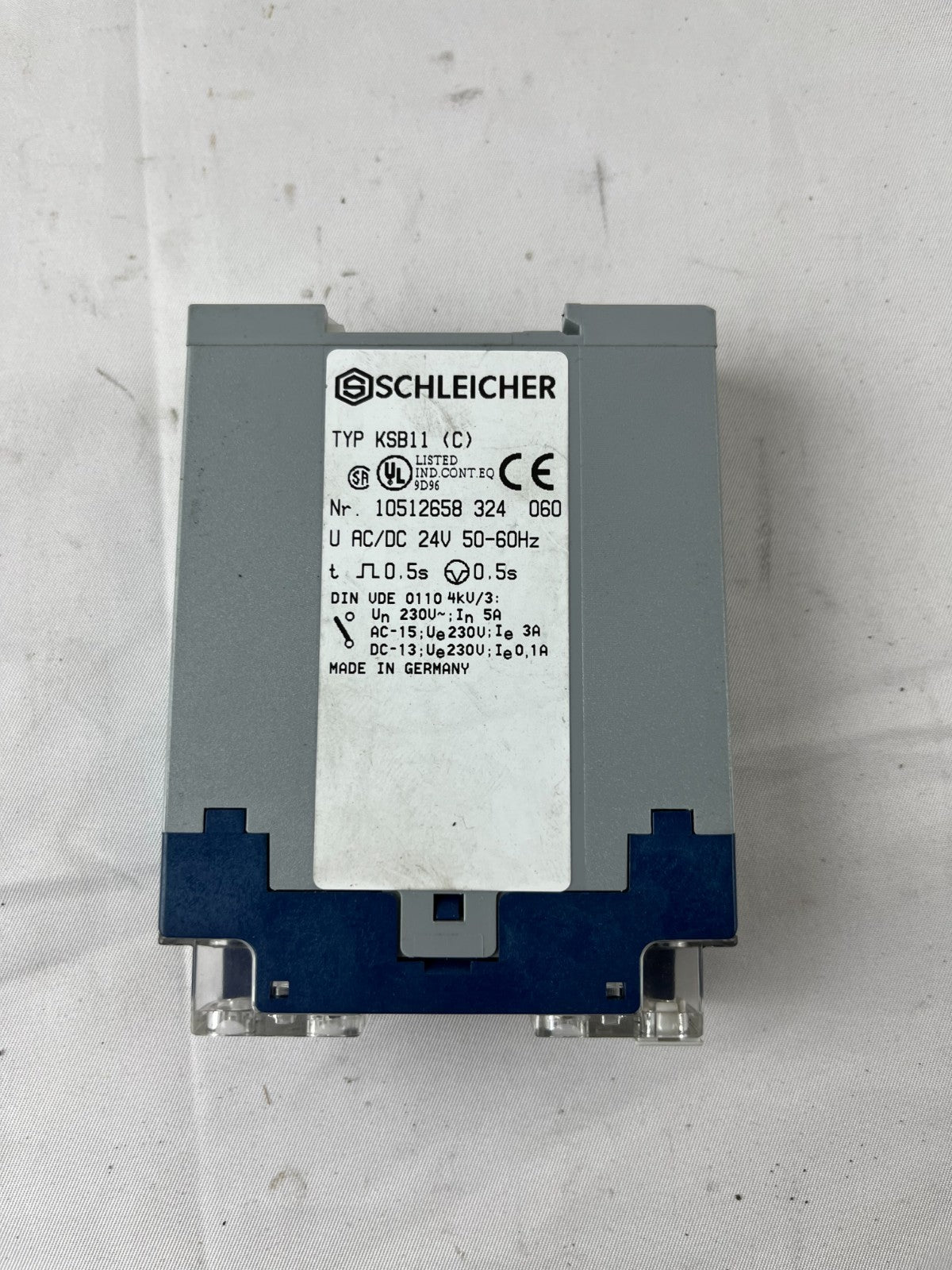

Manufacturer number on label: 10512658 324 060
-
Type: Time relay / relay module
-
Supply voltage: 24V AC/DC, 50–60Hz (U AC/DC 24V 50–60Hz on label)
-
Function: Fixed delay of 0.5 s (t 0.5s, symbol printed on label)
-
Contact ratings (per label):
-
AC‑15: Ue 230V, Ie 3A
-
DC‑13: Ue 230V, Ie 0.1A
-
Standards/markings: UL Listed industrial control equipment, CE marked, DIN VDE 0110 4kV/3
-

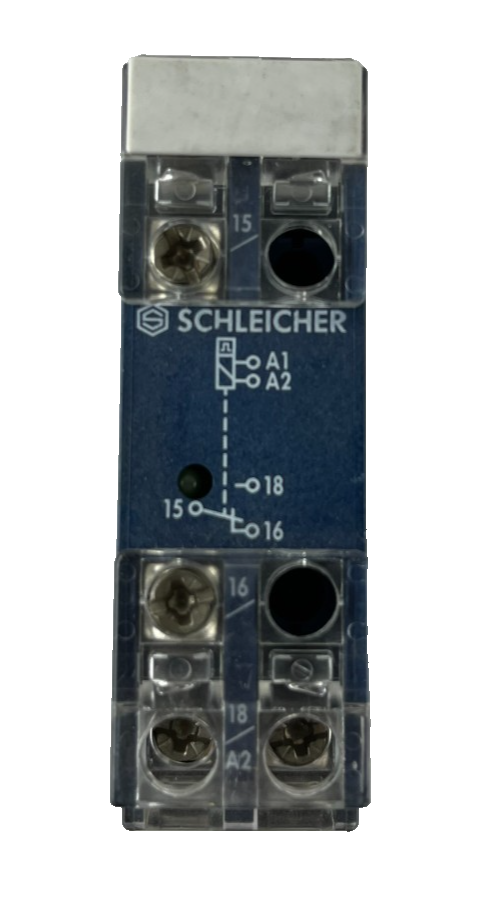

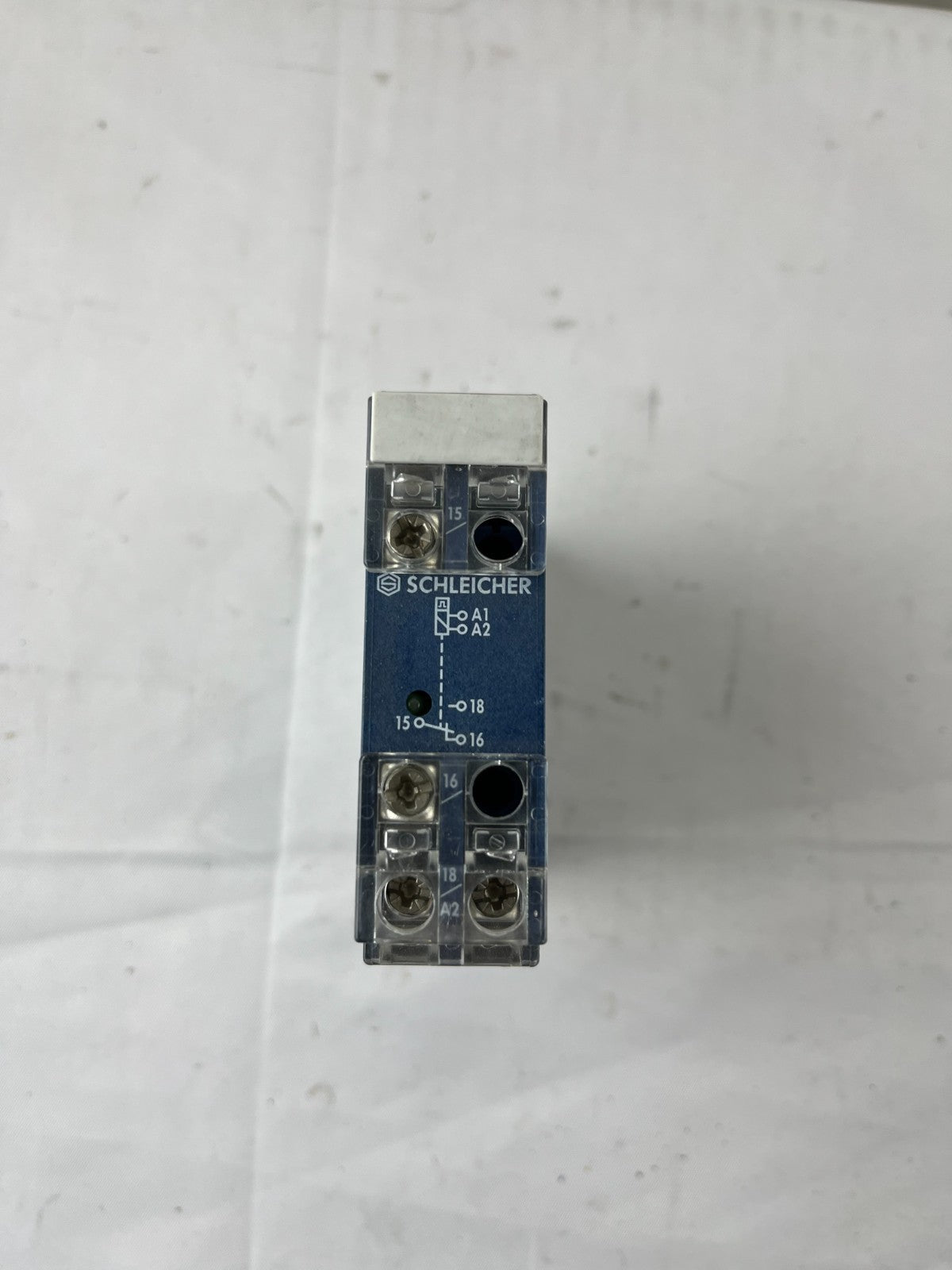

Terminals: Front screw terminals labeled 15, 16, 18, A1, A2 for coil and contacts
-
Mounting: Slim DIN‑rail housing with blue terminal section
-
Country of manufacture: Made in Germany (printed on label)
-
Good working used condition, removed from a functioning control panel.
-
Housing shows light cosmetic marks and minor discoloration consistent with normal use and storage.
-
All terminal screws present and in good mechanical condition; labeling remains legible.
-
No original packaging, manuals, or accessories included; relay module only as shown in the photos.
-
Fixed 0.5 s time delay makes this relay suitable as a direct replacement for identical KSB11(C) modules in existing Schleicher‑based control systems.
-
Buyer should verify required delay time, voltage, and contact ratings against the application before installation.
-
Recommended for use and installation by qualified personnel familiar with DIN‑rail time relays and relevant safety standards.
