Schleicher NGZ 110 Time Relay 0.5–10s 230–240V AC Off‑Delay DIN Rail Used

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading

Schleicher NGZ 110 adjustable time relay for 230–240V AC control circuits with a 0.5–10 s delay range, in good working used condition. This slim DIN‑rail module is suitable for industrial timing applications that require an off‑delay function.​

Item details

• Brand: Schleicher

• Model: NGZ 110

• Alternate designations on label: KZT110, SZT110, KCZ110K (compatibility family)​

• Type: Off‑delay single‑range time relay

• Supply voltage: AC 230–240V, 50–60Hz (U: AC 230–240V 50–60Hz on label)​

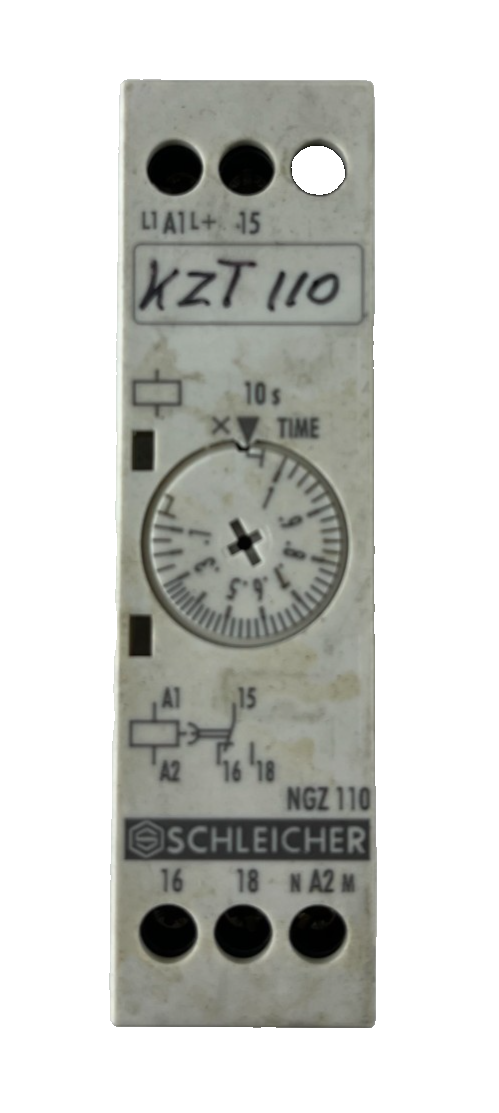

• Time range: 0.5–10 s, front dial adjustable (t: 0.5 s – 10 s on label)​

• Contacts: 1 changeover contact (SPDT), terminals 15–16–18 shown in front diagram​

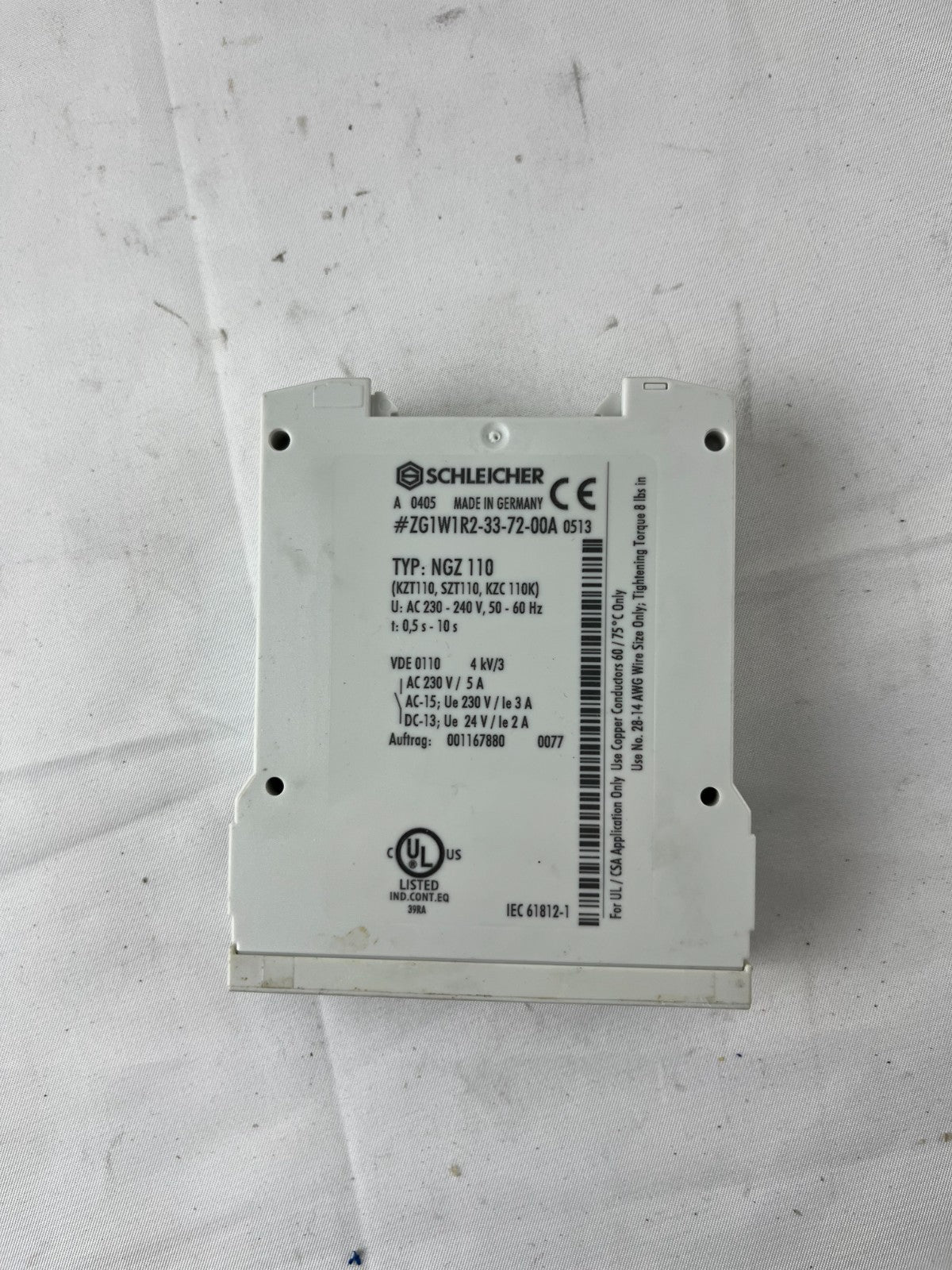

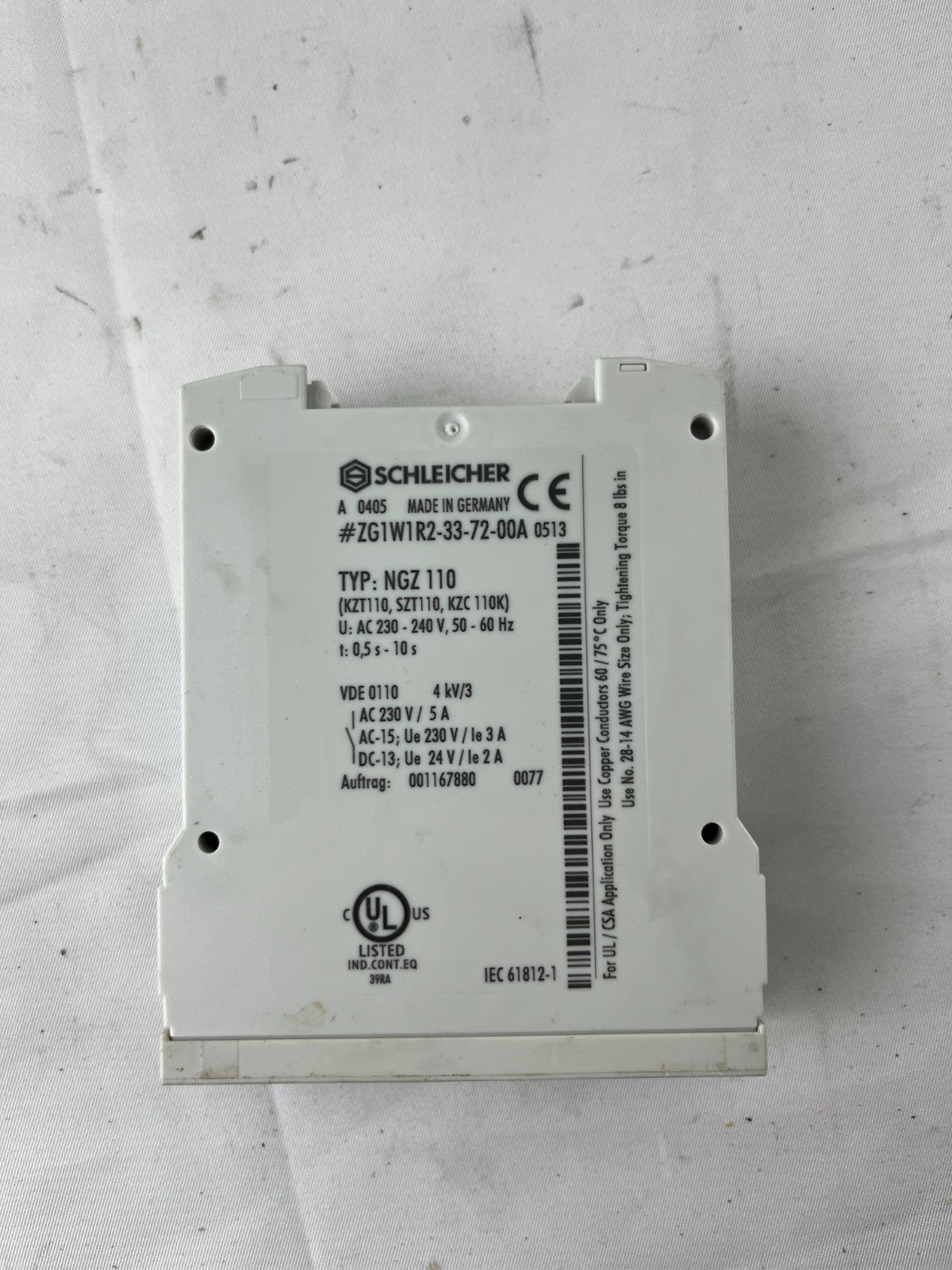

• Contact ratings (per label):

  • General: AC 230V / 5A

  • AC‑15: Ue 230V / Ie 3A

  • DC‑13: Ue 24V / Ie 2A

• Standards/approvals: VDE 0110 4kV/3, UL Listed Industrial Control Equipment, CE marked​

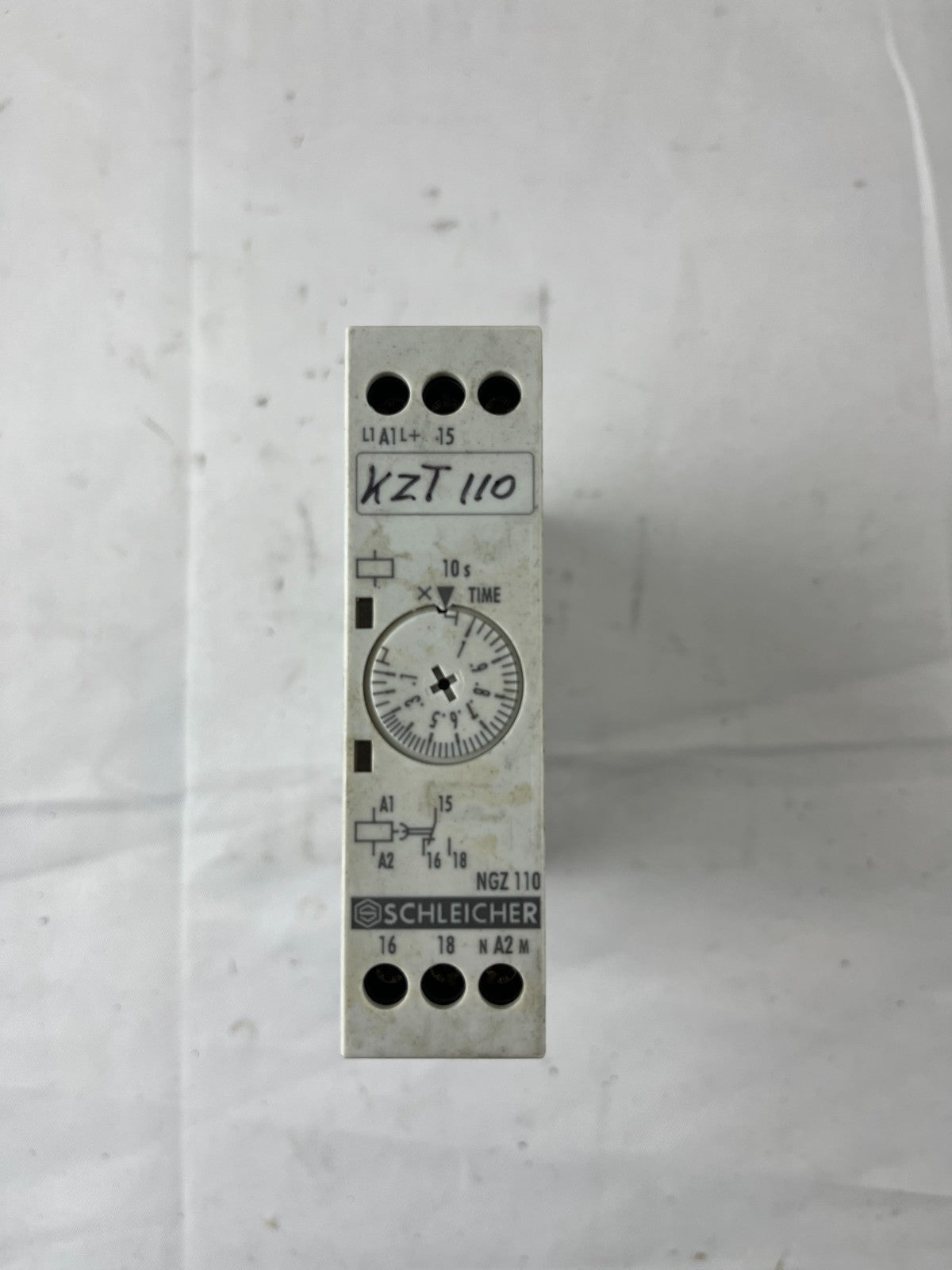

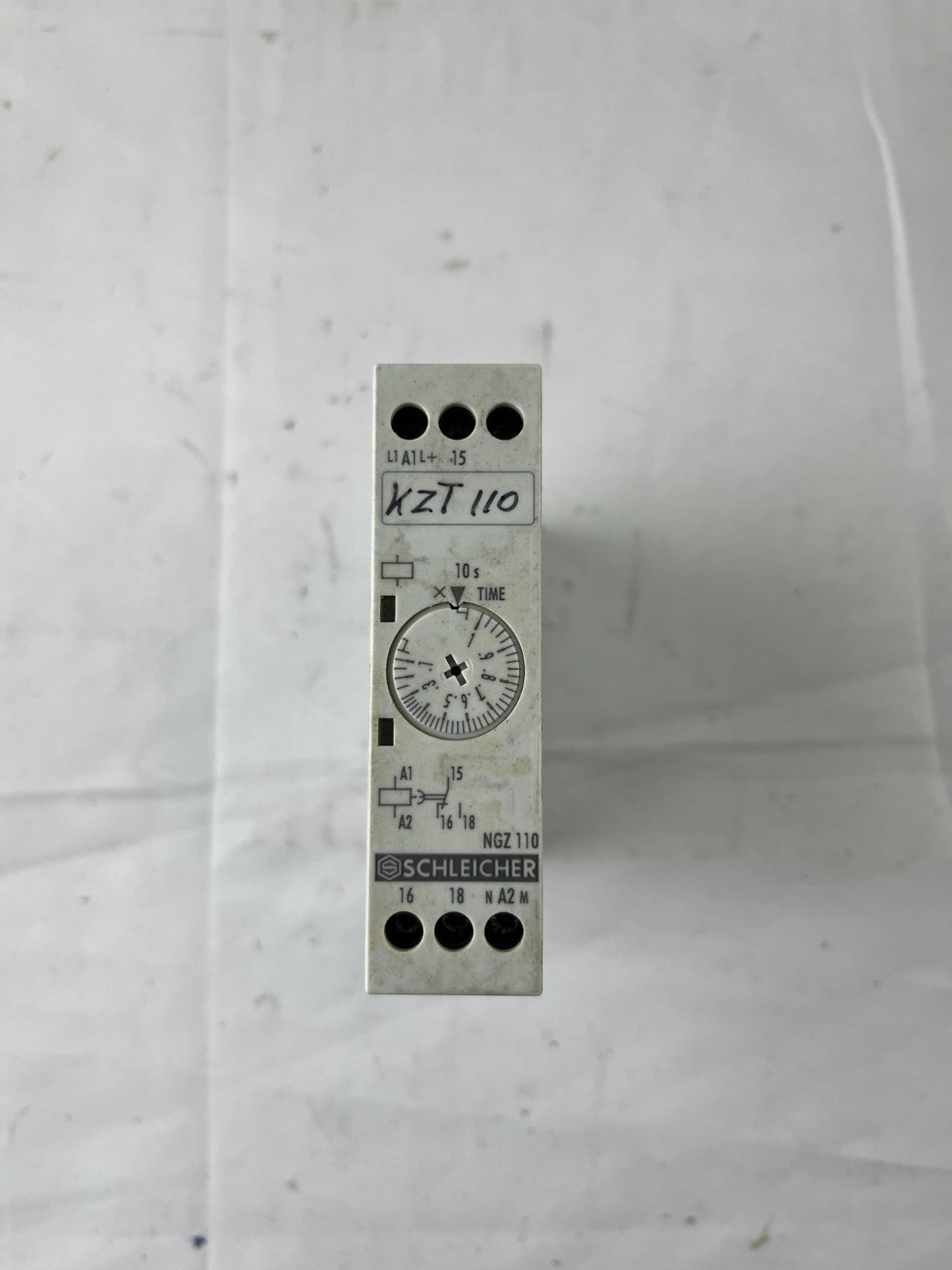

• Terminals: Screw terminals for L1/A1, A2, 15, 16, 18, N as indicated on housing front

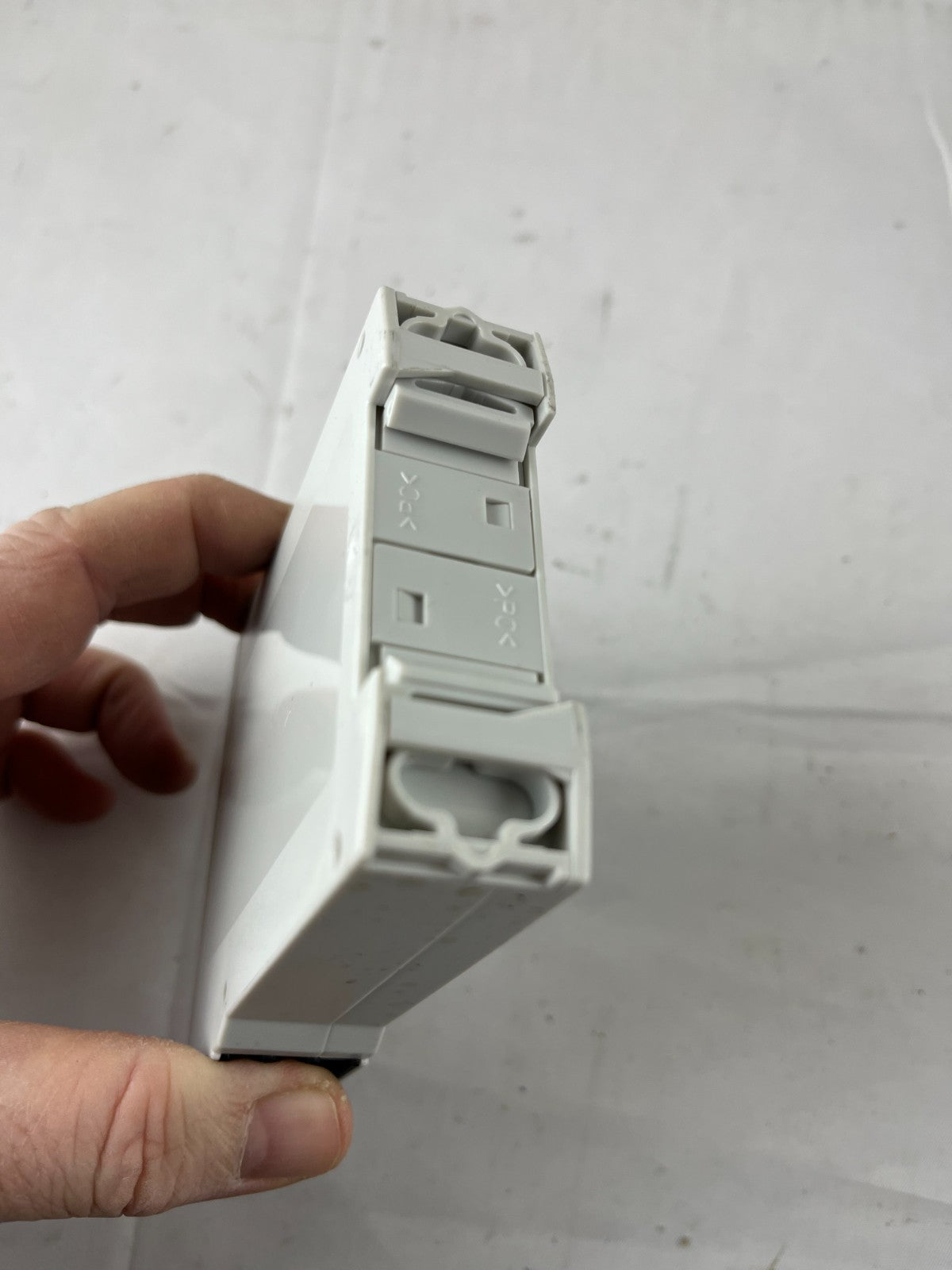

• Mounting: 22.5 mm DIN‑rail housing

• Country of manufacture: Made in Germany (printed on label)

Condition

• Good working used condition, removed from a functioning control system.

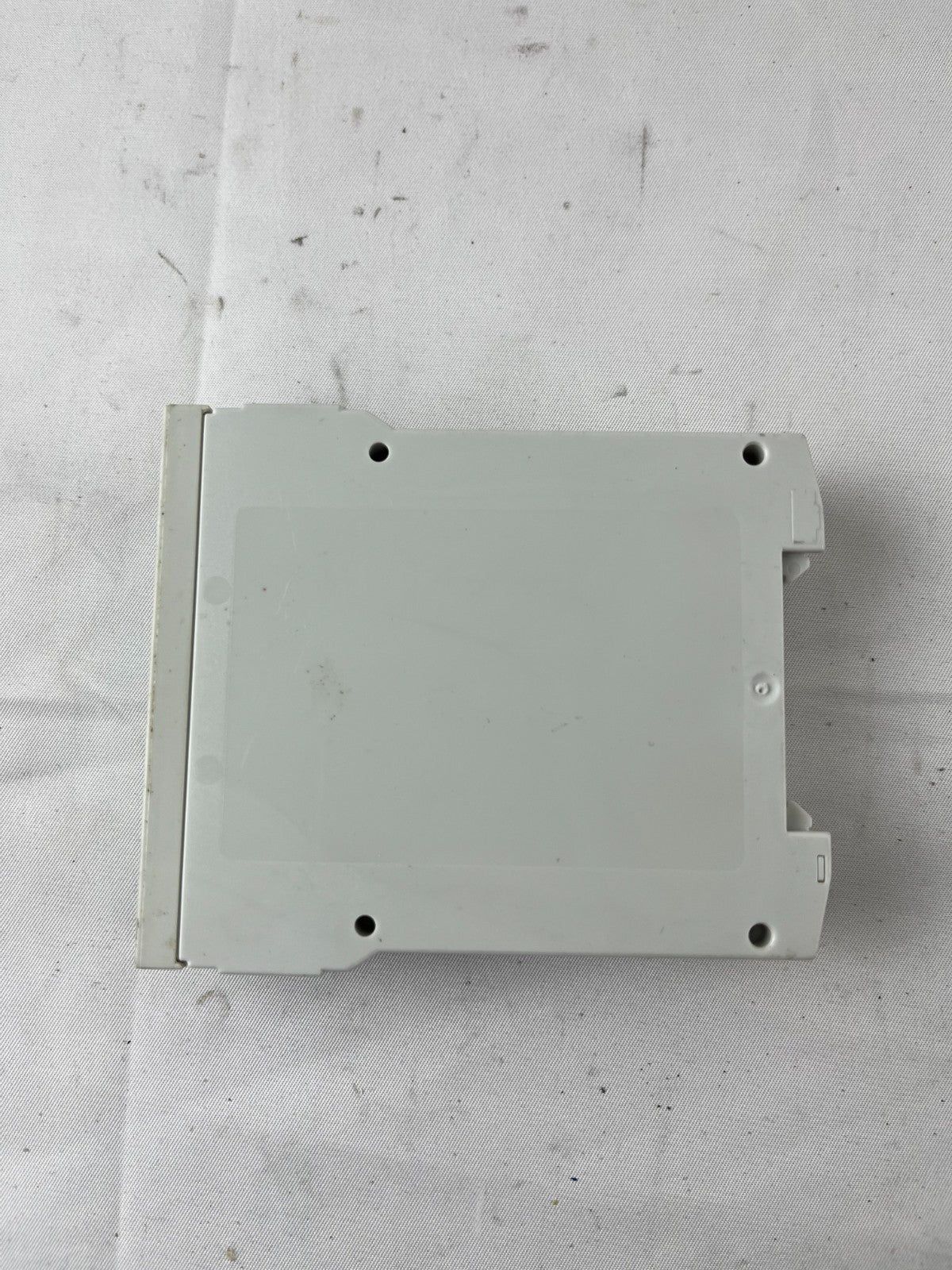

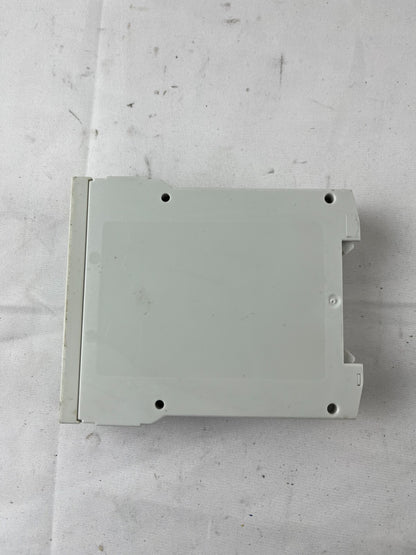

• Front face and housing show visible discoloration and small marks from prior use but no cracks or mechanical damage.

• All terminal screws and the front time‑setting dial are present and operate smoothly.

• No original packaging or documentation included; relay module only as shown in the photos.

Notes

• Off‑delay function and short 0.5–10 s range make this relay well suited as a direct replacement for identical NGZ 110/KZT110 family devices in existing panels.​

• Buyer should verify timing function, supply voltage, and contact ratings against the application before installation.

• Installation, wiring and adjustment should be carried out by qualified personnel familiar with DIN‑rail time relays and applicable safety standards.
