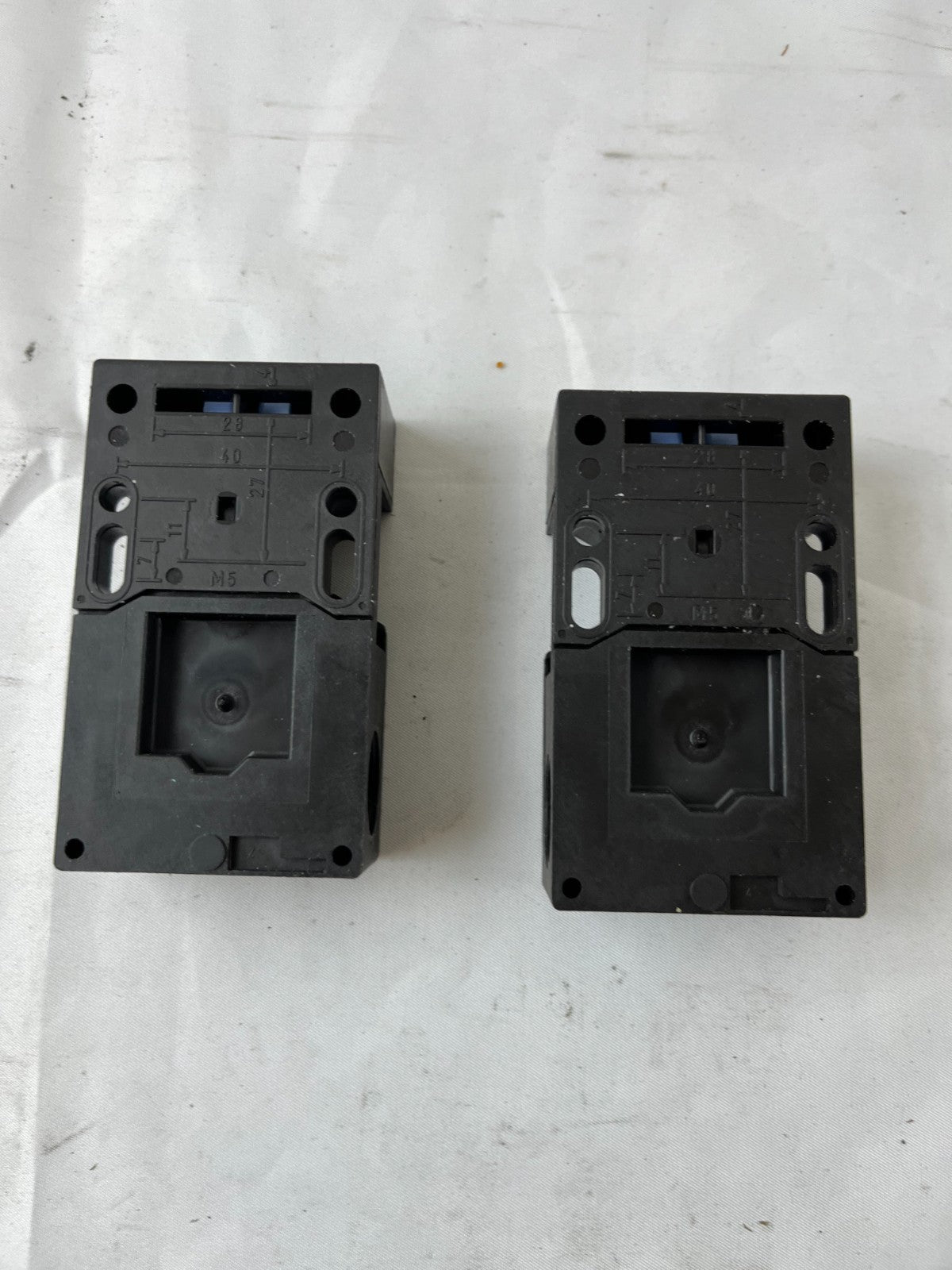

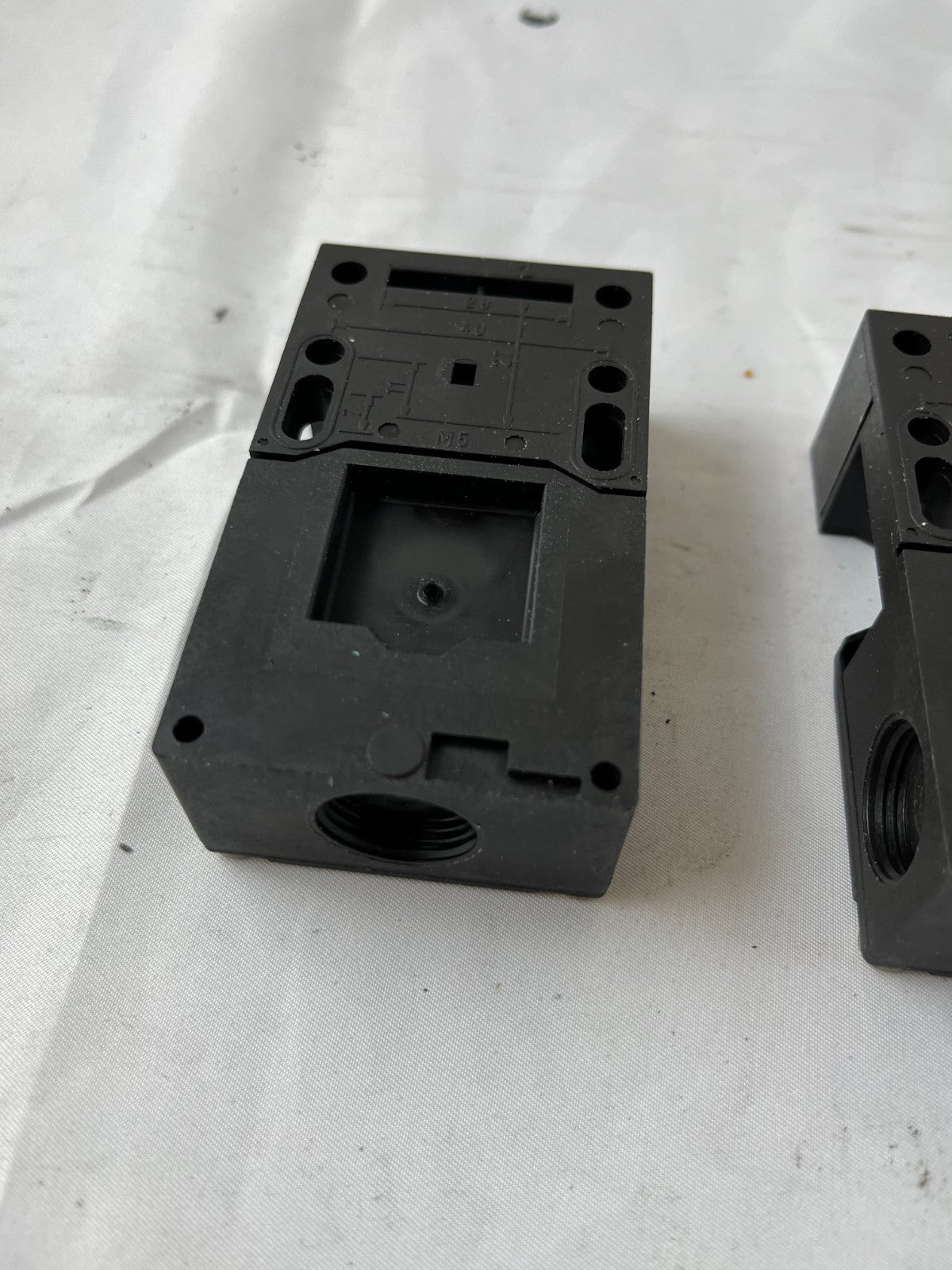

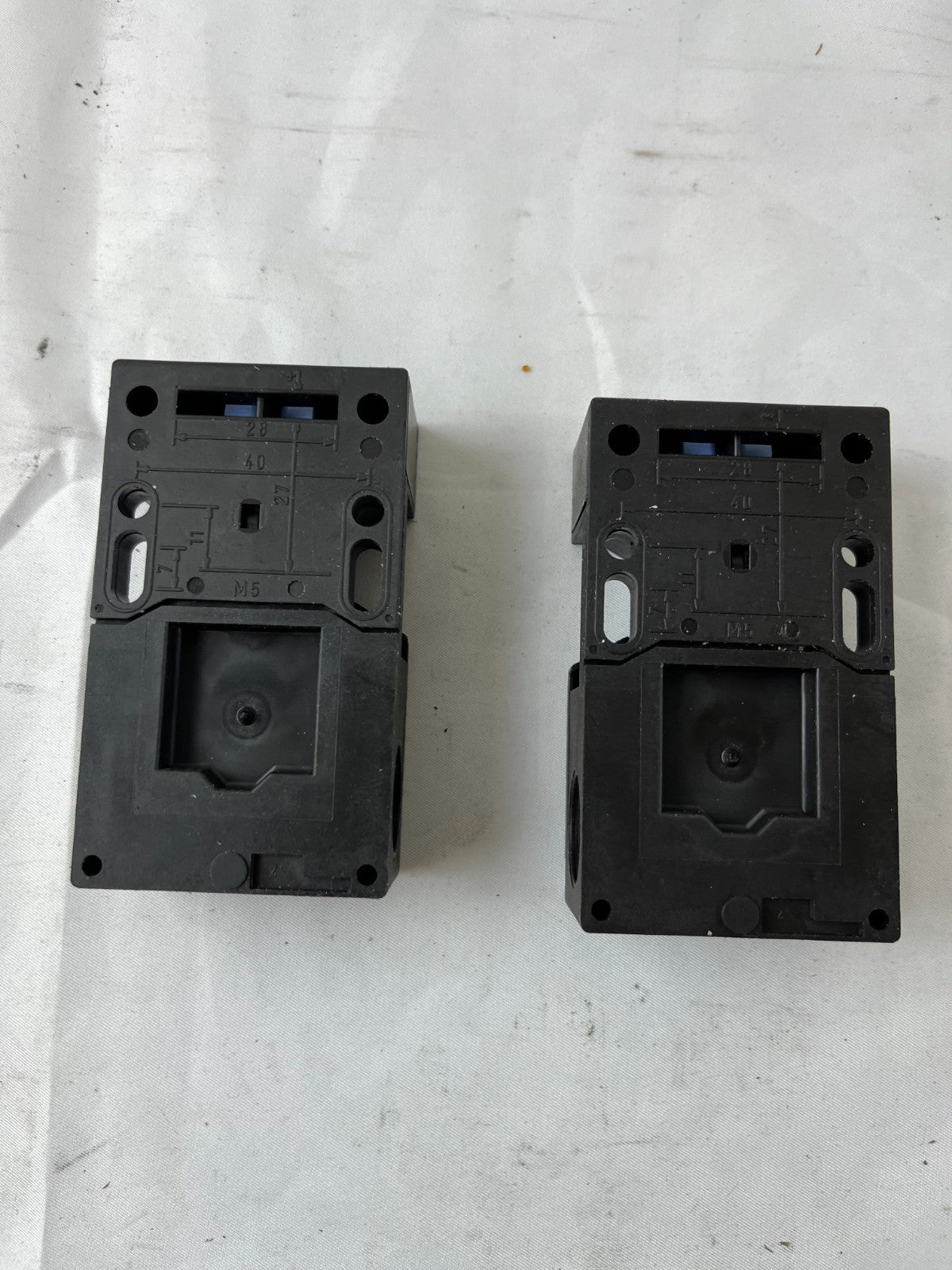

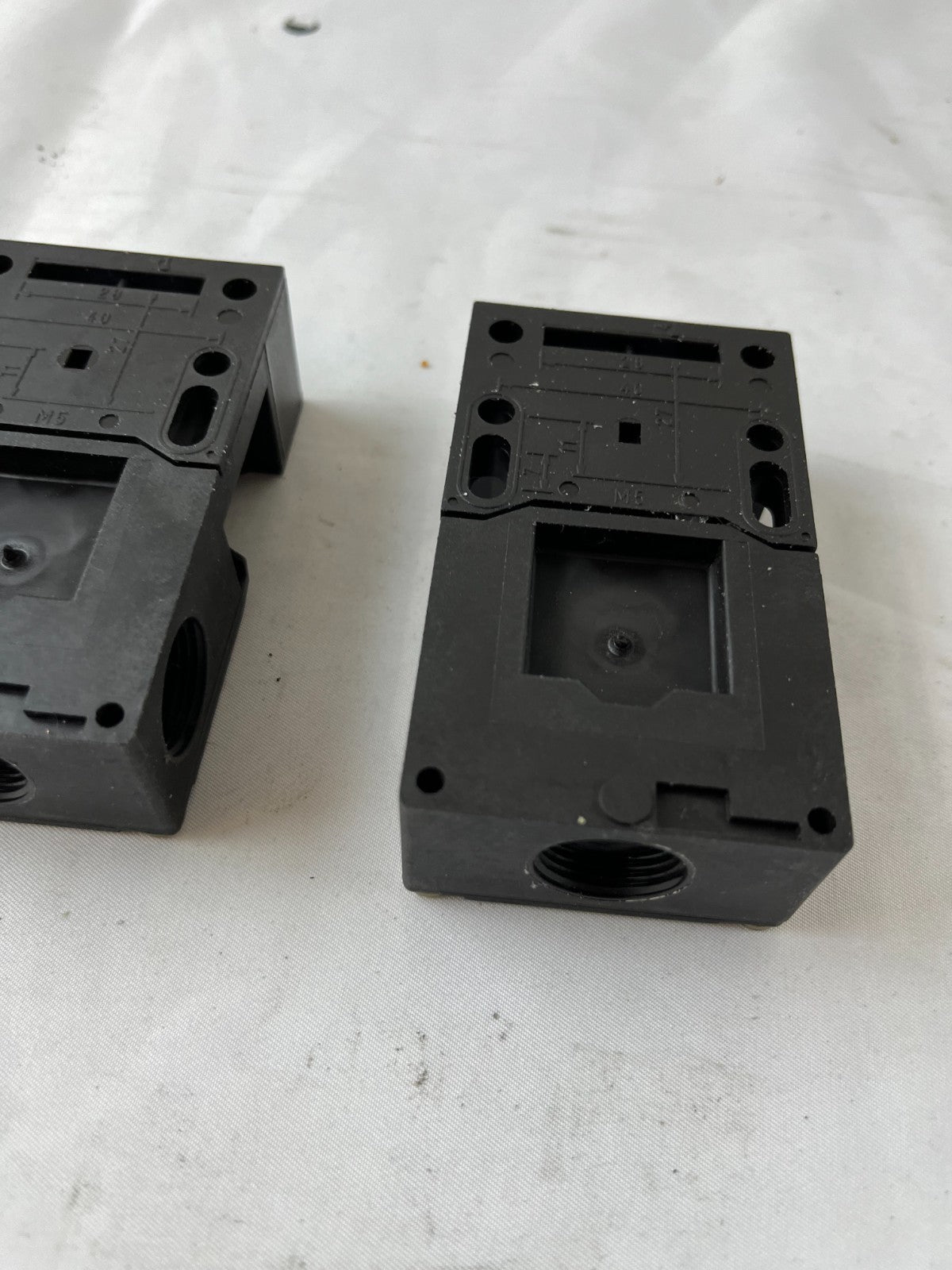

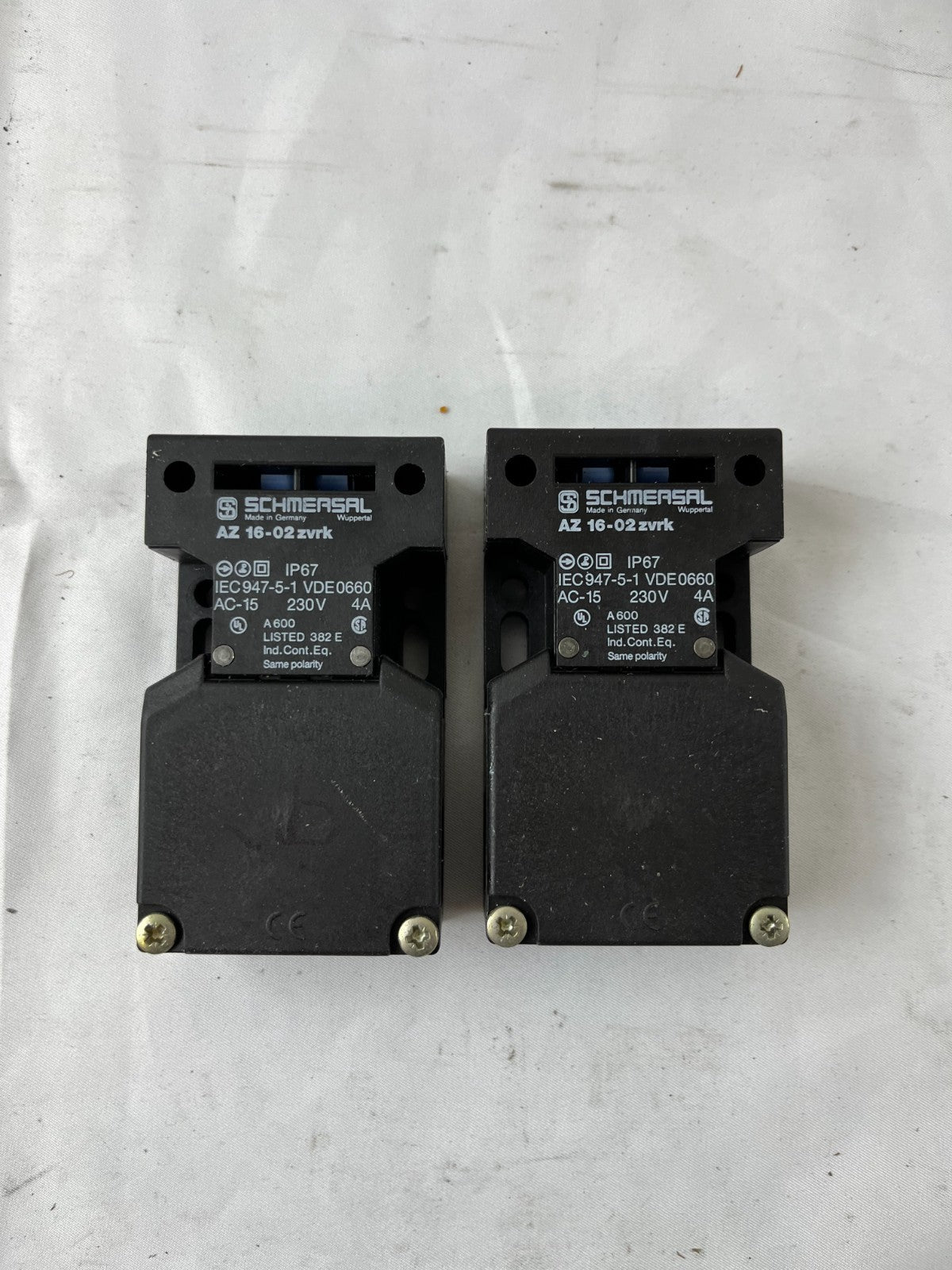

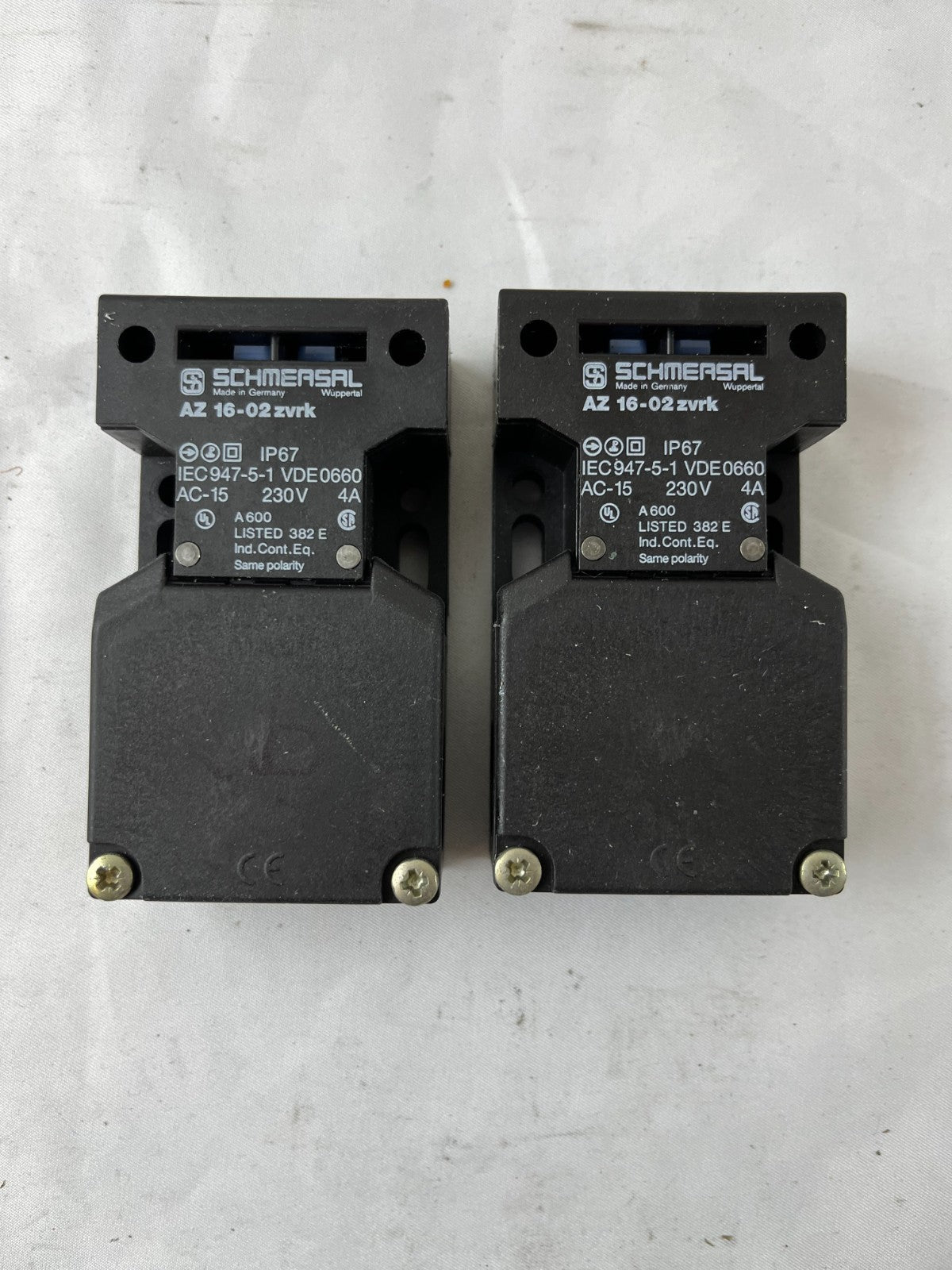

Schmersal AZ16-02ZVRK Safety Interlock Switch 230V AC‑15 4A IP67 – Lot of 2 Used

Lot of 2 Schmersal AZ16‑02ZVRK key‑operated safety interlock switches, rated AC‑15 230V 4A and IP67, in good working used condition. These compact thermoplastic safety switches are designed for monitoring sliding or hinged machine guards with a separate actuator (not included).

Item details

• Brand: Schmersal

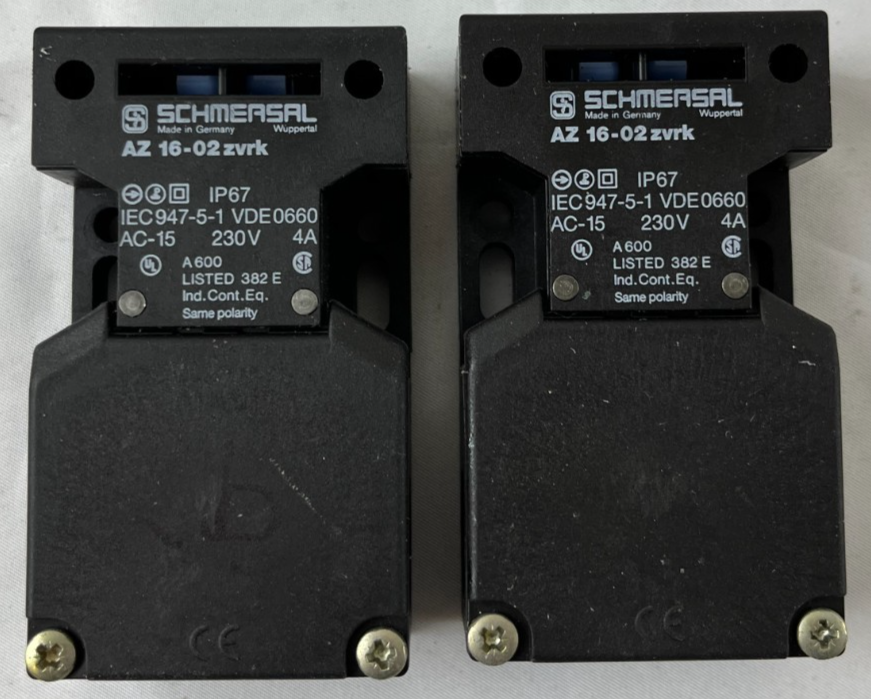

• Model: AZ16‑02ZVRK (marking on front label)

• Type: Safety interlock switch with separate actuator (key‑operated)

• Contacts: 2 NC safety contacts (slow‑action, positive break) and additional NO/aux contacts depending on configuration

• Rated utilisation: AC‑15 230V, 4A; DC‑13 24V, 4A (per label / datasheet)

• Rated insulation voltage: 500V; thermal test current 10A

• Protection class: IP67, double‑insulated thermoplastic enclosure

• Body size: Approx. 52 × 90 × 30 mm (standard AZ16 housing)

• Cable entries: Typically 3 × M16 x 1.5 (check your units; some variants differ)

• Mounting: Through‑holes and slotted holes for easy adjustment on machine frames

• Country of manufacture: Made in Germany (marked on housing).

• Actuators / keys are not included; switch units only.

Condition

• Used, removed from a working machine environment.

• Cosmetically in good shape with minor scuffs and light surface marks on housings from normal use.

• Labels remain readable; screw heads and mounting holes in good condition.

• No cracked cases or visible mechanical damage observed.

• Sold as a lot of 2 identical switches, without actuators, cables, or original packaging.

Notes

• These switches require matching Schmersal AZ16 actuators (e.g. straight or angled keys) which are not supplied and must be sourced separately.

• Suitable for replacement in existing AZ16‑series safety circuits where wiring and mechanical interfaces are already in place.

• Buyer should verify contact configuration, voltage/current rating, and actuator type against machine safety documentation before installation.
