Brand New Schmersal MS 330-11Y-M20 Industrial Position Switch - Original Box

• Model: MS 330-11Y-M20

• Part Number: 101160614

• Work Order: 21429794

• EAN: 8905236107009

• Manufacturer: K.A. Schmersal GmbH & Co. KG

• Made in: Germany (Wuppertal, 42279)

• Production Date: 2D7/2018 (July 2018)

• Type: Positionsschalter / Limit switch (德国)​​

• Series: MS Heavy Duty​

Electrical Specifications:

• Contact Configuration: 1 NO (normally open) + 1 NC (normally closed)​

• Rated Insulation Voltage (Ui): 250V AC​

• Impulse Withstand Voltage (Uimp): 4kV​

• Utilisation Category: AC-15 at 230V AC / 2.5A​

• Thermal Test Current: 6A​

• Switching Principle: Snap action​

• Contact Material: Silver​

• Contact Bridges: Galvanically separated​

• Switchover Time: Maximum 10ms​

• Bounce Duration: Maximum 1.5ms​

• Contact Opening: 2 x 0.5mm positive opening​

Mechanical Specifications:

• Actuating Element: Plunger (sphere type)​

• Slide Form: Sphere​

• Plunger Diameter: 9mm​

• Actuating Angle: 20°​

• Actuating Force, Minimum: 17.5 N​

• Actuating Speed, Minimum: 1 mm/min (suitable for low actuating speeds)​

• Repeat Accuracy: 0.02mm​

• Mechanical Lifetime: Minimum 30,000,000 operations​

Dimensions & Construction:

• Basic Component: 40mm (L) x 40mm (W) x 76mm (H)​

• Overall Height with Plunger: 87mm​

• Enclosure: Metal housing (light-alloy die-cast with paint finish)​

• Weight: 217g​

• Silicon-Free: Yes​

Connection & Installation:

• Cable Entry: 1 x M20 x 1.5 threaded entry​

• Termination: Screw terminals​

• Cable Section: 1.5mm² to 2.5mm² (13 AWG)​

• Note: All indications including conductor ferrules​

Protection & Environment:

• IP Rating: IP65​

• Ambient Temperature: Standard version -30°C to +90°C​

• Shock Resistance: 50g / 6ms​

Safety & Reliability:

• B10D (NC contact): 20,000,000 operations​

• Standards Compliance: EN IEC 60947-5-1​

• Certificates: cULus, CCC​

• Proven: Power station applications​

The MS 330 series features robust metal enclosure construction with long service life and exceptional reliability in harsh industrial environments. The plunger actuator provides reliable detection with high repeat accuracy.​

Important Note: Actuation from the side of the plunger should be avoided as this reduces mechanical life.​

Applications: Heavy industrial machinery, conveyor systems, production lines, material handling, power generation equipment, machine tools, automotive assembly, packaging machinery, press brakes, hydraulic equipment, molding machines, robotics, and any application requiring reliable position sensing with plunger actuation in demanding conditions.

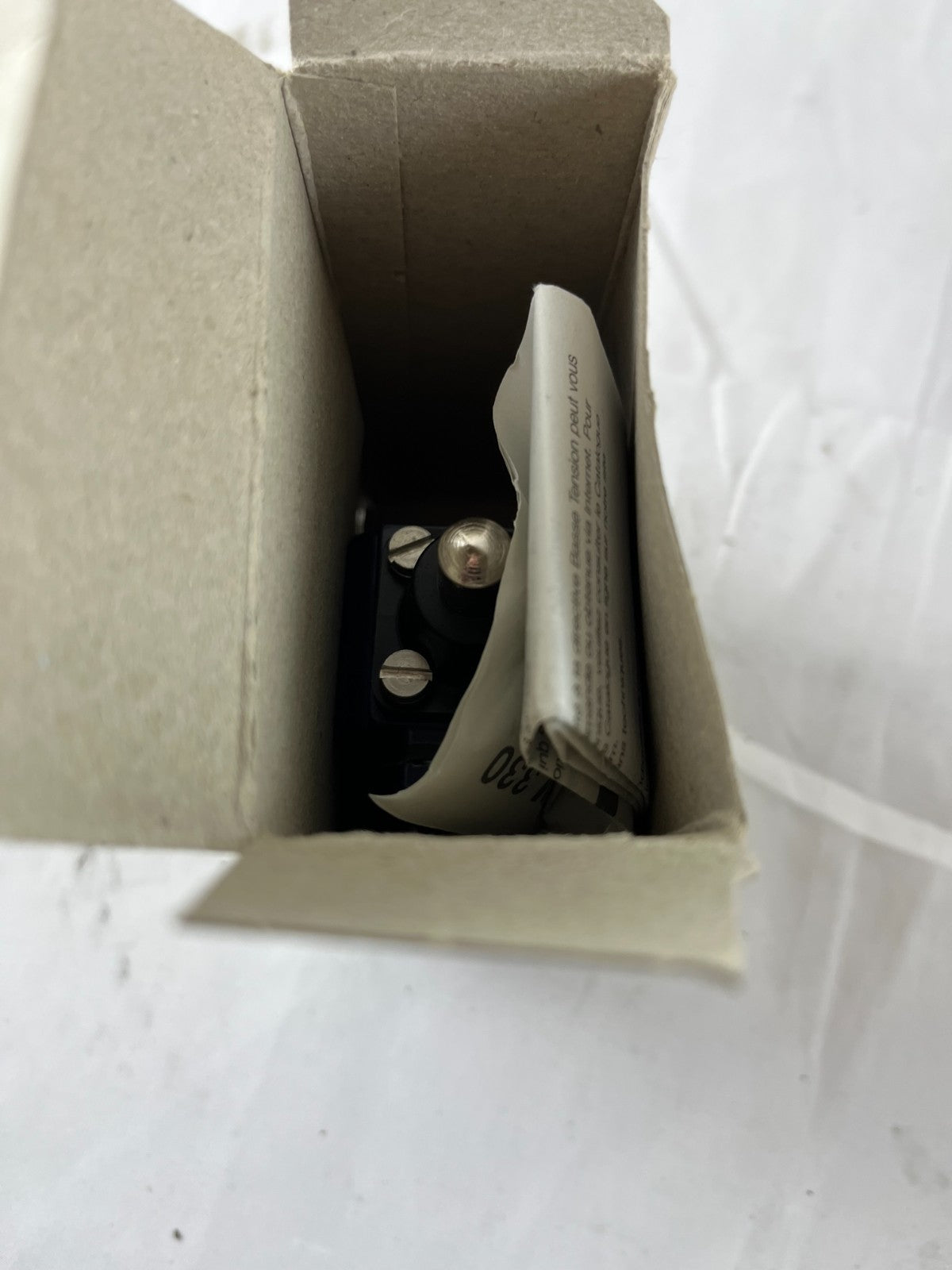

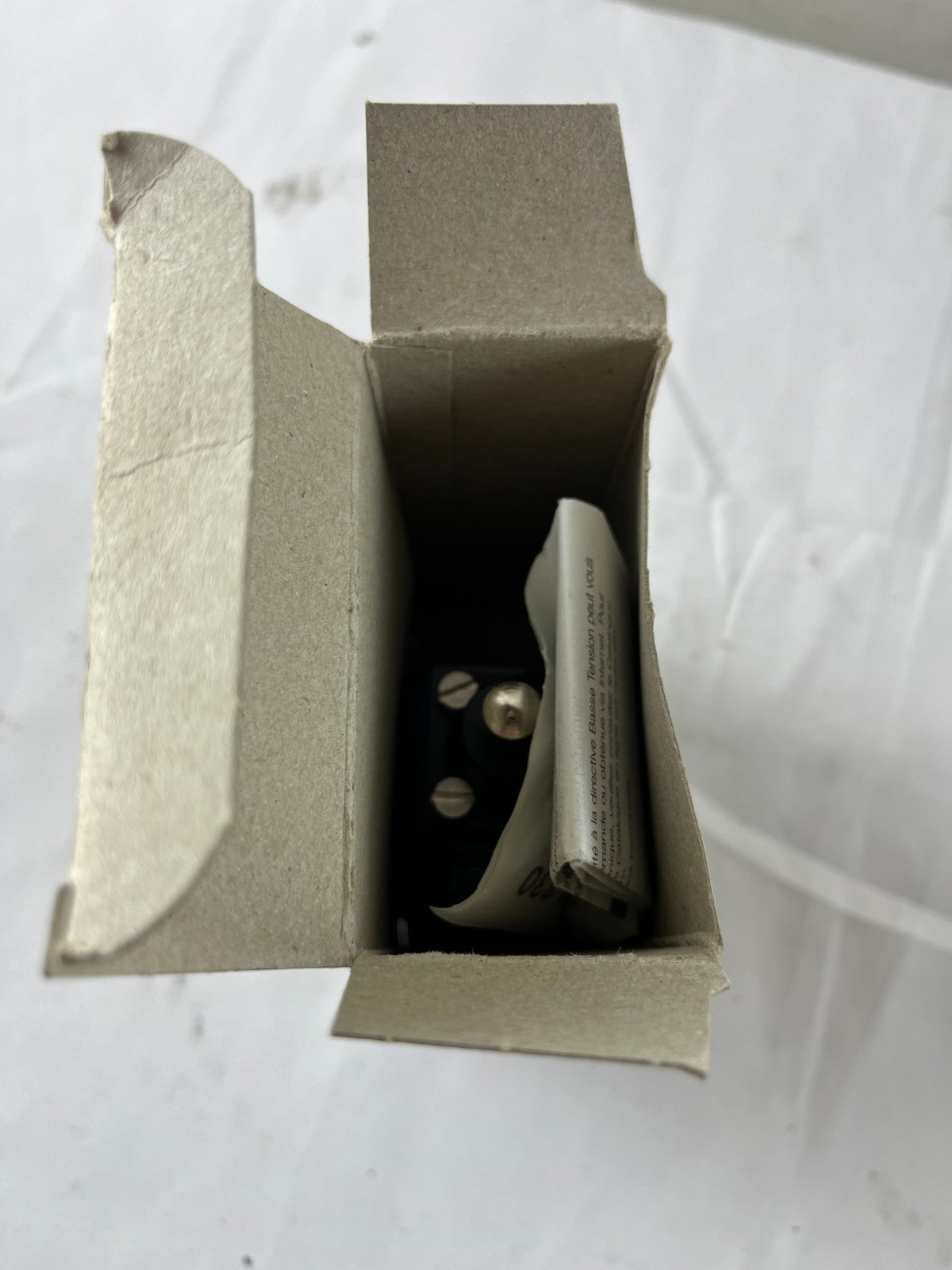

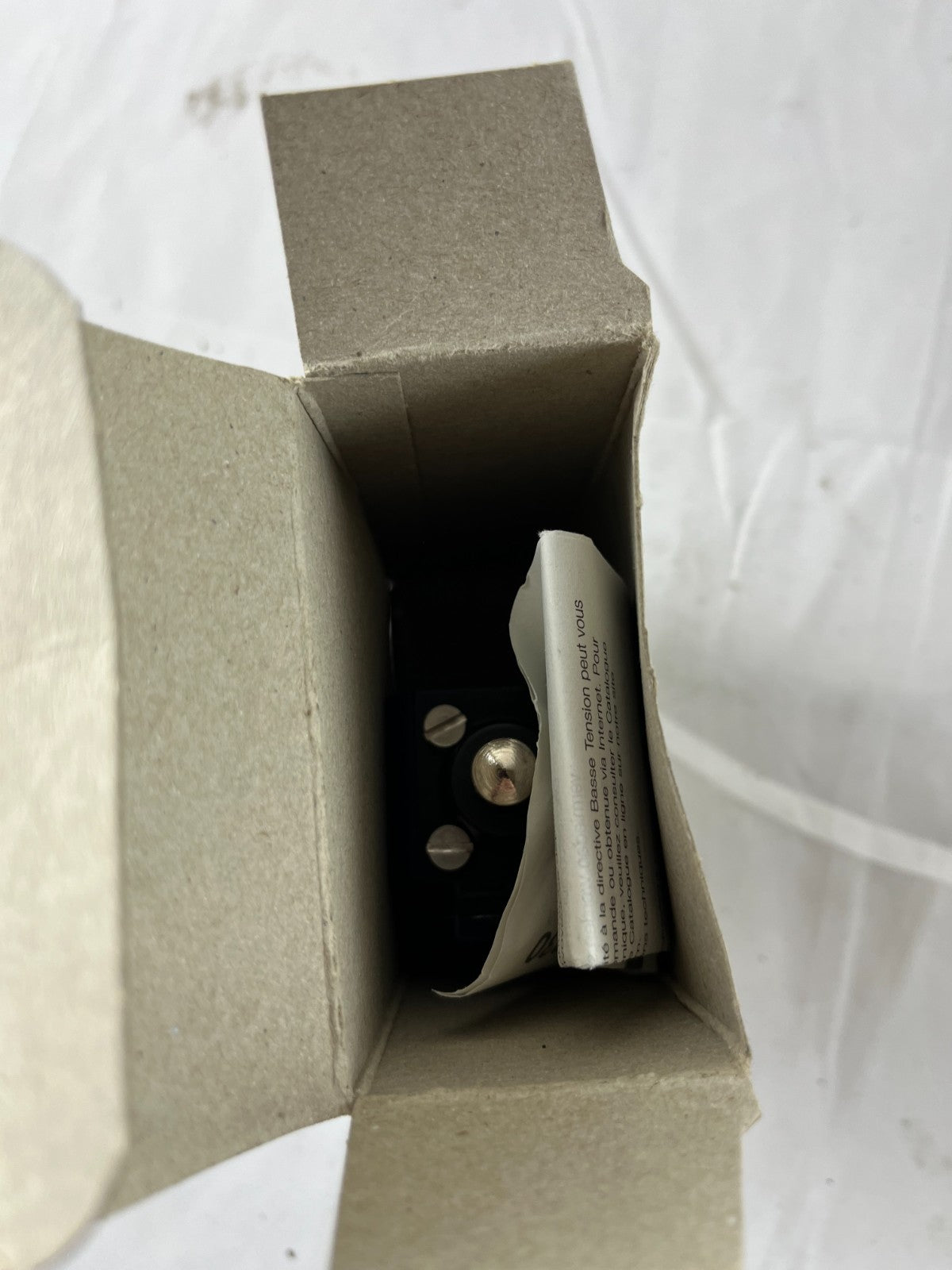

Condition: Brand New, Never Used, Original Box, Made in Germany July 2018
