Schmersal MV8H 330-11Y-M20 Heavy Duty Limit Switch IP65 Made Germany NEW 2018

Schmersal MV8H 330-11Y-M20 Heavy Duty Limit Switch IP65 Made Germany NEW 2018

- Shipping includes tracking info worldwide. Klaus KLJ Trading

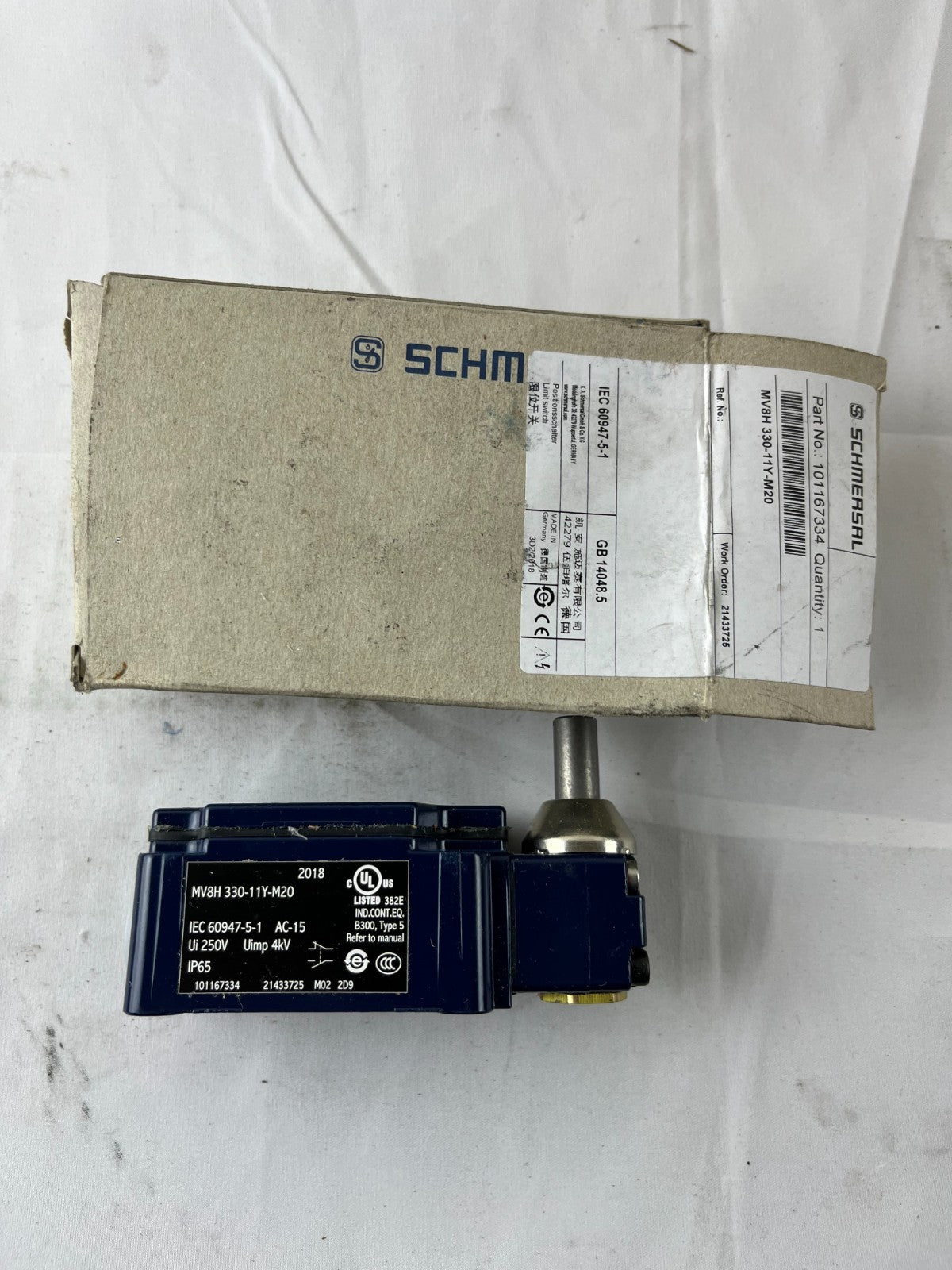

Brand New Schmersal MV8H 330-11Y-M20 Industrial Position Switch - Original Box

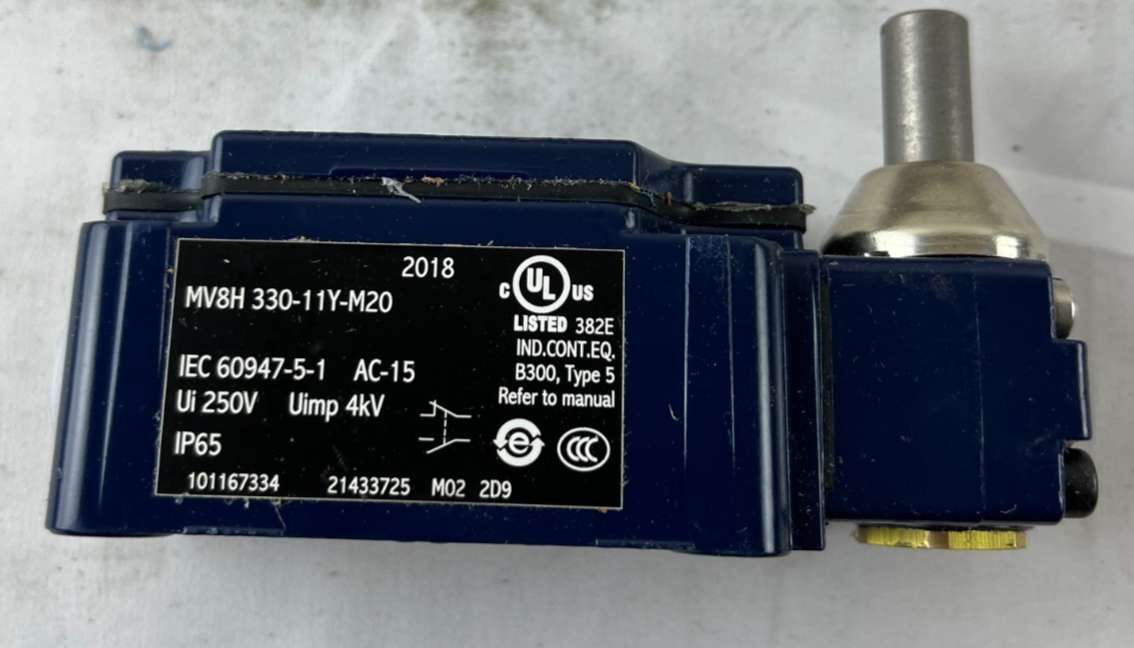

• Model: MV8H 330-11Y-M20

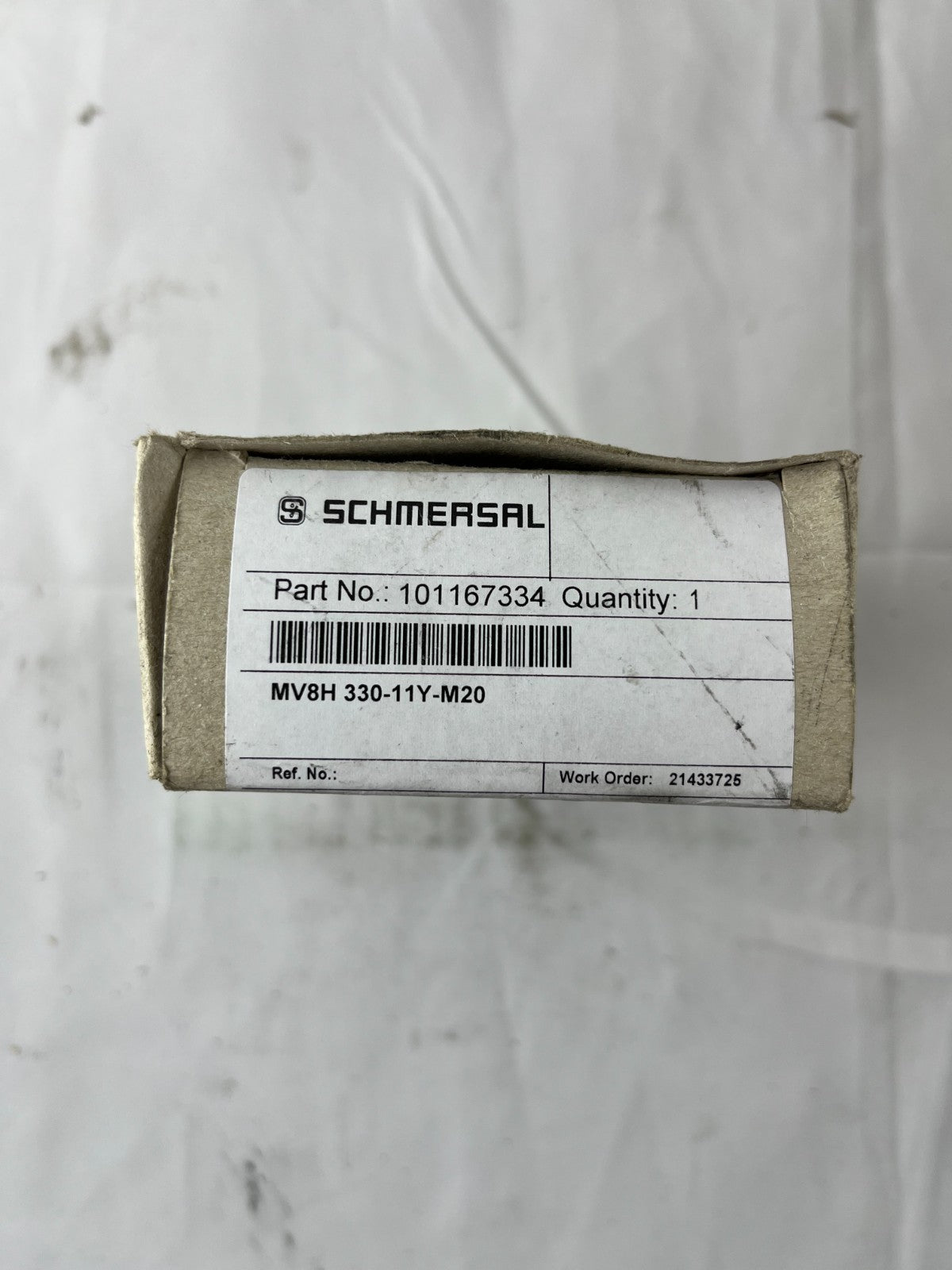

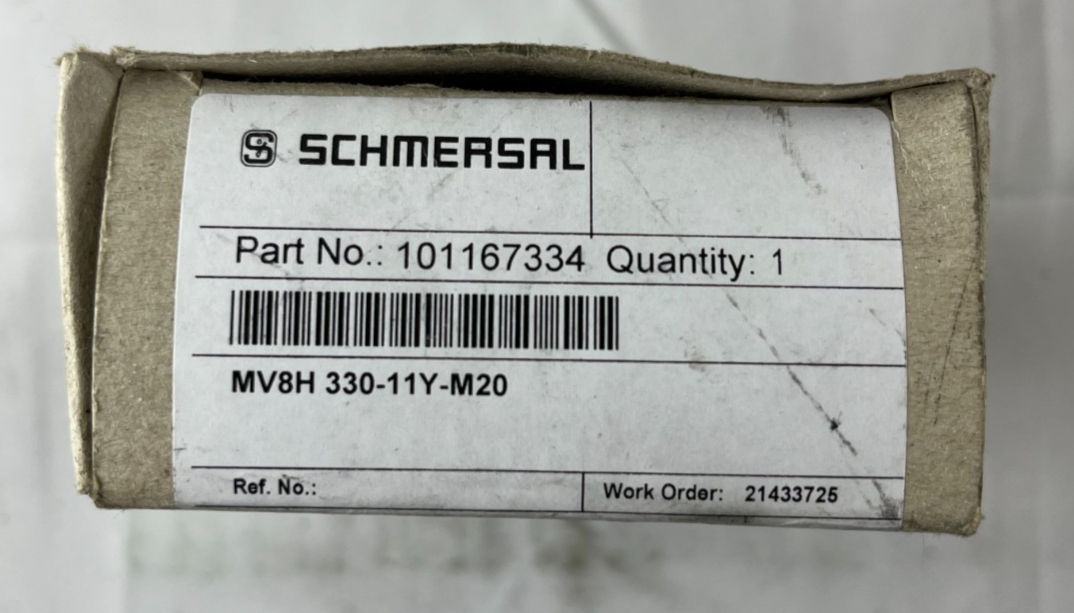

• Part Number: 101167334

• Work Order: 21433726

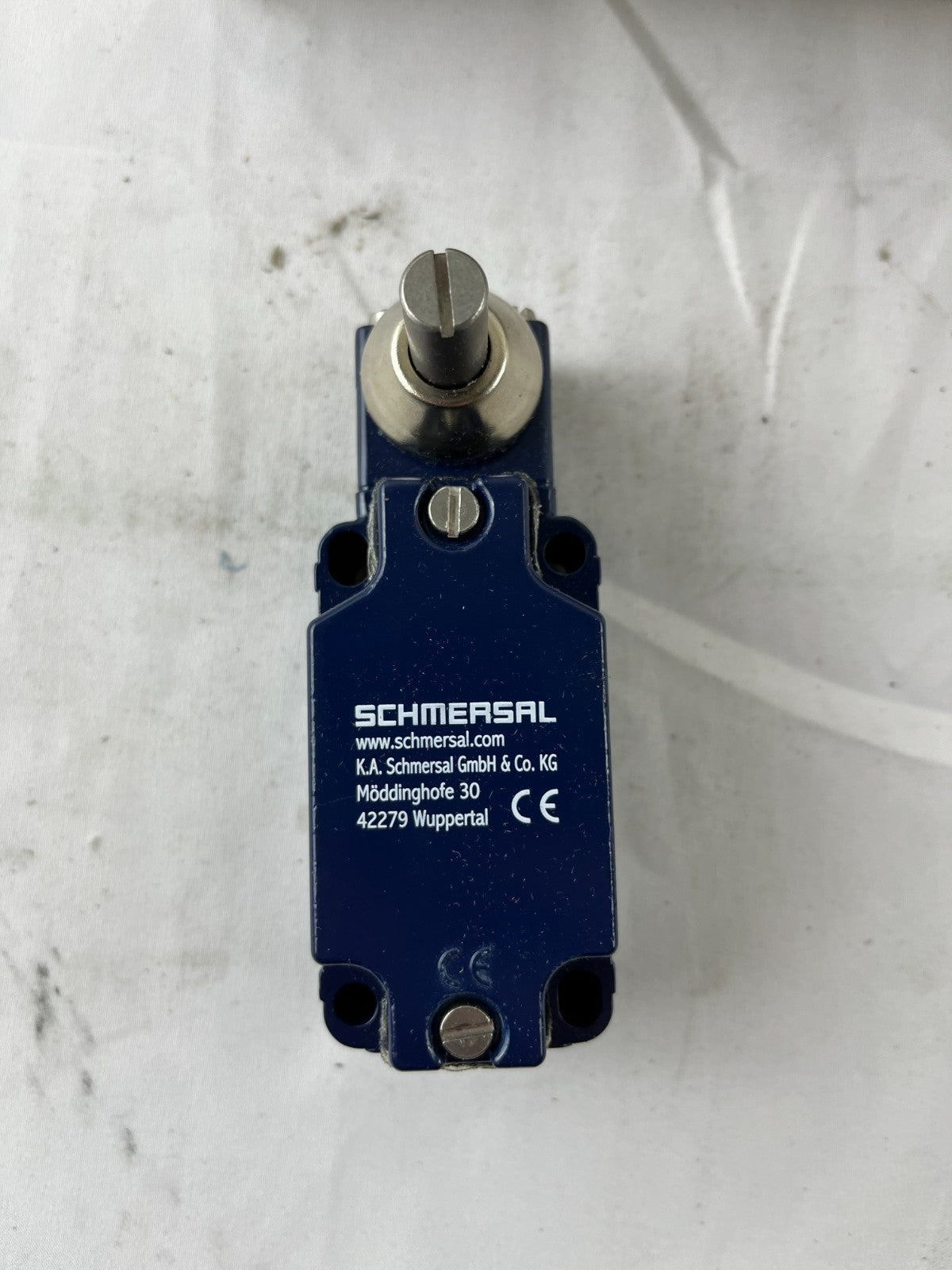

• Manufacturer: K.A. Schmersal GmbH & Co. KG

• Made in: Germany (Wuppertal)

• Production Date: 3D2/2018 (2018)

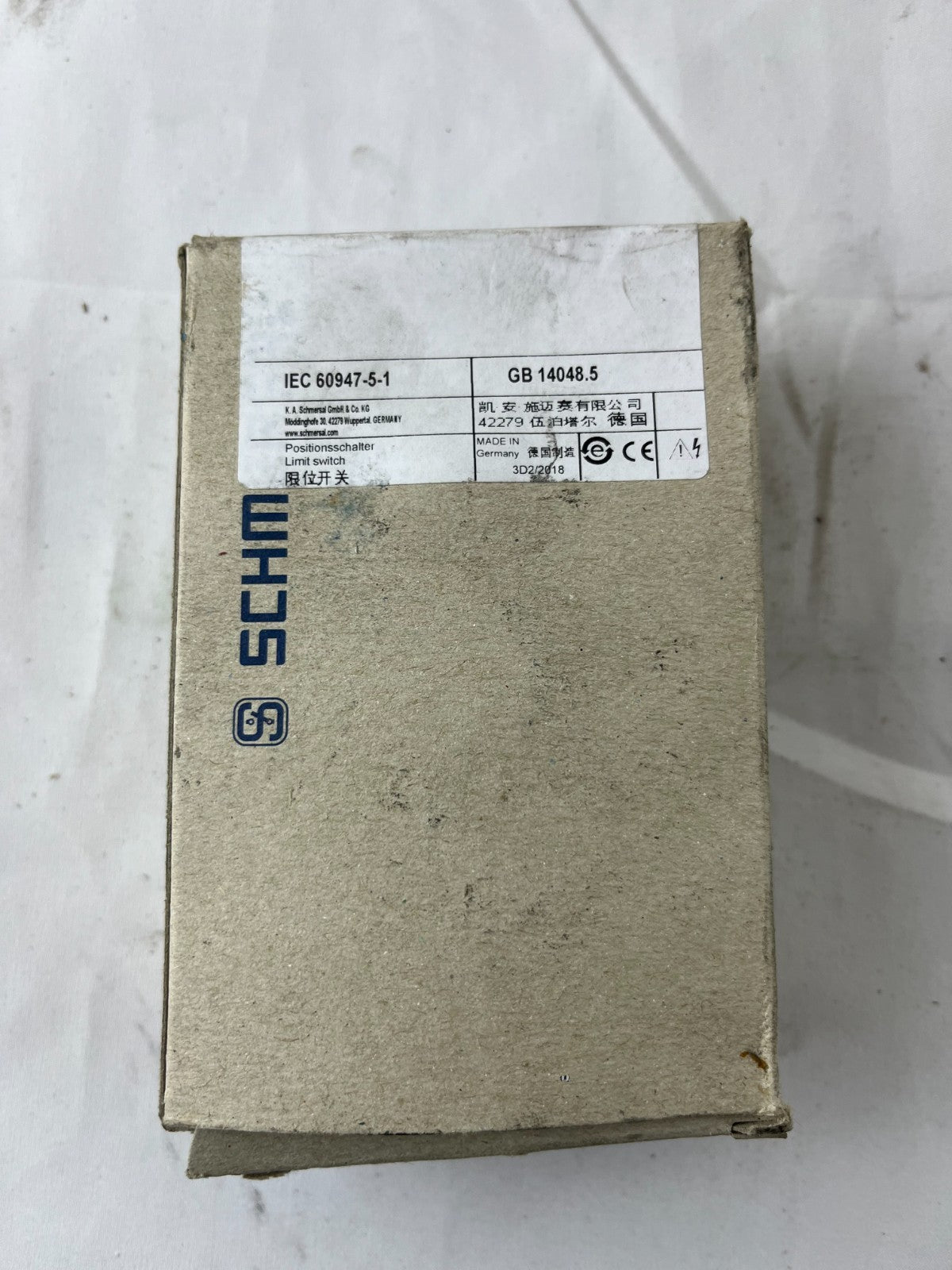

• Type: Positionsschalter / Limit switch (德国)​

• Series: MV8H Heavy Duty​

Electrical Specifications:

• Contact Configuration: 1 NO (normally open) + 1 NC (normally closed)​

• Rated Insulation Voltage (Ui): 250V​

• Impulse Withstand Voltage (Uimp): 4kV​

• Utilisation Category: AC-15 at 230V AC / 2.5A​

• Thermal Test Current: 6A​

• Switching Principle: Snap action​

• Contact Material: Silver​

• Contact Bridges: Galvanically separated​

• Switchover Time: Maximum 10ms​

• Bounce Duration: Maximum 1.5ms​

• Contact Opening: 2 x 0.5mm positive opening​

Mechanical Specifications:

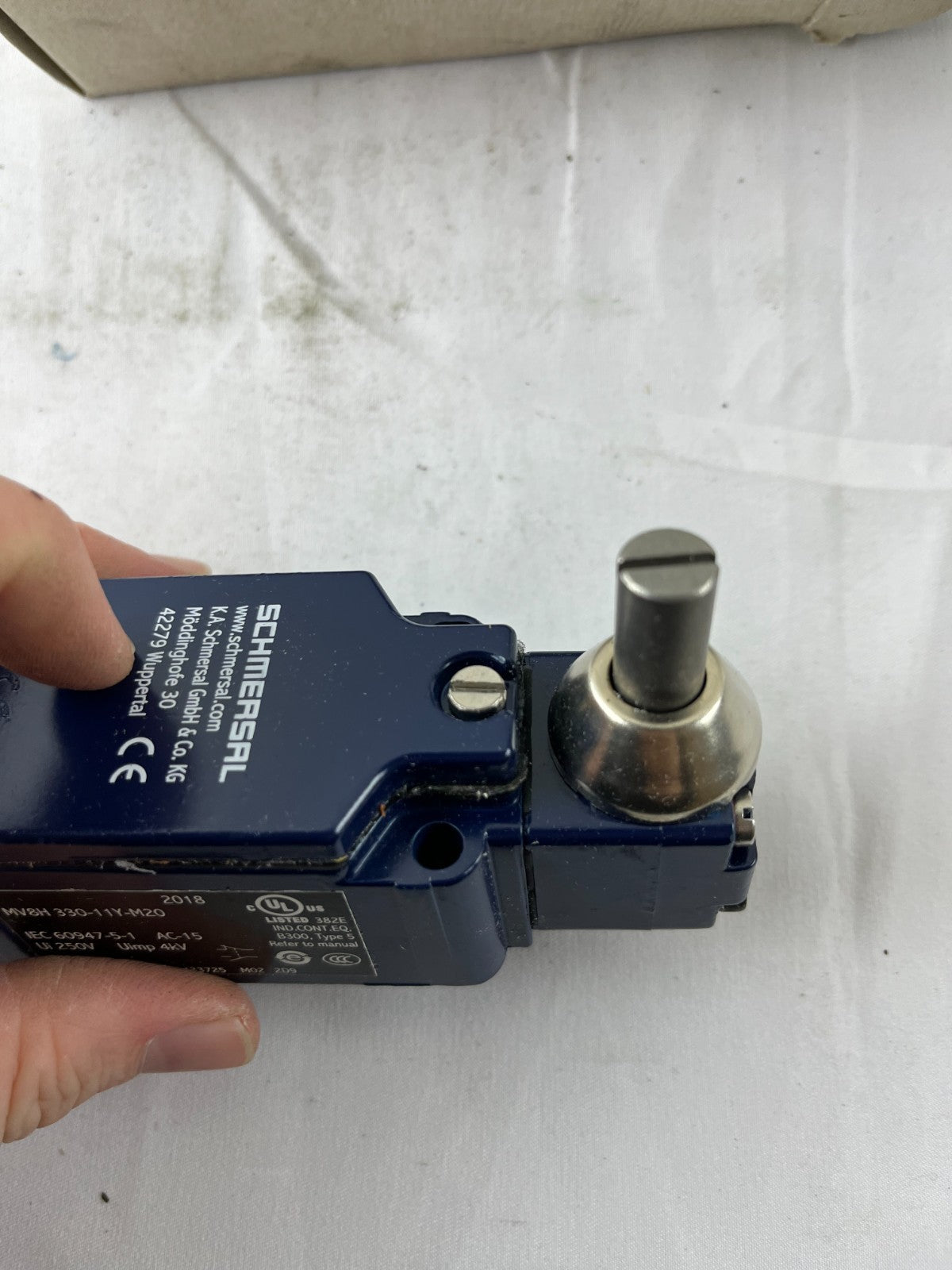

• Actuating Element: Roller lever, continuously adjustable 360°​

• Lever Repositioning: Can be transposed by 180°​

• Actuator Head: Can be repositioned in steps of 4 x 90°​

• Roller Material: Plastic​

• Roller Diameter: 20mm​

• Roller Width: 8.5mm​

• Actuating Torque: 0.5 Nm​

• Actuating Speed, Minimum: 1 mm/min (suitable for low actuating speeds)​

• Repeat Accuracy: 0.02mm​

• Mechanical Lifetime: Minimum 30,000,000 operations​

Dimensions & Construction:

• Basic Component: 40mm (L) x 40mm (W) x 76mm (H)​

• Overall Height with Lever: 129.5mm​

• Enclosure: Metal housing (die-cast zinc)​

• Weight: 260-304g​

• Silicon-Free: Yes​

Connection & Installation:

• Cable Entry: 1 x M20 x 1.5 threaded entry​

• Termination: Screw terminals​

• Cable Section: 1.5mm² to 2.5mm² (13 AWG)​

Protection & Environment:

• IP Rating: IP65​

• Ambient Temperature: -30°C to +90°C​

• Shock Resistance: 50g / 6ms​

Safety & Reliability:

• B10D (NC contact): 20,000,000 operations​

• Standards Compliance: IEC 60947-5-1, UL Listed (382E), CCC certified​​

• UL Rating: B300, Type 5​

• Proven: Power station applications​

The MV8H series features robust metal enclosure construction, long service life, and exceptional reliability in harsh industrial environments. The continuous 360° adjustment and 180° lever transposition provide maximum installation flexibility.​

Applications: Heavy industrial machinery, conveyor systems, production lines, material handling, power generation equipment, steel mills, mining equipment, cranes and hoists, packaging machinery, textile machinery, automotive assembly, robotics, machine tools, and any application requiring reliable position sensing in demanding conditions.

Condition: Brand New, Never Used, Original Box, Made in Germany 2018
