Schneider Electric GV2ME03 TeSys Motor Circuit Breaker 0.25-0.4A 3P 100kA NEW

Schneider Electric GV2ME03 TeSys Motor Circuit Breaker 0.25-0.4A 3P 100kA NEW

- Shipping includes tracking info worldwide. Klaus KLJ Trading

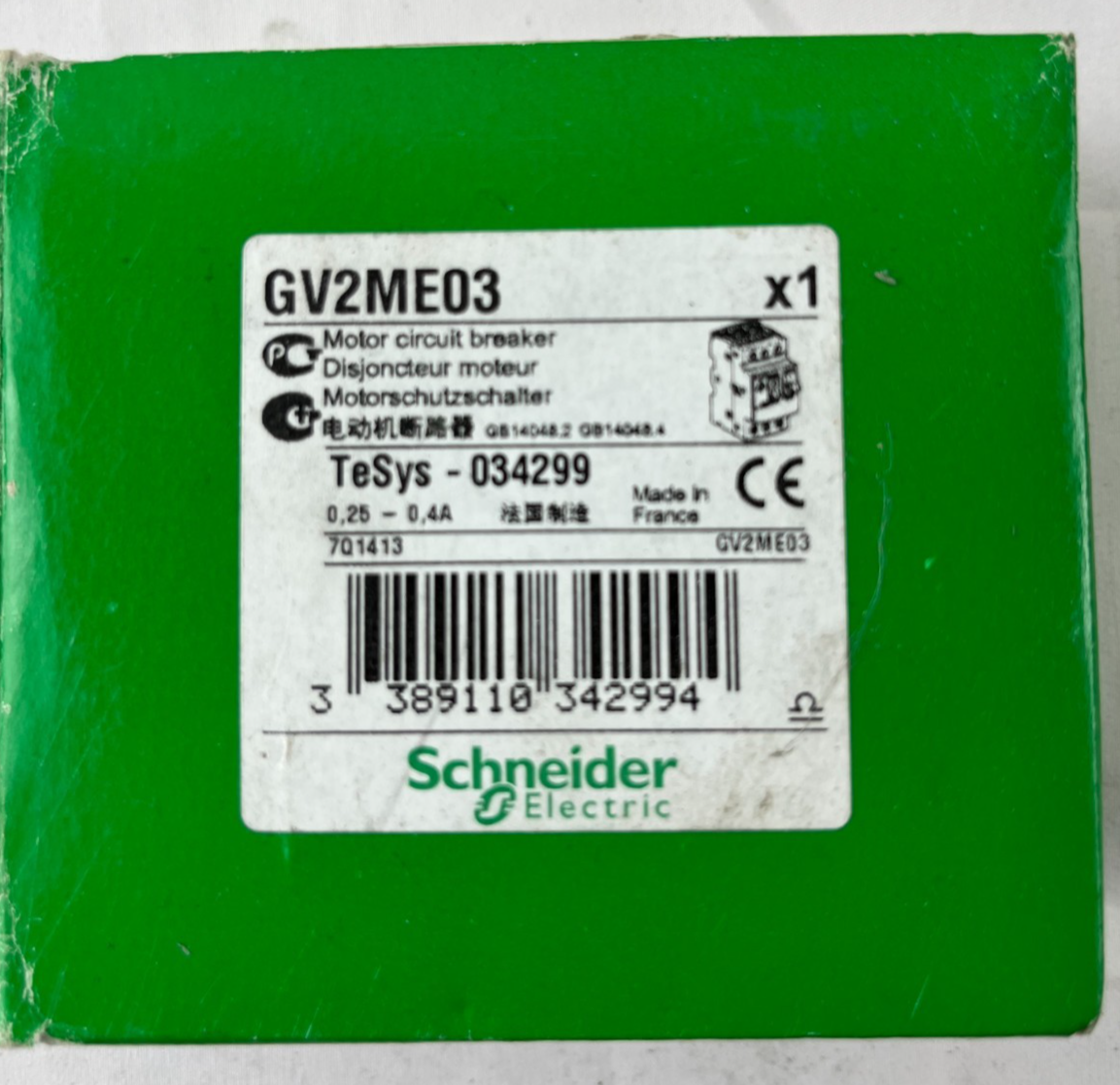

Brand New Schneider Electric GV2ME03 TeSys GV2 Motor Circuit Breaker - Original Box, Made in France

• Model: GV2ME03

• Manufacturer: Schneider Electric

• Series: TeSys GV2

• Certification Number: 034299

• EAN: 3389110342994

• Made in France

• Type: 3-pole thermal-magnetic motor circuit breaker​

• Configuration: 3P (3-pole)​

Electrical Specifications:

• Thermal Setting Range: 0.25-0.4A adjustable​

• Rated Current: 0.4A at 690V​

• Insulation Voltage (Ui): 690V AC​

• Operational Voltage (Ue): 230-690V AC​

• Motor Power Rating: 0.09kW at 400V AC-3​

• Breaking Capacity (Icu): 100kA at 400V​

• Magnetic Tripping: 13 x In​

• Trip Class: Class 10A (motor protection)​

Construction & Mounting:

• Control Type: Push-button control (manual operation)​

• Terminals: Screw clamp terminals with EverLink technology​

• Cable Capacity: 1-4mm² flexible, up to 2 x 4mm²​

• Mounting: TS35 DIN rail (35mm)​

• Dimensions: 45mm (W) x 89mm (H) x 78.2mm (D)​

• Weight: 0.26 kg​

Features:

• Thermal-Magnetic Protection: Combined overload (thermal) and short-circuit (magnetic) protection​

• Push-Button Operation: Manual ON/OFF control with clear position indication​

• EverLink Terminals: Sturdy and long-lasting power connections requiring no re-tightening​

• High Breaking Capacity: 100kA at 400V provides excellent short-circuit protection​

• Multi-Standard Screws: Easier installation and operation​

• Compact Design: 45mm width saves panel space​

• Trip-Free Mechanism: Cannot be held closed against fault conditions​

• Multi-Standards Certified: IEC/EN 60947-2, IEC/EN 60947-4-1, UL, CSA​

The GV2ME03 provides complete motor protection combining control, isolation, and protection against overload and short circuits for very small motors. Compatible with LC1K contactors for complete motor starter assemblies.​

Applications: Very small motor protection (up to 0.09kW), micro pump control, valve actuators, small fan motors, conveyor systems, instrumentation equipment, HVAC damper actuators, control panels, and general fractional horsepower motor feeders.

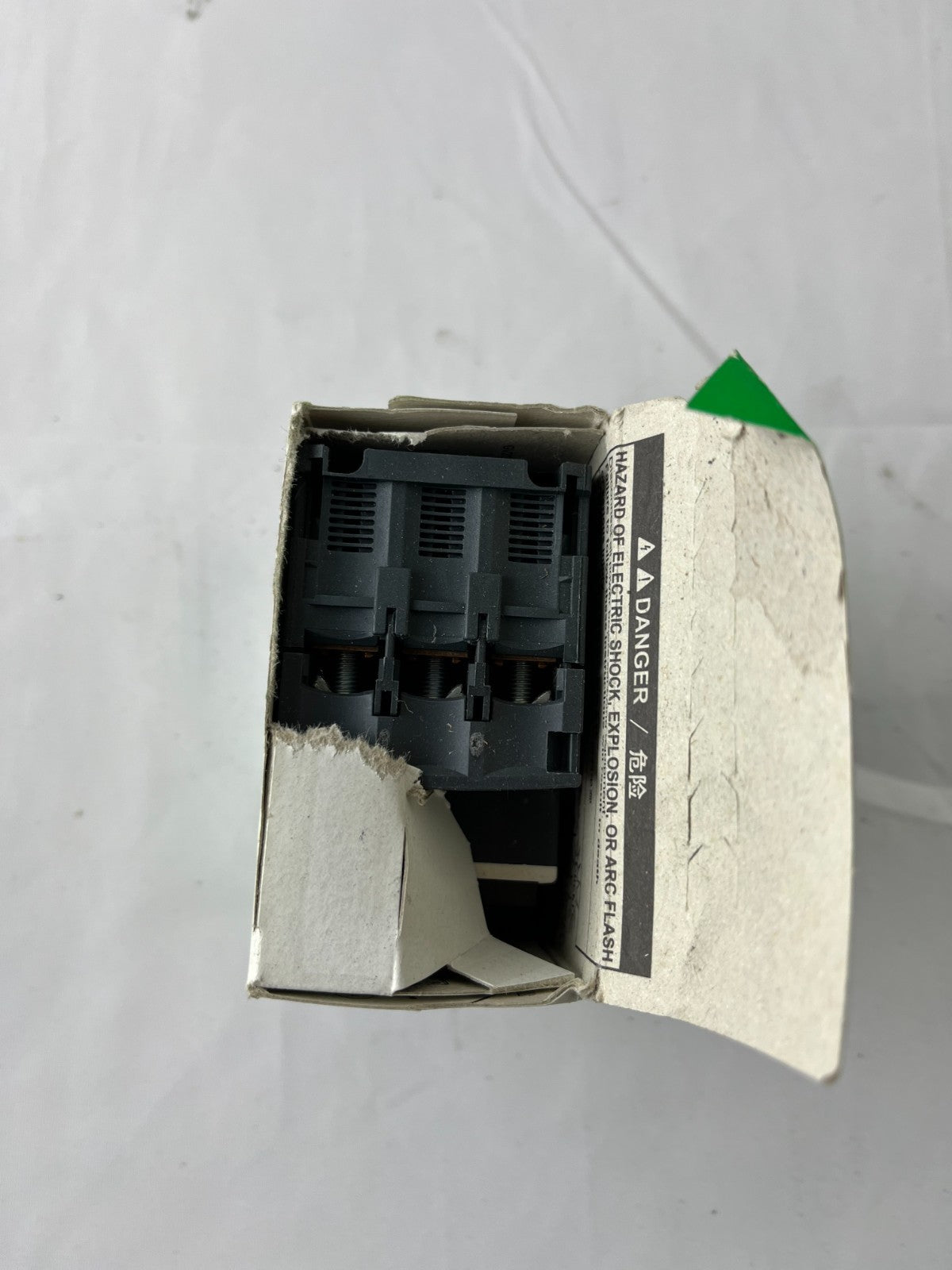

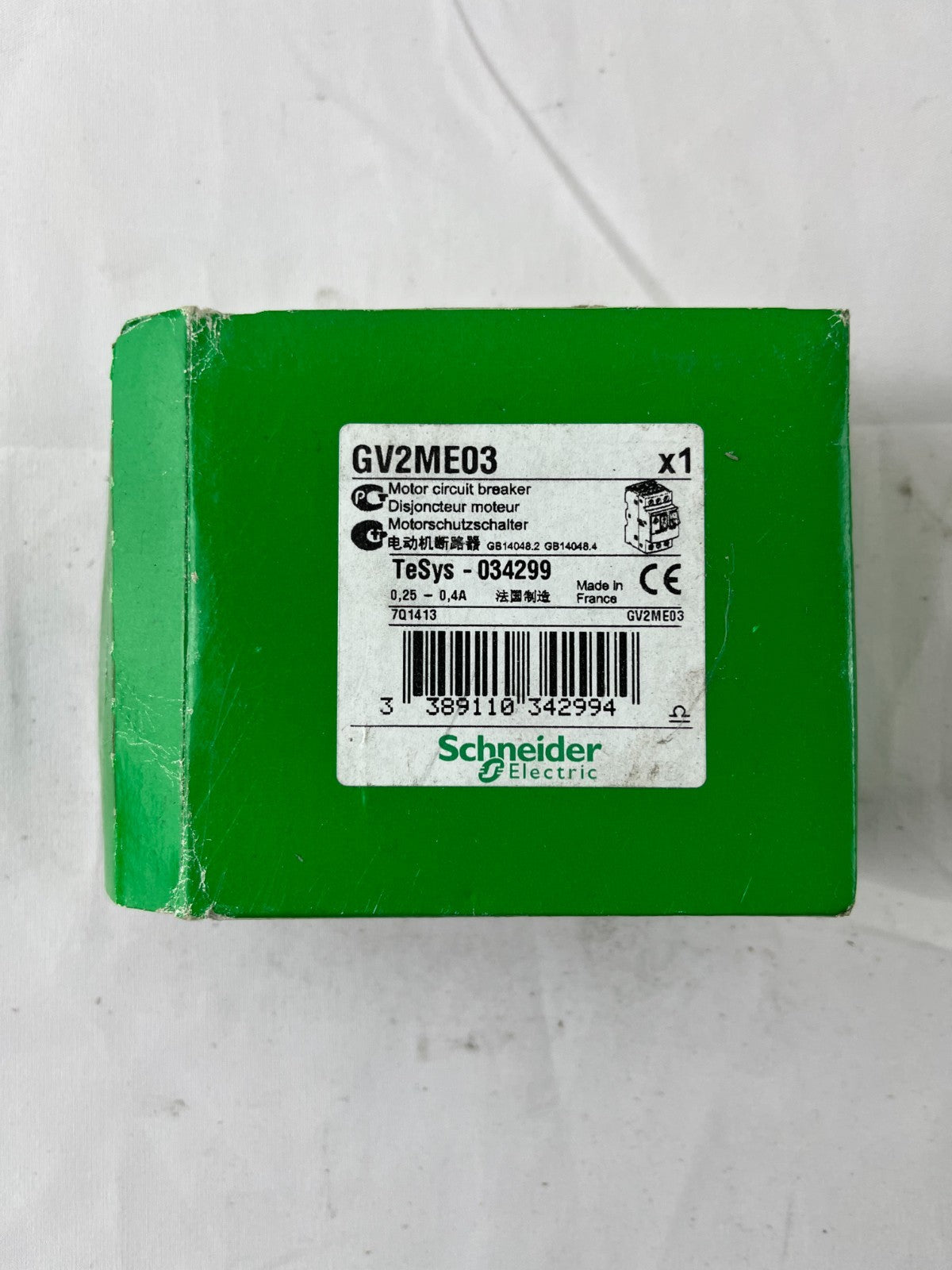

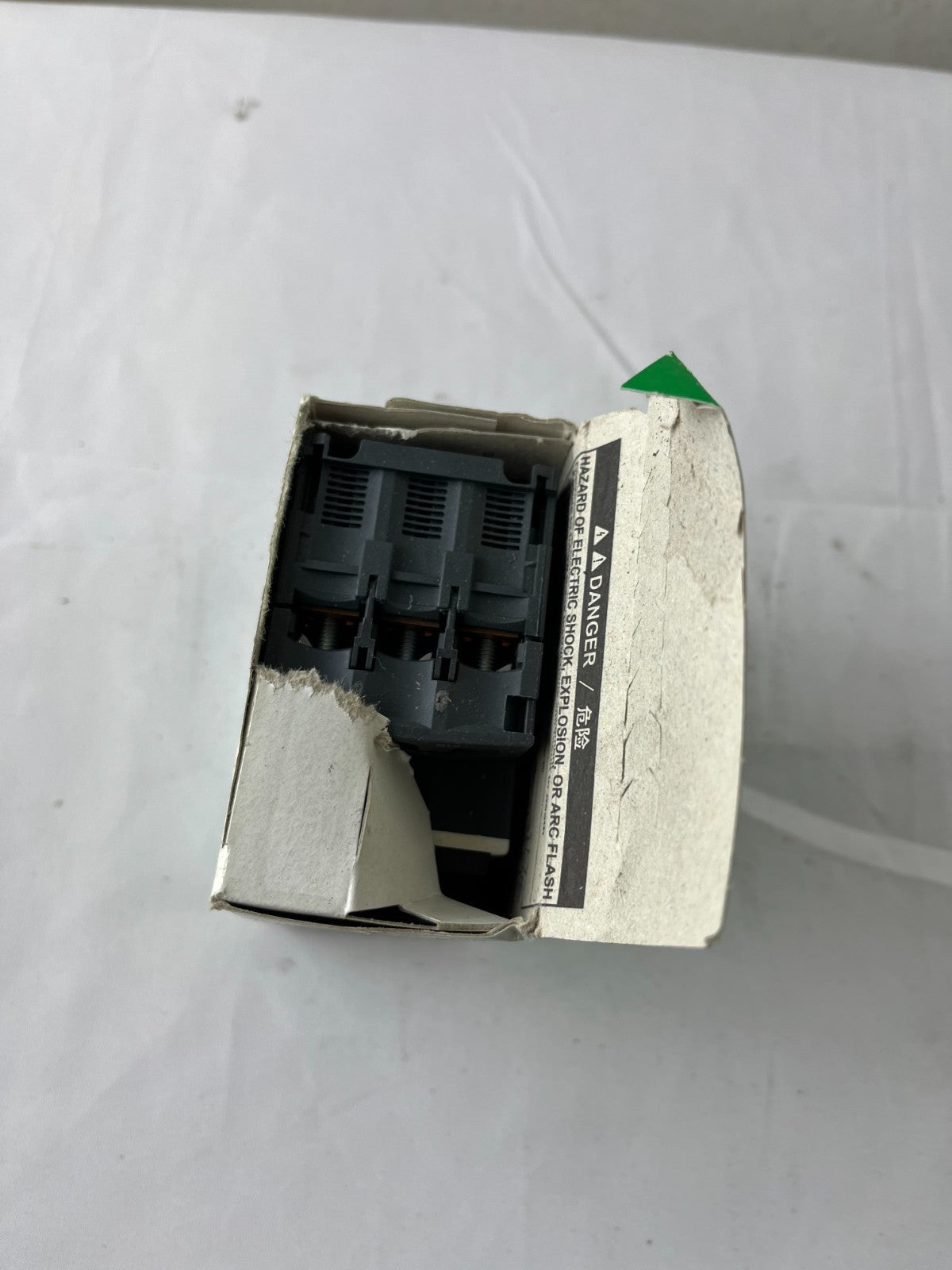

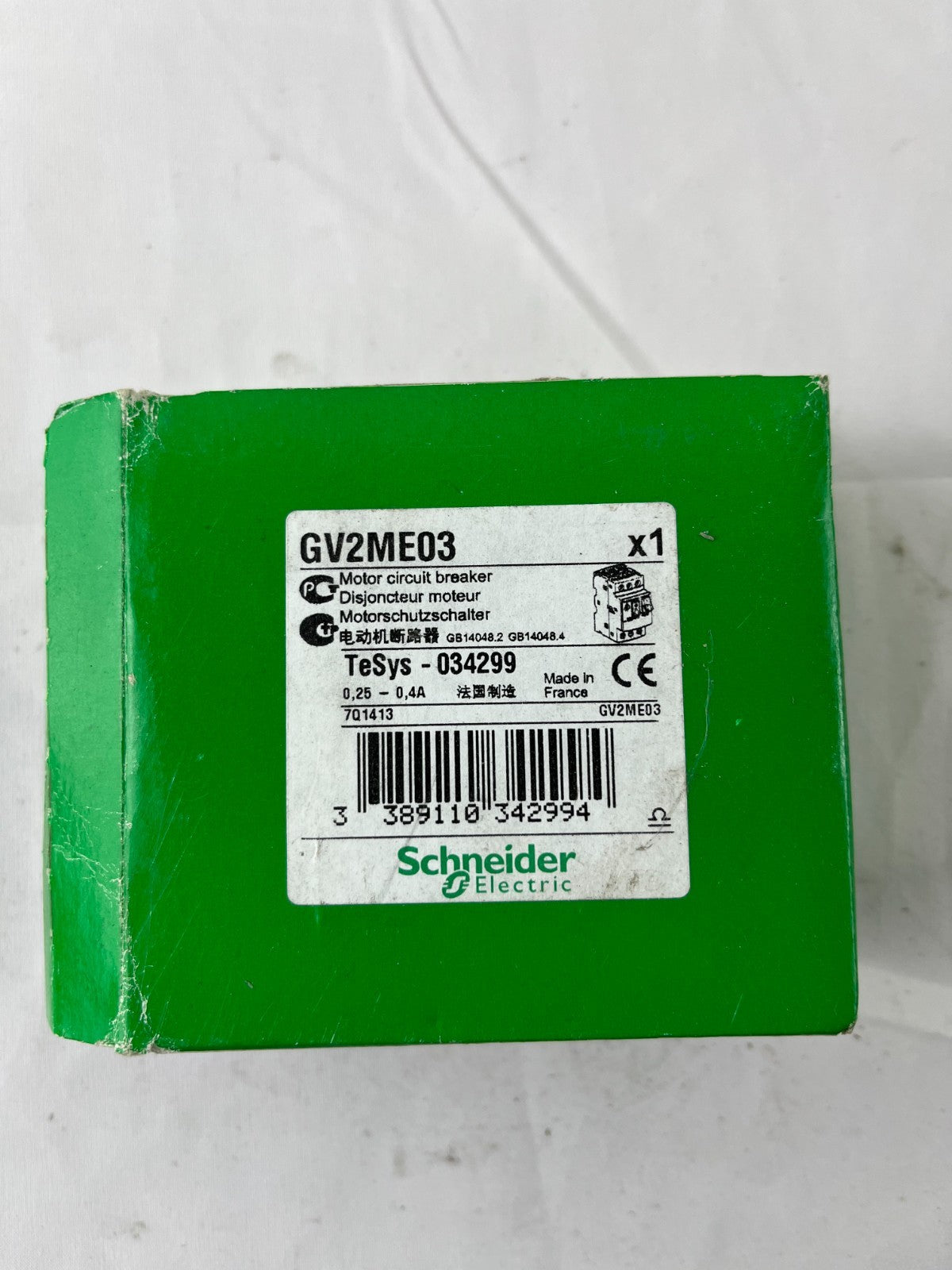

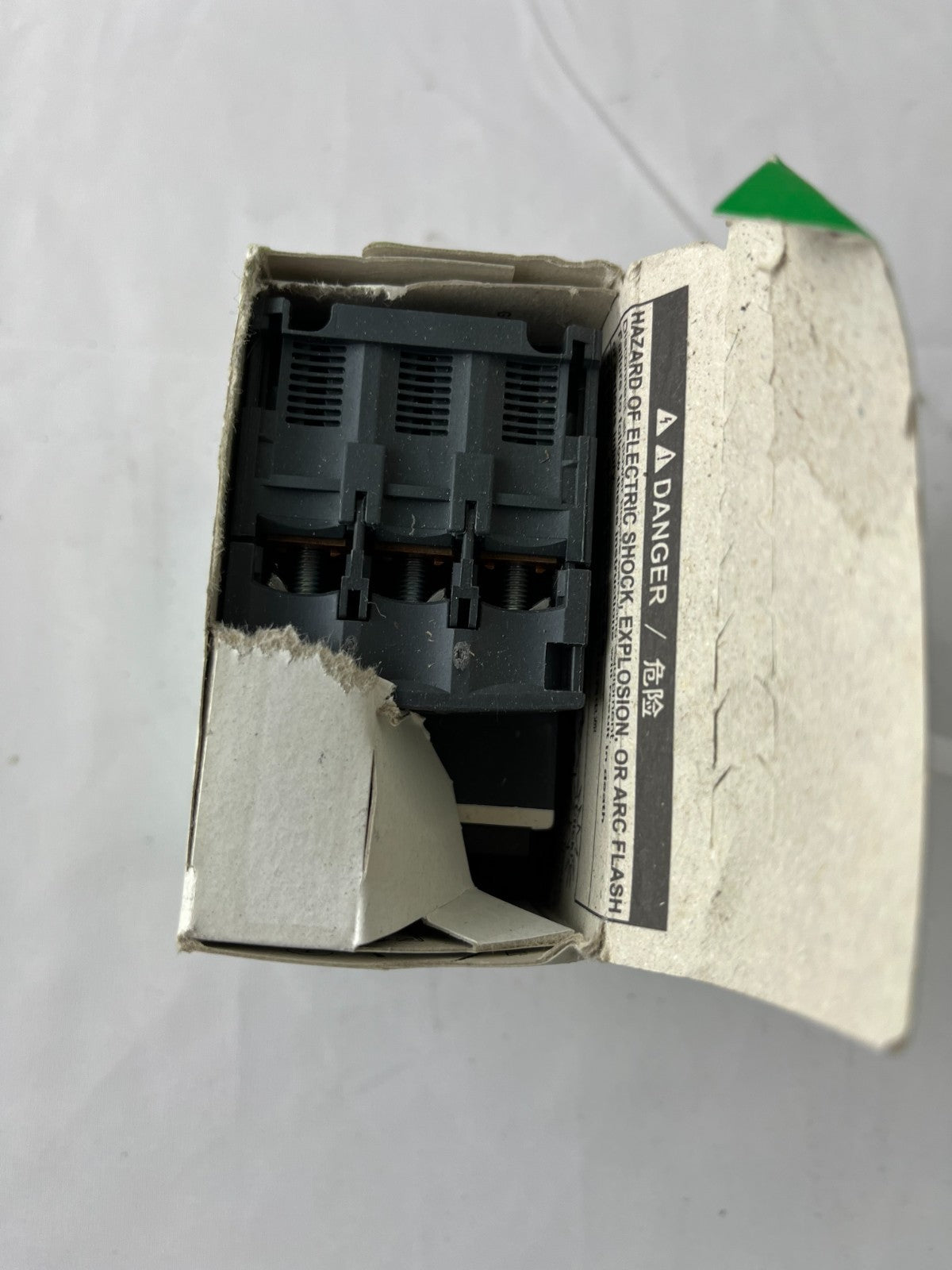

Condition: Brand New, Never Used, Original Schneider Electric Box, Made in France
