Schneider Electric GV2ME05 TeSys Motor Circuit Breaker 0.63-1A 3P 100kA NEW

Schneider Electric GV2ME05 TeSys Motor Circuit Breaker 0.63-1A 3P 100kA NEW

- Shipping includes tracking info worldwide. Klaus KLJ Trading

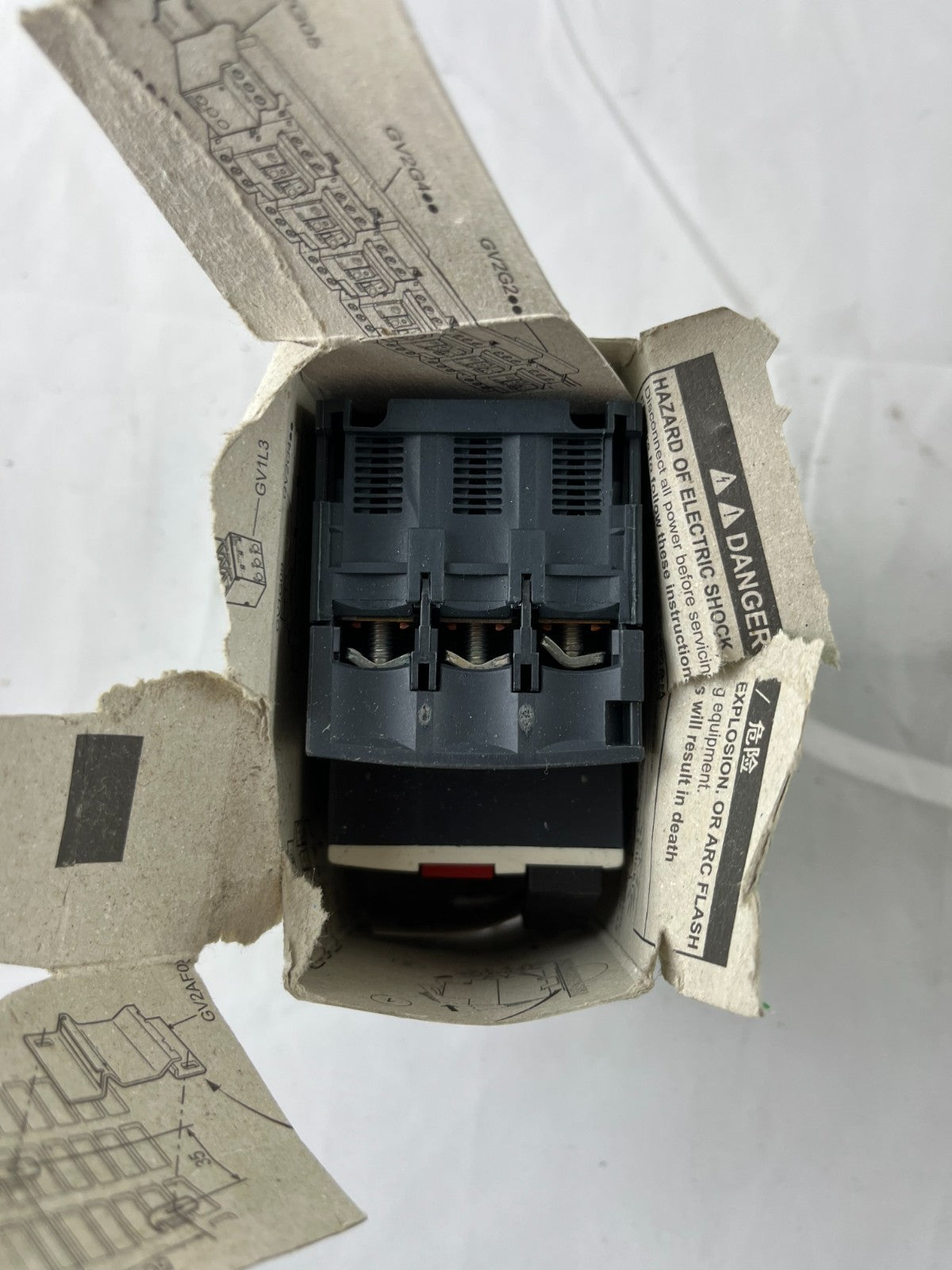

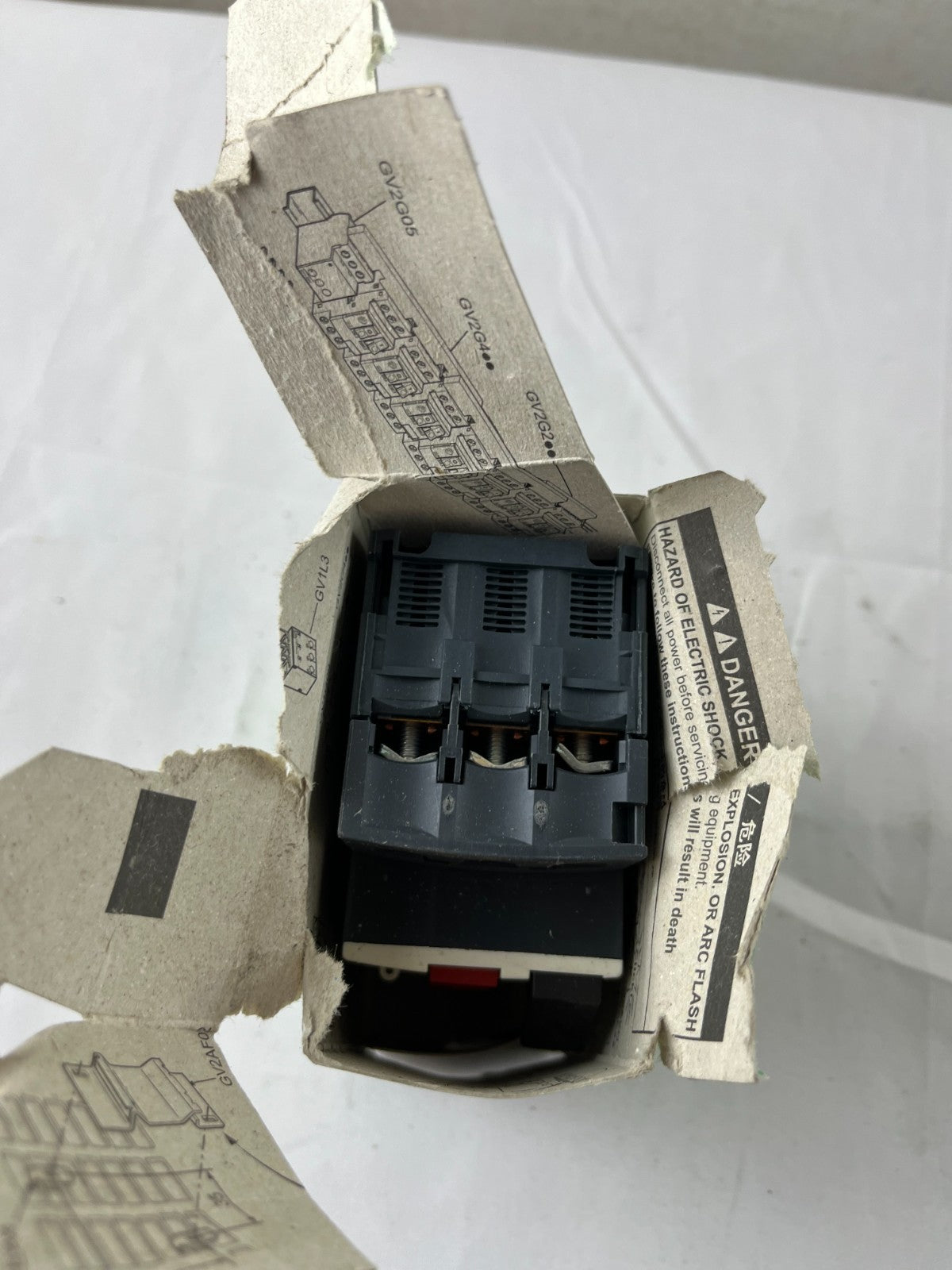

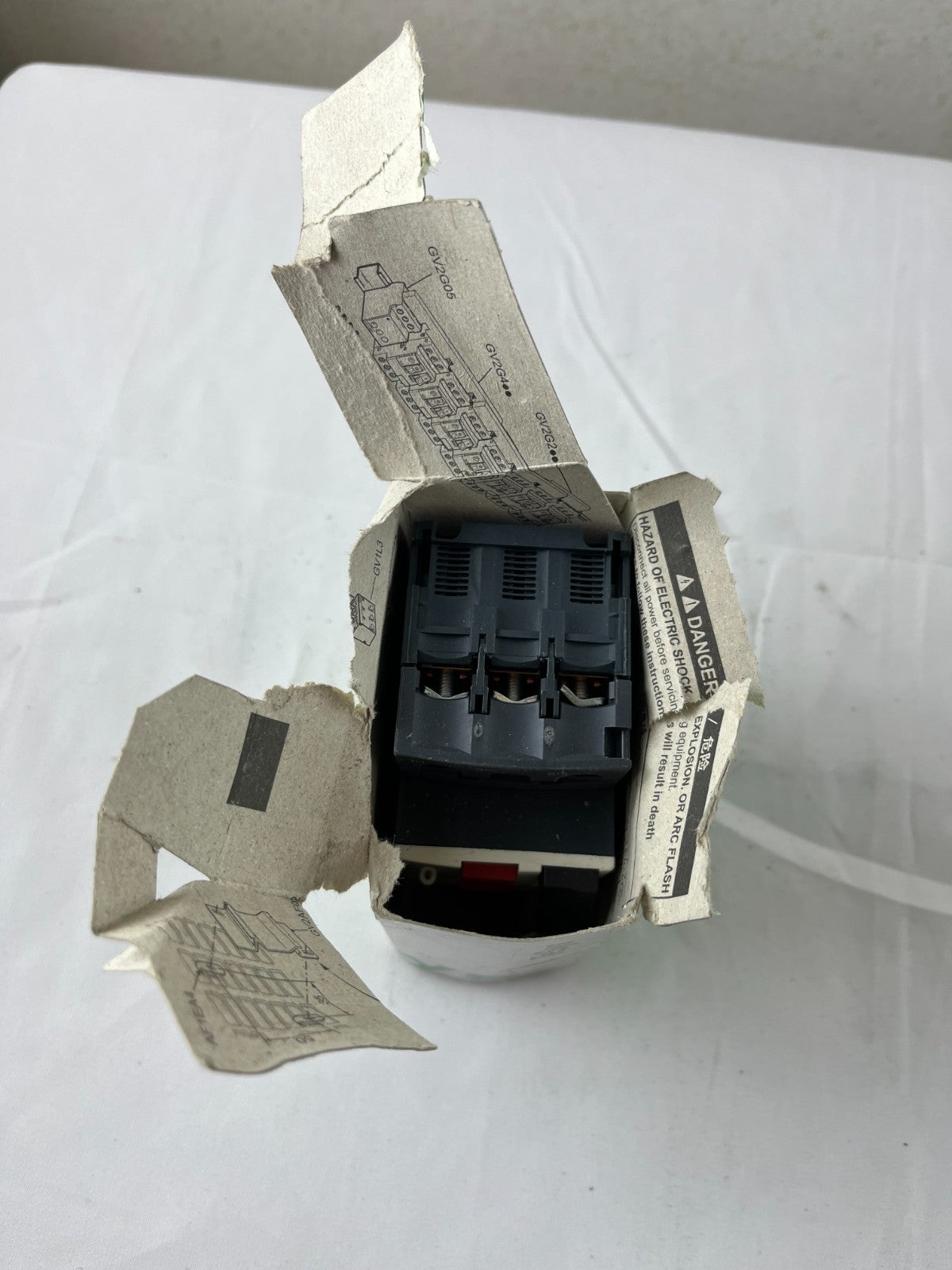

Brand New Schneider Electric GV2ME05 TeSys GV2 Motor Circuit Breaker - Original Box, Made in France

• Model: GV2ME05

• Manufacturer: Schneider Electric

• Series: TeSys GV2

• Certification Number: 034303

• EAN: 3389110343038

• Made in France

• Type: 3-pole thermal-magnetic motor circuit breaker​

• Configuration: 3P (3-pole)​

Electrical Specifications:

• Thermal Setting Range: 0.63-1A adjustable​

• Rated Current: 1A at 690V​

• Insulation Voltage (Ui): 690V AC​

• Operational Voltage (Ue): 690V AC​

• Motor Power Rating: 0.25kW at 400V AC-3​

• Breaking Capacity (Icu): 100kA at 400V​

• Magnetic Tripping: 13 x In​

• Trip Class: Class 10A (motor protection)​

Construction & Mounting:

• Control Type: Push-button control (manual operation)​

• Terminals: Screw clamp terminals with EverLink technology​

• Cable Capacity: 1-4mm² flexible, up to 2 x 4mm²​

• Mounting: TS35 DIN rail (35mm)​

• Dimensions: 45mm (W) x 89mm (H) x 78.2mm (D)​

• Weight: 0.26 kg​

Features:

• Thermal-Magnetic Protection: Combined overload (thermal) and short-circuit (magnetic) protection​

• Push-Button Operation: Manual ON/OFF control with clear position indication​

• EverLink Terminals: Sturdy and long-lasting power connections requiring no re-tightening​

• High Breaking Capacity: 100kA at 400V provides excellent short-circuit protection​

• Multi-Standard Screws: Easier installation and operation​

• Compact Design: 45mm width saves panel space​

• Trip-Free Mechanism: Cannot be held closed against fault conditions​

• Multi-Standards Certified: IEC/EN 60947-2, IEC/EN 60947-4-1, UL, CSA​

The GV2ME05 provides complete motor protection combining control, isolation, and protection against overload and short circuits. Compatible with LC1K06 and LC1D09 contactors for complete motor starter assemblies.​

Applications: Small motor protection (up to 0.25kW), pump control, fan motors, conveyor systems, industrial machinery, HVAC equipment, automation control panels, and general motor feeders requiring thermal-magnetic protection.

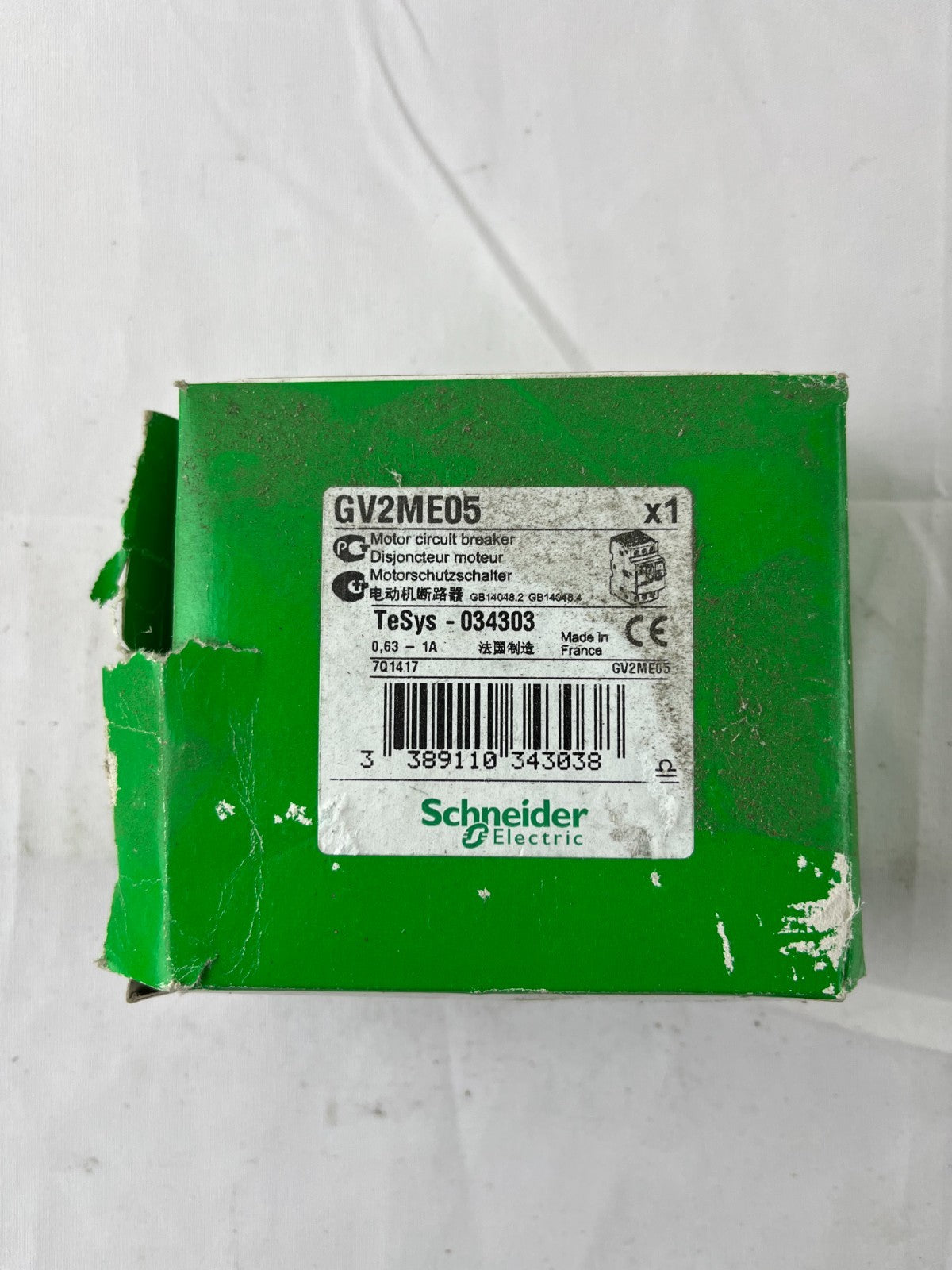

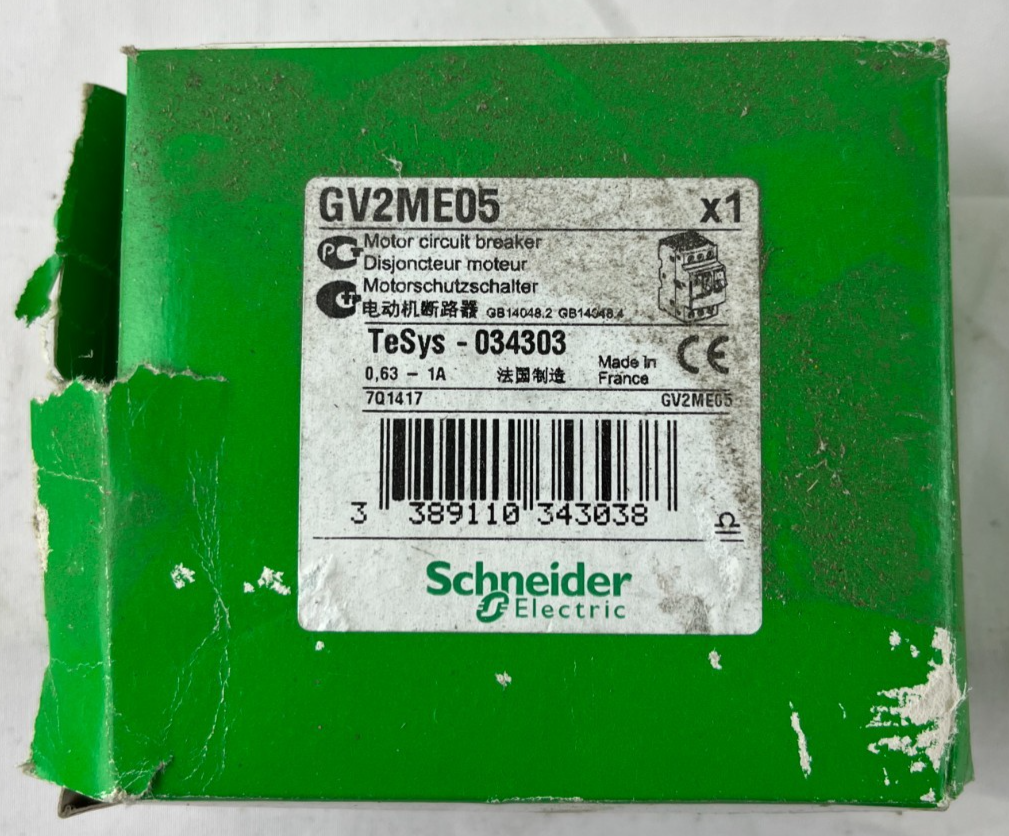

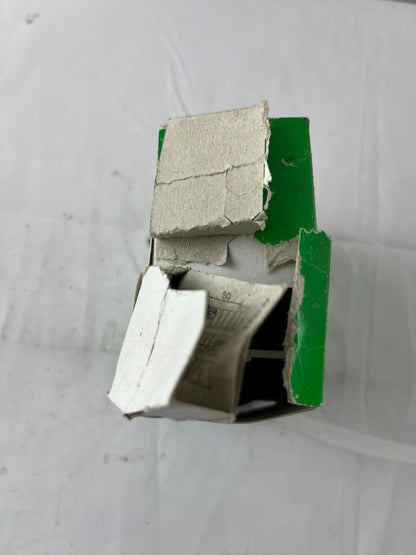

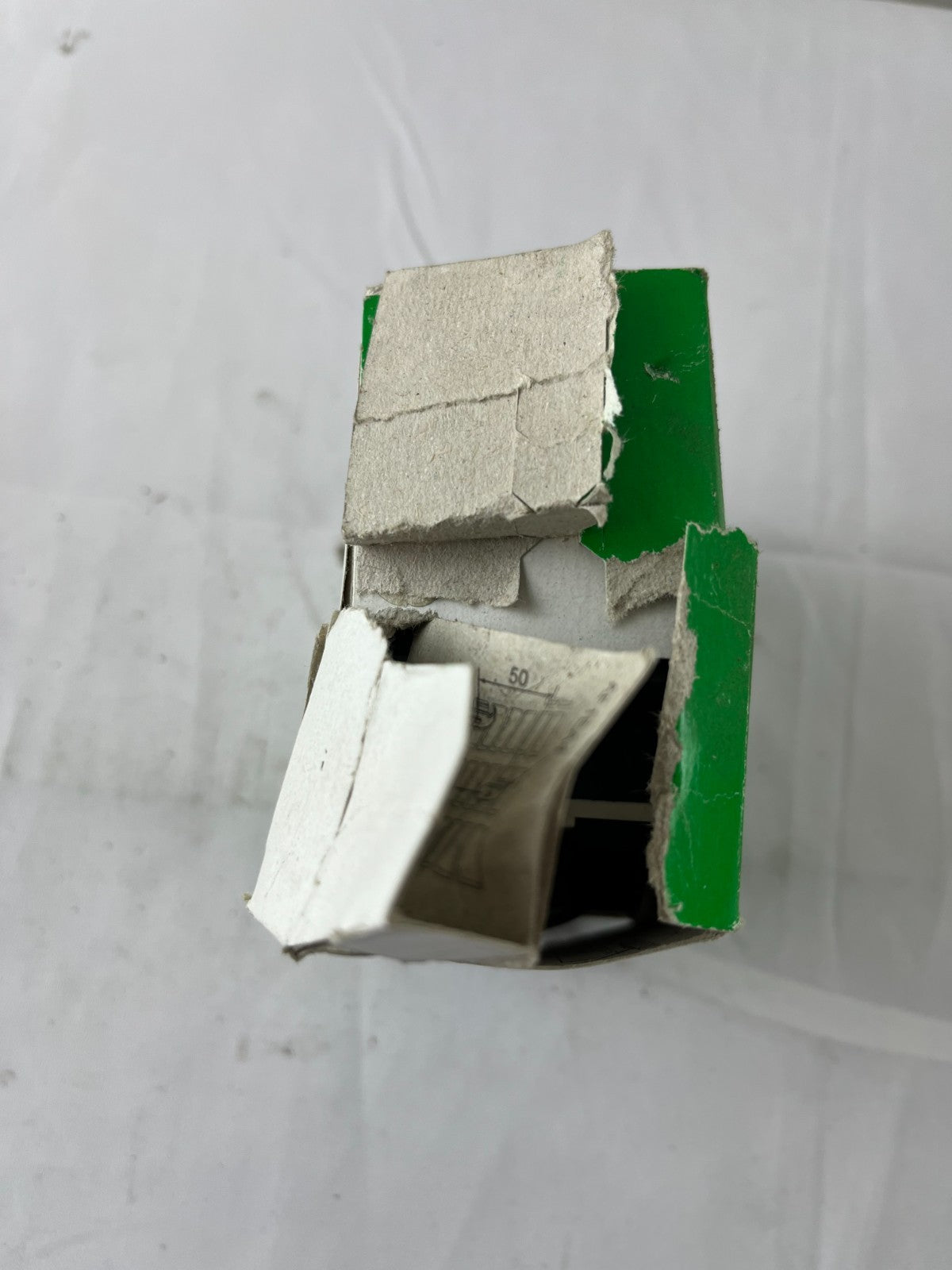

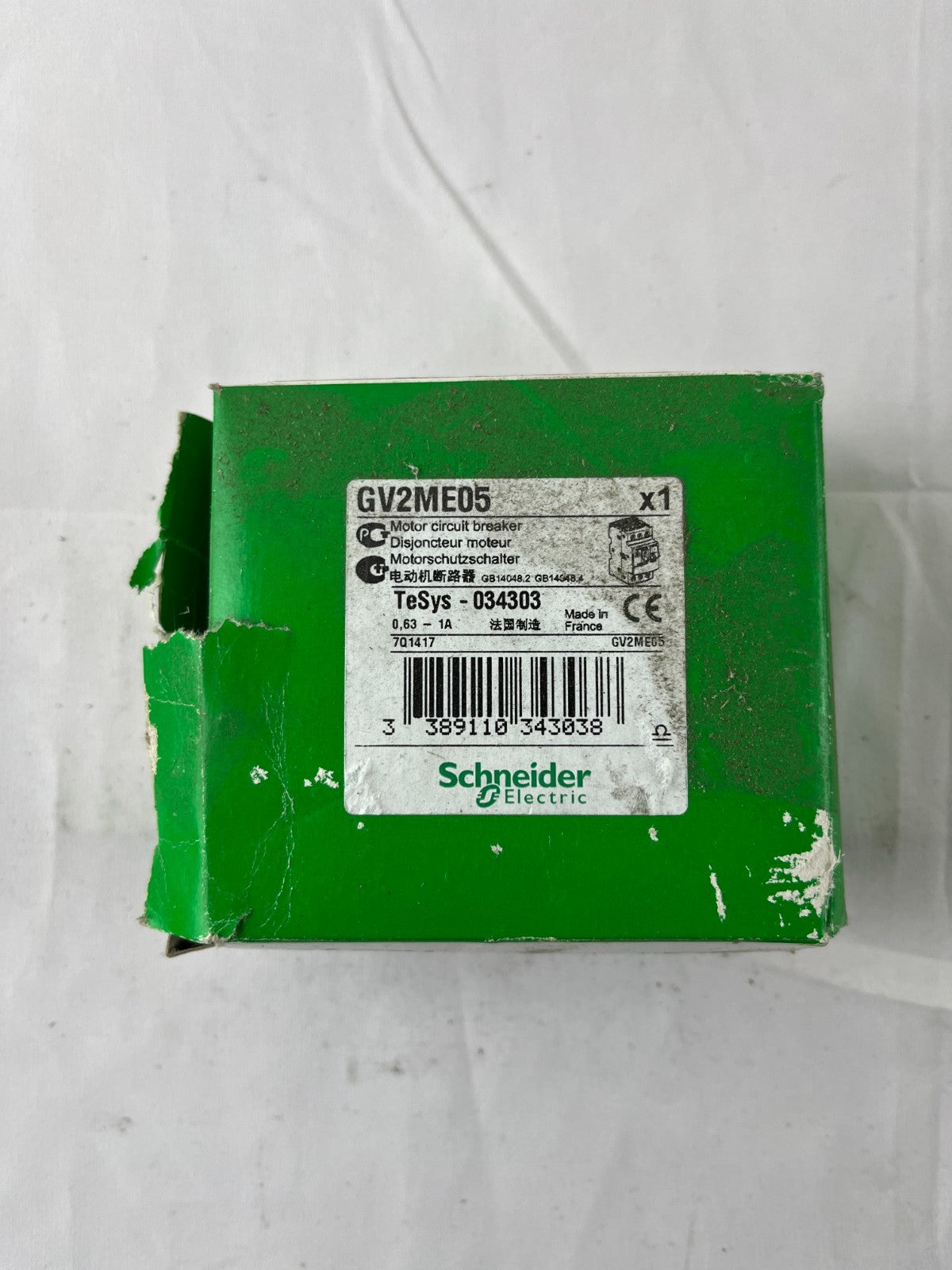

Condition: Brand New, Never Used, Original Schneider Electric Box, Made in France
