Schneider Electric LRD04 TeSys Thermal Overload Relay 0.4–0.63A 690V, Used OK

All the best /Klaus

Brand: Schneider Electric
Series: TeSys D
Model: LRD04
Type: Thermal Overload Relay
Condition: Good used working condition – fully tested and guaranteed to function (see detailed photos).

Technical Specifications:

• Adjustment Range: 0.4–0.63A (thermal protection)

• Rated Voltage: Up to 690V AC, 50/60Hz

• Class: 10A (motor protection response)

• Poles: 3-pole (for AC motors and control applications)

• Contacts: 1x Normally Open (NO), 1x Normally Closed (NC)

• Reset: Manual and automatic options, with reset and stop push-buttons

• Mounting: Clips directly onto TeSys D contactors or DIN rail

• Certifications: UL, CE, EAC, CSA, ATEX (explosion proof for certain installations)

• Country of Origin: Made in France

• For use with: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 TeSys contactor series

Features:

• Genuine Schneider Electric – trusted reliability in industrial automation

• Ideal for three-phase motor protection, prevents overheating and phase loss

• Adjustable trip range to suite various fractional motors or starters

• Integrated STOP and RESET functions for quick control panel operations

• IP20 protection, robust build for tough environments

What’s Included:

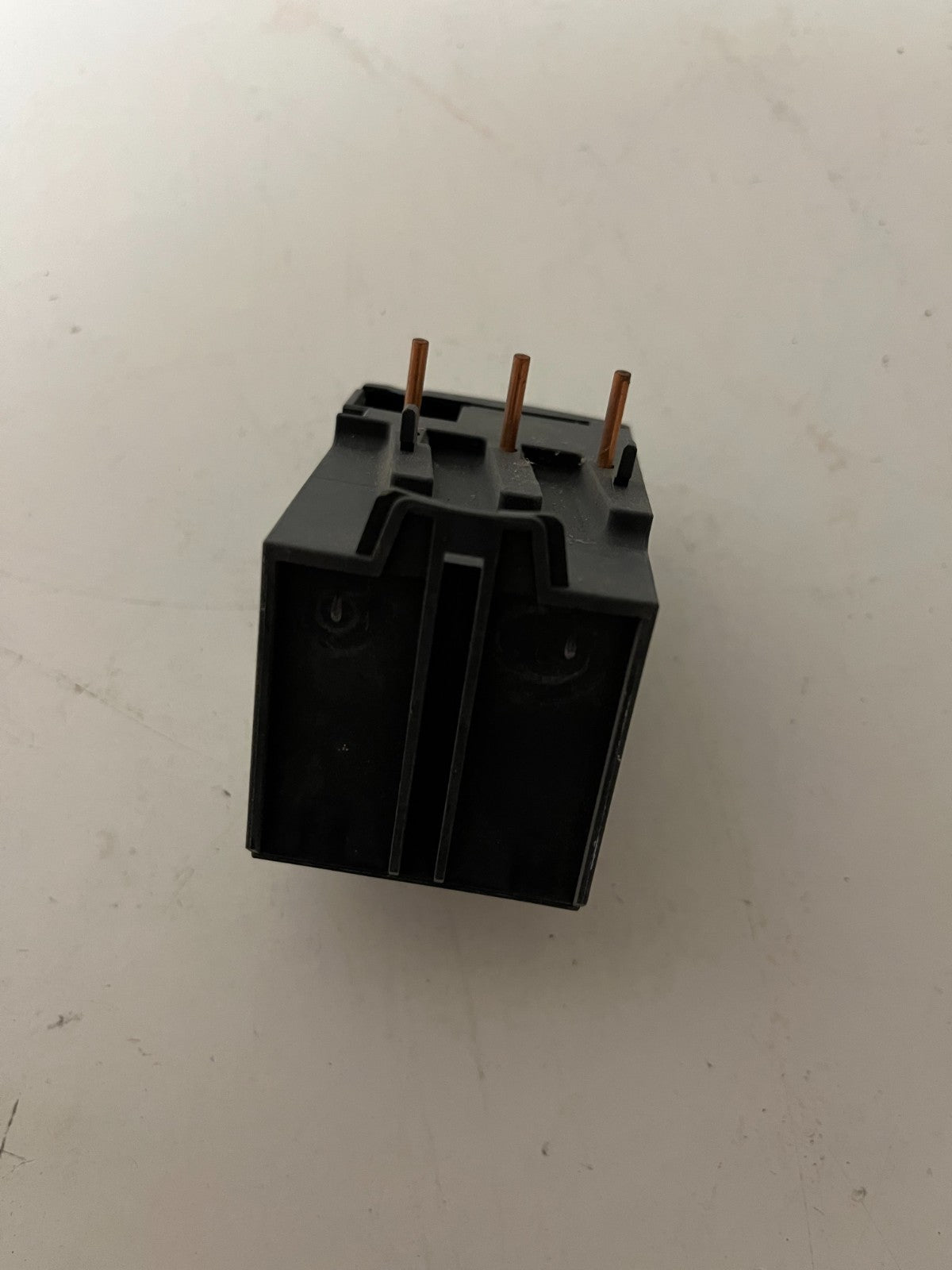

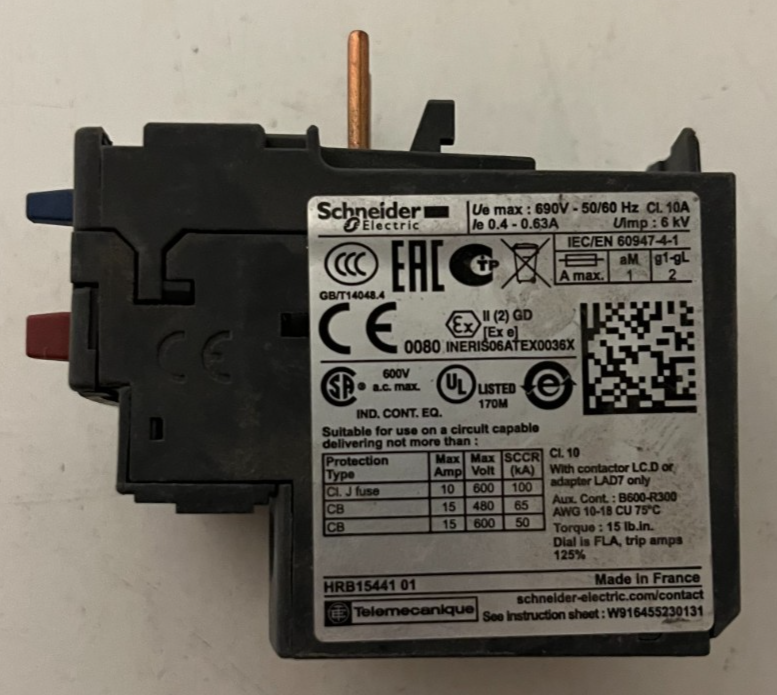

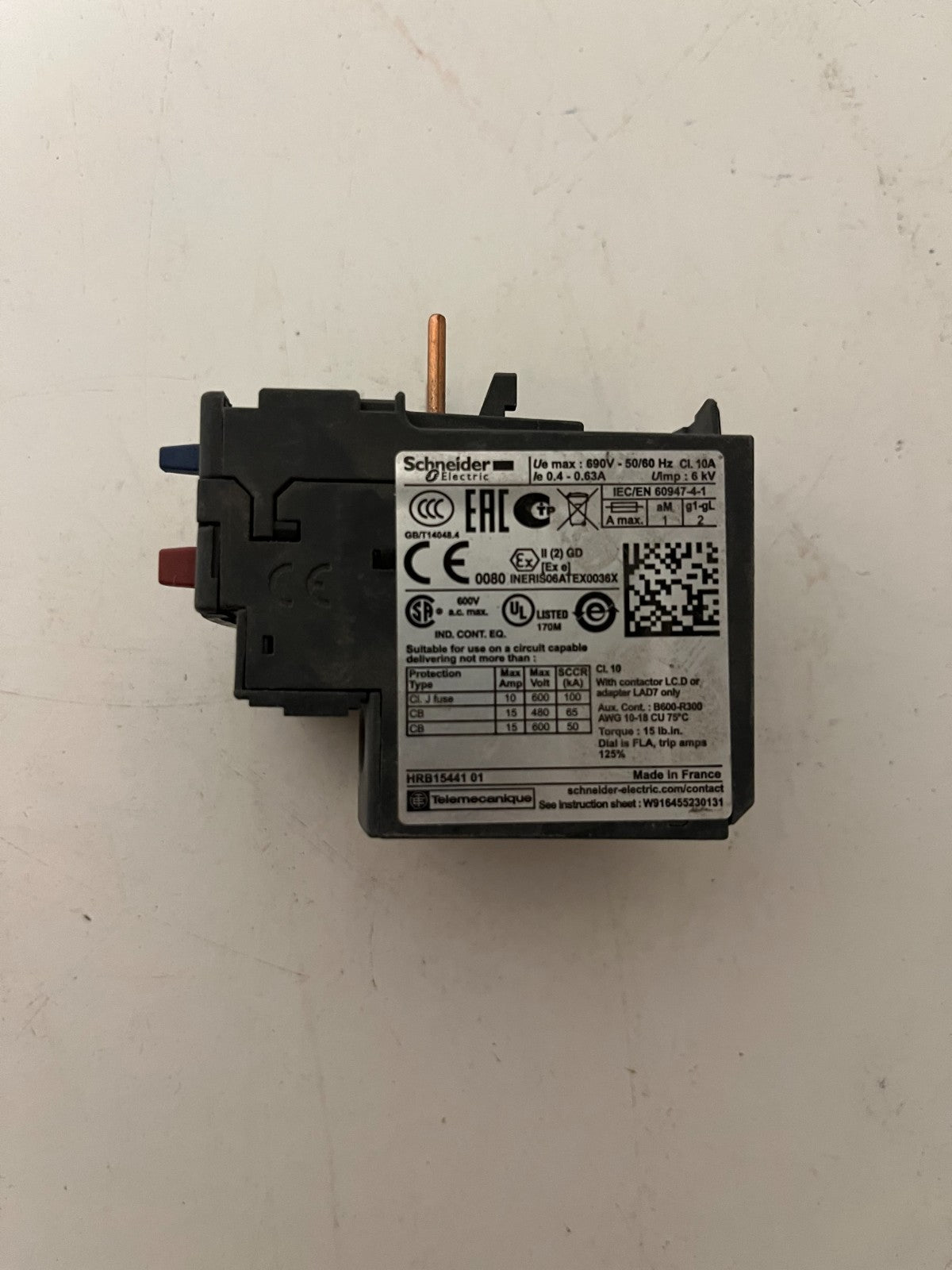

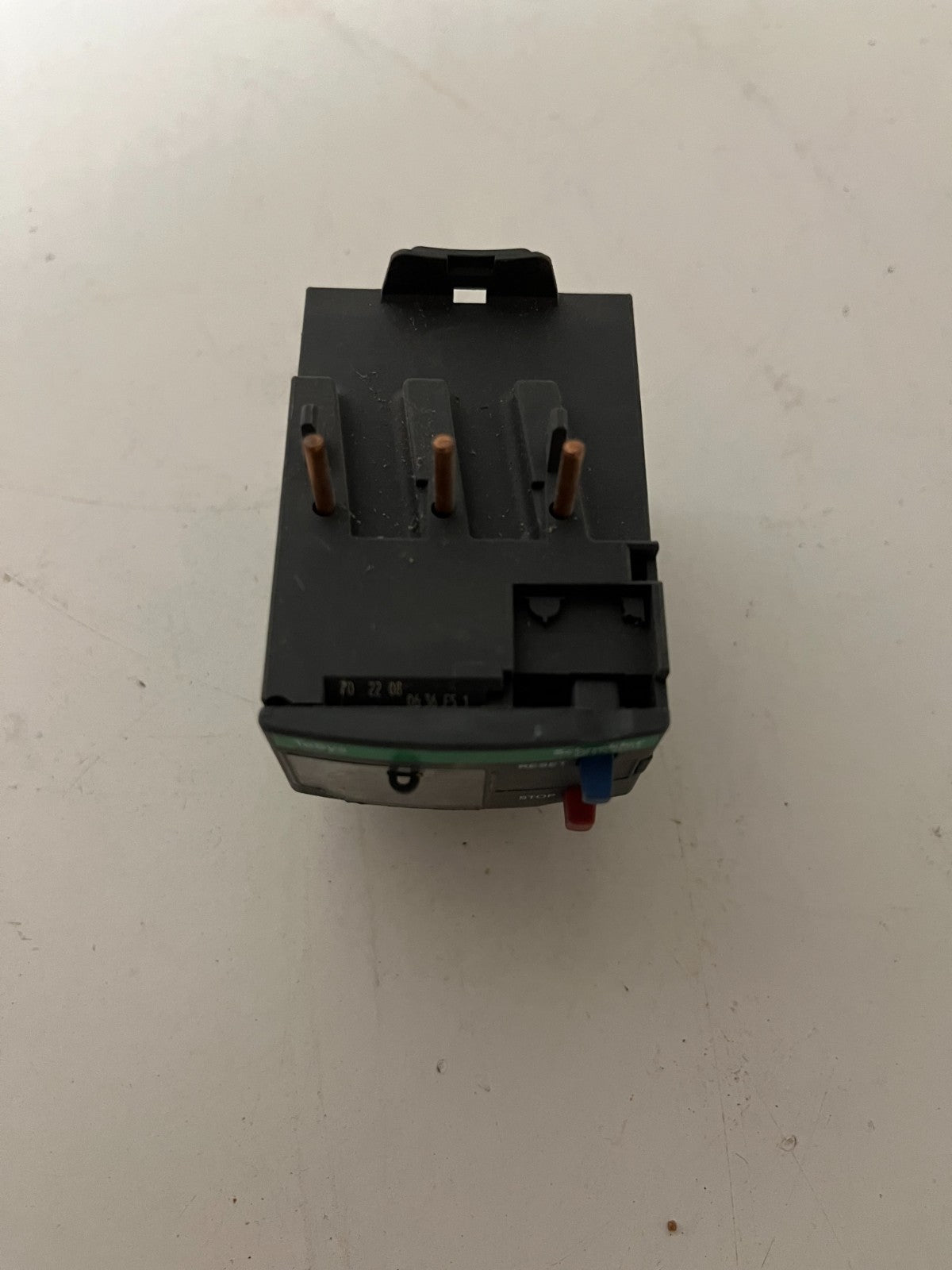

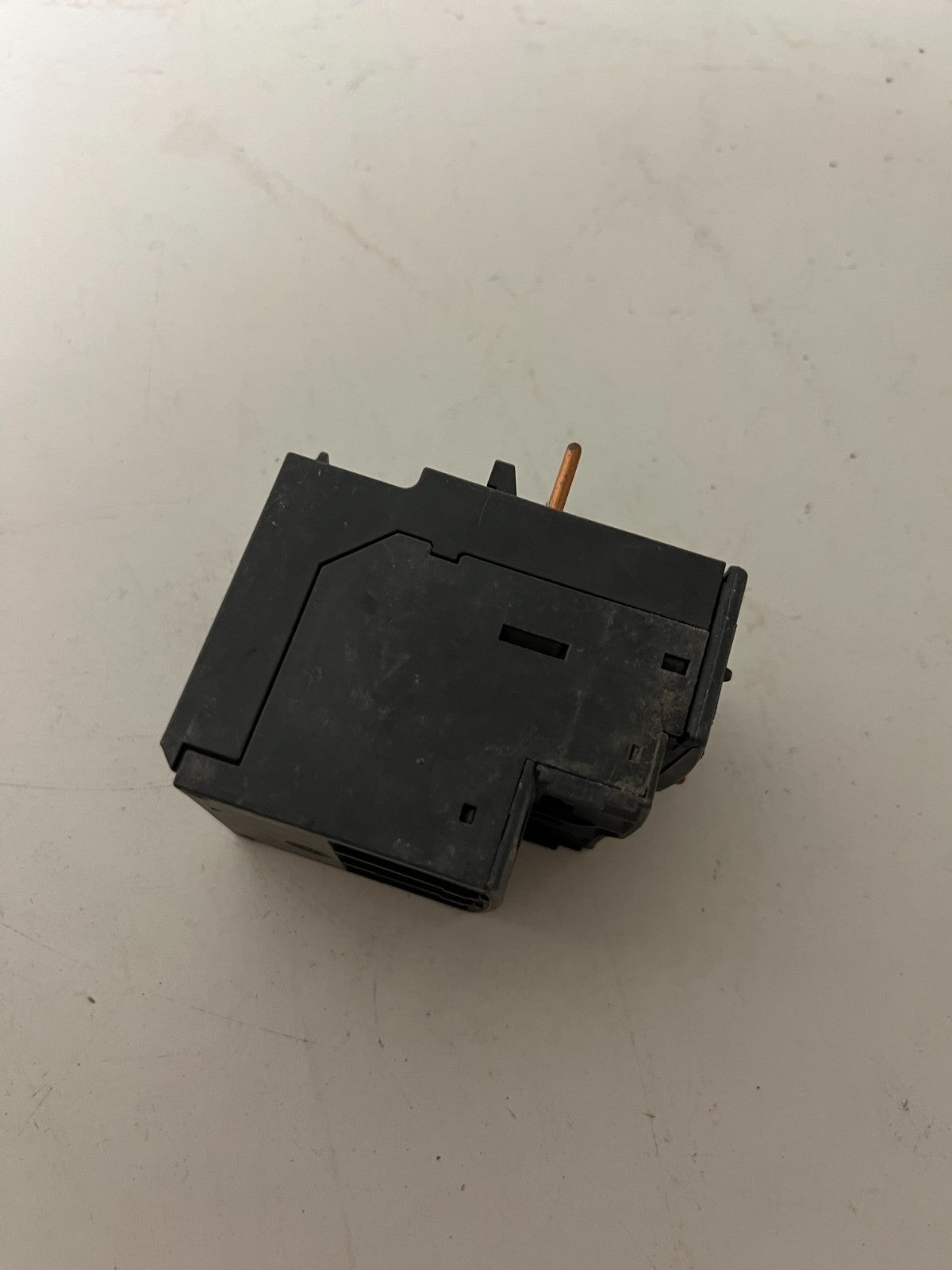

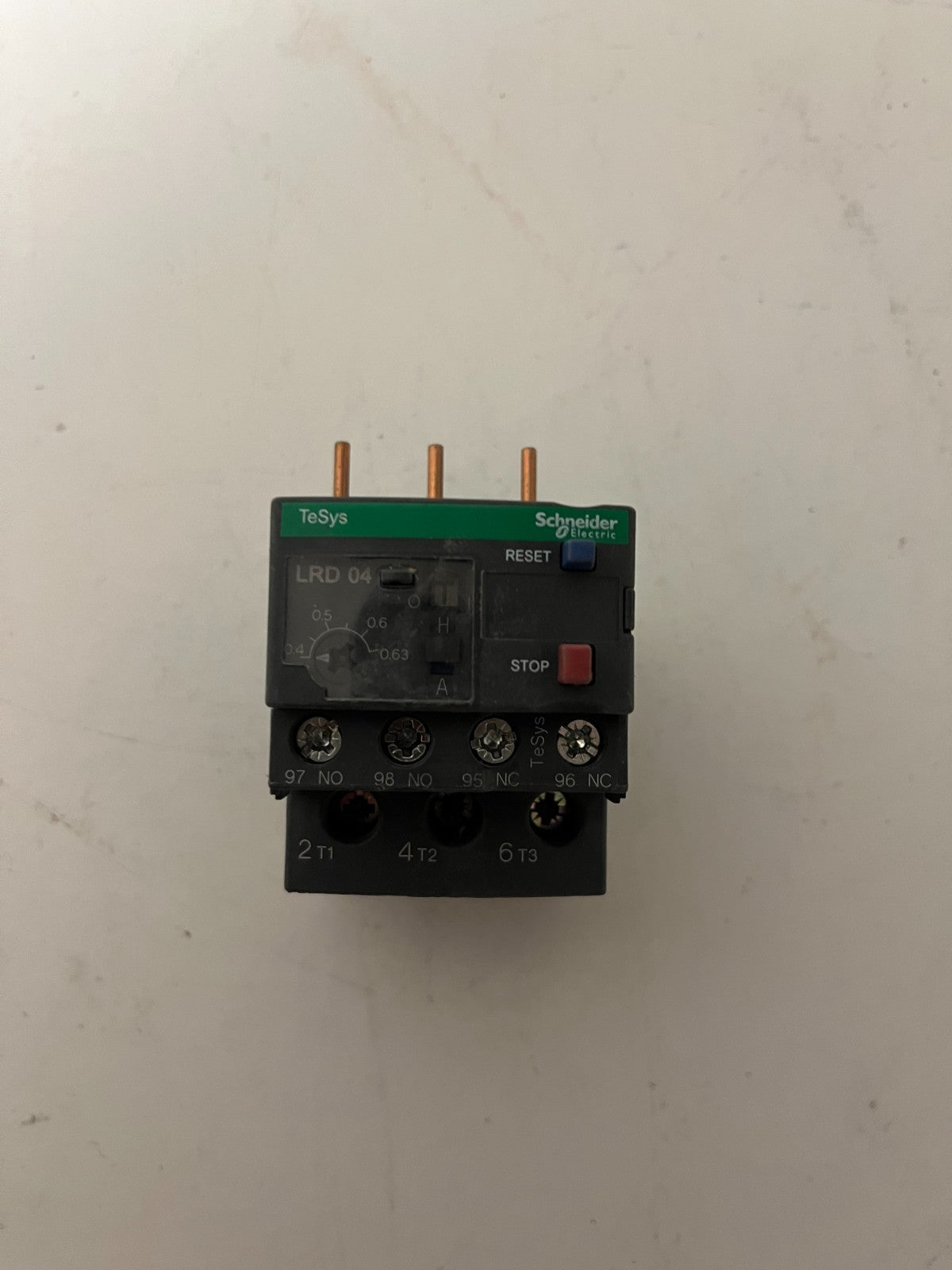

• 1x Schneider Electric LRD04 Thermal Overload Relay (see all photos)

Condition:
Tested, guaranteed functional, with moderate cosmetic wear from prior use. Terminals and buttons in good shape.
