Schneider Electric VBD01 TeSys Vario 3‑Pole 20A Emergency Main Switch New

Schneider Electric VBD01 TeSys Vario 3‑pole switch disconnector / main emergency switch, 20 A, for door mounting, new and never used in the original box with handle and documentation.

Item details

• Brand: Schneider Electric

• Series: TeSys Vario / Mini‑Vario

• Model: VBD01

• Type: Switch disconnector / main emergency switch with handle

• Application: Main emergency switch-disconnector (Not‑Aus Hauptschalter), 3‑pole

• Poles: 3P, 3 NO power contacts

• Conventional thermal current Ith: 20 A

• Rated operational voltage Ue: up to 690 V AC 50/60 Hz

• Typical motor rating: up to 5.5 kW at 400 V AC‑23, 11 kW at 690 V AC‑23 (see datasheet for full table).

• Mounting: Door mounting, rotary handle with 22.5 mm fixing hole, black handle and faceplate

• Terminals: Screw clamp terminals for power connections

• Approvals/standards: IEC 60947‑3, UL, CSA, CCC, GL; suitable for isolation.

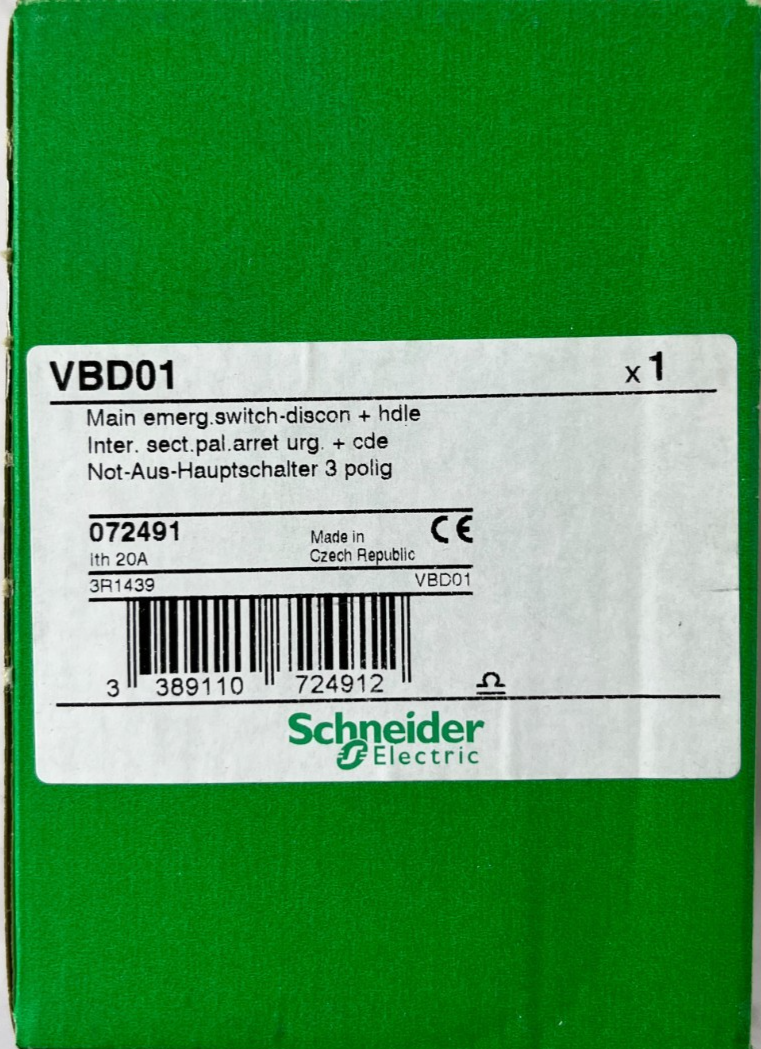

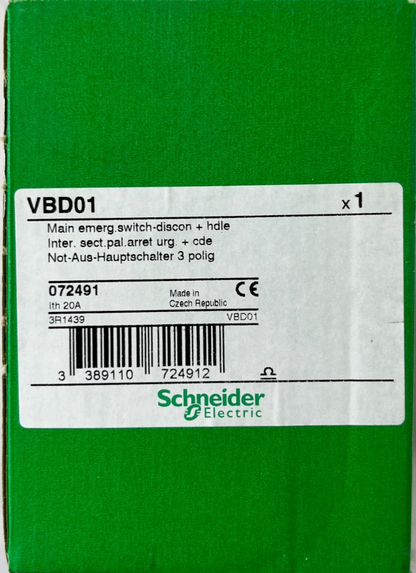

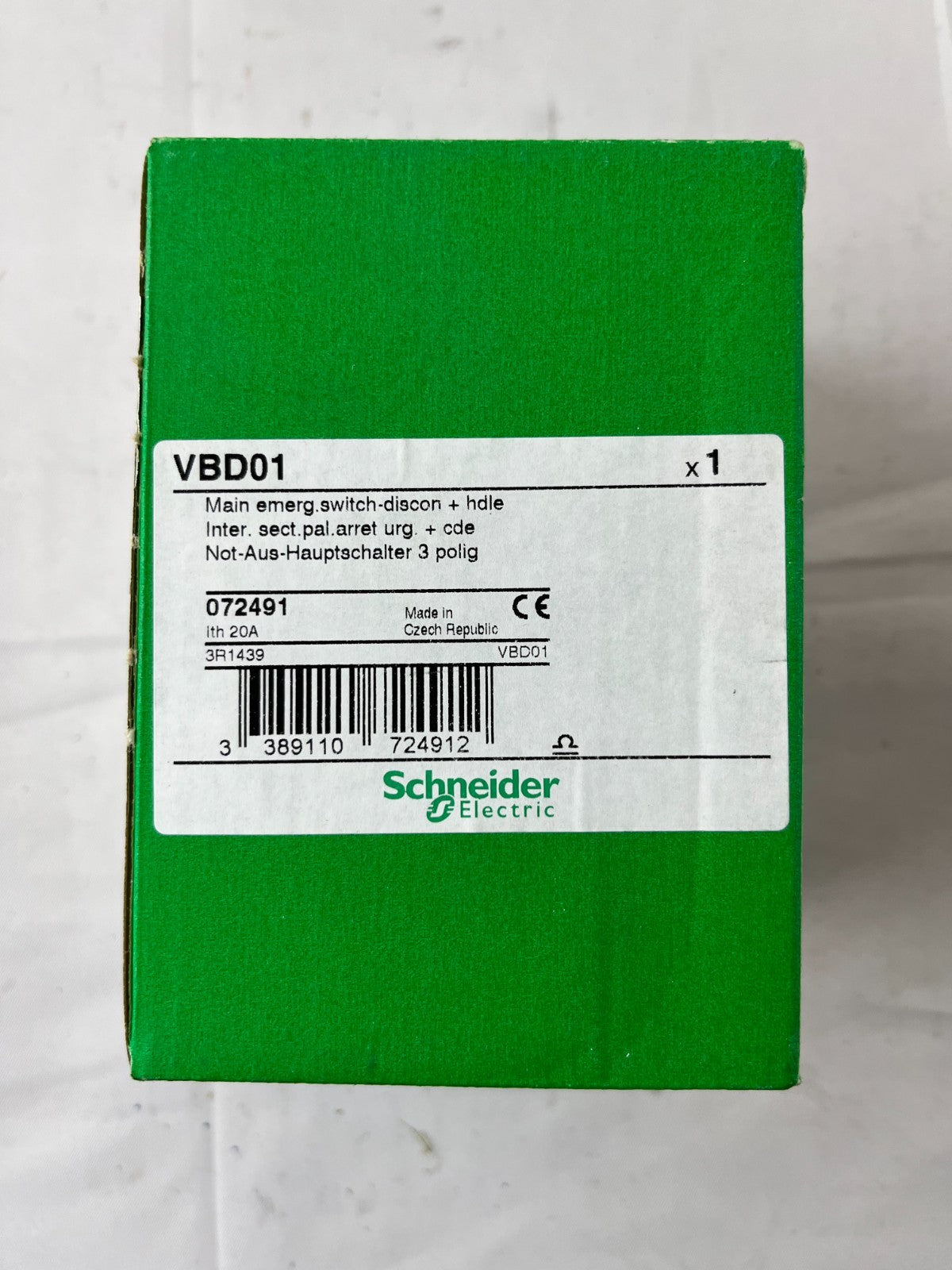

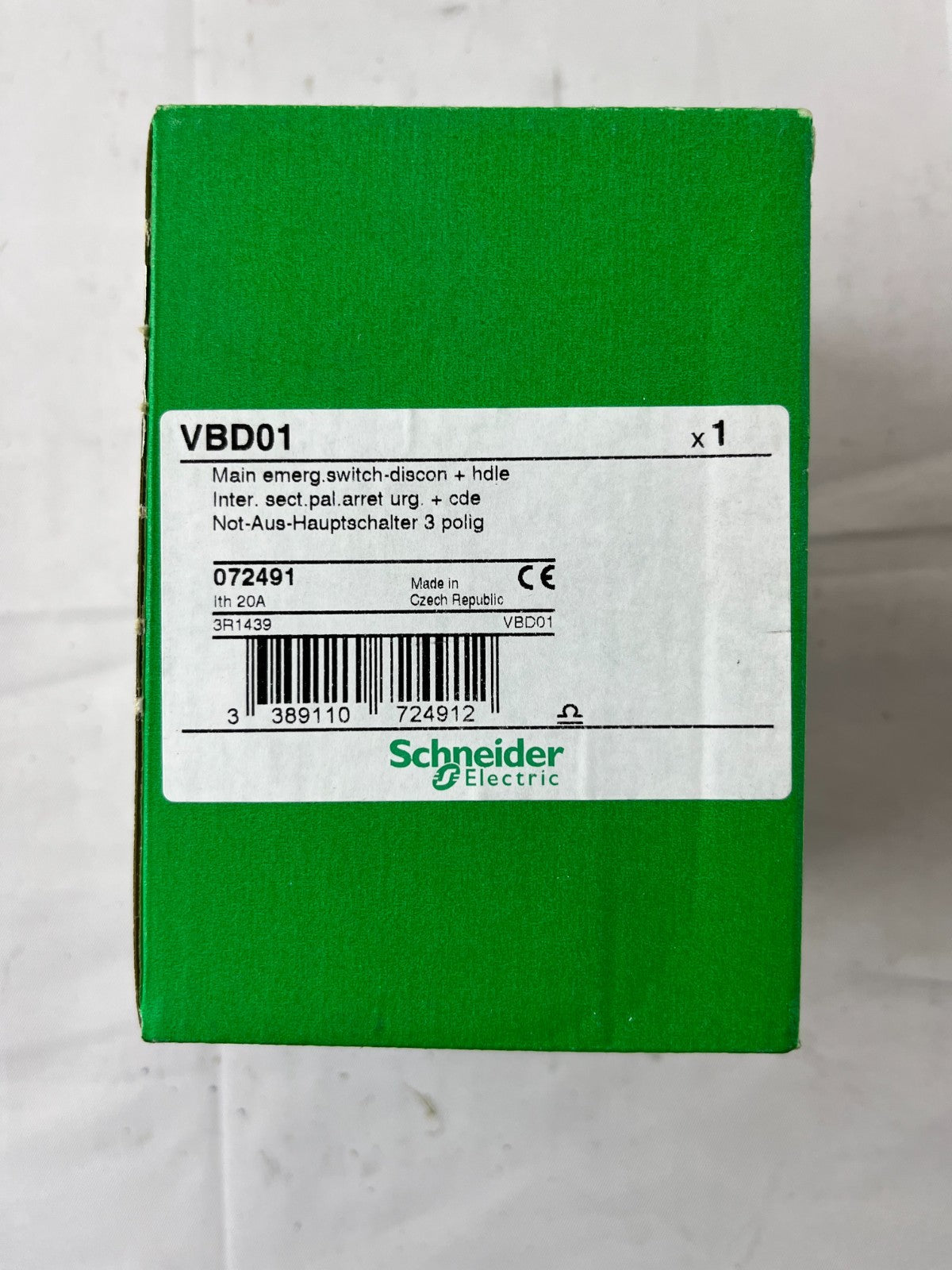

• Country of origin: Made in Czech Republic (per box label).

Condition

• New, never installed or wired.

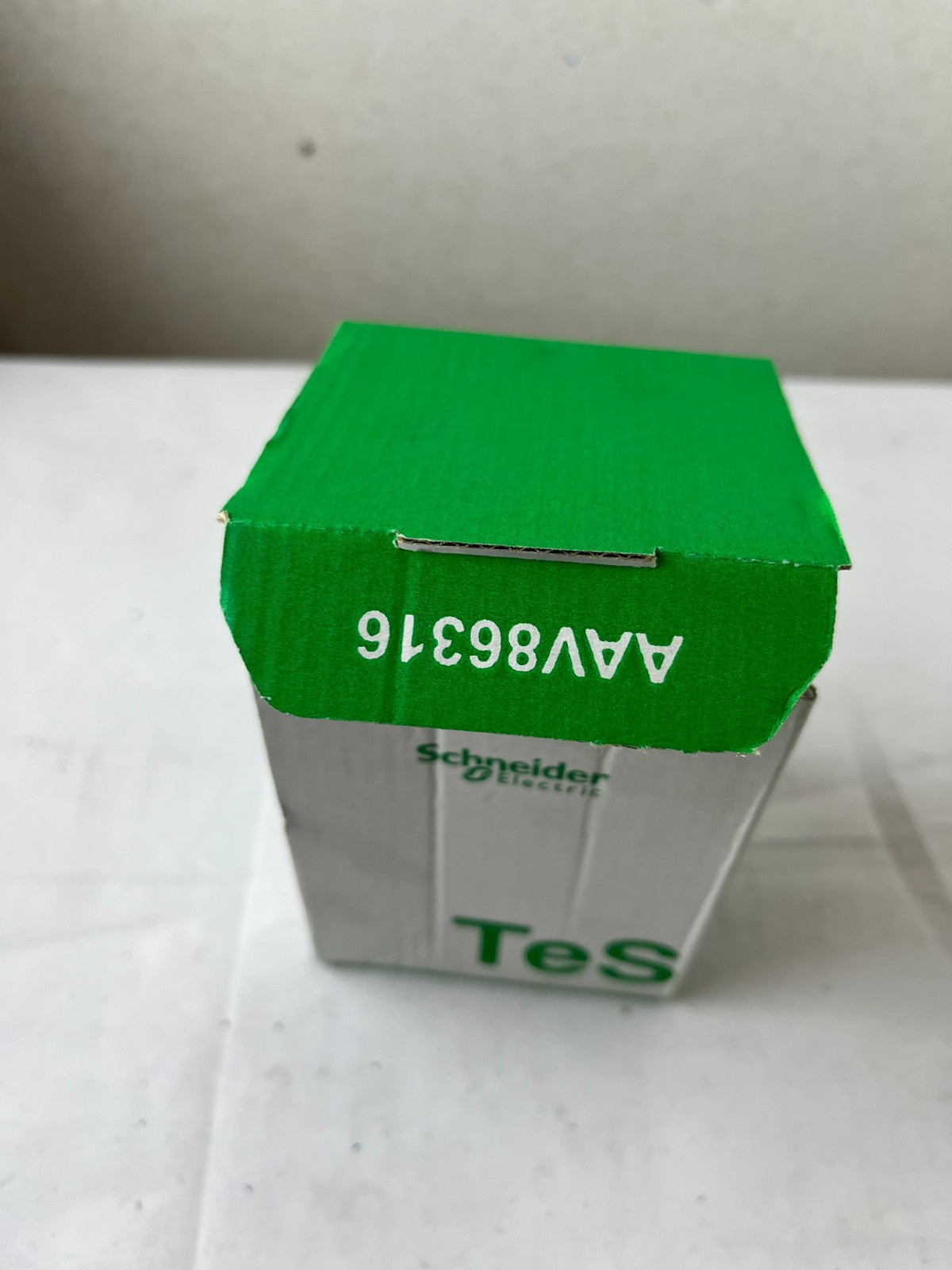

• Factory box opened only to inspect and photograph contents; carton may show light shelf/storage marks.

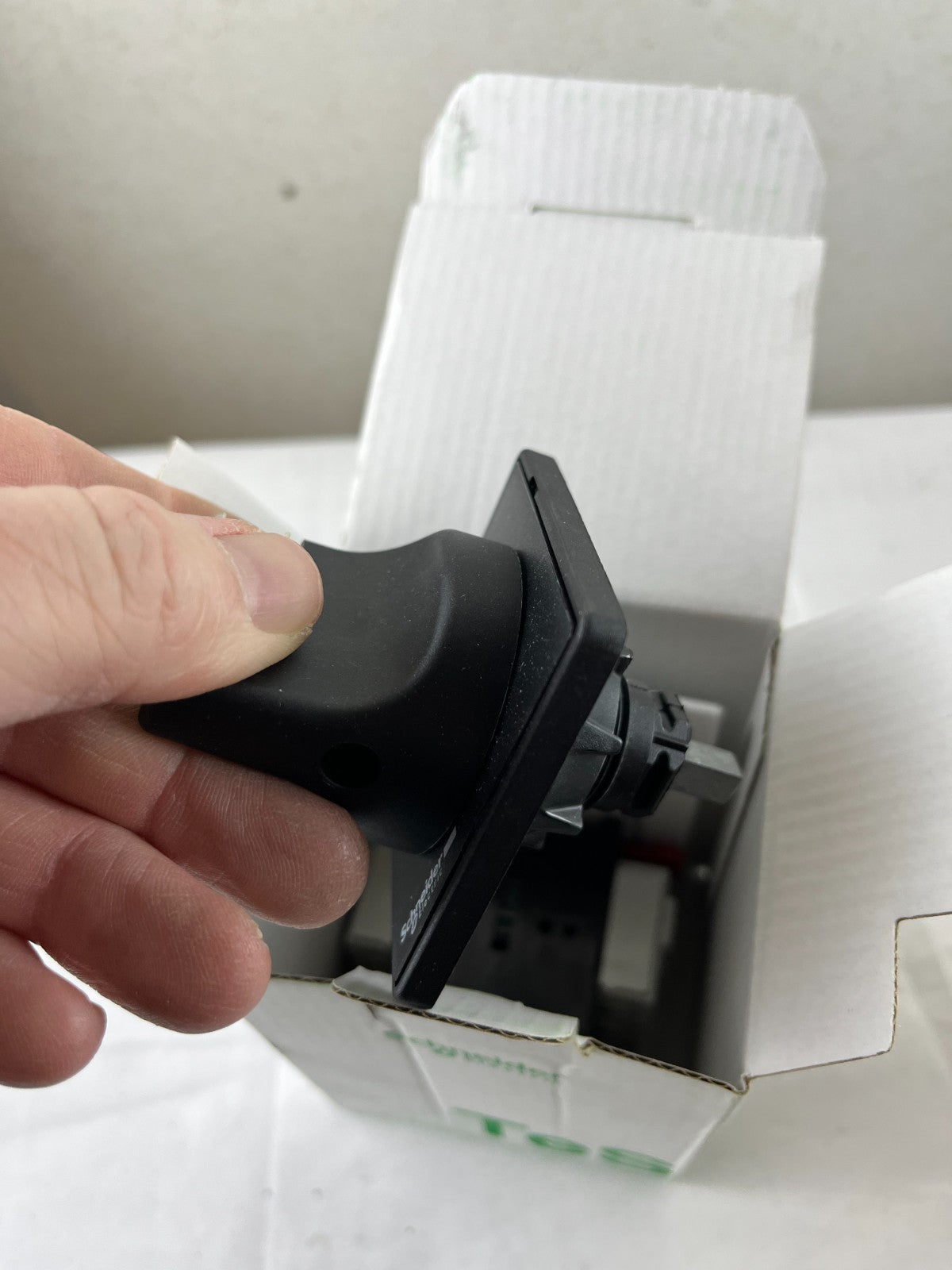

• Switch body, handle and accessories appear clean with no mounting or tool marks.

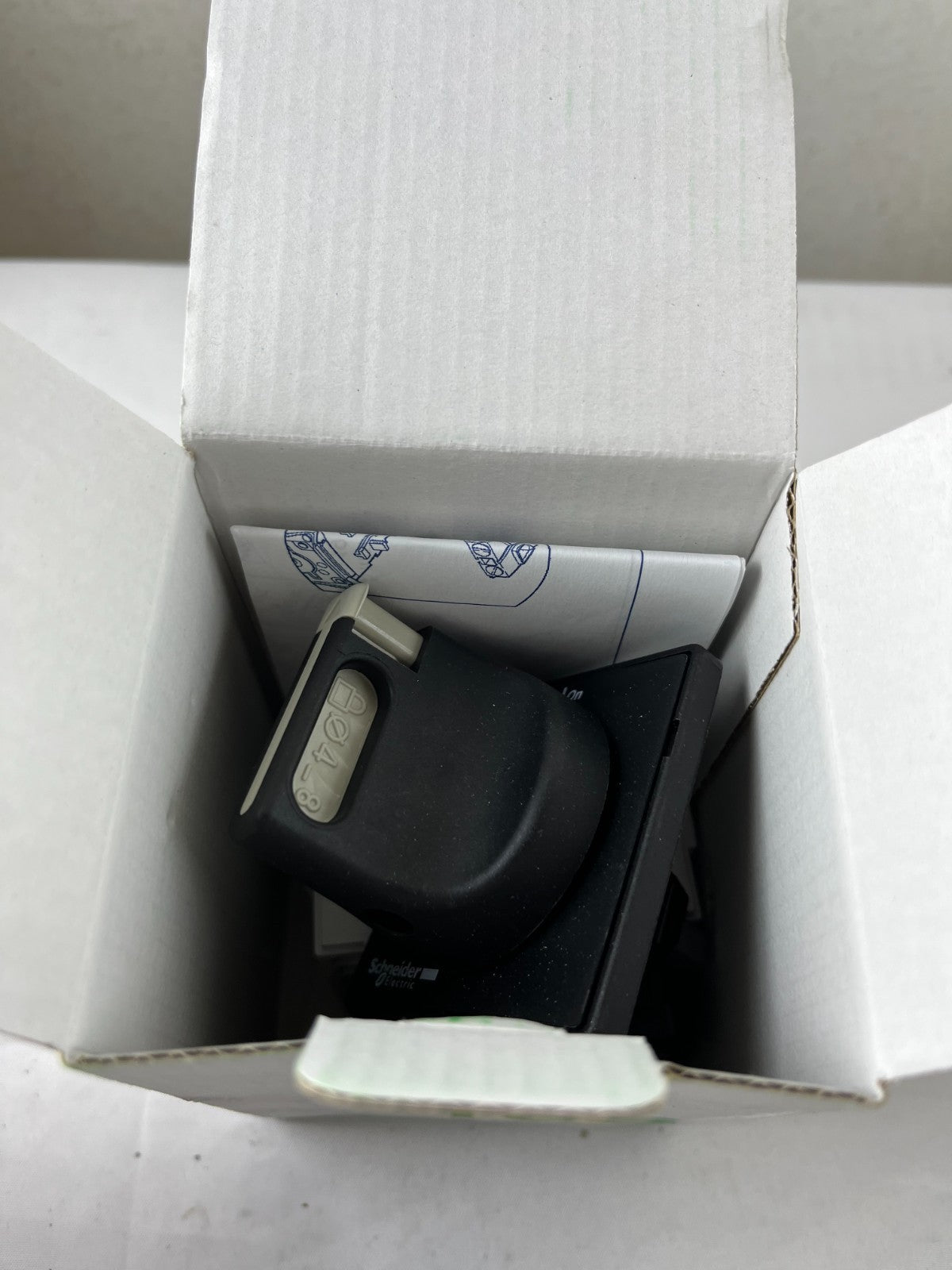

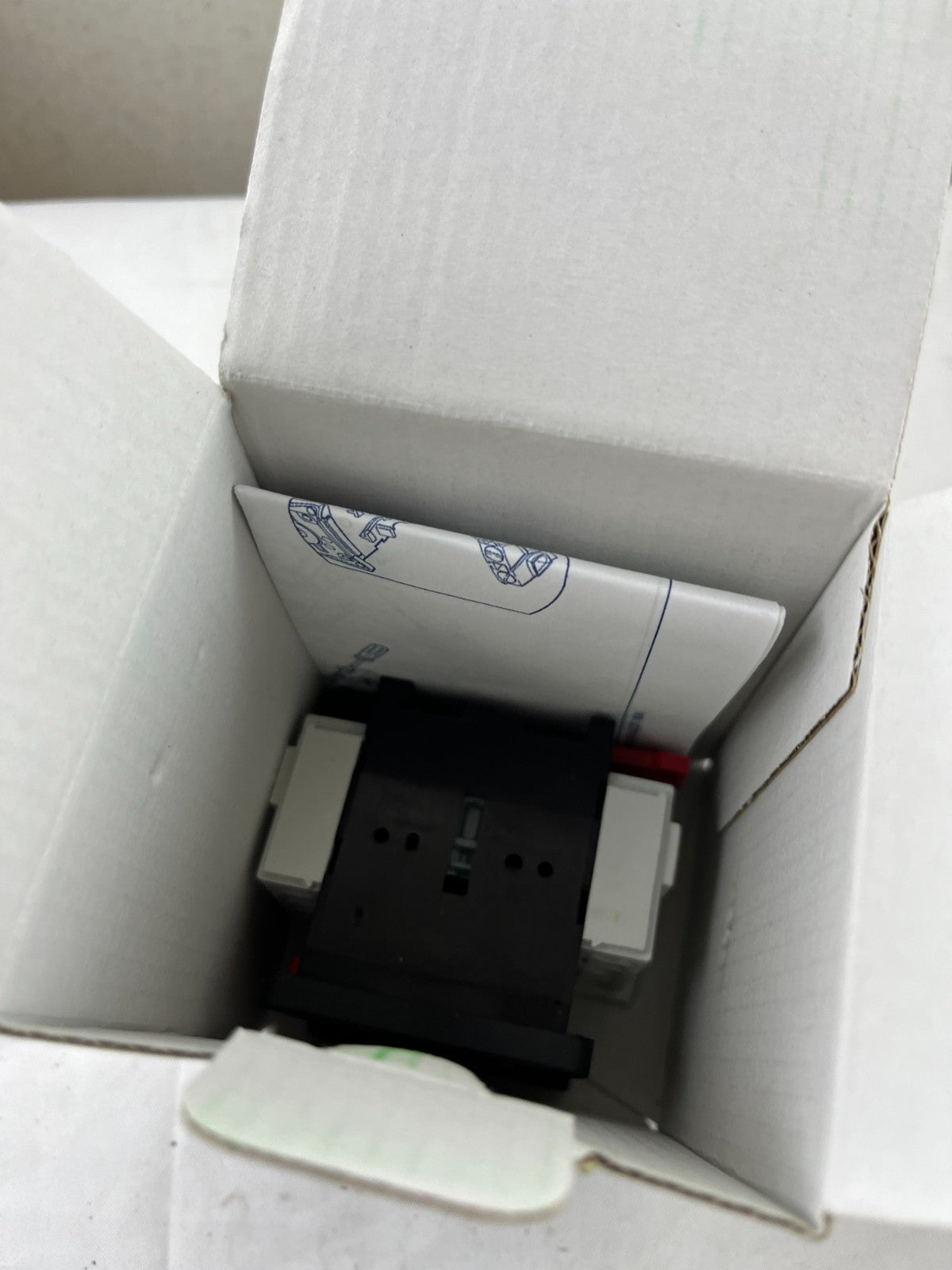

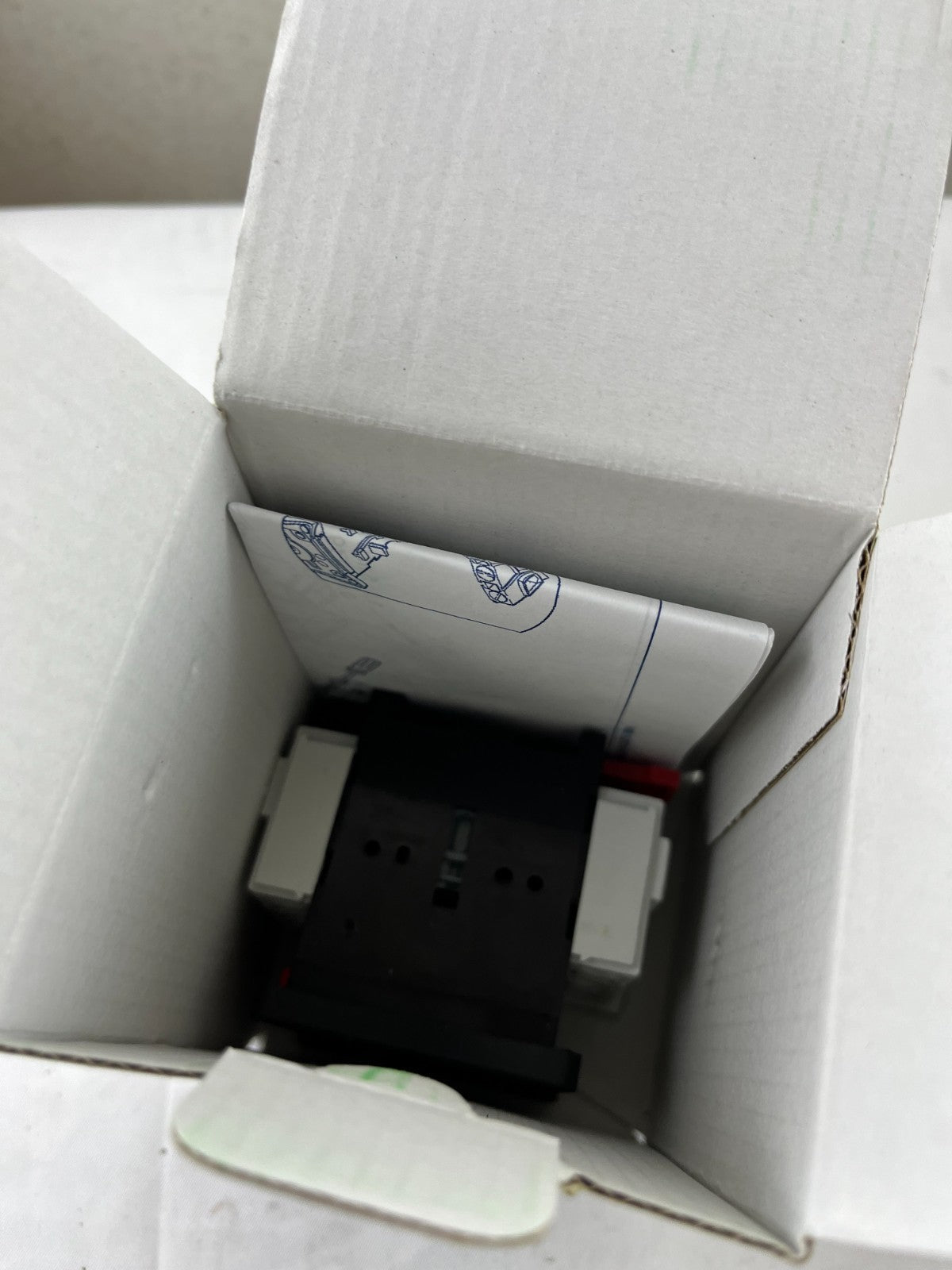

• Includes original instruction leaflet / mounting diagram inside the box.

Notes

• Complete main switch-disconnector assembly with integrated handle, suitable for use as a machine main isolator or emergency stop main switch when installed according to Schneider guidelines.

• Buyers should verify ratings, cut‑out, and shaft depth against their panel design and local electrical codes before installation.
