Model: VBD02
-
Manufacturer: Schneider Electric
-
Series: TeSys Vario
-
Certification Number: 072490
-

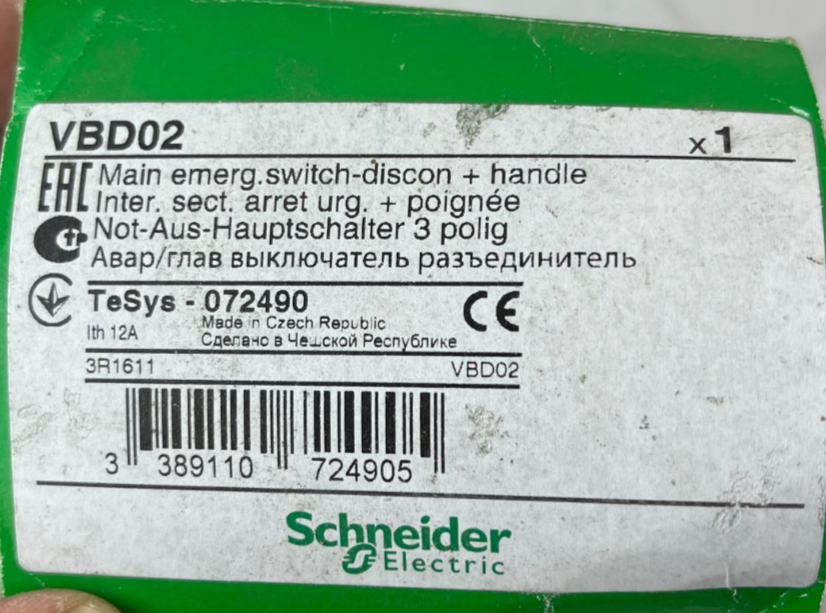

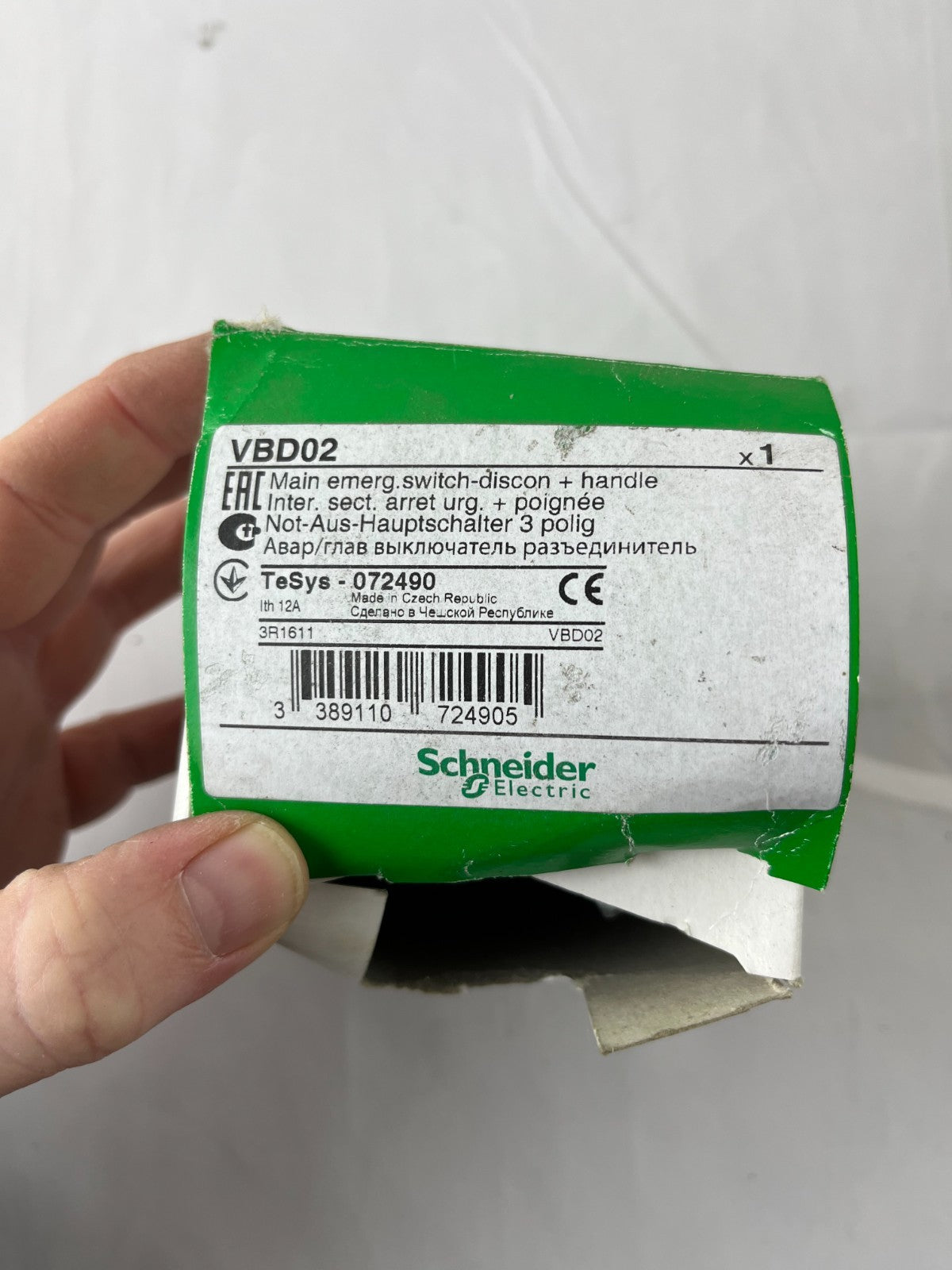

EAN: 3389110724905
-
Made in Czech Republic
-
Type: Main emergency switch-disconnector
-
Configuration: 3-pole, 3NO contacts
-
Thermal Current (Ith): 12A free air
-
Enclosed Thermal Current: 10A
-
Rated Operational Voltage: 690V AC 50/60Hz
-
Rated Operational Current (AC-23): 8.1A at 400V
-
Switching Capacity: 3kW at 400V (AC-3), 4kW at 400V (AC-23A)
-
Breaking Capacity: 120A at 400V
-
Short-Circuit Withstand: 10kA with 12A fuse
-
Impulse Withstand Voltage: 8kV
-
Mounting: Front panel mounting (door mounting)
-
Mounting Hole: Ø22.5mm
-
Face Dimensions: 60 x 60mm
-
IP Rating: IP65 front (with door mounting), IP20 rear
-
Operating Temperature: -20°C to +50°C
-
Emergency Stop Function: Main emergency switch-disconnector for safety isolation
-
Padlockable Handle: Accommodates 1-3 padlocks (4-8mm diameter) for lockout/tagout
-
Rotary Handle: Black handle with direct mounting, black 60x60mm front plate
-
Suitability for Isolation: Certified for electrical isolation
-
High Reliability: 100,000 mechanical cycles, 30,000 electrical cycles
-
Screw Clamp Terminals: Accepts up to 10mm² solid or 6mm² flexible cable
-
Position Marking: 0-I markings for OFF-ON indication
-
Multi-Standards Certified: UL, CSA, IEC 60947-3, CCC, EAC, GL

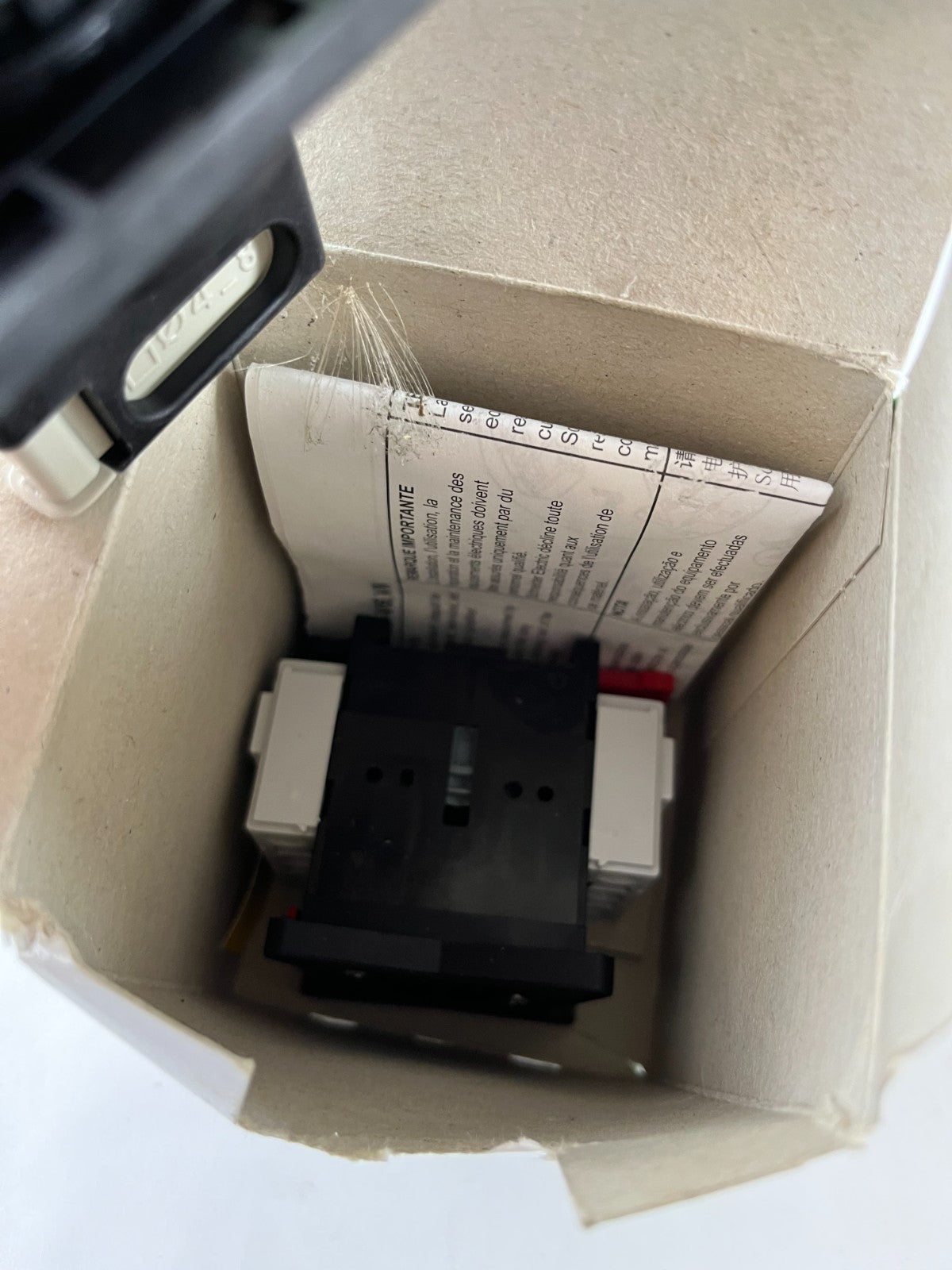

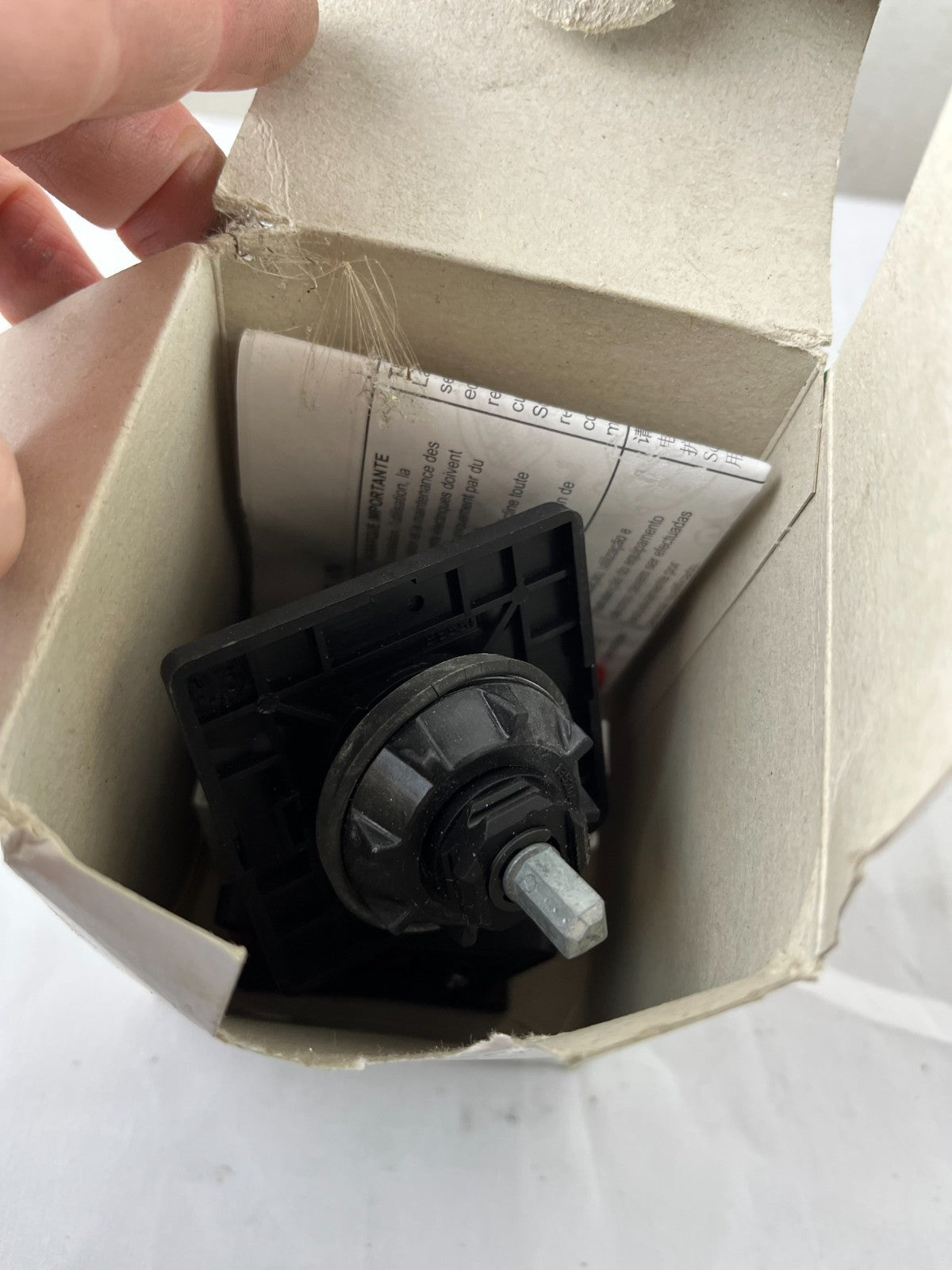

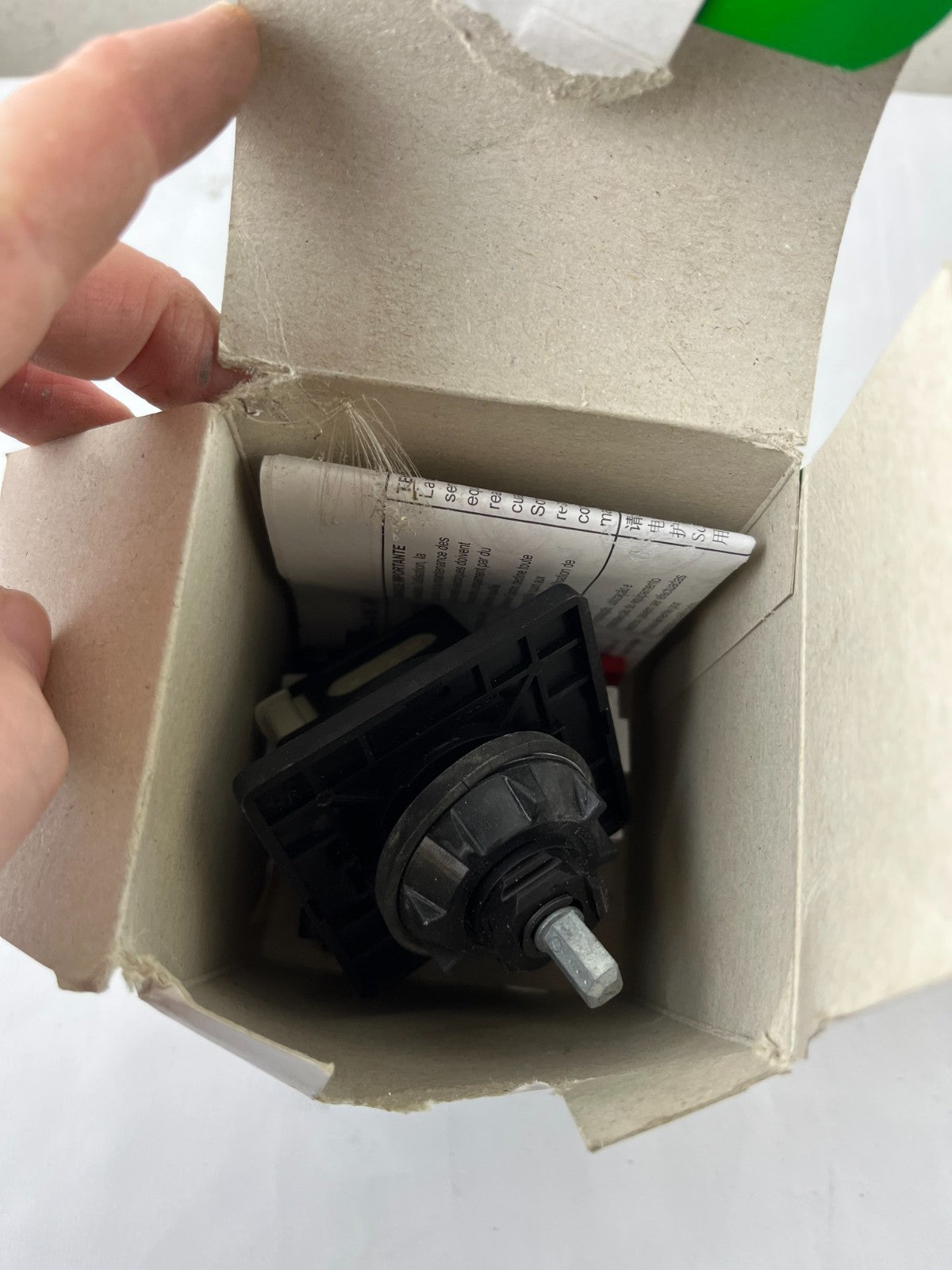

The VBD02 combines switch body V02 with padlockable handle KAD1PZ, providing complete main switching and isolation for motor applications up to 4kW. The IP65-rated front provides excellent protection in harsh industrial environments.
