Schneider Electric VBD02 TeSys Vario Main Switch Disconnector 3P 12A 690V NEW

Brand New Schneider Electric VBD02 Emergency Switch-Disconnector with Handle - Factory Sealed

• Model: VBD02

• Manufacturer: Schneider Electric (TeSys - 072490)

• Batch Code: 3R1622, IH 12A

• EAN: 3389110724905

• Range: TeSys Vario

• Type: Main emergency switch-disconnector with rotary handle

• Poles: 3-pole (3P)

• Contacts: 3 NO (normally open)

• Thermal Current Rating (Ith): 12A

• Enclosed Thermal Current (Ithe): 10A

• Rated Operational Voltage (Ue): 690V AC 50/60 Hz

• Operational Current (Ie): 8.1A at 400V AC-23

• Power Rating: 3-7.5kW depending on voltage and application

  • 3kW @ 400V AC-3

  • 4kW @ 400V AC-23A (motor switching)

  • 7.5kW @ 690V AC-23A

• Impulse Withstand Voltage (Uimp): 8kV

• Short-Circuit Protection: 10kA @ 400V with 12A gG or aM fuse

• Making/Breaking Capacity: 120A @ 400V AC-23A

• Mounting: Panel/door mounting with Ø22.5mm fixing hole

• IP Rating: IP65 front panel, IP20 rear

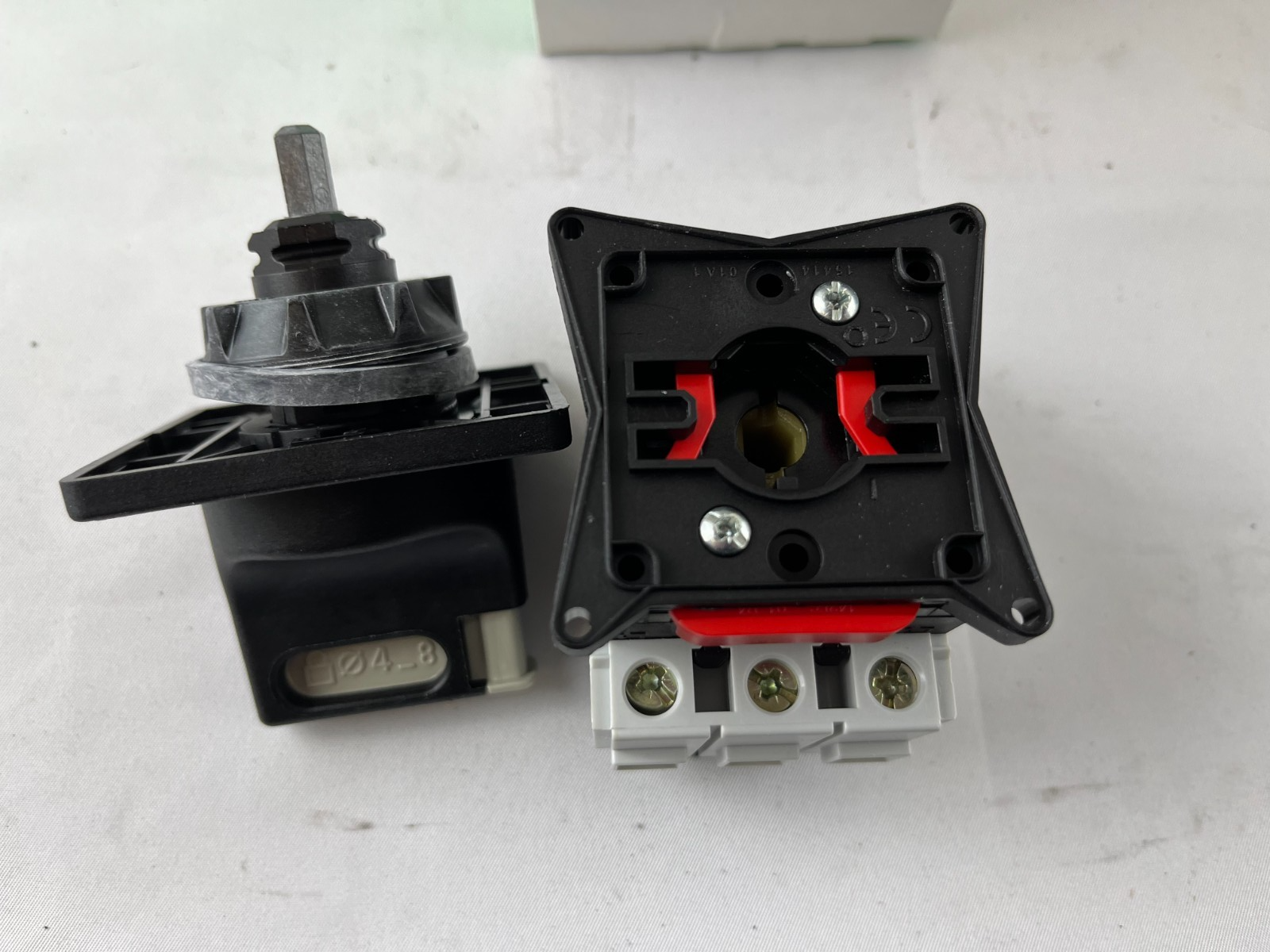

• Control Type: Rotary handle (black) with direct mounting

• Padlockable: Accepts 1-3 padlocks 4-8mm diameter

• Marking: 0-1 (OFF-ON)

• Terminals: Screw clamp - 10mm² solid, 6mm² flexible with cable end

• Tightening Torque: 2.1 N·m

• Dimensions: 60 × 60mm base, 74mm height

• Weight: 215g

• Mechanical Durability: 100,000 cycles

• Electrical Durability: 30,000-100,000 cycles depending on application

• Operating Temperature: -5°C to +60°C

• Standards: CE marked

• Isolation Capability: Yes - suitable for isolation per EN 60947-3

• Country of Origin: Made in Czech Republic

Features:

• High Performance: Designed for preventive maintenance and emergency switching in motor control applications

• Universal Voltage: 690V AC rating provides compatibility with European industrial systems

• Emergency Stop Function: Suitable for emergency switch-disconnector applications with rotary handle

• Panel Mount Design: Compact 60 × 60mm footprint for easy integration into control panels

• IP65 Front Protection: Excellent protection against dust and water jets for harsh environments

• Padlockable Security: Accepts up to 3 padlocks for lockout/tagout safety procedures

• Motor Switching: Rated for motor applications up to 4kW @ 400V

• TeSys System: Part of Schneider's modular TeSys control and protection system

This TeSys Vario VBD02 switch-disconnector from Schneider Electric combines main switching, emergency stop, and isolation functions in a compact package. The rotary handle provides clear ON/OFF indication with 0-1 marking. Perfect for motor control panels, machine controls, industrial equipment, and applications requiring lockable isolation for maintenance. The IP65 front protection ensures reliable operation in demanding industrial environments.

Applications: Motor control panels, industrial machinery, emergency stop systems, maintenance isolation, preventive maintenance switching, building services, manufacturing equipment, and machine tool control.

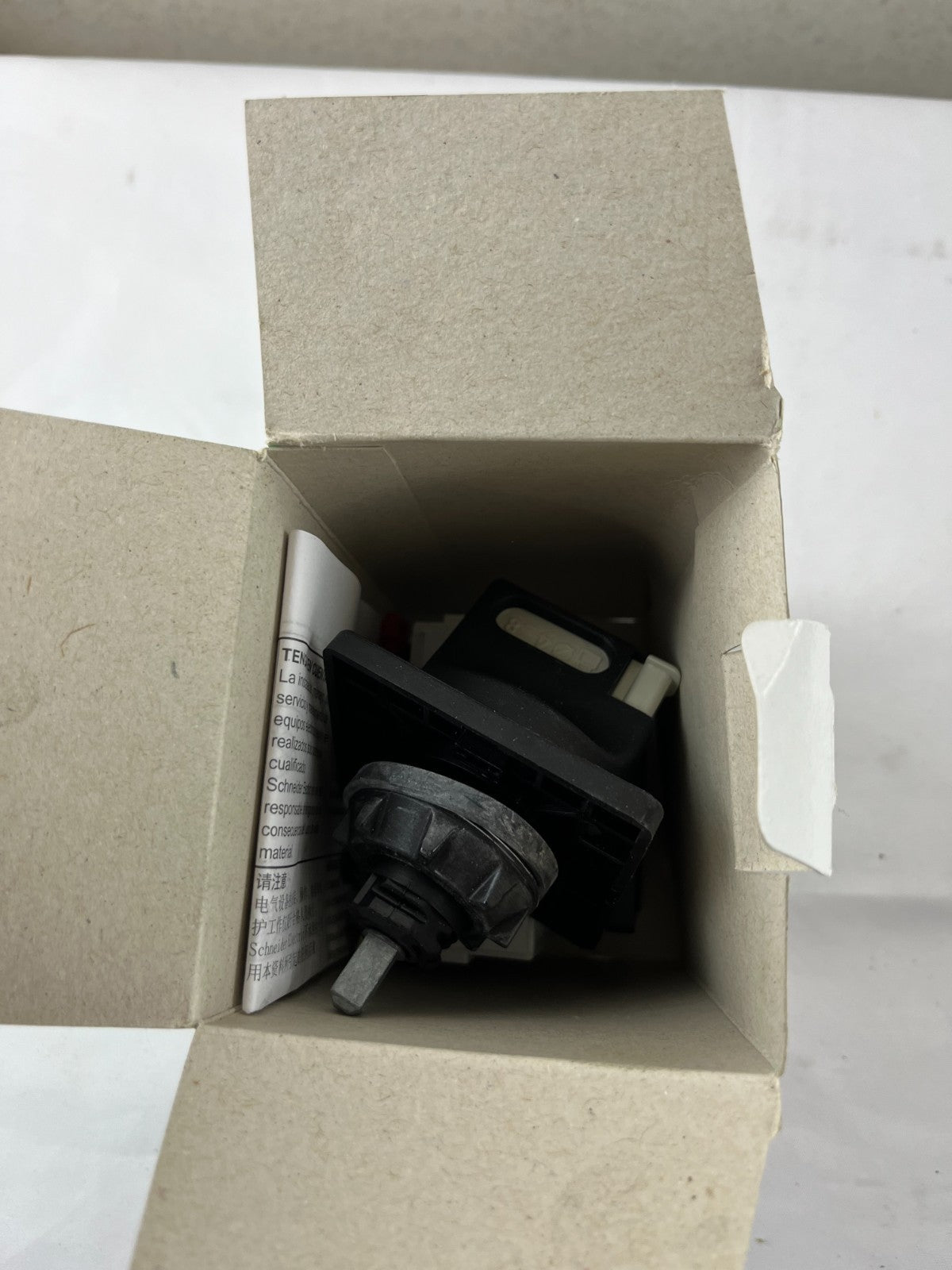

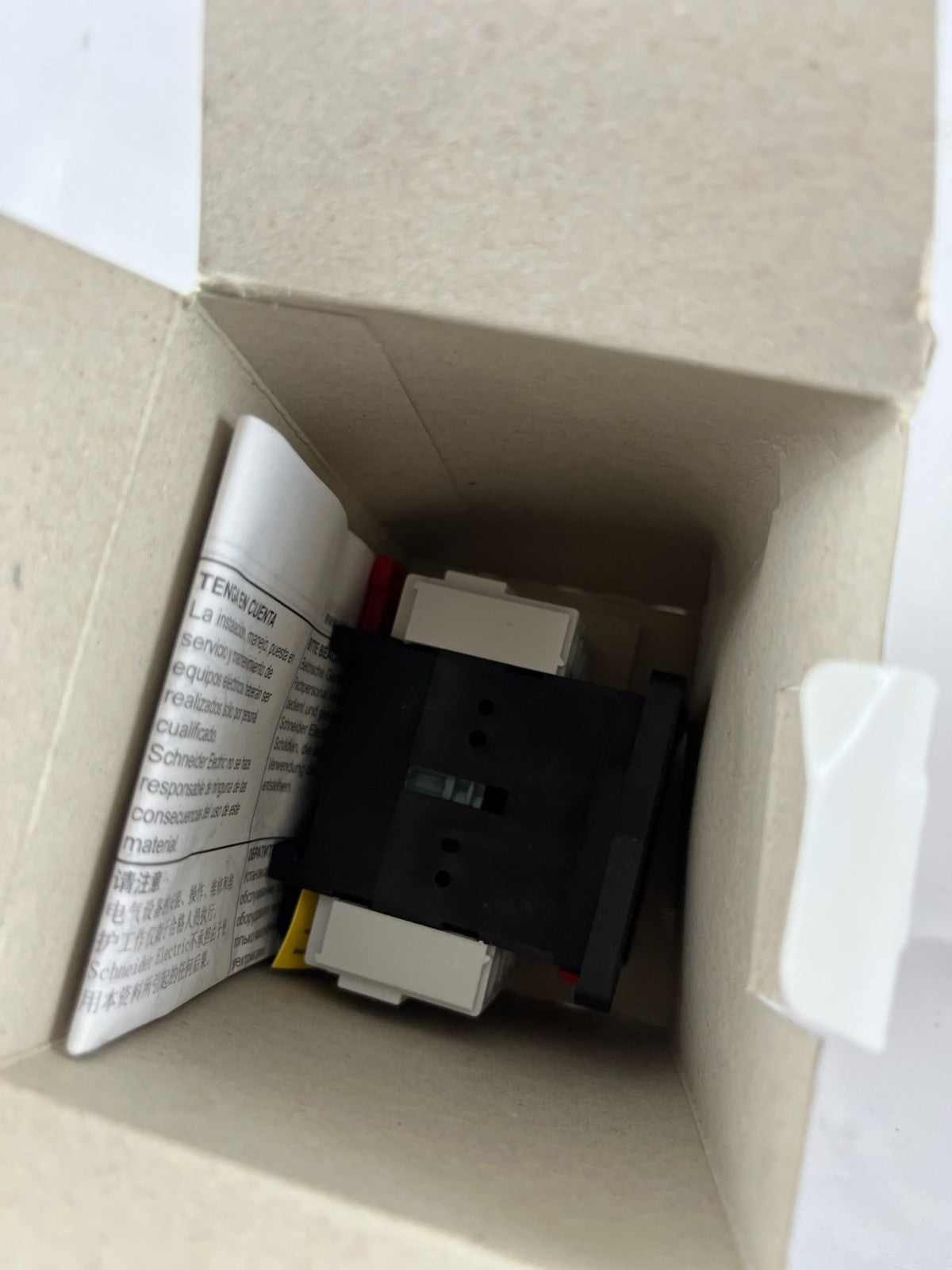

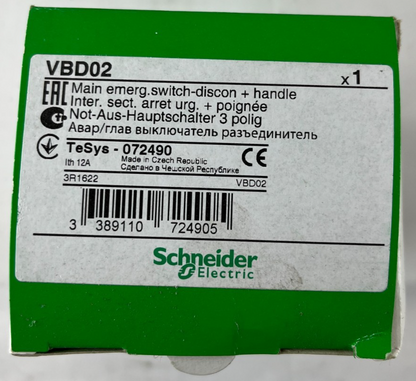

Condition: Brand New, Never Used, Factory Sealed in Original Schneider Electric Box
