Schneider Electric XVUC21B Harmony XVU tower light base unit - brand new in sealed original packaging, never used. Professional modular tower light base with top cover designed to accept stackable LED indicator modules for machine status signaling. Manufactured in Indonesia to Schneider Electric quality standards with UL, CSA, and CE certifications.
What's Included
-

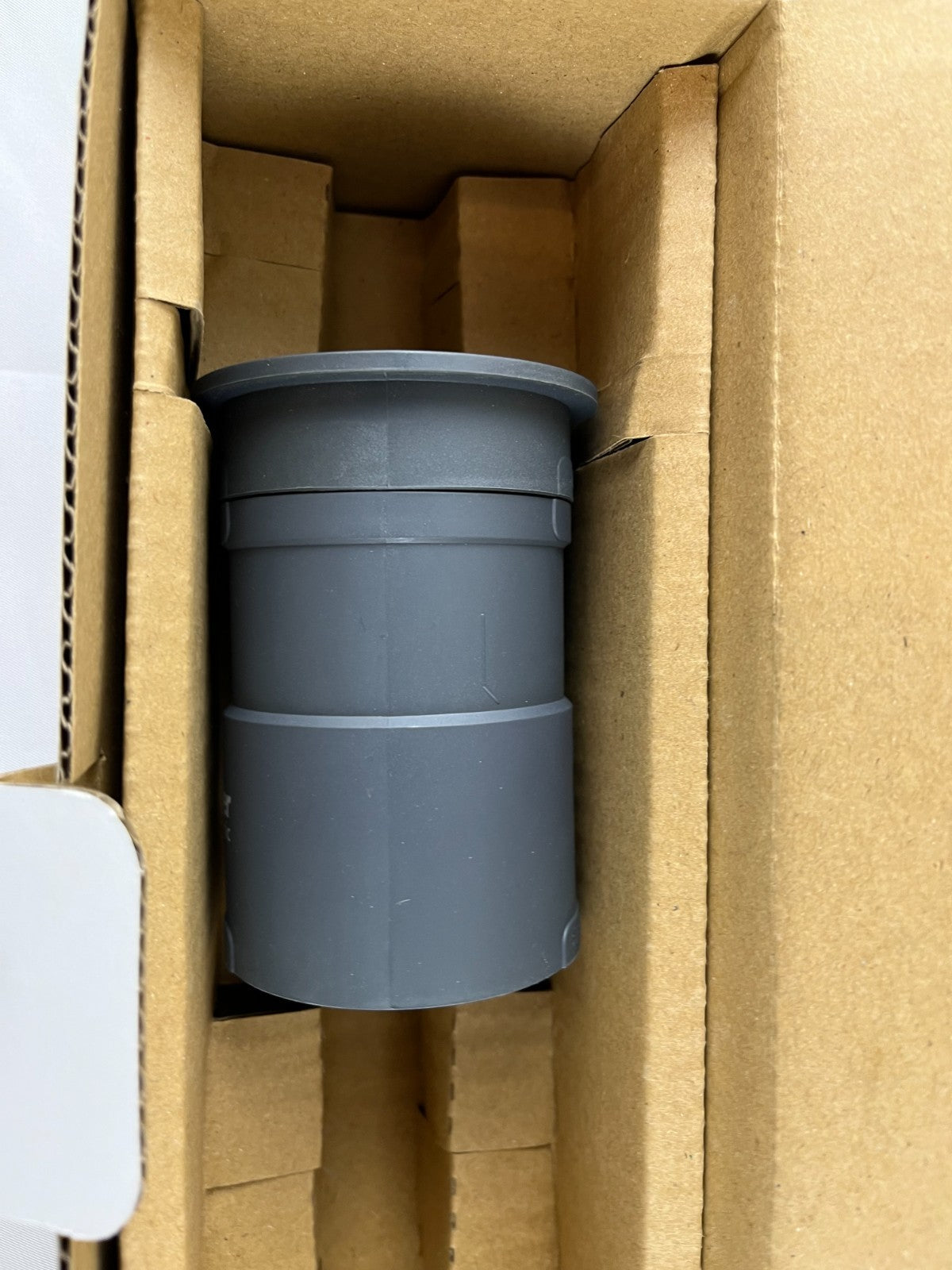

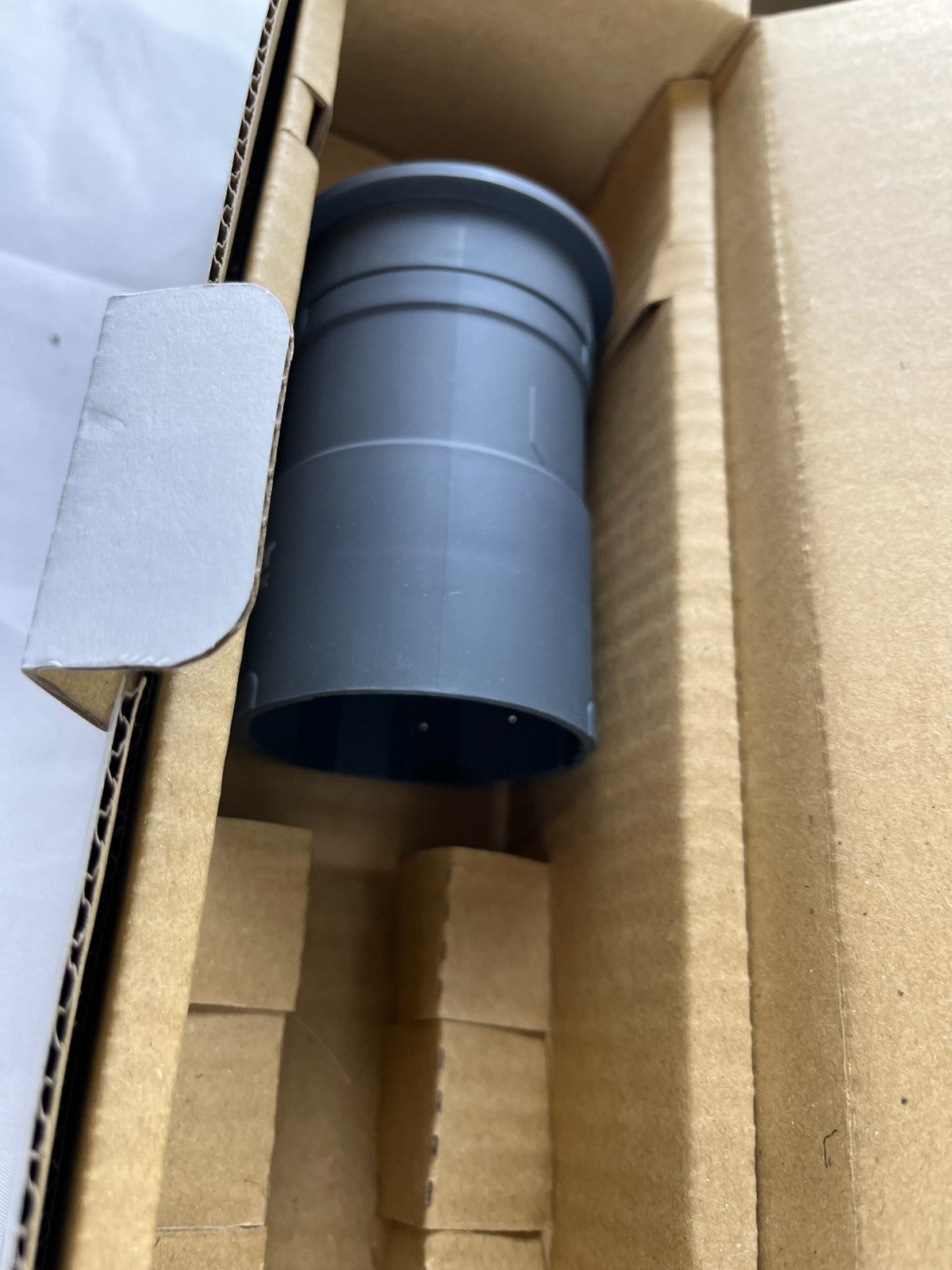

XVUC21B base unit with top cover
-

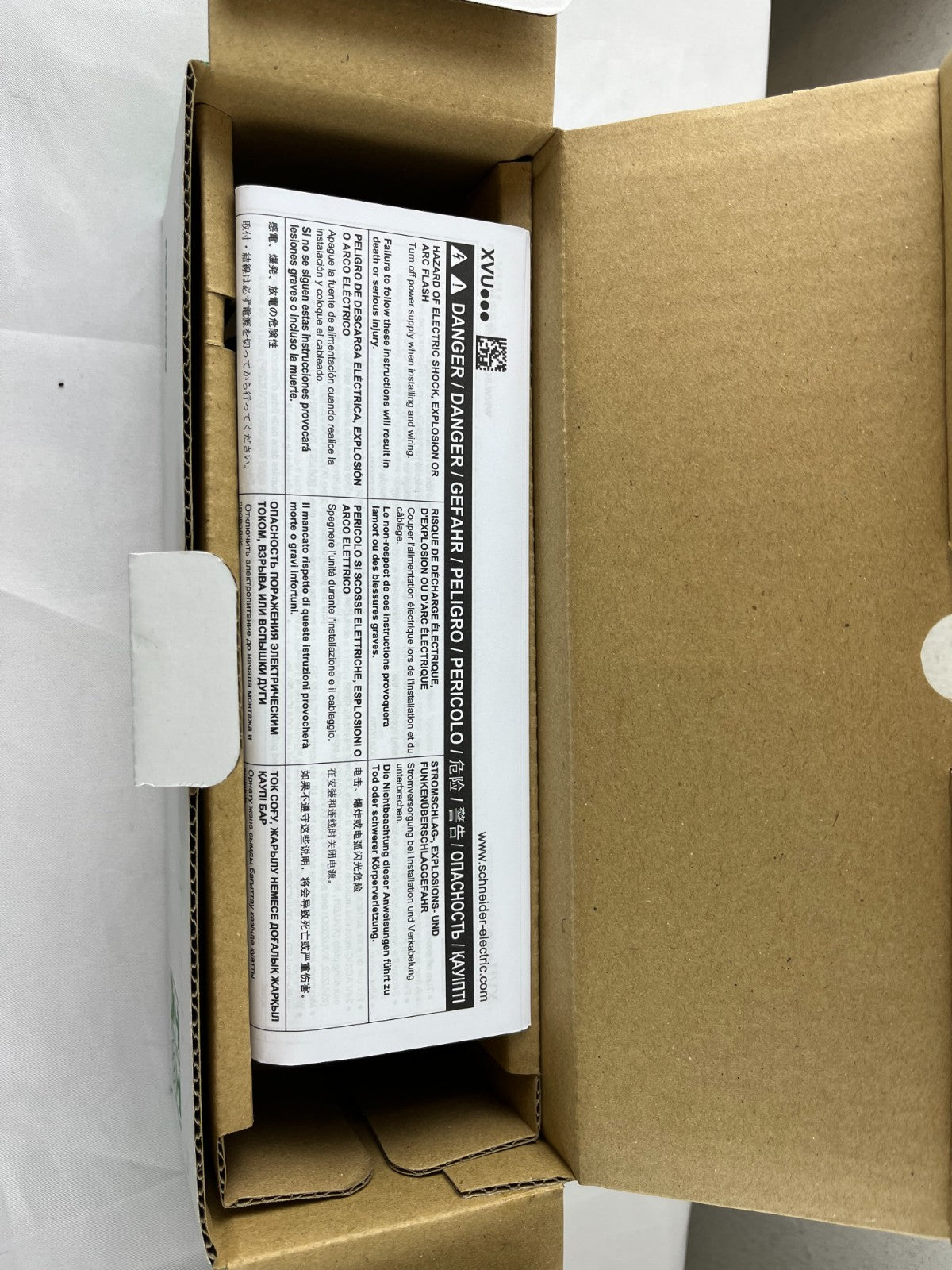

Installation documentation
-

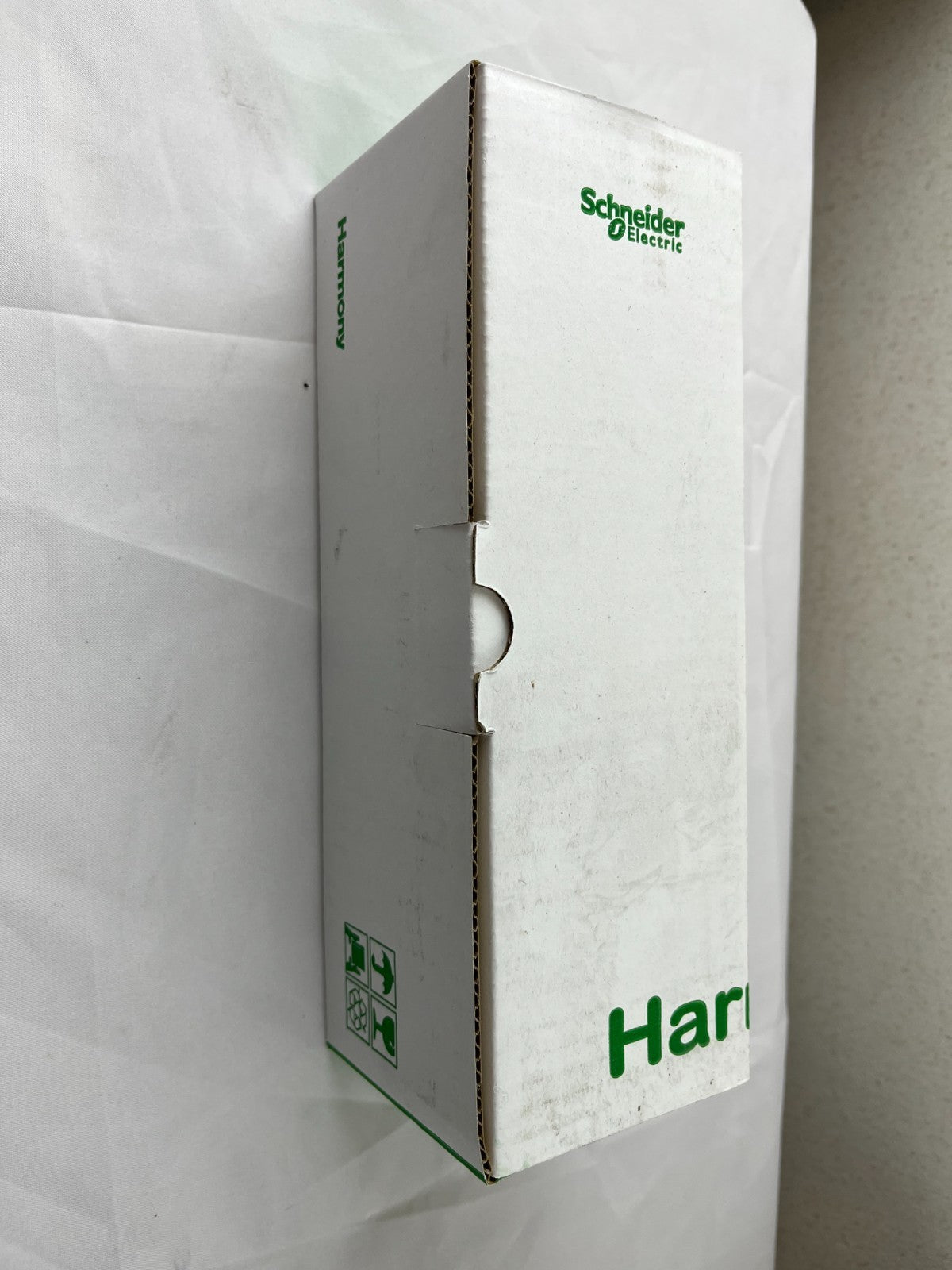

Original Schneider Electric Harmony packaging
-

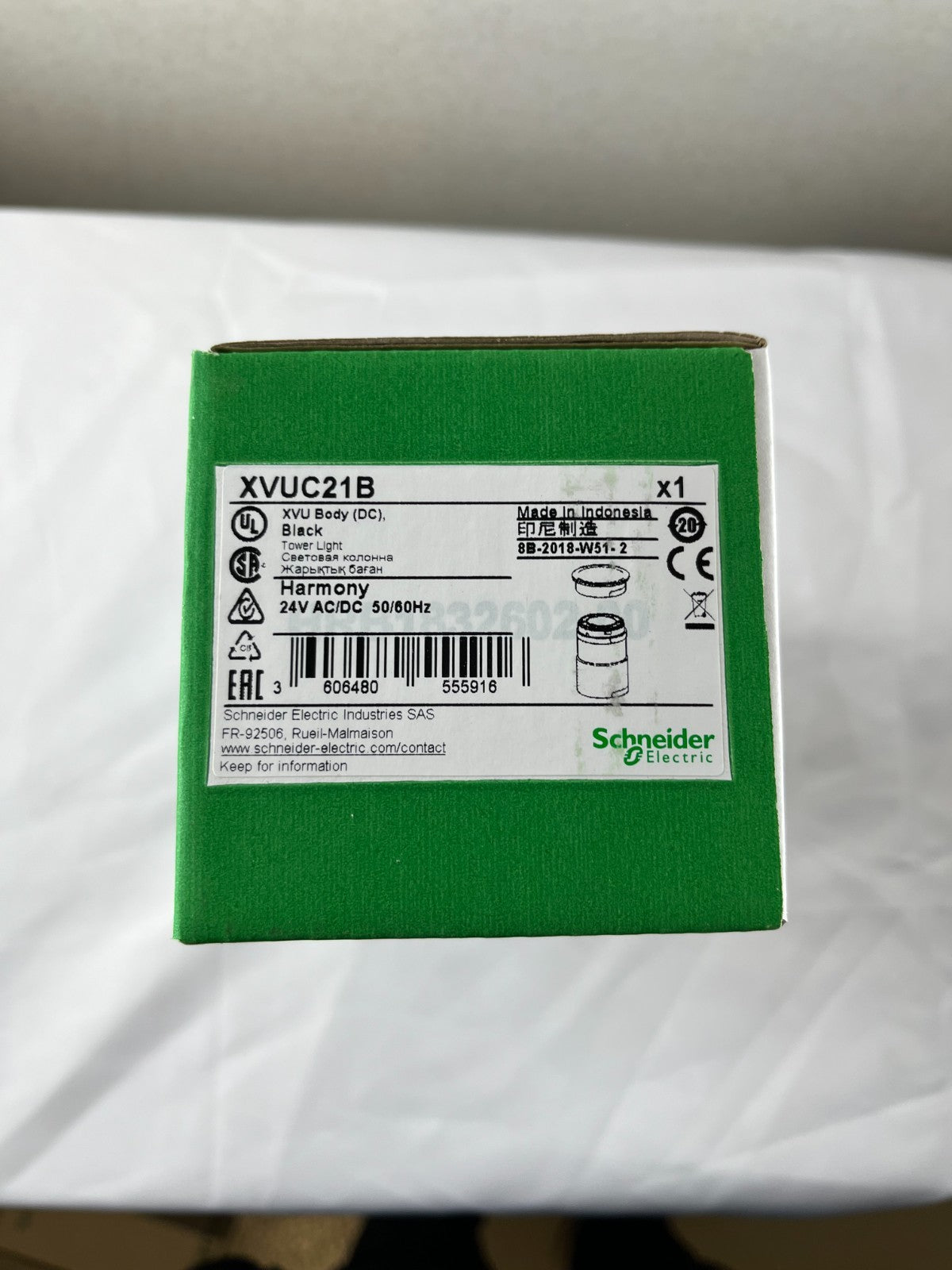

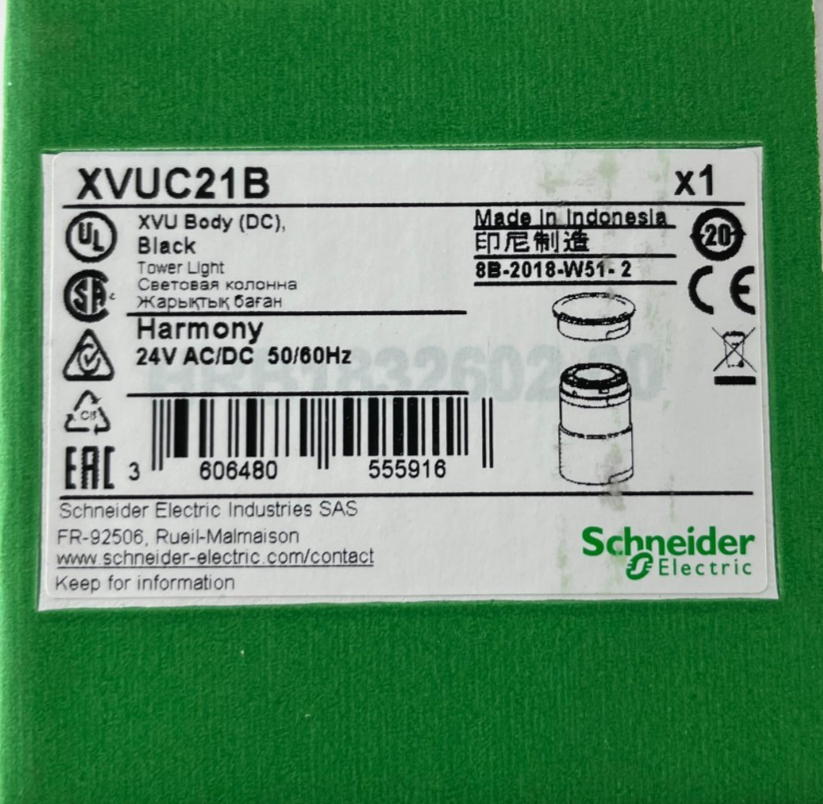

Model: XVUC21B
-
EAN: 3606480555918
-
Production date: 2018-W51-2 (December 2018)
Technical Specifications
-
Model: XVUC21B
-
Manufacturer: Schneider Electric
-
Product range: Harmony XVU
-
Component type: Modular tower light base unit
-
Tower diameter: 60mm (Ø60)
-
Housing color: Black
-
Supply voltage: 24V AC/DC ±15% / ±10%
-
Operating range: 20.4-26.4V
-
Current consumption: Varies by installed modules
-
Maximum stack: Up to 5 light units or 4 light units plus 1 buzzer
-
Mounting diameter: 60mm
-
Mounting types: Direct mount, pole mount, tube mount, wall mount
-
Material: PBT (polybutylene terephthalate) V-0, ABS (acrylonitrile butadiene-styrene) V-0, PC (polycarbonate) V-0 per UL 94
-
IP rating: IP65 base unit (IP54 for buzzer modules)
-
Length: 77mm
-
Weight: 0.11 kg (110g)
-
Certifications: UL listed, CE, CSA certified
-
Standards: UL 94 flame resistance
Key Features
Modular stackable design - base unit accepts up to 5 separate LED indicator modules that stack vertically, allowing custom configuration for specific machine status requirements. Six LED color options - compatible with red, orange, green, blue, white, and yellow (multi-color only) LED modules for comprehensive visual signaling. Multi-pattern capability - when used with multi-color XVUC29 module, supports steady, flashing, blinking, and rotating light patterns for distinct alarm states. Direct PLC connection - simplified wiring enables direct connection to PLC outputs, reducing installation complexity and I/O wiring needs. Flexible mounting system - supports four installation methods: direct machine mount, 100mm pole mount, adjustable pole mount, or wall mount with three-in-one flexible bracket. True-color bright LEDs - high-quality LED modules provide superior visibility with no bulb replacement required, reducing maintenance. Sound integration ready - accepts optional XVUC9S buzzer module with programmable tones up to 85dB for audio-visual signaling. Innovative modern design - sleek industrial appearance with black body enhances machine aesthetics while providing professional status indication.
Condition Notes
Brand new in sealed factory packaging, never installed or used. Manufactured December 2018 (production week 51) in Indonesia under Schneider Electric quality control. Complete with installation documentation showing mounting options and wiring diagrams. Note: This is the base unit only - LED indicator modules (XVUC23-27, XVUC29) and optional buzzer (XVUC9S) sold separately. Mounting brackets and poles also available separately (XVUZ01, XVUZ06).
Applications
Machine status monitoring, production line signaling, automated equipment status indication, conveyor system alerts, packaging machine monitoring, assembly line status towers, CNC machine indicators, press alerts, alarm annunciation, process control visualization, safety system status, equipment fault notification, industrial automation, manufacturing facilities, warehouse automation, and general industrial visual management systems
