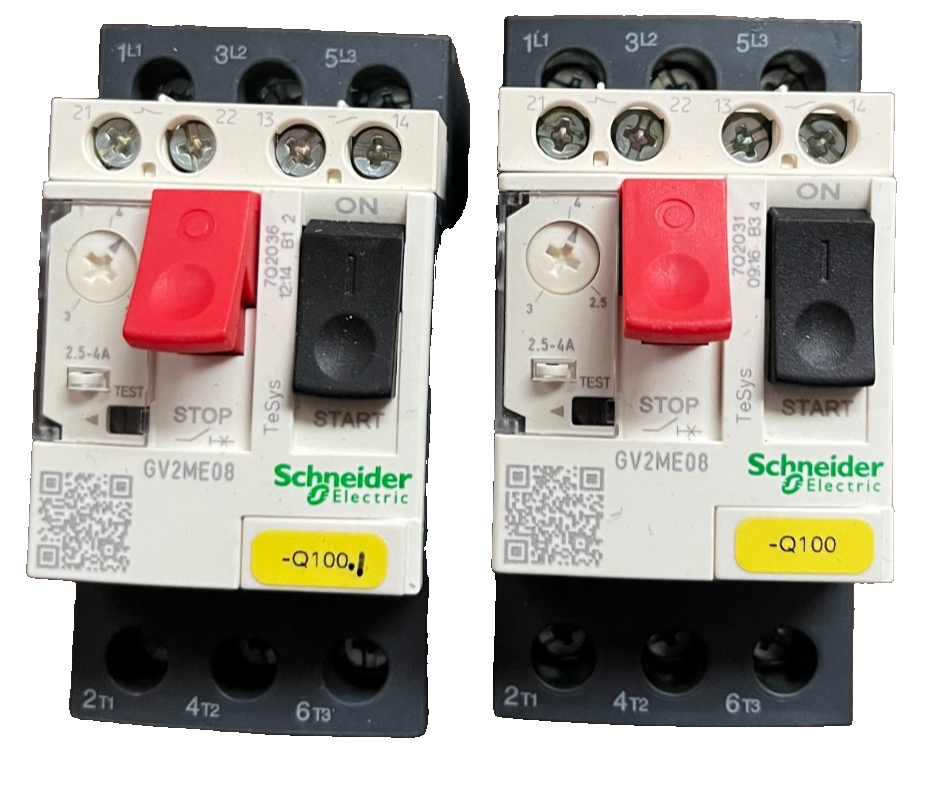

Schneider GV2ME08 Motor Circuit Breaker 2.5–4 A 3P Lot of 2 Used Spare Units

Bundle of 2x Schneider Electric TeSys GV2ME08 manual motor circuit breakers, 3‑pole thermal‑magnetic protection with adjustable 2.5–4 A setting range, in good used condition. Ideal for protecting small three‑phase motors up to around 1.5 kW at 400 V.

Item details

• Brand: Schneider Electric / Telemecanique

• Model: GV2ME08

• Type: Manual motor circuit breaker, thermal‑magnetic

• Poles: 3‑pole (3P) with push‑button STOP/START control

• Adjustable current range: 2.5–4 A (Ie)

• Rated operational voltage: up to 690 V AC 50/60 Hz (see label/datasheet for details)

• Typical motor rating: approx. 1.1–1.5 kW at 400/415 V AC‑3

• Breaking capacity: up to 100 kA Icu at 400/415 V AC (per TeSys GV2 spec)

• Mounting: DIN‑rail or panel mount, screw clamp terminals

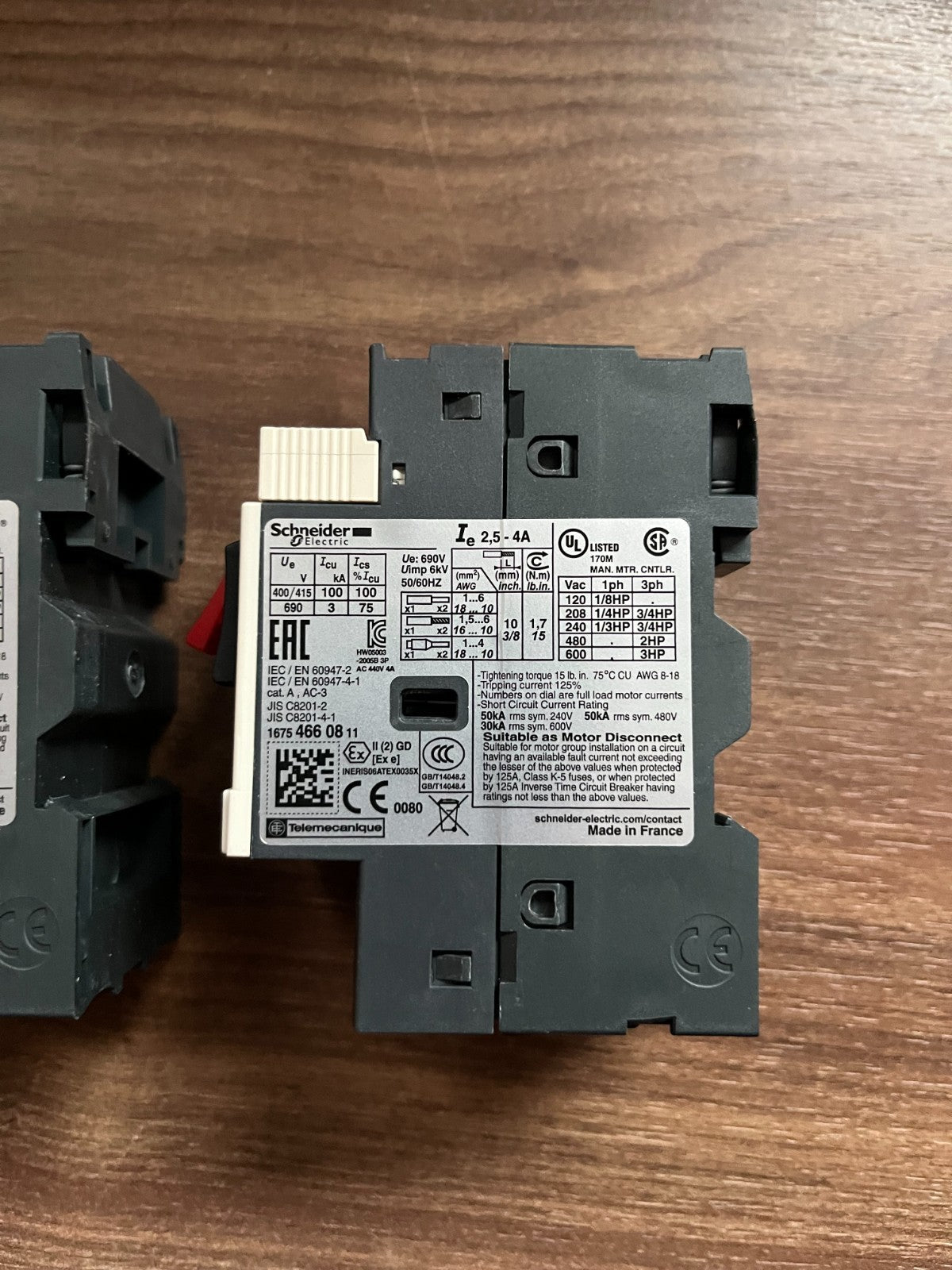

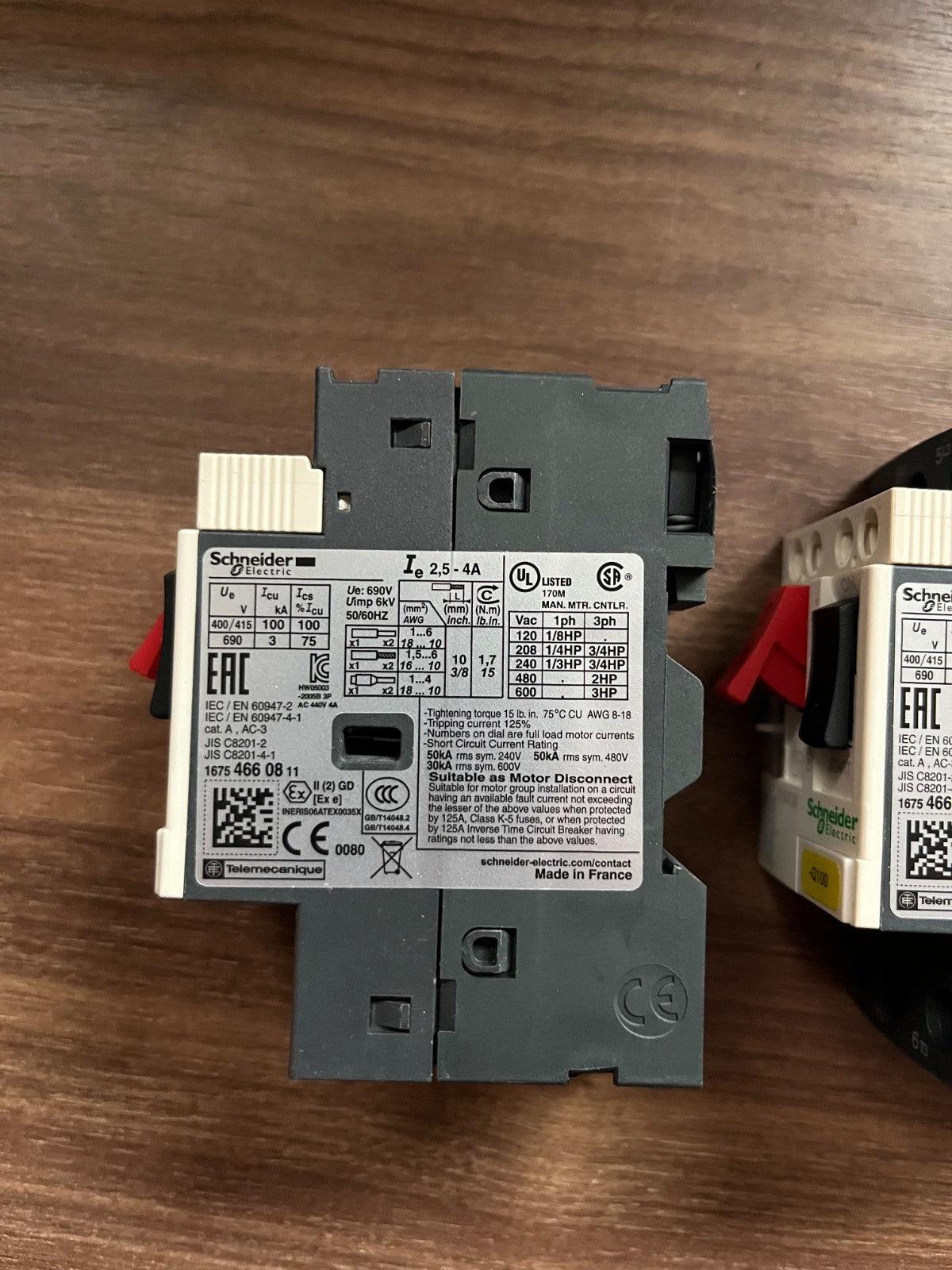

• Standards/approvals: IEC/EN 60947‑2, IEC/EN 60947‑4‑1, UL, CSA and others listed on label

• Country of manufacture: France (marked “Made in France” on label)

Condition

• Used, removed from a working panel, both units of the same type and rating

• Normal cosmetic wear: light marks, screwdriver traces on terminal screws, label writing from previous installation

• STOP/START push buttons operate smoothly; adjustment dials move freely

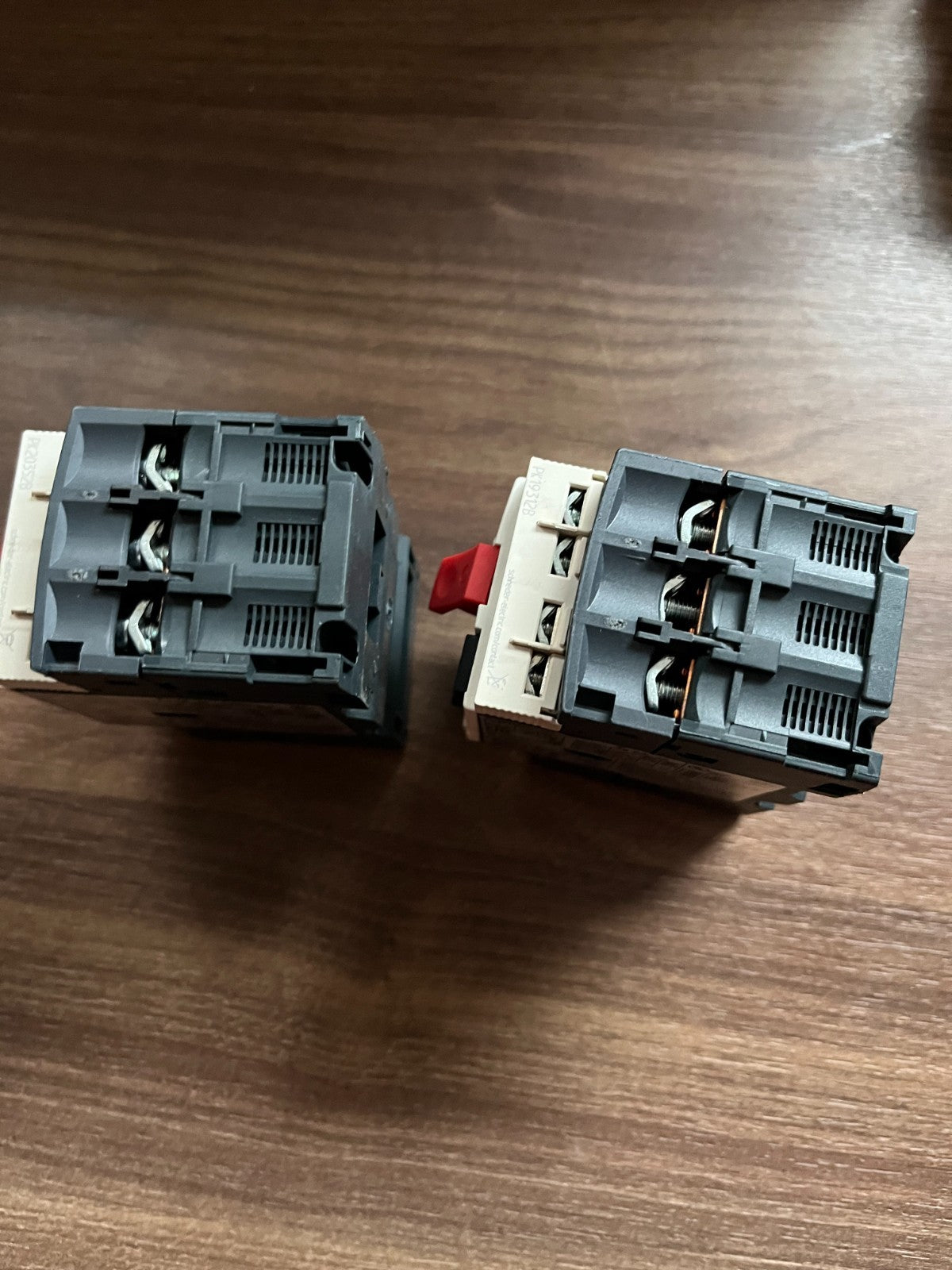

• Terminals show signs of previous wiring but no obvious damage or overheating

• No original packaging or accessories; you receive 2 breakers exactly as pictured

Notes

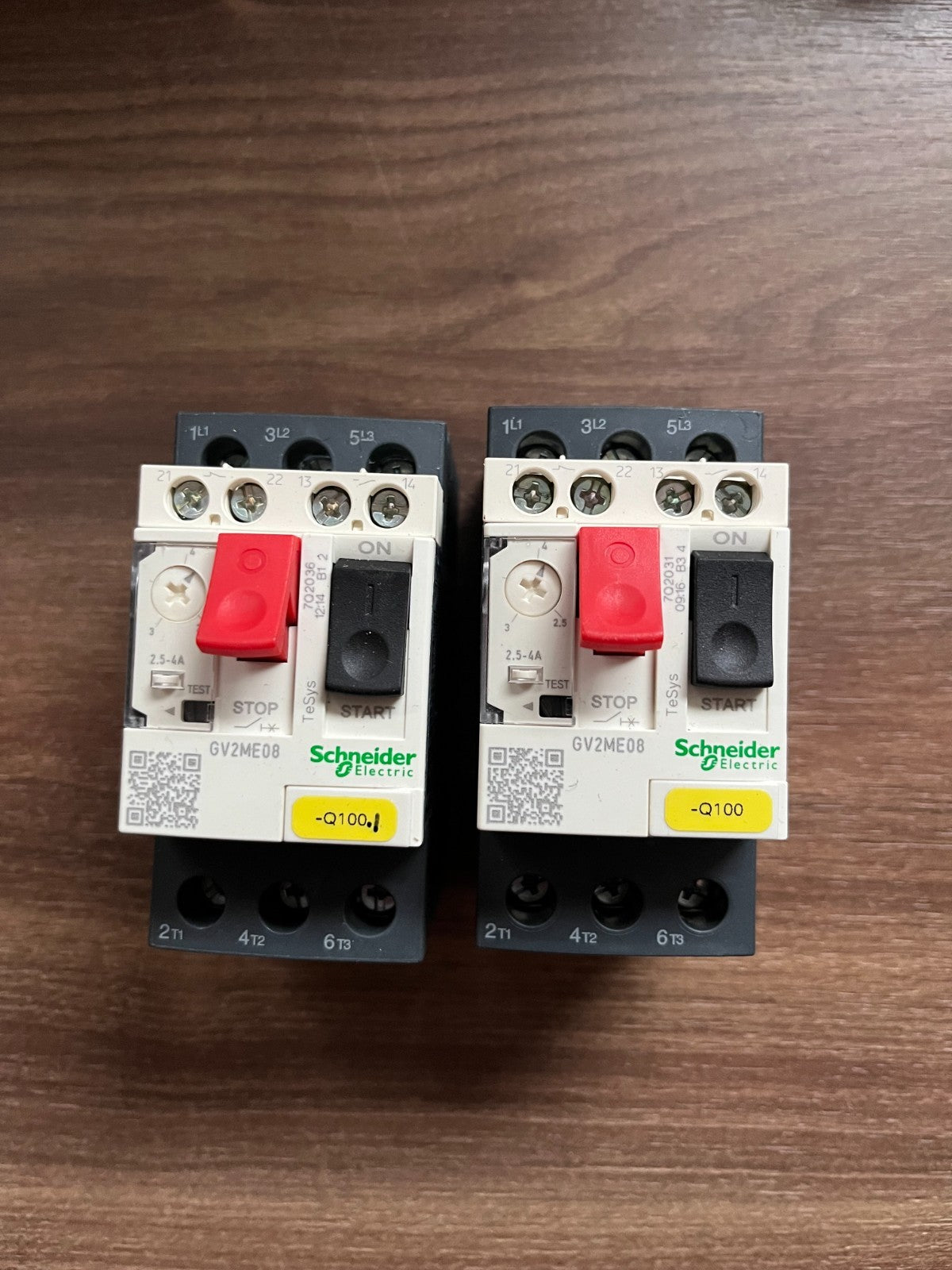

• Units are labelled from previous circuit design (yellow tags); buyer can remove or relabel as needed.

• Please confirm suitability for your motor current, short‑circuit level and coordination requirements using Schneider’s official GV2ME08 documentation.

• Professional installation and testing by a qualified electrician or control panel builder is strongly recommended.
