Schneider Modicon AS-B825-016 800 I/O 24 VDC True High input module with 16 digital inputs, removed from a working system. It is in good used condition with cosmetic wear and with field wiring still attached.
-
Brand: Schneider Automation / Modicon
-

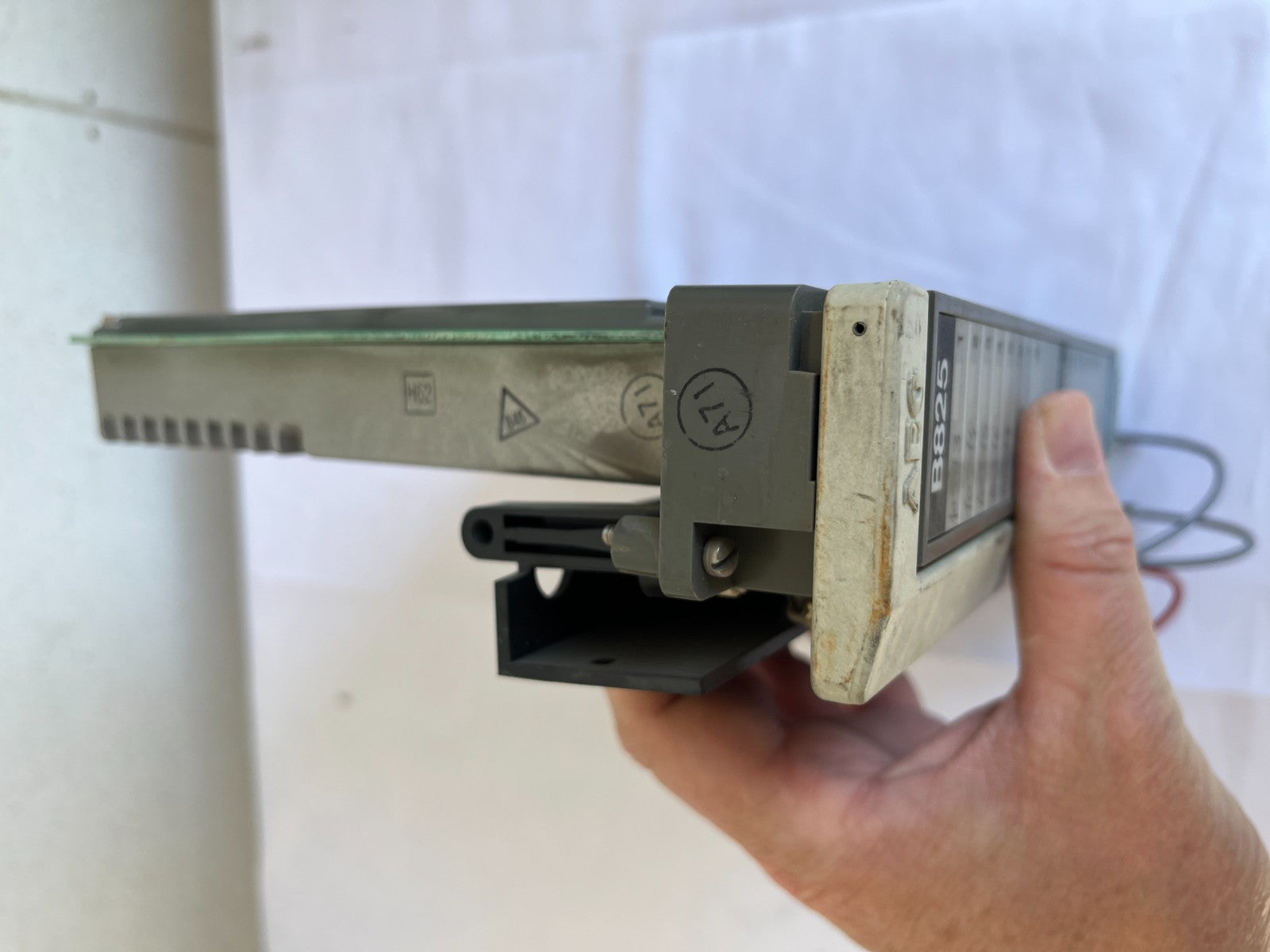

Model: AS-B825-016 (also marked B825 on front)
-
Type: 24 VDC discrete input module, true high operation
-
System: Modicon 800 I/O, 16-point DC input
-
Number of input points: 16 channels in a single group
-
Nominal input voltage: 24 VDC (typical operating range 20–28 VDC, see documentation for full specs)
-
Input type: DC digital inputs, true high sensing
-

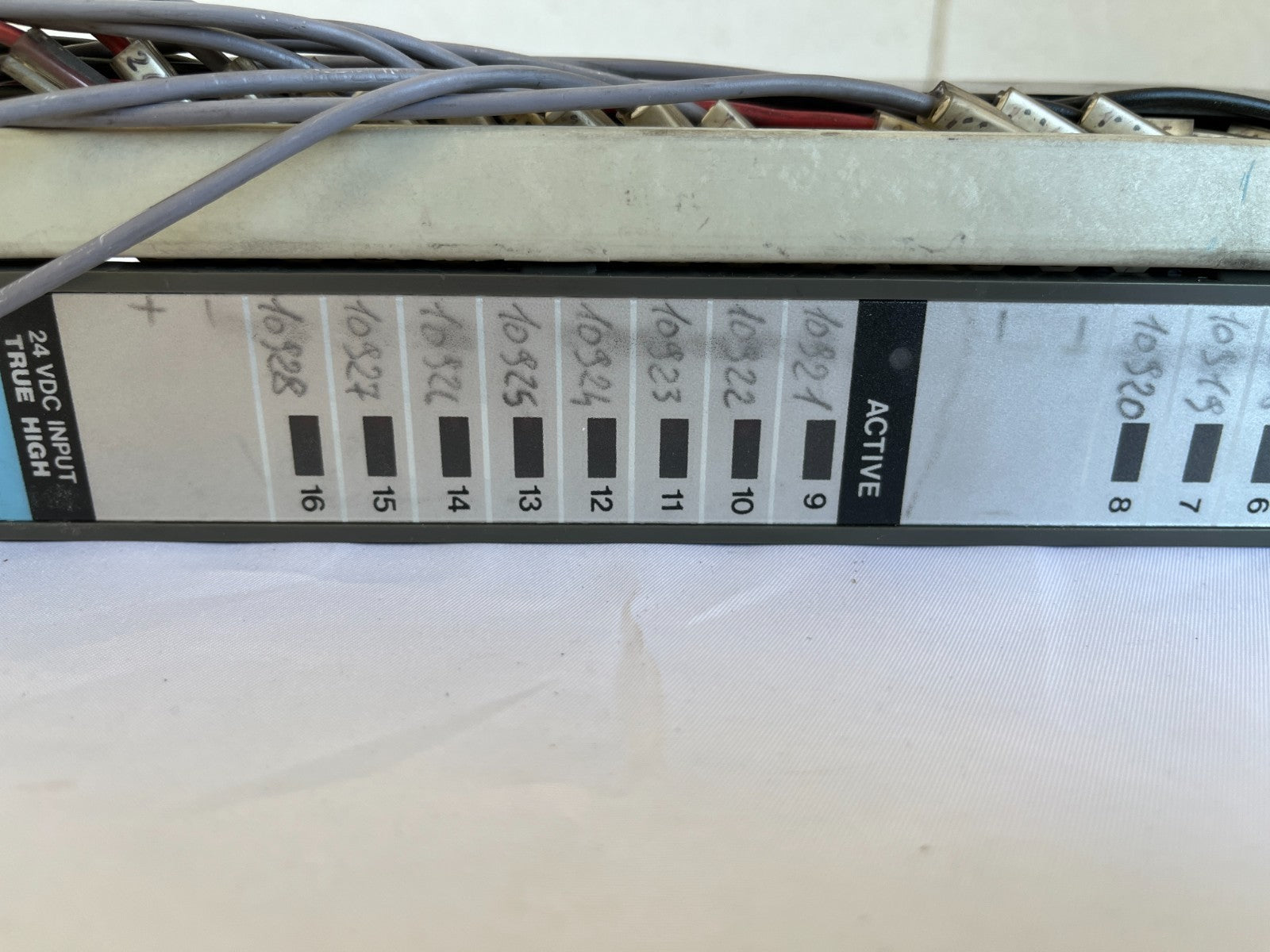

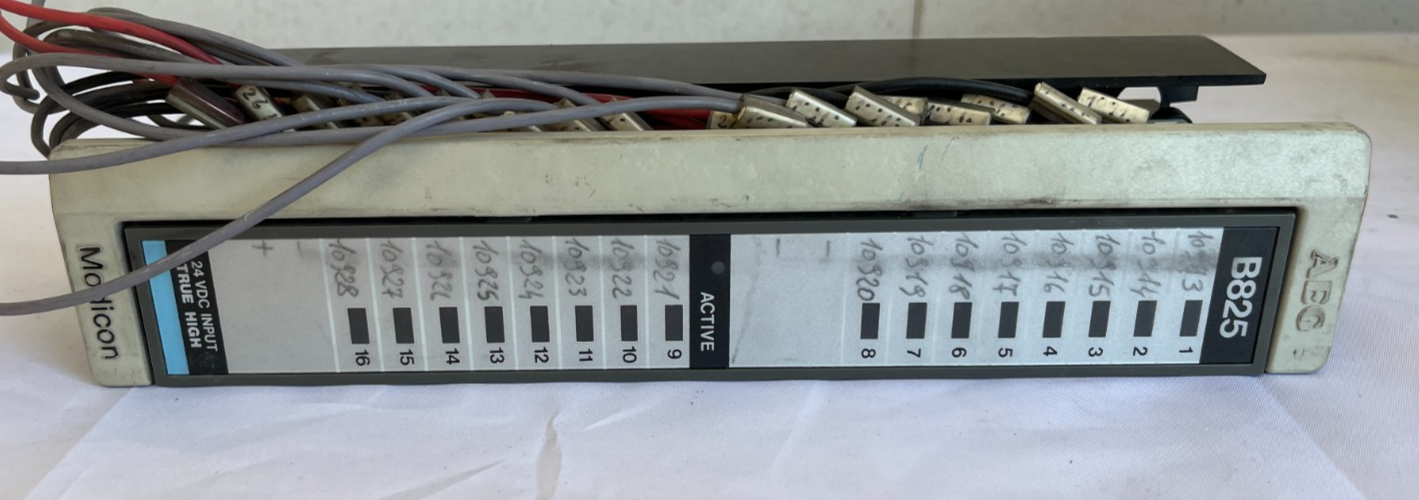

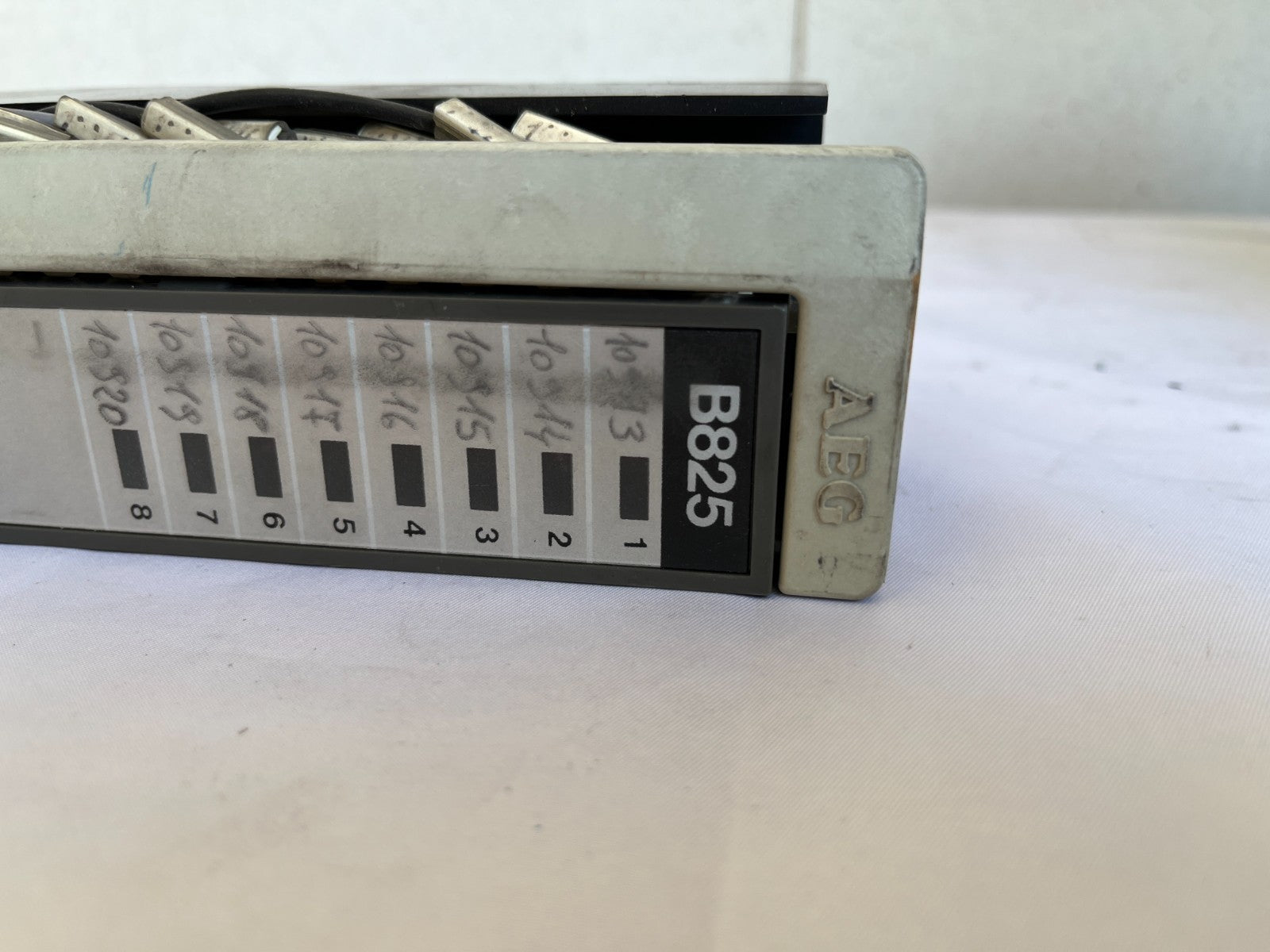

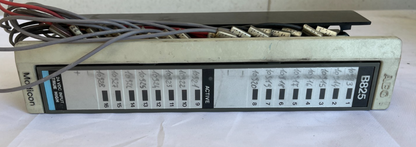

Front indicators: 16 individual channel status LEDs (1–16) plus “Active” indicator
-

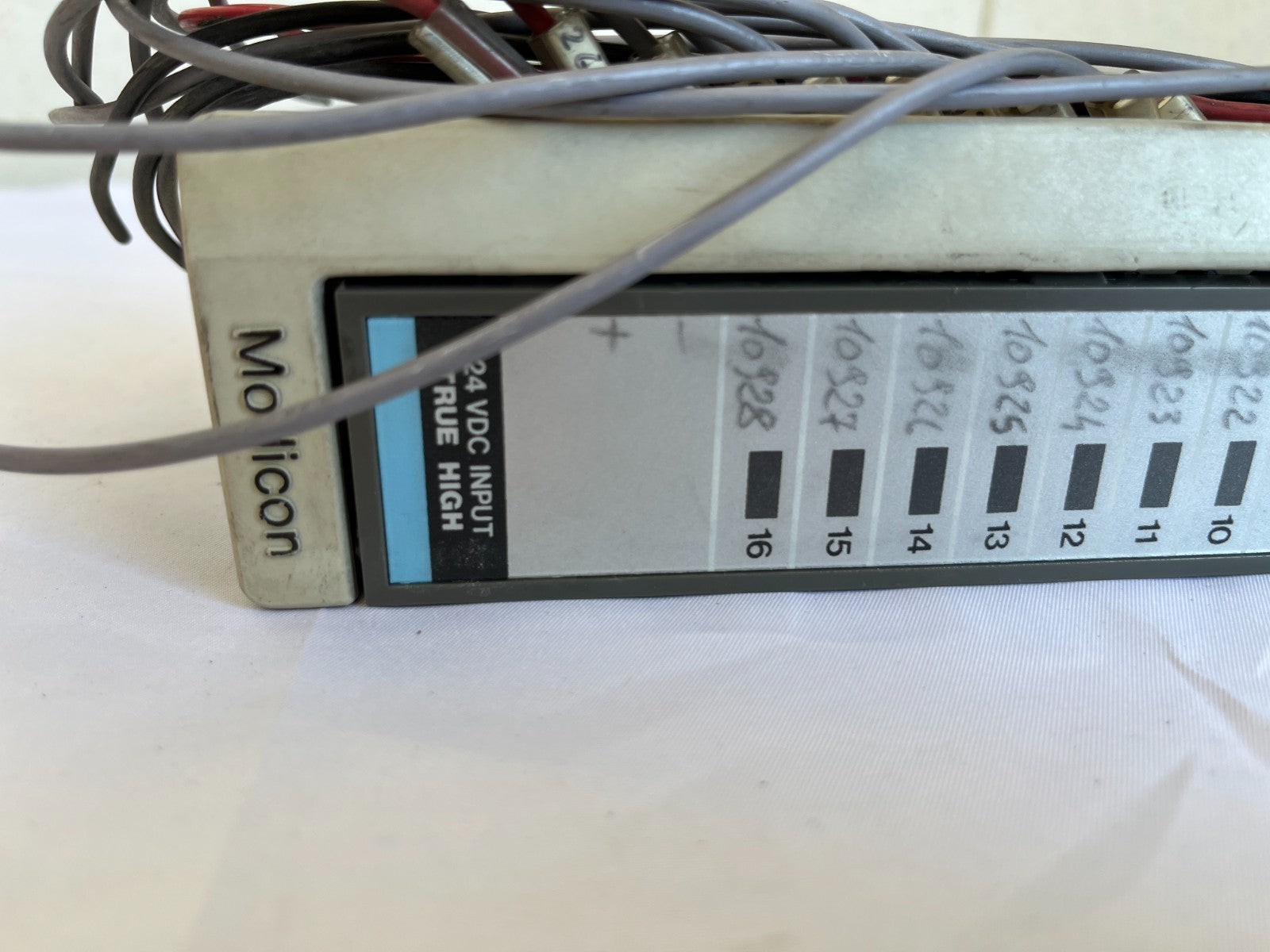

Front label: “24 VDC INPUT TRUE HIGH” printed on fascia
-

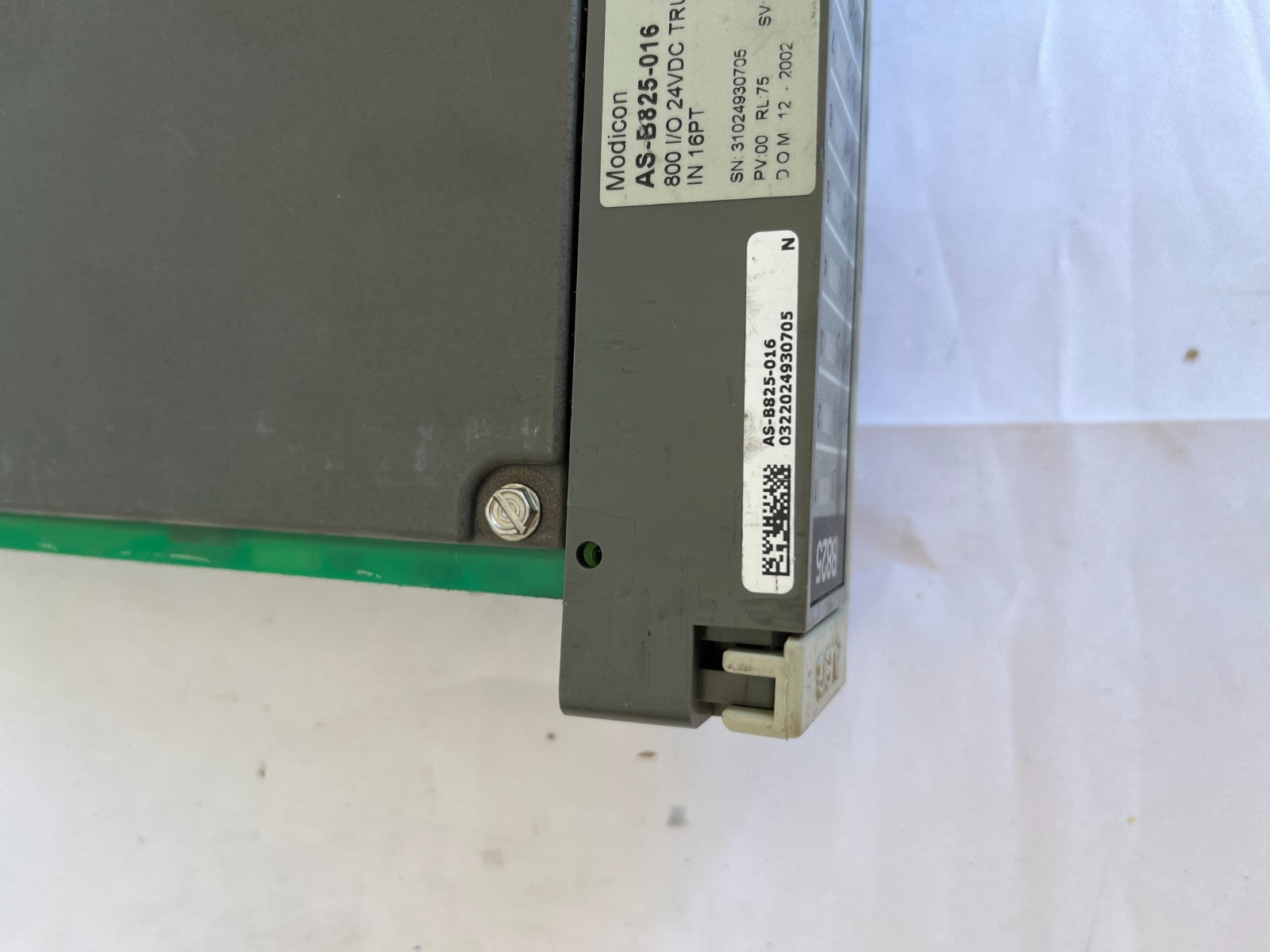

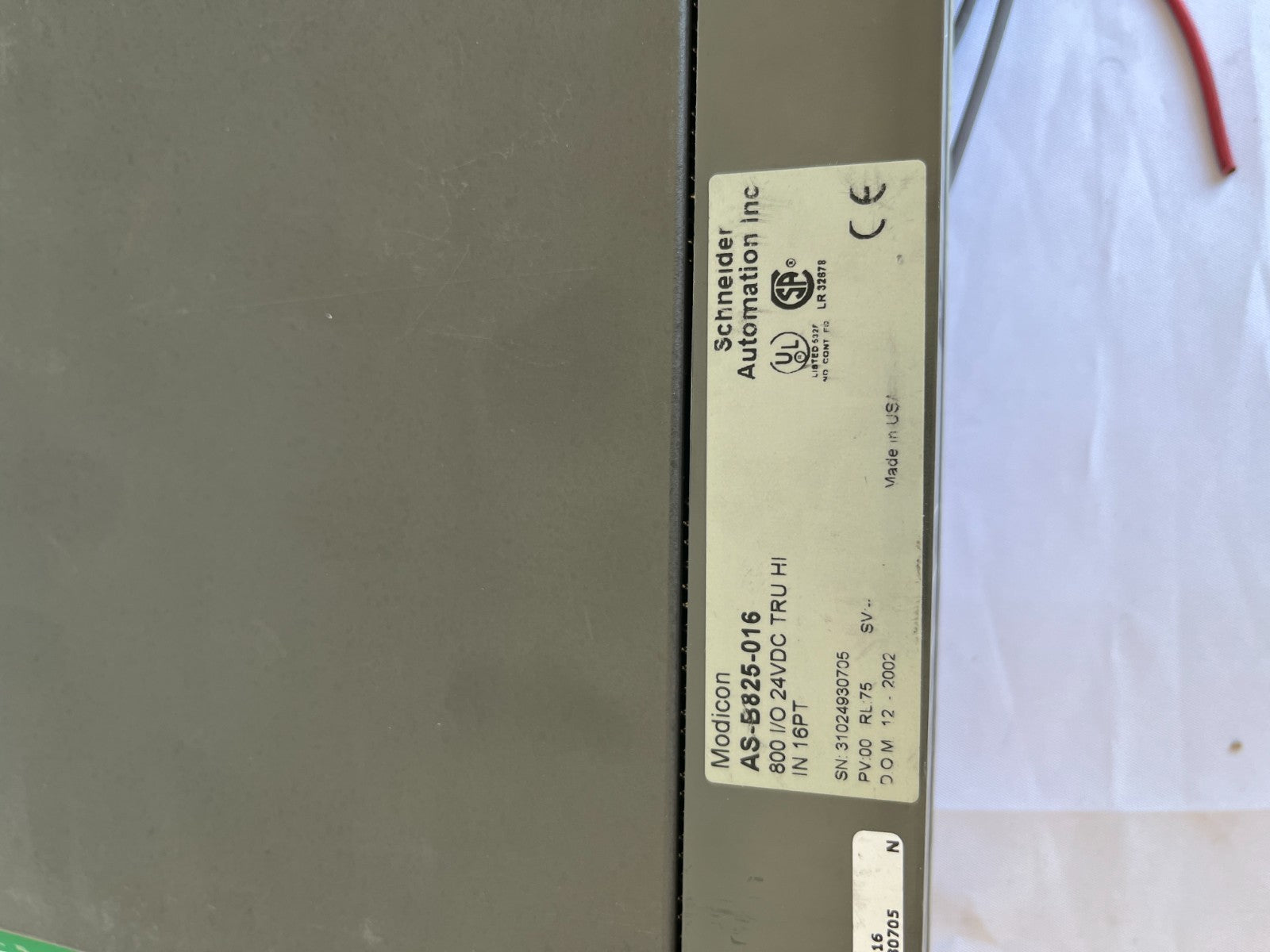

Approvals: CE and UL/CSA markings visible on side label
-
Country of manufacture: Made in USA (per side label and typical data for this part)
-
For detailed electrical characteristics and wiring diagrams, see photos/label and OEM manual.
-
Used, removed from a working installation
-
Not recently re-tested by us; offered as-is for spare/repair use
-
Visible cosmetic wear on housing and front bezel (scuffs, scratches, discoloration from normal industrial use)
-

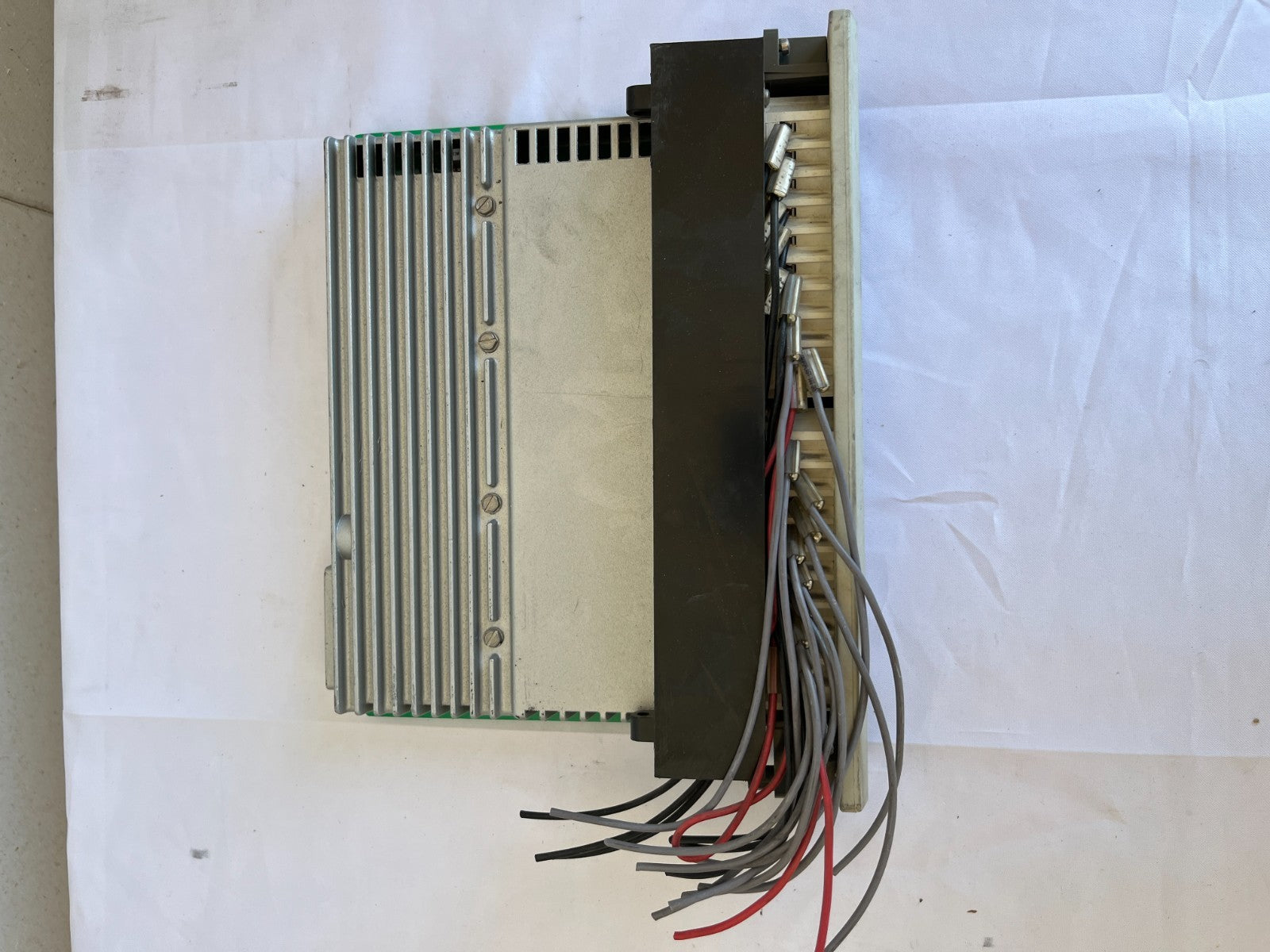

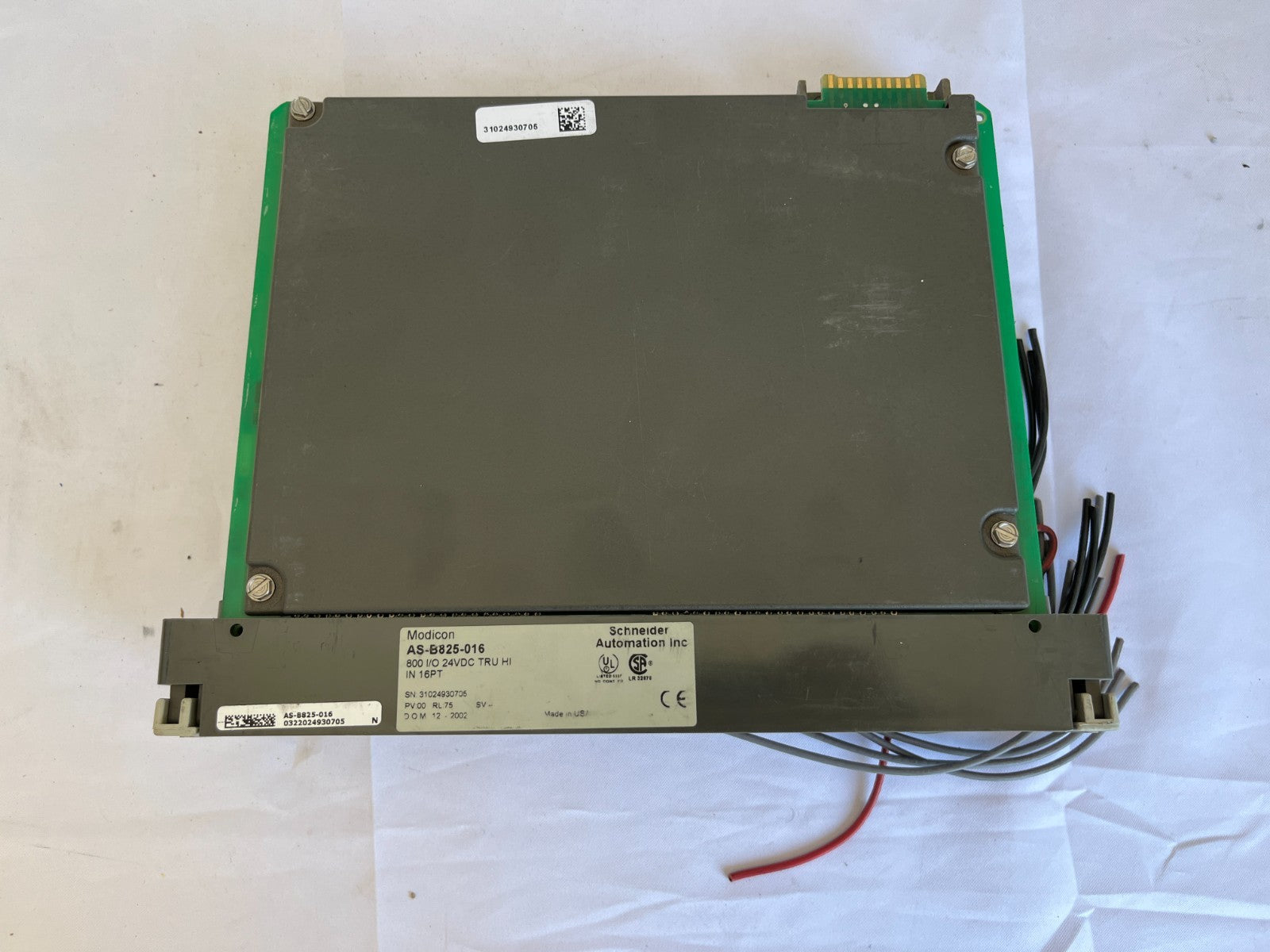

Existing field wiring still connected to the terminal strip (wires cut to length, some labels/handwriting on channel cover)
-
No obvious broken plastic or missing front cover pieces observed in the photos
-
Supplied without original box, documentation, or mounting hardware
-
Classic Schneider Modicon 800 I/O 24 VDC True High 16-point input module, suitable as a direct replacement in legacy Modicon PLC systems
-
Field wiring left in place can help identify channel usage or be removed by the buyer as needed
-
Buyers should confirm compatibility with their specific rack, backplane, and PLC CPU before purchase
-
Only the module with attached wiring shown in the photos is included in this listing
