Schneider Electric TeSys Vario VCF3 (016599) main emergency switch‑disconnector with red/yellow handle kit, rated 63 A, 3‑pole, supplied in new, unused condition in the original box with accessories and instructions.
-
Brand: Schneider Electric (TeSys Vario range)
-
Model: VCF3
-
MPN: 016599 (VCF3 016599 as on label)
-
Type: Main / emergency stop switch‑disconnector, door‑mounted kit
-
Poles: 3‑pole (3 NO) power switch
-
Rated current: 63 A thermal current Ith
-
Rated operational voltage: up to 690 V AC, 50/60 Hz
-
Typical motor power: up to 22 kW at 400–415 V AC‑23A (emergency stop duty)
-
Mounting: Door mounting, handle fixed by 4 screws (hardware included in bag, see photos)
-
Handle style: Rotary red handle with yellow front plate, padlockable (up to 3 padlocks)
-
Application: Main isolator or emergency stop switch for motor and machine control panels
-
Standards/approvals: CE marked; see photos/label for full standards and markings.
-
New, never used – item has not been installed or wired.
-

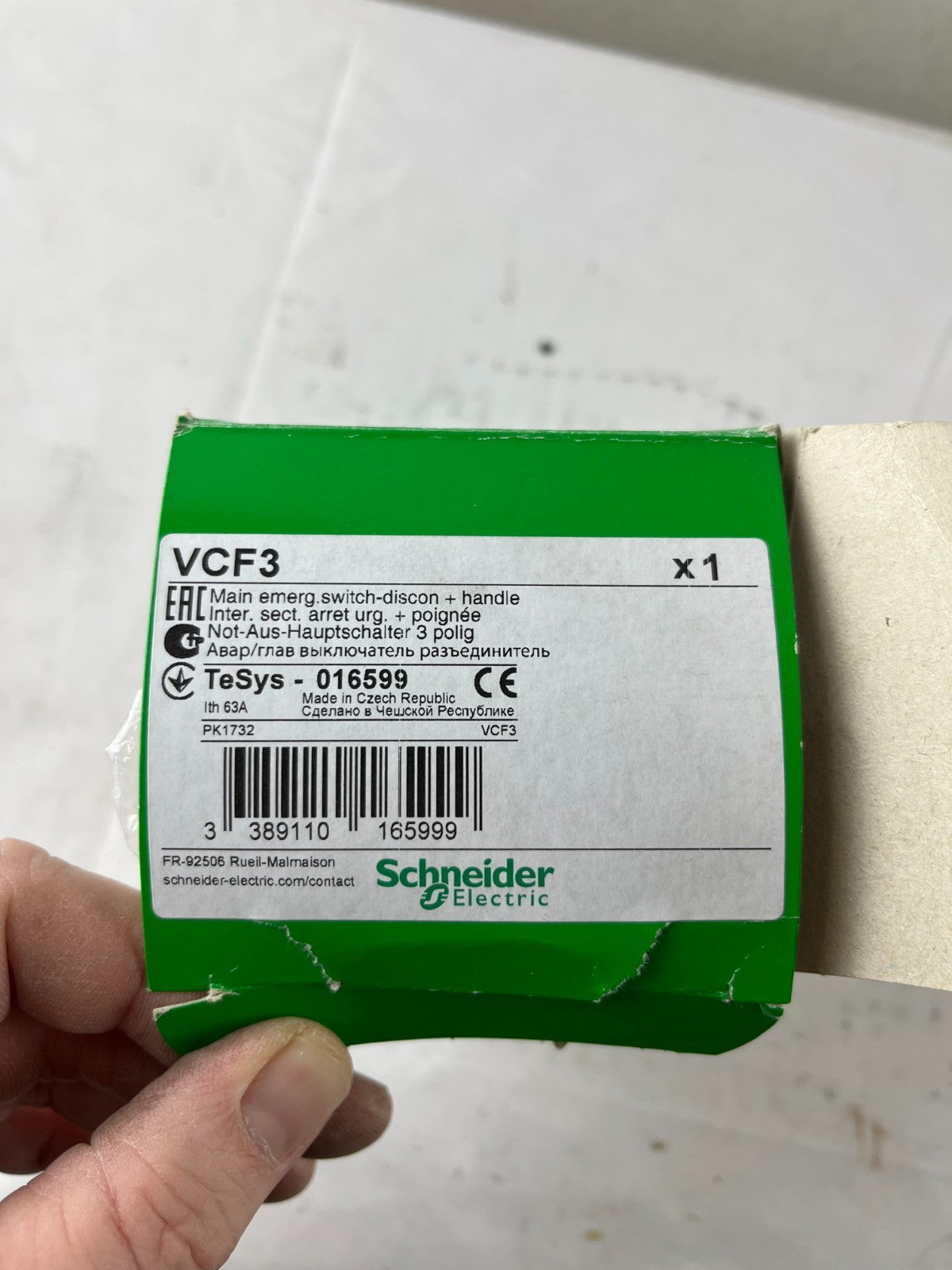

Original Schneider Electric box present; box shows some storage wear and small tears from handling (see photos).
-

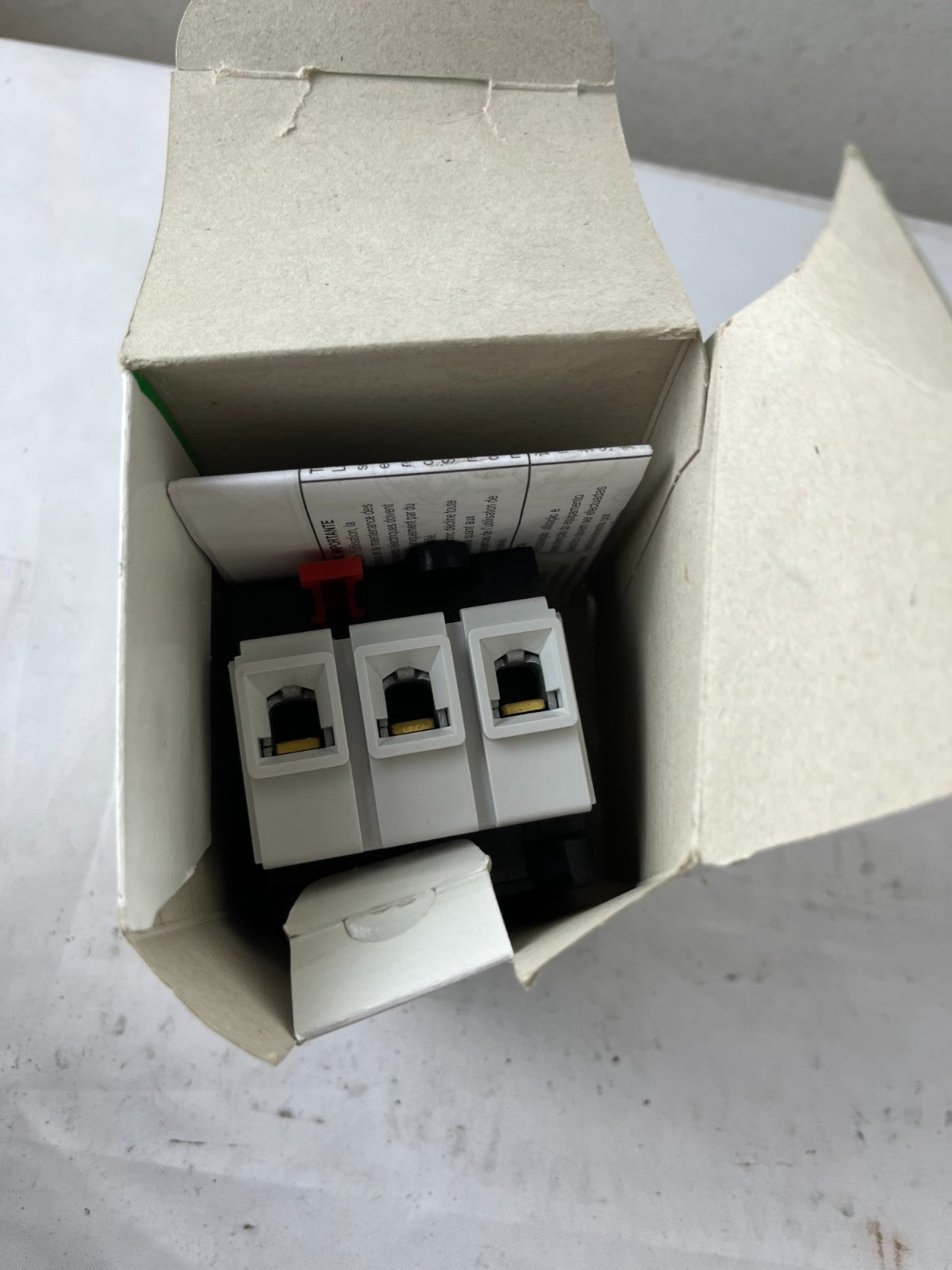

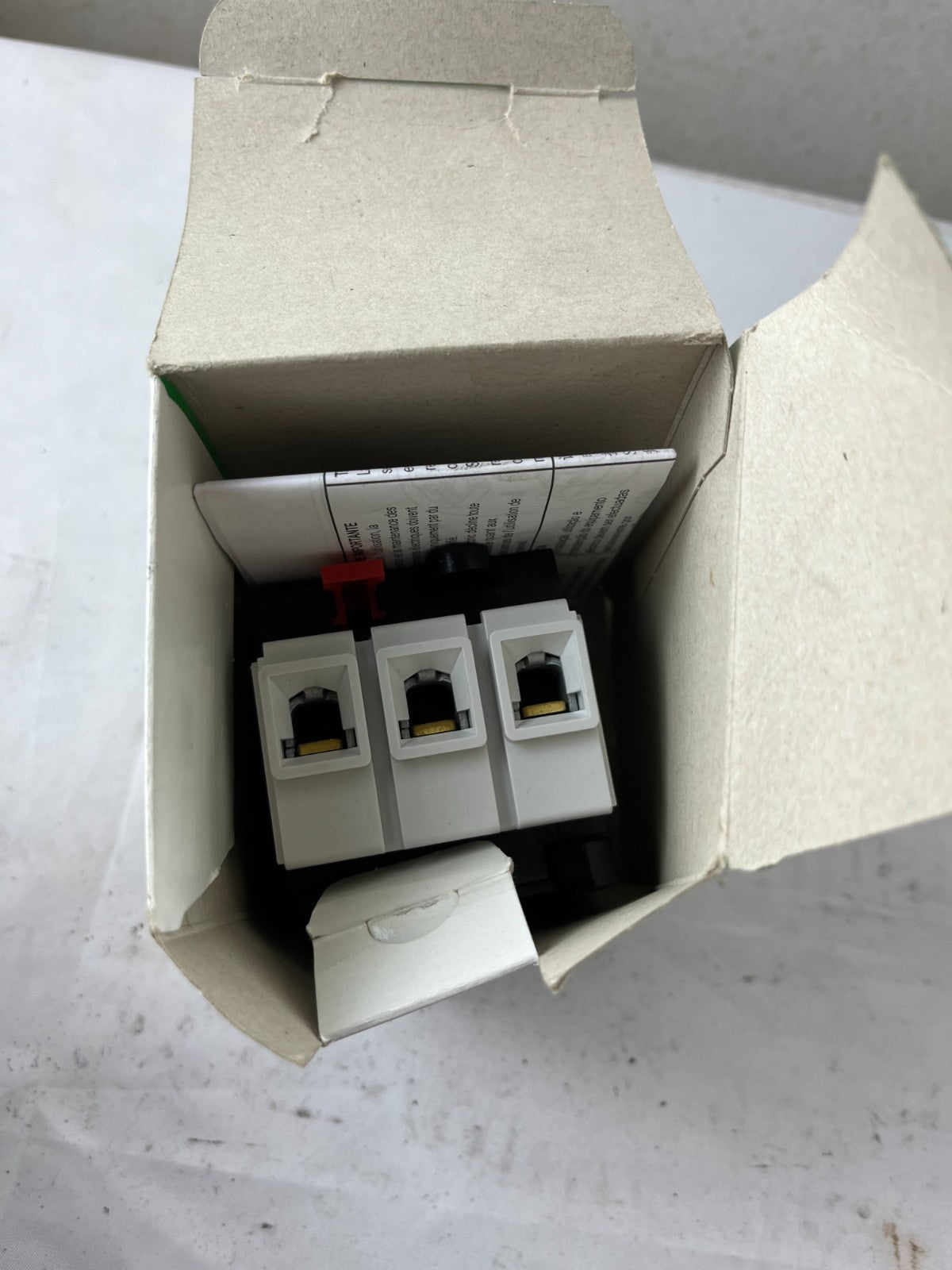

Internal components, terminals and handle parts appear clean with no signs of use; small cosmetic marks from storage only, if any.
-

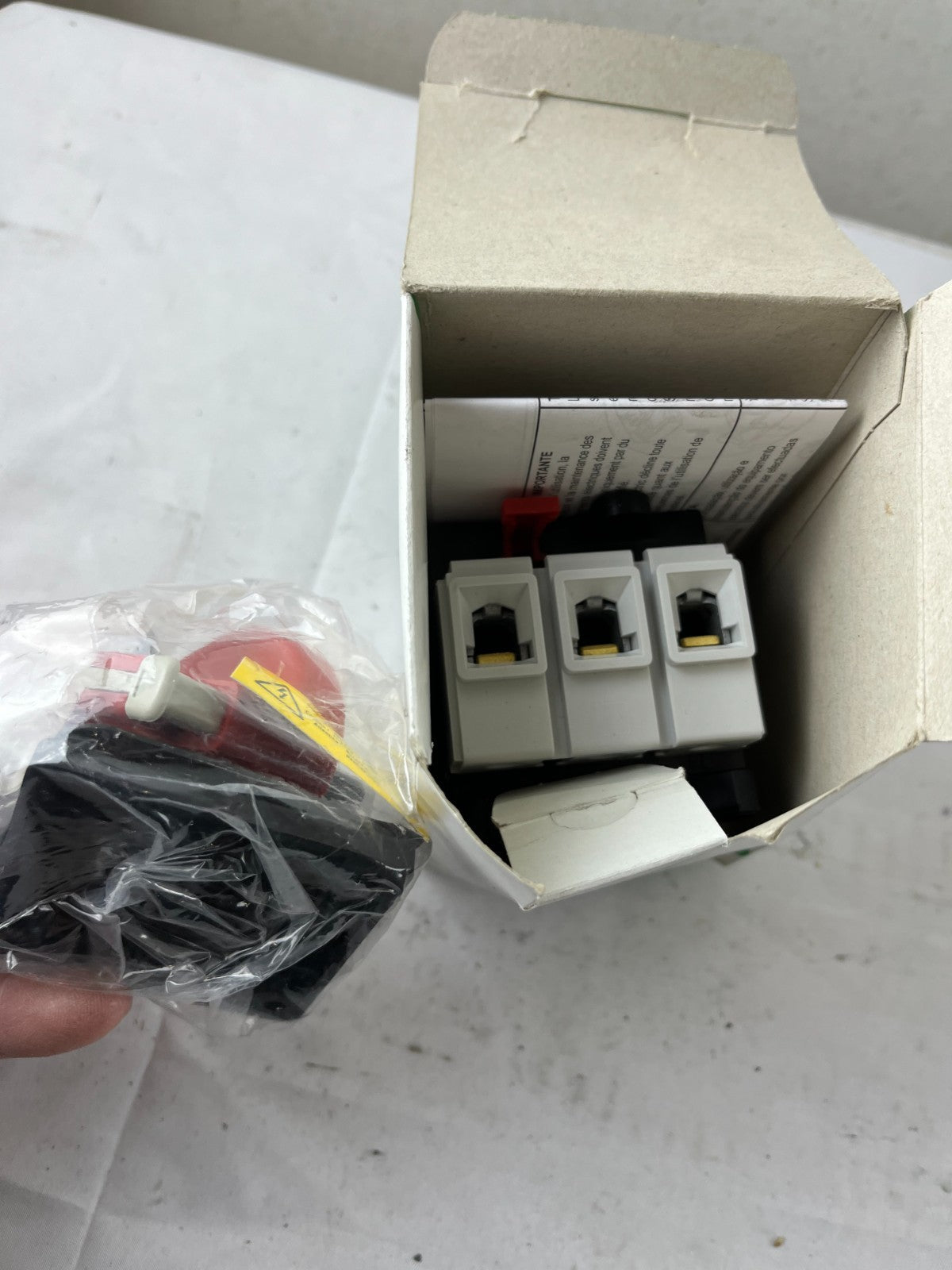

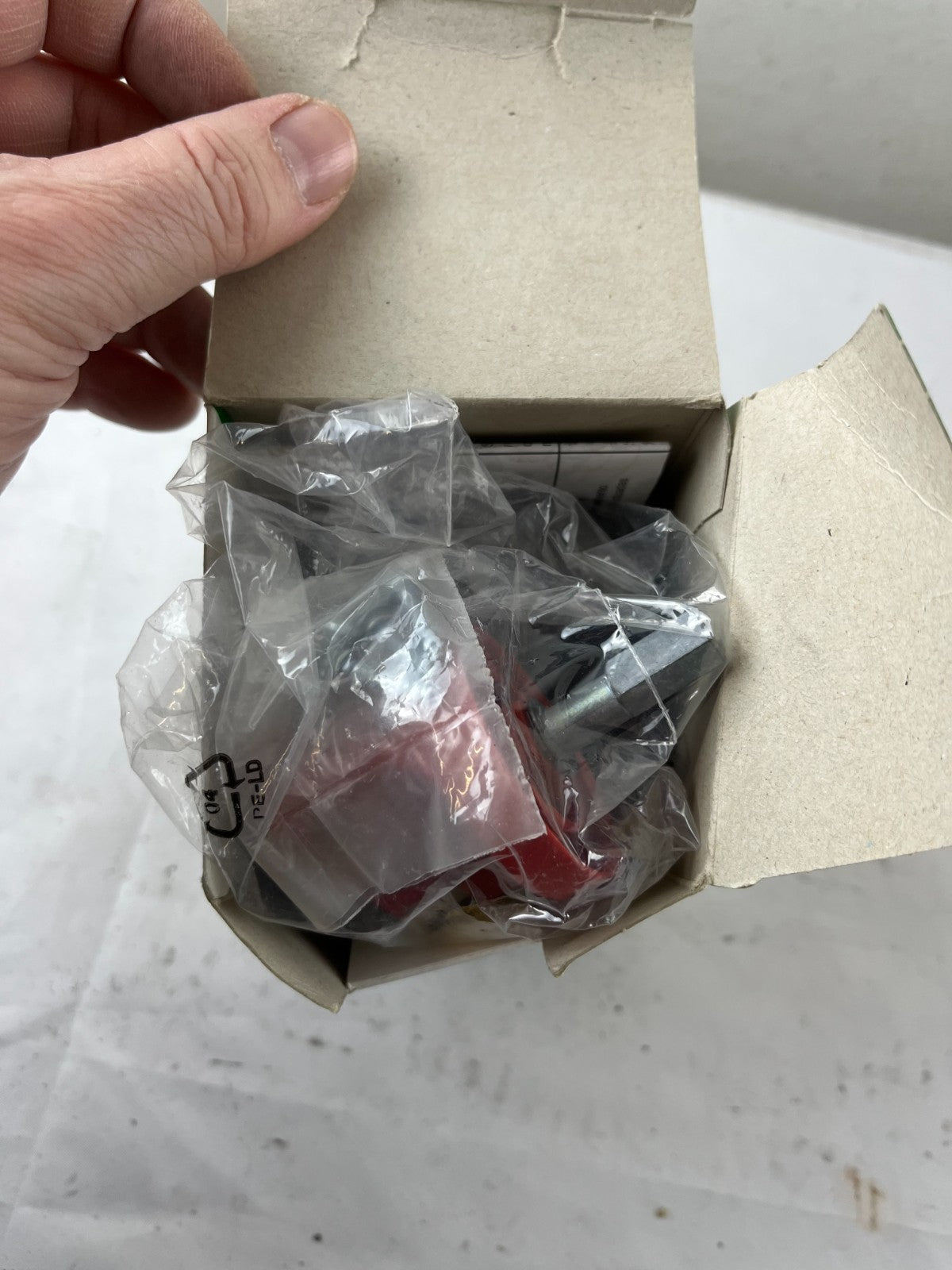

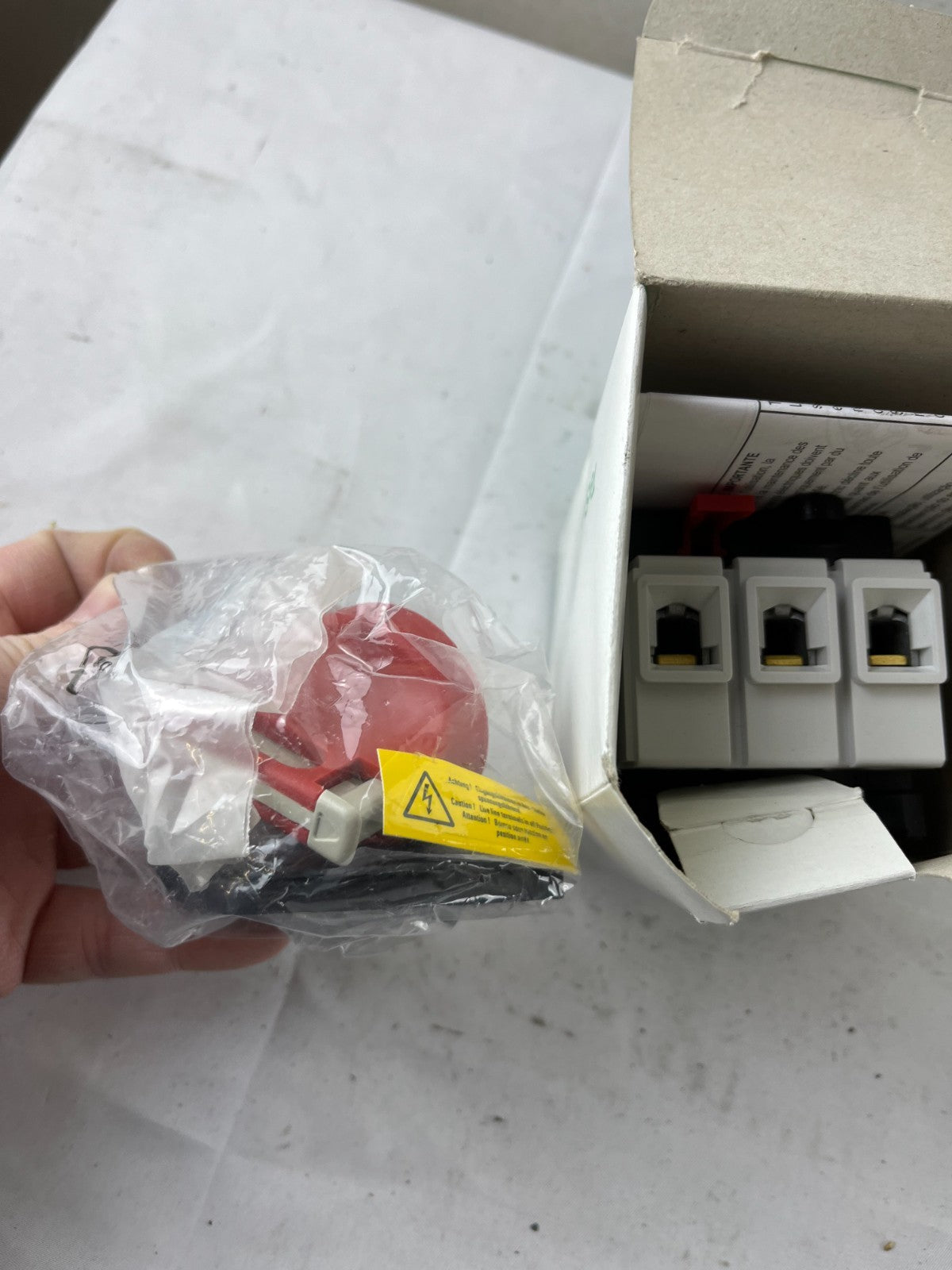

All visible accessories (handle, shaft, mounting hardware, instruction sheet) are included as shown in the photos; see photos to confirm exact contents.
-
This is a complete door‑mount emergency stop / main isolator kit: switch body with 3‑pole mechanism, red/yellow rotary handle, shaft, screws and documentation.
-
Ideal as a replacement for an existing VCF3 unit or for new panel builds that require a 63 A, 3‑pole emergency stop/main switch.
-

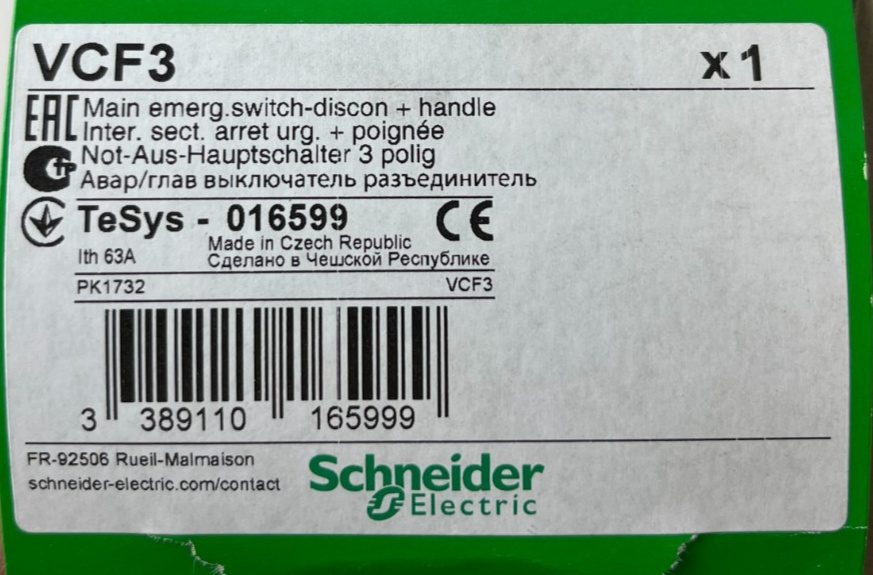

Please refer to the photos and the factory label for full technical data and compatibility before purchasing.
