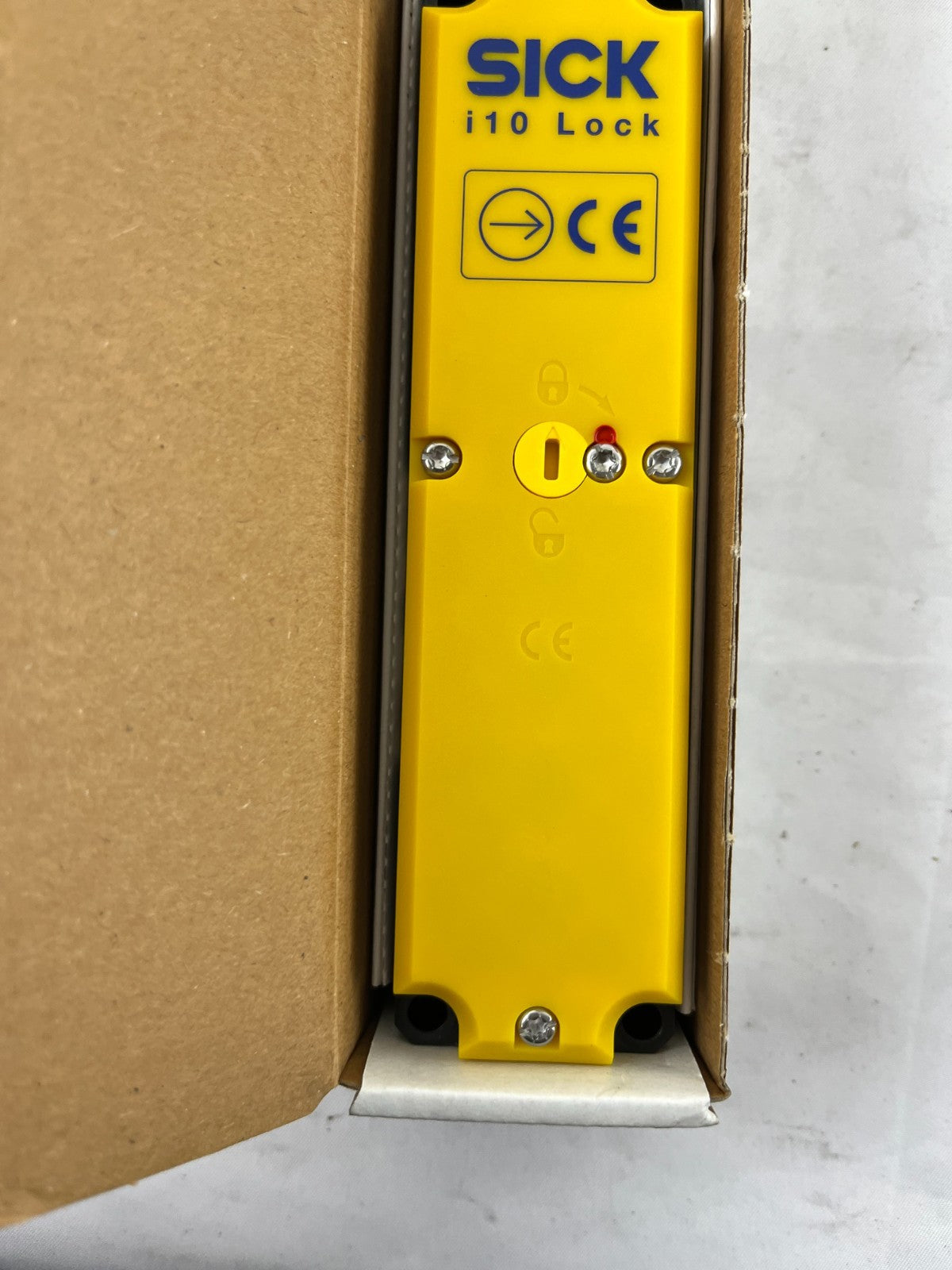

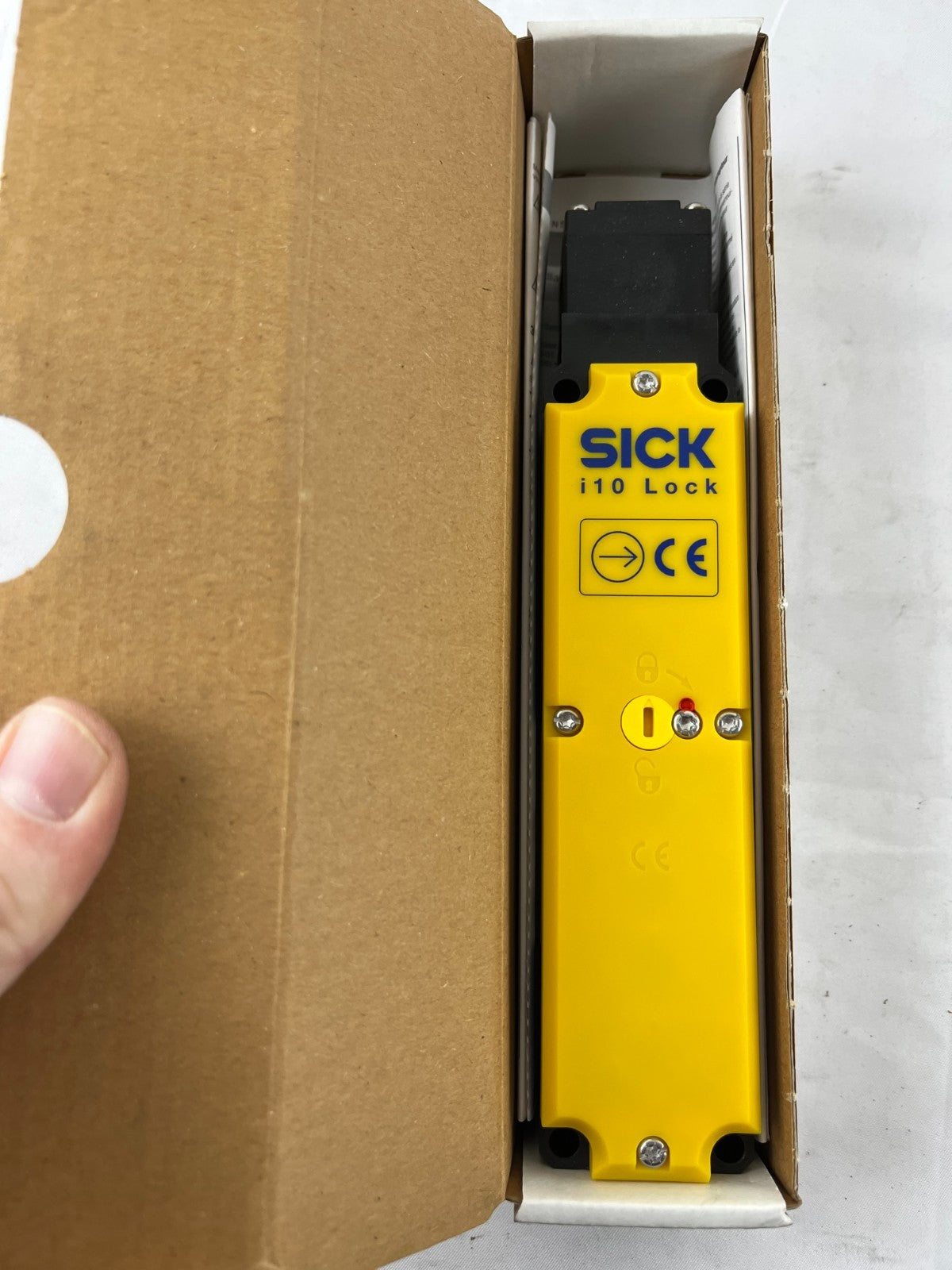

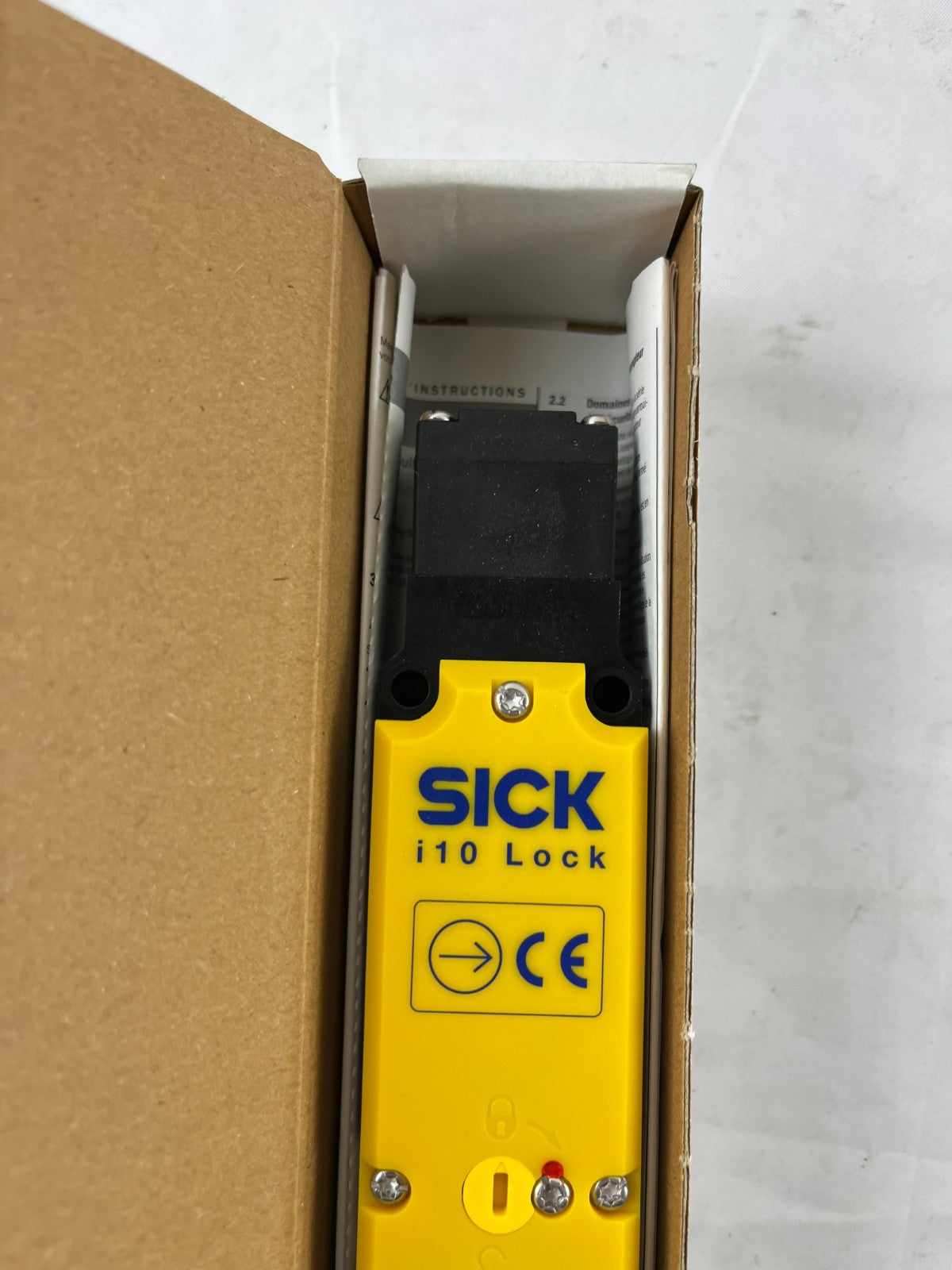

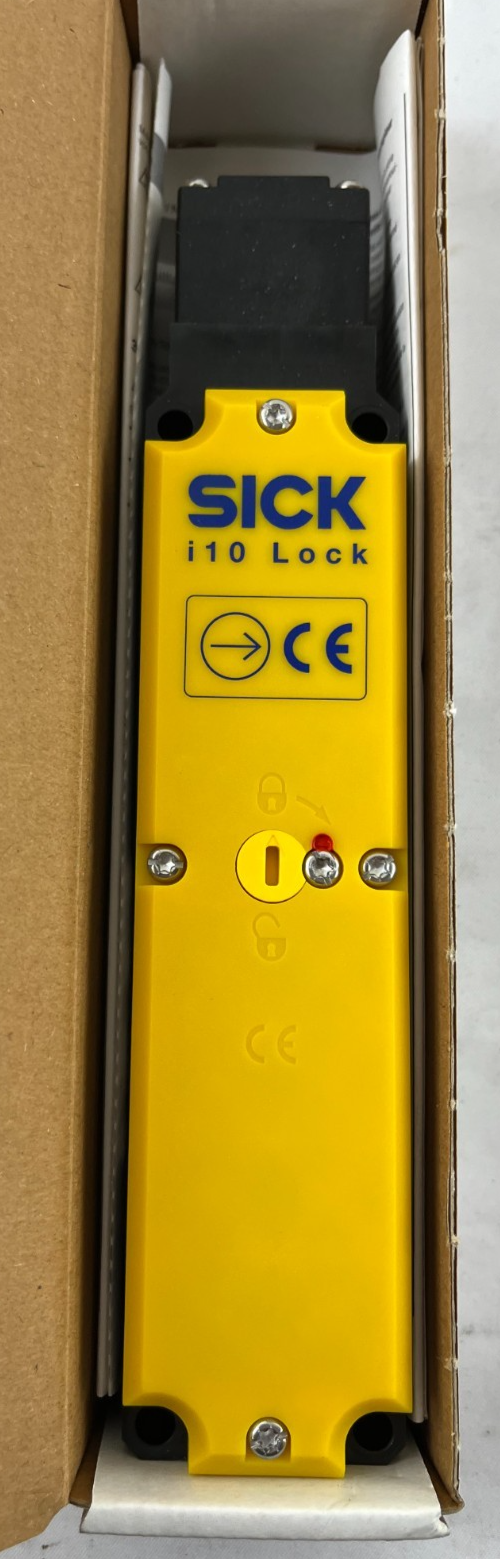

SICK i10-E0233 Safety Interlock Switch Lock 1000N 24V SIL3 PLe NEW 6022585

Brand & Model

• Manufacturer: SICK AG, Germany

• Model: i10-E0233 Lock

• Part Number: 6022585

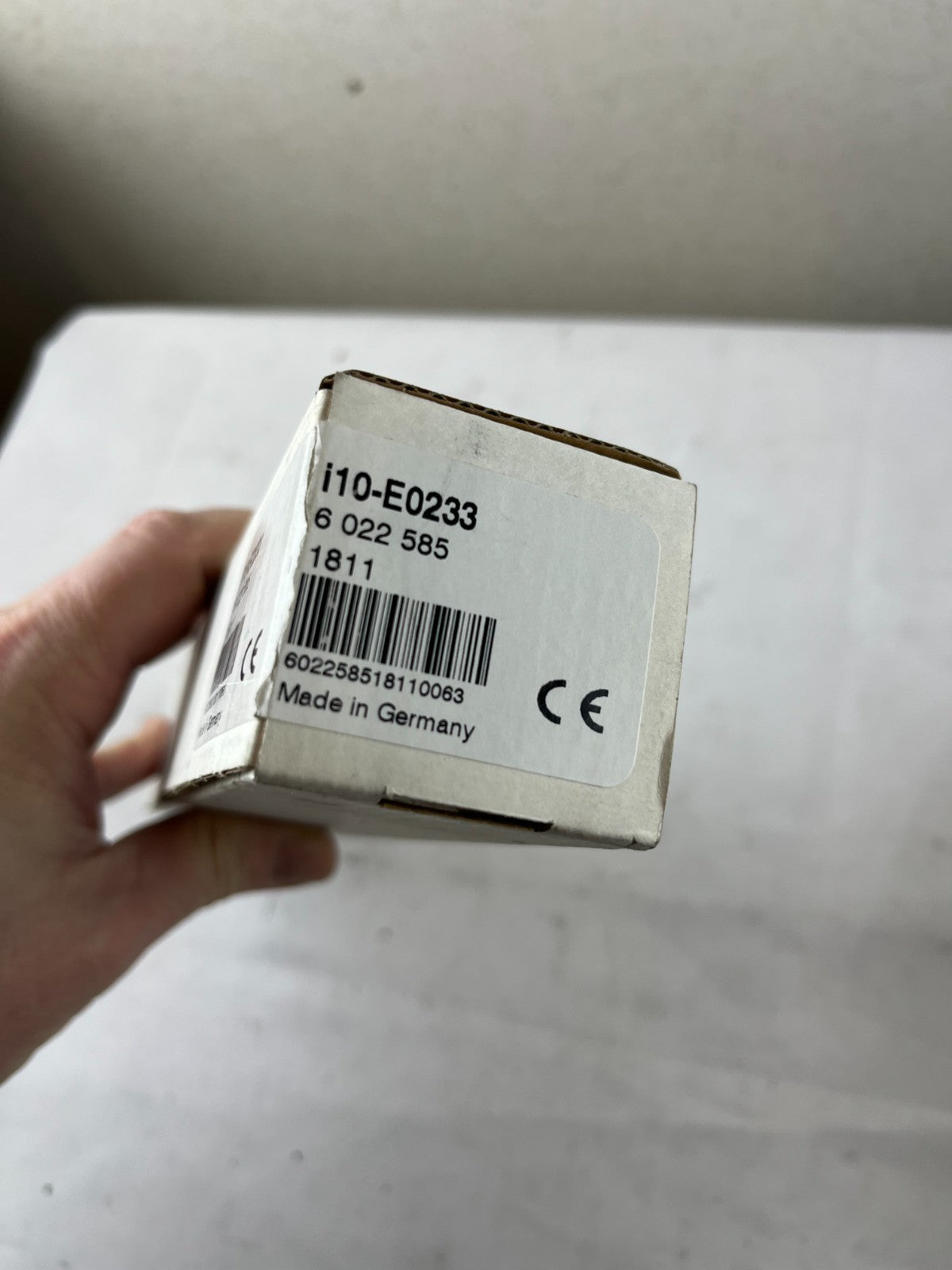

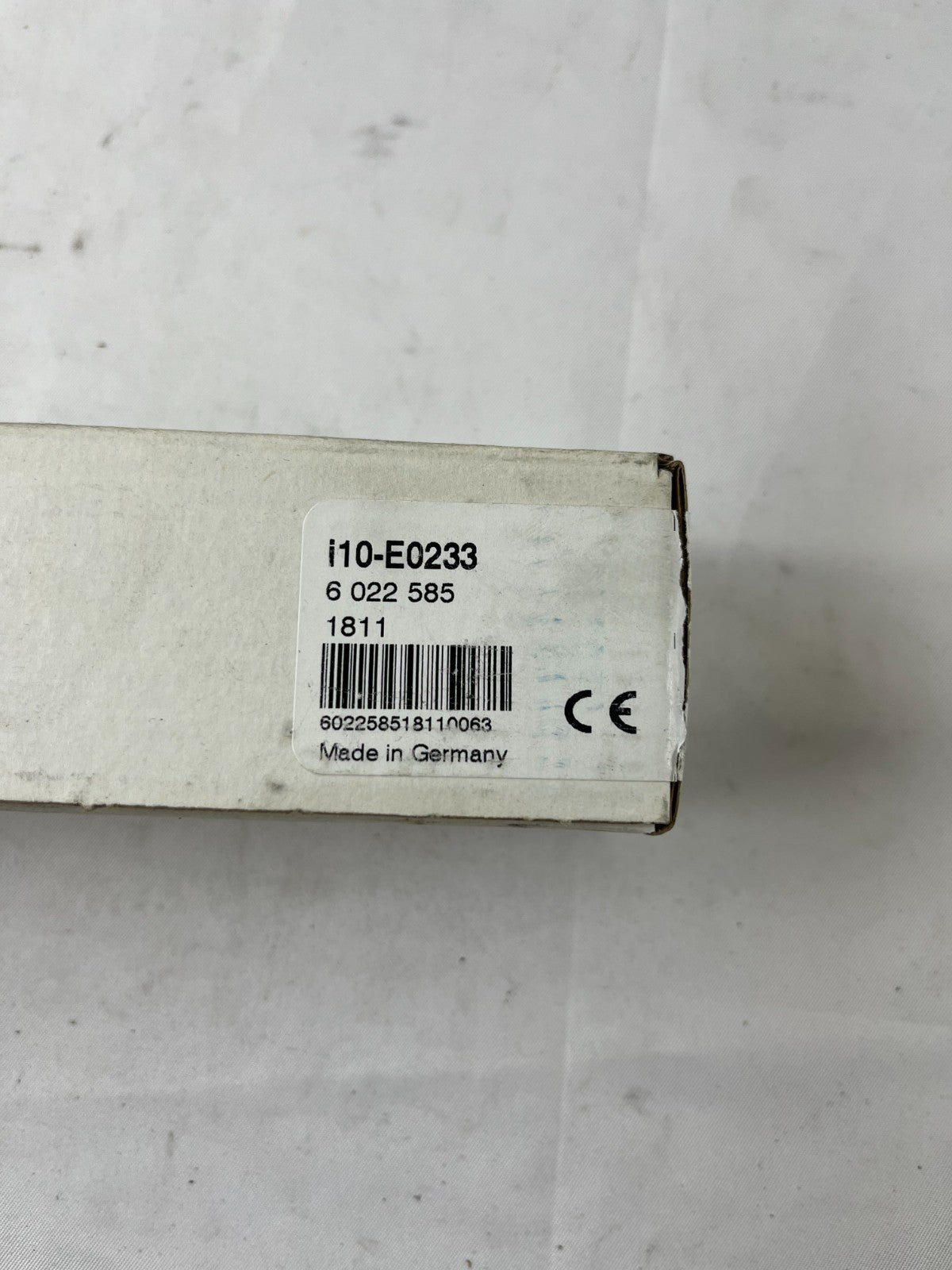

• Date Code: 1811 (November 2018 manufacture)

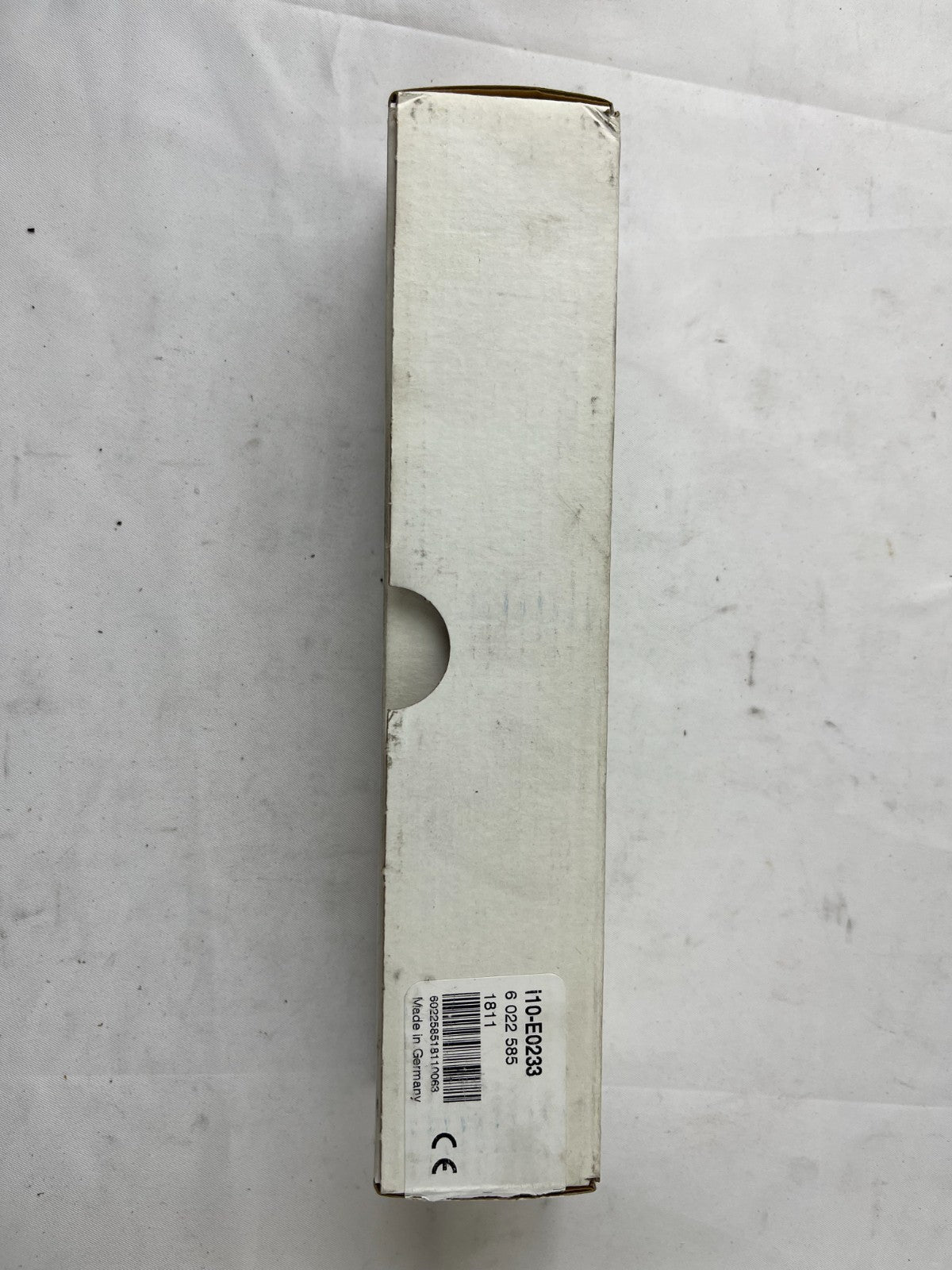

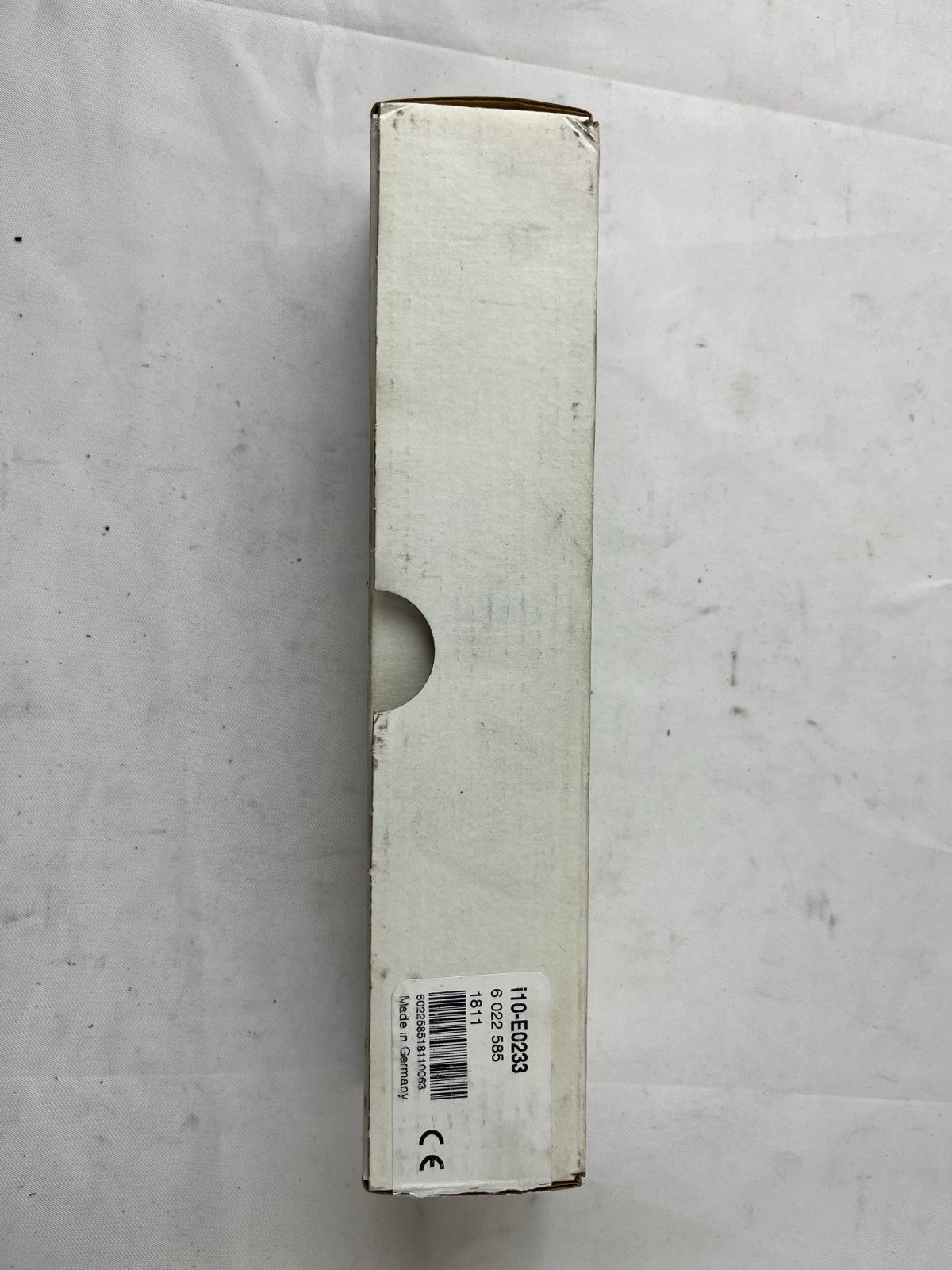

• Condition: New in original box, never used, fully functional

Safety Certifications

• Safety Integrity Level: SIL 3 (IEC 61508)

• Performance Level: PL e, Category 4 (EN ISO 13849)

• CE marked and compliant with European safety directives

• Made in Germany

Technical Specifications

• Locking principle: Power to lock, operating current type

• Locking force: 1000 N (holds protective guard securely closed during hazardous operations)

• Operating voltage: 24V DC

• Connection type: Cable gland for hard-wired installation

• Sensor principle: Electro-mechanical with coded actuator

• Switching cycles: B10d rated for 3 million cycles

Features & Applications

• Interlocking safety device with mechanical position switch and coded actuator

• Positive opening contacts for both door monitoring and lock monitoring

• Rotating switching cylinder locks when voltage applied, unlocks when power removed

• Manual mechanical unlocking mechanism for emergency situations

• Prevents access to hazardous machinery zones until dangerous motion has stopped

• Ideal for industrial machinery guards, robotic cell protection, press safety, and automated manufacturing equipment

Additional Information

• Prevents restart of machinery when guard is opened during operation

• Ensures guard remains locked until all dangerous machine motion has ceased

• Compact design suitable for mounting on hinged or sliding protective guards

• Lower coding level actuator included

• Requires proper integration with safety relay or safety controller for full functionality
