SICK MB1-BL00 1091788 Mounting Bracket Kit Safety Interlock

SICK MB1-BL00 1091788 Mounting Bracket Kit Safety Interlock NEW Sealed Germany

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand & Model

  • Manufacturer: SICK AG, Germany

  • Model: MB1-BL00

  • Part Number: 1091788

  • Serial: 22340032

  • Date Code: 2020-09-21

  • Condition: New in sealed box, never used, fully functional

  • Made in Malaysia for SICK AG Waldkirch, Germany

• Technical Specifications

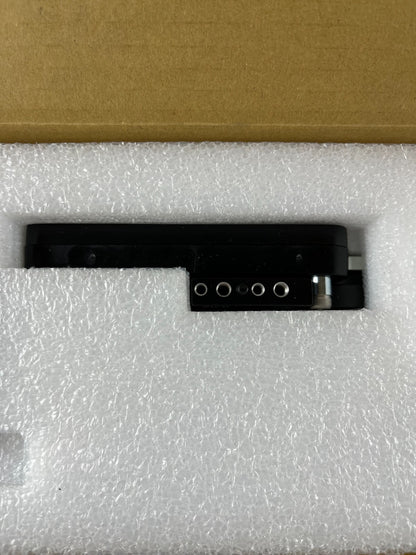

  • Product Type: Mechanical bolt mounting system for safety interlock devices

  • Material: Metal frame plate with precision-engineered mounting holes

  • Operating temperature: -25°C to +70°C

  • Weight: Approximately 300g

  • Mounting: Pre-drilled standardized holes for flexible installation

  • Tolerance: Accommodates up to 30mm horizontal separation between frame plate and bolt unit

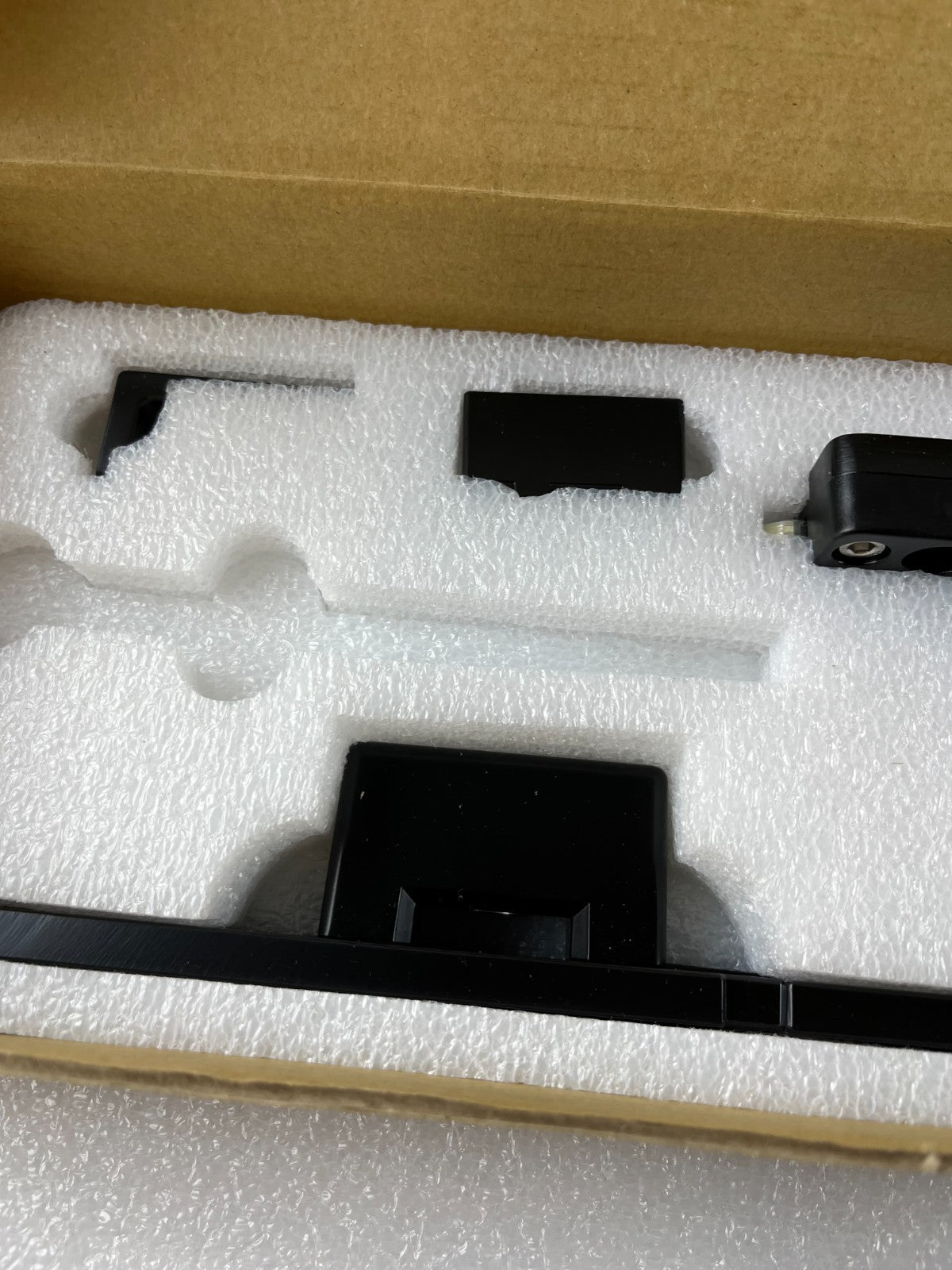

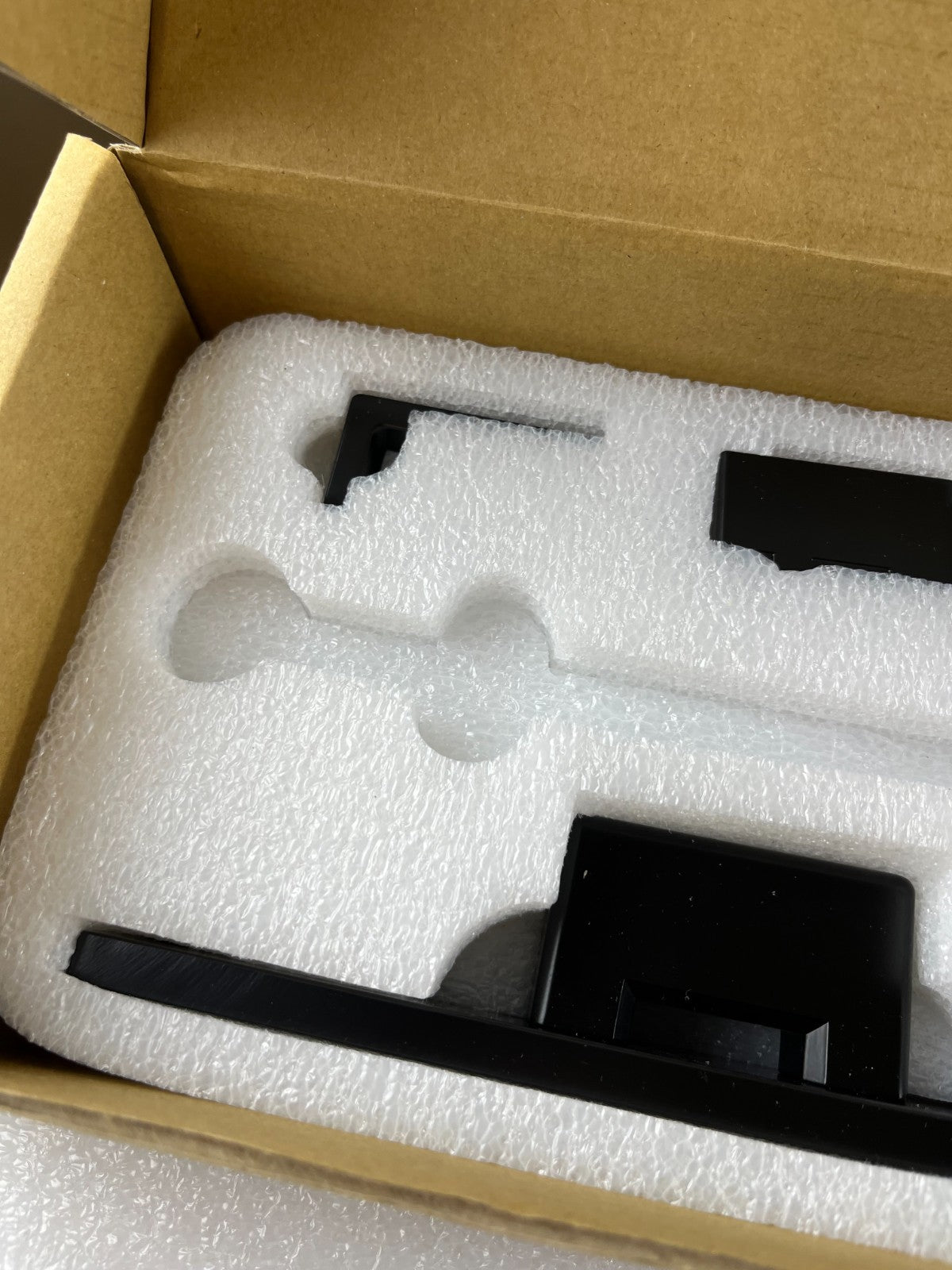

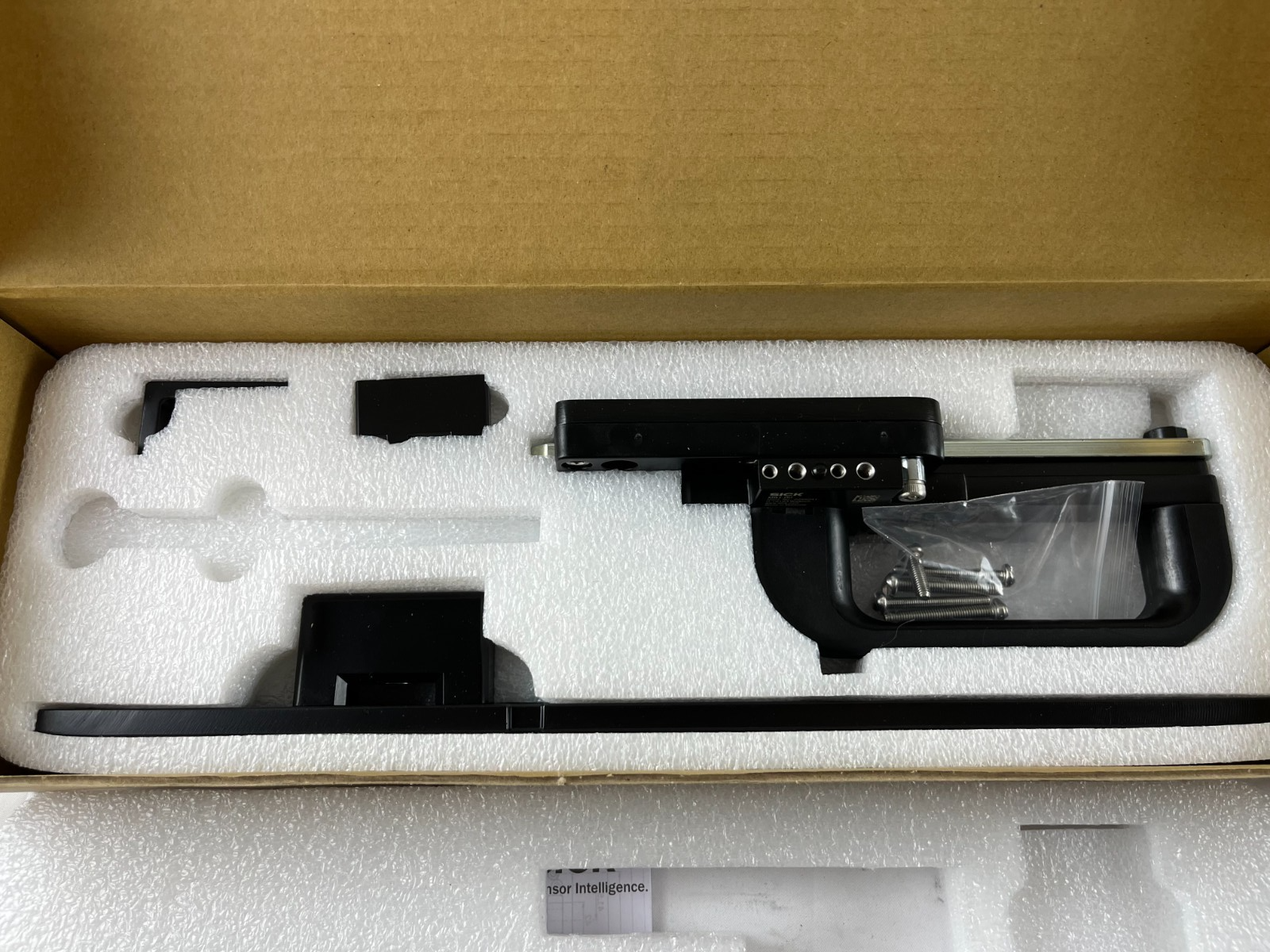

• Components Included

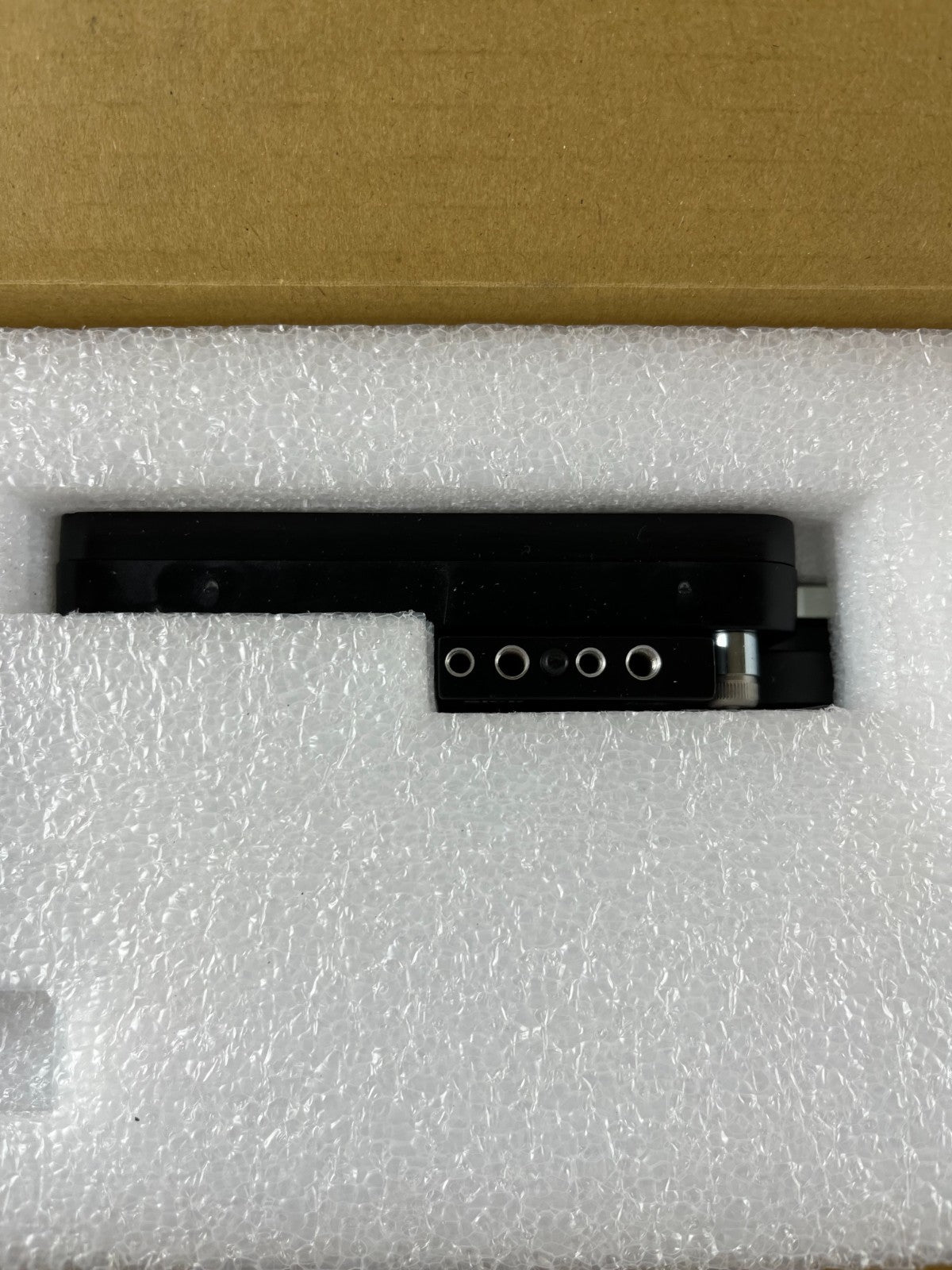

  • Long frame plate for door/guard mounting

  • Adapters for actuator mounting (MB1-BRLK and MB1-BRNC)

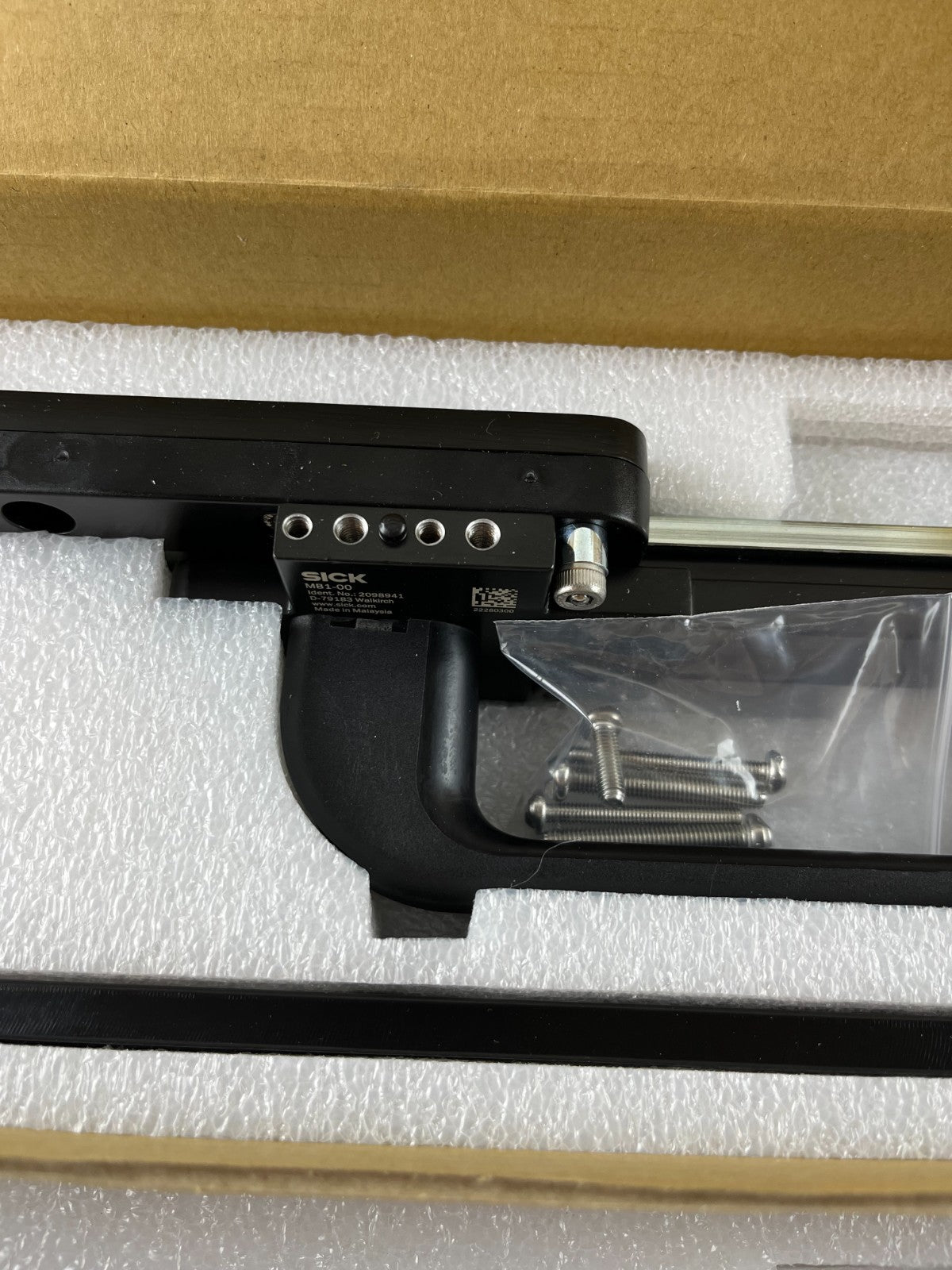

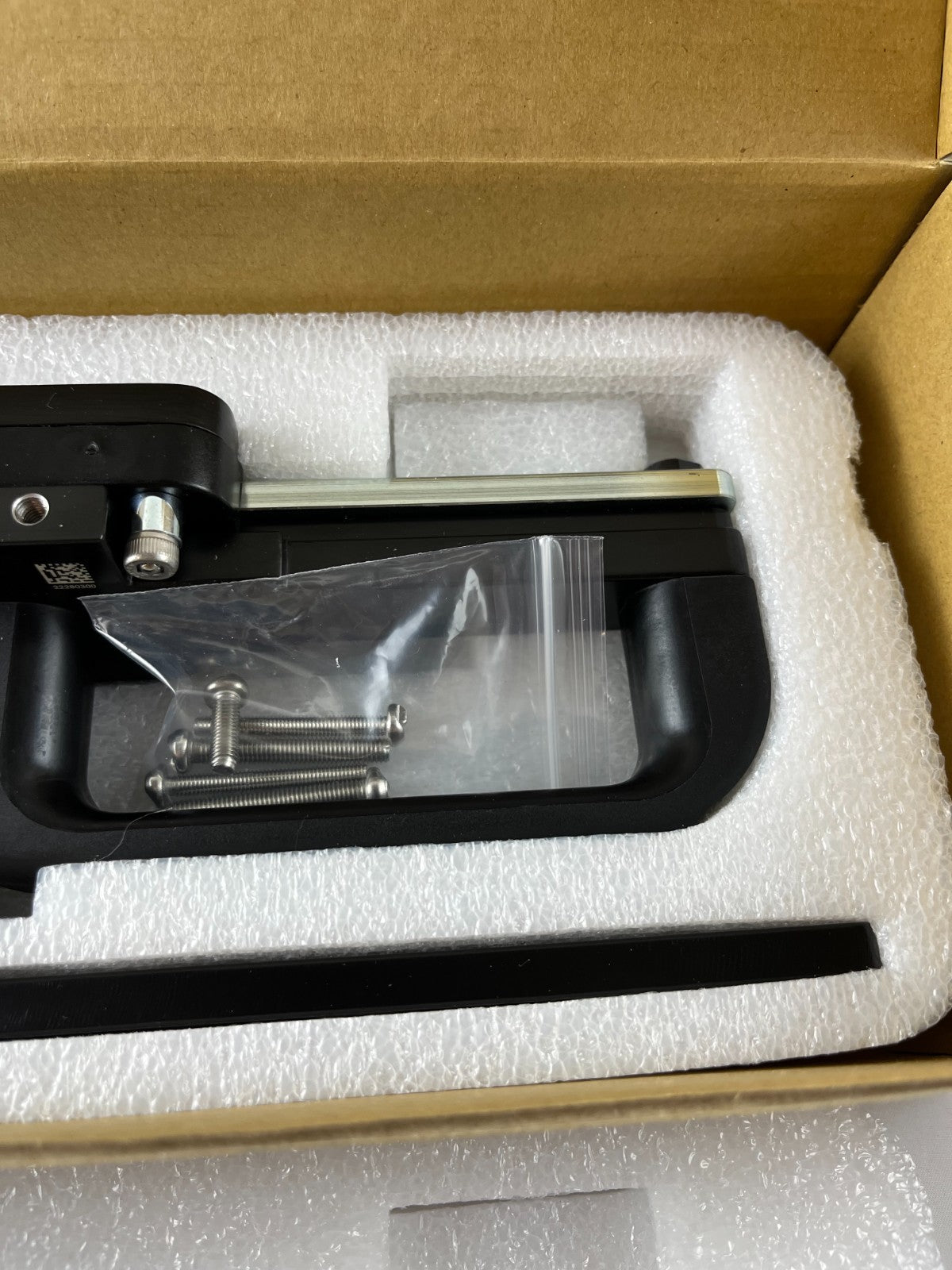

  • Safety screws for secure installation of adapters

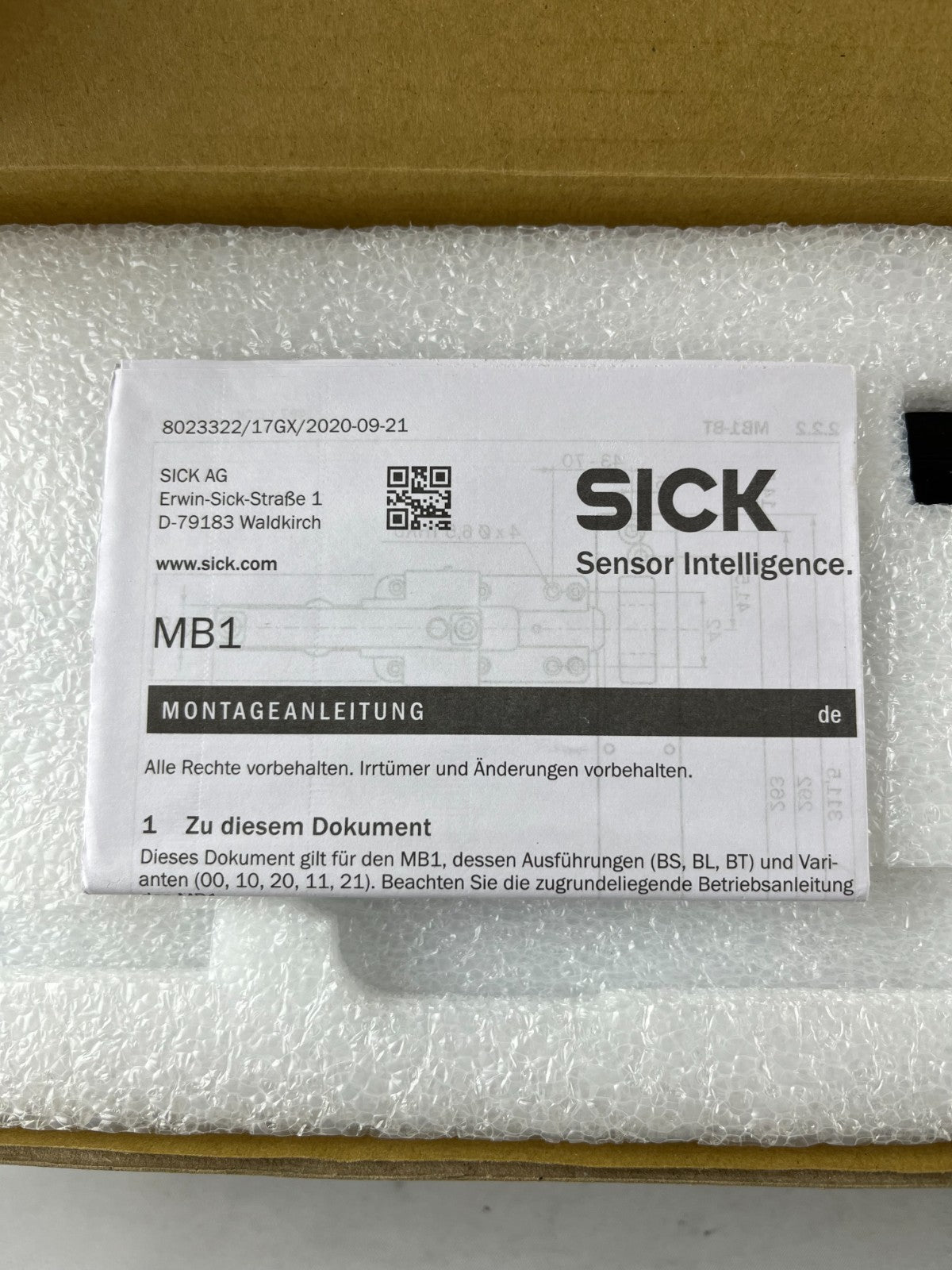

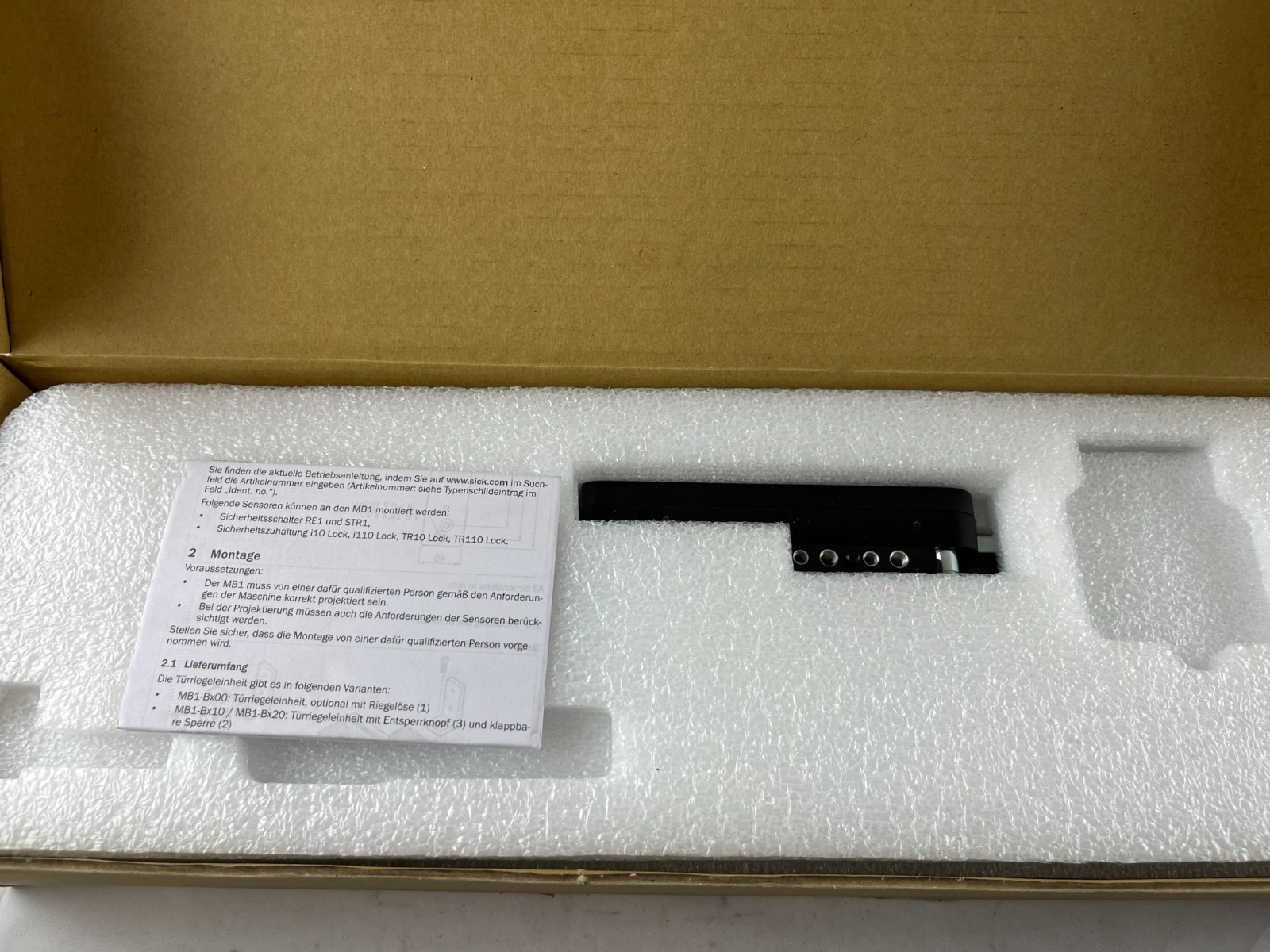

  • Complete installation manual in German (MONTAGEANLEITUNG)

  • Operating instruction document 8023330

• Compatible Devices

  • SICK i10 Lock safety interlocks (with iE10-S4 actuator)

  • SICK i110 Lock safety interlocks (with iE15-S1 actuator)

  • SICK TR110 Lock safety interlocks (with TR110-XAS actuator)

  • Works with electromagnetic and solenoid-actuated safety locks

• Features & Applications

  • Provides precise actuator guidance for consistent operation

  • Robust metal construction for industrial environments

  • Simplified installation with pre-drilled mounting patterns

  • Compensates for door misalignment and tolerance variations

  • Ideal for hinged or sliding protective guard doors

  • Suitable for robotic cells, press guards, automated machinery access points

  • Designed for high-durability applications with frequent door cycling

• Additional Information

  • Complete documentation package included

  • All mounting hardware and adapters provided

  • Complies with EN ISO 13849 and IEC 60947-5-3 standards

  • Black powder-coated finish for corrosion resistance

  • Can be mounted on flat surfaces or with spacers for offset installation

  • Factory-sealed packaging ensures all components intact
