SICK MZT1-03VPS-KP0 Cylinder Sensor NEW Magnetic T-Slot PNP 10-30VDC M8

SICK MZT1-03VPS-KP0 magnetic cylinder sensor, brand new sealed in factory packaging with 0.3m PUR cable and M8 3-pin connector. This compact 30.5mm T-slot sensor features 2.8mT magnetic field sensitivity, PNP normally-open output, 5kHz switching frequency, LED status indicator, and IP67 protection for reliable pneumatic cylinder piston position detection in automated manufacturing, packaging, material handling, and assembly systems. Perfect for pneumatic system builders, automation integrators, or maintenance departments needing reliable German-engineered SICK cylinder sensors for industrial automation projects.

What's Included

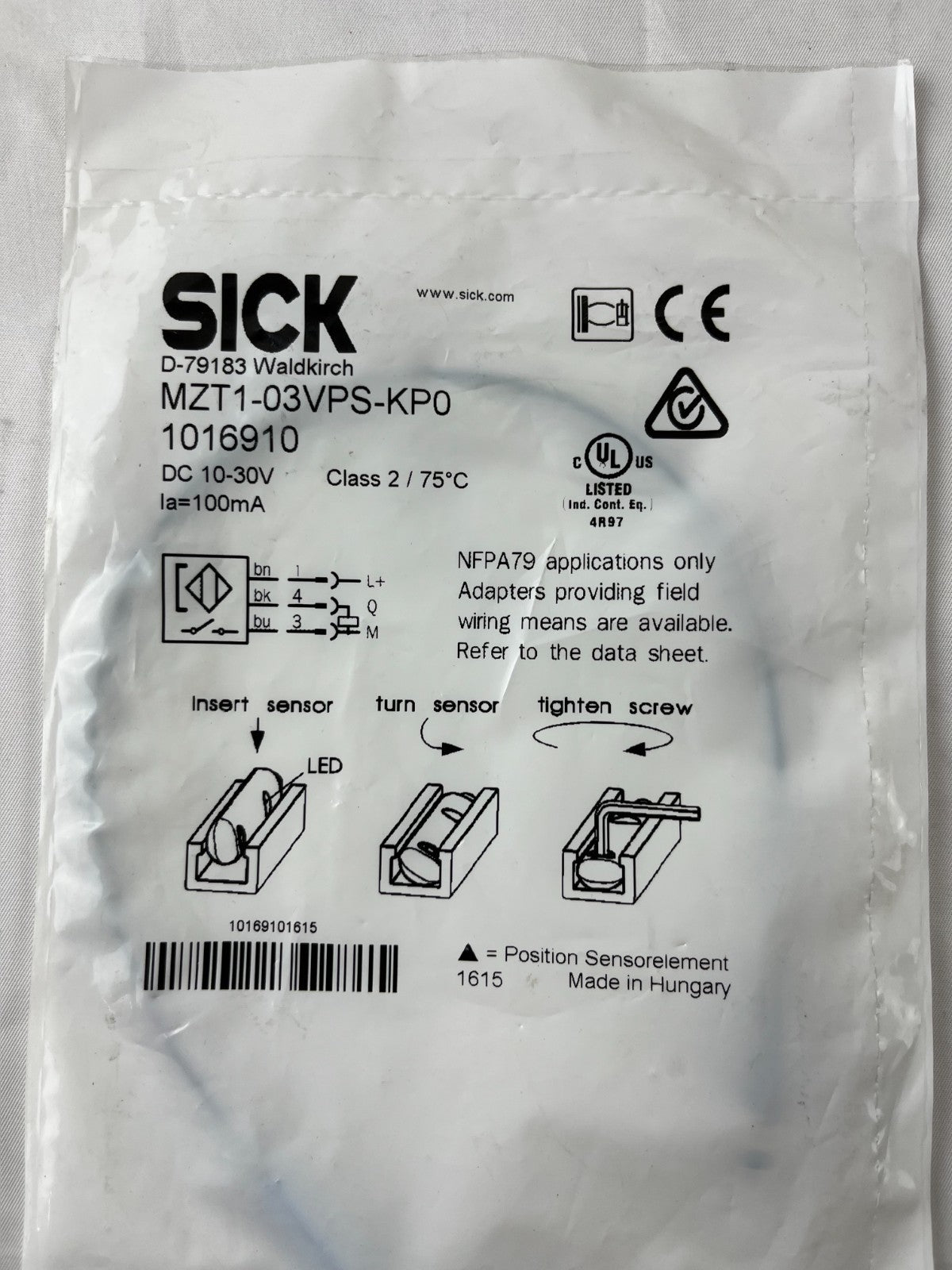

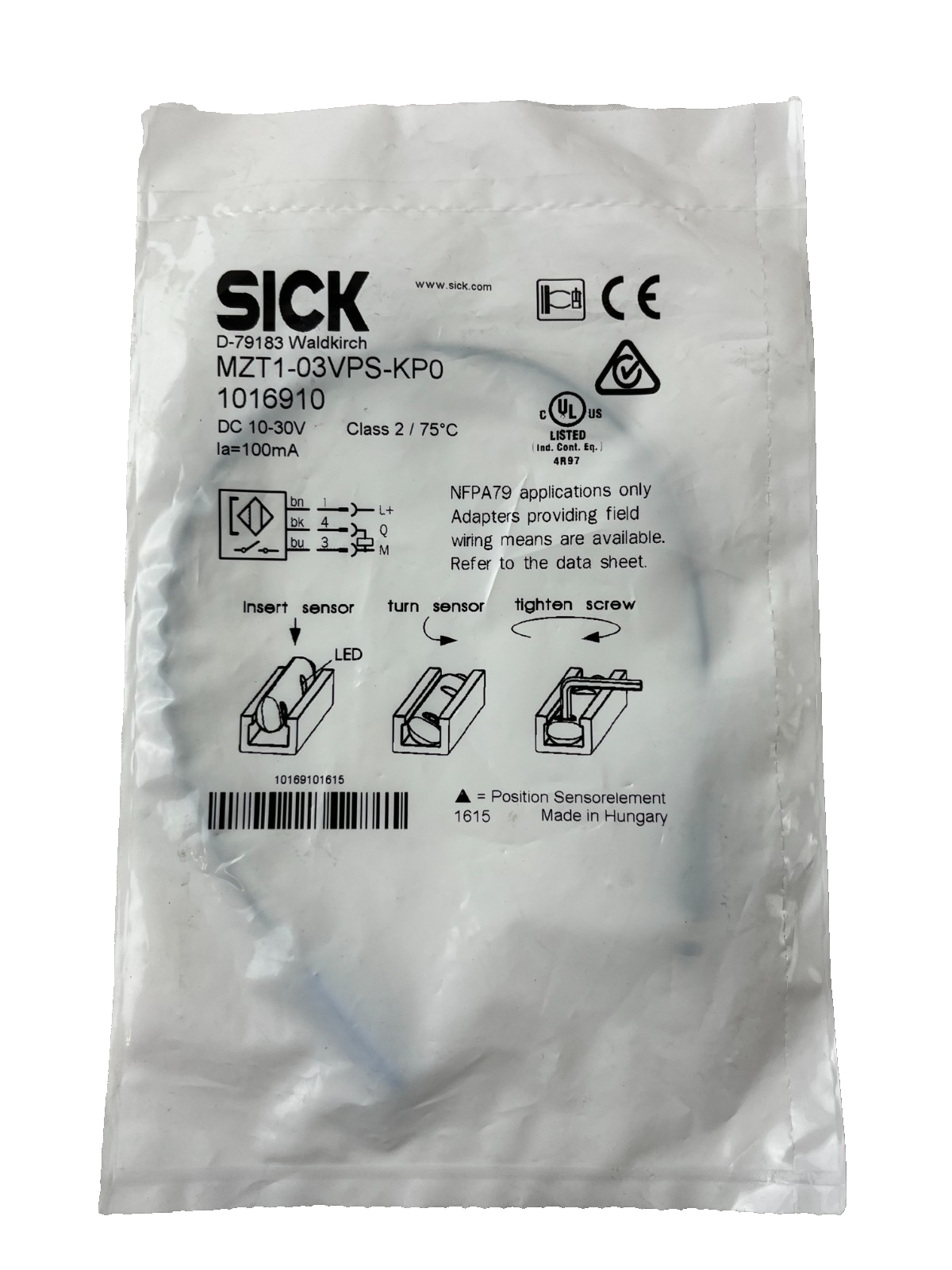

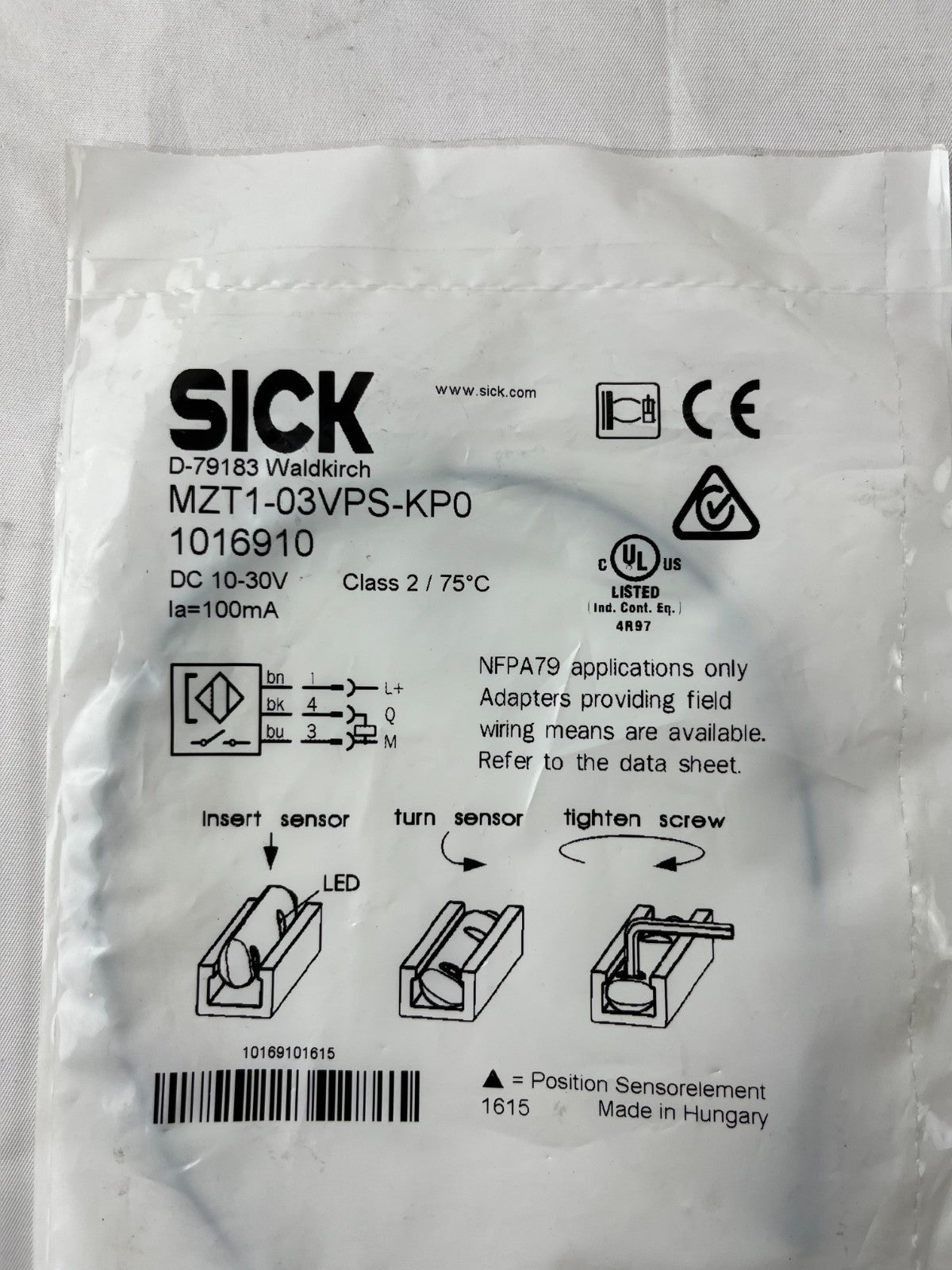

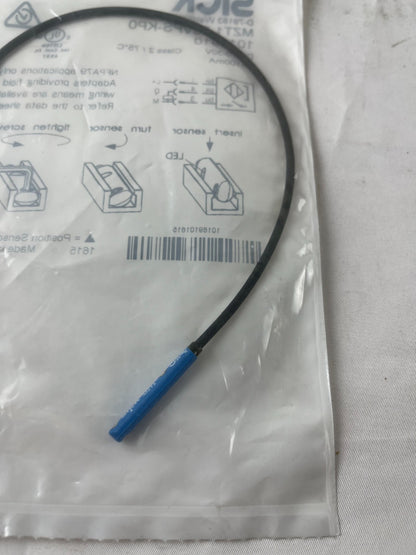

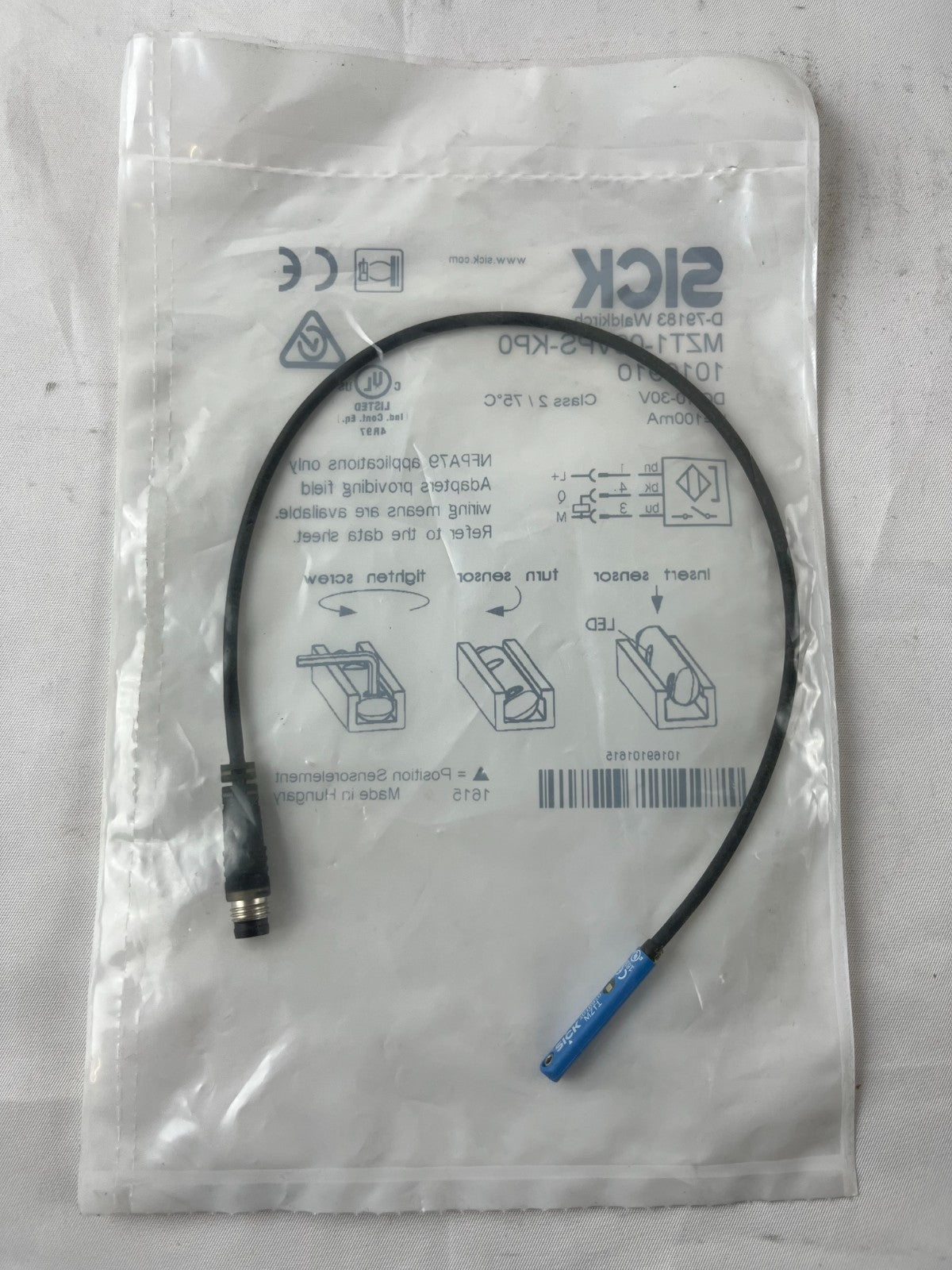

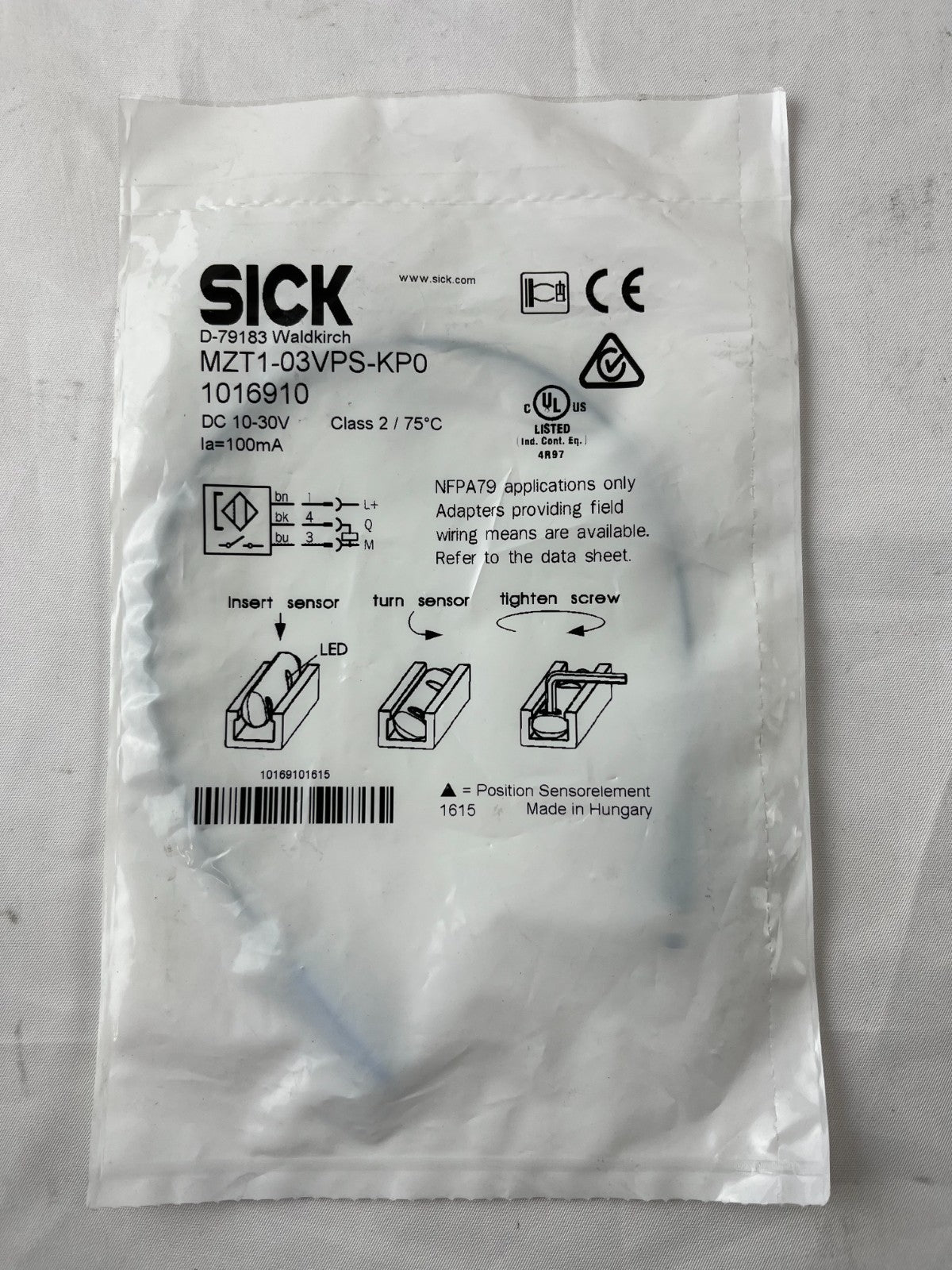

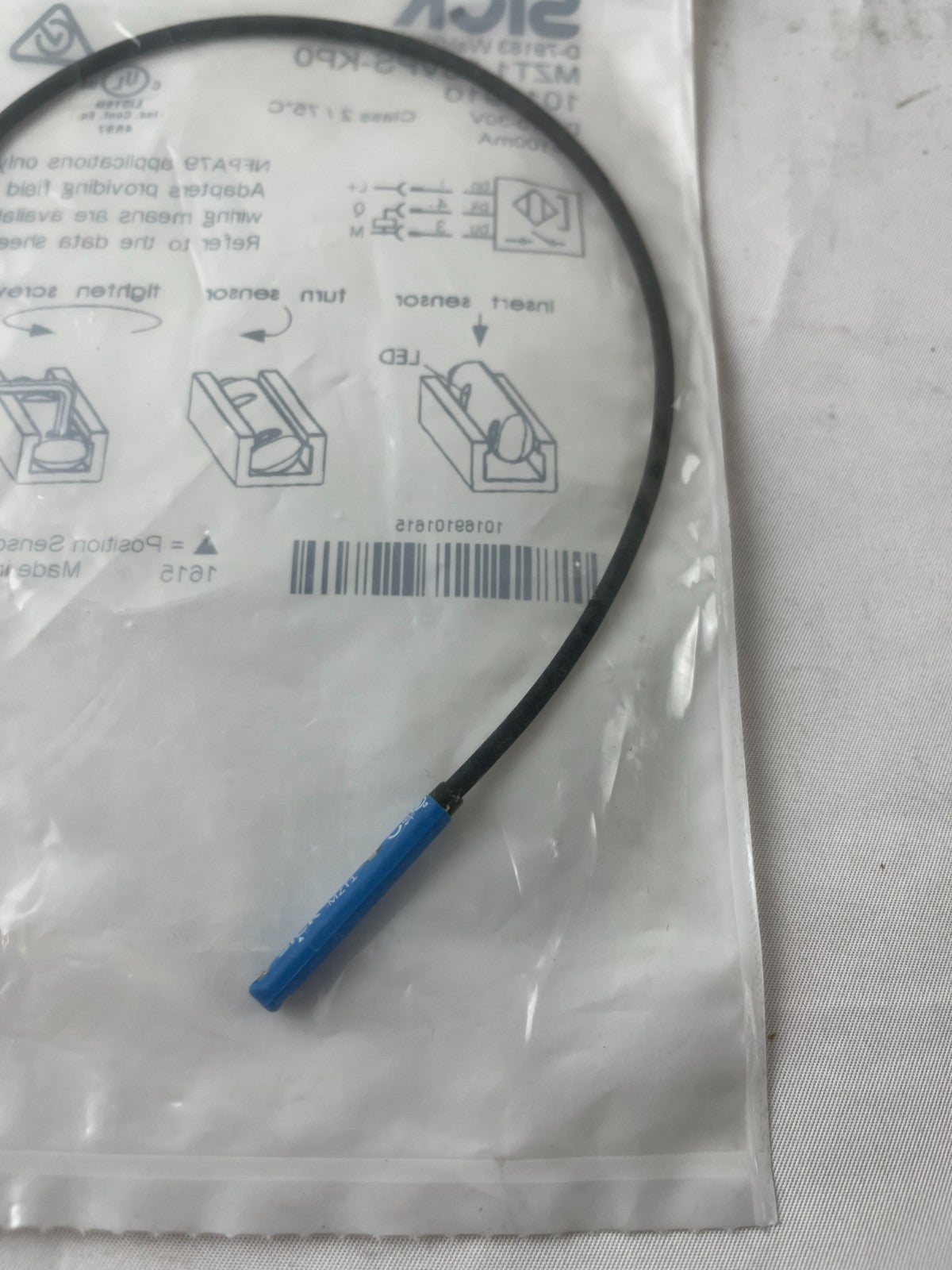

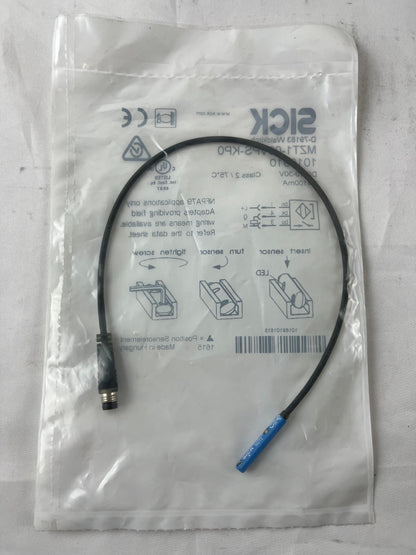

• 1x SICK MZT1-03VPS-KP0 magnetic cylinder sensor (sealed in original packaging)

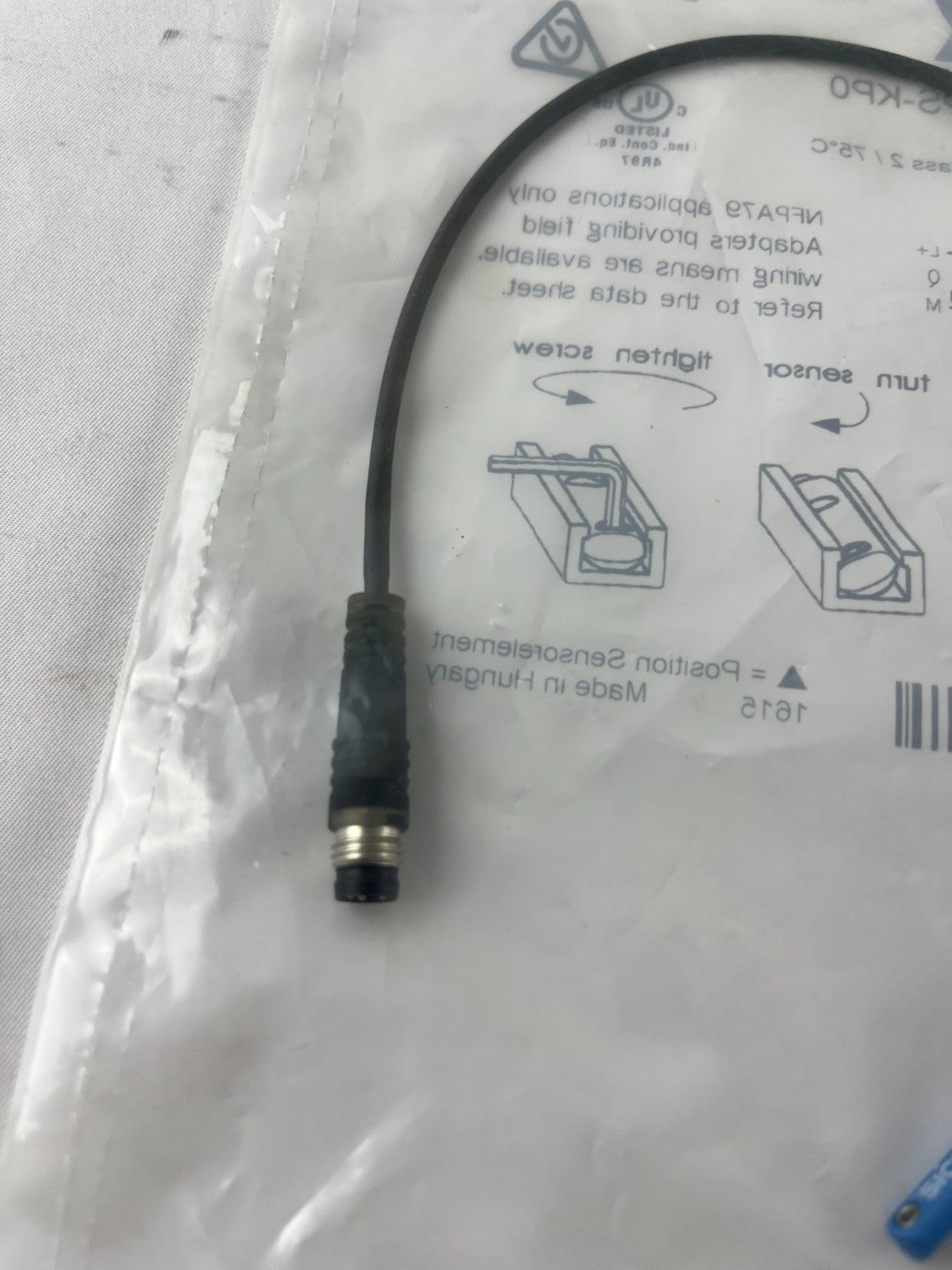

• 0.3m PUR cable with M8 3-pin connector pre-attached

• Installation guide visible on packaging

• Factory-sealed condition with all markings intact

• Part number 1016910

• Made in Hungary

• UL Listed, CE marked

SICK MZT1-03VPS-KP0 Cylinder Sensor Specifications

• Manufacturer: SICK AG, Waldkirch, Germany

• Series: MZT1 magnetic cylinder sensors

• Part number: MZT1-03VPS-KP0 (1016910)

• Sensing principle: Magnetic field detection

• Cylinder type: T-slot mounting

• Compatible cylinders: Profile cylinder, tie rod cylinder, dovetail groove cylinder, round body cylinder, SMC rail CDQ2, SMC rail ECDQ2

• Housing length: 30.5mm

• Housing material: Plastic

• Thread size: M8

• Response sensitivity (typ.): ≤2.8 mT

• Overrun distance (typ.): 9mm

• Hysteresis (typ.): ≤0.5 mT

• Repeatability: ≤0.1 mT (at constant voltage and temperature)

• Switching output: PNP

• Output function: NO (normally open)

• Electrical wiring: DC 3-wire

• Supply voltage: 10-30 VDC

• Power consumption: ≤10mA without load

• Voltage drop: ≤2V at max. current

• Continuous output current (Ia): ≤100mA

• Switching frequency: 5,000 Hz (5kHz)

• Protection class: III

• Enclosure rating: IP67

• Reverse polarity protection: Yes

• Short-circuit protection: Yes

• Power-up pulse protection: Yes

• Status indicator: Yellow LED

• Cable: 0.3m PUR, 3-wire with M8 connector

• Conductor cross-section: 0.14mm²

• Operating temperature: -25°C to +75°C

• Shock resistance: 30g, 11ms

• Vibration resistance: 10-55 Hz, 1mm

• EMC: According to EN 60947-5-2

• Certifications: UL Listed, CE marked, Class 2/75°C, NFPA79 compliant

• MTTFD: 3,258 years

Condition Notes

Brand new, never used, factory sealed in original SICK packaging. Sensor remains in unopened condition with intact seal, installation guide, and all labeling. Perfect new-in-package condition for demanding pneumatic automation applications.

Applications

Essential for pneumatic cylinder position detection in automated manufacturing, packaging machinery, material handling systems, assembly automation, and robotics. Magnetic sensing technology provides reliable, wear-free position feedback for pneumatic cylinders with T-slot profiles. Compact 30.5mm housing fits tight spaces. High 5kHz switching frequency enables fast piston detection.
