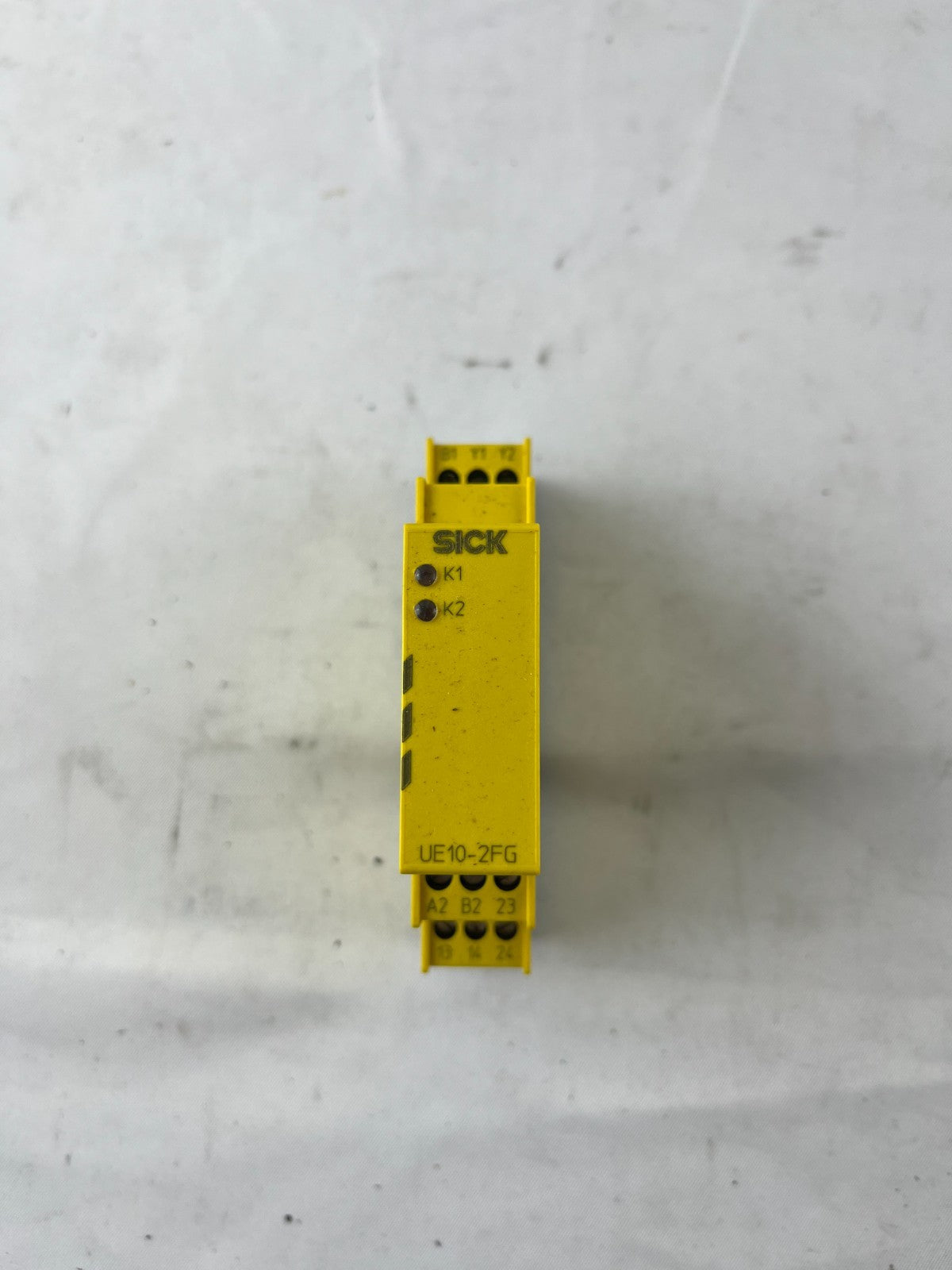

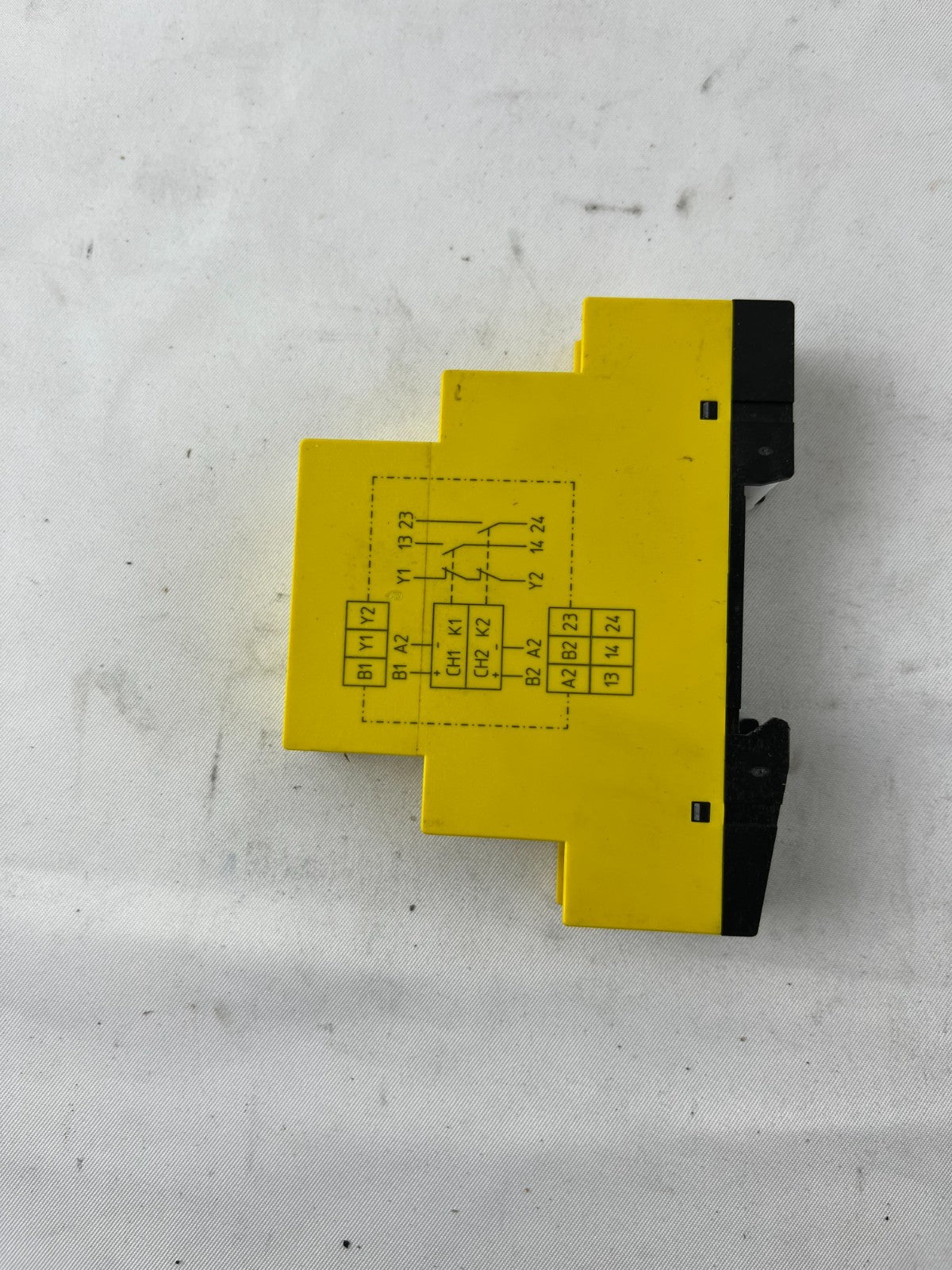

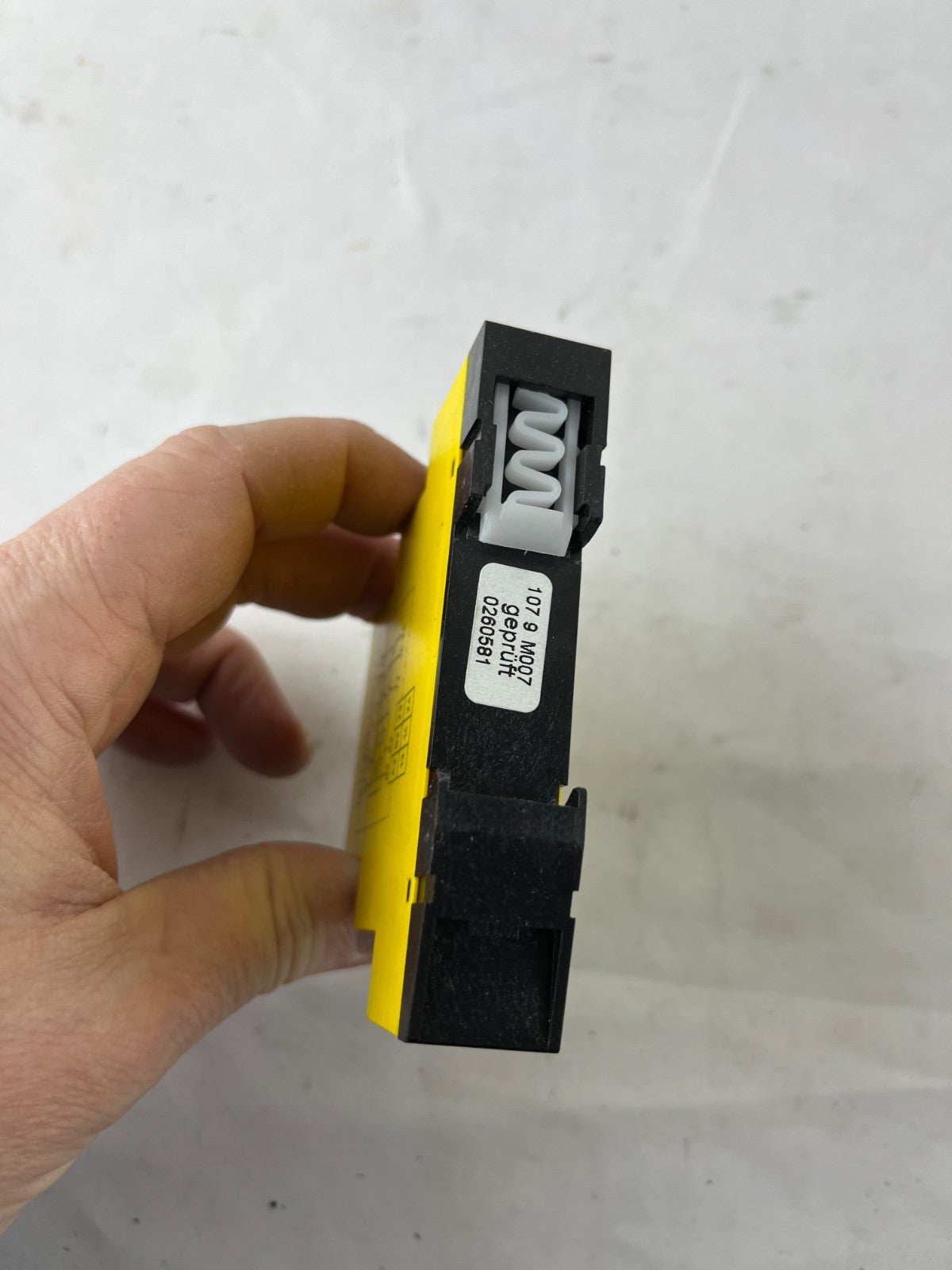

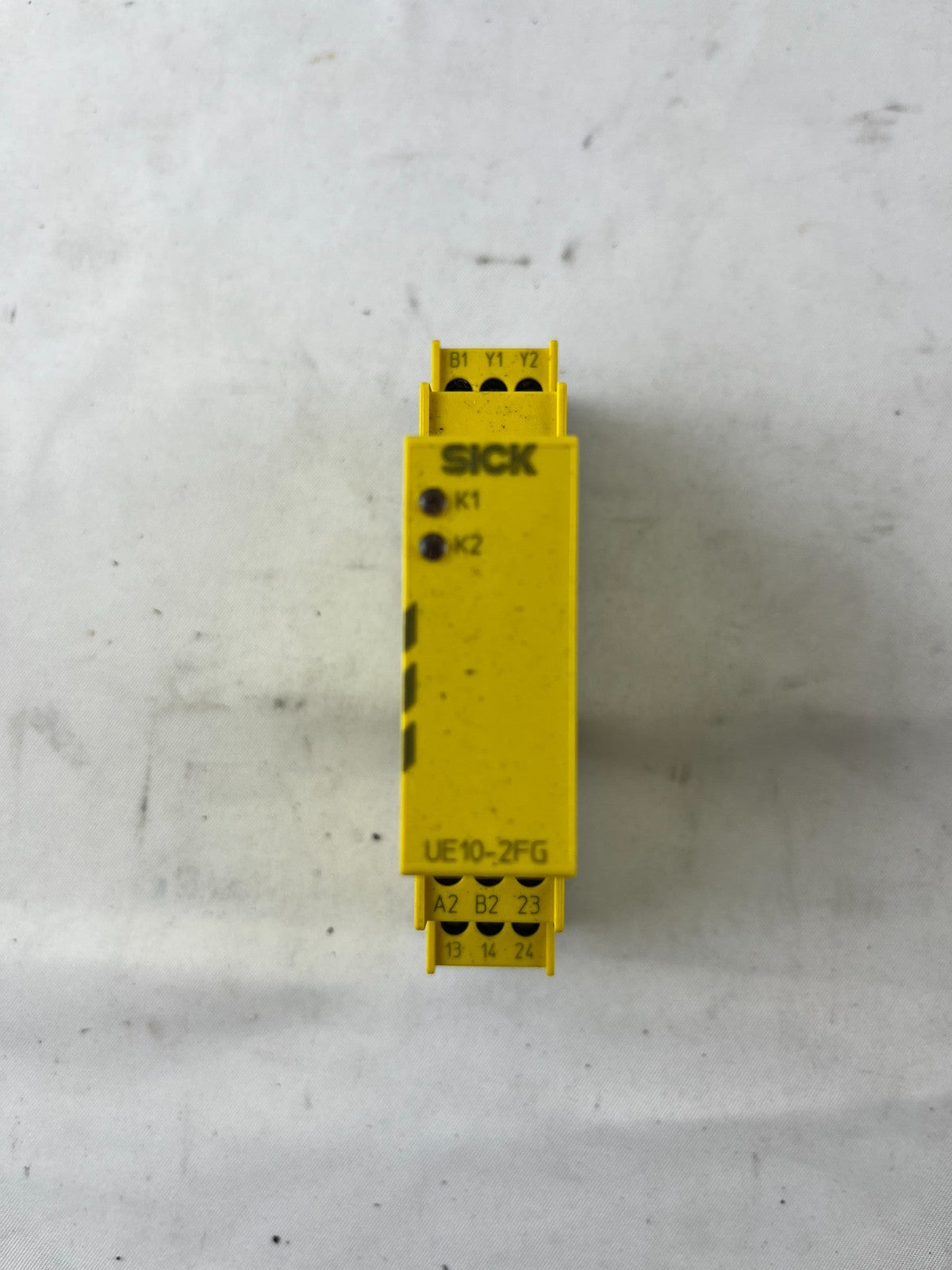

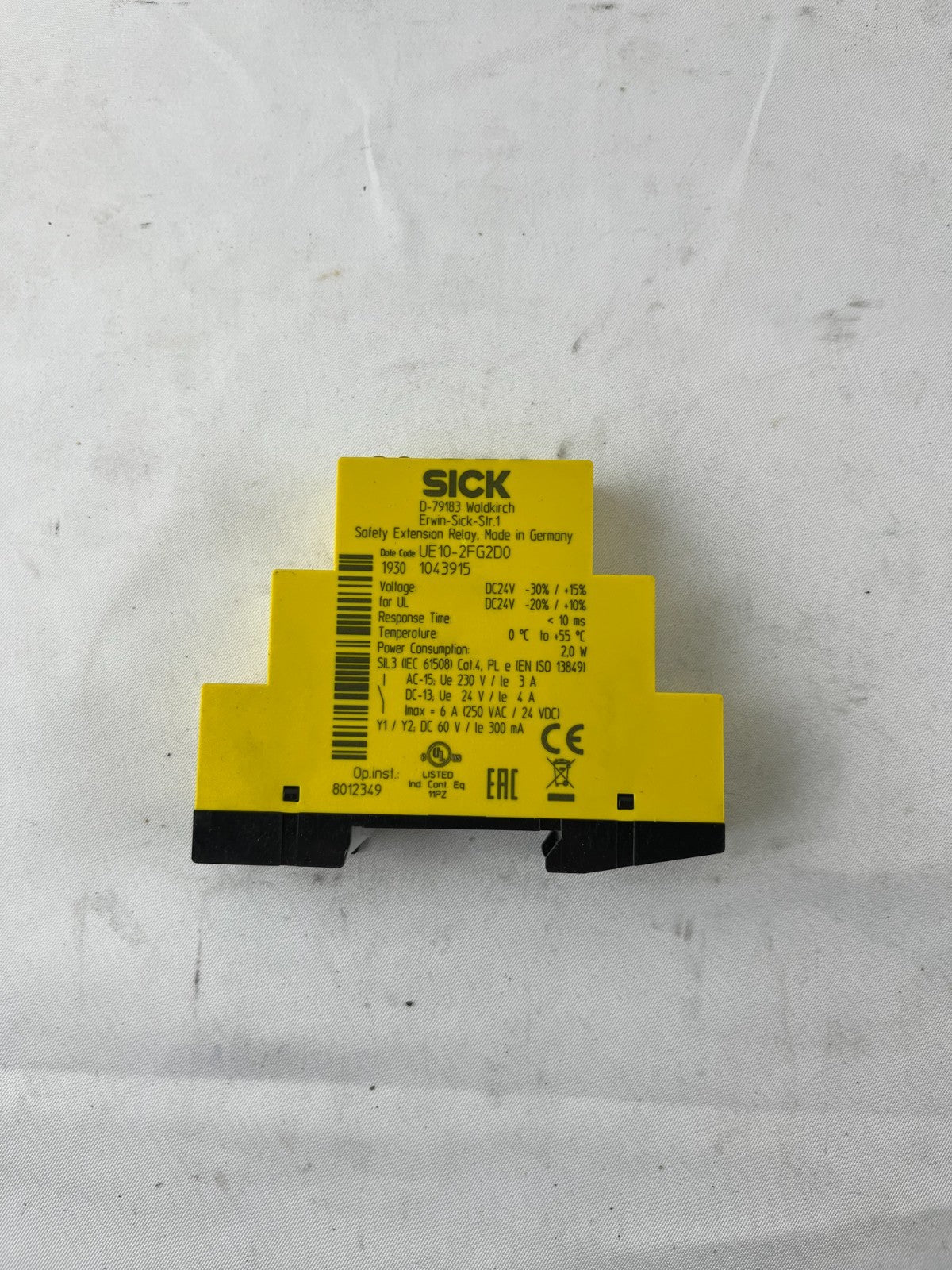

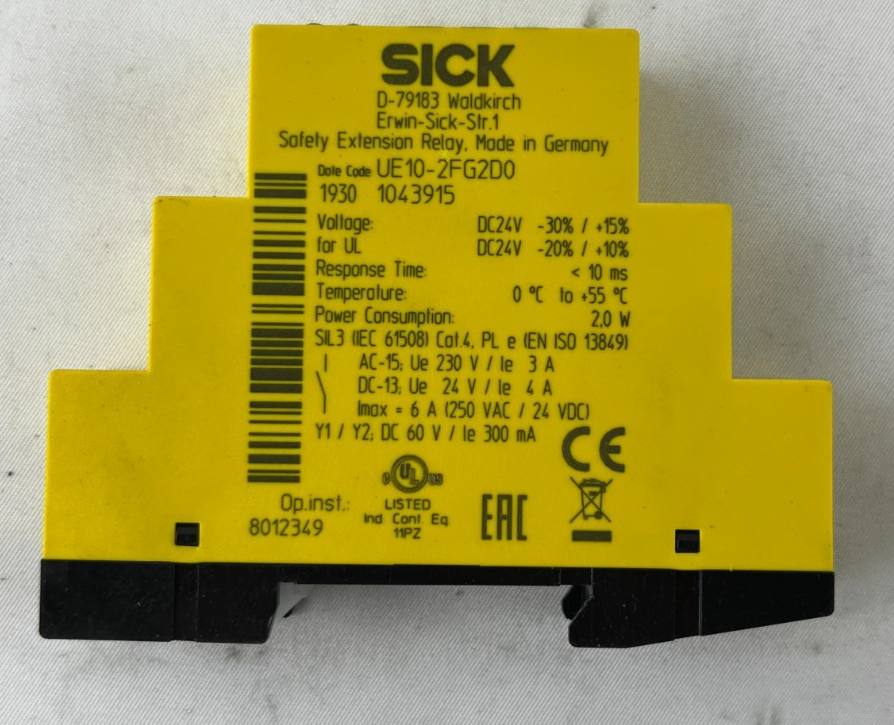

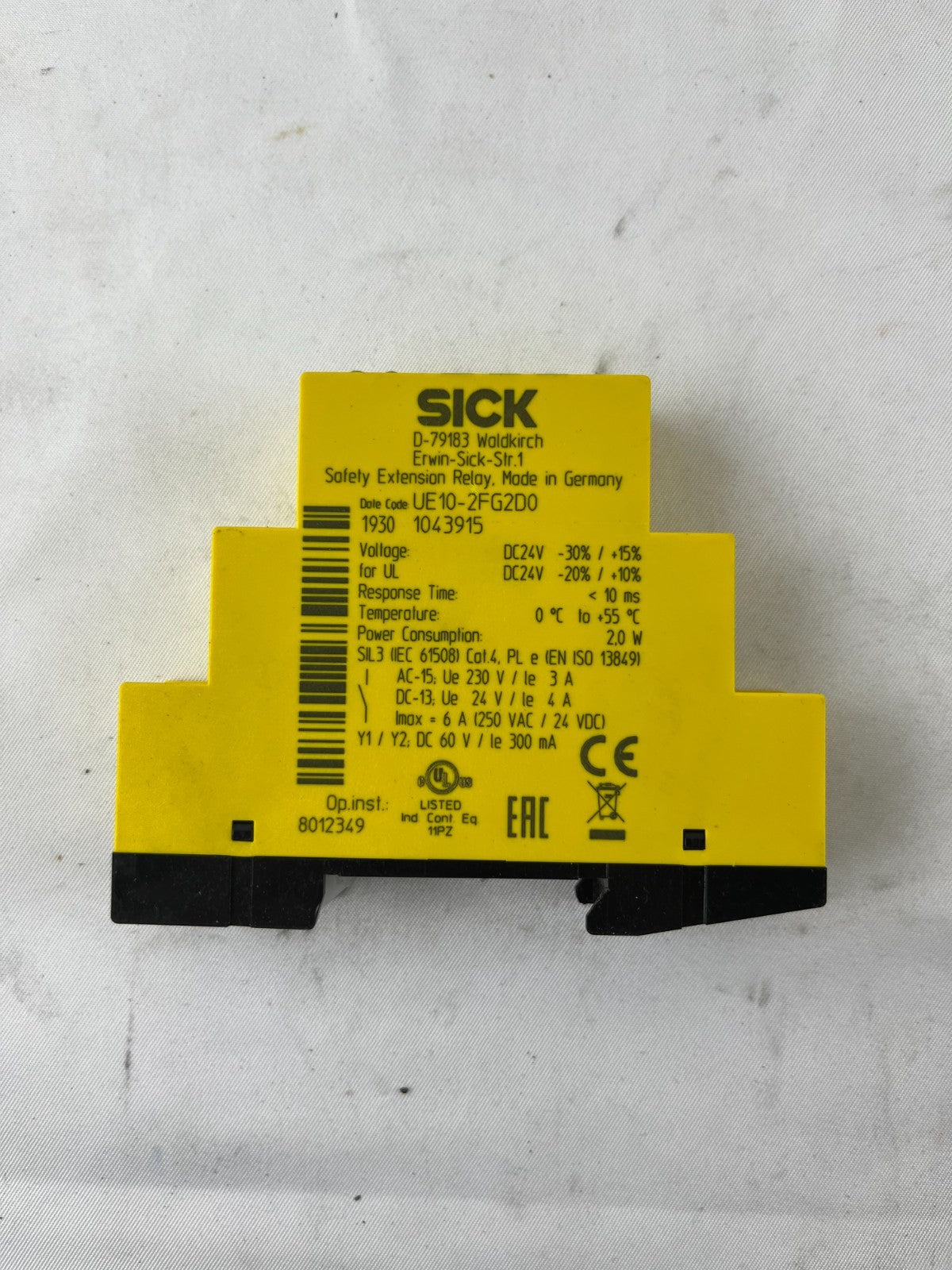

SICK UE10-2FG2D0 Safety Extension Relay 24VDC 6A SIL3 Cat4 PLe 1043915

Brand & Model

• • • • Manufacturer: SICK AG, Germany

      • Model: UE10-2FG2D0

      • Part Number: 1043915

      • Condition: New, never used, fully functional

    • Safety Certifications

      • Safety Integrity Level: SIL 3 (IEC 61508)

      • Category 4, Performance Level e (EN ISO 13849)

      • UL Listed, CE marked, EAC certified

    • Technical Specifications

      • Operating voltage: 24 V DC, typical range 16.8–27.6 V

      • Voltage tolerance: approximately -30% / +15% (for UL: around -20% / +10%)

      • Max switching current: 6 A on the safety outputs, 300 mA on the feedback path

      • Response time: under 10 ms

      • Power consumption: about 2 W

      • Operating temperature: 0 °C to +55 °C

    • Features & Applications

      • Safety extension relay with 2 normally-open enabling safety contacts

      • 1 feedback monitoring circuit for external device monitoring

      • Positively guided relay contacts for high diagnostic coverage

      • Slim DIN rail housing suitable for compact control panels

      • Suitable for use with safety light curtains, emergency stop circuits, and other machine safety functions

    • Additional Information

      • Mechanical life rated in the millions of switching cycles

      • Lightweight compact module for easy integration in industrial control cabinets

      • Made in Germany, intended for demanding industrial and automation environments
