Siemens 3RU1126‑4DB0 SIRIUS Thermal Overload Relay 20–25A Class 10 for S0 New

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

Siemens SIRIUS 3RU1126‑4DB0 thermal overload relay, adjustable 20–25A Class 10, new and never used in the original Siemens packaging. This overload relay provides current‑dependent motor protection with phase‑loss sensitivity and is designed for direct mounting on S0 size Siemens contactors.

Item details

• Brand: Siemens​

• Family: SIRIUS 3RU11 thermal overload relays​

• Model: 3RU1126‑4DB0​

• Type: Thermal overload relay for motor protection​

• Frame size: S0

• Current adjustment range: 20–25A (front blue dial)​

• Tripping class: Class 10 (normal‑start applications)​

• Poles: 3‑pole main circuit (T1, T2, T3)​​

• Auxiliary contacts: 1 NC + 1 NO (95‑96 / 97‑98)​

• Reset modes: selectable manual (M) or automatic (A) reset​​

• Test function: TEST button for trip check​​

• Mounting: direct mounting on 3RT1023, 3RT1024, 3RT1025, 3RT1026 contactors or separate DIN‑rail/base mounting.​

• Terminals: screw terminals for main and auxiliary circuits​​

• Standards: IEC 60947‑4‑1 / VDE 0660 motor protection standards.

Condition

• New old stock; relay has not been wired or operated.

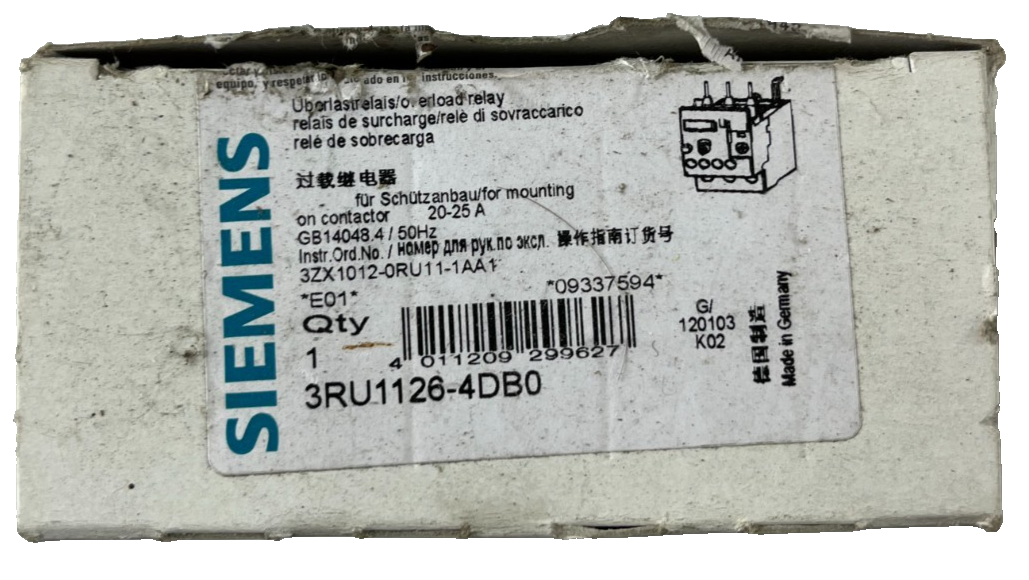

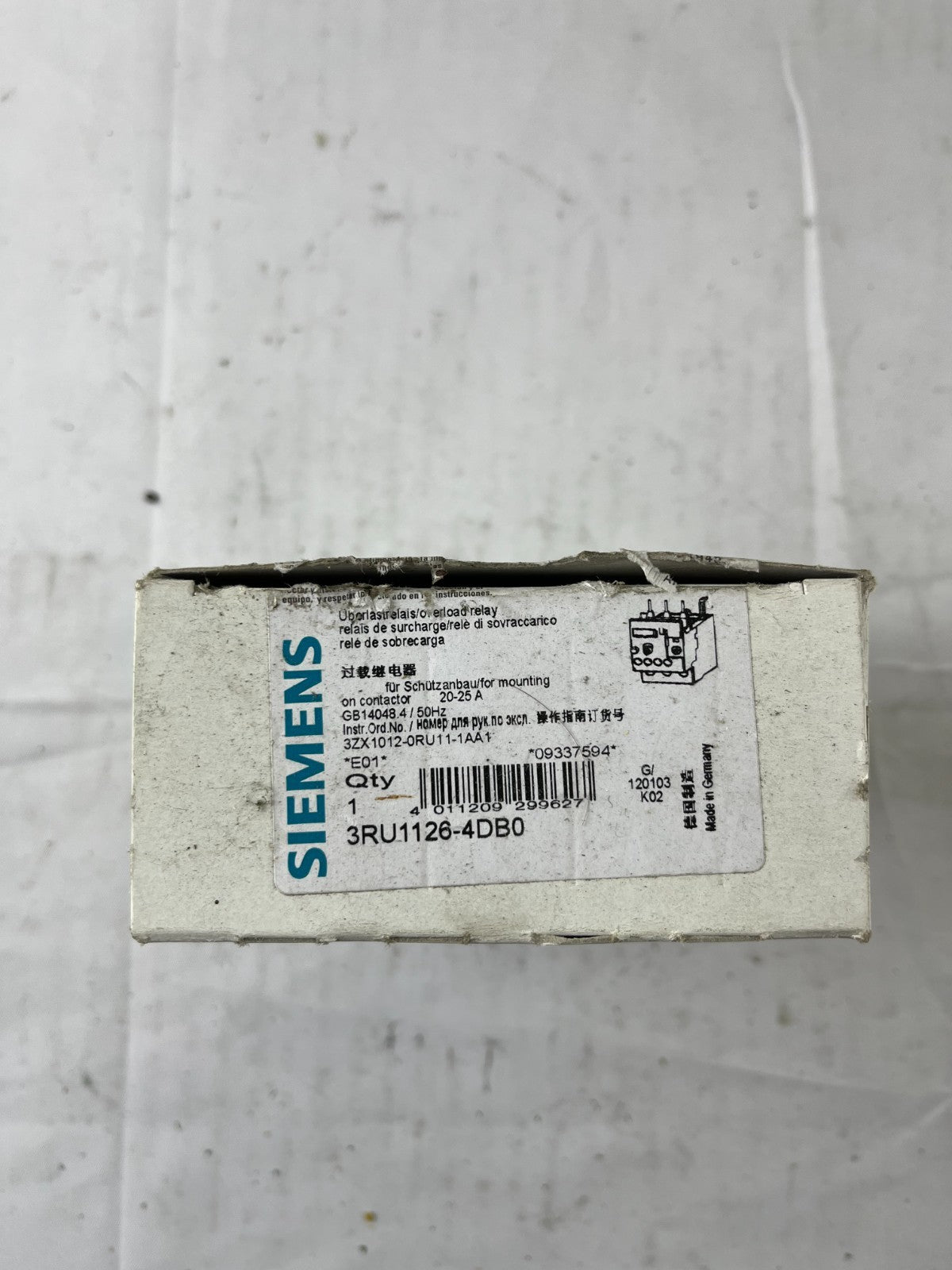

• Original Siemens cardboard box present; shows noticeable shelf wear, edge creasing and dirt but is intact.​

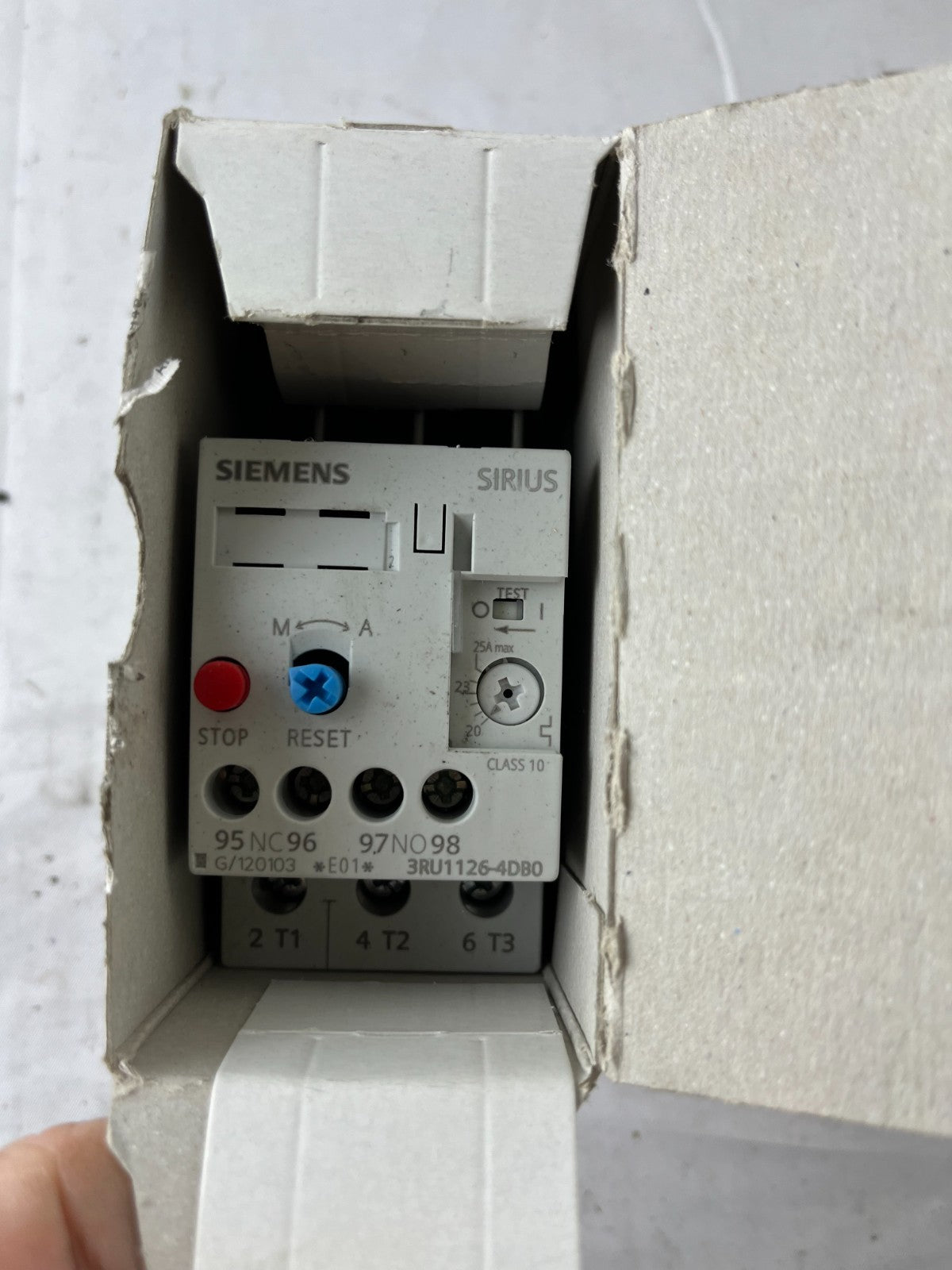

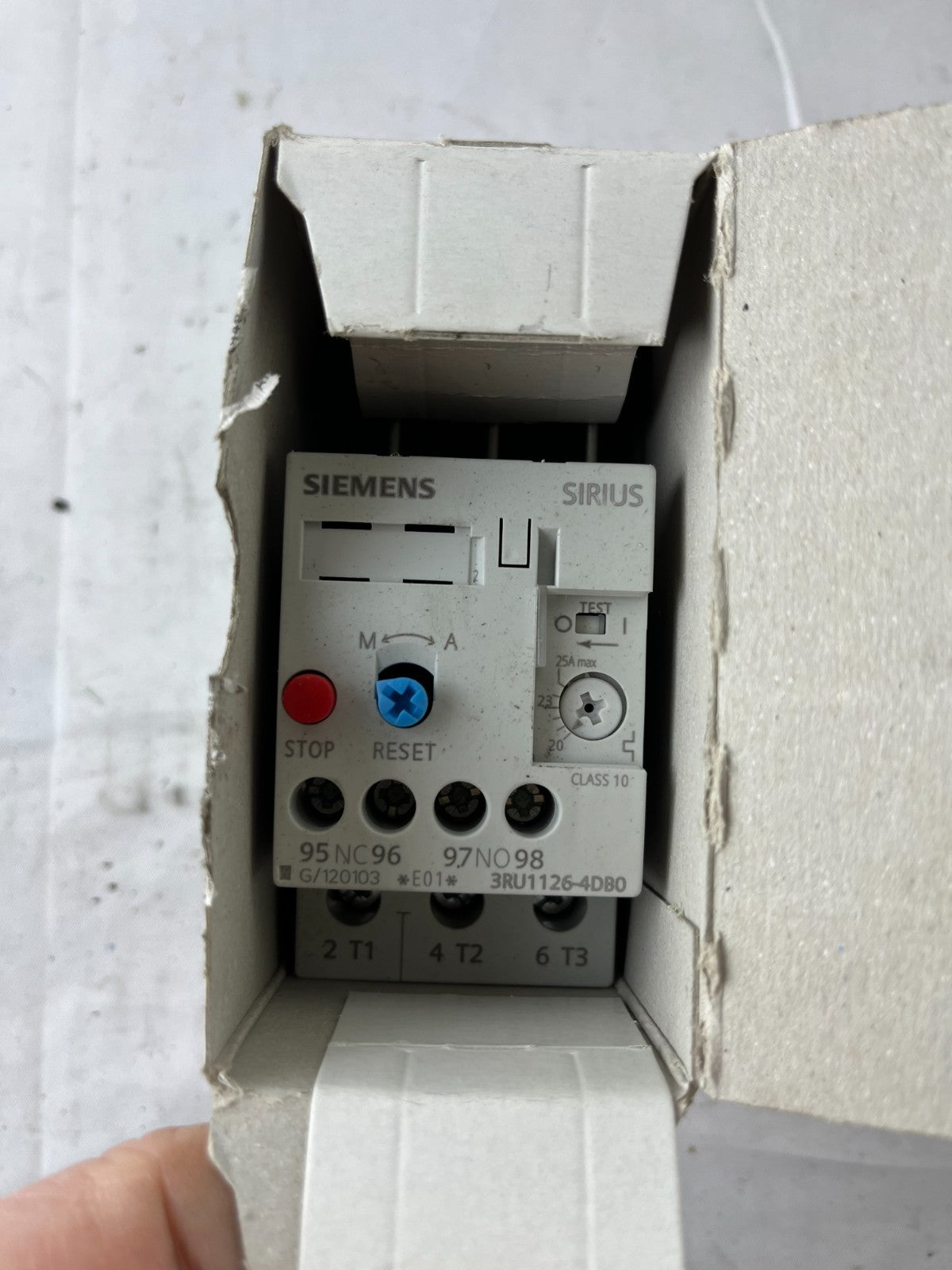

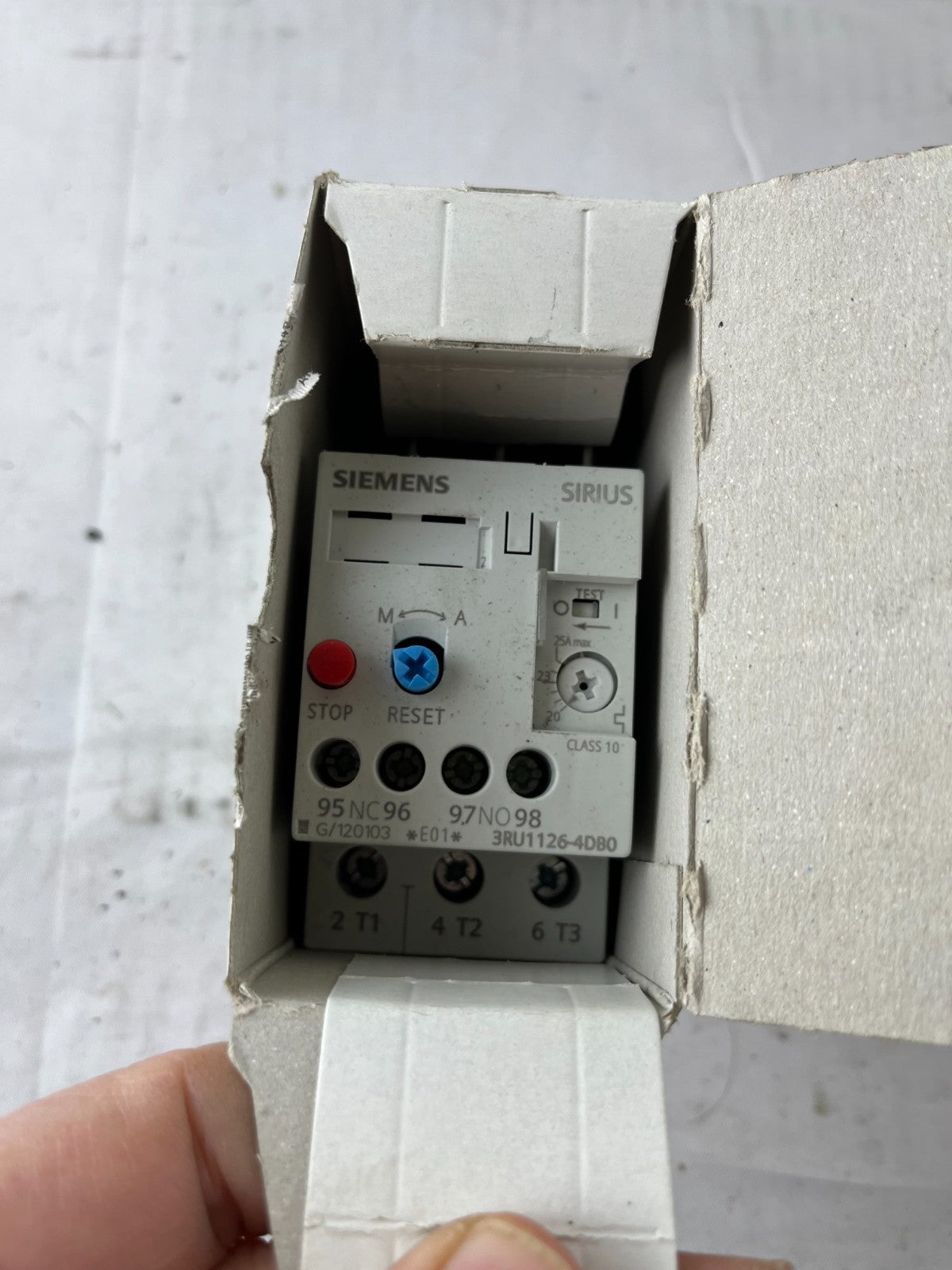

• Front housing, terminals and adjustment dial appear clean with sharp markings; device remains seated in factory packaging.​

Notes

• Intended for protecting motors with full‑load current between 20 and 25A; buyer should match setting to motor nameplate current and ensure proper coordination with upstream protection.​

• Part of the modular SIRIUS system; pairs with compatible S0 contactors to form a compact motor starter with integrated overload protection and auxiliary signalling.​
