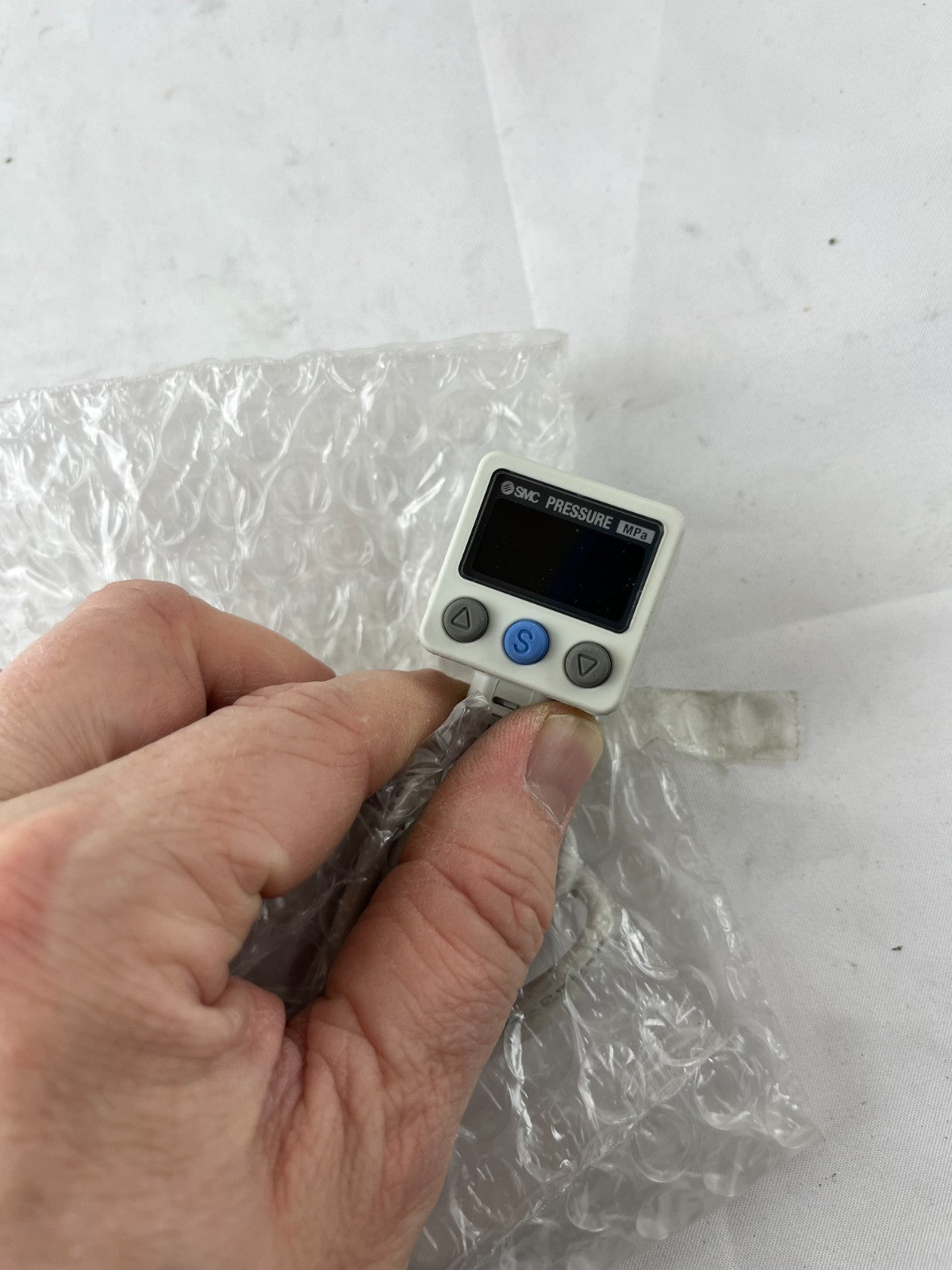

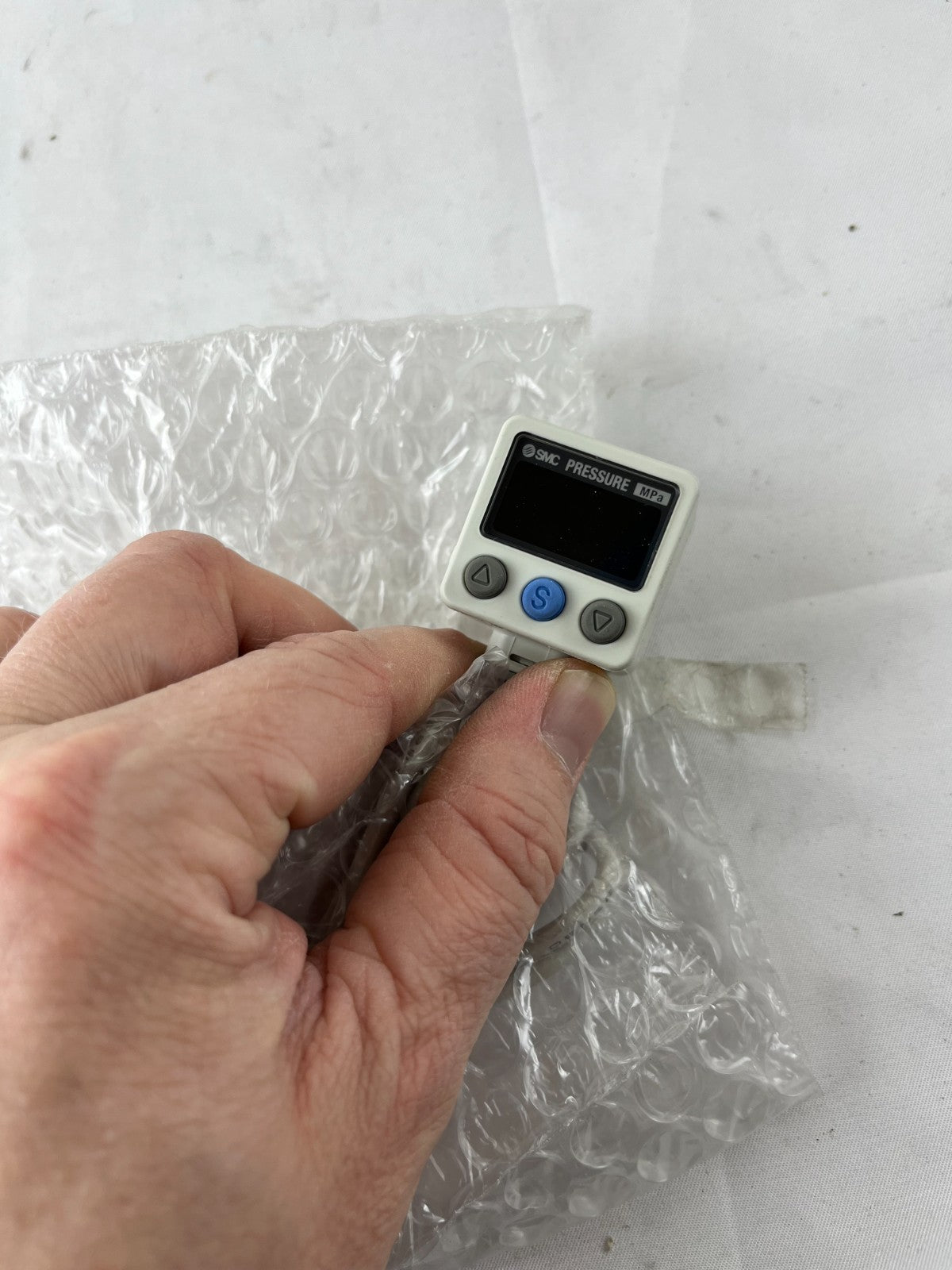

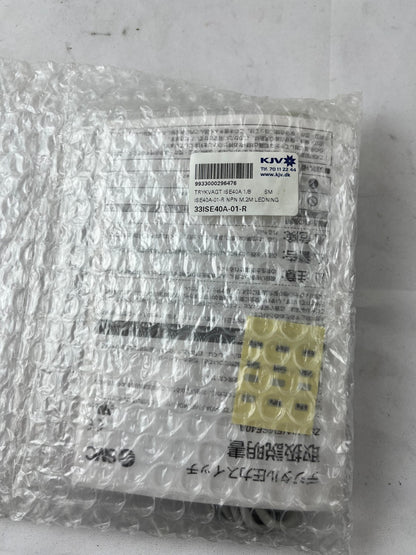

SMC ISE40A-01-R Digital Pressure Switch 1/8 BSPT 1MPa Analog Out NEW Japan

SMC ISE40A-01-R Digital Pressure Switch 1/8 BSPT 1MPa Analog Out NEW Japan

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• • Brand & Model

    • Manufacturer: SMC Corporation, Japan

    • Model: ISE40A-01-R

    • Series: ISE40A High-Precision Digital Pressure Switch

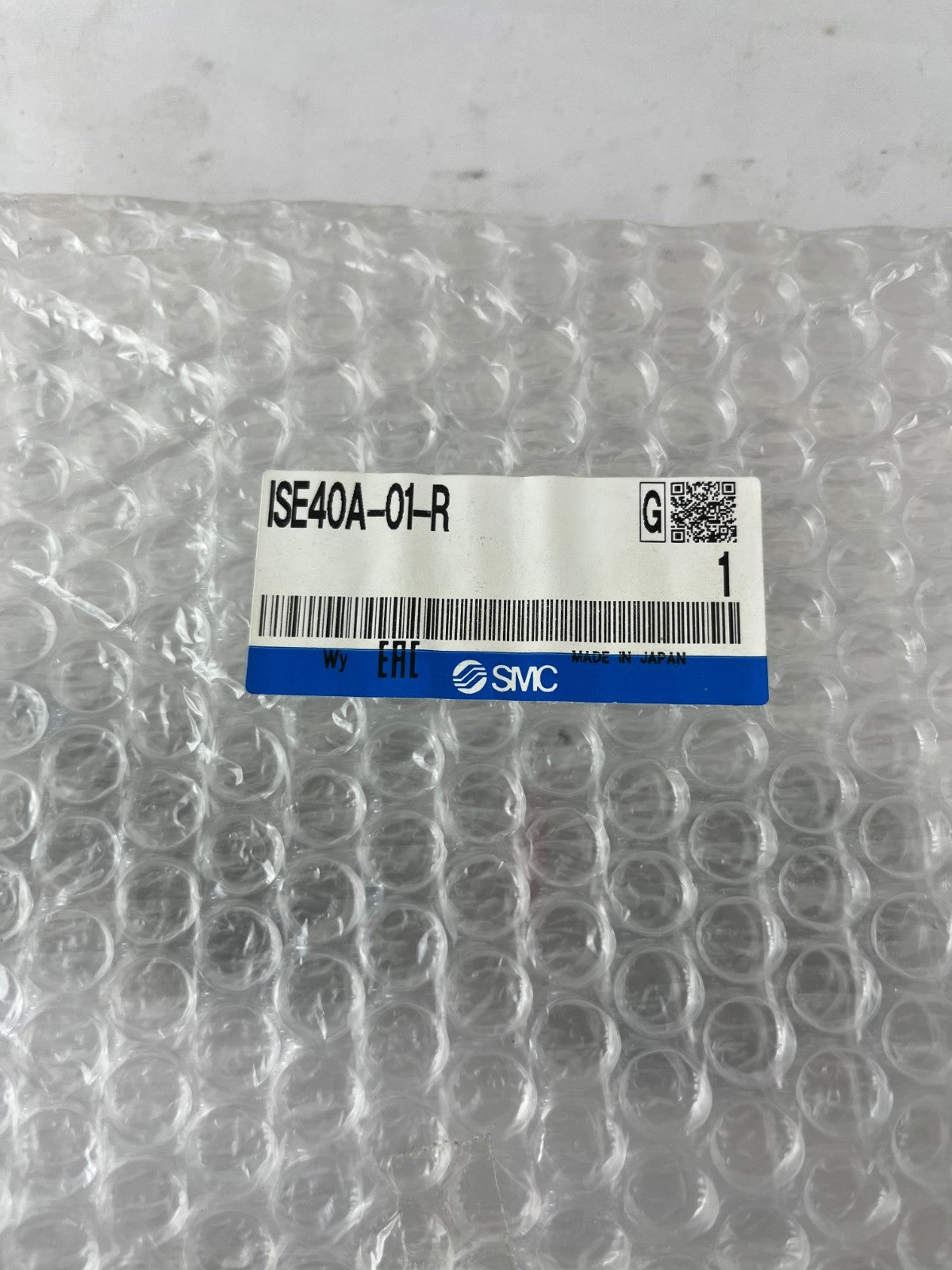

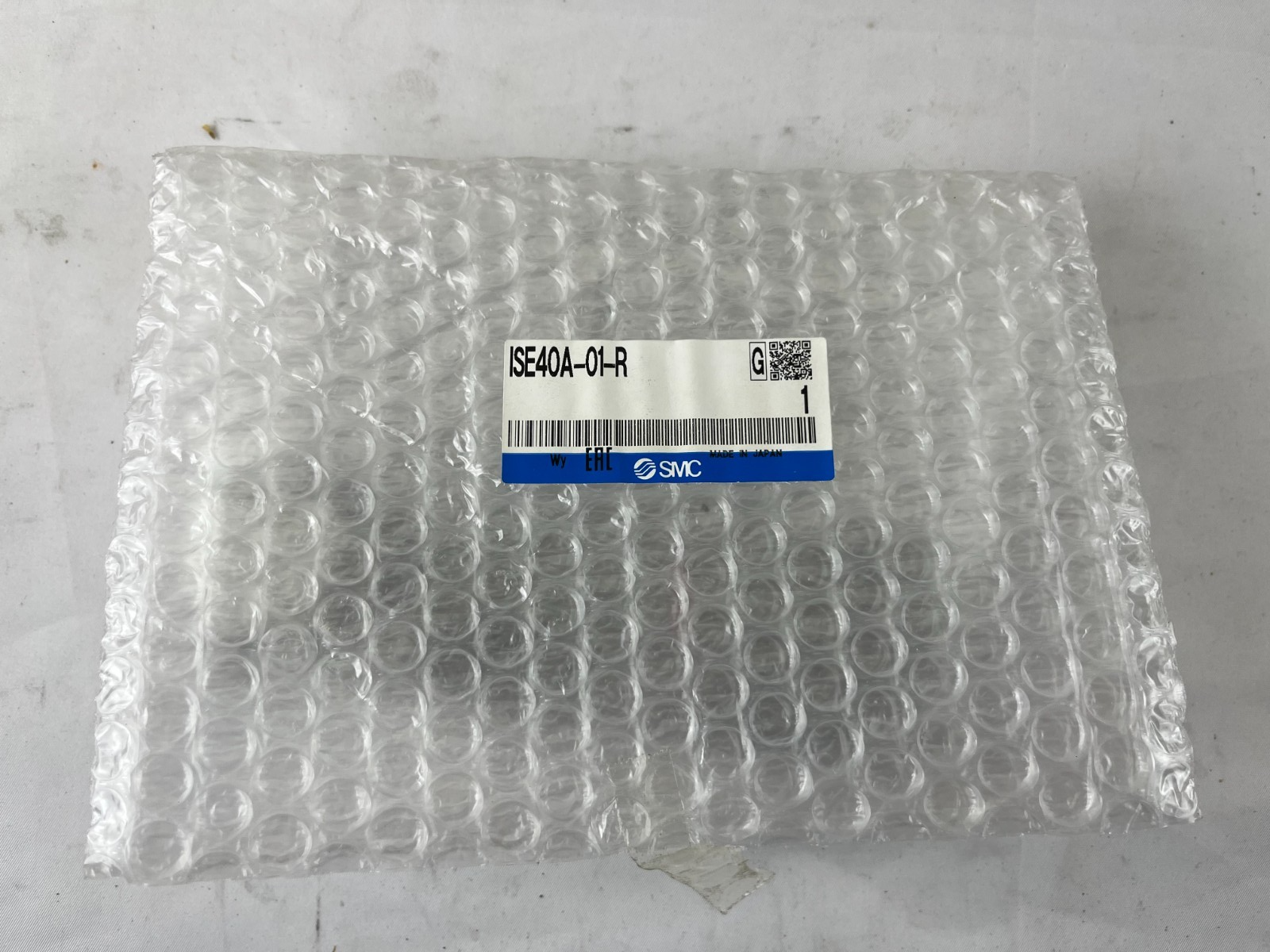

    • Condition: New in sealed packaging, never used, fully functional

    • Made in Japan

  • Technical Specifications

    • Pressure range: -0.100 to 1.000 MPa (-14.5 to 145 PSI)

    • Display/Set range: -0.105 to 1.050 MPa

    • Port connection: 1/8" R (BSPT) with M5 female threaded port

    • Output type: Analog output 1 to 5V DC (1kΩ impedance)

    • Power supply: 12 to 24V DC ±10%

    • Accuracy: ±0.5% full scale

    • Minimum setting unit: 0.001 MPa

    • Response time: Adjustable from 2.5ms to 2000ms

  • Display Features

    • 2-color LED display (red/green) with 3-digit readout

    • Display units: MPa, kPa, PSI, kgf/cm², bar (switchable)

    • 3-button operation for easy programming and setup

    • Up/Down arrow buttons plus SET button for configuration

    • Real-time pressure monitoring with high visibility

  • Advanced Functions

    • Display calibration function (±5% range adjustment)

    • Auto-shift function compensates for primary pressure variations

    • Anti-chattering function for stable output

    • Key lock function prevents accidental setting changes

    • Power-saving mode reduces display brightness

    • Copy function transfers settings between units

  • Features & Applications

    • Withstand pressure: 1.5 MPa

    • Operating temperature: 0°C to 50°C (32°F to 122°F)

    • Protection rating: IP40

    • 3 mounting orientations: vertical, horizontal contact mounting

    • Compact lightweight design saves installation space

    • Ideal for pneumatic systems, hydraulic circuits, compressed air monitoring

    • Suitable for factory automation, packaging equipment, robotics, process control

  • Additional Information

    • Includes M2 mounting screws and installation accessories

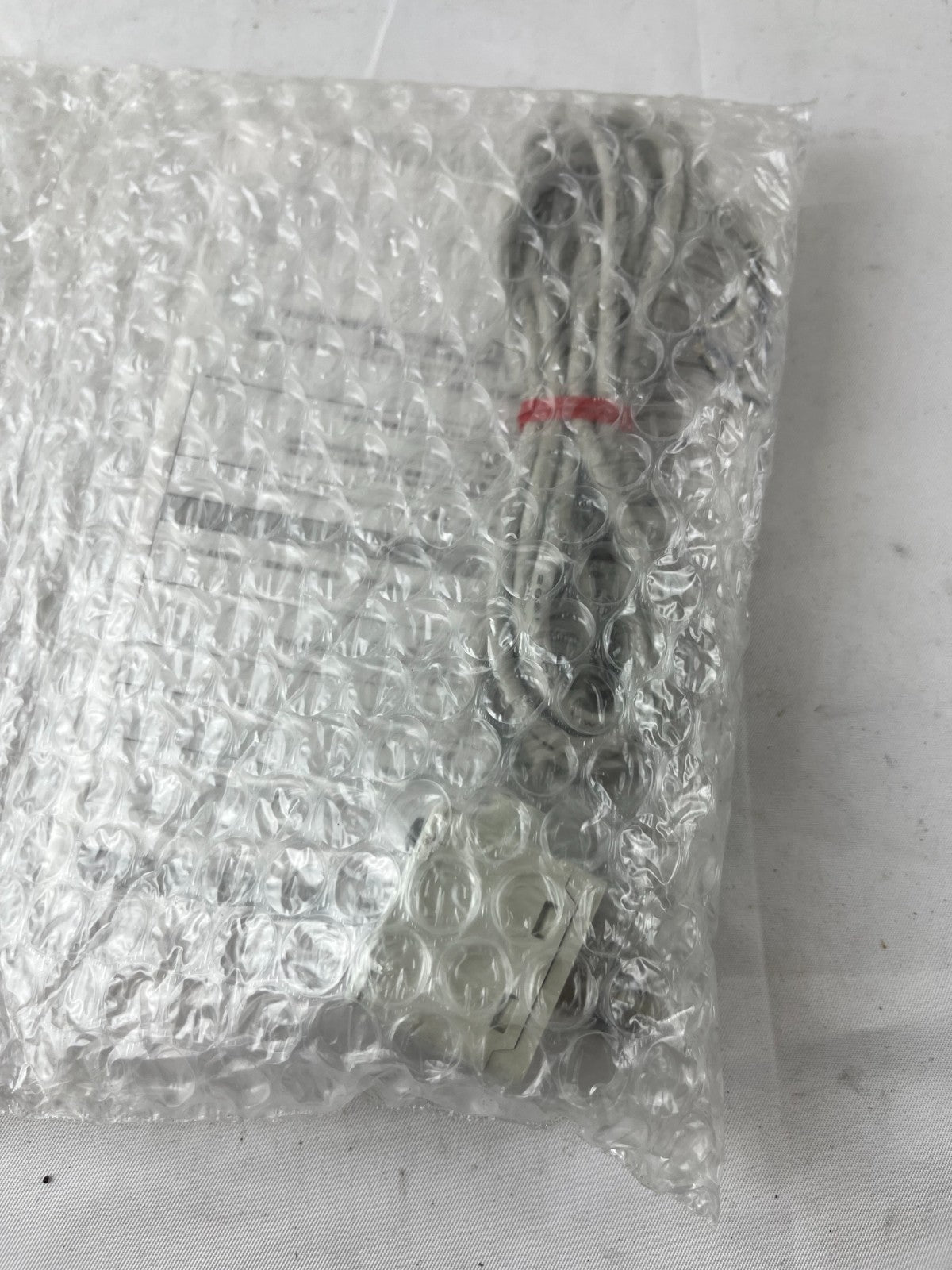

    • Pre-wired lead wire connection

    • Compatible with one-touch fittings (straight, elbow available separately)

    • Low power consumption design

    • CE marked for European compliance

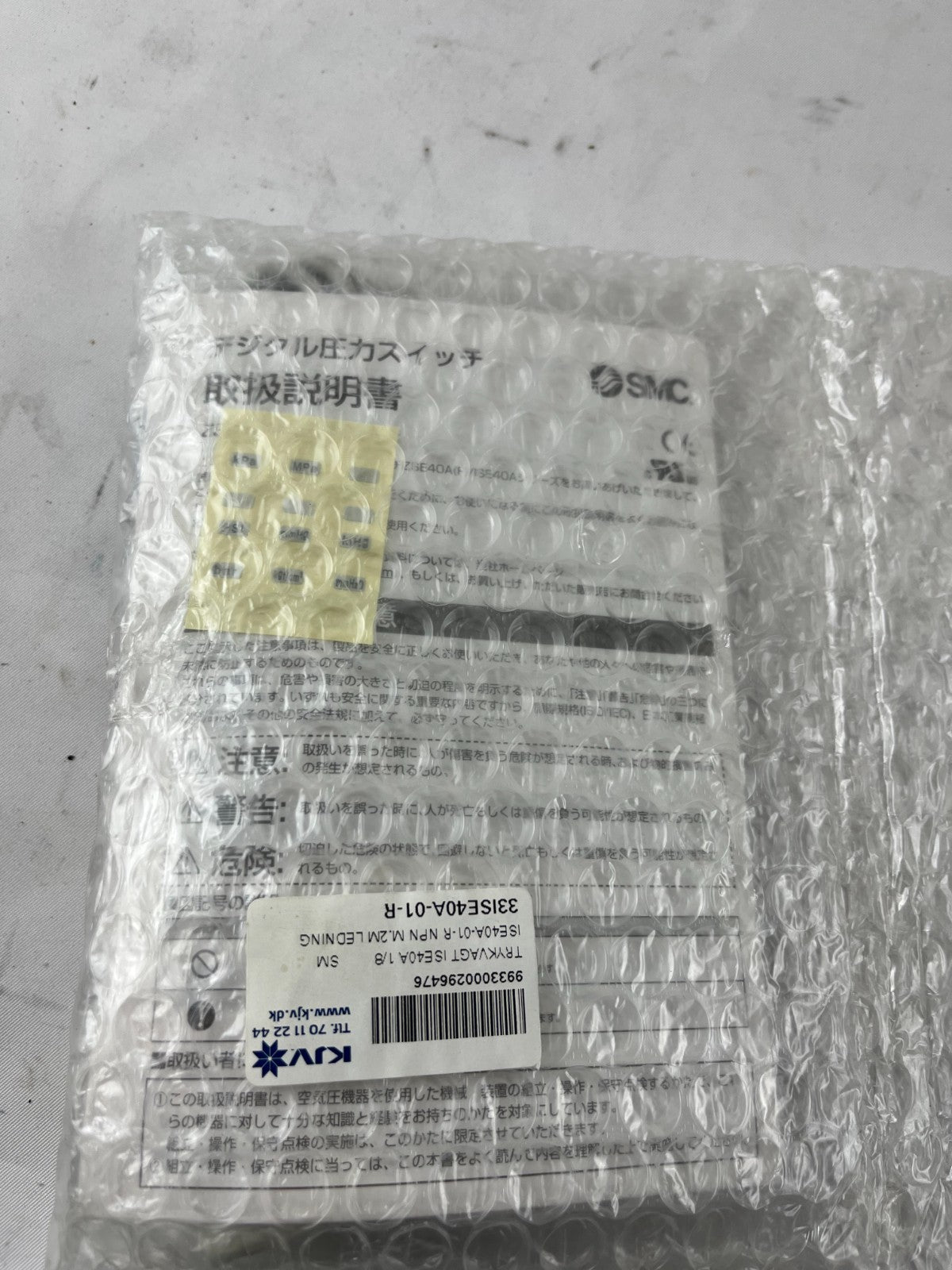

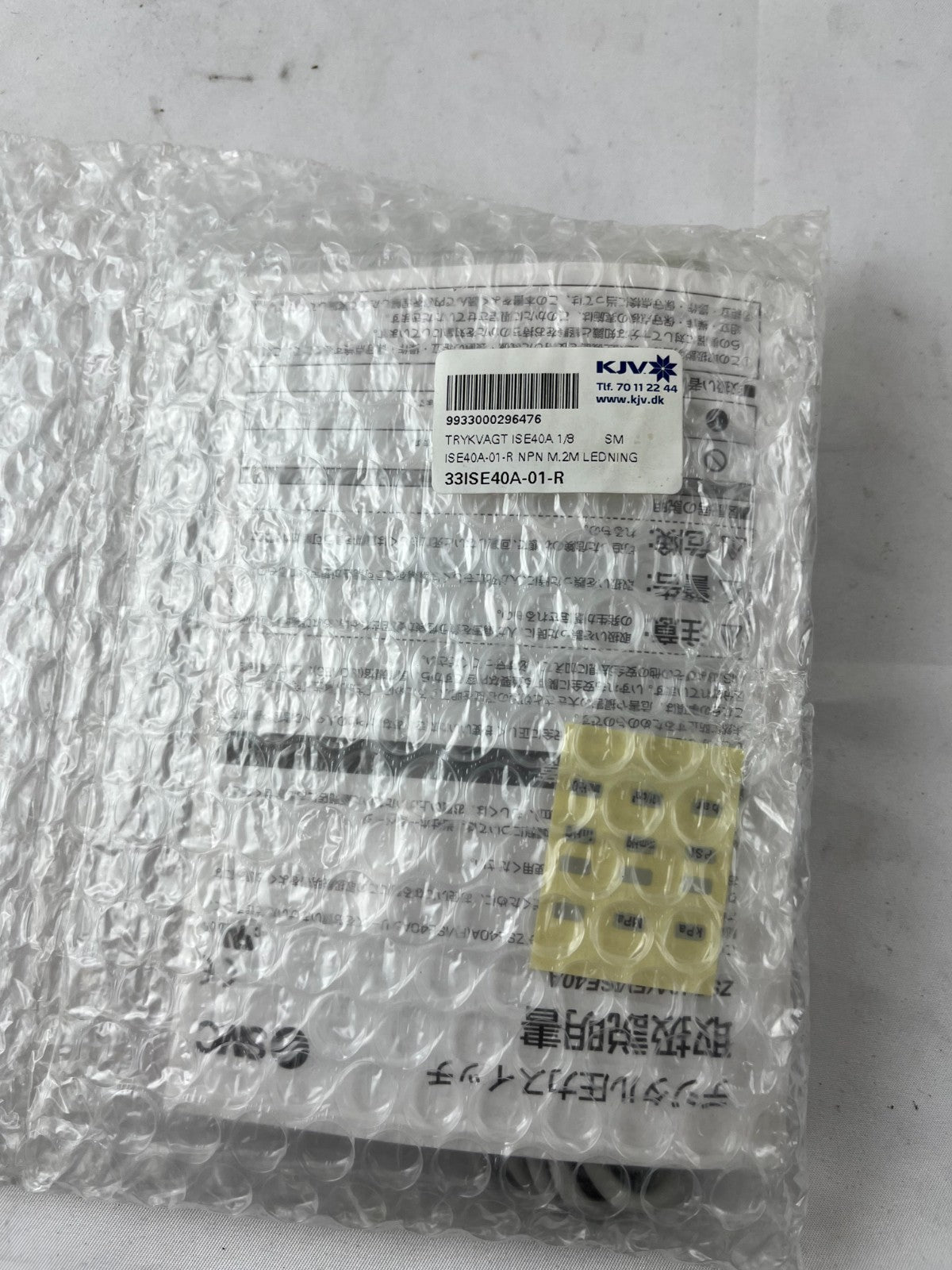

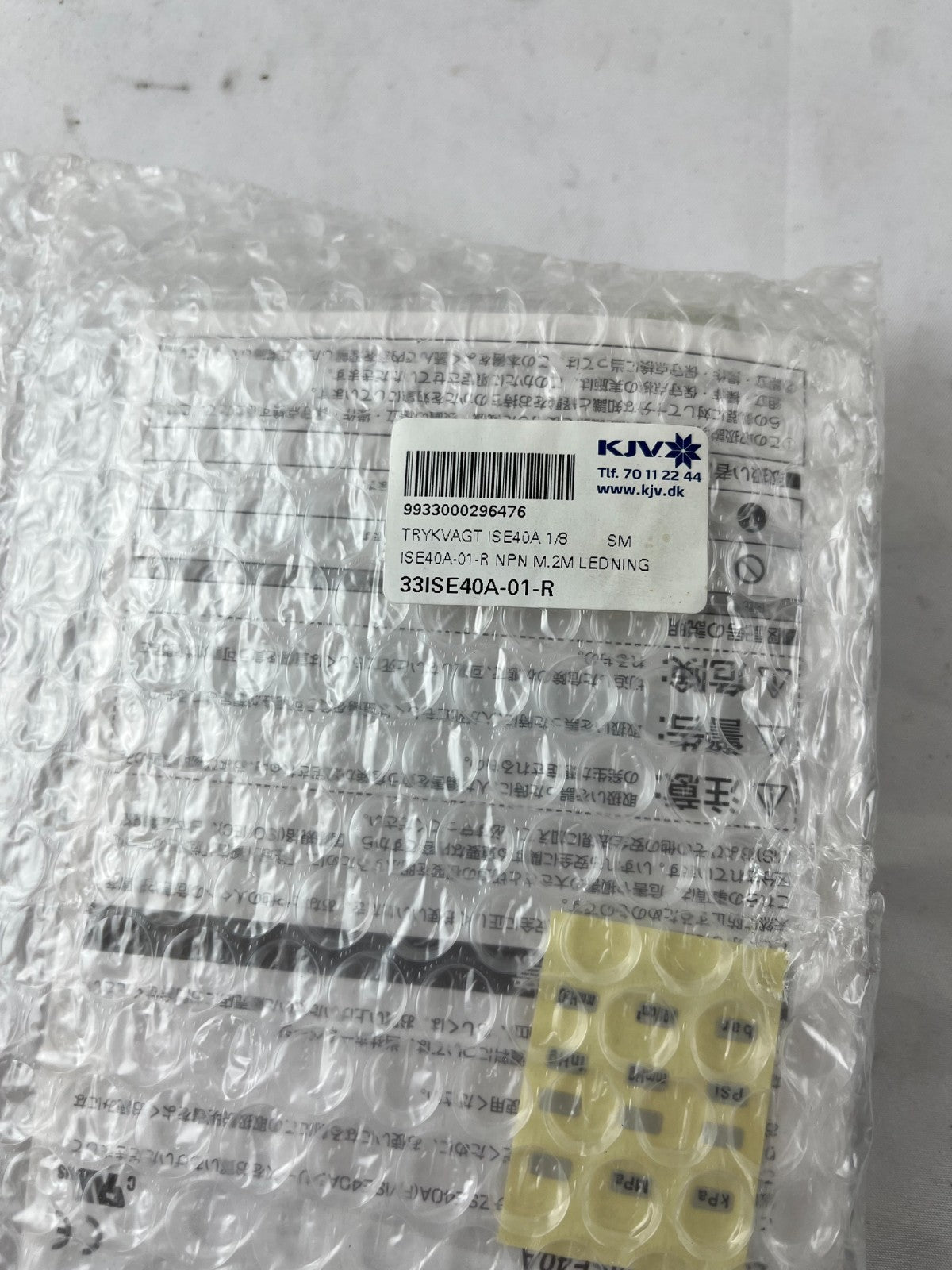

    • User manual and quick setup guide included
