Telemecanique LR2D1307 Thermal Overload Relay 1.6–2.5A Class 10A New

Telemecanique LR2D1307 bimetallic thermal overload relay from the TeSys LR.D series, adjustable 1.6–2.5 A. New, never used unit in original box, designed for motor protection when mounted under LC1D09–LC1D32 contactors.

Item details

• Brand: Telemecanique / Schneider Electric

• Model: LR2 D1307 (LR2D1307)

• Type: 3‑pole thermal overload relay for motor protection, class 10A

• Current setting range: Adjustable from 1.6 to 2.5 A using front dial (range marked on box and relay)

• Protection functions: Overload protection, phase‑loss protection, manual/automatic reset selection, test/trip button

• Coordination: Designed to mount directly to TeSys D contactors LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 (and LC2D variants)

• Contacts: 3 power poles T1/T2/T3 plus auxiliary signaling contacts 95‑96 (NC) and 97‑98 (NO) for trip indication and control circuit

• Rated insulation voltage: up to 660 V (LR2 series typical)

• Mounting: Direct contactor mounting with copper pins or separate mounting using adapter (see internal diagrams).

• Application: Motor starters in industrial panels, pumps, fans, conveyors, and other three‑phase loads requiring adjustable overload protection.

Condition

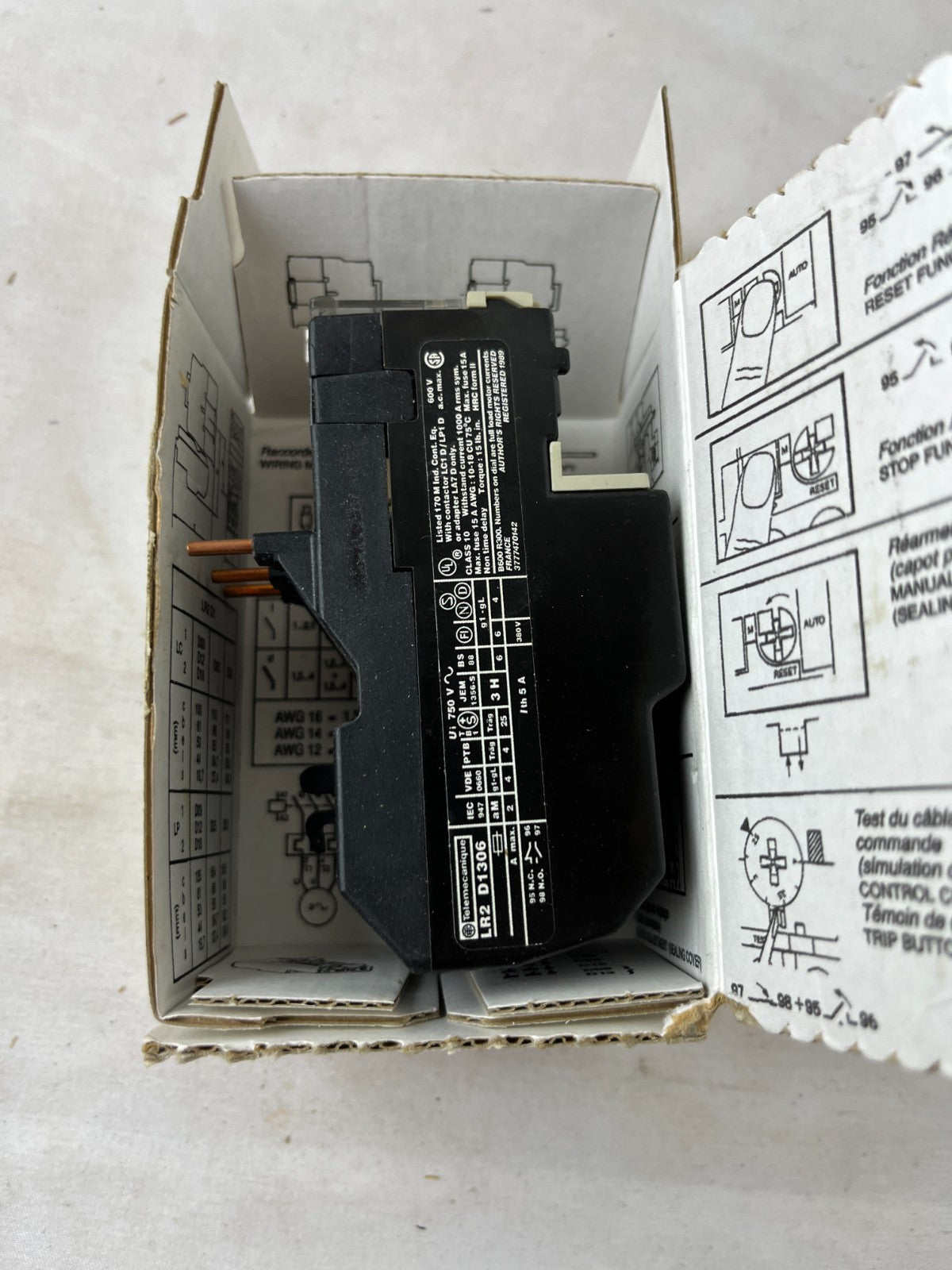

• New, never used; relay remains in original Telemecanique packaging.

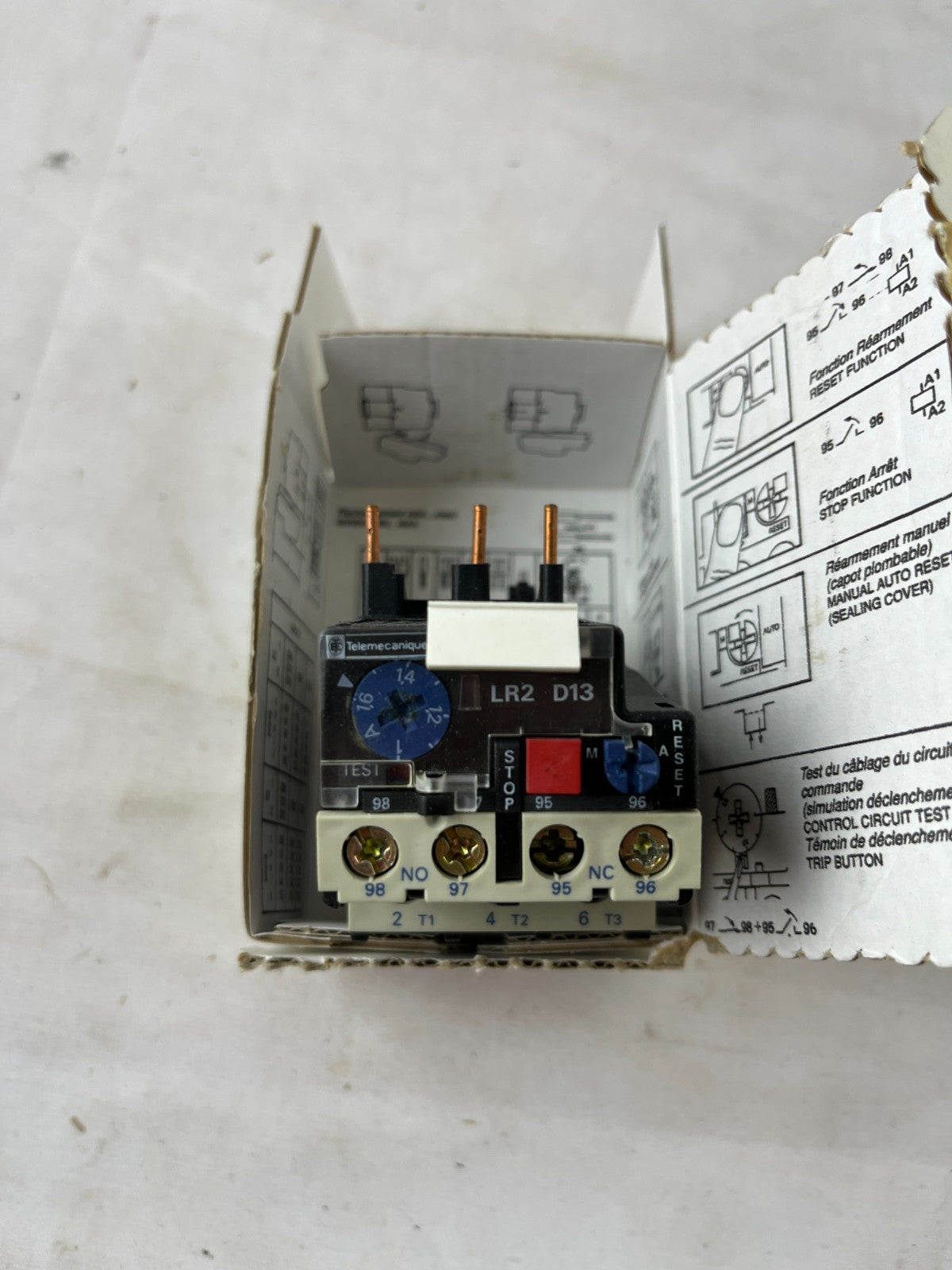

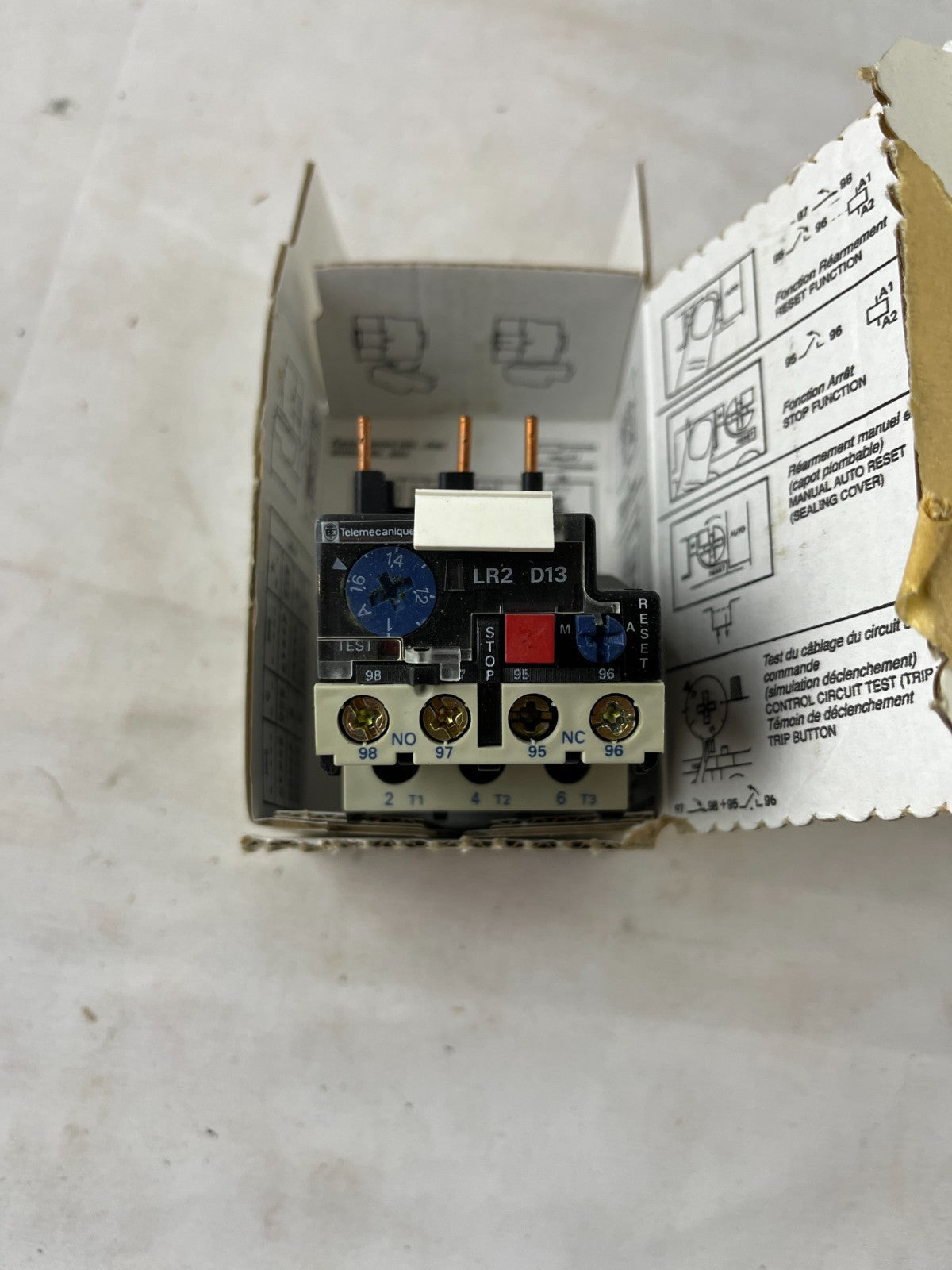

• Terminals and copper pins show no signs of wiring or installation.

• Box has tape residues and handwritten “1–1,6A” notes but is intact.

Notes

• Trip class 10A provides typical motor protection with 2–10 s tripping at 7.2× current setting; check suitability for your motor starting characteristics.

• Ensure the relay setting matches your motor full‑load current within the 1.6–2.5 A range.

• Intended for use with matched TeSys D contactors; verify mechanical and electrical compatibility before installation.
