Telemecanique VCD02 Emergency Stop Switch Disconnector 3-Pole 12A TeSys Vario

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading

Telemecanique / Schneider Electric TeSys Vario VCD02 main/emergency stop switch disconnector with red/yellow rotary handle, 3-pole, 12 A Ith, new and never used in original box.​

Item details

• Brand: Telemecanique (Schneider Electric)​

• Model: VCD02​

• MPN: 072485 (EAN 3389110724851)​

• Type: Main / emergency stop switch disconnector with handle​

• Series: TeSys Vario (VCD range)​

• Poles: 3-pole, 3 NO contacts​

• Conventional thermal current Ith: 12 A​

• Rated operational voltage: Up to 690 V AC 50/60 Hz​

• Typical motor rating: Up to 4 kW at 400–415 V AC‑23, 3 kW at 400–415 V AC‑3 (see datasheet for full duty ratings)​

• Handle / front plate: Red rotary handle with yellow 60 × 60 mm front plate, padlockable 1–3 padlocks 4–8 mm​

• Mounting: Door/panel mounting, 22.5 mm hole for handle, switch body on door​

• Protection degree: Up to IP65 at front when correctly installed​

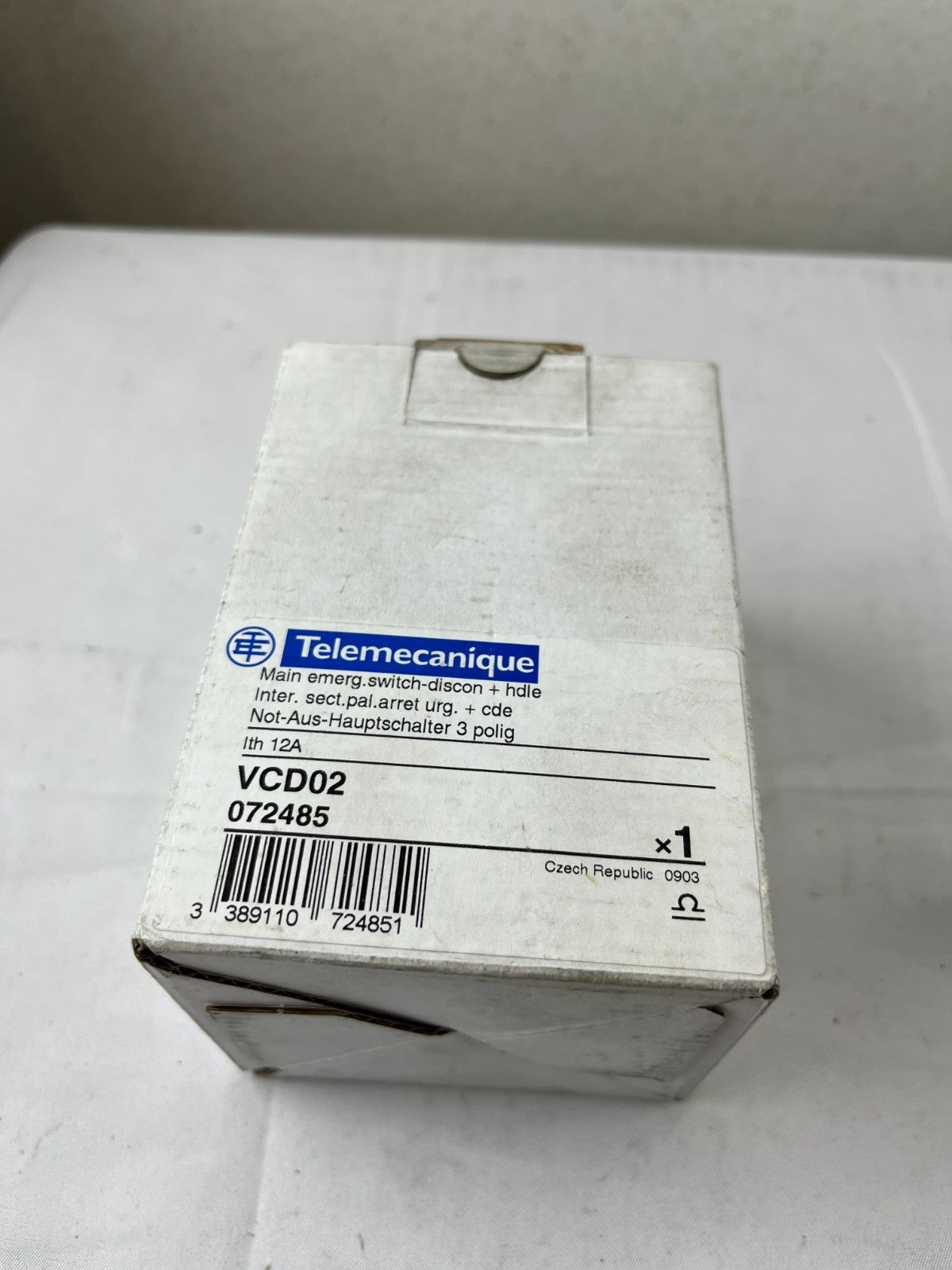

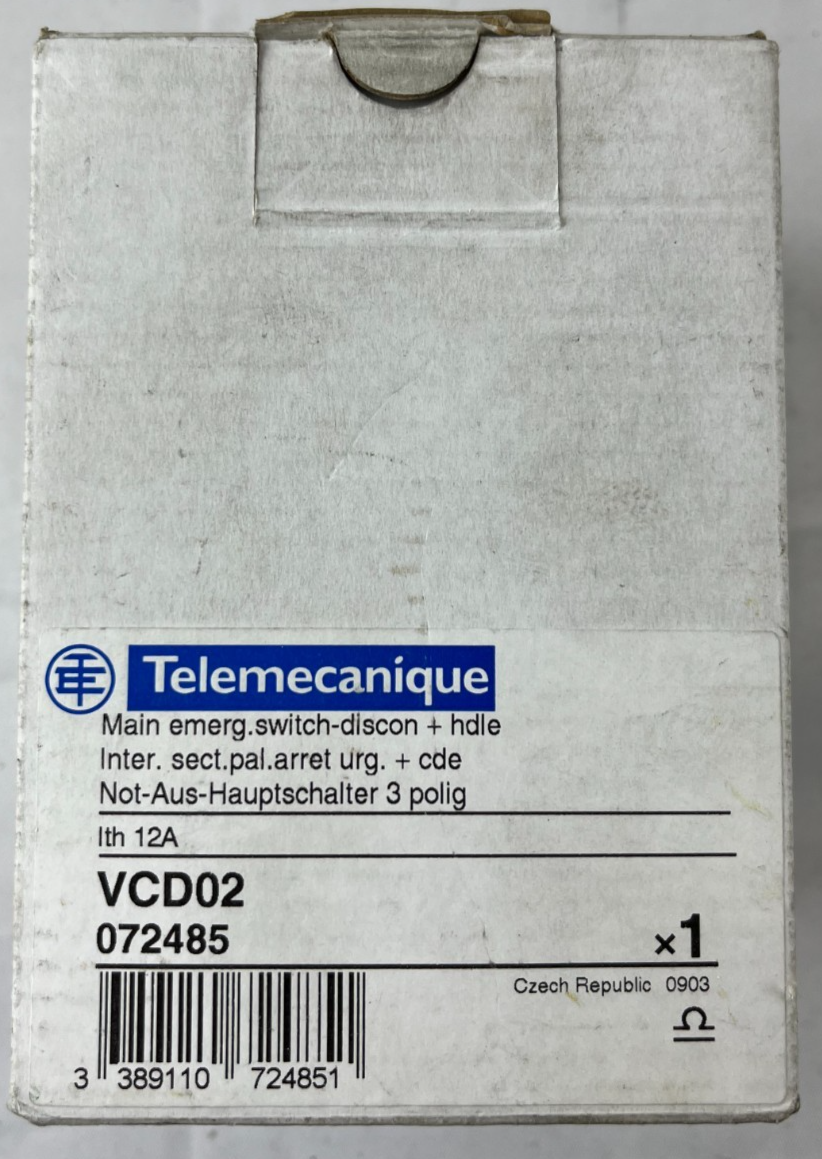

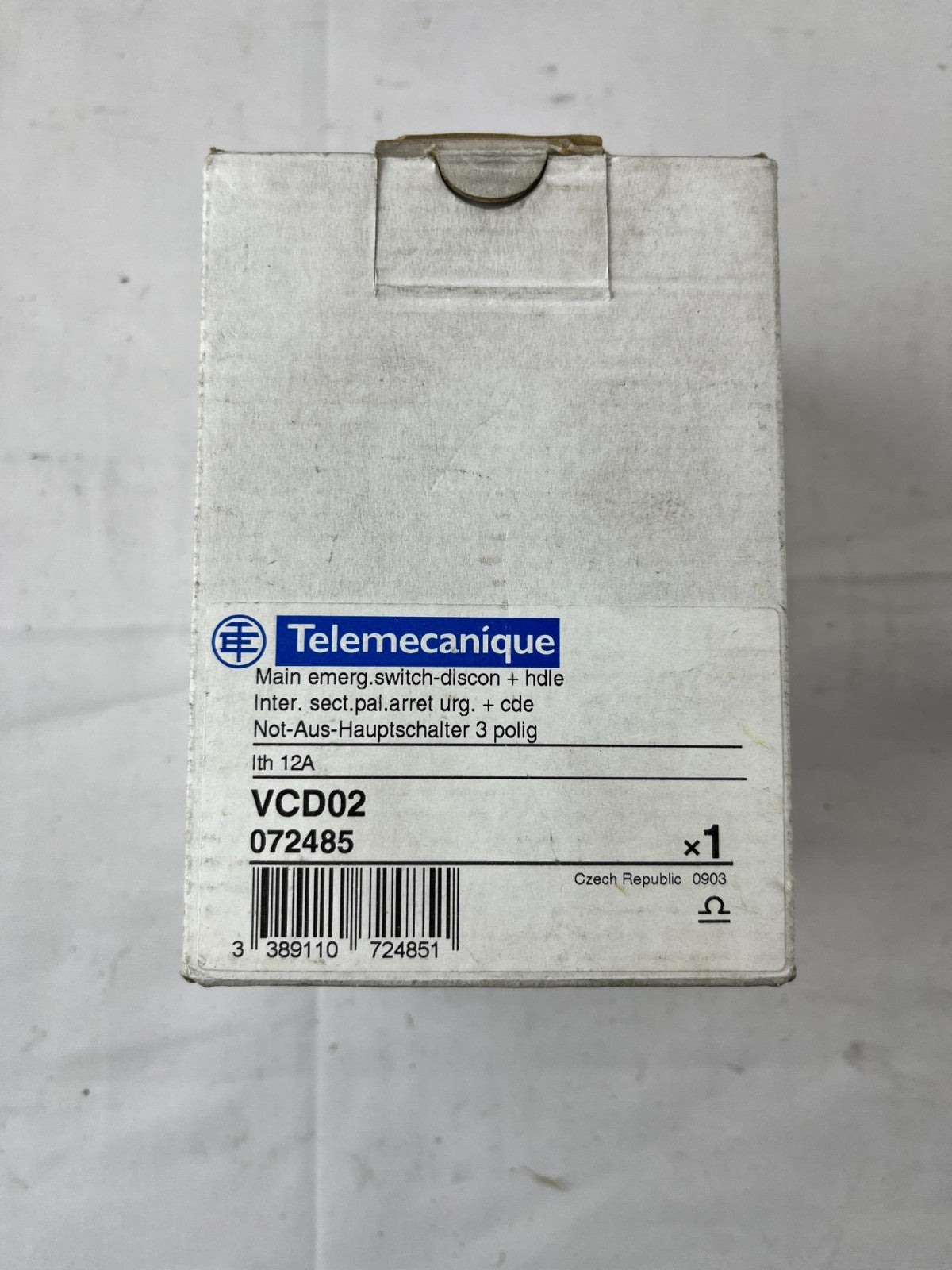

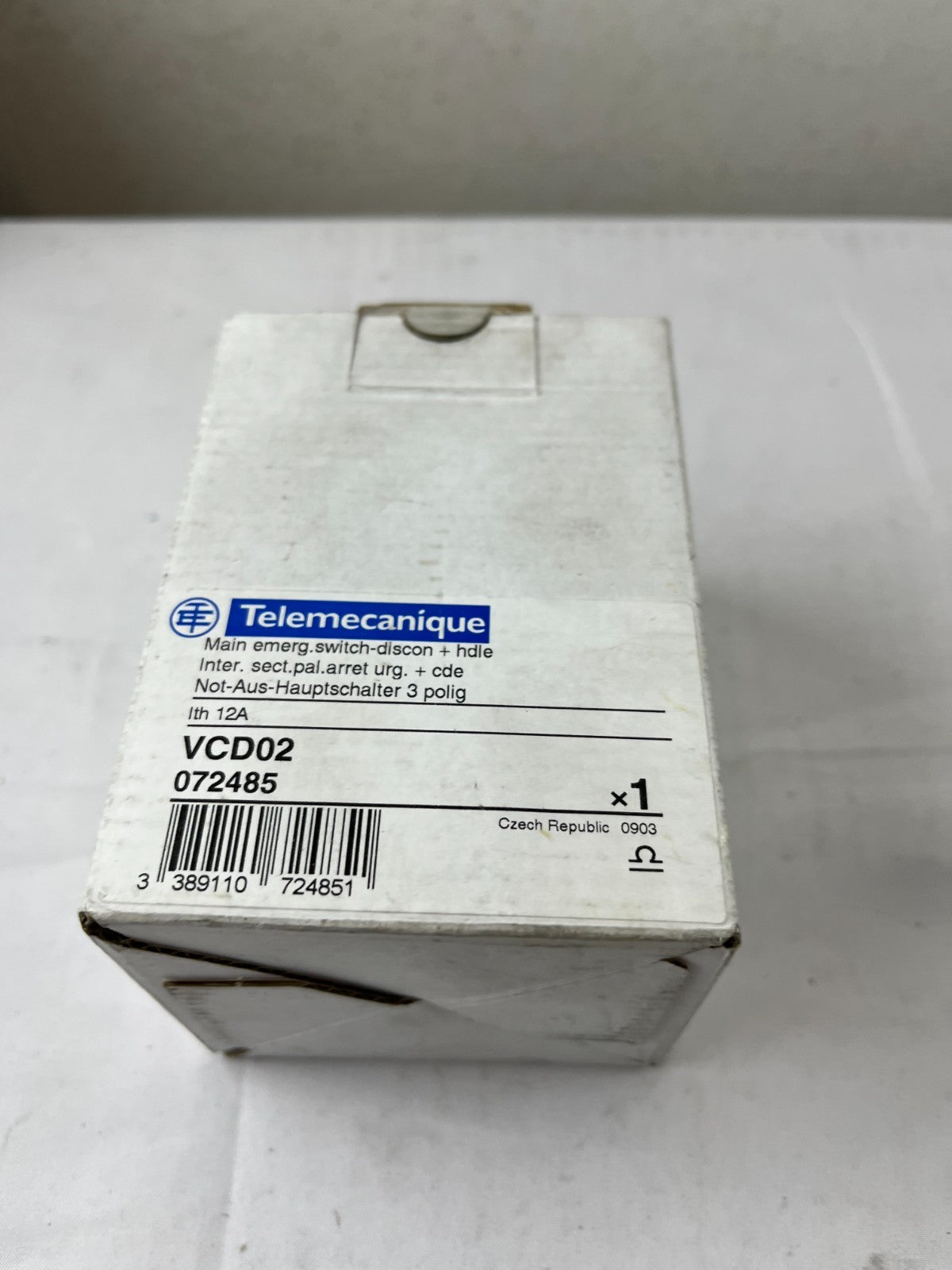

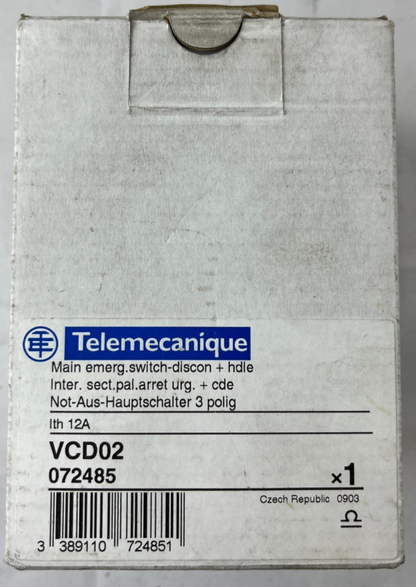

• Country of manufacture: Czech Republic (printed on box label)

For complete electrical characteristics and wiring details, see photos and the original label/datasheet.

Condition

• New, never used emergency stop/main switch assembly.

• Supplied in the original Telemecanique retail box with instruction sheet; box shows only light shelf/storage marks.

• Red/yellow handle and black switch body are clean with no signs of installation or wiring on the terminals.

Notes

• Complete factory unit consisting of V02 switch body and KCD1PZ style red/yellow handle as per TeSys Vario VCD02 configuration.​

• Suitable for use as a main isolator or emergency stop switch in control panels and machinery when installed by qualified personnel in accordance with local standards
