Telemecanique ZCKM1H29 metal limit switch body from the XC Standard XCKM family, with 1 NO + 1 NC snap-action contacts and M20 cable entries. This XCKM housing is in good used working condition and suitable as a replacement body for compatible ZCKD/XCKM heads.​

Item details

• Brand: Telemecanique / Schneider Electric​

• Series: XC Standard, XCKM / ZCKM limit switches​

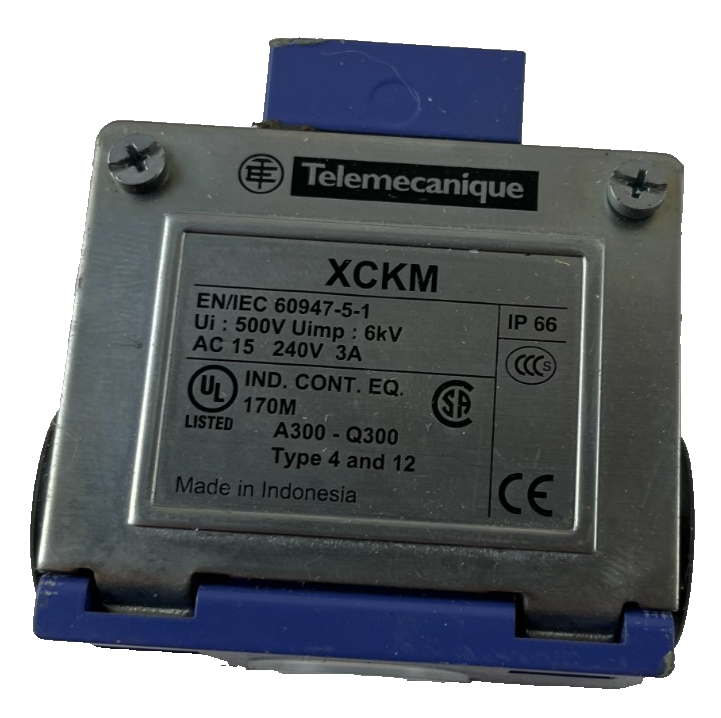

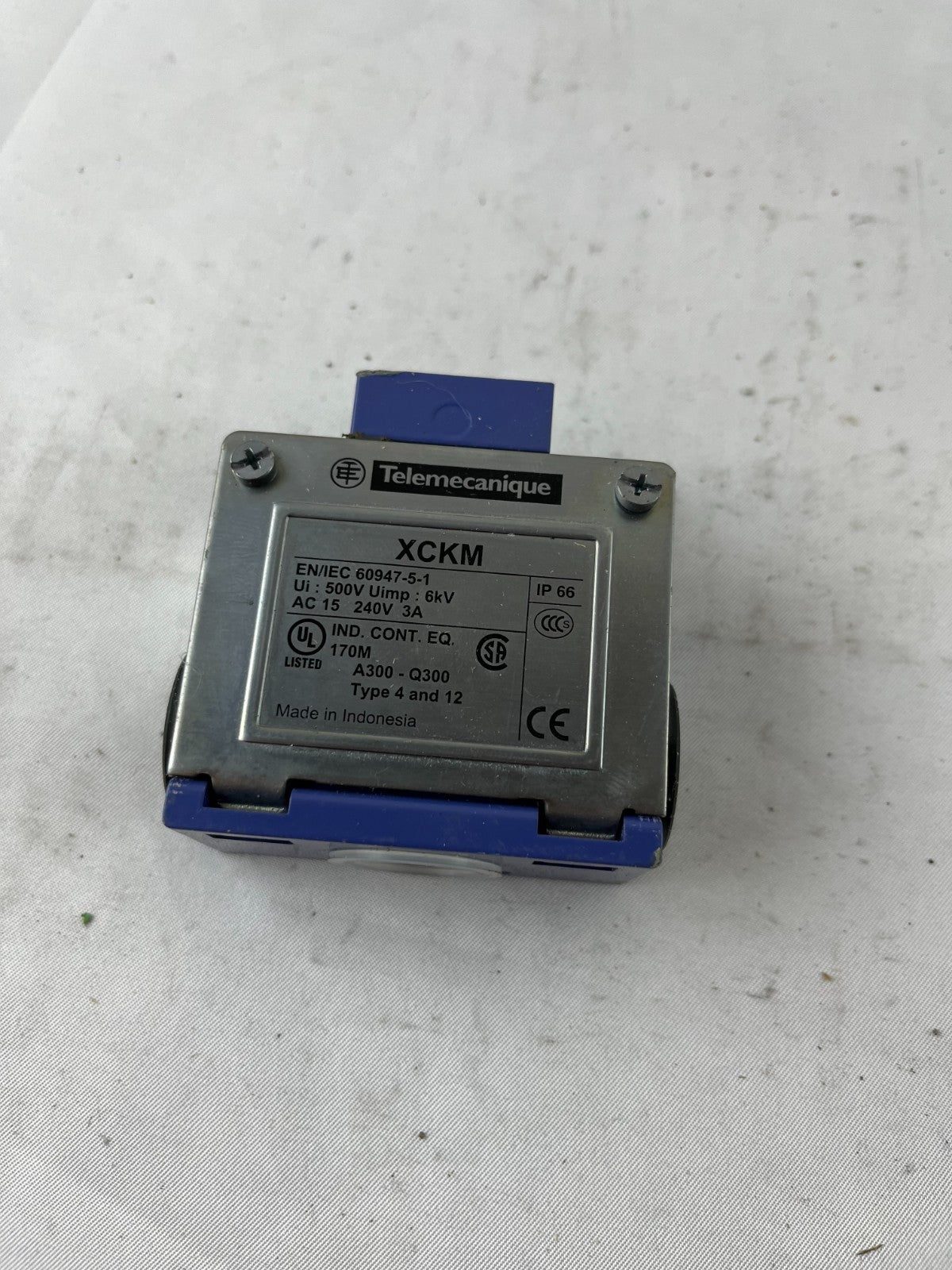

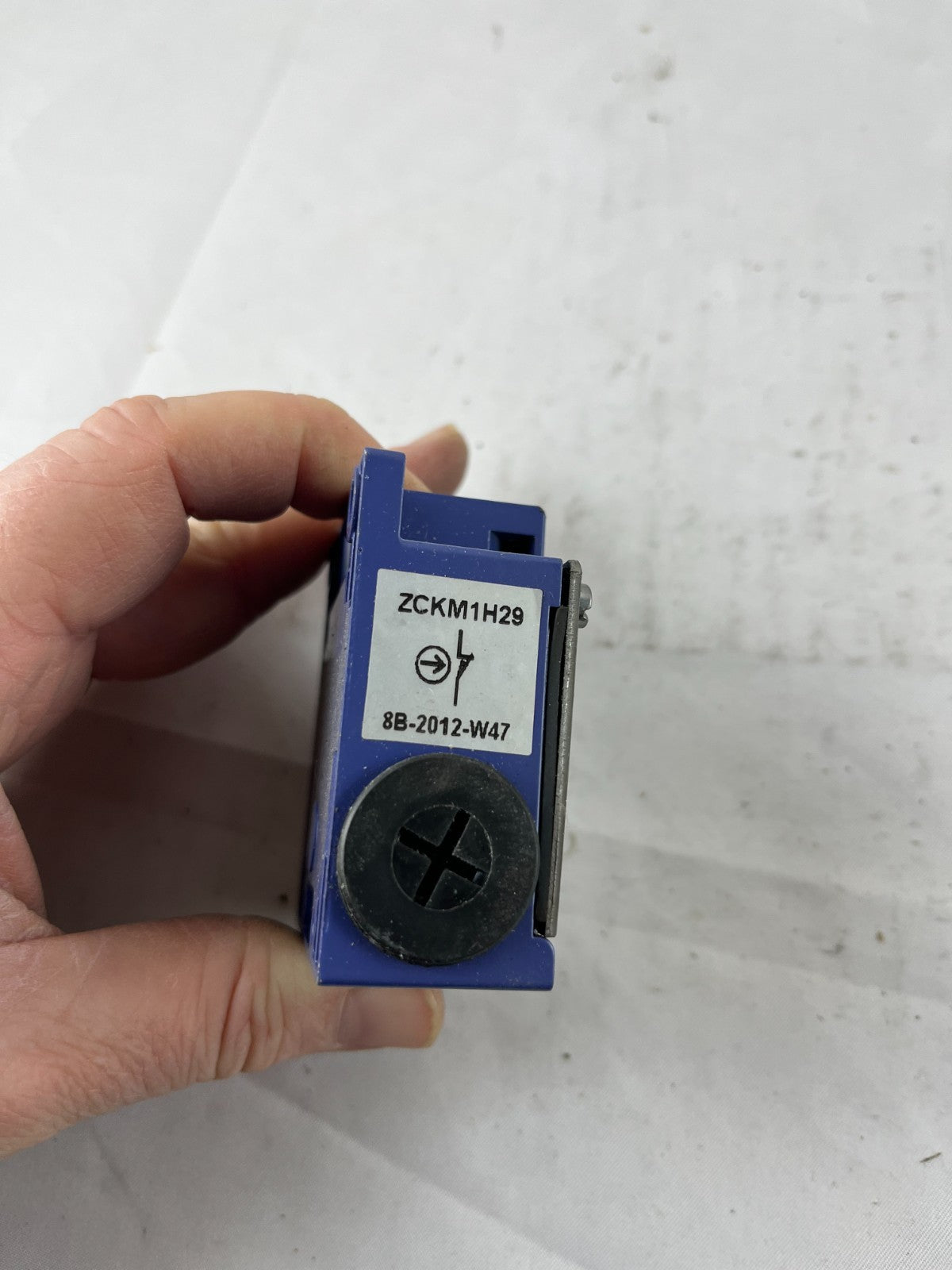

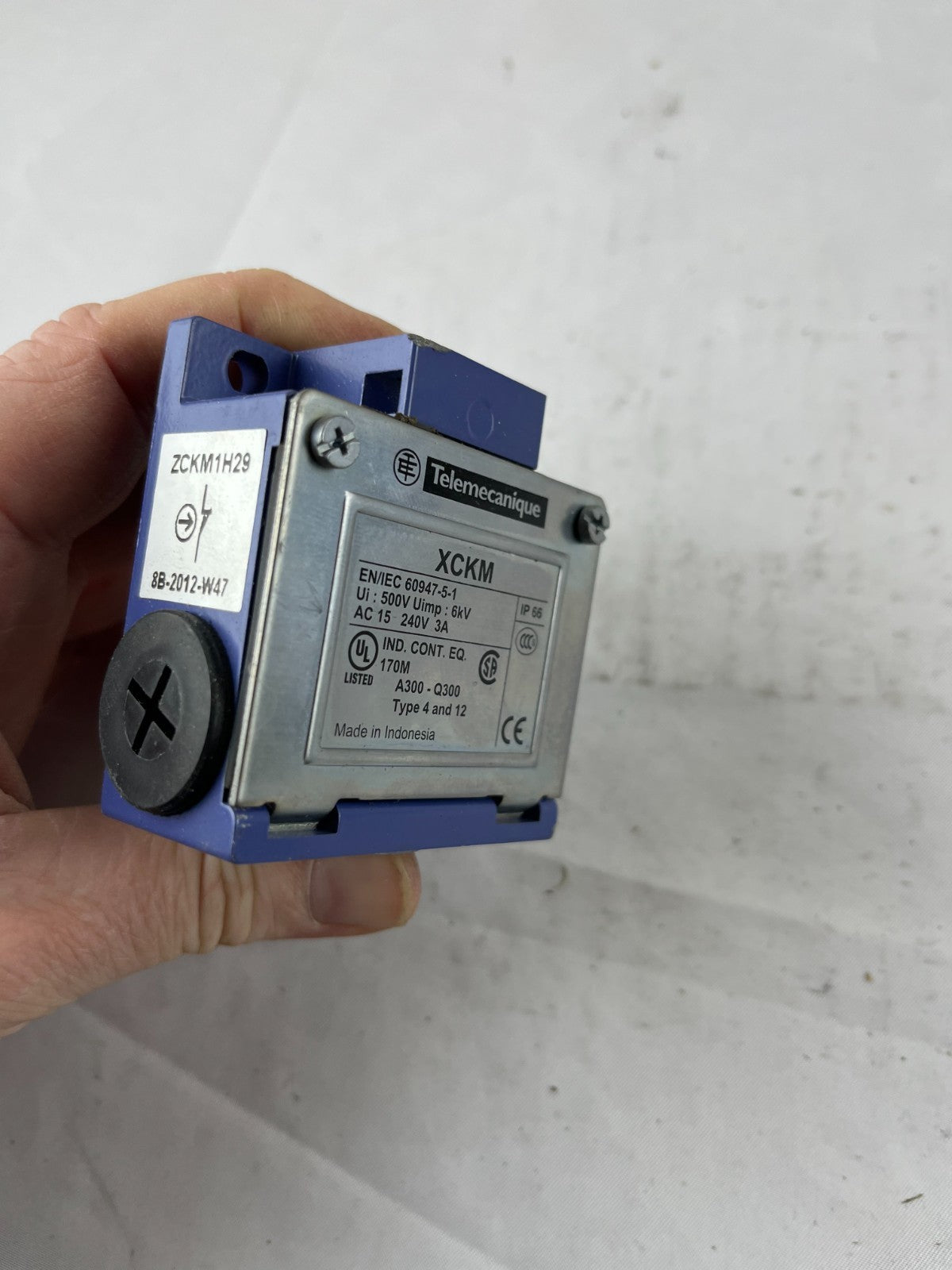

• Model on label: XCKM (body); side label: ZCKM1H29​

• Type: Limit switch body with integrated contact block (no head included)​

• Contact configuration: 1 NC + 1 NO, snap action, 2-pole​

• Electrical ratings (per label/datasheet):

  • Ui 500 V, Uimp 6 kV​

  • AC-15: 240 V, 3 A (A300)​

  • DC-13: 250 V, 0.27 A (Q300)​

  • Ith thermal current: 10 A​

• Enclosure rating: IP66, Type 4 and 12, metal housing​

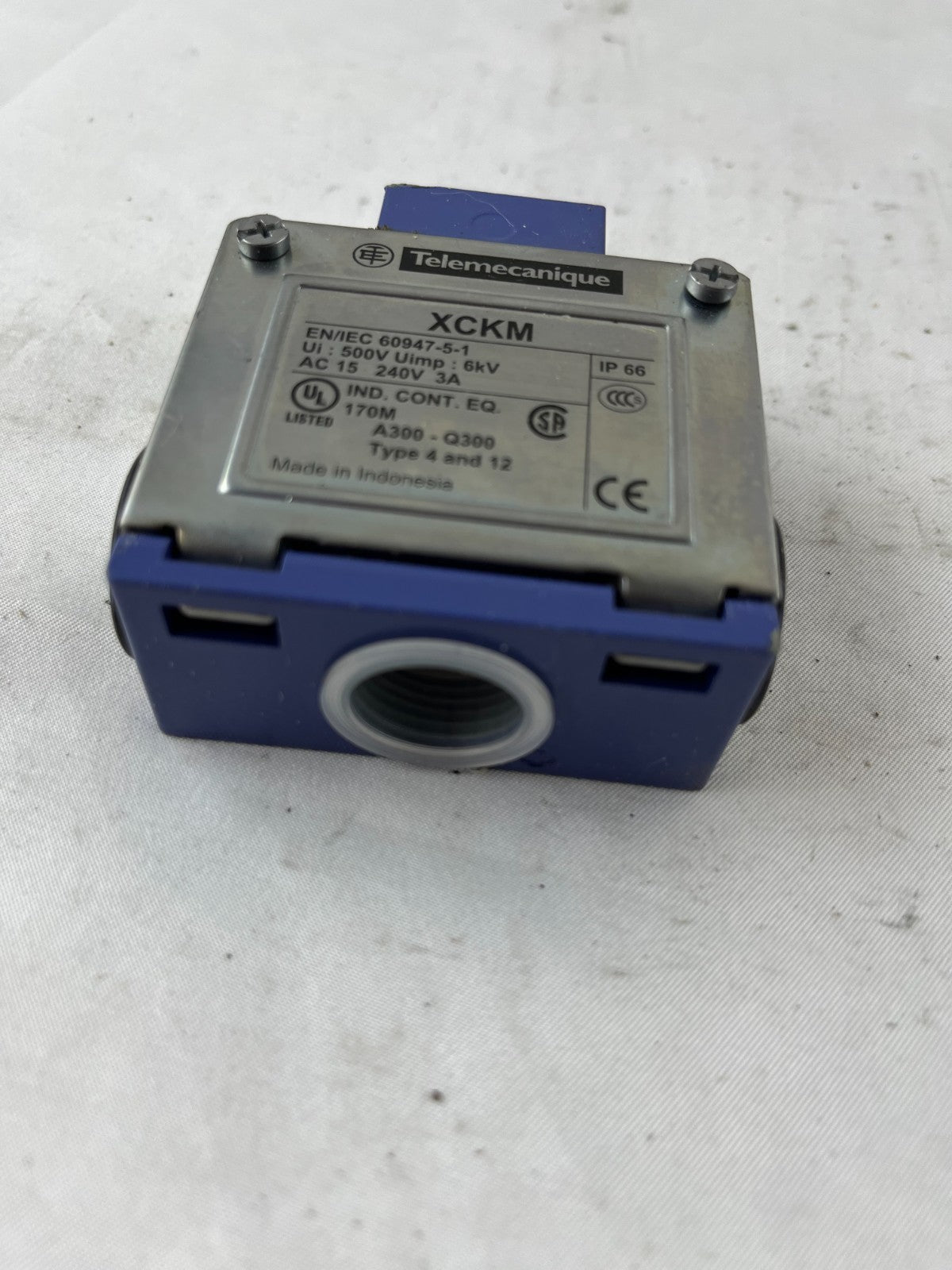

• Cable entries: 3 entries tapped for M20 x 1.5 cable glands​

• Standards/approvals: EN/IEC 60947-5-1, UL, CSA listed as industrial control equipment​

• Country of manufacture: Indonesia (marked on label)

Condition

• Good used condition; screw terminals and cable entry threads appear intact

• Normal cosmetic wear from previous installation, including minor scratches and dust on metal cover and plastic base

• No cracks or obvious mechanical damage visible in the photos

• Not re-tested by seller after removal; sold as working when removed and as-is now

Notes

• This is the body only with contact block; an appropriate ZCKD/XCKM actuator head must be fitted for use (roller lever, plunger, etc.).​

• Ideal as a spare for existing XCKM/ZCKM limit switches where the body or contacts need replacement while reusing the original head and conduit fittings.​

Suggested item specifics

• Brand: Telemecanique (Schneider Electric)

• Model: ZCKM1H29 / XCKM

• MPN: ZCKM1H29

• Type: Limit switch body with contact block (no head)

• Contact Configuration: 1 NO + 1 NC, snap action

• Voltage Rating: 240 V AC (AC-15), Ui 500 V

• Current Rating: 3 A (AC-15), Ith 10 A

• IP Rating: IP66, Type 4 and 12

• Housing Material: Metal body with plastic base

• Cable Entry: 3 × M20 x 1.5

• Country/Region of Manufacture: Indonesia

• Condition: Used
