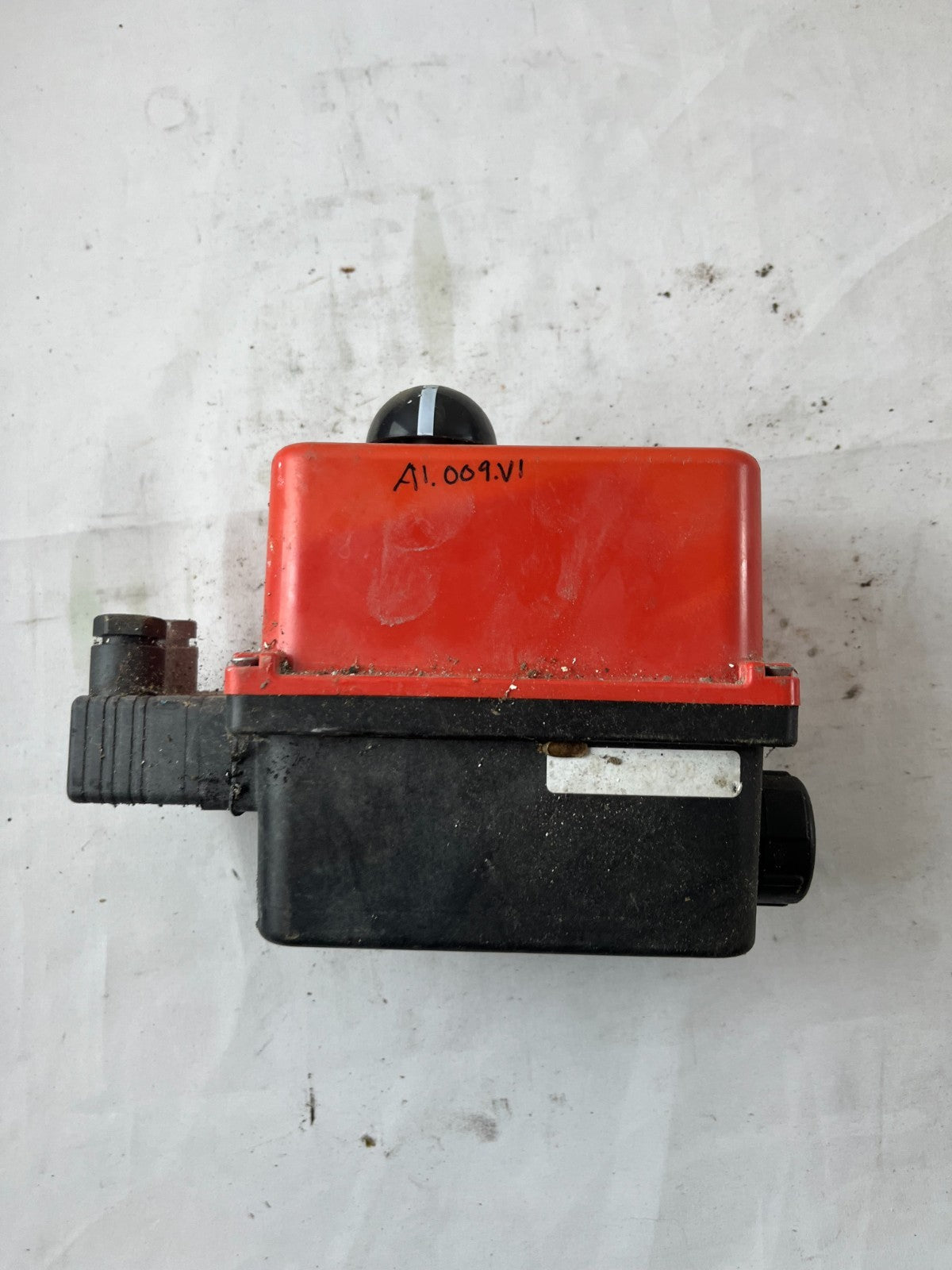

Valpes ER20.X53M.1 Electric Valve Actuator 24V/12V AC/DC 20Nm IP65 Used Spare

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

• Valpes ER20.X53M.1 quarter‑turn electric actuator for automating ball or butterfly valves up to 20 Nm torque.

• Good used condition with normal signs of industrial use; removed from a working system and sold as pictured.

Item details

• Brand: Valpes

• Series: ER Premier / ER20 range 90° electric actuators

• Model: ER20.X53M.1 (see nameplate)

• Function: On/off quarter‑turn actuator, power‑open / power‑close.

• Torque rating: 20 Nm nominal output torque.

• Rotation angle: 90° travel.

• Supply voltage: 24 V / 12 V AC/DC low‑voltage version (FASTSTOP family).

• Power consumption: 26 W.

• Enclosure rating: IP65 weatherproof housing.

• Duty rating: S4 30% intermittent duty (ER Premier spec).

• Ambient temperature: Approx. -10 °C to +55 °C.

• Housing material: Polyamide (PA6) red/black body with secured cover.

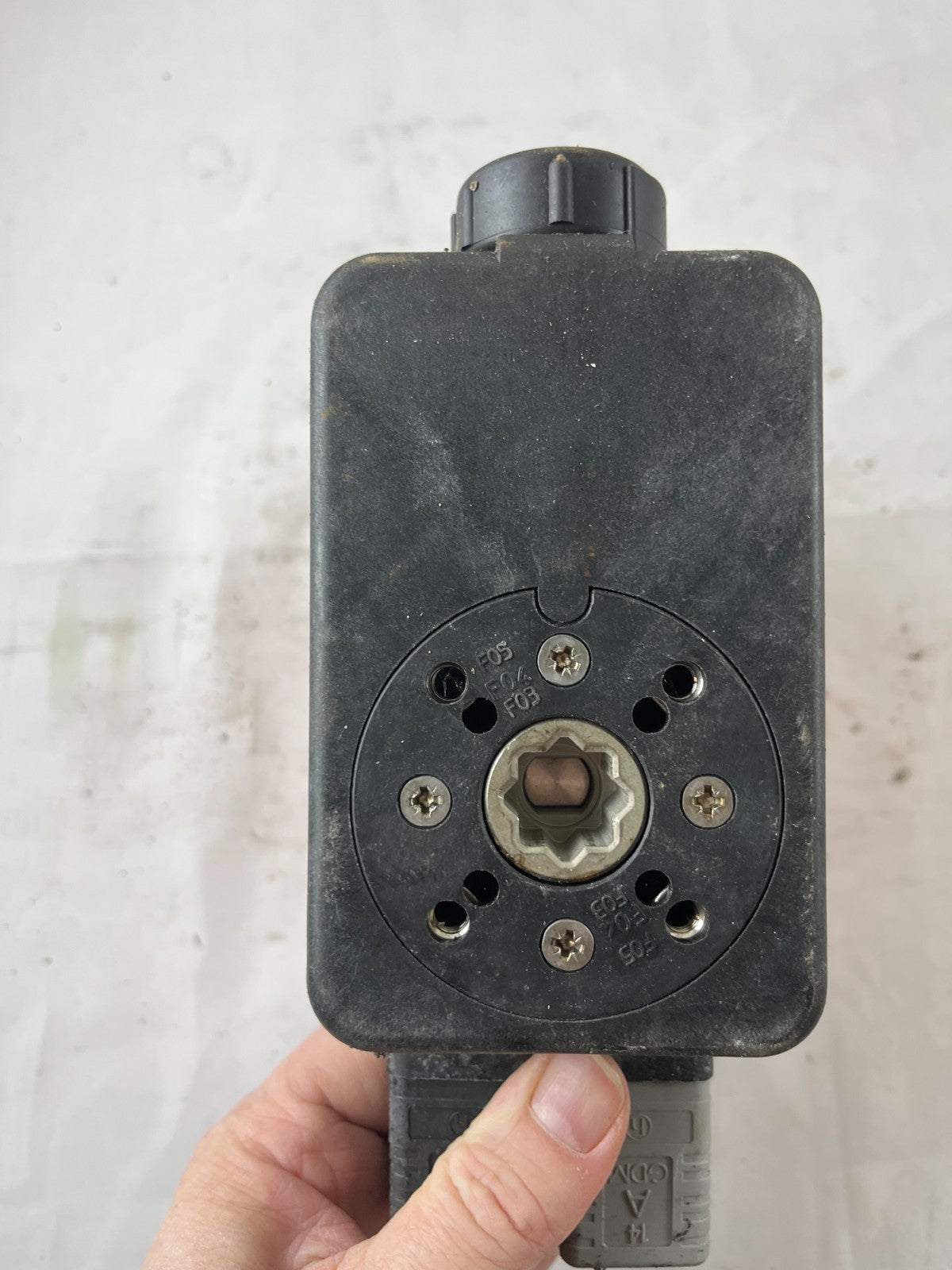

• Mounting interface: ISO 5211 pattern F03/F04/F05 for ER20 size (star drive nut, see datasheet for dimensions).

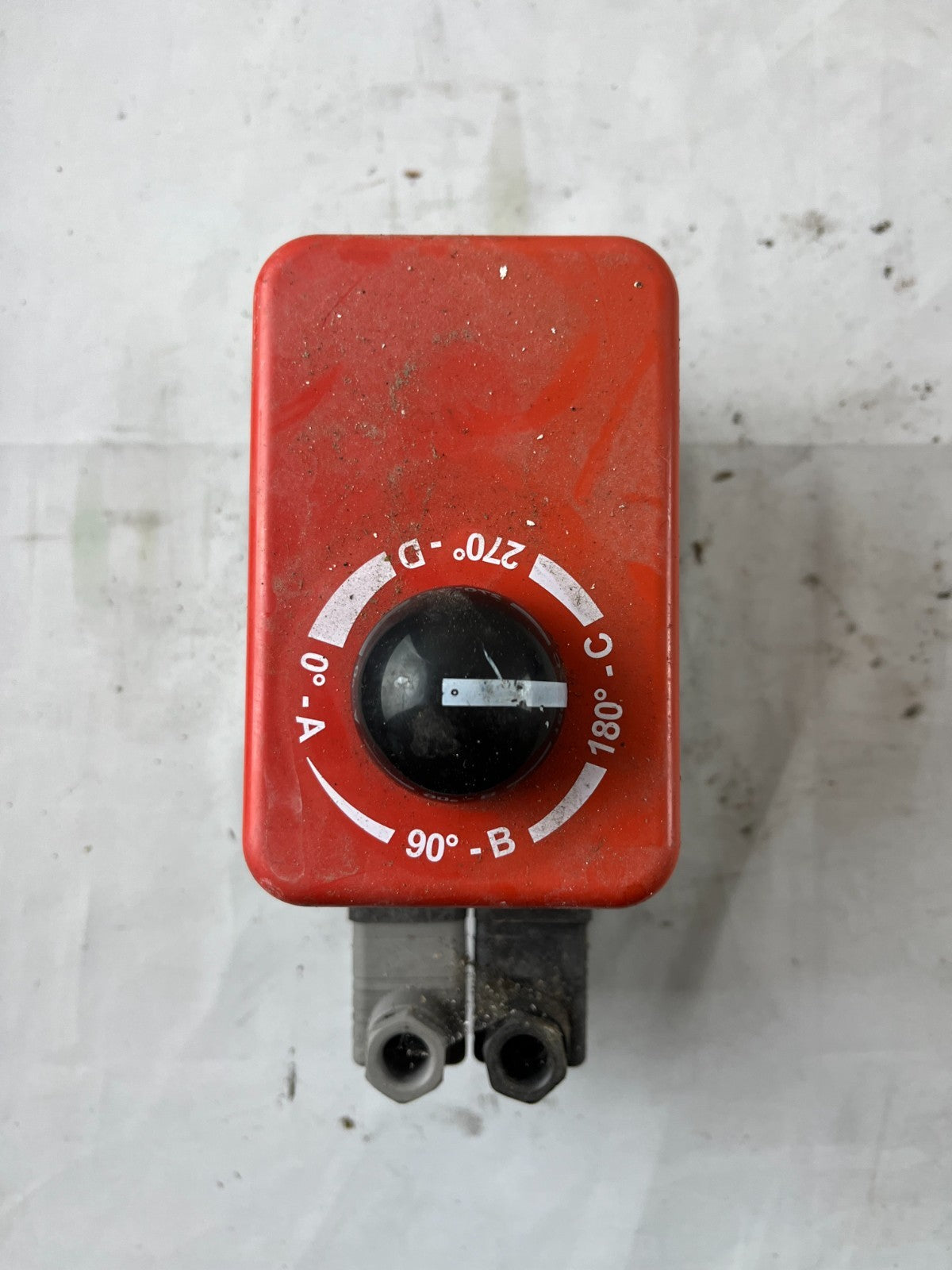

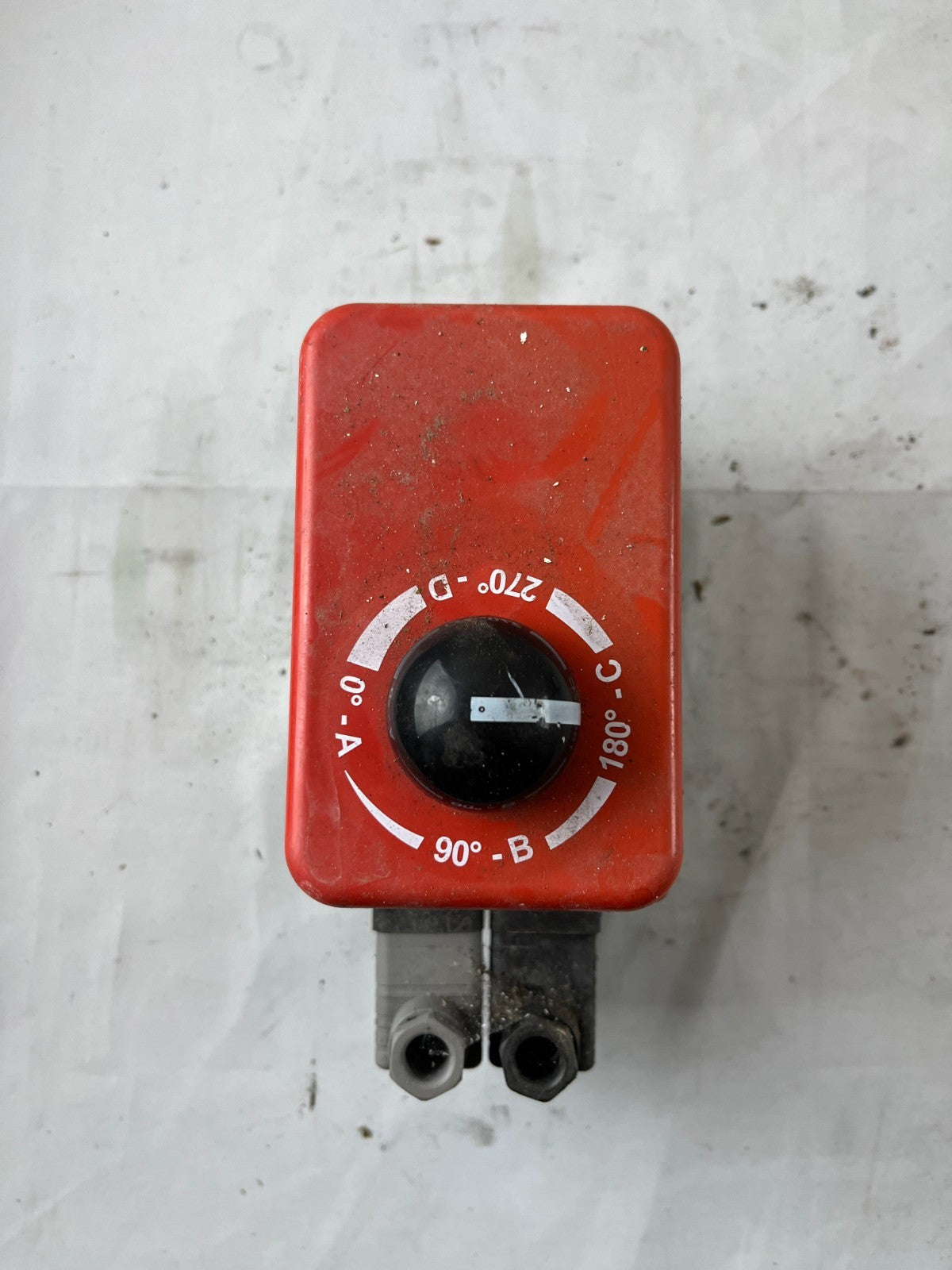

• Visual position indicator: Black dome indicator with 0–270° scale on top.

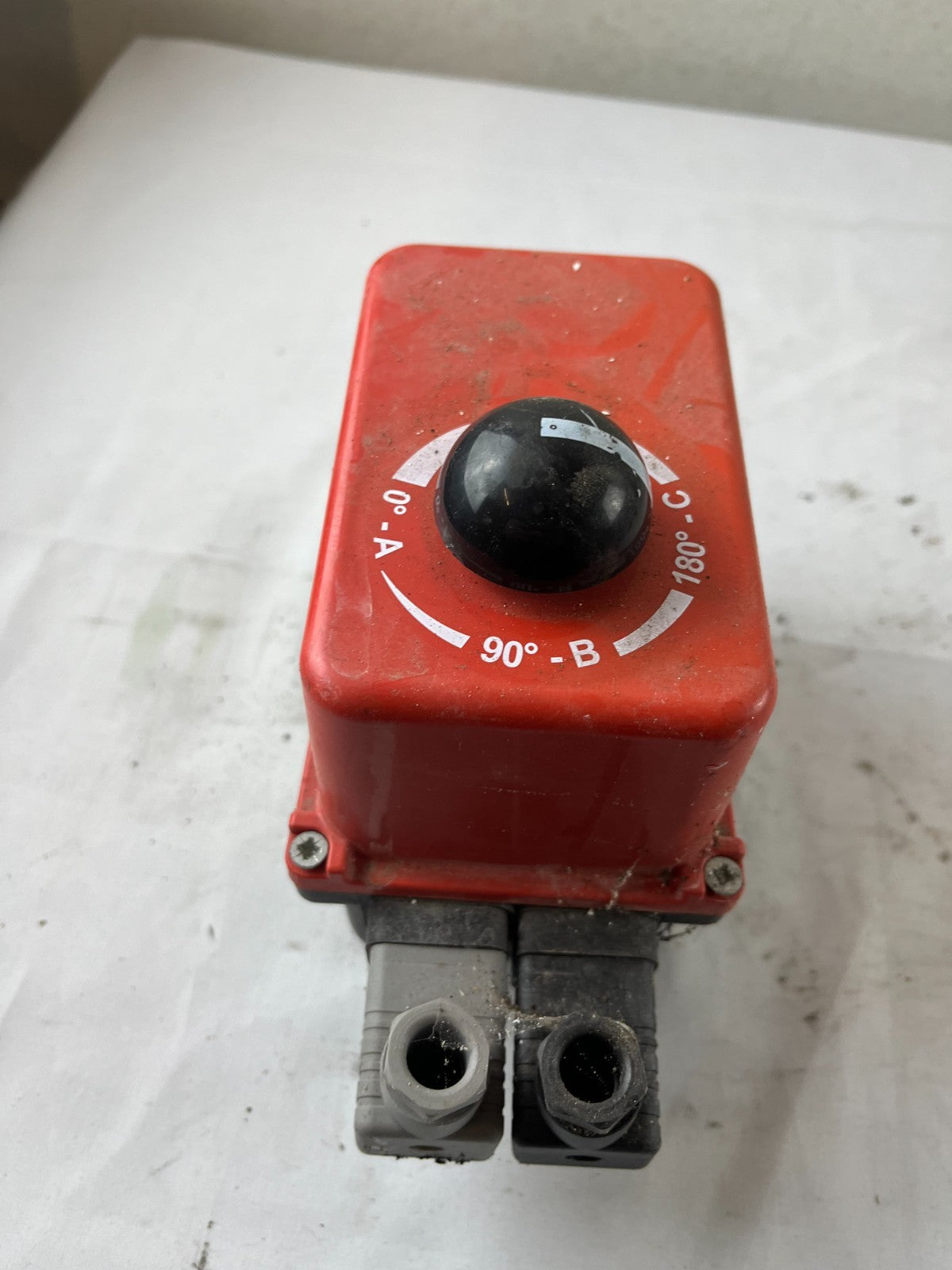

• Cable entries: Two cable glands/connectors fitted as shown in the photos.

• See photos and Valpes ER20 documentation for wiring diagram and detailed specs.

Condition

• Used, in good overall condition.

• Cosmetic wear present: dirt, dust, and surface scratches on housing from normal service.

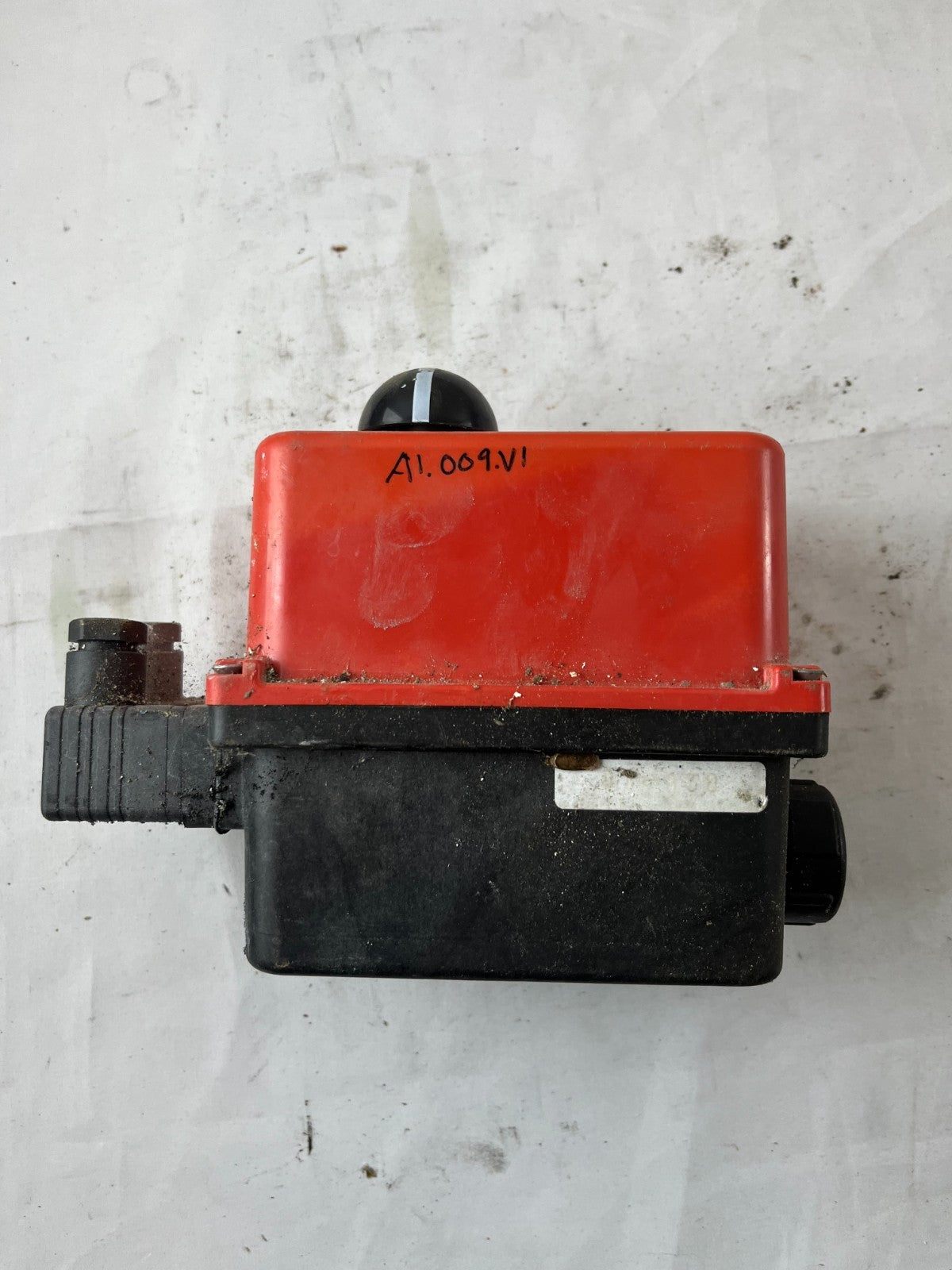

• Hand‑written tag/marker text visible on one side of the red cover.

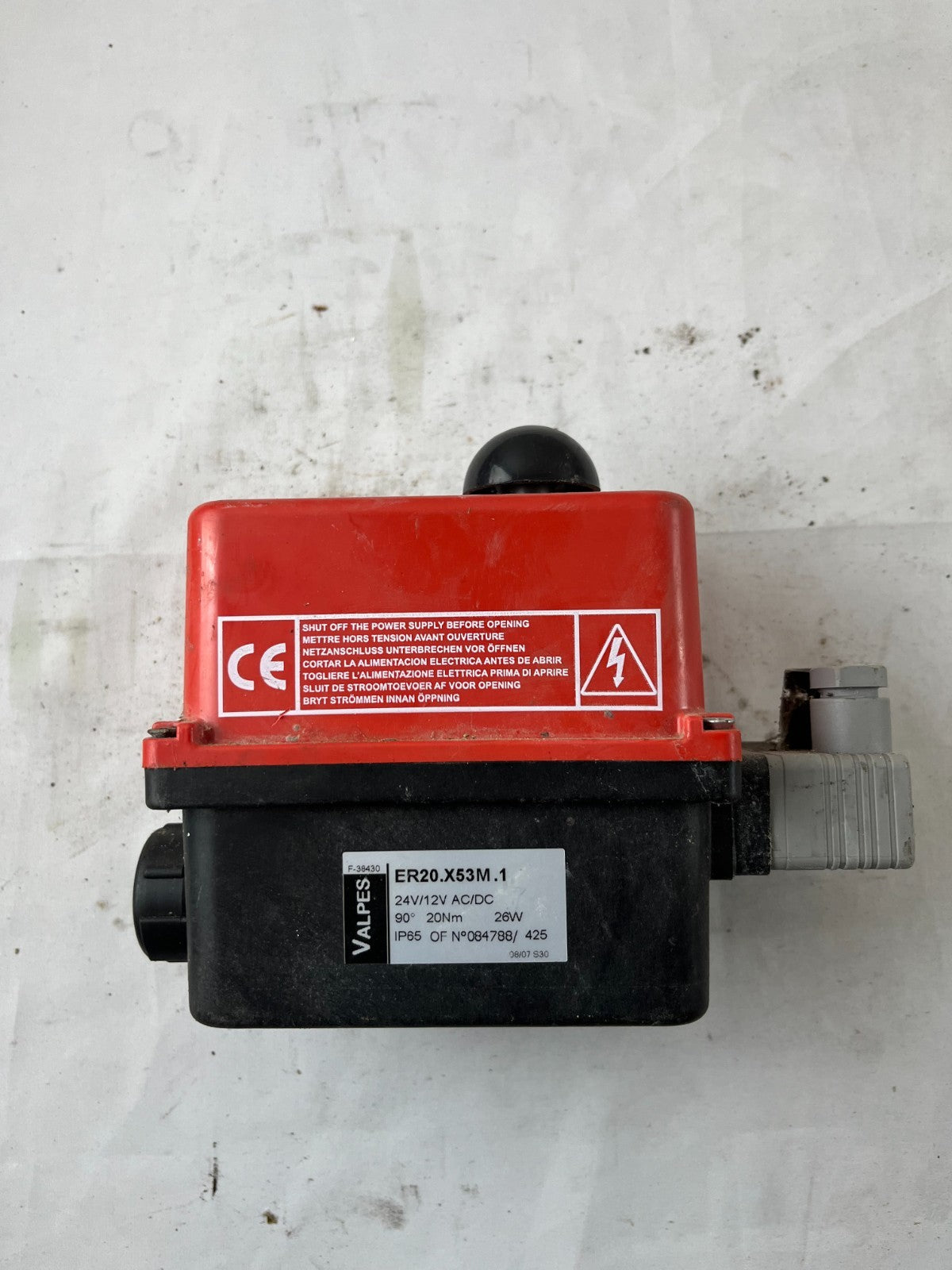

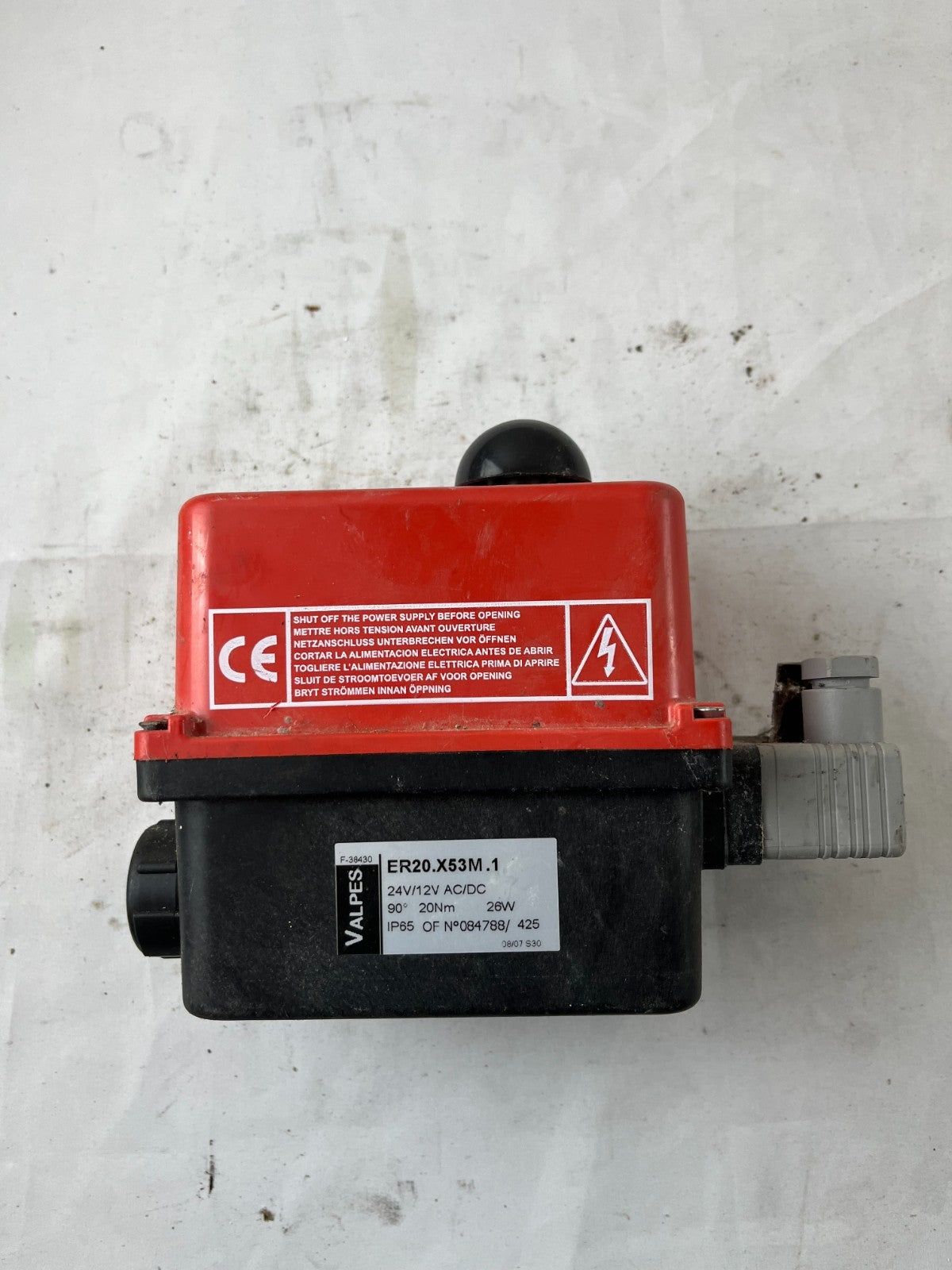

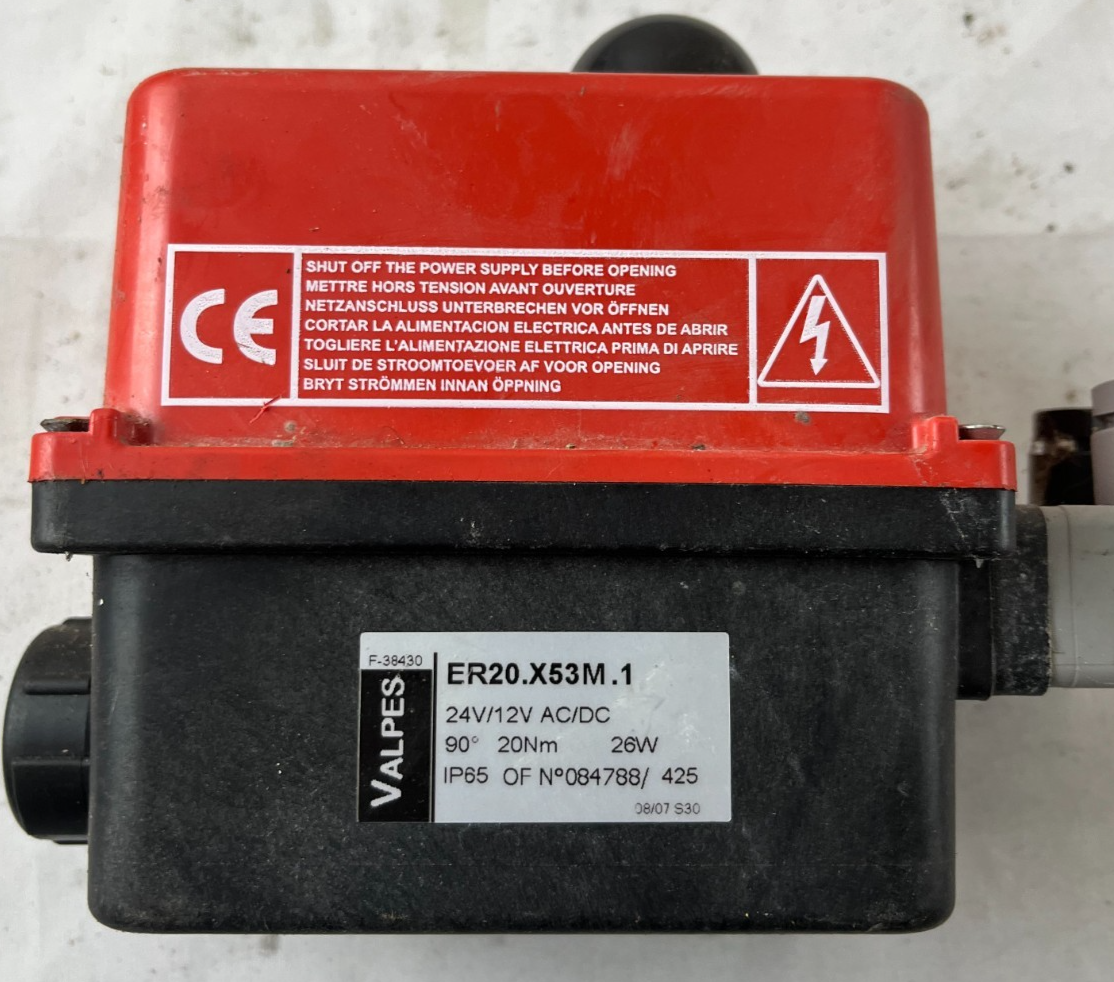

• Labels are intact and legible, including CE safety warning and rating plate.

• Cable glands and indicator dome present; mounting interface and shaft not visible internally but appear intact externally.

• No mounting hardware, valve, or accessories included—actuator unit only as shown.

• No original packaging or manuals.

Notes

• This is the low‑voltage 24/12 V AC/DC ER20.X53M.1 model; ensure your control panel provides the correct voltage and wiring scheme before purchase.

• Limit switches and travel stops should be checked and adjusted by a qualified technician when installing on a new valve.

• Suitable as a replacement actuator on compatible Valpes ER20 installations or other ISO 5211 F03/F04/F05 quarter‑turn valves within the 20 Nm torque range.
