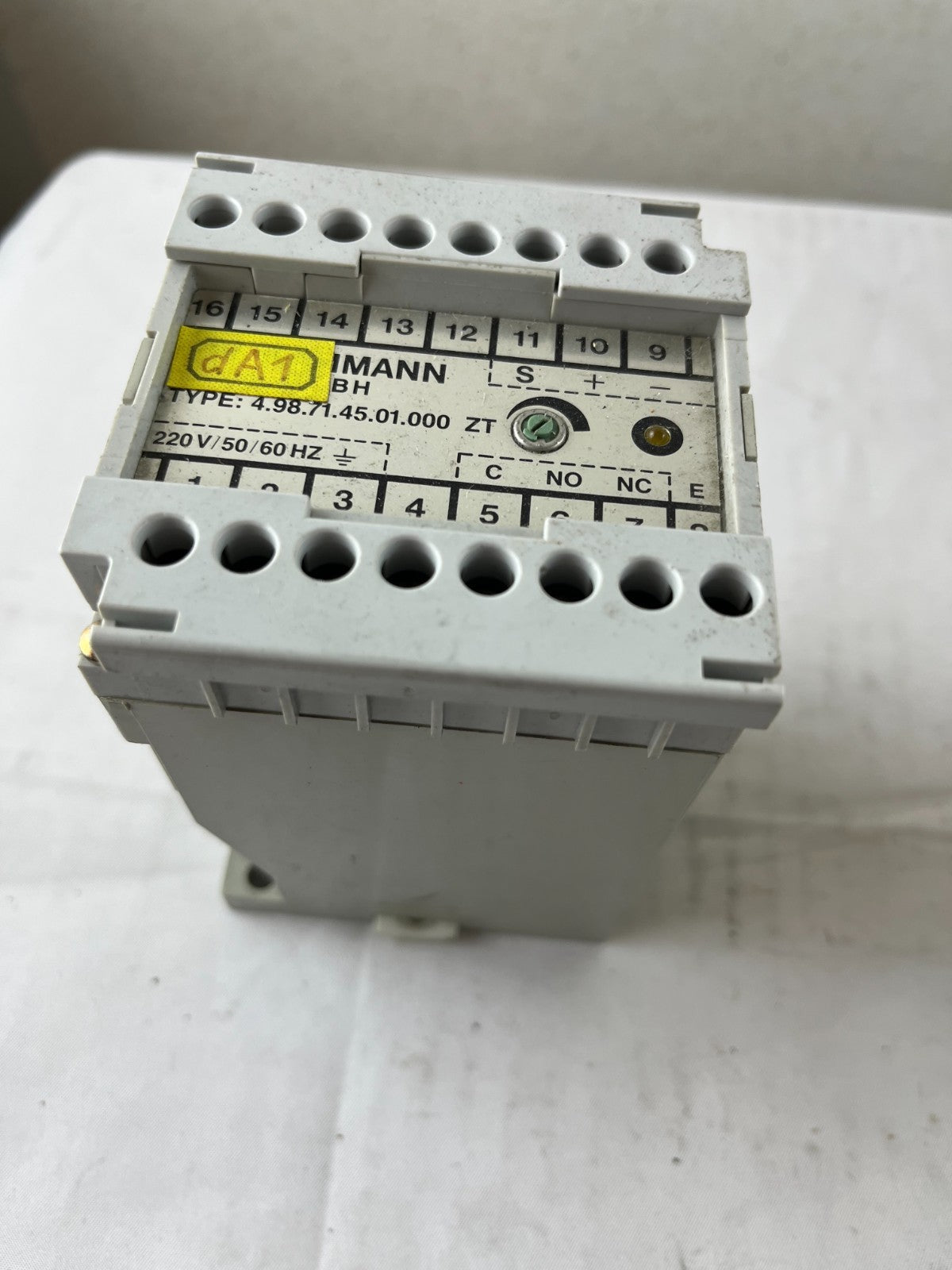

W. KAMMANN GmbH 4.98.71.45.01.000 ZT Timing / Monitoring Relay 220 V 50/60 Hz

Compact W. KAMMANN GmbH control module, type 4.98.71.45.01.000 ZT, designed as a timing/monitoring relay with change‑over contacts for 220 V 50/60 Hz supply in Kammann printing and special‑purpose machines. Unit is used, in good working condition, with screw terminals on both sides and a front adjustment pot.

Item details

• Brand: W. KAMMANN GmbH (Koenig & Bauer Kammann, container and label printing machinery).

• Type / part no.: 4.98.71.45.01.000 ZT (front label).

• Supply: 220 V / 50/60 Hz (UB).

• Function (probable): Time or process monitoring relay with adjustable setpoint (S / + / – input) and one change‑over relay contact set (C‑NO‑NC‑E terminals) for switching external loads; exact curve is machine‑specific.

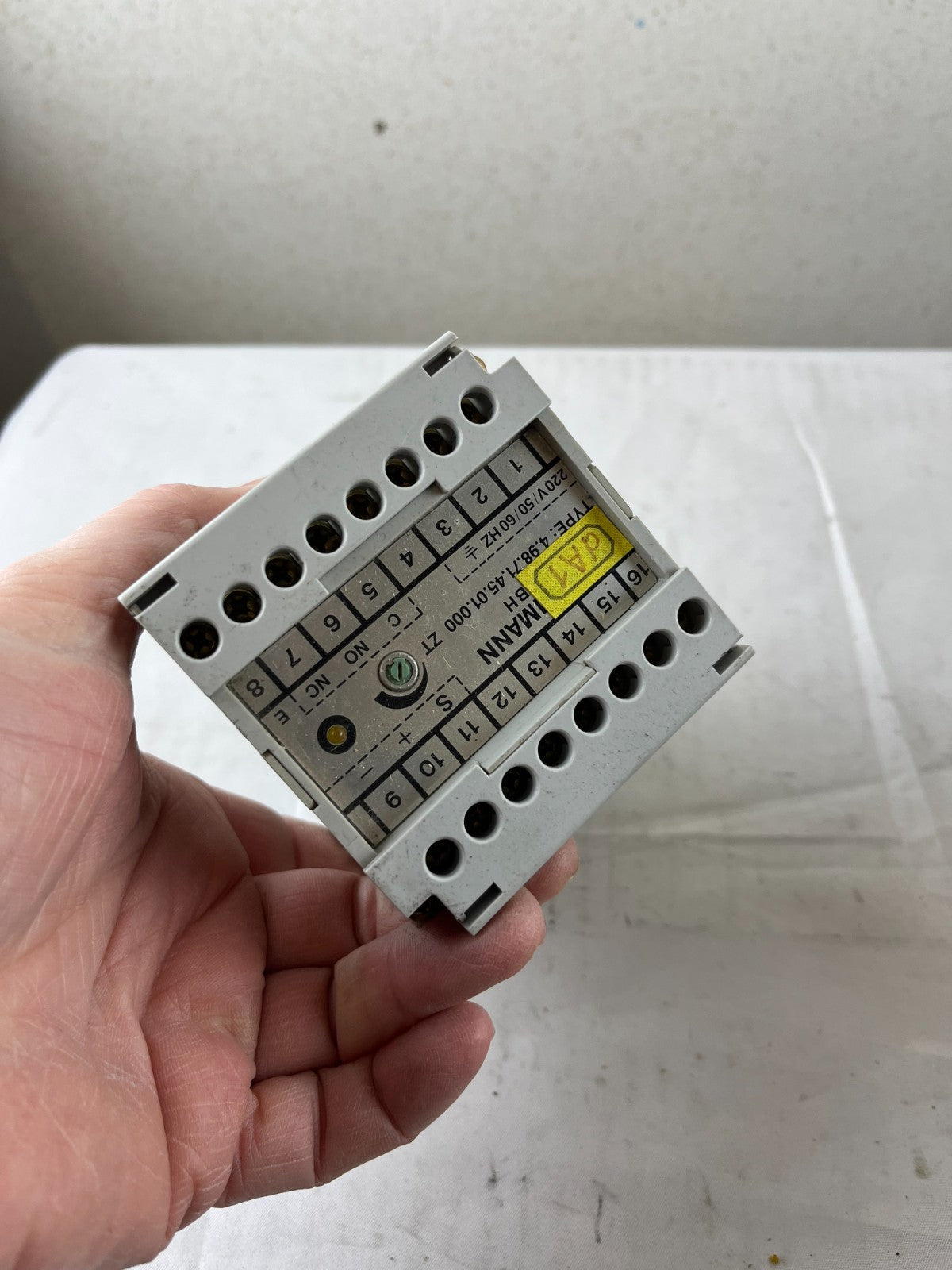

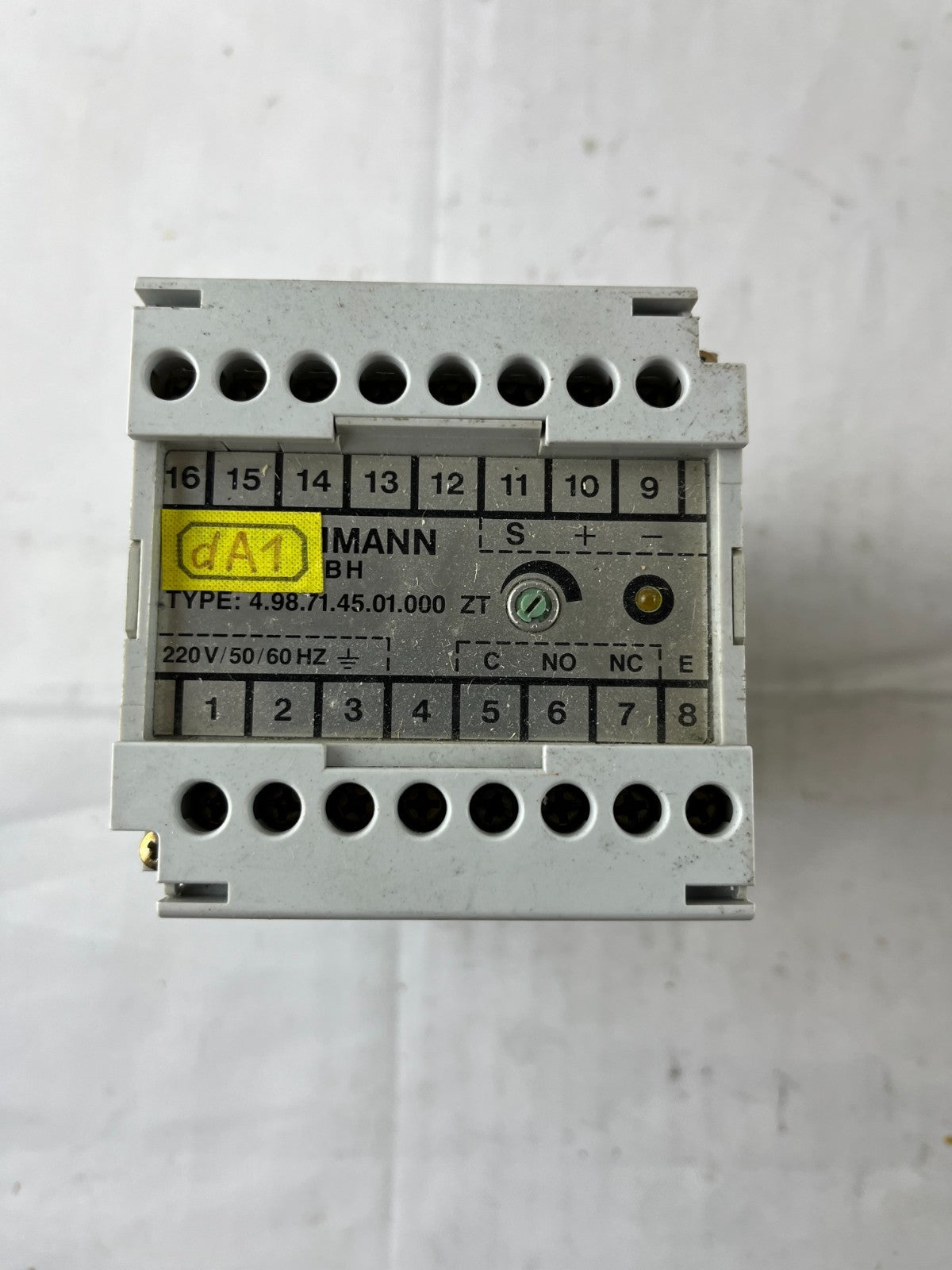

• Connections:

  • Terminals 1–8: supply and relay outputs (C, NO, NC, E).

  • Terminals 9–16: signal inputs S+/S– and additional control points shown on the wiring diagram.

• Front controls and indicators:

  • Central slotted potentiometer to set timing or threshold.

  • Two status LEDs for supply and relay state.

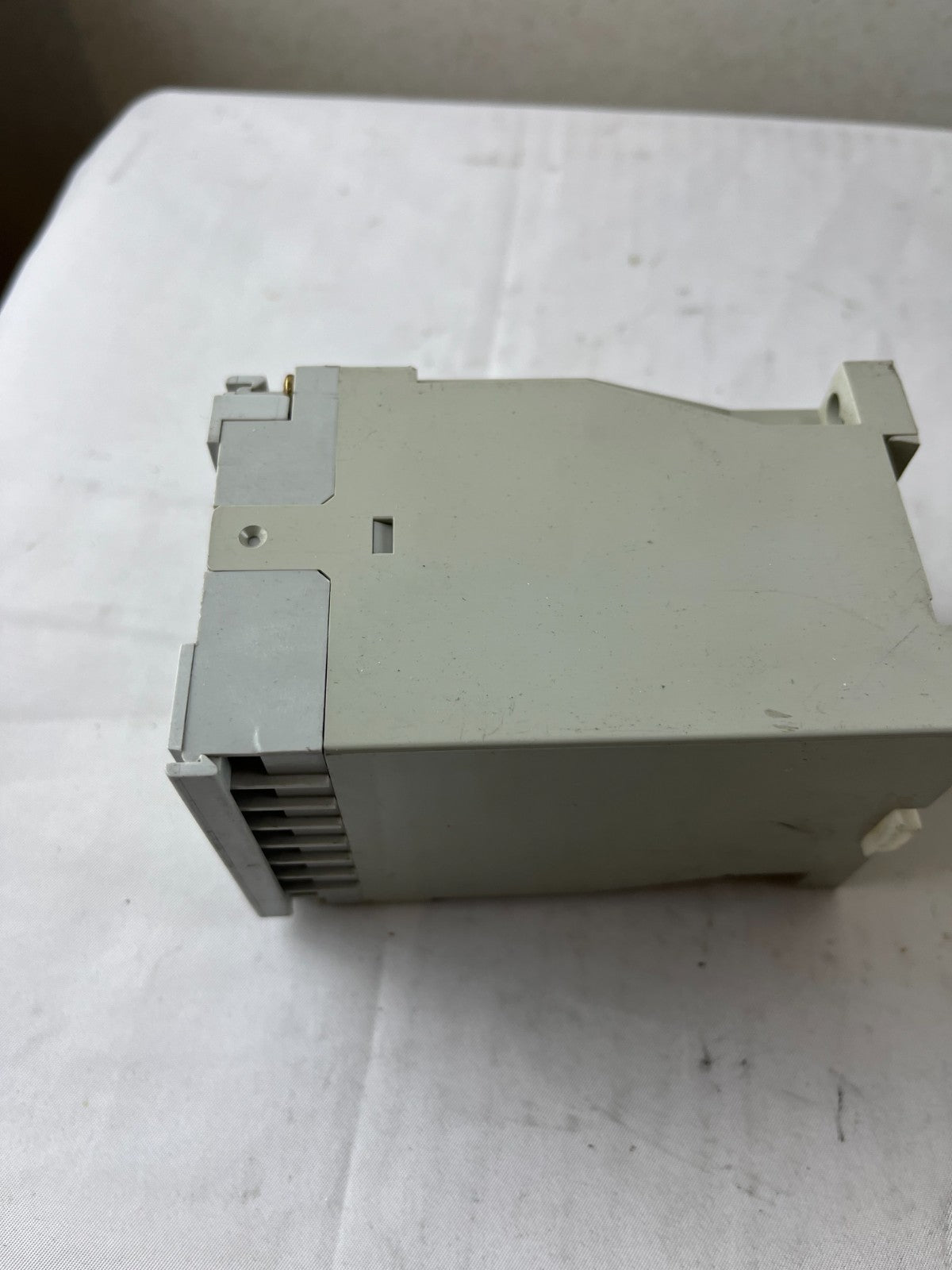

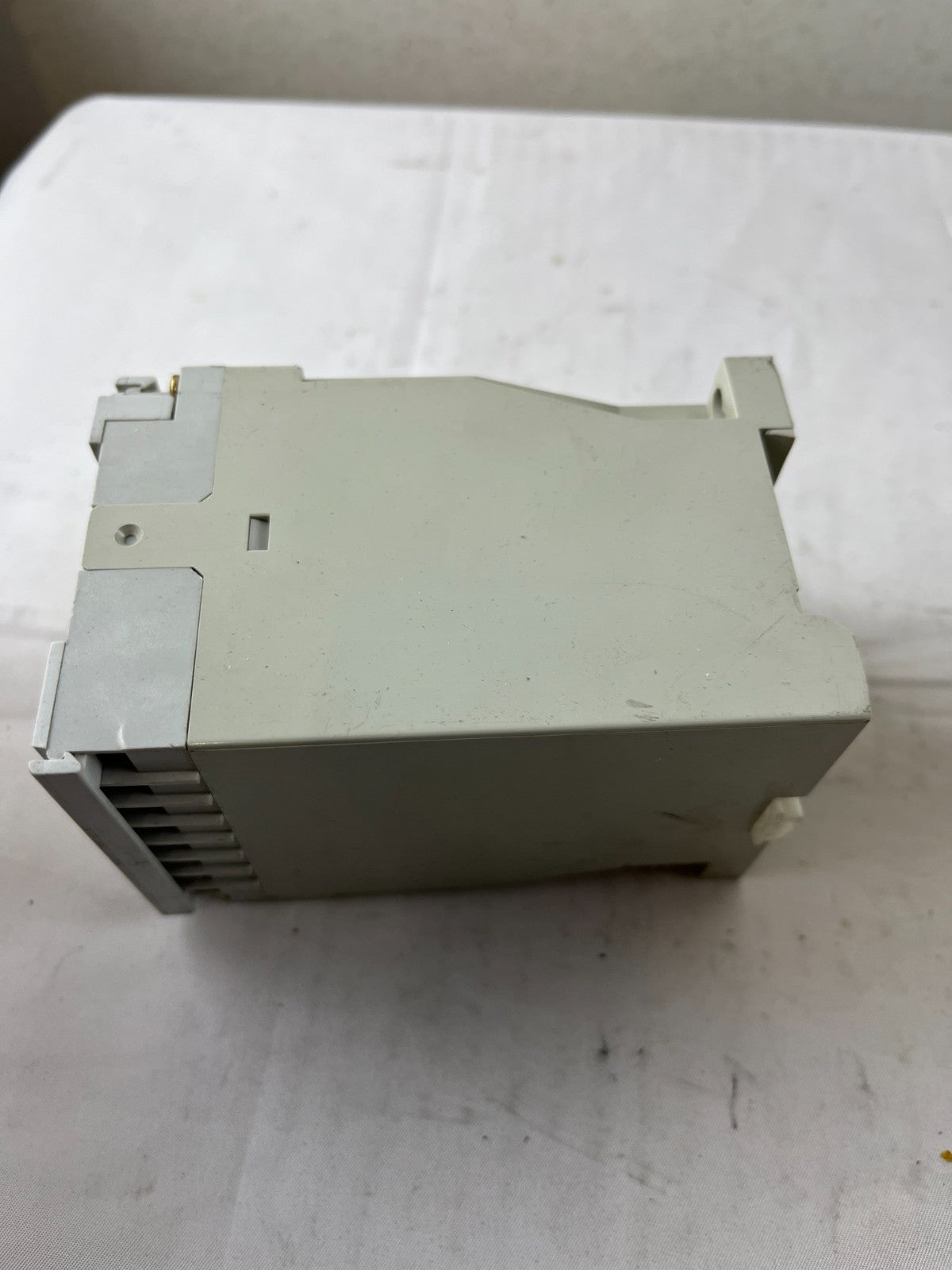

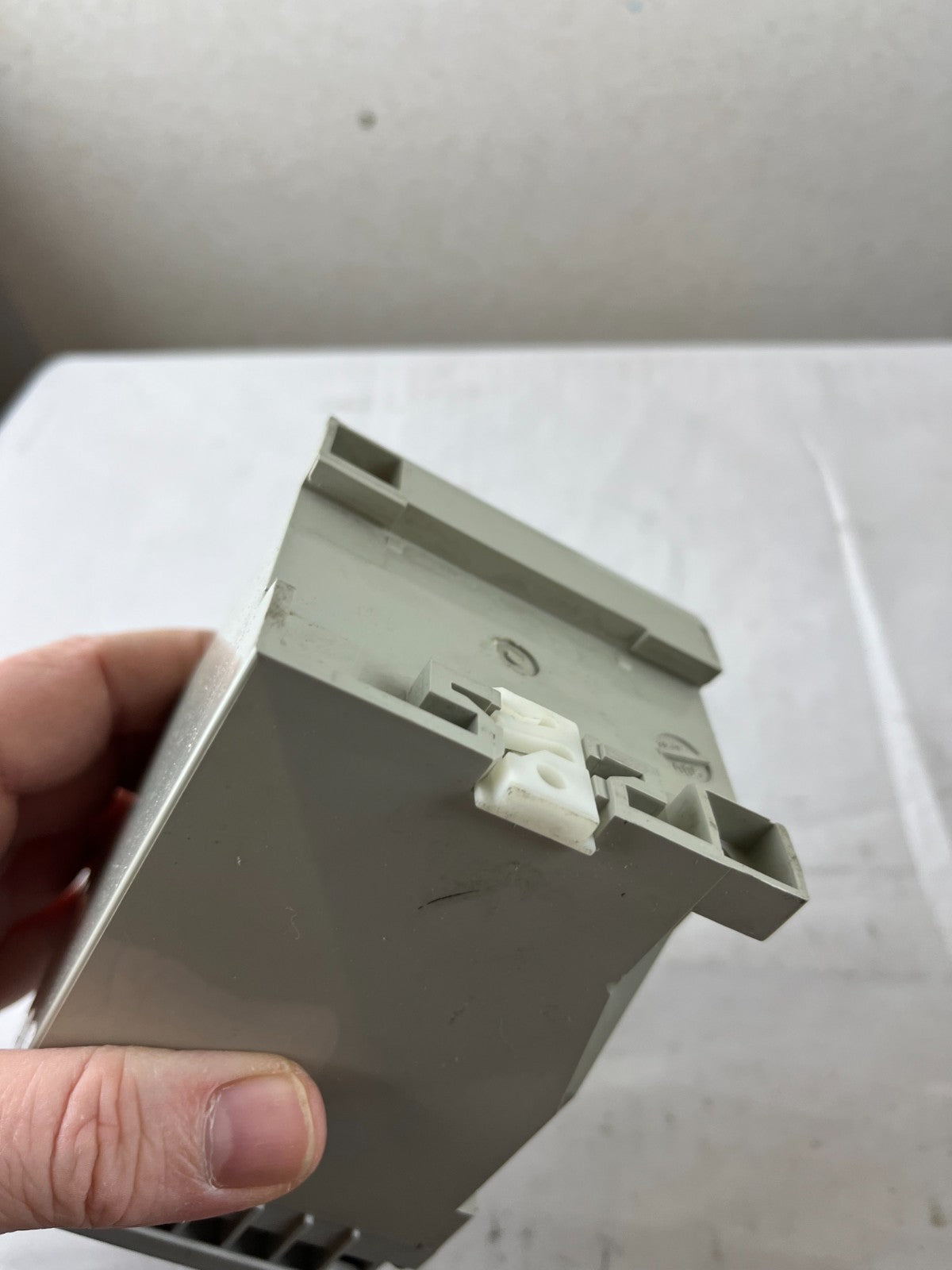

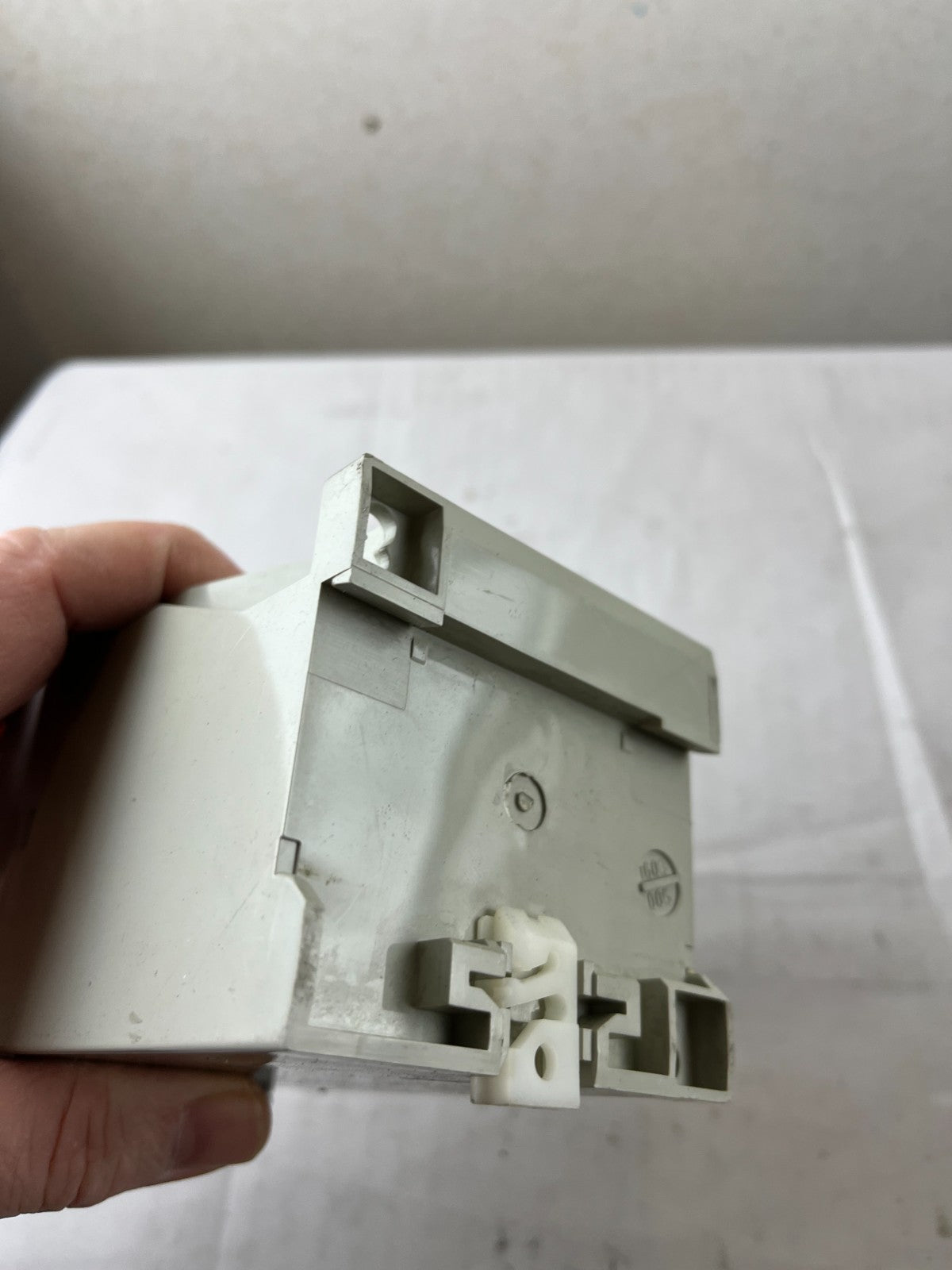

• Mounting: Panel/DIN‑rail style plastic housing with side clips.

Condition

• Used pull from a working Kammann system.

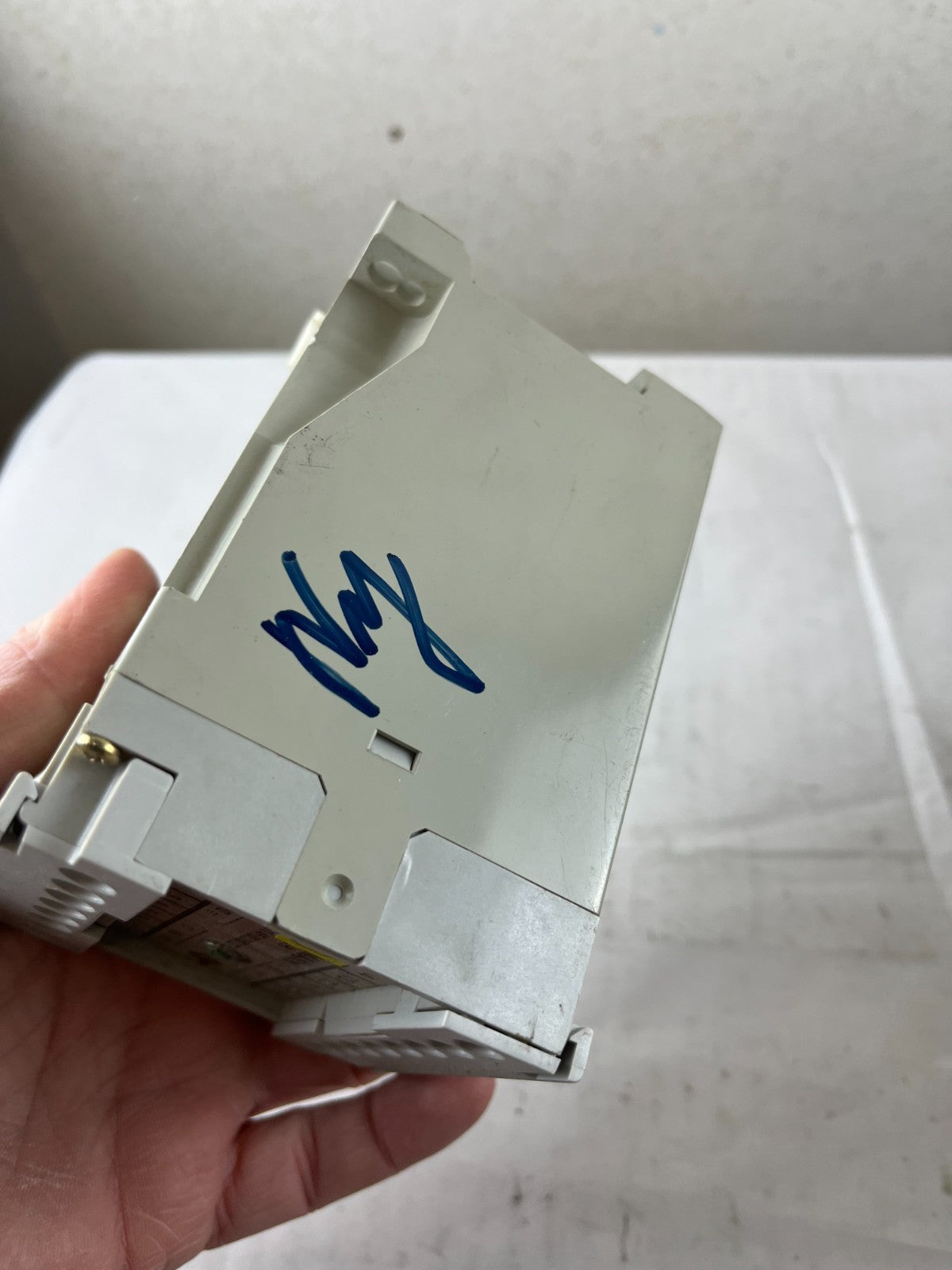

• Housing shows normal cabinet wear, light dirt and small scratches, but no cracks or broken mounting clips.

• Terminals are clean with no obvious damage; label is intact and fully legible.

• No original documentation, plug‑in base or wiring harness included.

Notes

• OEM spare for Koenig & Bauer Kammann machines; verify suitability of type 4.98.71.45.01.000 ZT against your machine’s electrical diagrams before purchase.

• Installation and adjustment should only be done by qualified personnel familiar with 220 V AC controls and Kammann equipment.
